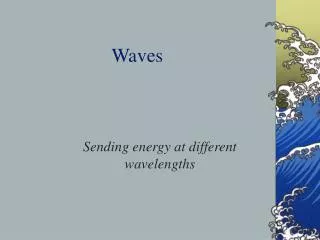

  1. Waves Sending energy at different wavelengths

  2. Outline • Waves and Solar Energy • Definitions and Descriptions • Sources and disturbances • Velocity and the medium • Frequency and Wavelength

  3. Solar Energy • What is Solar Energy? • Nuclear fusion in the Sun’s core. • Heating up the core to 40,000 K, and the surface to 6,000 K. • How does Solar Energy get here? • Conduction? – heat transfer through contact • Convection? – through transport of matter • Radiation! – through the emission of electromagnetic waves • EM waves can transport energy through a vacuum and over billions of miles!

  4. Waves • -- A disturbance in a medium which carries energy but not matter. • Disturbance – can be a single pulse or a repeated (periodic) vibration. • Medium – Something through which waves can travel (water, air, strings, etc.) • Transverse waves – the disturbance of the medium is perpendicular to the motion of the wave. • Longitudinal waves – motion of the medium is in the direction of the motion of the wave.

  5. Characteristics of Waves velocity A λ • A = amplitude is the displacement of the medium from equilibrium. • λ = wavelength is the distance along the direction of motion between repeating points on the wave. • T = period is the time it takes for the wave to repeat itself. • v = velocity is the rate at which the wave is moving through the medium.

  6. Wave velocity and the medium • The velocity of a regular or periodic wave is just • v = λ / T • Example: λ = 2 m and T = 4 seconds. • v = 2m / 4s = .5 m/s. • The velocity of waves is primarily a function of the medium. • vsound in air = 340 m/s • vsound in water = 1500 m/s • vsurface water waves = 2 m/s • vlight = 3 x 108 m/s

  7. Wave Speed: a comparison • Certain events produce both light and sound simultaneously. • We detect them at different times because of the different wave speeds in the media. • You’re a distance of 1 mile (1.6km) away. • v = d / t --- so, t = d / v. • tsound = 1600 m ÷ 340 m/s = 5 sec • tlight = 1600 m ÷ 3 x 108 m/s = 5 x 10-6 s

  8. Wave frequency • Frequency, f, is the inverse of the period, T. • f = 1 / T. • Period is the time it takes for a wave to repeat itself – frequency is the number of times a wave repeats itself in one second • Measured in Hertz: 1 Hz = 1 cycle per sec. • Now, v = λ / T = λ f

  9. v = λf; λ = v/f; f = v/λ • Example 1: • AM radio 1000 has f =1000 kHz or 1 MHz. • Since v = 3 x 108 m/s, • λ = 3 x 108 m/s ÷ 1 x 106 Hz = 300 m! • Example 2: • The highest frequency we can hear is 20,000 Hz. • λ = 340 m/s ÷ 20,000 Hz = .017 m = 1.7 cm

  10. The Audible Spectrum C above C above
