  1. Static testing Elena Rudovol February, 13, 2014

  2. What is static testing? Static Testingdo not execute code. It manually checks work documents to find errors in early stage. • Review work documents: • Requirement specifications • Design document • Source Code • Test Plans • Test Cases • Test Scripts • Help or User document • Web Page content • … Static Testing Techniques (ISTQB): Individual: - desk-checking, data-stepping, proof-reading  Group: - Reviews (informal & formal): for consensus - Walkthrough (guide a group): for education - Inspection (most formal): to find faults

  3. Static VS dynamic testing Note: Both types of testing are important.

  4. Requirements specification review “Most of the bugs in software are due to incomplete or inaccurate functional requirements” Requirements: • should be clear and specific with no uncertainty, • should be related to project goal, • should be measurable in terms of specific values (e.g. “response in 2 seconds” instead of “works fast”), • should be testable having some evaluation criteria for each requirement, • should be complete and consistent, without any duplicates and missing requirements Good practices: • Write good-structured requirements or user stories (easy-to-find), • Use techniques of model-based testing in requirements (decision tables, state transition diagrams), • Supplement with examplesof scenarios how to use a system, • BDD is a good approach for writing good specification. It includes all best practices above.

  5. Why do we need manual code review? • Knowledge sharing: • Easier to make bug-fix • Easier to get started for newcomers • Easier to support the code • Less work in the future: • Less amount of mistakes • Less time to understand the code • Easier to support the code • Adoption: • Frequently changed requirements require fast adoption to them

  6. Manual code review Main goals: • Finding potential bugs on the cheap: • “obvious” mistakes, • mistakes that difficult to find “after-the-fact” (e.g. thread synchronization, resource leaks etc.), • ensuring that unit tests cover all code paths, • Well-documented software: • consistent end-user documentation (It’s important for Sitecore to provide well-documented API!), • adequate comments in code, • Software that complies with enterprise coding standards: • following code standards and OOP practices, • no “anti-patterns” in code and database structure, • Teaching and sharing knowledge between developers. Good practices: • review can to be done by any team member (not only lead developer), • add a status “Ready for Review” into bug-tracking system.

  7. Main metrics in Sonar Code coverage - % of code which is covered by unit tests: • Line Coverage - % of rows which run and tested (e.g. 80%) • Branch coverage - % of conditionals (true/false) run and tested (e.g. 80%) Branch coverage is more important because it shows real coverage of business logic Comments in code: • API should be well documented (feedback from marketing department) • tools for comments generating (e.g. GhostDoc, Doxygen) • most public methods should be documented (E.g. metric is 80%) • no commented rows in code Duplications: We should achieve 0% of copy-paste in code. Violations: We should pay attention on Sonar violations and fix blockers, critical and major.

  8. LCOM4 metric Lack of Cohesion of Methods (LCOM4) metric: The more cohesion the higher probability to fail if functionality is changed.

  9. Package tangle index metric Package tangle index: Dependencies should flow in one direction. No cyclomatic dependencies. Example:

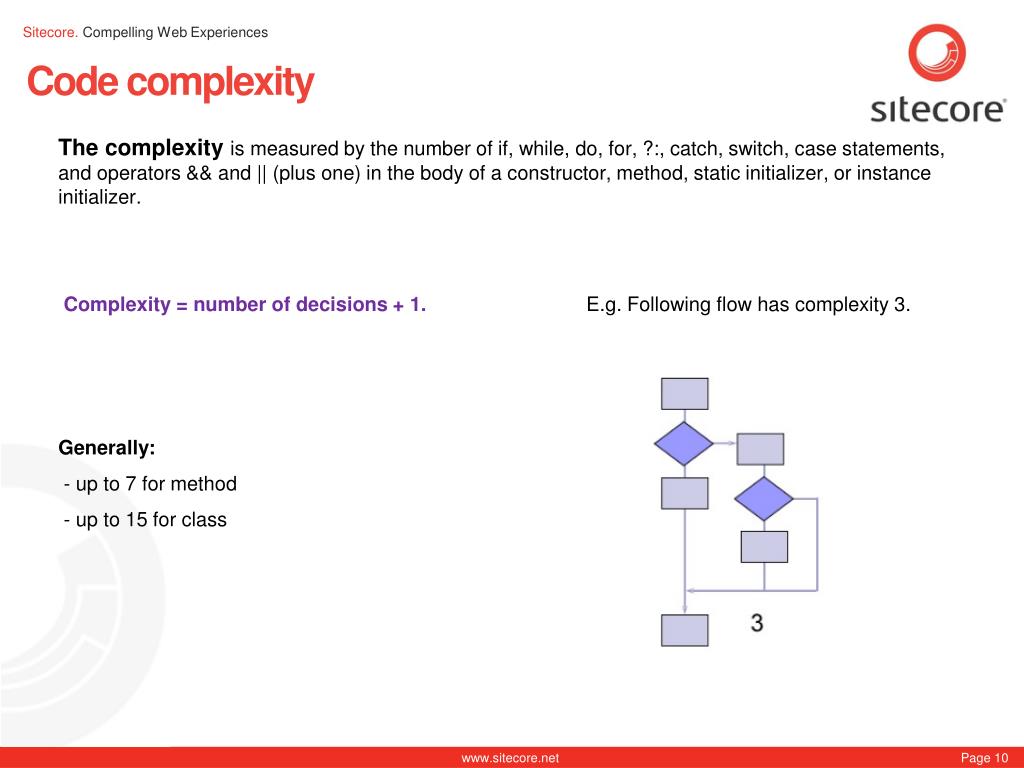

  10. Code complexity The complexity is measured by the number of if, while, do, for, ?:, catch, switch, case statements, and operators && and || (plus one) in the body of a constructor, method, static initializer, or instance initializer. Complexity = number of decisions + 1. E.g. Following flow has complexity 3. Generally: - up to 7 for method - up to 15 for class

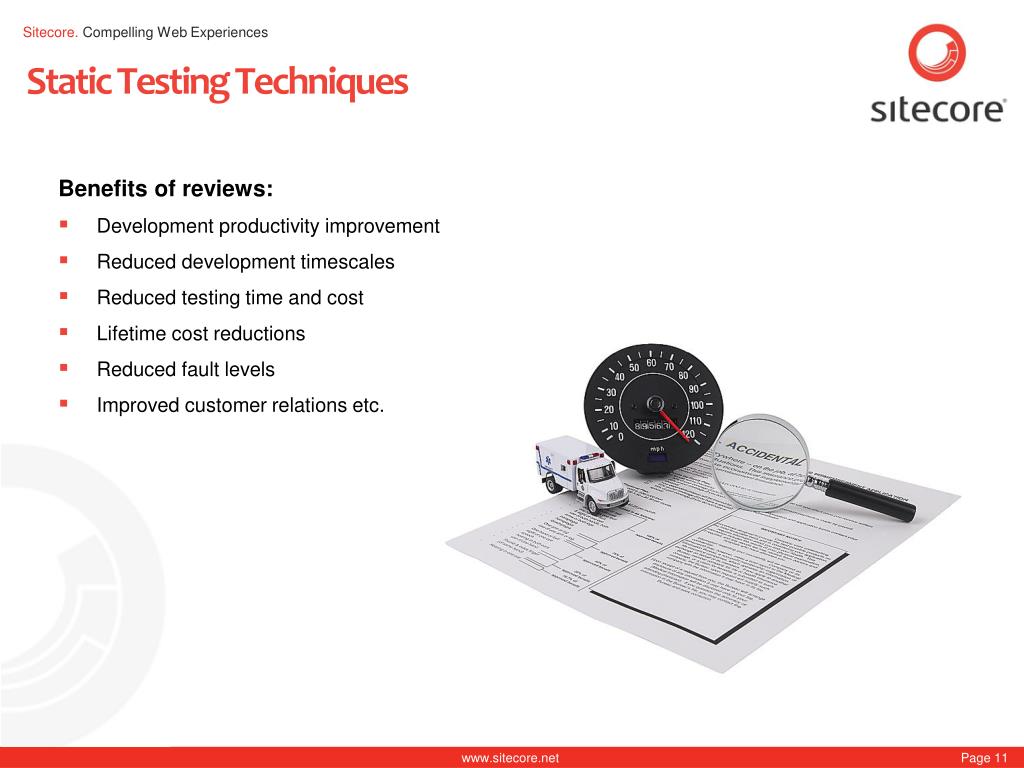

  11. Static Testing Techniques Benefits of reviews: • Development productivity improvement • Reduced development timescales • Reduced testing time and cost • Lifetime cost reductions • Reduced fault levels • Improved customer relations etc.

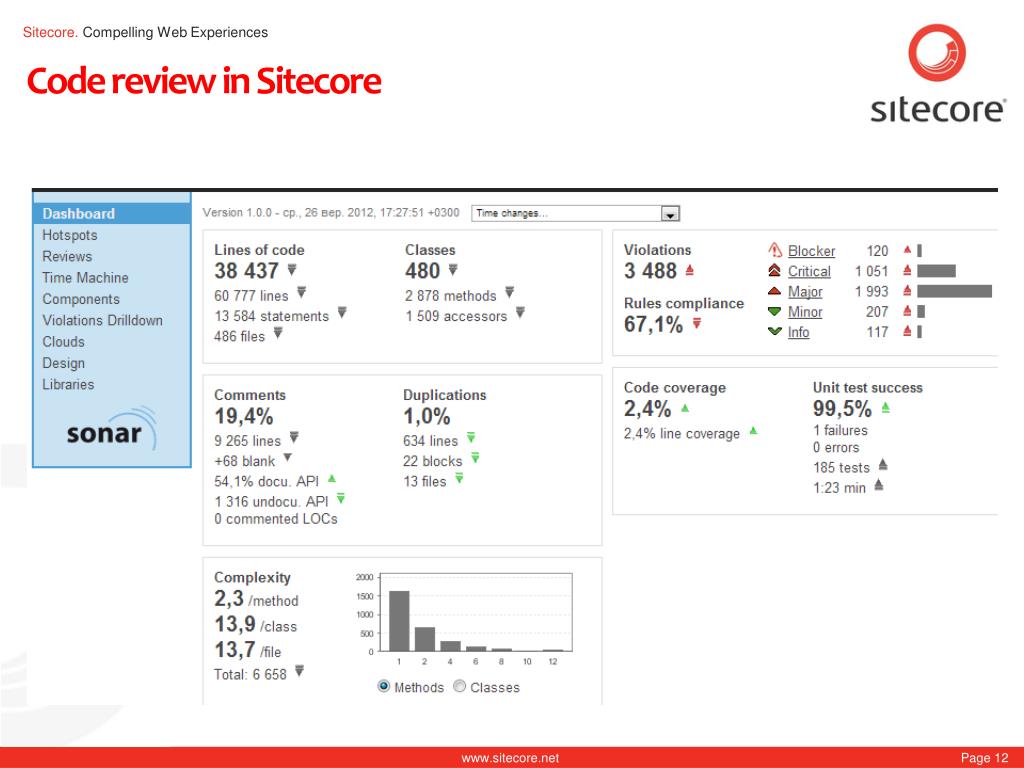

  12. Code review in Sitecore

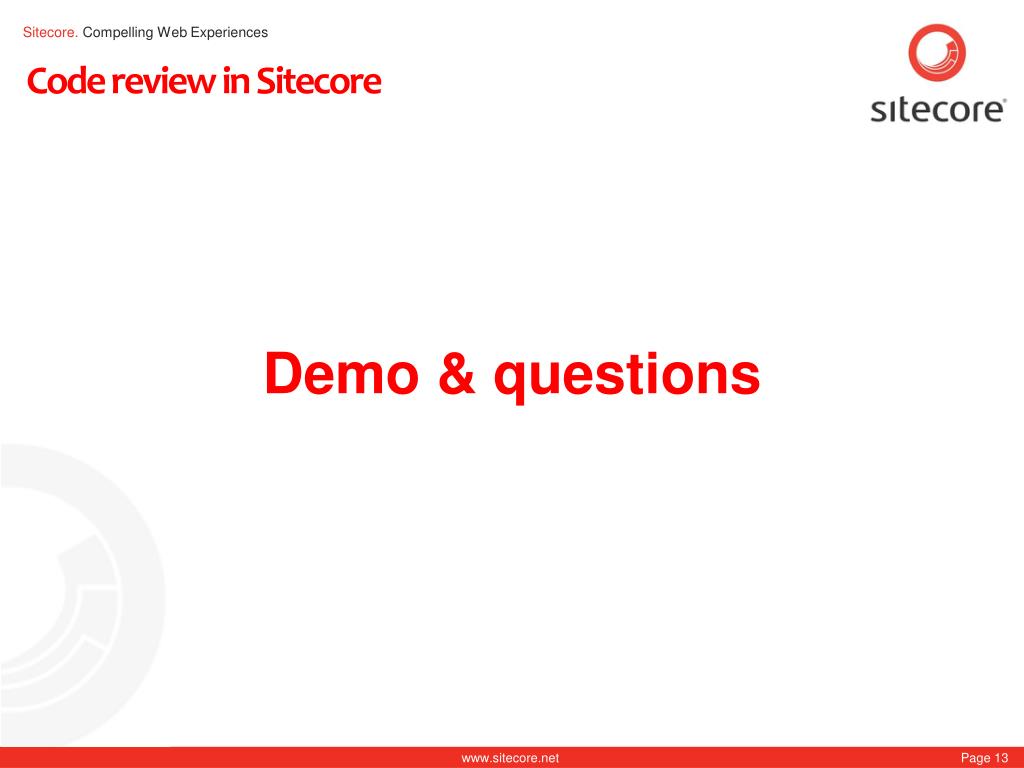

  13. Code review in Sitecore Demo & questions
