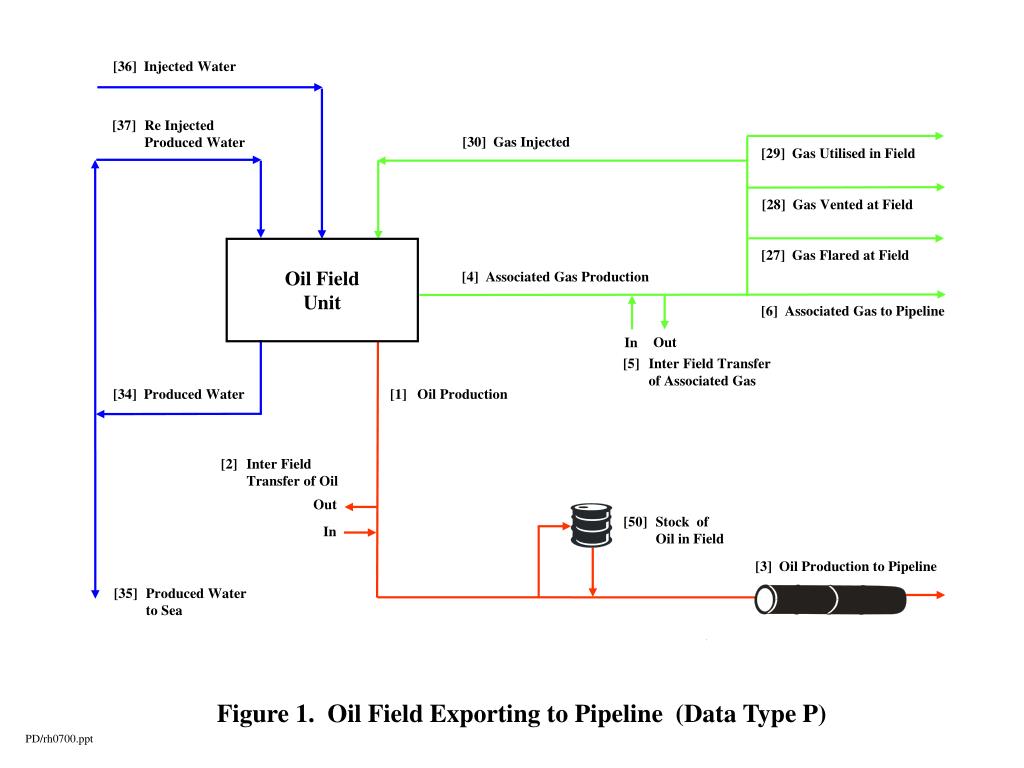

Figure 1. Oil Field Exporting to Pipeline (Data Type P)

[29] Gas Utilised in Field. [28] Gas Vented at Field. [27] Gas Flared at Field. [6] Associated Gas to Pipeline. Out. In. [5] Inter Field Transfer of Associated Gas. [2] Inter Field Transfer of Oil. [50] Stock of Oil in Field. Out. In. [36] Injected Water.

elata
Download Presentation

Figure 1. Oil Field Exporting to Pipeline (Data Type P)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. [29] Gas Utilised in Field [28] Gas Vented at Field [27] Gas Flared at Field [6] Associated Gas to Pipeline Out In [5] Inter Field Transfer of Associated Gas [2] Inter Field Transfer of Oil [50] Stock of Oil in Field Out In [36] Injected Water Figure 1. Oil Field Exporting to Pipeline (Data Type P) [37] Re Injected Produced Water [30] Gas Injected Oil Field Unit [4] Associated Gas Production [34] Produced Water [1] Oil Production [3] Oil Production to Pipeline [35] Produced Water to Sea PD/rh0700.ppt

  2. [29] Gas Utilised in Field [28] Gas Vented at Field [27] Gas Flared at Field [6] Associated Gas to Pipeline Out In [5] Inter Field Transfer of Associated Gas [2] Inter Field Transfer of Oil Out In [36] Injected Water [37] Re Injected Produced Water [30] Gas Injected Oil Field Unit [4] Associated Gas Production [34] Produced Water [1] Oil Production [52] Stock in Pipeline [35] Produced Water to Sea [61] Individual Oil Tanker Disposal [51] Stock of Oil in Tanker [60] Total Oil Tanker Disposals Figure 2. Onshore Oil Field or Offshore Tanker Loading (Data Type T) PD/rh0700.ppt

  3. Out In [8] Inter Field Transfer of Dry Gas [31] Gas Utilised from Inter Field Transfer [30] Gas Injected [29] Gas Utilised in Field [28] Gas Vented at Field [27] Gas Flared at Field [34] Produced Water Dry Gas Field Unit [7] Dry Gas Field Production [9] Dry Gas to Pipeline [35] Produced Water to Sea [17] Dry Gas Field Condensate Production [18] Inter Field Transfer of Dry Gas Condensate Out ONSHORE ONLY In [78] Sales Gas to NTS co mingling [79] Individual Sales Gas Non-NTS Figure 3. Offshore and Onshore Dry Gas Field (Data Type G) PD/rh0700.ppt

  4. [68] Individual Ethane Disposal [64] Total Ethane Disposal [45] Ethane Stock [12] NGLs Condensate Entering Terminal [43] Gas Utilised in Terminal [69] Individual Propane Disposal [65] Total Propane Disposal [46] Propane Stock [42] Gas Vented at Terminal [70] Individual Butane Disposal [66] Total Butane Disposal [41] Gas Flared at Terminal [10] Pipeline Oil Entering Terminal [47] Butane Stock [71] Individual C5 Condensate Disposal [67] Total C5 Condensate Disposal [14] NGL Receipts [48] C5 Condensate Stock [44] NGL Production Oil Terminal Unit [24] Condensate and NGL Losses [13] SCO Receipts [63] Individual SCO Disposal [62] Total SCO Disposal [23] SCO Losses [40] SCO Stock Figure 4. Oil Pipeline Terminal (DataType O) PD/rh0700.ppt

  5. [68] Individual Ethane Disposal [64] Total Ethane Disposal [45] Ethane Stock [43] Gas Utilised in Terminal [69] Individual Propane Disposal [65] Total Propane Disposal [46] Propane Stock [42] Gas Vented at Terminal [70] Individual Butane Disposal [66] Total Butane Disposal [41] Gas Flared at Terminal [47] Butane Stock [71] Individual C5 Condensate Disposal [67] Total C5 Condensate Disposal [48] C5 Condensate Stock [44] NGL Production [73] Individual Mixed Condensate Disposal [72] Total Mixed Condensate Disposal [24] Condensate and NGL Losses [12] NGLs Condensate Entering Terminal [15] Associated Gas Entering Terminal Associated Gas Terminal Unit [75] Sales Gas from UK Production [78] Sales Gas to NTS [79] Individual Sales Gas Non NTS [25] Gas Losses [76] Sales Gas from Non UK Production Figure 5. Associated Gas Terminal (Data Type A) PD/rh0700.ppt

  6. [20] Dry Gas Condensate Entering Terminal [43] Gas Utilised in Terminal [42] Gas Vented at Terminal [19] Pipeline Dry Gas Entering Terminal [41] Gas Flared at Terminal [82] Individual Dry Gas Condensate Disposal [81] Dry Gas Condensate Disposal [49] Dry Gas Condensate Stock Dry Gas Terminal Unit [26] Dry Gas Condensate Losses [75] Sales Gas from UK Production [78] Sales Gas to NTS [79] Individual Sales Gas Non NTS [25] Gas Losses [76] Sales Gas from Non UK Production Figure 6. Dry Gas Terminal (Data Type D) PD/rh0700.ppt
