  1. Privacy regulation and research Aalto University, autumn2012

  2. Outline • Privacy legislation • Examples of my own privacy research: • Unwanted metadata in digital documents • Identifiers leaks to the local network

  3. Two aspects of privacy • Control over personal information • Emphasized in Europe • Gathering, disclosure and false representation of facts about someone’s personal life • Right to be left alone • Emphasized in America • Interference, control, discrimination, censorship, also spam

  4. Privacy legislation in Finland WARNING: I’m not a lawyer. The following slides contain highly simplified interpretations of the law. • Perustuslaki (constitution), 10 §http://www.finlex.fi/fi/laki/ajantasa/1999/19990731#p10 • Protection of privacy, honor and home • Secrecy of letters, messages and telephone calls Also: • Obligation to protect personal information by law • Exceptions can be made in other laws

  5. Crimes against privacy in Finland • Rikoslaki(criminal code), luku 24http://www.finlex.fi/fi/laki/ajantasa/1889/18890039001#l24 • Kotirauhanrikkominen, Rikoslaki, luku 24, 1–2, 11 § • Disturbing people in their home (or equivalent place) is a crime • Telephone and mobile phone are also protected area • Salakuuntelujasalakatselu, Rikoslaki, luku 24, 5–7 § • Using technical equipment to listen or record people’s speech home or some other place when they don’t expect outsiders to hear is a crime • Using technical equipment to watch or record of pictures without permission at someone’s home (or equivalent place) , fenced yard, toilet or dressing room is crime • Ok to eavesdrop voices and sounds without equipment • Ok to record sound when you are legitimately present, e.g. your own conversations or telephone calls • Ok to photograph or record video in a public place

  6. Crimes against privacy in Finland • Yksityiselämääloukkaavantiedonlevittäminen, Rikoslaki, luku 24, 8 § • Publishing harmful information about an individual’s private life is a crime • Exceptions for politicians and other public figures • Kunnianloukkaus (libel), luku 24, 9–10§ • Spreading harmful false information about an individual is a crime • Viestintäsalaisuudenloukkaus(breach of communications confidentiality), luku 38, 3–4 § • Opening a letter or closed or protected message addressed to someone else is a crime (e.g. guessing email password) • Eavesdropping telecommunications networks is a crime • Being a system admin or using hacking tools makes the offence especially serious • Communication metadata (e.g. called numbers) is also protected

  7. Personally identifiable information • Henkilötietolaki 22.4.1999/523http://www.finlex.fi/fi/laki/ajantasa/1999/19990523 • Law about personally identifiable information (PII) when it is either processed automatically or stored in a register • Does not apply to normal persona use of data • Requirements for PII processing: • Following good data processing practices! • Defined purpose: the sources, uses and transfer of information must be defined beforehand; no new uses allowed • The person’s permission is required to process PII, except in some specific cases (e.g. employment or customer relationship) • The PII processing must be necessary and the processor is responsible for its correctness • The subject person must in informed • Rekisteriseloste: PII register holder must make a public declaration of what data is stored and for which purpose • Right to inspect your PII in the register (free once a year) and demand correction of incorrect information

  8. Freedom of information legislation • Laki viranomaisten toiminnan julkisuudesta 21.5.1999/621http://www.finlex.fi/fi/laki/ajantasa/1999/19990621 • Allofficial (governement) documentsarepublic,unlesssecretbylaw • Includesbothdocuments and data • No requirement to tellyouridentityorthe reasonfor requesting the information • Appliesalso to universities • Long list of exceptions (24 §) to protectsecurity, economicsetc.; for example, the followinginformation is secretbydefault: • Reseachplans, thesisplans, examquestions, personalincome, wealth, benefits, use of social services, health, disability and sexualorientation, privateinformatiomaboutcrimesuspects and victims, psychologialevaluations, examanswers and verbal (non-numerical) evaluations of students, secrettelephonenumbers, addresses and mobile-devicelocation, privatepoliticalviews, way of life, membership in associations, hobbies, family life • Asianosaisjulkisuus (11–12 §) • Individualshaveaccess to secretinformationaboutthemselves, and informationrelevant to theirrights and obligations (with someexceptions)

  9. Protection of electronic communication • Sähköisenviestinnäntietosuojalaki 16.6.2004/516http://www.finlex.fi/fi/laki/ajantasa/2004/20040516 • Message contents, metadata and location information are confidential by default • If you learn about a message, you must not tell others and must not use the information for any purpose • Must not break technical protection or make tools for it (e.g. password cracking or cryptanalysis) • Organizations (mainly employers) have some rights to access communication metadata to prevent crime, “Lex Nokia” • ISP, email service or Internet telephony service must store communication metadata for 12 months (for criminal investigations) • Right for forbid direct electronic marketing to youself • Many other things…

  10. Privacy and employment • Lakiyksityisyydensuojastatyöelämässä 13.8.2004/759, http://www.finlex.fi/fi/laki/ajantasa/2004/20040759 • Rules for what information employers may record and process about their employees • Detaield rules for • Processing of PII and health data • Drug tests • Camera surveillance at work • Opening work-related emails addressed to an absentemployee

  11. Unwanted Metadata in digital documents

  12. Word XP/2003

  13. Office 2007

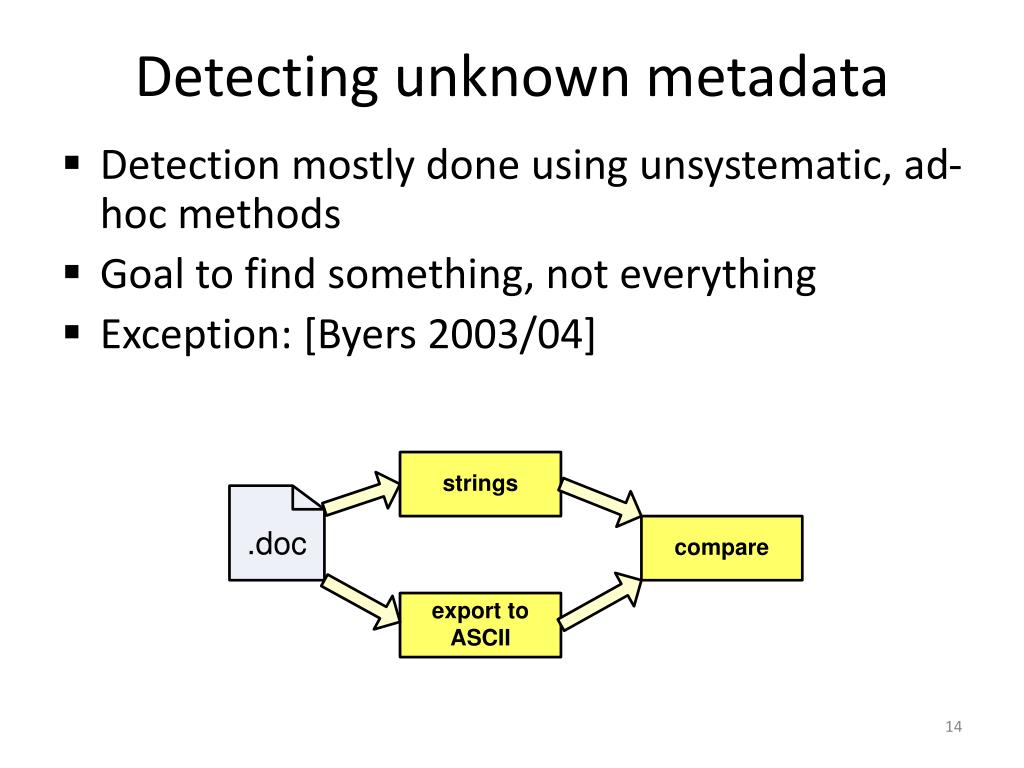

  14. Detecting unknown metadata • Detection mostly done using unsystematic, ad-hoc methods • Goal to find something, not everything • Exception: [Byers 2003/04]

  15. PII detection tool • We developed a tool for detecting names, identifiers, addresses and other PII in documents • Goals • Testing Office 2007 document inspection must find strings in unknown locations • User does not know what to look for must determine search strings automatically • Document encoding unknown, fragments may be in different encodings must find strings in various encodings • Defensive only, used by document author

  16. PII detection tool: architecture

  17. Example: authoring process • Typical authoring process involves a set of tools and software components from multiple vendors • who don’t know of each other • who have different of conflicting goals • who all produce and consume metadata • No single entity controls what goes into the final published document

  18. PDF authoring with Word 2003

  19. PDF authoring with Word 2003 Assumption:no Word-specificmetadata added

  20. PDF authoring with Word 2003 Assumption:no Word-specificmetadata added 

  21. PDF authoring with Word 2003 Assumption:no Word-specificmetadata added

  22. Postscript comments • Extracts from Postscript files: %%Title: Microsoft Word - Testing.docx %%CreationDate: 1/23/2006 19:30:21 %%For: tuomaura %%OID_ATT_JOB_OWNER "tuomaura"; %%OID_ATT_JOB_NAME "Microsoft Word - Testing.docx“; %%Creator: CorelDRAW 10 %%Title: test-figures.ps %%CreationDate: Thu Apr 14 14:32:47 2005 %%For: Michael Roe

  23. PDF conversion • PS-to-PDF conversion (Adobe Distiller or Ghostscript) retains metadata from PS comments: /Title(Microsoft Word - Testing.docx) /Author(tuomaura) • PDF converters don’t know where the PS came from and assume all metadata is intentional

  24. Leaks in PDF authoring

  25. PDF authoring with Latex

  26. Anonymous submissions • Documents:43 anonymized conference submissions that had already been accepted, PDF/PS • Search string:Names and affiliations from conference program, email addresses from papers • Results: • One author name in PDF \Author field • Two author names in embedded EPS • One user name in DVI file path in PS comments (not detected by tool because we did not know the correct search string) • My own anon submissions... OOPS!

  27. Identifierleaks to the localnetwork

  28. Netmon trace of a Microsoft laptop at wireless hotspot Machine name (DHCP client) Full hostname (DNS) SIP server SIP server Email address/messenger user name Real name Messenger buddy list and blacklist Default DNS suffix (web proxy discovery) Machine domain

  29. Host name (IKE initiator id) IE home page OWA / Exchange Domain controller Print servers File server (Z: drive) File server (shortcuts)

  30. DNS queries • Many connection attempts and service-discovery protocols start with DNS queries • Some DNS queries from traces: • DC discovery: _ldap._tcp.EU-UK-IDC._sites.dc._msdcs.europe.corp.microsoft. • Print server: camitgs01.europe.corp.microsoft.com • Web proxy: camproxy.europe.corp.microsoft.com • Exchange: euro-msg-43.europe.corp.microsoft.com • Exchange over HTTPS: mail.microsoft.com • Private DNS zones used on intranets • *.private.contoso.com or *.contoso.local • Default DNS suffix appended • To resolve www.tkk.fi, query first forwww.tkk.fi.europe.corp.microsoft.com

  31. NetBIOS and LLMNR Machine name • Local-link name resolution protocols • NetBIOS for IPv4, LLMNR also for IPv6 • Broadcast, so visible to others on switched LANs • Attempt to register computer and username in WINS server • Automatic discovery of printers and file shares • LLMNR name-conflict detection Primary DC File server Print server User name

  32. Potential solutions • Each individual leak appears trivial, yet it is difficult to prevent them all • Too many protocols, layers and applications involved • Obvious solutions, e.g. turning of all automation, are not acceptable • Computers should do stuff for the user without asking! • Could filter offending data at outbound host firewall • Danger: unpredictable application failures • Can recognize network location and enable/disable features [PETS 08] • Often unnecessary, failed connection attempts, to services that are not available in the current network
