Flash Lecture 3: Masks

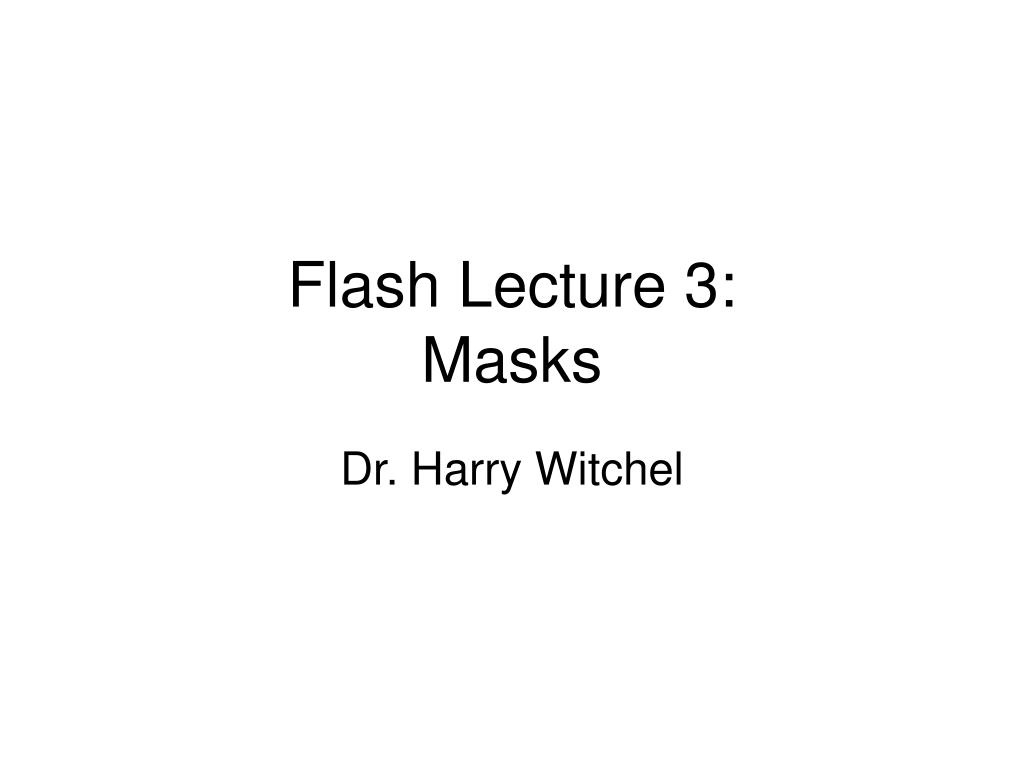

1. Flash Lecture 3:Masks Dr. Harry Witchel

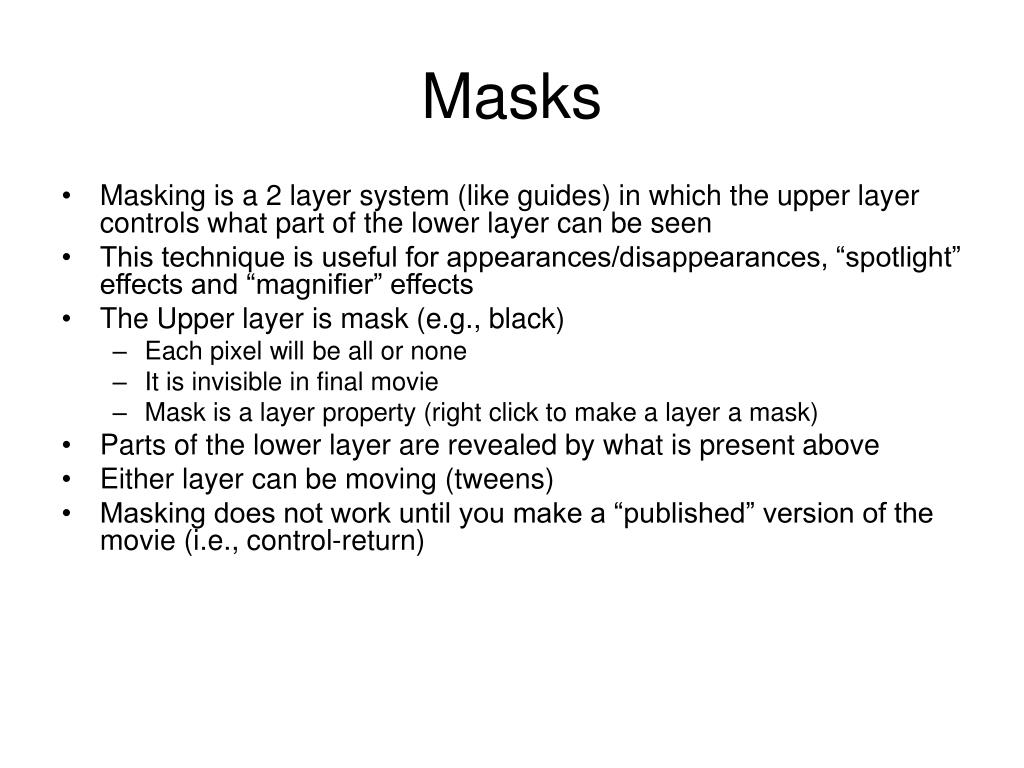

2. Masks • Masking is a 2 layer system (like guides) in which the upper layer controls what part of the lower layer can be seen • This technique is useful for appearances/disappearances, “spotlight” effects and “magnifier” effects • The Upper layer is mask (e.g., black) • Each pixel will be all or none • It is invisible in final movie • Mask is a layer property (right click to make a layer a mask) • Parts of the lower layer are revealed by what is present above • Either layer can be moving (tweens) • Masking does not work until you make a “published” version of the movie (i.e., control-return)

3. Appear Effect Using a Mask

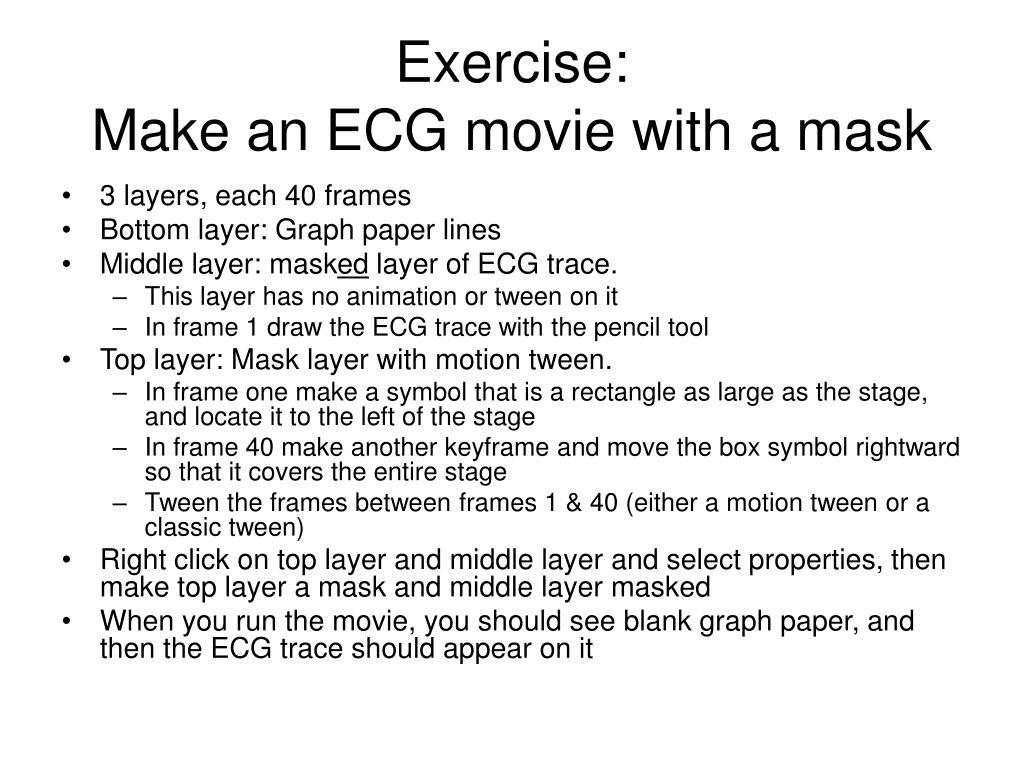

4. Spotlight Effect Using a Mask
