Stresses in thin films final presentation

Stresses in Thin FilmsFinal Presentation

Cynthia Macht, Nick Svencer, Heather Stern

Tufts University, TAMPL

July 31, 1998

TAMPL

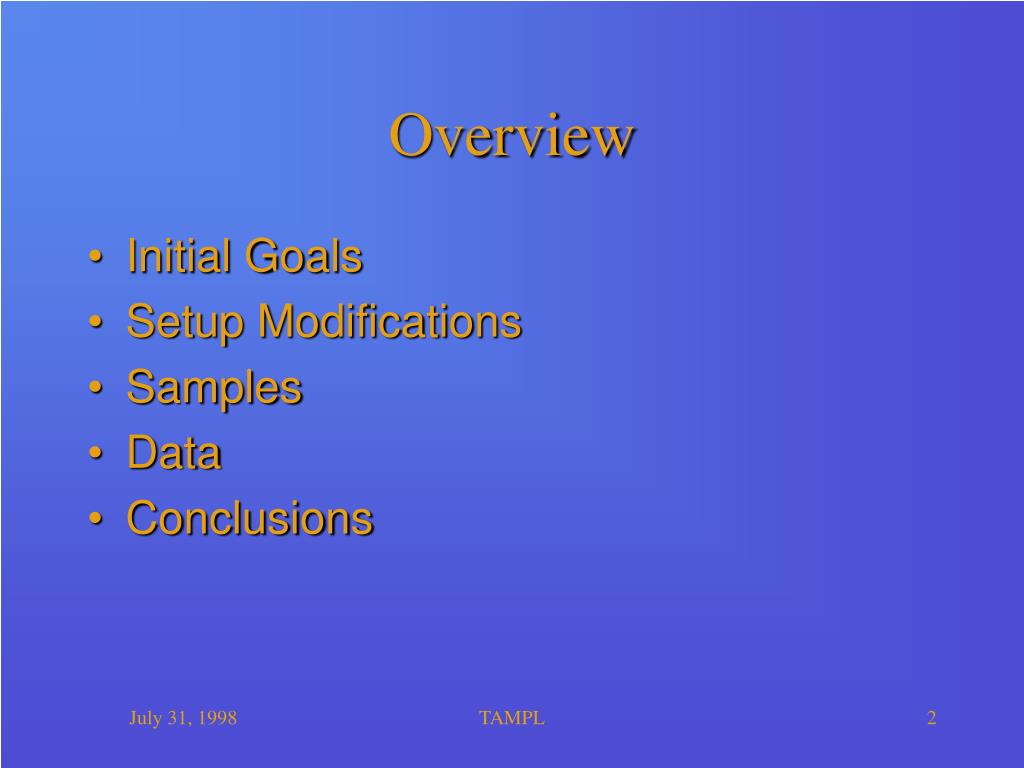

Overview
Overview

  • Initial Goals

  • Setup Modifications

  • Samples

  • Data

  • Conclusions

TAMPL

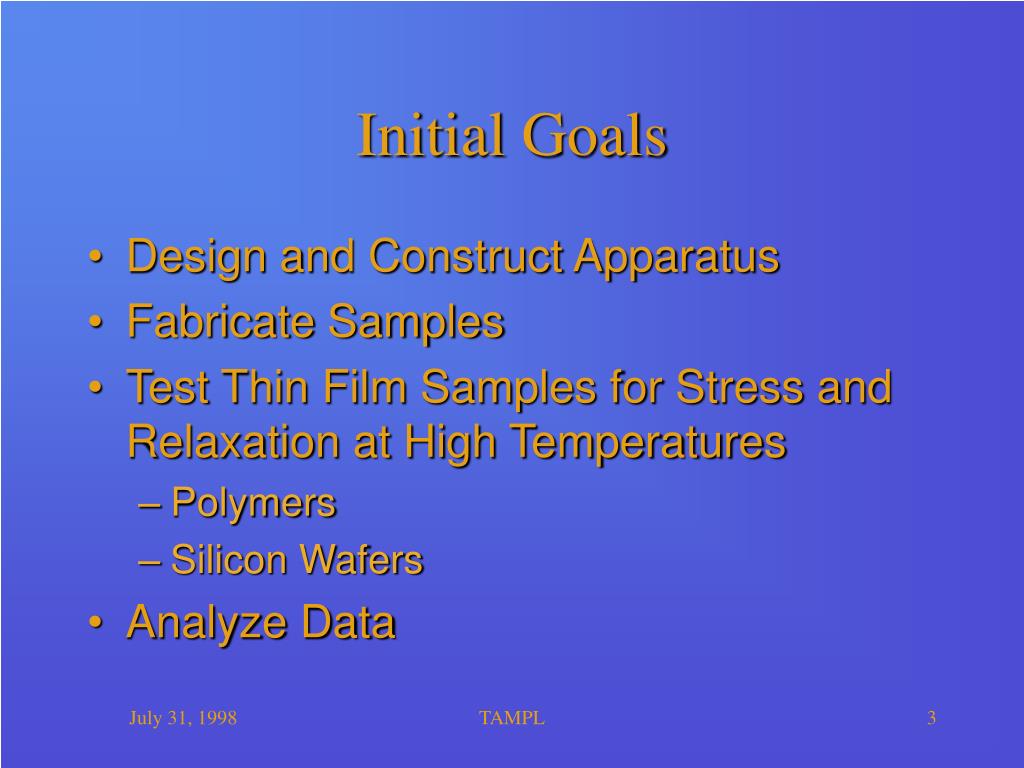

Initial goals
Initial Goals

  • Design and Construct Apparatus

  • Fabricate Samples

  • Test Thin Film Samples for Stress and Relaxation at High Temperatures

    • Polymers

    • Silicon Wafers

  • Analyze Data

TAMPL

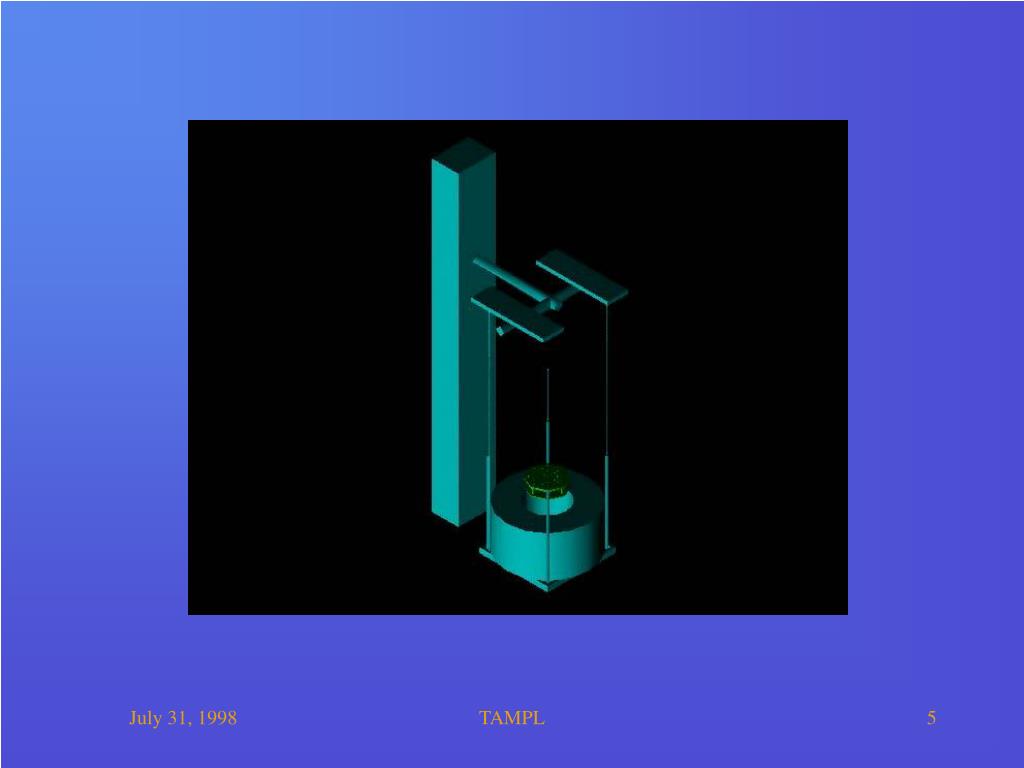

Final apparatus
Final Apparatus

  • Split-Beam Laser Technique

  • Heater Raised Around Sample

  • Stainless Steel Sample Holder

  • Quartz Plate

  • Two Fans

  • Thermocouples

TAMPL


Quartz

Plate

TAMPL


Final apparatus continued
Final Apparatus Continued

New Sample Holder

-Stainless Steel

Higher Temperatures

-58% Open Space

Fans in Place on Heater

-Reduces Convection

Currents Above

Quartz Plate

TAMPL


Laser Schematic

Large Mirror

Wall

x

laser

Beam

Splitter

Mirror

S

Sample

R

TAMPL


Obstacles to dot measurement
Obstacles to Dot Measurement

  • Extremely Slight Bending of Silicon Wafers

    • Difficult to Detect Change in Dot Distance

  • Dots Change Shape During Experiment

    • Loss of Reference Point

Human Error

CCD Camera

TAMPL


Polystyrene samples
Polystyrene Samples

  • Brass Substrate

    • Thickness .010-.031”

  • Polystyrene Film

    • Thickness .006-.007” +/- .001”

    • Polymer Sold by Polaroid

TAMPL

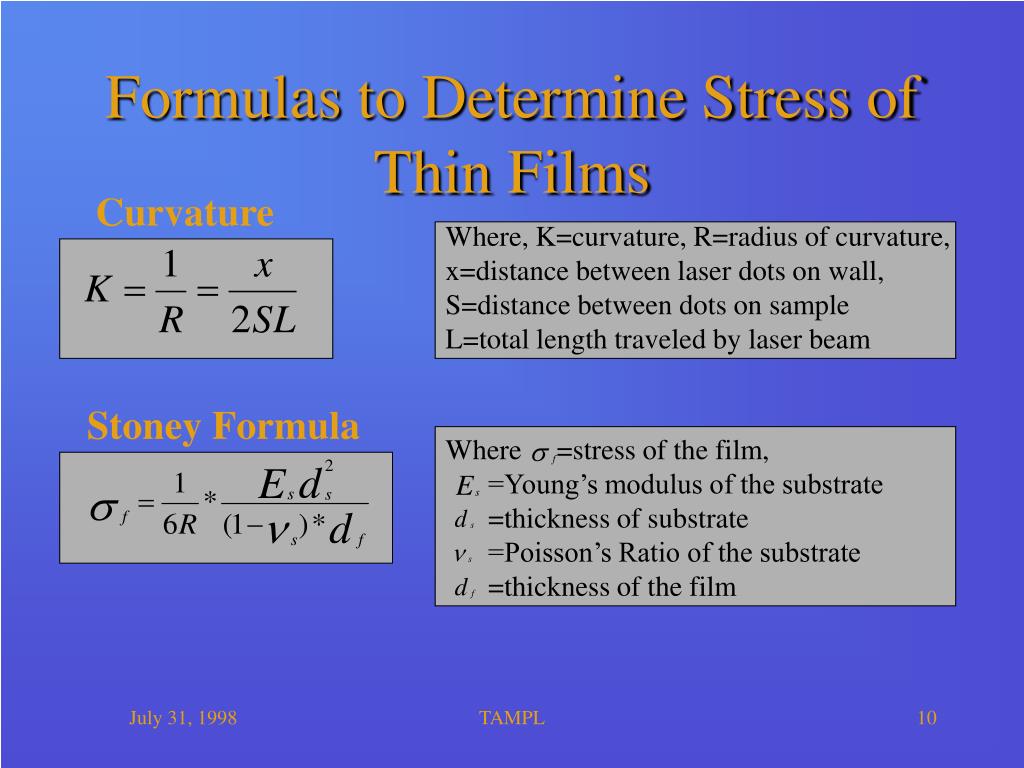

Formulas to Determine Stress of Thin Films

Curvature

Where, K=curvature, R=radius of curvature,

x=distance between laser dots on wall,

S=distance between dots on sample

L=total length traveled by laser beam

Stoney Formula

Where =stress of the film,

=Young’s modulus of the substrate

=thickness of substrate

=Poisson’s Ratio of the substrate

=thickness of the film

TAMPL

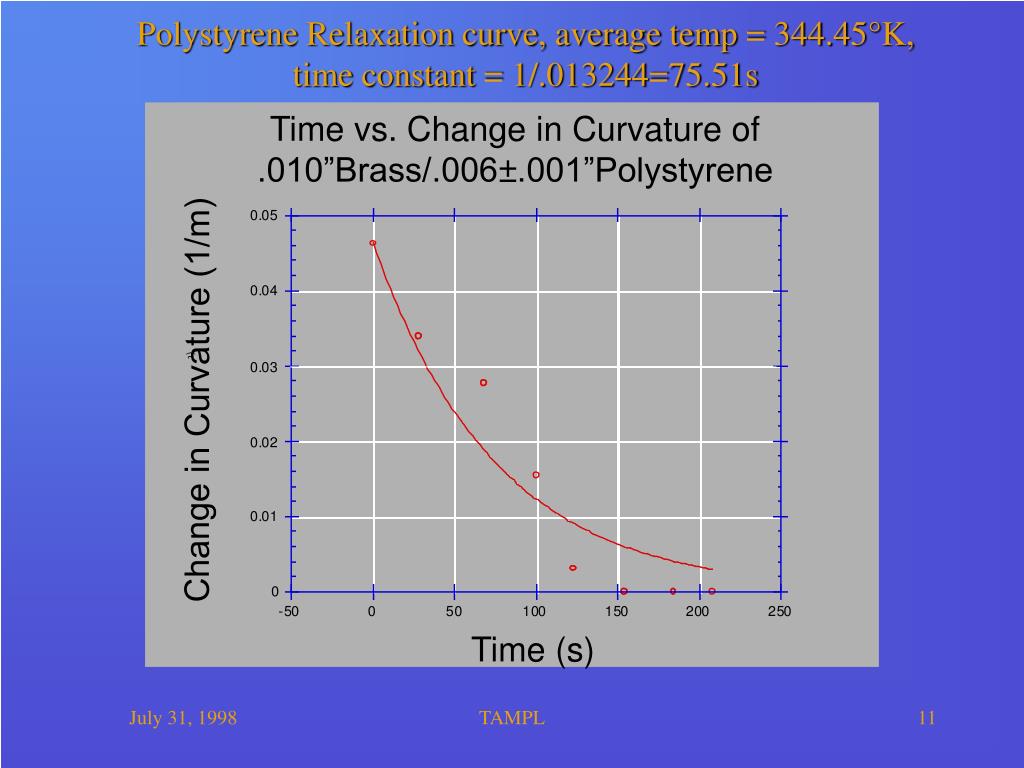

Polystyrene Relaxation curve, average temp = 344.45°K,

time constant = 1/.013244=75.51s

Time vs. Change in Curvature of .010”Brass/.006±.001”Polystyrene

Change in Curvature (1/m)

Time (s)

TAMPL

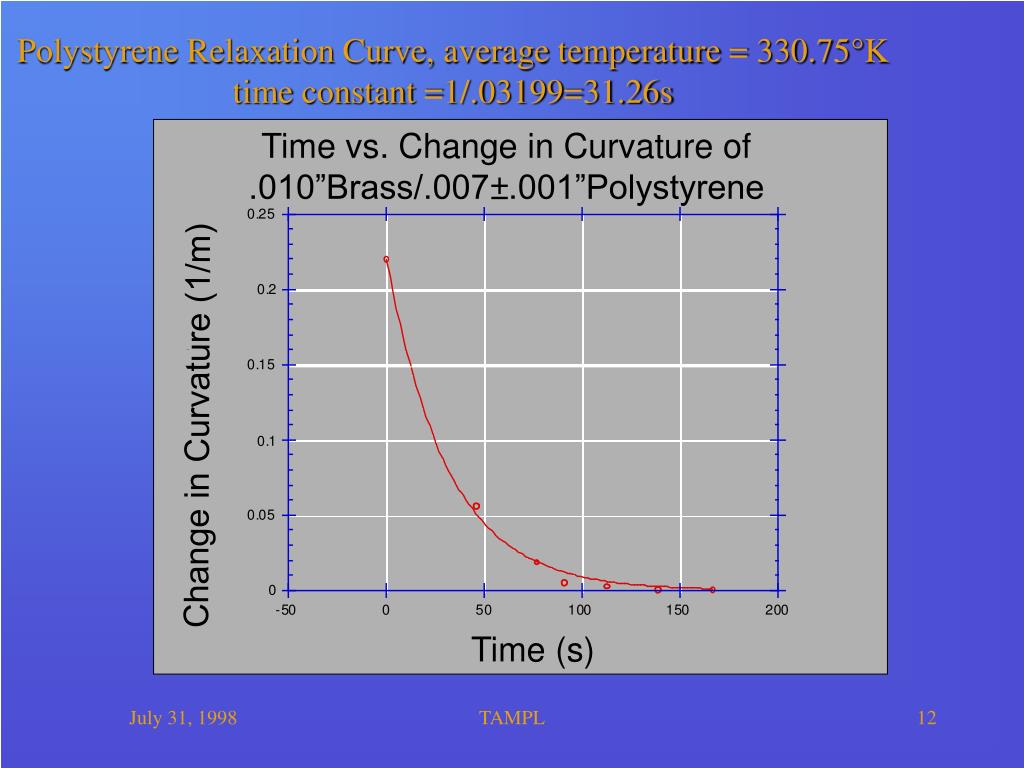

Polystyrene Relaxation Curve, average temperature = 330.75°K

time constant =1/.03199=31.26s

Time vs. Change in Curvature of .010”Brass/.007±.001”Polystyrene

Change in Curvature (1/m)

Time (s)

TAMPL


Polystyrene Relaxation Curve, average temperature = 351.19°K

time constant =1/.01739=57.50s

Time vs. Change in Curvature of .031”Brass/.006±.001”Polystyrene

Change in Curvature (1/m)

Time (s)

TAMPL


Polystyrene conclusions
Polystyrene Conclusions 351.19°K

  • Relaxation time constant range of polystyrene 31-76 s

TAMPL

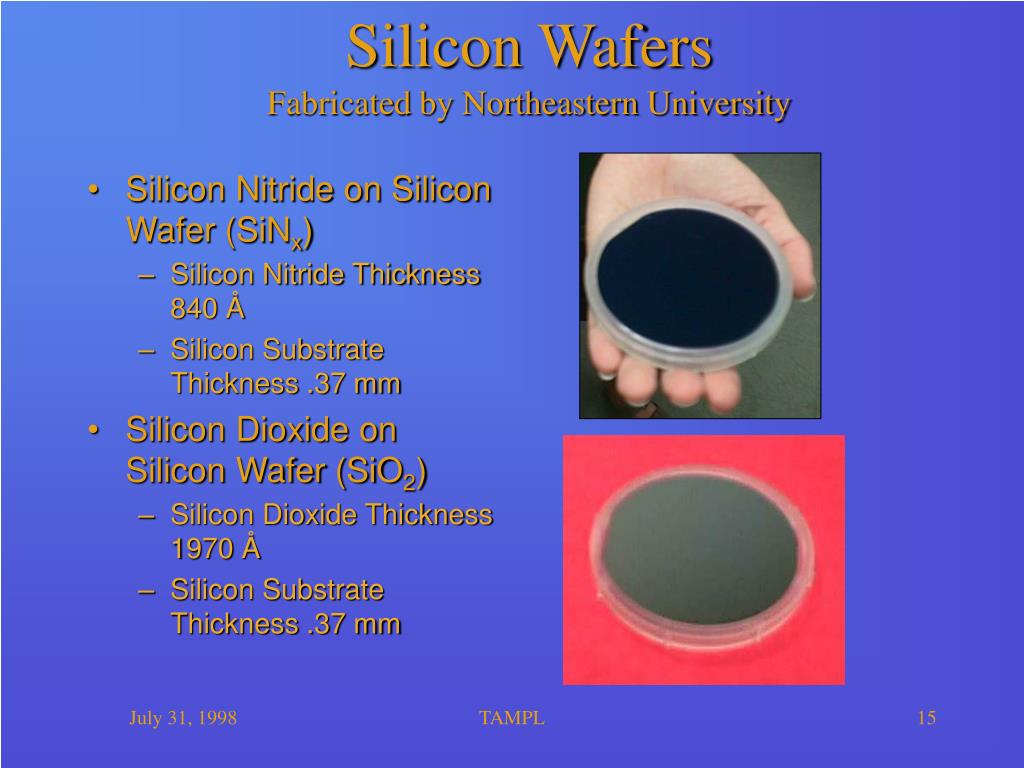

Silicon wafers fabricated by northeastern university
Silicon Wafers 351.19°KFabricated by Northeastern University

  • Silicon Nitride on Silicon Wafer (SiNx)

    • Silicon Nitride Thickness 840 Å

    • Silicon Substrate Thickness .37 mm

  • Silicon Dioxide on Silicon Wafer (SiO2)

    • Silicon Dioxide Thickness 1970 Å

    • Silicon Substrate Thickness .37 mm

TAMPL


TAMPL 351.19°K


Formulas for Thin Film Curvature 351.19°K1

1Townsend, Barnett, & Brunner, 1987.

TAMPL


Silicon: Coefficient of Thermal Expansion = ~3.58E-6/ºC 351.19°K

Young’s Modulus = 1.30E11 Pa

TAMPL

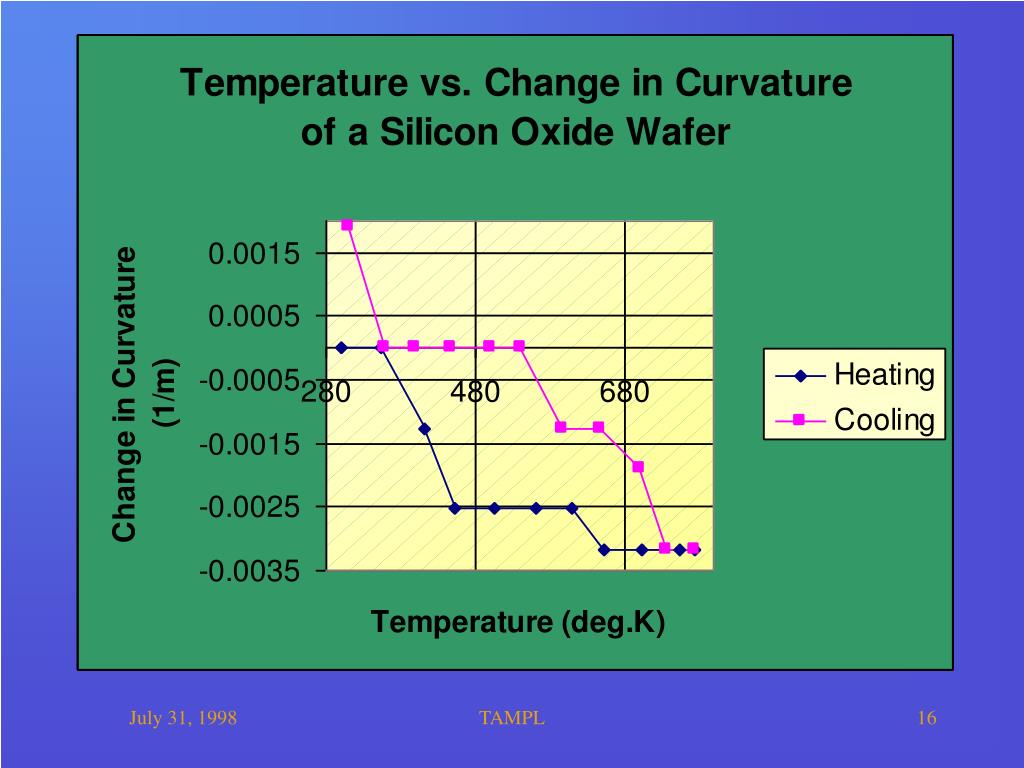

Silicon oxide conclusions
Silicon Oxide Conclusions 351.19°K

  • Coefficient of thermal expansion of Silicon Oxide is slightly smaller than that of Silicon which is ~3.58E-6

TAMPL


TAMPL 351.19°K

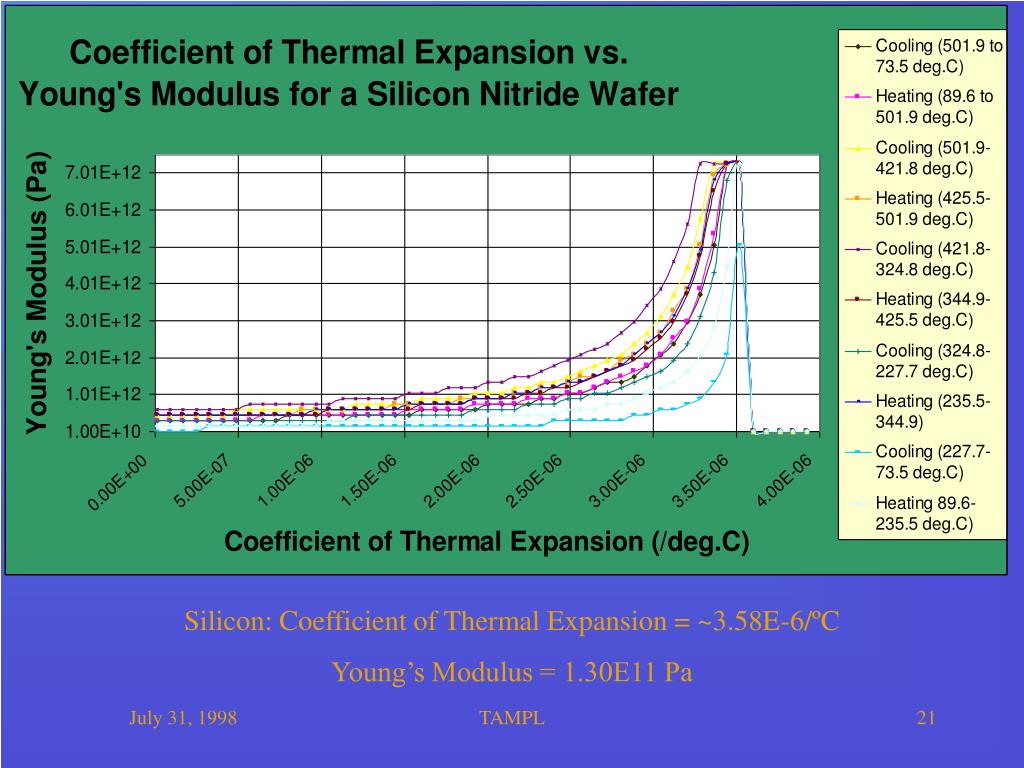

Silicon: Coefficient of Thermal Expansion = ~3.58E-6/ºC 351.19°K

Young’s Modulus = 1.30E11 Pa

TAMPL



TAMPL 351.19°K

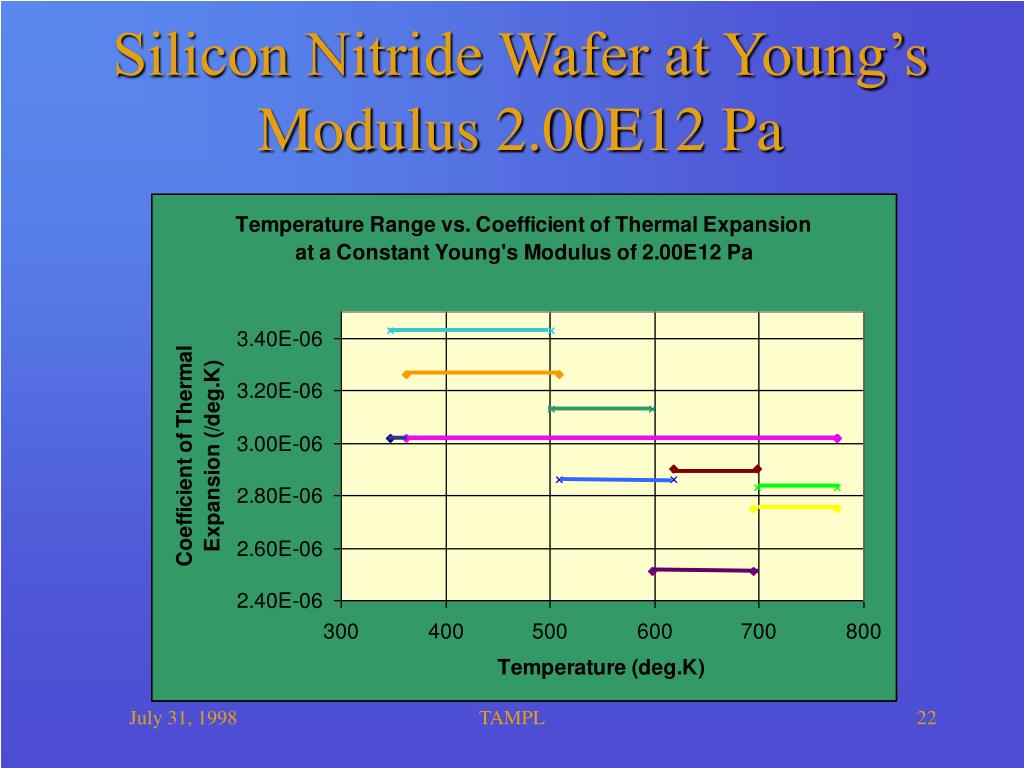

Silicon nitride conclusions
Silicon Nitride Conclusions 351.19°K

  • Coefficient of thermal expansion of SiNx is slightly smaller than that of Silicon which is ~3.58E-6

  • SiNx relaxes at 773ºK

TAMPL


Final conclusions
Final Conclusions 351.19°K

  • Developed an instrument to measure curvature in a variety of thin film materials, from polymers to semiconductors

TAMPL


Visit Our Web Site At: 351.19°K

http://www.tufts.edu/~nsvencer/stressmain.html
