  1. CS4432: Database Systems II Concurrency Control with Recovery concurrency control

  2. Concurrency control & recovery Example: Ti To Wi(A) rj(A) Commit To Abort Ti … … … … … … • Cascading rollback ( But already committed!) concurrency control

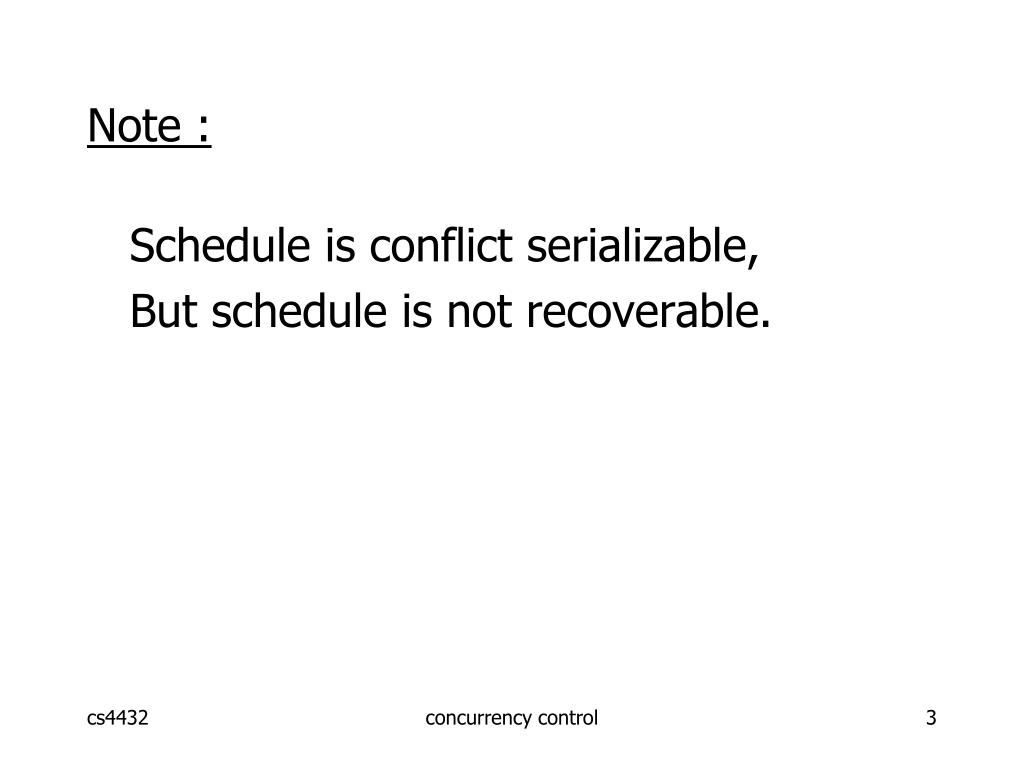

  3. Note : Schedule is conflict serializable, But schedule is not recoverable. concurrency control

  4. Need to make “final’ decision for each transaction: • commit decision - system guarantees transaction will or has completed, no matter what (Ci) • abort decision - system guarantees transaction will or has been rolled back (has no effect) (Ai) concurrency control

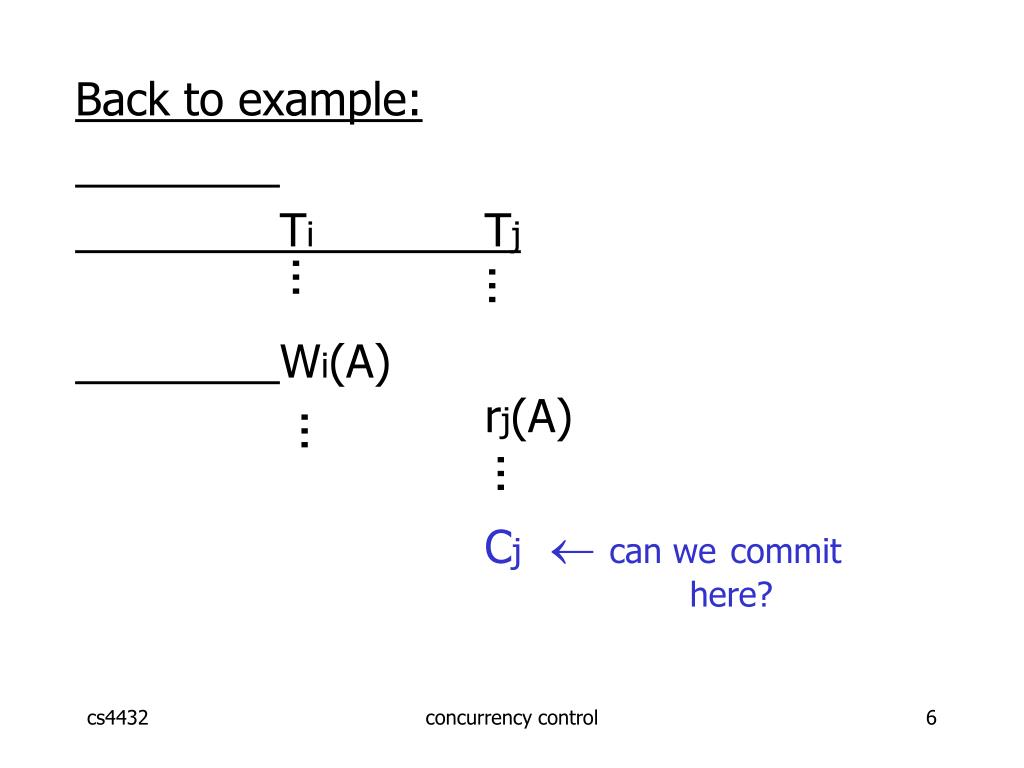

  5. Back to example: Ti Tj Wi(A) rj(A) Cjcan wecommit here? ... ... ... ... concurrency control

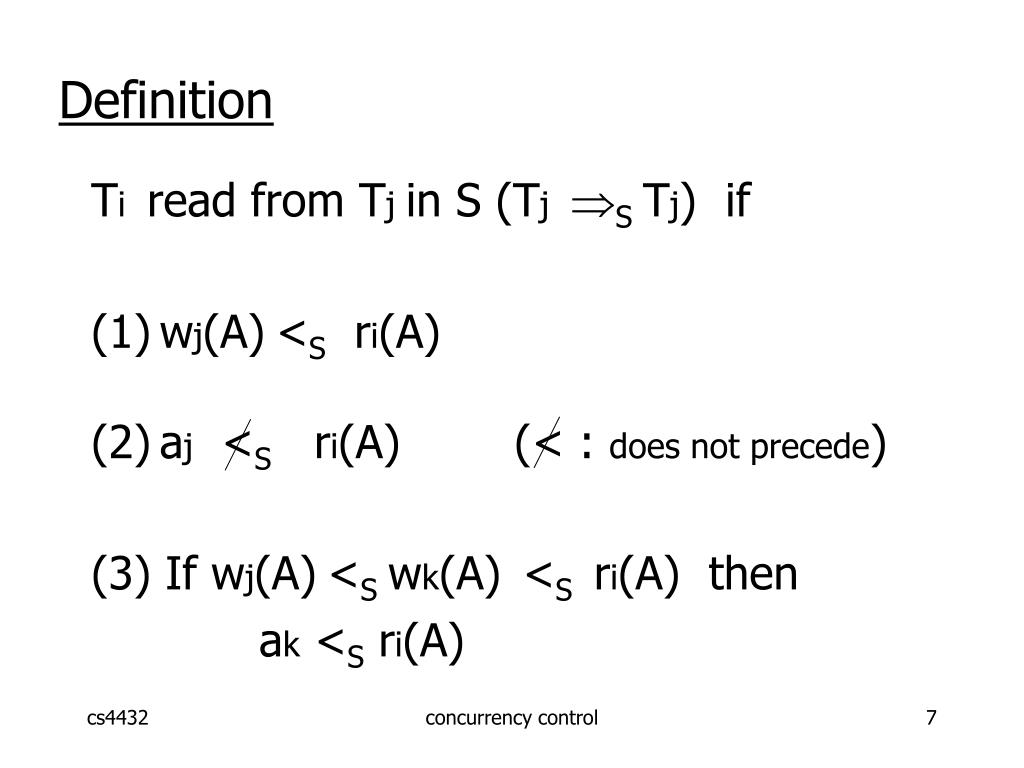

  6. Definition Ti read from Tj in S (Tj STj) if • wj(A)<S ri(A) • aj <S ri(A) (< : does not precede) (3) If wj(A)<Swk(A)<Sri(A) then ak <S ri(A) concurrency control

  7. Definition Intuition : A schedule S is recoverable, iftransactions only commit after all transactions they read from have already been committed first. Formal : Schedule S is recoverable if whenever Tj S Ti and j  i and Ci  S then Cj <S Ci concurrency control

  8. How to achieve recoverable schedules? concurrency control

  9. Strict 2PL : With 2PL, hold write locks until commit Ti Tj Wi(A) Ci ui(A) rj(A) ... ... ... ... ... ... ... concurrency control

  10. S is recoverable if each transaction commits only after all transactions from which it read have committed. • S avoids cascading rollback if each transaction may read only those values written by committed transactions. concurrency control

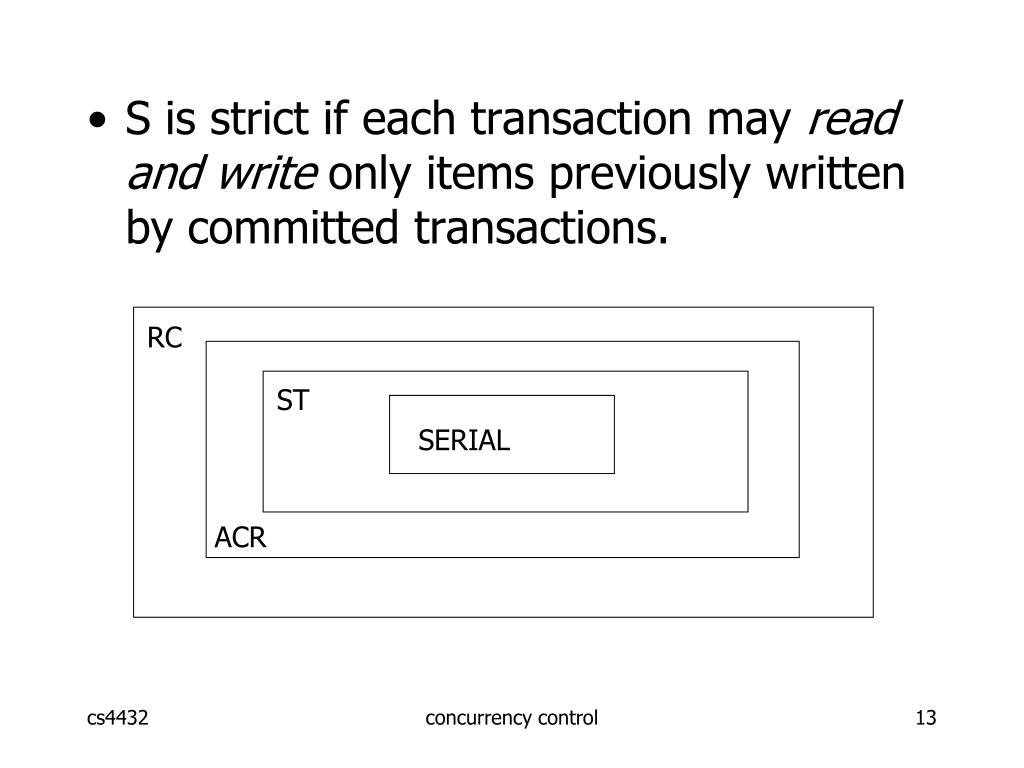

  11. S is strict if each transaction may read and write only items previously written by committed transactions. RC Avoids cascading rollback ST SERIAL ACR concurrency control

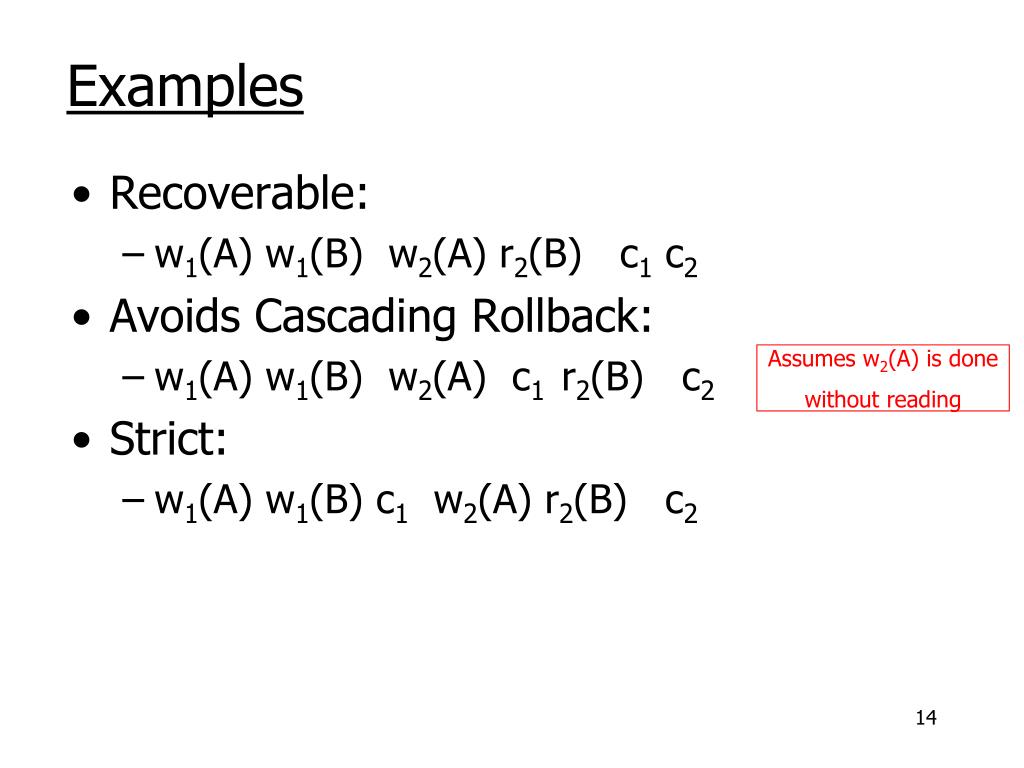

  12. Examples • Recoverable: • w1(A) w1(B) w2(A) r2(B) c1 c2 • Avoids Cascading Rollback: • w1(A) w1(B) w2(A) c1 r2(B) c2 • Strict: • w1(A) w1(B) c1 w2(A) r2(B) c2 Assumes w2(A) is done without reading

  13. Schedule with Deadlock T1 T2 l1(A); Read(A) l2(B);Read(B) A A+100;Write(A) B Bx2;Write(B) l1(B) l2(A) delayed delayed transaction management

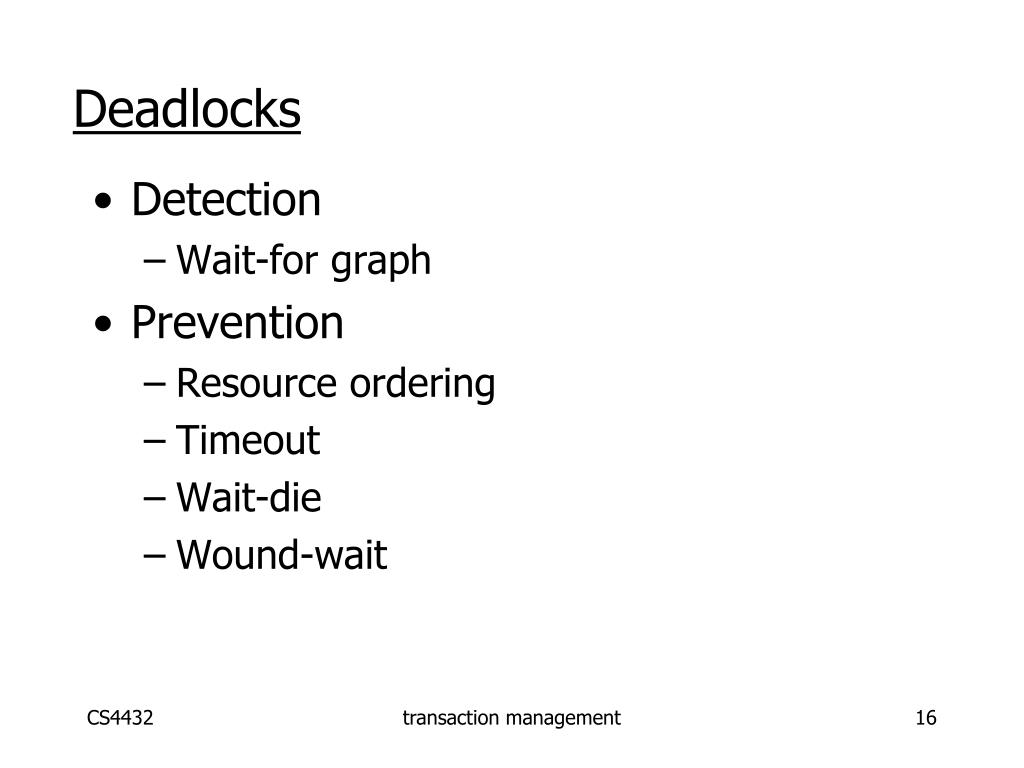

  14. Deadlocks • Detection • Wait-for graph • Prevention • Resource ordering • Timeout • Wait-die • Wound-wait transaction management

  15. Deadlock Detection • Build Wait-For graph • Use lock table structures • Build incrementally or periodically • When cycle found, rollback victim T5 T2 T1 T7 T4 T6 T3 transaction management

  16. Resource Ordering • Order all elements A1, A2, …, An • A transaction T can lock Ai after Aj only if i > j Problem : Ordered lock requests not realistic in most cases transaction management

  17. Timeout • If transaction waits more than L sec., roll it back! • Simple scheme • Hard to select L transaction management

  18. Wait-die • Transactions given a timestamp when they arrive …. ts(Ti) • Ti can only wait for Tj if ts(Ti)< ts(Tj) ...else die transaction management

  19. wait? Example: T1 (ts =10) T2 (ts =20) T3 (ts =25) wait wait transaction management

  20. Wound-wait • Transactions given a timestamp when they arrive … ts(Ti) • Ti wounds Tj if ts(Ti)< ts(Tj) else Ti waits “Wound”: Tj rolls back and gives lock to Ti transaction management

  21. Summary • Cascading rollback Recoverable schedule • Deadlock • Prevention • Detection transaction management

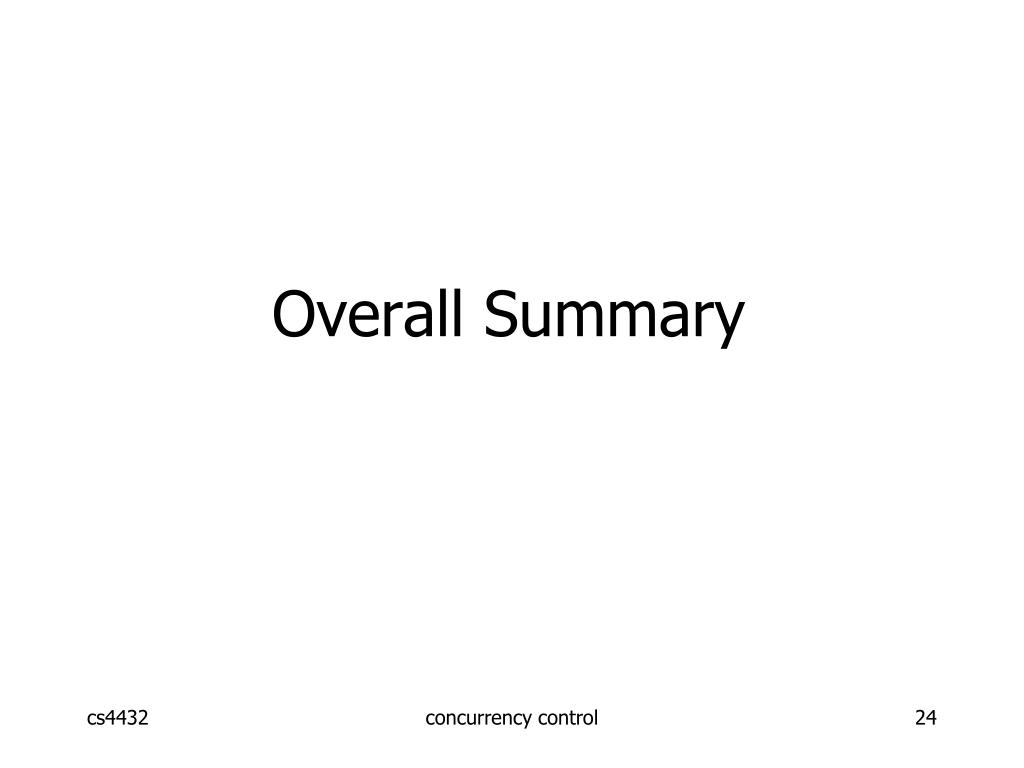

  22. Overall Summary concurrency control

  23. Recovery: DB Dump + Log backup database active database log • If active database is lost, • restore active database from backup • bring up-to-date using redo entries in log

  24. When can log be discarded? last needed undo check- point db dump log time not needed for media recovery not needed for undo after system failure not needed for redo after system failure

  25. Multiple Mode Locks: Shared locks So far: S = ...l1(A) r1(A) u1(A) … l2(A) r2(A) u2(A) … Do not conflict Instead: S=... ls1(A) r1(A) ls2(A) r2(A) …. us1(A) us2(A) Also, we have exclusive (X)/write locks

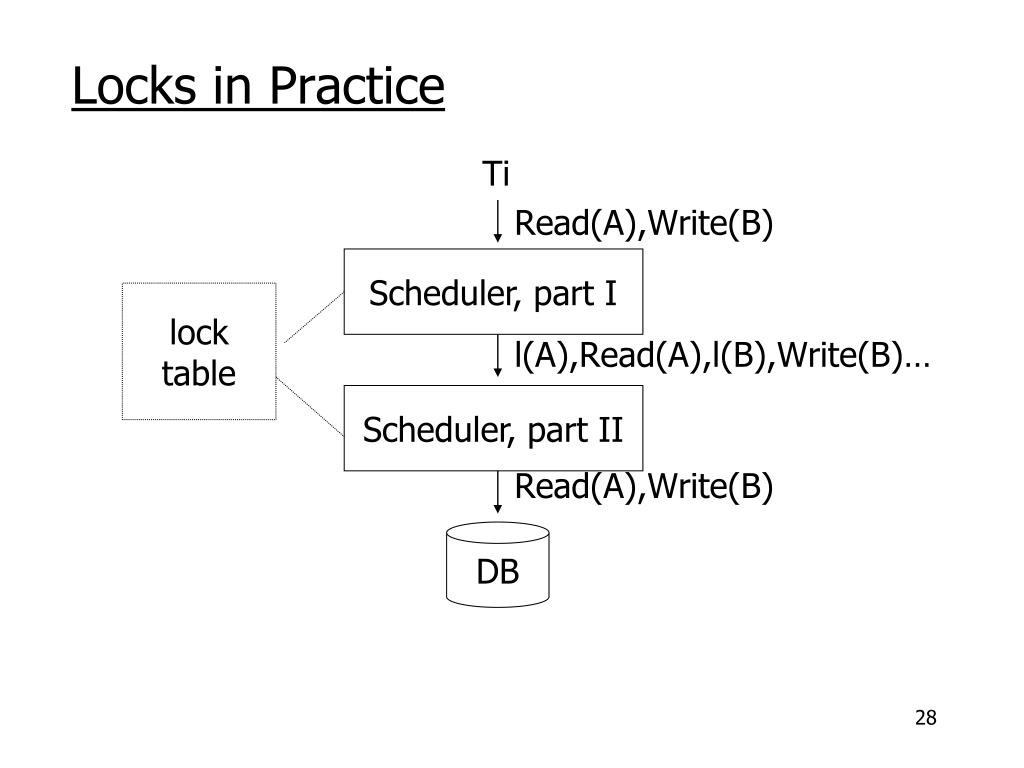

  26. Locks in Practice Ti Read(A),Write(B) l(A),Read(A),l(B),Write(B)… Read(A),Write(B) Scheduler, part I lock table Scheduler, part II DB

  27. Lock table Conceptually If null, object is unlocked A  B Lock info for B C Lock info for C  Every possible object ...

  28. But use hash table: ... A If object not found in hash table, it is unlocked A Lock info for A H ...

  29. Lock info for A - example tran mode wait? Nxt T_link Object:A Group mode:U Waiting:yes List: T1 S no T2 U no T3 X yes  To other T3 records

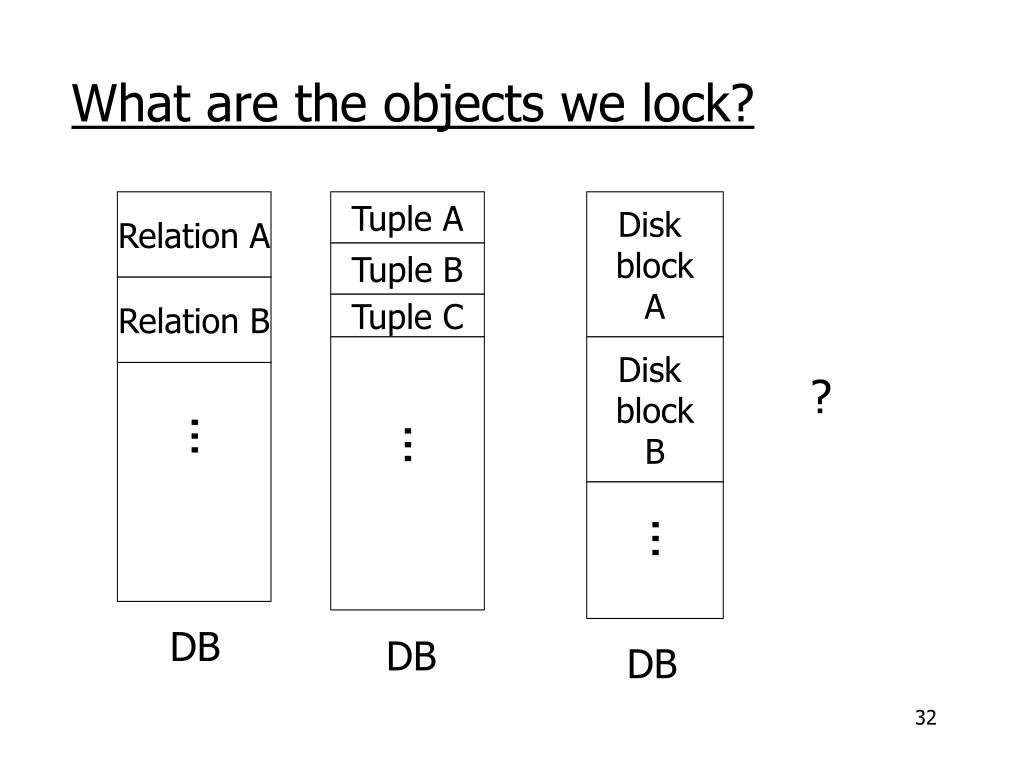

  30. What are the objects we lock? Relation A Tuple A Disk block A ? Tuple B Relation B Tuple C Disk block B ... ... ... DB DB DB

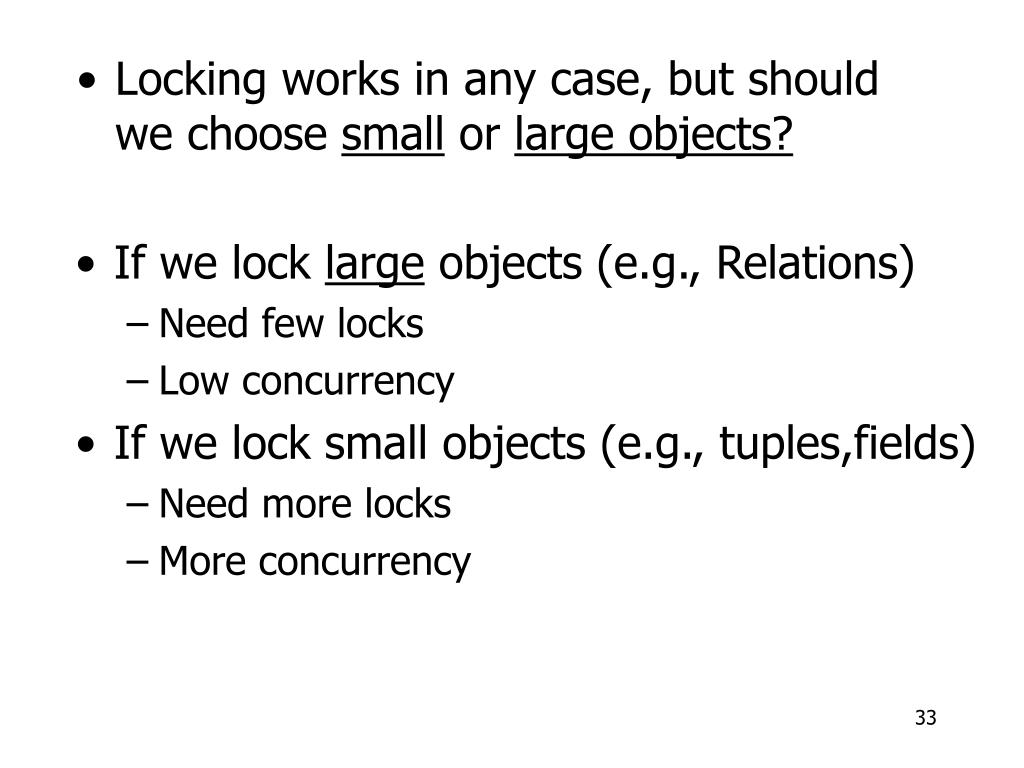

  31. Locking works in any case, but should we choose small or large objects? • If we lock large objects (e.g., Relations) • Need few locks • Low concurrency • If we lock small objects (e.g., tuples,fields) • Need more locks • More concurrency

  32. We can have it both ways!! Ask any janitor to give you the solution... Stall 1 Stall 2 Stall 3 Stall 4 restroom hall

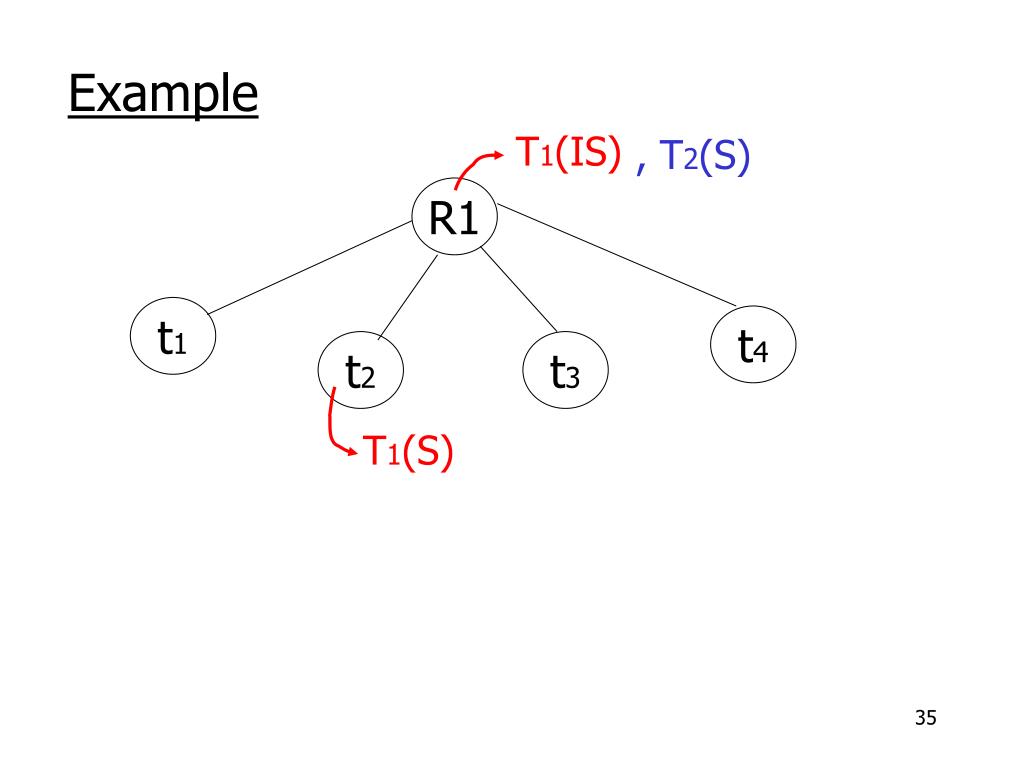

  33. T1(IS) T1(S) Example , T2(S) R1 t1 t4 t2 t3

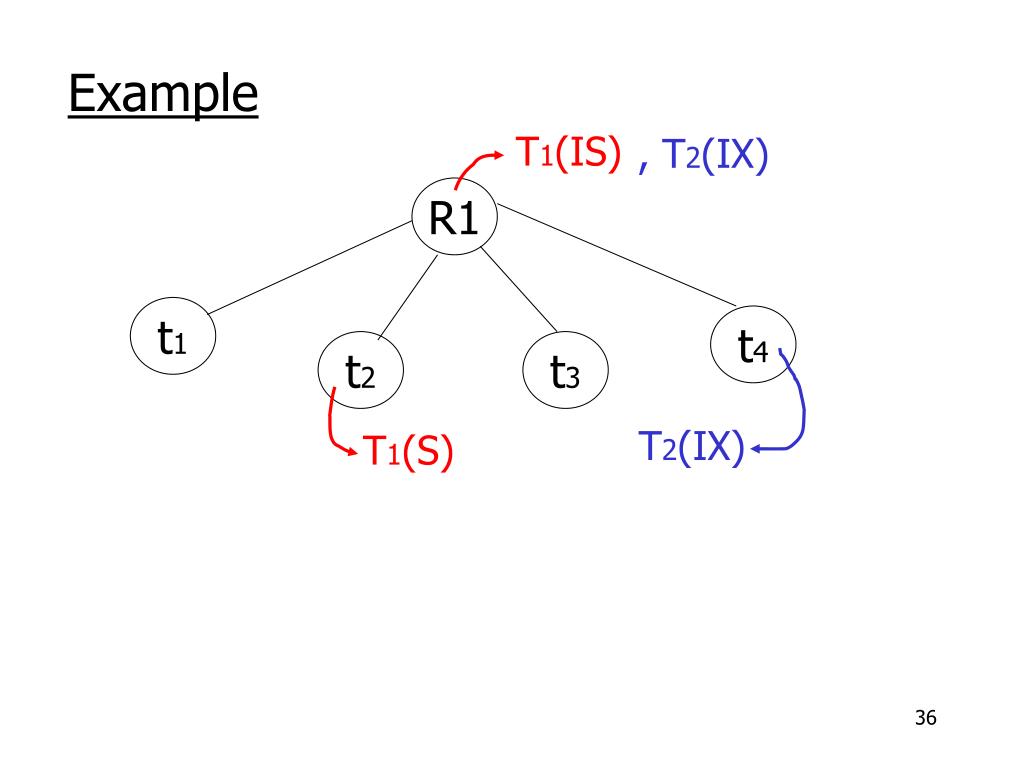

  34. T1(IS) , T2(IX) T2(IX) T1(S) Example R1 t1 t4 t2 t3

  35. Multiple granularity Comp Requestor IS IX S SIX X IS Holder IX S SIX X

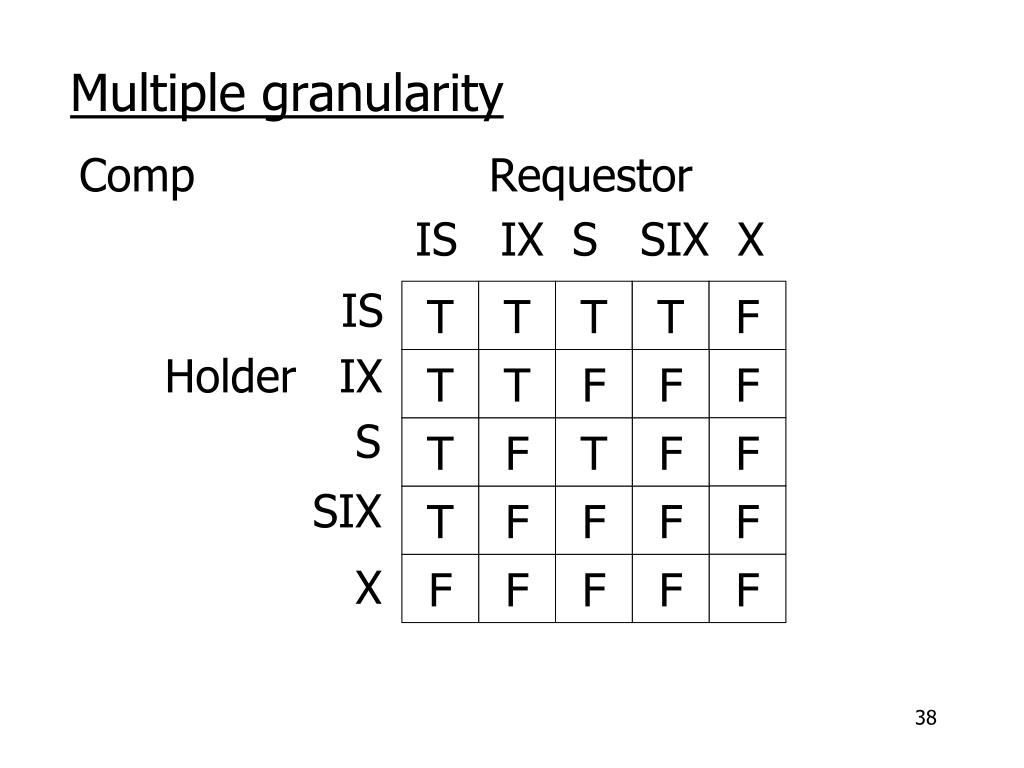

  36. Multiple granularity Comp Requestor IS IX S SIX X IS Holder IX S SIX X T T T T F T T F F F T F T F F T F F F F F F F F F

  37. Inserting Records: Phantoms Example: relation R (E#,name,…) constraint: E# is key use tuple locking R E# Name …. o1 55 Smith o2 75 Jones

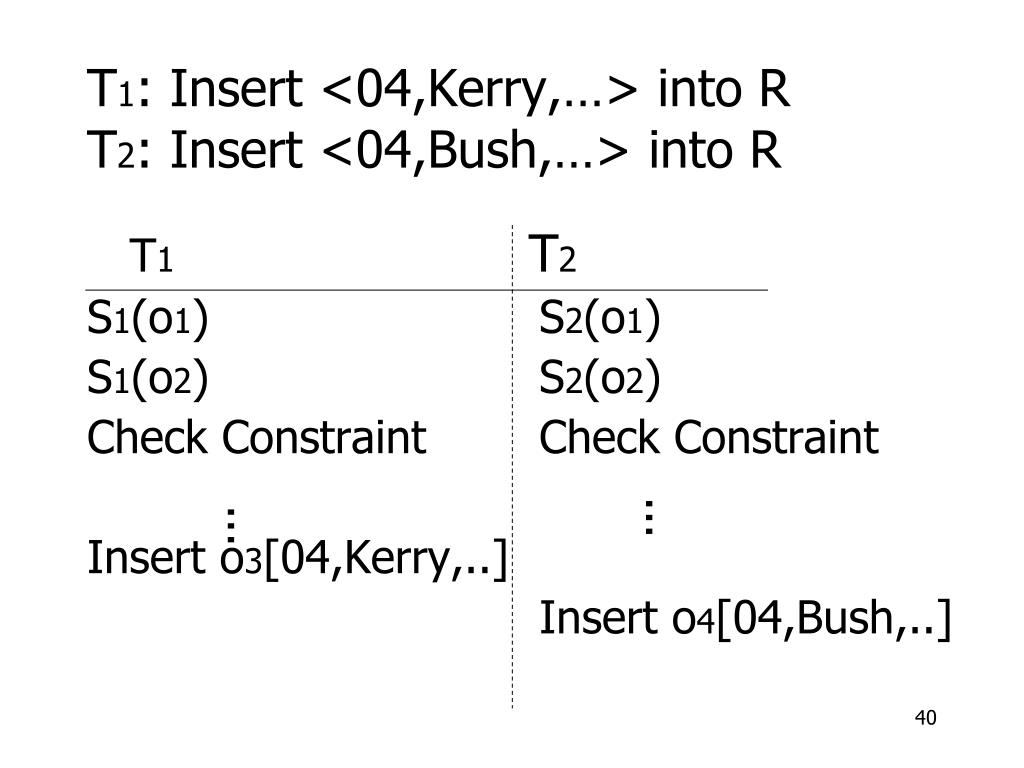

  38. T1: Insert <04,Kerry,…> into RT2: Insert <04,Bush,…> into R T1 T2 S1(o1)S2(o1) S1(o2)S2(o2) Check Constraint Check Constraint Insert o3[04,Kerry,..] Insert o4[04,Bush,..] ... ...

  39. Solution • Use multiple granularity tree • Before insert of node Q, lock parent(Q) in X mode R1 t1 t2 t3

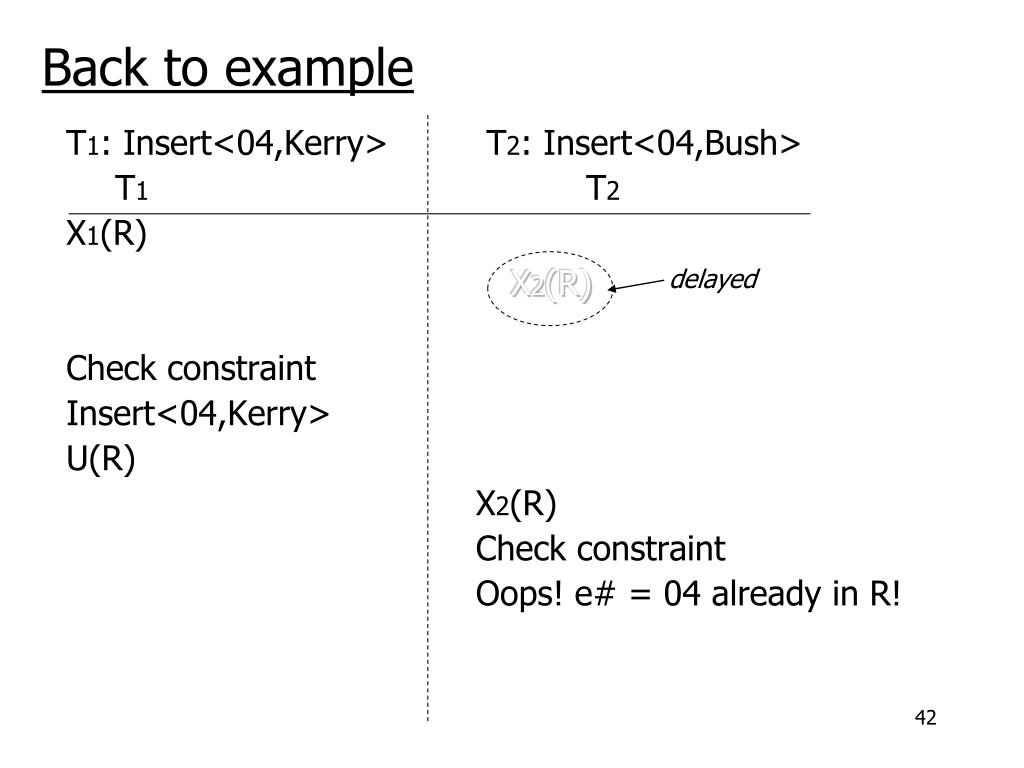

  40. Back to example T1: Insert<04,Kerry> T2: Insert<04,Bush> T1 T2 X1(R) Check constraint Insert<04,Kerry> U(R) X2(R) Check constraint Oops! e# = 04 already in R! X2(R) delayed

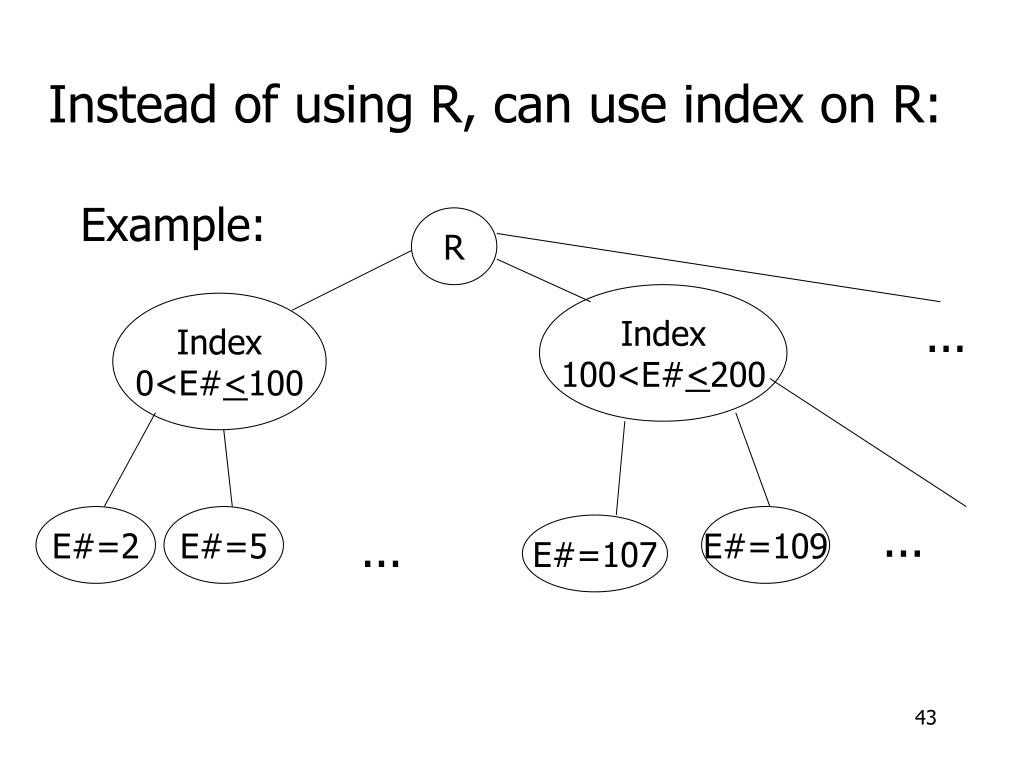

  41. Instead of using R, can use index on R: R Example: Index 100<E#<200 Index 0<E#<100 ... E#=2 E#=5 E#=109 ... E#=107 ...
