  1. The Door Entry System

  2. What does a door entry system? • Security • Video control • Comfort • Intercommunication • Integration with Home Automation

  3. Security Alarms You can talk with your visitors before opening to them Video control

  4. Home video control See your child See the house

  5. Comfort Integration with Home Autom. Call to the porter Menu in different languages Optional melodies

  6. Intercommunication You can phone your dears in your house. You can ring your neighbours without using the telephone.

  7. Integration with Home Automation • HA menu • Lighting control • Automation • Temperature control • Alarm • Scenarios

  8. IP + 2 wire digital system Project possibility Compound District Building House 3.900 Handsets - 600m 10.000 Handsets – 10 Km 2 wire digital system

  9. How is composed the 2 wire system

  10. 2 wire system The building DES is made with Bticino products • Expandable to up to 10.000 Handsets, up to 10 Km length • Integrated with Home Automation • Integrated with technical and intrusion alarms • Centralized management of alarms

  11. 2 wire system Inside the apartment we have Legrand products • Integrated with ARTEOR wiring devices • Integrated with ARTEOR IOBL • Integrated with ARTEOR alarms

  12. 2 wire system

  13. 2 wire system Entrance Panel Handset SHUNT Riser Entry panels Power Supply Accessories

  14. Entrance Panel 5740 40 2 wire system • Motorized video camera • Customizable display • 2 wire and IP device • Software or Hardware configuration • The address book is shared with SW

  15. 2 wire system Extra cameras Outdoor Camera 5739 86 Indoor Camera 5739 52 5739 53

  16. How is composed the system 2 wire system Handset Handset Shunt Riser Entry panels Power Supply Accessories

  17. 2 wire system Range of Handsets Video Display 5739 50 5739 51 Multimedia Touch Screen 5739 62 5739 63

  18. 2 wire system Configuration Handset and Entrance Panels have three kinds of configuration: • Through Hardware • Through on board menu • Through software with PC

  19. P N 2 wire system Configuration In all the kinds of configuration there are these two important fields: P is the number of the Entrance Panel N is the number of the Internal Unit

  20. 2 wire system Handset Floor Shunt SHUNT 634 32 Riser Entry panels Power Supply Accessories

  21. 2 wire system to other shunt The shunts distribute the signals to the apartments from entry panel or other shunt

  22. 2 wire system How to insulate an apartment With insulation we are able to have: Private video control Integration with IOBL Private entry panel Private intercom

  23. 2 wire system How to insulate an apartment Handset Handset Apartment with IOBL SHUNT Handset R I se r Entry panels Power Supply Accessories

  24. 2 wire system How to insulate an apartment Apartment interface 634 38

  25. N 2 wire system How to insulate an apartment The configuration is only hardware, with these two important fields: N is the number of the Apartment MOD is the working modality, always 3 MOD

  26. 2 wire system The Cable 5739 99 2 wires are enough for all the signals NOT POLARIZED

  27. 2 wire system System limits DISTANCE PHYSICAL LIMIT ABSORPTION LOGICAL LIMIT ADDRESS

  28. 2 wire system Limits of the basic system Max 200m between Entrance Panel & Handset R I S E R

  29. 2 wire system 1200mA available from the power supply Only one power supply in a system See the calculation table on the Technical Guide

  30. 2 wire system Limits of the basic system 1 Entrance Panel 16 Handsets

  31. 2 wire system Handset Handset SHUNT Main power supply that gives BUS and power Handset Handset SHUNT Many secondary power supplies that give ONLY the power on 1&2 out Power Supply Power Supply Entry panels Accessories 1&2 Power Supply Power Supply Entry panels Entry panels 1&2 1&2 1&2

  32. 2 wire system Limits with additional Power Supplies MAX 64 MAX 16

  33. 2 wire system How to expand the system

  34. 2 wire system How to expand the system To expand the basic limits we clone the basic systems INTERFACE INTERFACE

  35. Pag IX-28 2 wire system System Expansion Module 0634 39

  36. M 2 wire system Configuration The configuration is only hardware, with these two important fields: M is the number of the Riser or of the Interface MOD is the working modality: 5 for logical expansion 0 for physical expansion MOD

  37. 2 wire system PHYSICAL EXTENSION Handset SHUNT Power Supply Second MAIN power supply Accessories System interface MAIN power supply Entry panels Power Supply Accessories

  38. 2 wire system PHYSICAL EXTENSION H H SHUNT 200M 1200mA H H SHUNT Third MAIN PS PS Accessories max 2 interfaces, up to 600m from EP to the last Handset, max 100 Handsets H SHUNT 200M 1200mA Second MAIN PS PS Accessories H SHUNT 200M 1200mA First MAIN PS EP PS Accessories

  39. 2 wire system I.E.: Phisical extension for distance SYSTEM 2 (Handsets) Houses from 11 to 20 INTERFACE SYSTEM 1 (Handsets) Houses from 1 to 10 SYSTEM 1 (Entry Panel with local PS) 1 video EP with 20 Handsets (400m)

  40. 2 wire system I.E.:Phisical extension for current 3 video EPs with 80 Handsets SYSTEM 2 (Handsets) Apartments 3rd and 4th floor INTERFACE SYSTEM 1 (Handsets) Apartments 1st and 2nd floor SYSTEM 1 (Entry Panels with local PS)

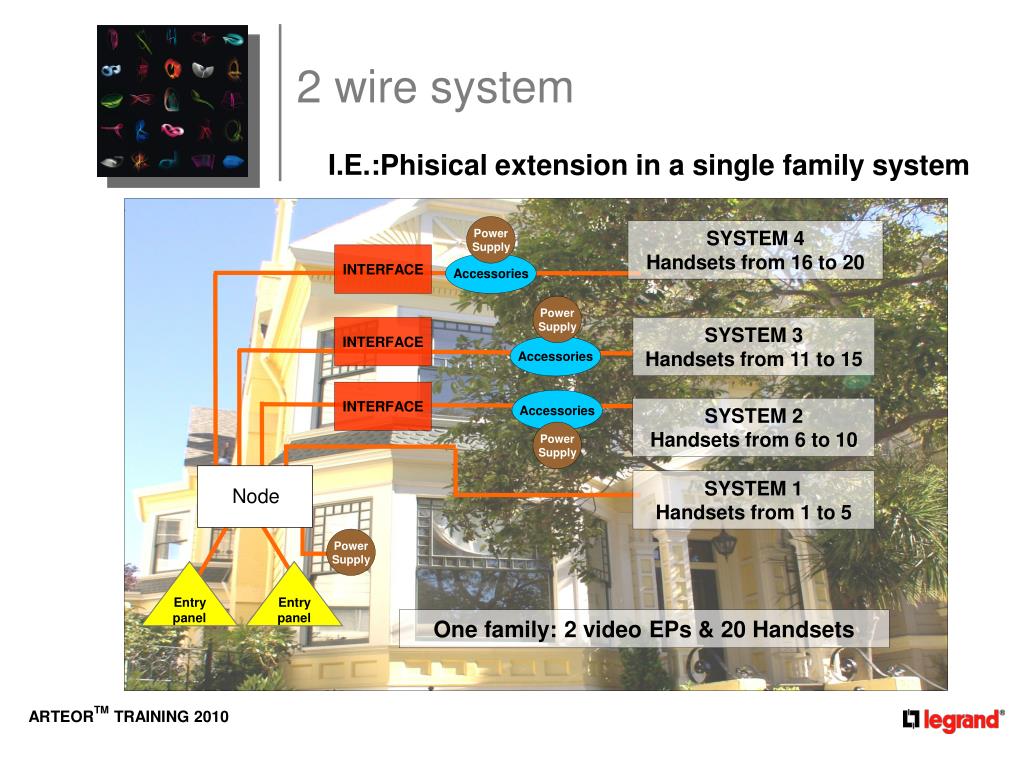

  41. 2 wire system I.E.:Phisical extension in a single family system Power Supply SYSTEM 4 Handsets from 16 to 20 INTERFACE Accessories Power Supply INTERFACE SYSTEM 3 Handsets from 11 to 15 Accessories INTERFACE Accessories SYSTEM 2 Handsets from 6 to 10 Power Supply SYSTEM 1 Handsets from 1 to 5 Node Power Supply Entry panel Entry panel One family: 2 video EPs & 20 Handsets

  42. 2 wire system LOGICAL EXTENSION Second main power supply Internal Station Internal Station Internal Station Internal Station SHUNT SHUNT Power Supply Power Supply Accessories Accessories System interfaces, max 39 on the backbone Entry panels Power Supply Accessories Main power supply

  43. 2 wire system LOGICAL AND PHISICAL EXTENSION H H H H SHUNT SHUNT PS PS Accessories Accessories 200M 1200mA H H H H SHUNT SHUNT Accessories Accessories 200M 1200mA Accessories PS 600m Entry panels

  44. 2 wire system I.E.: Many buildings with max 100 Hansets each SYSTEM 1 Building A SYSTEM 2 Building B SYSTEM 3 Building C Entry panels Entry panels Entry panels INTERFACE INTERFACE INTERFACE Entry panels

  45. SYSTEM 4 (Handsets)from 400 to 499 2 wire system SYSTEM 3 (Handsets)from 300 to 399 I.E.: One building with >100 Handsets SYSTEM 2 (Handsets)from 200 to 299 INTERFACE SYSTEM 1 (Handsets)from 100 to 199 INTERFACE INTERFACE INTERFACE Entry panels

  46. I.E.: Many buildings with Max 300 Handsets each riser 2 wire system Handset Handset Handset 601-699 901-999 301-399 INTERFACE Mod:7 M:2 INTERFACE Mod:7 M:2 INTERFACE Mod:7 M:2 801-899 201-299 501-599 Max 600m INTERFACE Mod:7 M:1 INTERFACE Mod:7 M:1 INTERFACE Mod:7 M:1 Entry panels Entry panels Entry panels 701-799 401-499 101-199 INTERFACE Mod:7 M:7 INTERFACE Mod:6 M:1 INTERFACE Mod:7 M:4 Main Entry panels

  47. 2 wire system Expanded limits with Interface: LOGICAL LIMIT Address: 100 …3900 …600m Distance 200m PHYSICAL LIMIT More stretched cable available… More current available…

  48. 2 wire - IP offer

  49. IP + 2 wire digital system 2 wire - IP offer Compound District Building House 3.900 Handset - 600m 10.000 Handset - 10Km 2 wire digital system

  50. 2 wire - IP offer The integration between 2 wire and IP • 2 wires technology • Easiness of cabling • Good ratio performance/price • IP technology • Distance • Switchboard • Centralization of the building’s management • Multi channel conversation
