  1. S-72.1140 Transmission Methods in Telecommunication Systems (5 cr) Exponential Carrier Wave Modulation

  2. Exponential modulation: Frequency (FM) and phase (PM) modulation • FM and PM waveforms • Instantaneous frequency and phase • Spectral properties • narrow band • arbitrary modulating waveform • tone modulation - phasor diagram • wideband tone modulation • Transmission BW • Generating FM - signals • de-tuned tank circuit • narrow band mixer modulator • indirect modulators

  3. Contents (cont.) • Detecting FM/PM • FM-AM conversion followed by envelope detector • Phase-shift discriminator • Zero-crossing detection (tutorials) • PLL-detector (tutorials) • Effect of additive interference on FM and PM • analytical expressions and phasor diagrams • implications for demodulator design • FM preemphases and deemphases filters

  4. Linear and exponential modulation • In linear CW (carrier wave) modulation: • transmitted spectra resembles modulating spectra • spectral width does not exceed twice the modulating spectral width • destination SNR can not be better than the baseband transmission SNR (lecture: Noise in CW systems) • In exponential CW modulation: • baseband and transmitted spectra does not carry a simple relationship • usually transmission BW>>baseband BW • bandwidth-power trade-off (channel adaptation-suppression of in-band noise)

  5. Assignment

  6. Phase modulation (PM) • Carrier Wave (CW) signal: • In exponential modulation the modulation is “in the exponent” or “in the angle” • Note that in exponential modulation superposition does not apply: • In phase modulation (PM) carrier phase is linearly proportional to the modulation x(t): • Angular phasor has the instantaneousfrequency (phasor rate)

  7. Constant frequency carrier: Instantaneous frequency • Angular frequency w (rate) is the derivative of the phase (the same way as the velocity v(t) is the derivative of distance s(t)) • For continuously changing frequency instantaneous frequency is defined by differential changes: Angle modulated carrier Compare to linear motion:

  8. Assignment

  9. Frequency modulation (FM) • In frequency modulation carrier’s instantaneous frequency is linearly proportional to modulation frequency: • Hence the FM waveform can be written as • Therefore for FMand for PM integrate

  10. AM, FM and PM waveforms Instantaneous frequency directly proportional to modulation waveform constant frequency follows derivative of the modulation waveform

  11. Assignment • Briefly summarize what is the main difference between FM and PM ? • How would you generate FM by using a PM modulator?

  12. Narrowband FM and PM (small modulation index, arbitrary modulation waveform) • The CW presentation: • The quadrature CW presentation: • Narrow band (small angle) condition: • Hence the Fourier transform of XC(t) is

  13. Narrow band FM and PM spectra • Remember the instantaneous phase in CW presentation: • The small angle assumption produces compact spectral presentation both for FM and AM: What does it mean to set thiscomponent to zero?

  14. Example • Assume:

  15. Assignment

  16. Solution

  17. Tone modulation with PM and FM:modulation index b • Remember the FM and PM waveforms: • Assume tone modulation • Then

  18. Tone modulation in frequency domain: Phasors and spectra for narrowband case • Remember the quadrature presentation: • For narrowband assume

  19. Narrow band tone modulation: spectra and phasors • Phasors and spectra resemble AM:

  20. Assignment AM NB-FM (i) Discuss the phasor diagrams and explain phasor positions based on analytical expressions (ii) Comment amplitude and phase modulation in both cases

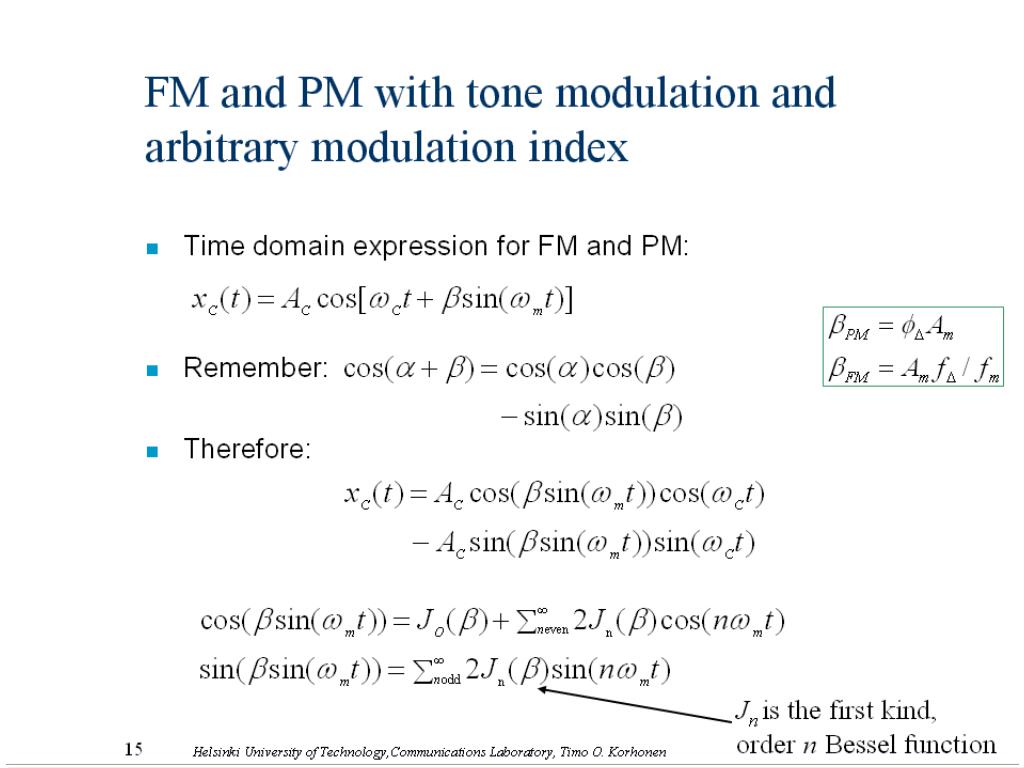

  21. FM and PM with tone modulation and arbitrary modulation index • Time domain expression for FM and PM: • Remember: • Therefore: Jn is the first kind, order n Bessel function

  22. Wideband FM and PM spectra • After simplifications we can write:

  23. Assignment • Assuming other parameters fixed, what happens to spectral • width and line spacing when • Frequency deviation increases in FM • Modulation frequency increases in FM • Phase deviation decreases in PM

  24. Determination of transmission bandwidth • The goal is to determine the number of significant sidebands • Thus consider again how Bessel functions behave as the function of b, e.g. we consider • Significant sidebands: • Minimum bandwidth includes 2 sidebands (why?): • Generally:

  25. Assignment

  26. Transmission bandwidth and deviation D • Tone modulation is extrapolated into arbitrary modulating signal by defining deviation by • Therefore transmission BW is also a function of deviation • For very large D and small D with • that can be combined into

  27. Example: Commercial FM bandwidth • Following commercial FM specifications • High-quality FM radios RF bandwidth is about • Note that under estimates the bandwidth slightly

  28. A practical FM modulator circuit • A tuned circuit oscillator • biased varactor diode capacitance directly proportional to x(t) • other parts: • input transformer • RF-choke • DC-block

  29. Generating FM/PM Resonance frequency • Capacitance of a resonant circuit can be made to be a function of modulation voltage. • That can be simplified by the series expansion De-tuned resonance frequency Capacitance diode De-tuned tank circuit Note that this applies for a relatively small modulation index Remember that the instantaneous frequency is the derivative of the phase

  30. Assignment

  31. Phase modulators: narrow band mixer modulator • Integrating the input signal to a phase modulator produces frequency modulation! Thus PM modulator applicable for FM • Also, PM can be produced by an FM modulator by differentiating its input • Narrow band mixer modulator: Narrow bandFM/PM spectra

  32. Frequency detection • Methods of frequency detection • FM-AM conversion followed by envelope detector • Phase-shift discriminator • Zero-crossing detection (tutorials) • PLL-detector (tutorials) • FM-AM conversion is produced by a transfer function having magnitude distortion, as the time derivative (other possibilities?): • As for example

  33. 25

  34. Assignment

  35. Mathematica®-expressions Indirect FM transmitter • FM/PM modulator with high linearity and modulation index difficult to realize • One can first generate a small modulation index signal that is then applied into a nonlinear circuit • Therefore applying FM/PM wave into non-linearity increases modulation index

  36. Indirect FM transmitter:circuit realization • The frequency multiplier produces n-fold multiplication of instantaneous frequency • Frequency multiplication of tone modulation increases modulation index but the line spacing remains the same
