Bead sort a natural algorithm for sorting

Bead-Sort

- A natural algorithm for sorting


Bead sort a natural algorithm for sorting

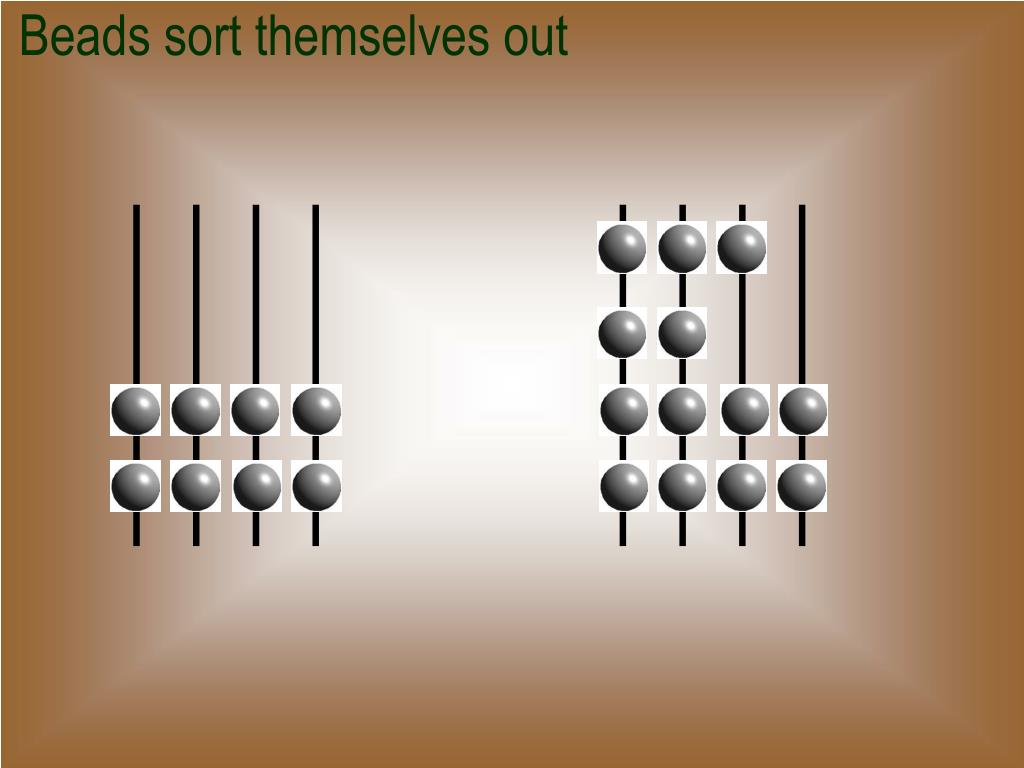

Beads sort themselves out


Bead sort a natural algorithm for sorting

Bead-Stack machine

The tilt operation

900


Bead sort a natural algorithm for sorting

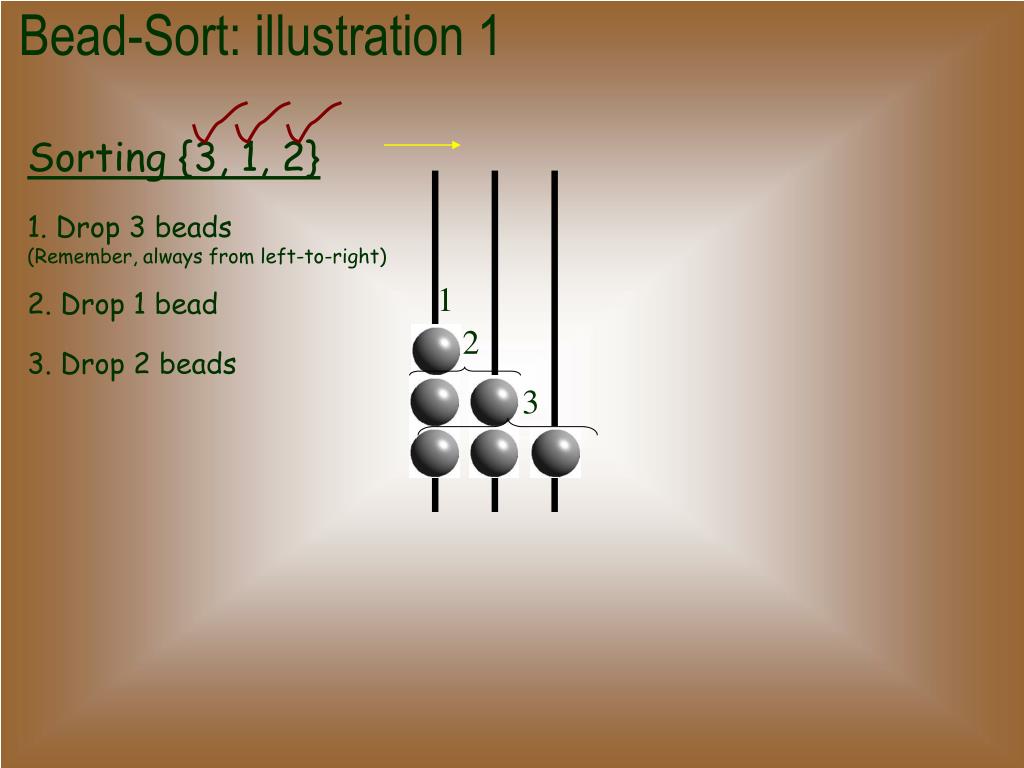

Bead-Sort: illustration 1

1

2

3

Sorting {3, 1, 2}

1. Drop 3 beads

(Remember, always from left-to-right)

2. Drop 1 bead

3. Drop 2 beads


Bead sort a natural algorithm for sorting

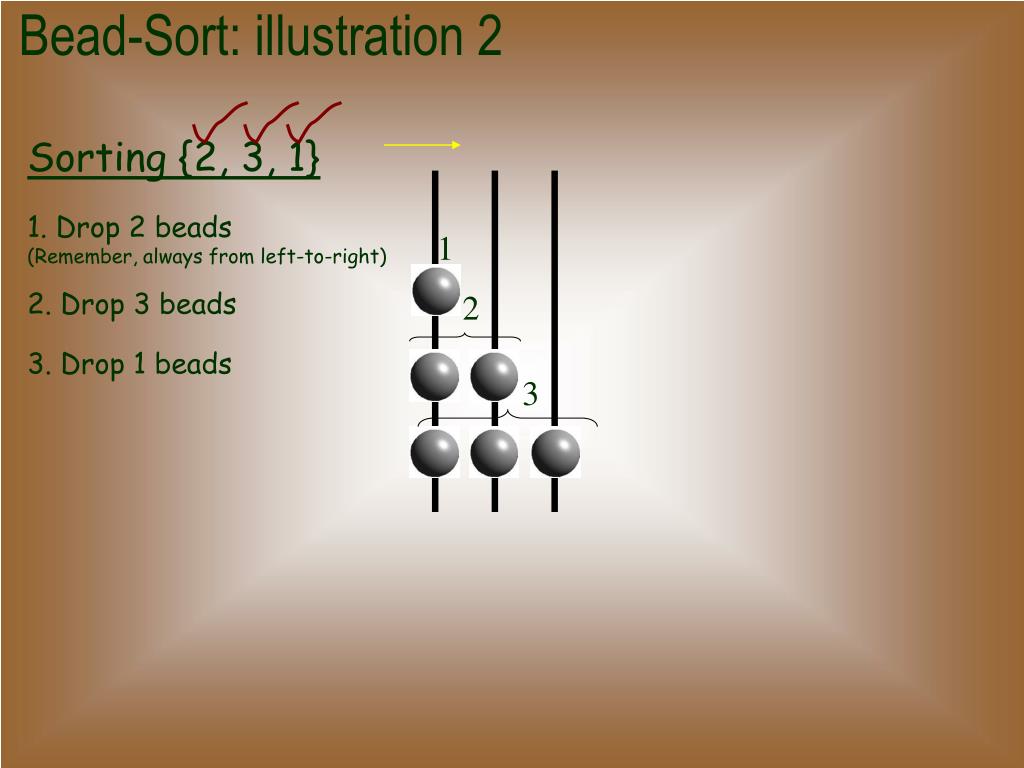

Bead-Sort: illustration 2

1

2

3

Sorting {2, 3, 1}

1. Drop 2 beads

(Remember, always from left-to-right)

2. Drop 3 beads

3. Drop 1 beads


Bead sort a natural algorithm for sorting

Bead-Sort: illustration 3

1

2

3

Sorting {1, 3, 2}

1. Drop 1 bead

(Remember, always from left-to-right)

2. Drop 3 beads

3. Drop 2 beads


Bead sort a natural algorithm for sorting

Bead-Sort: illustration 4

1

2

3

4

Sorting {1, 3, 2, 4}

1. Drop 1 bead

(Remember, always from left-to-right)

2. Drop 3 beads

3. Drop 2 beads

4. Drop 4 beads


Bead sort a natural algorithm for sorting

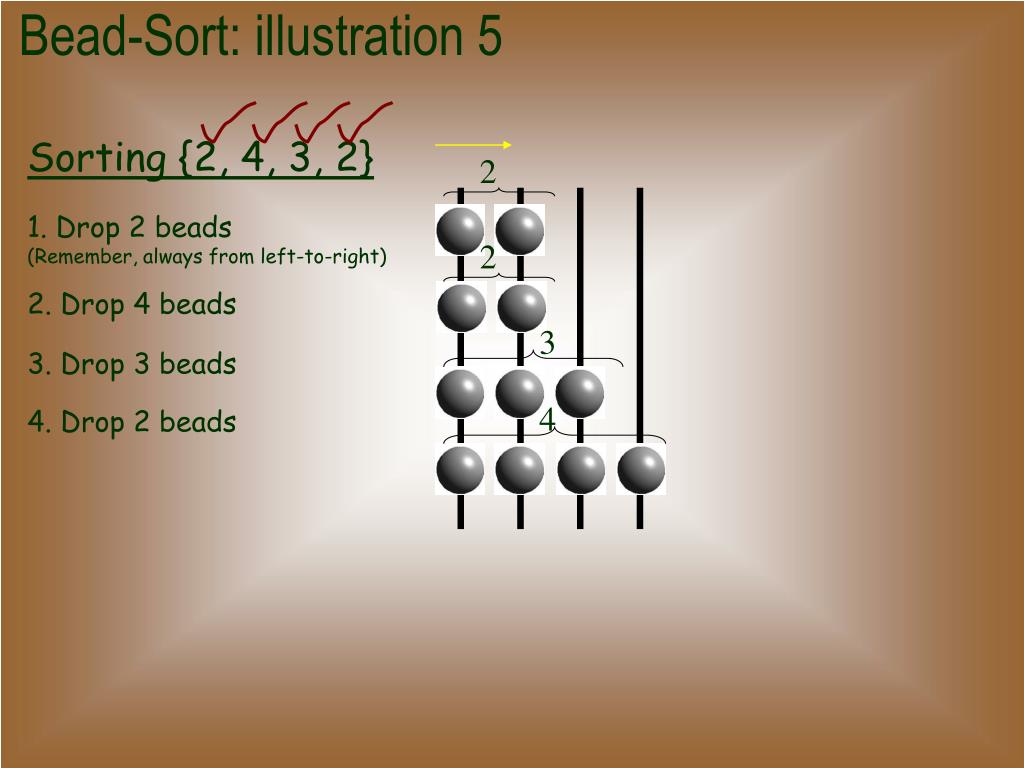

Bead-Sort: illustration 5

2

2

3

4

Sorting {2, 4, 3, 2}

1. Drop 2 beads

(Remember, always from left-to-right)

2. Drop 4 beads

3. Drop 3 beads

4. Drop 2 beads


Bead sort a natural algorithm for sorting

Simulating Bead-Sort with a program

0

0

Level_Count

1

3

2

1

1

Rod_Count

  • Two linear arrays used.

  • Rod_Count keeps track of number

  • of beads in each rod.

  • Level_Count records number of

  • beads in each level.

  • Finally, Level_Count will contain

  • sorted data.


Bead sort a natural algorithm for sorting

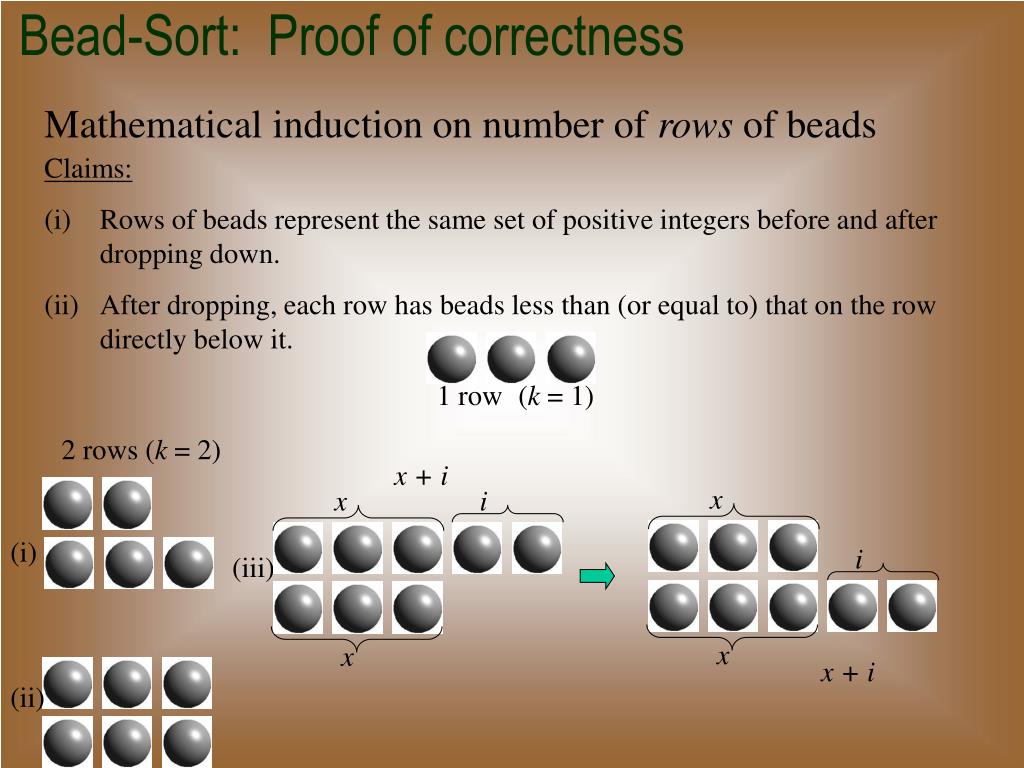

Bead-Sort: Proof of correctness

x + i

x

x

i

1 row (k = 1)

(i)

i

(iii)

x

x

x + i

(ii)

Mathematical induction on number of rows of beads

  • Claims:

  • Rows of beads represent the same set of positive integers before and after dropping down.

  • After dropping, each row has beads less than (or equal to) that on the row directly below it.

2 rows (k = 2)


Bead sort a natural algorithm for sorting

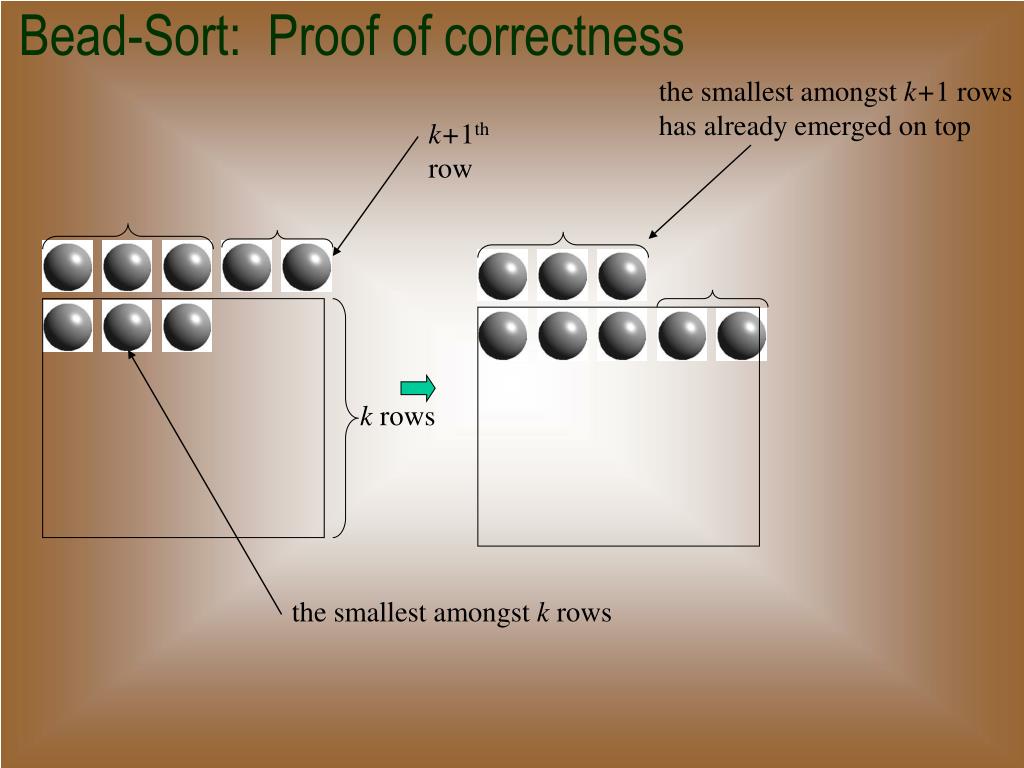

Bead-Sort: Proof of correctness

the smallest amongst k+1 rows has already emerged on top

k+1th row

k rows

the smallest amongst k rows


Bead sort a natural algorithm for sorting

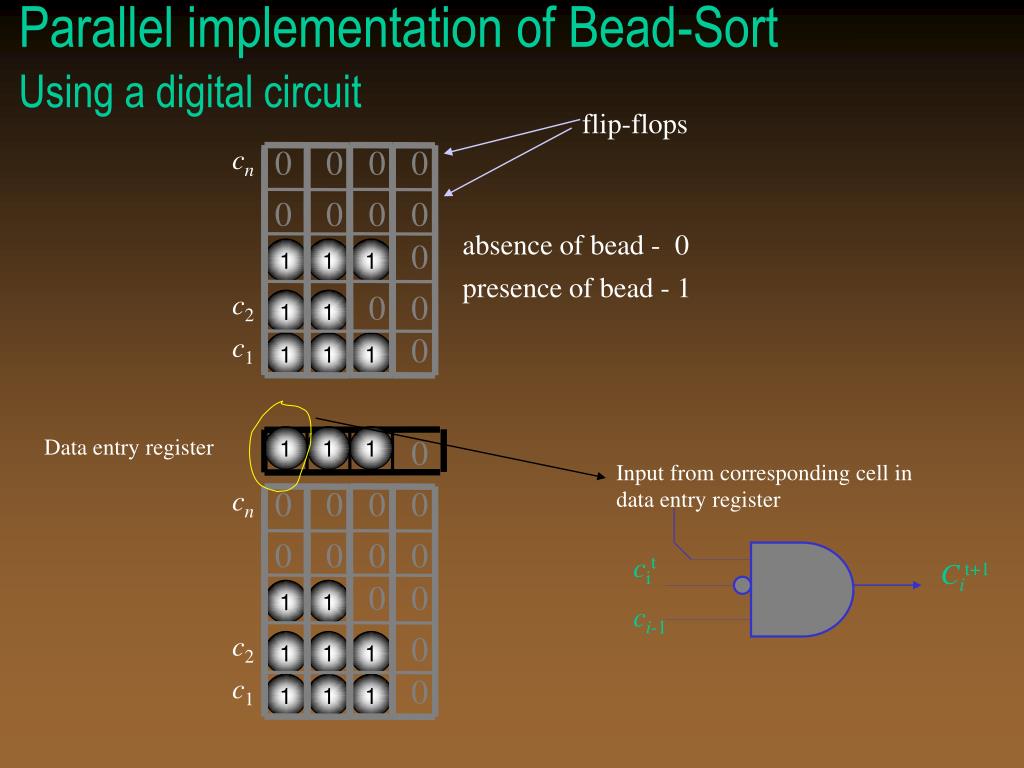

Parallel implementation of Bead-Sort

Using a digital circuit

flip-flops

absence of bead - 0

presence of bead - 1

cn

cn

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

Data entry register

c2

c2

0

0

0

Input from corresponding cell in

data entry register

1

1

c1

c1

0

0

1

1

1

cit

Cit+1

0

1

1

ci-1

1

1

1

1

1

1


Bead sort a natural algorithm for sorting

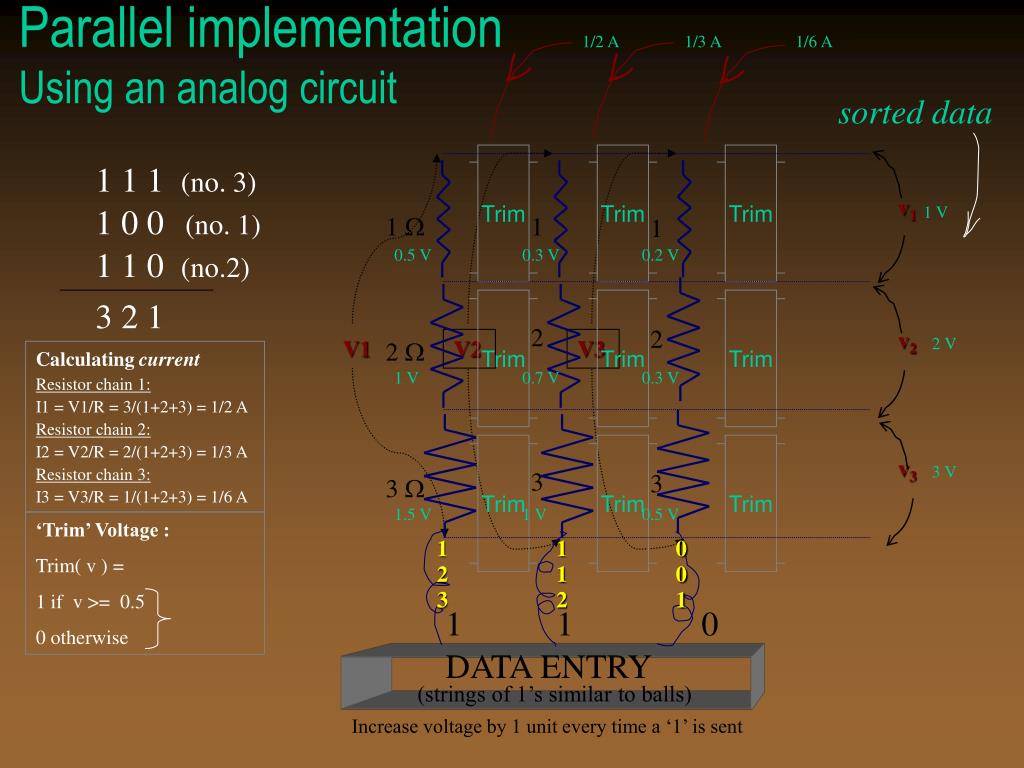

Parallel implementation

Using an analog circuit

1/2 A

1/3 A

1/6 A

sorted data

Trim

Trim

Trim

v1

1 V

1

1

1

0.5 V

0.3 V

0.2 V

3 2 1

Trim

Trim

Trim

2

2

v2

2 V

V1

V2

V3

2

1 V

0.7 V

0.3 V

Trim

Trim

Trim

v3

3 V

3

3

3

1.5 V

1 V

0.5 V

Trim Voltage :

Trim( v ) =

1 if v >= 0.5

0 otherwise

1 1 1 (no. 3)

1 0 0 (no. 1)

1 1 0 (no.2)

Calculating current

Resistor chain 1:

I1 = V1/R = 3/(1+2+3) = 1/2 A

Resistor chain 2:

I2 = V2/R = 2/(1+2+3) = 1/3 A

Resistor chain 3:

I3 = V3/R = 1/(1+2+3) = 1/6 A

1 1 0

2 1 0

3 2 1

1

1

0

DATA ENTRY

(strings of 1s similar to balls)

Increase voltage by 1 unit every time a 1 is sent


Bead sort a natural algorithm for sorting

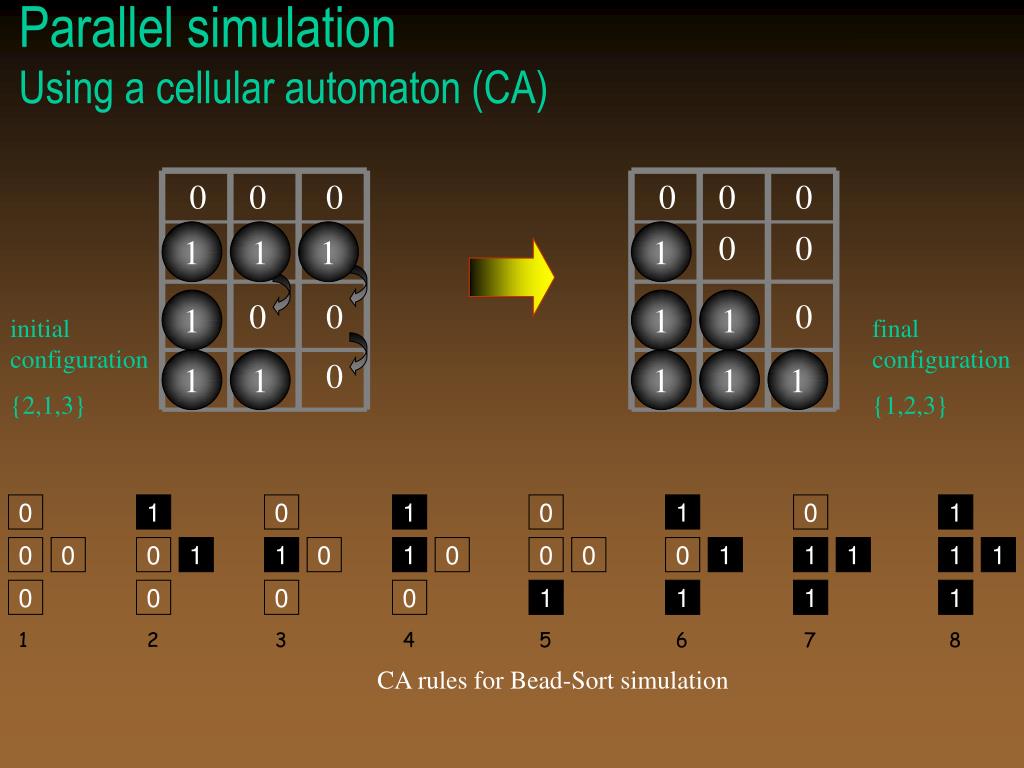

Parallel simulation

Using a cellular automaton (CA)

0

0

0

0

0

0

1

1

1

1

0

0

1

0

0

1

1

0

initial configuration

{2,1,3}

final configuration

{1,2,3}

1

1

0

1

1

1

0

1

0

1

0

1

0

1

0

0

0

1

1

0

1

0

0

0

0

1

1

1

1

1

0

0

0

0

1

1

1

1

1

2

3

4

5

6

7

8

CA rules for Bead-Sort simulation


Bead sort a natural algorithm for sorting

Bead-Stack machine

Loading the input (beads)

1

2

3

4

Pushing button-1 will make one bead to drop down, pushing button-2 will make two beads to drop down (in parallel), and so on.


Bead sort a natural algorithm for sorting

Bead-Stack machine

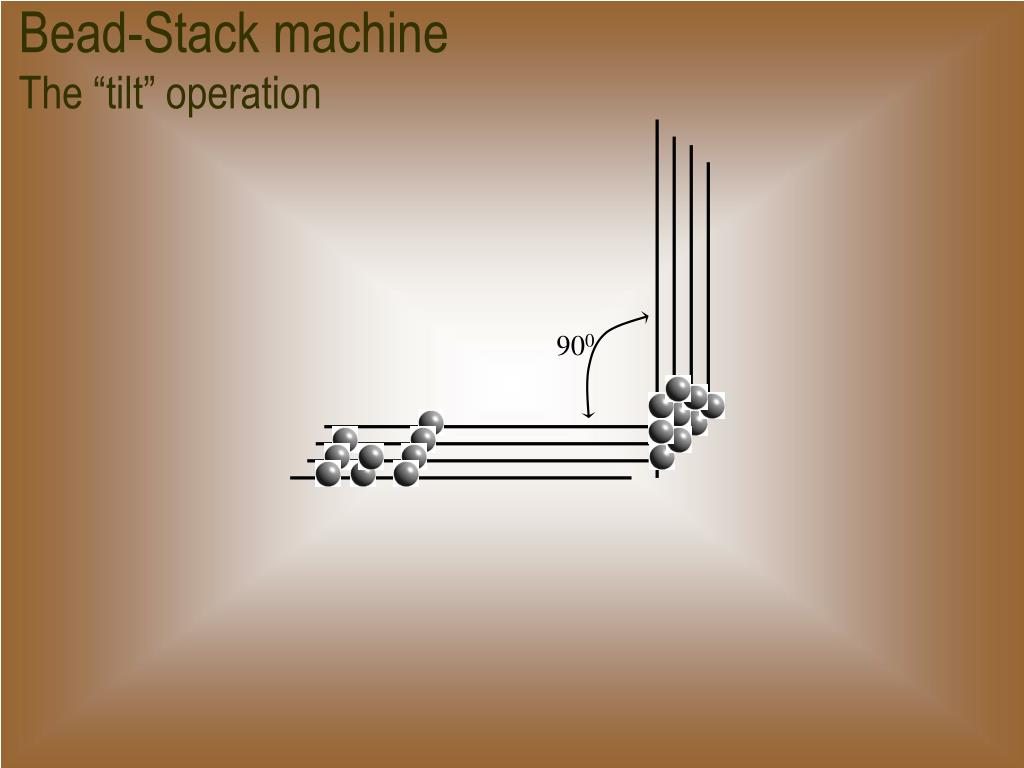

The tilt operation

900


Bead sort a natural algorithm for sorting

Beads rolled down along rod-1 will have the label 1, those rolled down along rod-2 will have 2, and so on.

1

1

2

1

2

3

1

2

3

4

only label 3 is seen

labels stuck on the sides (of the beads)

Bead-Stack machine

Reading the output


Bead sort a natural algorithm for sorting

Bead-Stack machine

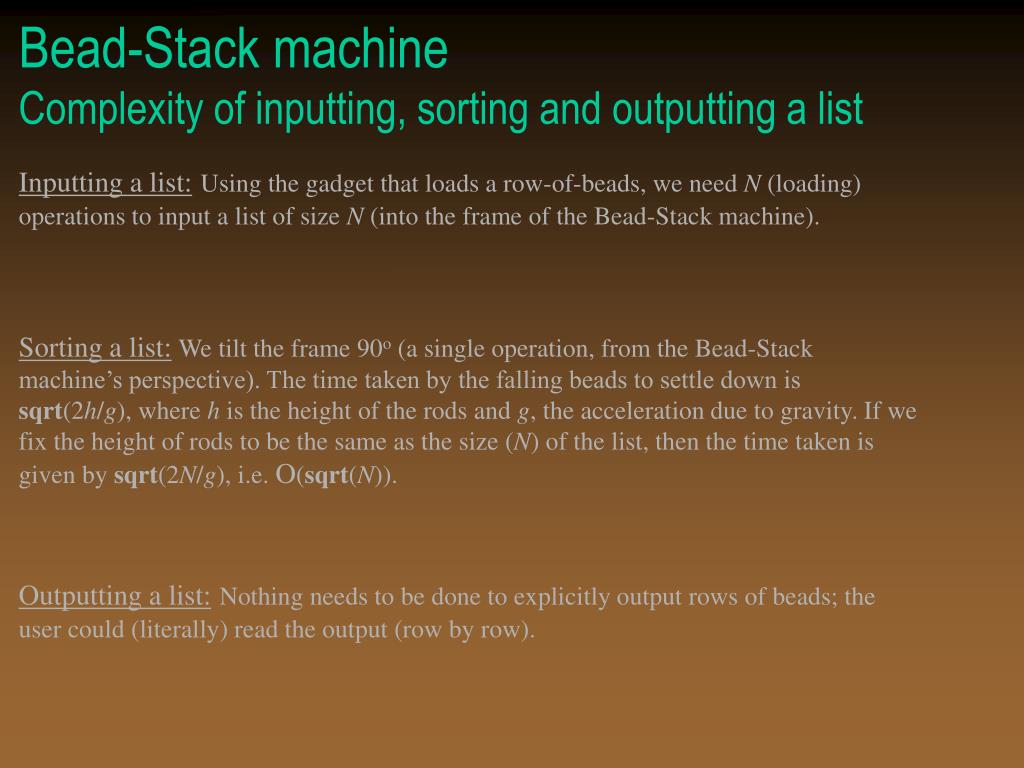

Complexity of inputting, sorting and outputting a list

Inputting a list:Using the gadget that loads a row-of-beads, we need N (loading) operations to input a list of size N (into the frame of the Bead-Stack machine).

Sorting a list:We tilt the frame 90o (a single operation, from the Bead-Stack machines perspective). The time taken by the falling beads to settle down is sqrt(2h/g), where h is the height of the rods and g, the acceleration due to gravity. If we fix the height of rods to be the same as the size (N) of the list, then the time taken is given by sqrt(2N/g), i.e. O(sqrt(N)).

Outputting a list:Nothing needs to be done to explicitly output rows of beads; the user could (literally)read the output (row by row).
