Presentation Transcript

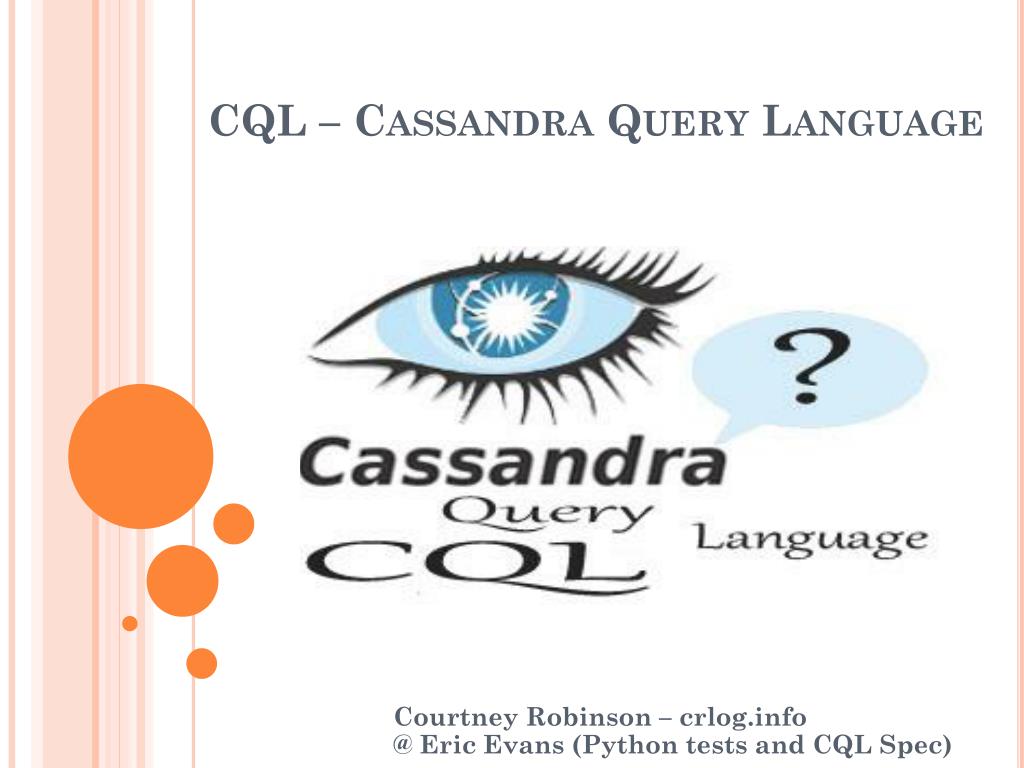

  1. CQL – Cassandra Query Language Courtney Robinson – crlog.info@ Eric Evans (Python tests and CQL Spec)

  2. Thrift or Avro? • External dependency • Community activity dissipates • Too generic • Many user reported problems caused by Thrift or the misuse thereof... Its thrift! Its Avro! Its CQL....

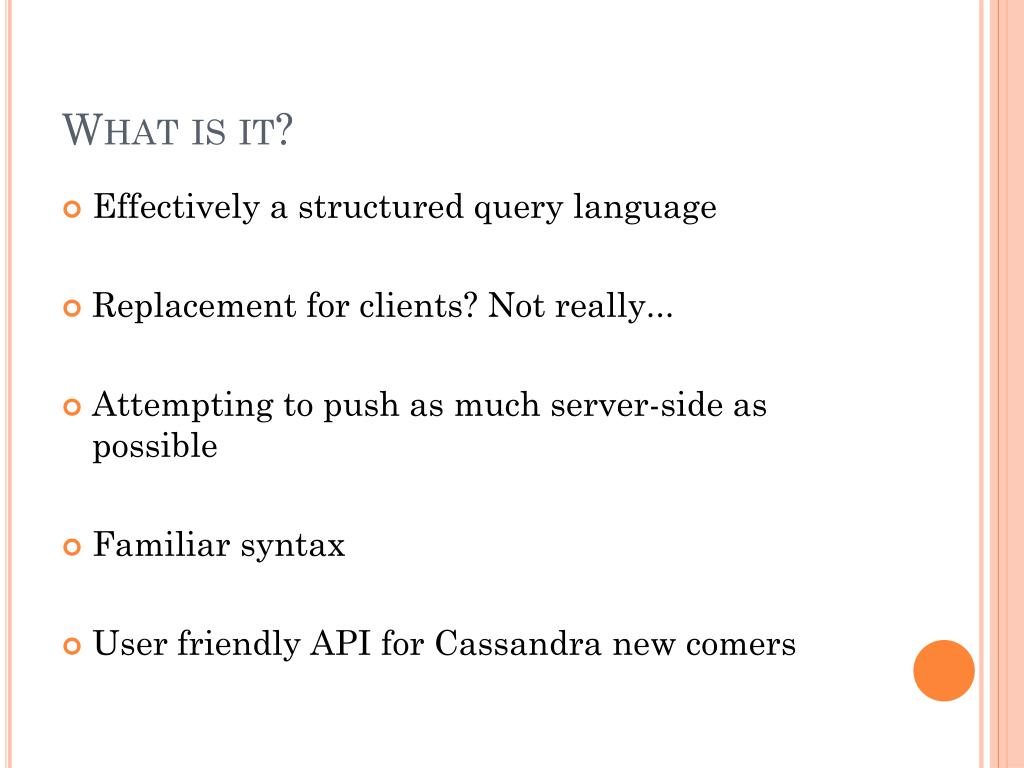

  3. What is it? • Effectively a structured query language • Replacement for clients? Not really... • Attempting to push as much server-side as possible • Familiar syntax • User friendly API for Cassandra new comers

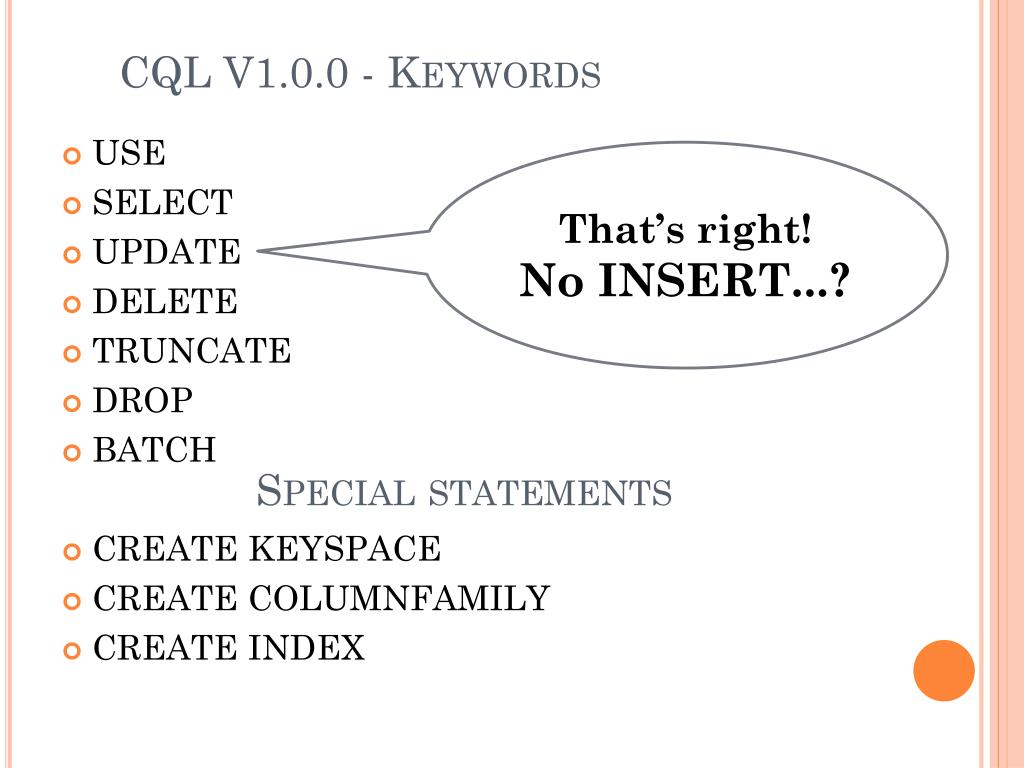

  4. CQL V1.0.0 - Keywords That’s right!No INSERT...? • USE • SELECT • UPDATE • DELETE • TRUNCATE • DROP • BATCH • CREATE KEYSPACE • CREATE COLUMNFAMILY • CREATE INDEX Special statements

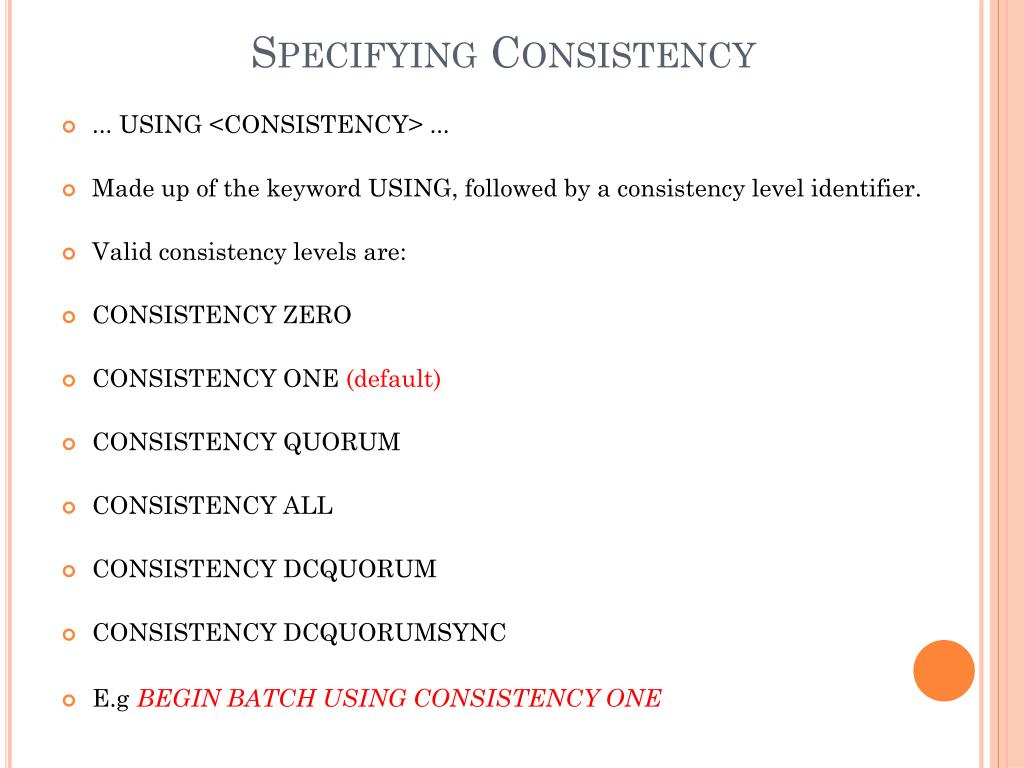

  5. Specifying Consistency • ... USING <CONSISTENCY> ... • Made up of the keyword USING, followed by a consistency level identifier. • Valid consistency levels are: • CONSISTENCY ZERO • CONSISTENCY ONE (default) • CONSISTENCY QUORUM • CONSISTENCY ALL • CONSISTENCY DCQUORUM • CONSISTENCY DCQUORUMSYNC • E.gBEGIN BATCH USING CONSISTENCY ONE

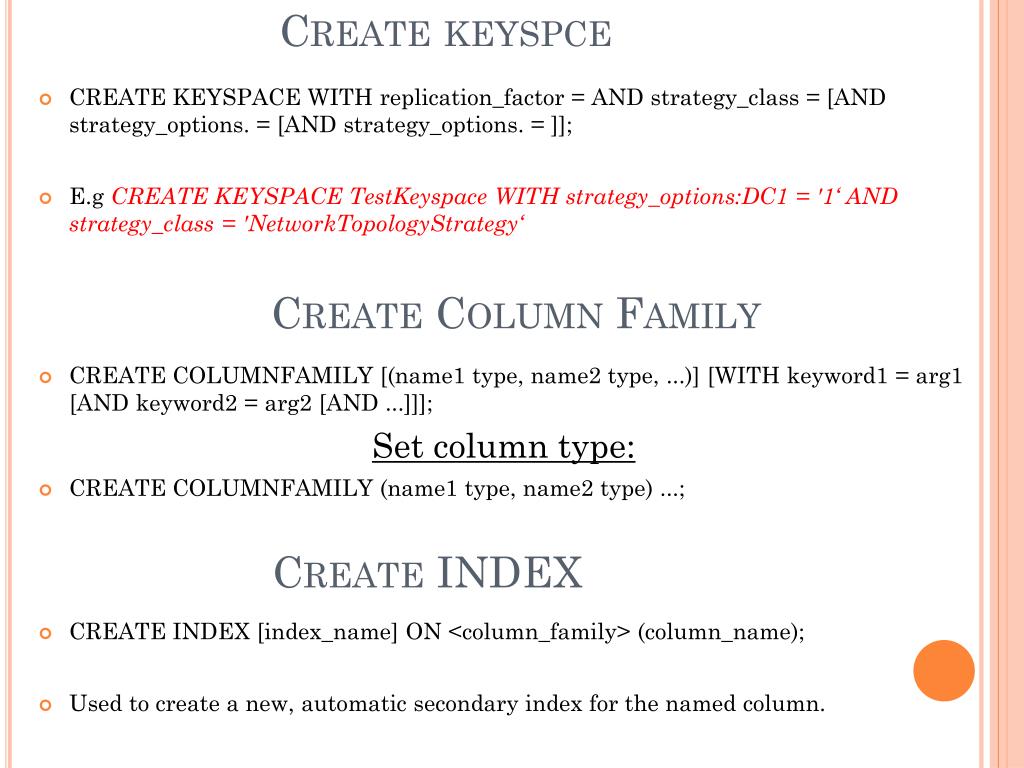

  6. Create keyspce • CREATE KEYSPACE WITH replication_factor = AND strategy_class = [AND strategy_options. = [AND strategy_options. = ]]; • E.gCREATE KEYSPACE TestKeyspaceWITH strategy_options:DC1 = '1‘ AND strategy_class = 'NetworkTopologyStrategy‘ • CREATE COLUMNFAMILY [(name1 type, name2 type, ...)] [WITH keyword1 = arg1 [AND keyword2 = arg2 [AND ...]]]; Set column type: • CREATE COLUMNFAMILY (name1 type, name2 type) ...; • CREATE INDEX [index_name] ON <column_family> (column_name); • Used to create a new, automatic secondary index for the named column. Create Column Family Create INDEX

  7. USE • USE <KEYSPACE>; • Use keyword followed by a valid Keyspace name • Set working Keyspace per-connection • DROP <KEYSPACE|COLUMNFAMILY>; • DROP KEYSPACE KSName; • DROP COLUMNFAMILYCFName; Immediate, irreversible removal of keyspace and column family namespaces. • TRUNCATE <COLUMN FAMILY> • Accepts a single argument (CF) name • permanently removes all data from said column family. DROP TRUNCATE

  8. UPDATE (values) • UPDATE [USING CONSISTENCY ] SET name1 = value1, name2 = value2 WHERE KEY = keyname; • UPDATE is used to write one or more columns to a record in a Cassandra column family. • No results are returned. • Creates or updates rows • UPDATE CFName SET ‘name' = 10 WHERE KEY = ‘1234’ • UPDATE <COLUMN FAMILY> ... • Begin with the UPDATE keyword followed by CF name. • Followed by an optional consistency level specification.

  9. BATCH UPDATES • Where’s my batch mutate gone? • Similar to code blocks/structs • Has begining (Begin Batch) and end (Apply Batch) BEGIN BATCH [USING ] UPDATE CF1 SET name1 = value1, name2 = value2 WHERE KEY = keyname1; UPDATE CF1 SET name3 = value3 WHERE KEY = keyname2; UPDATE CF2 SET name4 = value4, name5 = value5 WHERE KEY = keyname3; APPLY BATCH • BEGIN BATCH USING CONSISTENCY QUORUM UPDATE CFnameSET 1='1', 2='2', 3='3', 4='4' WHERE KEY='aa‘ UPDATE CFname2 SET 5='5', 6='6', 7='8', 9='9' WHERE KEY='ab' UPDATE CFnameSET 9='9', 8='8', 7='7', 6='6' WHERE KEY='ac' UPDATE CFname3 SET 5='5', 4='4', 3='3', 2='2' WHERE KEY='ad' UPDATE CFnameSET 1='1', 2='2', 3='3', 4='4' WHERE KEY='ae' • APPLY BATCH

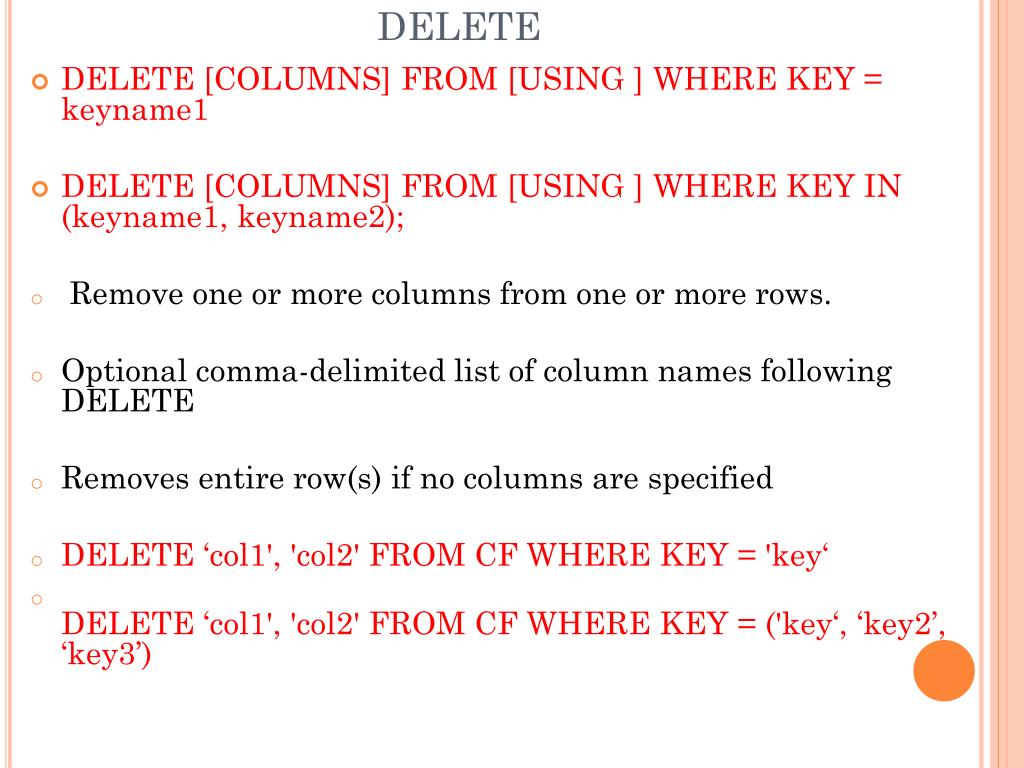

  10. DELETE • DELETE [COLUMNS] FROM [USING ] WHERE KEY = keyname1 • DELETE [COLUMNS] FROM [USING ] WHERE KEY IN (keyname1, keyname2); • Remove one or more columns from one or more rows. • Optional comma-delimited list of column names following DELETE • Removes entire row(s) if no columns are specified • DELETE ‘col1', 'col2' FROM CF WHERE KEY = 'key‘ • DELETE ‘col1', 'col2' FROM CF WHERE KEY = ('key‘, ‘key2’, ‘key3’)

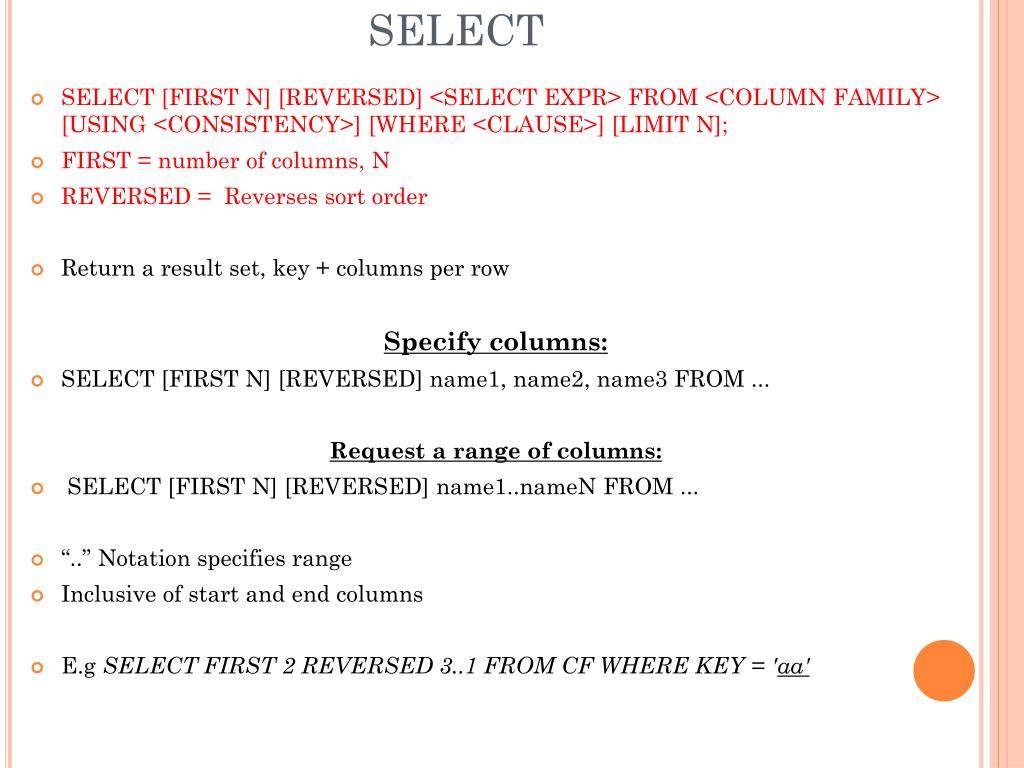

  11. SELECT • SELECT [FIRST N] [REVERSED] <SELECT EXPR> FROM <COLUMN FAMILY> [USING <CONSISTENCY>] [WHERE <CLAUSE>] [LIMIT N]; • FIRST = number of columns, N • REVERSED = Reverses sort order • Return a result set, key + columns per row Specify columns: • SELECT [FIRST N] [REVERSED] name1, name2, name3 FROM ... Request a range of columns: • SELECT [FIRST N] [REVERSED] name1..nameN FROM ... • “..” Notation specifies range • Inclusive of start and end columns • E.gSELECT FIRST 2 REVERSED 3..1 FROM CF WHERE KEY = 'aa'

  12. Courtney Robinson @zcourts Thank you for listening. Questions?Links: http://crlog.info/2011/03/29/cassandra-query-language-aka-cql-syntax/ https://svn.apache.org/viewvc/cassandra/trunk/doc/cql/CQL.html?view=co https://issues.apache.org/jira/browse/CASSANDRA-1703
