  1. CS104 : Discrete Structures Chapter III Proof Techniques Prepared by Dr. Zakir H. Ahmed

  2. Rules of Inference – Valid Arguments in Propositional Logic • Argument: An argument is a sequence of statements that end with a conclusion. • Valid: An argument is valid if and only if it is impossible for all premises (preceding statements) to be true and the conclusion to be false. By valid, we mean that the conclusion of the argument must follow from the truth of the premises of the argument. • Consider the arguments: “If you have a current password, then you can log onto the network.” “You have a current password.” Therefore, “You can log onto the network.” Prepared by Dr. Zakir H. Ahmed

  3. Rules of Inference – Valid Arguments in Propositional Logic • The conclusion “You can log onto the network” must be true when the premises “If you have a current password, then you can log onto the network” and “You have a current password” are true. • Let p= “You have a current password.” and q=“You can log onto the network.” Then the argument has the form where  is the symbol that denotes “therefore.” • The statement ((p → q) ⌃p) → q is a tautology. p → q p  q Prepared by Dr. Zakir H. Ahmed

  4. Rules of Inference – Rule for Propositional Logic • The argument form with premises p1, p2, …., pn and conclusion q is valid, when (p1⌃p2⌃….⌃pn) → q is a tautology. • To show that an argument is valid, instead of showing by truth table, we can establish the validity of some relatively simple argument forms, called rules of inference, which can be used as building blocks to construct more complicated valid argument forms. • The tautology ((p → q) ⌃p) → q is the basis of the rule of inference called modusponens or law of detachment. Prepared by Dr. Zakir H. Ahmed

  5. Rules of Inference – Rules for Propositional Logic • Example: Suppose that the conditional statement “If it snows today, then we will go skiing” and its hypothesis “It is snowing today”, are true. Then by modus ponens, it follows that the conclusion of the conditional statement, “We will go skiing” is true. • Q1: Determine whether the argument given here is valid and determine whether its conclusion must be true because of the validity of the argument. Prepared by Dr. Zakir H. Ahmed

  6. Rules of Inference – Rules for Propositional Logic Prepared by Dr. Zakir H. Ahmed

  7. Rules of Inference – Rule for Propositional Logic • Example: State which rule of inference is the basis of the following argument: “It is below freezing now. Therefore, it is either below freezing or raining now”. • Sol: Let p= “It is below freezing now.” and q = “It is raining now.” Then this argument is of the form: p p v q This is an argument that uses the addition rule. • Q2: State which rule of inference is the basis of the following argument: “It is below freezing and raining now. Therefore, it is below freezing”. Prepared by Dr. Zakir H. Ahmed

  8. Introduction to Proofs • A theorem is a statement that can be shown to be true (usually important statement) • Less important theorem sometimes are called propositions • A proof is a sequence of statements (valid argument) to show that a theorem is true • The statements to be used in proofs include: • Axioms (statement assumed to be true without proof) • Ex: If x is positive integer then x+1 is positive integer. • Hypothesis (premises) of the theorem • Previously proven theorems • Rules of inference used to draw conclusions and to move from one step to another Prepared by Dr. Zakir H. Ahmed

  9. Introduction to Proofs • A less important theorem that is helpful in the proof of other results is called a lemma • A corollary is a theorem that can be established directly from a theorem that has been proved • A conjuncture is a statement that is being proposed to be a true statement, usually on the basis of some partial evidence • When a proof of a conjuncture is found, the conjuncture becomes a theorem Axioms Rules of inference New theorem Hypothesis proven theorems Prepared by Dr. Zakir H. Ahmed

  10. Introduction to Proofs • Example 1: If I have a car (C) I will drive to Makkah (M). My boss gave me 60,000 (G) or Fired me (F). If I have SR60,000 (H) then I have a car (C). My boss did not fire me. Therefore I will drive to Makkah (M). • GF Hypothesis • F Hypothesis • G Disjunctive syllogism rule using 1 and 2 • GH Axiom  • H C Hypothesis • G C Hypo. syllogism using 4,5 • C Modus ponens using 3 and 6 • C M Hypothesis • M Modus ponens using 7 and 8 Prepared by Dr. Zakir H. Ahmed

  11. Methods of proving theorems:Direct proofs • A direct proofof a conditional statement pq is constructed when the first step is the assumption that p is true; subsequent steps are constructed using rules of inference, with the final step showing that q must also be true • In a direct proof, we assume that p is true and use axioms, definitions, and previously proven theorems, together with rules of inference, to show that q must also be true • Def: The integer n is even if there exists an integer k such that n = 2k, and n is odd if there exists an integer k such that n = 2k + 1. Prepared by Dr. Zakir H. Ahmed

  12. Methods of proving theorems:Direct proofs • Example 2: Use a direct proof to show that “if n is even then n2 is even” • Proof: Assume that n is even (hypothesis) => n = 2k where k is integer (definition of even number) => n2 = (2k)2 = 4k2 = 2(2k2) (By squaring) Since r = 2K2 is integer (Axiom) => n2 = 2r is even • Q 3: Use a direct proof to show that “if n is odd then n2 is odd” Prepared by Dr. Zakir H. Ahmed

  13. Methods of proving theorems:Proof by contraposition • An indirect proofof a conditional statement p q is a direct proof of its contraposition q  p. • Example 3: Use an indirect proof to show that if a and b are integers, and (a + b) ≥ 15, then a ≥ 8 or b ≥ 8. • Proof: The contraposition of (a + b ≥ 15)  (a ≥ 8) v (b ≥ 8) is (a < 8)  (b < 8)  (a + b < 15) Suppose (a < 8)  (b < 8) (hypothesis). => (a ≤ 7)  (b ≤ 7), => (a + b) ≤ 14, => (a + b) < 15. Prepared by Dr. Zakir H. Ahmed

  14. Methods of proving theorems:Proof by contraposition • Example 4: Use an indirect proof to show that “if n2 is even then n is even” • Proof: The contraposition is “if n is not even then n2 is not even” Assume that n is not even i.e., nis odd (hypothesis) => n = 2k+1 where k is integer (definition of odd number) => n2 = (2k + 1)2 = 4k2 + 4k + 1 = 2(2k2 + 2k) + 1 = 2r + 1, where r = 2k2 + 2k Since r is integer (Axiom) => n2 is not even • Q 4: Use an indirect proof to show that “if n is odd then n2 is odd” Prepared by Dr. Zakir H. Ahmed

  15. Methods of proving theorems:Proof by contraposition • Example 5: Prove that if n = ab then a  n or b  n where a and b are positive integers • Proof: Let p=“an”, q=“bn” and r=“n=ab” We want to prove that r pq => The contraposition is (pq )   r (By definition) => p  q   r (De Morgan’s law) Now, assume thatan and bn (p  q) => a.b  n.n = n (by multiplying above twos) => ab  n =>  r Prepared by Dr. Zakir H. Ahmed

  16. Methods of proving theorems:Vacuous Proofs • Vacuous Proofs: A conditional statement p  q is TRUE if p is FALSE. If we can show that p is False, then we have a proof, called vacuous proof, of the conditional statement p  q • Example 6: Prove that if x2  0 then 1=2 where x is a real number • Proof: Since x2  0 for every real number then the implication is vacuously true • Example 7: Prove that if he is alive and he is dead then the sun is ice cold. • Proof: Since the hypothesis is always false the implication is vacuously true. Prepared by Dr. Zakir H. Ahmed

  17. Methods of proving theorems:Trivial Proofs • Trivial Proofs: A conditional statement p  q is TRUE if q is TRUE. If we can show that q is TRUE, then we have a proof, called trivial proof, of the conditional statement p  q • Example 8: Prove that if x=2 then x2  0 for all real numbers • Proof: Since x2  0 is true then the implication is trivially true. (we didn’t use the fact x=2) • Q 5: Use a trivial proof to show that if n > 1 then n2 ≥ n for all integers Prepared by Dr. Zakir H. Ahmed

  18. Methods of proving theorems:Proofs by Contradiction • Proof by Contradiction: To prove a proposition p, assume not p and show a contradiction. • Example 9: Use a proof by contradiction to show that 2 is irrational • Proof: Let 2 is rational => 2 = a/b for some integers a and b (b0) (relatively prime). (Definition of rational numbers) => 2 = a2/b2 (Squaring both sides) => 2b2 = a2 => a2 is even (Definition of even numbers) => a is even (a = 2k for some k) => 2b2 = a2 = (2k)2 = 4k2 => b is even (Definition of even numbers) But if a and b are both even, then they are not relatively prime! Hence, 2 is irrational Prepared by Dr. Zakir H. Ahmed

  19. Methods of proving theorems:Proofs by Contradiction • Why is this method valid ? • The contradiction forces us to reject our assumption because our other steps based on that assumption are logical and justified. The only “mistake” that we could have made was the assumption itself. • Be careful! • Sometimes the contradiction comes from a mistake in the steps of the proof and not from the assumption. This makes the proof invalid. • Example 10: Prove that 1=2 • Proof: Suppose that 21 and a=b for some a. => 2b b [multiply by b] => a+b b [2b=b+b=a+b by hypothesis] => (a-b)(a+b)  b(a-b) [multiply by a-b] => a2-b2  ab-b2 => a2 ab [subtract b2 from both sides] => a b which contradicts our assumption that a=b Hence it follows that 1=2 • Can you find the error  Prepared by Dr. Zakir H. Ahmed

  20. Methods of proving theorems:Proofs by Contradiction • To prove a conditional statement p  q by contradiction we prove thatp  q F is true which is equivalent top  q . • Example 11: Use a proof by contradiction to show that If 3n+2 is odd then n is odd • Proof: Suppose that 3n+2 is odd and n is even [p  q] => n = 2r [hypothesis q, definition of even numbers] => 3n = 6r [multiply 1 by 3] => 3n+2=2+6r [add 2 to both sides] => 3n+2=2(1+3r) => 3n+2=2k [let k=1+3r] => Thus 3n+2 is even which is false (a contradiction !) Therefore the implication is true. Prepared by Dr. Zakir H. Ahmed

  21. Methods of proving theorems:Proofs of Equivalence • Proofs of Equivalence: To prove p q we have to prove p  q and q  p • Example 12: prove “n is even if and only if n2 is even” • “if n is even then n2 is even” proved in example 2 • “n2 is even then n is even” proved in example 4 • Therefore, n is even if and only if n2 is even • Proving equivalence of several propositions: If we want to prove that p1 p2  p3 …  pn • Then it is sufficient to prove p1  p2,, p2  p3 … pn  p1 • Disproof by Counterexample • Example 13: Prove that “For all real numbers x2 > x” is false • Proof: X=0.5 is a counterexample since 0.52 > 0.5 is not true • Q 6: Prove that “If n is not positive, then n2 is not positive” is false Prepared by Dr. Zakir H. Ahmed

  22. Methods of proving theorems: Proof by Cases • Proof by Cases: A proof by cases must cover all possible cases that arise in a theorem. Each case may cover an infinite number of instances • Example 15: Prove "if n is an integer then n2 ≥ n". • Proof: We can prove that n2 ≥ n for every integer by considering three cases, when n = 0, when n ≥ 1, and when n ≤ -1. Case 1: When n = 0, since 02 = 0, 02 >= 0. So, n2 ≥ n is true. Case 2: When n ≥ 1, From n ≥ 1, we get n2 ≥ n (by multiplying with n). Case 3: When n ≤ -1, since n is negative, n2 is positive, so n2 ≥ n. Hence, if n is an integer then n2 ≥ n. • Q 7: Prove that |xy| = |x||y|, where x and y real numbers. • Hint: Consider all 4 cases: x and y positive or negative • Common errors with exhaustive proof and proof by cases: • Draw conclusion from non-exhaustive examples • Not covering all possible cases Prepared by Dr. Zakir H. Ahmed

  23. Methods of proving theorems: Existence Proofs • Many theorems state that an object with certain properties exists, i.e., xP(x) where P is a predicate. A proof of such a theorem is called an existence proof. There are two kinds: • Constructive Existence Proof: The proof is established be giving example a such that P(a) is true • Example 16: Prove "there is a positive integer that can be written as the sum of cubes in two different ways.“ • Proof: Consider 1729=103+93=123+13. Finding such examples may require computer assistance. • Non-constructive Existence Proof: The proof is established by showing that an object a with P(a) is true must exist without explicitly demonstrating one. Proofs by contradiction are usually used in such cases. Prepared by Dr. Zakir H. Ahmed

  24. Methods of proving theorems: Existence Proofs • Example 17: Let x1,x2,..,xn be positive integers such that their average is m. prove that there exists xi such that xi ≥ m • Proof: Suppose that there is no such number, i,e., x1  m, x2  m, … , xn  m By adding these inequalities we get: x1+ x2+…+ xn  nm Dividing by n: (x1+ x2+…+ xn)/n  m But since the average is defined as(x1+ x2+…+ xn)/n Then we havem  mwhich is a contradiction. Therefore there must be a numberxi such that xi ≥ m. But we can not specify which number is that. Prepared by Dr. Zakir H. Ahmed

  25. Methods of proving theorems: UniquenessProofs • Some theorems state that there is exactly one element with a certain property. A proof of such a theorem is called a uniqueness proof. • Strategy here is (1) show that an element x with the desired property exists (2) show that any other y (y != x) does not have the property, i.e., if x and y both have the property, then x must equal y. • Example 18: Prove that the equation 3x+5 = 9 has a unique solution. • Proof: (1) There exists a solution namely x = 4/3 (2) Suppose that y and z are solution then 3y+5 = 9 = 3z+5 So 3y = 3z Dividing by 3 we get y = z This proves that the solution is unique Prepared by Dr. Zakir H. Ahmed

  26. Methods of proving theorems:Mathematical Induction • Principle of Mathematical Induction: • Let P(n) be a statement for all the positive integers (n = 1, 2, 3, . .). If the following two properties hold: • P(1)is true. • P(k+1) is true if P(k) is true for each positive integer k. • Then P(n) is true for all n. • First part is a simple proposition we call the base step • Second part is an inductive step. Start by assuming P(k) is true, and show that P(k+1) is also true • The assumption that P(k) is true called the inductive hypothesis • So, we prove that (P(1)  k (P(k)  P(k+1)))  (n P(n)) Prepared by Dr. Zakir H. Ahmed

  27. Methods of proving theorems:Mathematical Induction • Example 19: Suppose we have an infinite ladder, and we want to know whether we can reach every step on this ladder. We know two things: • We can reach the first rung of the ladder • If we can reach a particular rung of the ladder, then we can reach the next rung. • How does Induction Work? • Consider the above example. The rules for reaching steps can help you remember how induction works • Statements (1) and (2) are the basic step and inductive step respectively of the proof that P(n) is true for all positive integers n, where P(n) is the statement that we can reach the nth rung of the ladder. • Consequently, we can invoke the mathematical induction to conclude that we can reach every rung of the ladder Prepared by Dr. Zakir H. Ahmed

  28. Methods of proving theorems:Mathematical Induction • Example 20 (A Summation Problem): Prove that for any integer n ≥ 1: 1 + 2 + 3 + · · · + n = n(n+1)/2 . • Proof: Let P(n) be the proposition that the sum of the first n positive integers is n(n+1)/2. Then to proof that P(n) is true for all n ≥ 1, we have to show that P(1) is true and P(k+1) is true if P(k) is true for k ≥ 1. Basic step: P(1) is true, because 1 = 1.(1+1)/2 Inductive step: Let us assume that it is true for n = k, that is, 1+2+3+…..+k = k(k+1)/2 Now, if we can prove that it is true for n = k+1 also, then it can be said that it is true for all n. For, 1 + 2 + · · · + k + (k + 1) = k(k + 1)/2 + (k + 1) = (k + 1)(k/2 + 1) = (k + 1)(k + 2)/2 => P(k + 1) is also true, hence P(n) is true for all integer n. Prepared by Dr. Zakir H. Ahmed

  29. Methods of proving theorems:Mathematical Induction • Example 21: Use induction to prove that the sum of the first n odd integers is n2. • Proof: Let P(n) be the proposition that the sum of the first n odd integers is n2. Then to proof that P(n) is true for all n ≥ 1, we have to show that P(1) is true and P(k+1) is true if P(k) is true for k ≥ 1. Basic step: P(1) is true, because the sum of the first 1 odd integer is 12. Inductive step: Assume P(k): the sum of the first k odd integers is k2, that is, 1 + 3 + … + (2k - 1) = k2 Now, if we can prove that it is true for n = k+1 also, then it can be said that it is true for all n. For, 1 + 3 + … + (2k-1) + (2k+1) = k2 + (2k + 1) = (k+1)2 => P(k + 1) is also true, hence P(n) is true for all integer n. Prepared by Dr. Zakir H. Ahmed

  30. Methods of proving theorems:Mathematical Induction • Q 8: Use induction to prove that 11! + 22! + … + nn! = (n+1)! - 1, n • Q 9: Use induction to prove that for all n, • Q 10: Use induction to prove that for all n, Prepared by Dr. Zakir H. Ahmed

  31. Methods of proving theorems:Mathematical Induction • Example 22: Use induction to prove the inequality n < 2n, n > 0. • Proof: Let P(n) be the proposition that n < 2n Basic step: P(1) is true, because 1 < 21 = 2. Inductive step: Assume P(k) is true, that is, k < 2K Now, if we can prove that it is true for n = k+1 also, then it can be said that it is true for all n. For, k < 2K => k + 1 < 2K + 1 ≤ 2K + 2K =2. 2K = 2K+1 => k + 1 < 2K+1 => P(k + 1) is also true, hence P(n) is true for all integer n. • Q 11: Use induction to prove the inequality 2n < n! n > 3. Prepared by Dr. Zakir H. Ahmed

  32. Recursive Step Base Step Methods of proving theorems: Recursive Definitions • Recursion: Sometimes it is difficult to define an object explicitly. However, it may be easy to define this object in terms of itself. This process is called recursion. • Recursive defined functions: We use two steps to define a function with the nonnegative integers as its domain: Basis Step: Specify the value of the function at zero. Recursive Step: Give a rule for finding its value at an integer from its values at smaller integers. Such definition is called a recursive or inductive definition. • Example 25: The definition of factorial function: n! = 1 · 2 · 3 · … · (n-1) · n, n  1 But equivalently, we could define it like this: Prepared by Dr. Zakir H. Ahmed

  33. Recursive Step Base Step Is there a non-recursive definition for the Fibonacci Numbers? Methods of proving theorems: Recursive Definitions • Example 26: The definition of Fibonacci Numbers: Prepared by Dr. Zakir H. Ahmed

  34. Recursive Step Base Step Methods of proving theorems: Recursive Definitions • Example 27: Suppose that f is defined by f(0) = 3, f(n+1) = 2f(n) + 3. Find f(1), f(2), f(3), and f(4). • Solution: From the recursive definition, it follows that f(1) = 2f(0) + 3 = 2.3 + 3 = 9, f(2) = 2f(1) + 3 = 2.9 + 3 = 21, f(3) = 2f(2) + 3 = 2.21 + 3 = 45, f(4) = 2f(3) + 3 = 2.45 + 3 = 93. • Example 28: Give a recursive definition of • Solution: The first and second part of the recursive definition are Prepared by Dr. Zakir H. Ahmed

  35. Recursive Step Base Step Methods of proving theorems: Recursive Definitions • Example 29: Give an inductive definition of S = {x: x is a multiple of 3} • Solution: • 3  S • x,y  S  x + y  S • x,y  S  x - y  S • No other numbers are in S. • Q 12:Find the Fibonacci numbers f(2), f(3), f(4), f(5), and f(6). • Q 13: Give an inductive definition of an. Prepared by Dr. Zakir H. Ahmed

  36. Methods of proving theorems: Recursive Definitions • Recursively Defined Sets and Structures: Sets can be defined recursively. Recursive definition of sets have two part – basis step and recursive step. Basis Step: An initial collection of elements is specified. Recursive Step: Rules for forming new elements in the set from those already known to be in the set are provided. • Example 30: Consider subset S of the set of integers defined by Basis Step: 3 S. Recursive Step: If x, y  S then x + y  S . • The new elements found to be in S are 3 by the basis step, 3+3=6 at the first application of the recursive step, 3+6=6+3=9 at the second application of the recursive step, 6+6=12 at the third application of the recursive step, and so on. We will show later that S is set of all positive multiples of 3. Prepared by Dr. Zakir H. Ahmed

  37. Recursive Definitions:Recursively Defined Sets • Example 31: The set of Natural Numbers N can be defined recursively as follows: 1N [basis step] If x N then x+1N[Recursive step] Lets try to constructs the set using this definition 1 in N [basis step] 1+1=2 in N [Recursive step] 2+1=3 in N [Recursive step] Etc… Prepared by Dr. Zakir H. Ahmed

  38. Algorithms Prepared by Dr. Zakir H. Ahmed

  39. Algorithms:Definitions • The word ‘algorithm’ comes from the name of a Persian author, Abu Ja’far Mohammad Ibn Musa Al Khowarizmi (825 AD). • Definition: An algorithm is a finite set of instructions that, if followed, carries out a particular task. In addition, all algorithms must satisfy the following criteria: • Input: Zero or more quantities are externally supplied. • Output: At least one quantity is produced. • Definiteness: Each instruction is clear and unambiguous. • Finiteness: If we trace out the instructions of an algorithm, then for all cases, the algorithm terminates after a finite number of steps. • Effectiveness: Every instruction must be very basic so that it can be carried out, in principle, by a person using only pen and paper. It must be feasible. Prepared by Dr. Zakir H. Ahmed

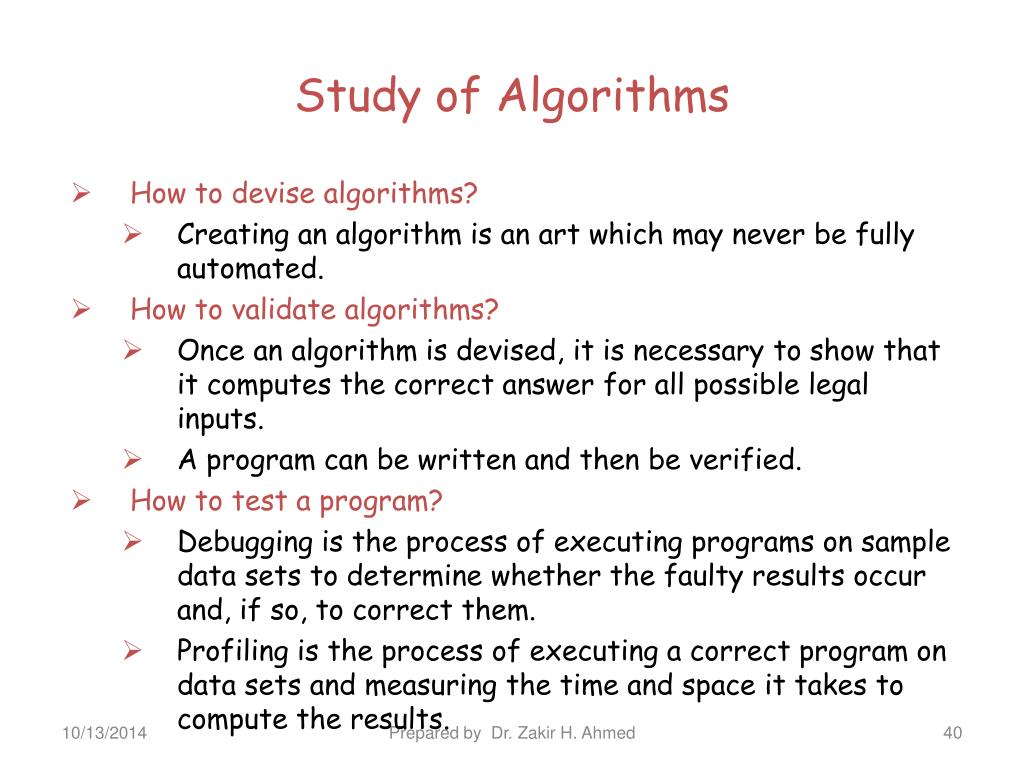

  40. Study of Algorithms • How to devise algorithms? • Creating an algorithm is an art which may never be fully automated. • How to validate algorithms? • Once an algorithm is devised, it is necessary to show that it computes the correct answer for all possible legal inputs. • A program can be written and then be verified. • How to test a program? • Debugging is the process of executing programs on sample data sets to determine whether the faulty results occur and, if so, to correct them. • Profiling is the process of executing a correct program on data sets and measuring the time and space it takes to compute the results. Prepared by Dr. Zakir H. Ahmed

  41. Pseudocode Conventions • Commentsbegin with // and continue until the end of line. • Blocksare indicated with matching braces: {and}. • An Identifierbegins with a letter: max. • Assignmentof values to variables is done using assignment statement : Variable:=expression. • Logicaloperators:and, orand notare provided. • Relationaloperators: <, ≤, =, ≠, ≥and > provided. • Elements of arrays are accessed using: [ and ]. • Whileloop: while(condition) do { statements; } Prepared by Dr. Zakir H. Ahmed

  42. Pseudocode Conventions • Forloop: forvariable:=value1 tovalue2 stepstep do { Statements; } • Repeat-untilloop: repeat { Statements; } until(condition) • Conditionalstatement: • if(condition) then(statement); • if(condition) then(statement 1); else(statement 2); Prepared by Dr. Zakir H. Ahmed

  43. Pseudocode Conventions • Casestatement: case {: (condition 1): (statement 1); …………………. : (condition n): (statement n); : else: (statement n+1); } • Input andoutputare done using: readandwrite. • There is only one type of procedure: Algorithm. • An algorithm consists of a heading and a body. • The headingof an algorithm takes the form AlgorithmName((parameter list)) Prepared by Dr. Zakir H. Ahmed

  44. Finding Maximum Value • Input: A sequence of n numbers (a1, a2,…, an). • Output: Maximum of (a1, a2,…, an). Algorithm Maximum(A, n) {Max:=A[1]; for i:=2 to n do {if ( Max < A[i]) then Max:=A[i]; } } Prepared by Dr. Zakir H. Ahmed

  45. Sorting Problem • Input: A sequence of n numbers (a1, a2,…, an). • Output: A permutation of n numbers (reordering) (a'1, a'2,…, a'n) of the input sequence such that a'1≤ a'2 ≤… ≤ a'n. • Bubble Sort:- • It is a popular sorting algorithm • It swaps adjacent elements that are out of order • Insertion sort:- • Insert an element to a sorted array such that the order of the resultant array be not changed. Prepared by Dr. Zakir H. Ahmed

  46. Bubble Sort Algorithm • Bubble sort: Algorithm BubbleSort (A, n) { for i:=1 to n-1 do { for j := n downto i+1 do { if ( A[j]<A[j-1]) then exchange A[j] ↔ A[j-1]; } } } Prepared by Dr. Zakir H. Ahmed

  47. Bubble Sort Algorithm Prepared by Dr. Zakir H. Ahmed

  48. Insertion Sort Algorithm • Insertion sort: Algorithm InsertionSort (A, n) { for i:=2 ton do { key:=A[i]; // Insert A[i] into the sorted sequence A[1…i-1]. j:=i-1; while ( (j>0) and (A[j]>key) ) do { A[j+1]:=A[j]; j:=j-1; } A[j+1]:=key; } } Prepared by Dr. Zakir H. Ahmed

  49. End of Chapter III Prepared by Dr. Zakir H. Ahmed
