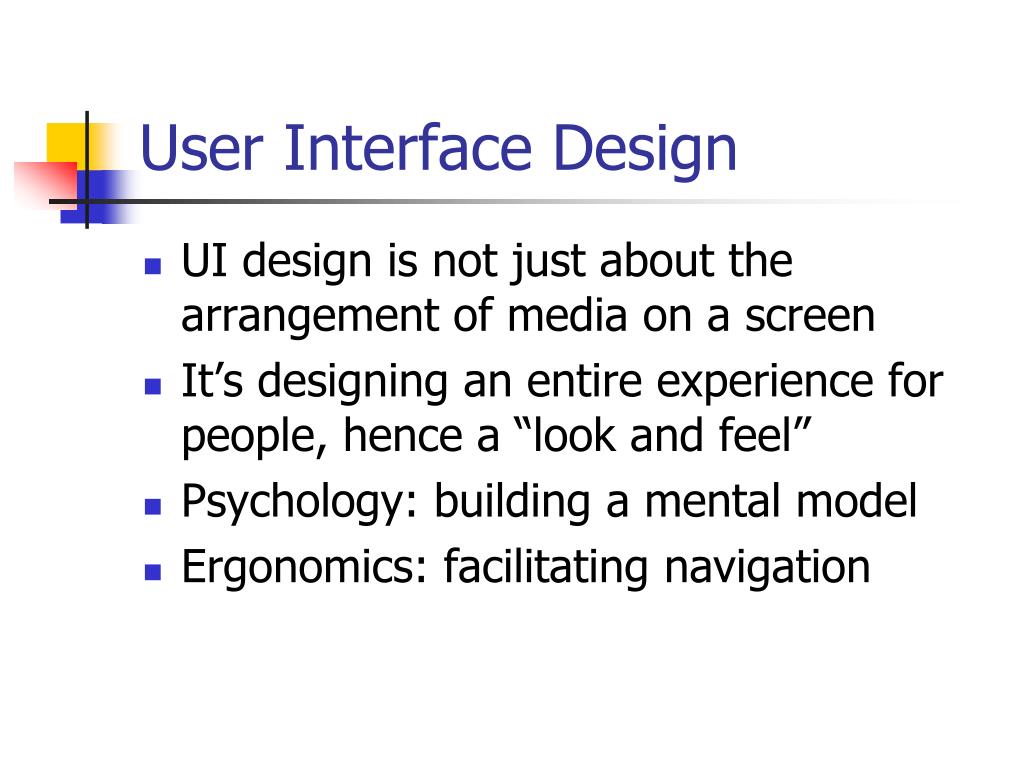

  1. User Interface Design • UI design is not just about the arrangement of media on a screen • It’s designing an entire experience for people, hence a “look and feel” • Psychology: building a mental model • Ergonomics: facilitating navigation

  2. User interface and web design • Why is good user interface design important? • How did a presidential election come down to questionable user interface design? • Palm Beach ballot may have misled many Gore voters into voting for Buchanan • Expecting Democratic candidate to be the second hole

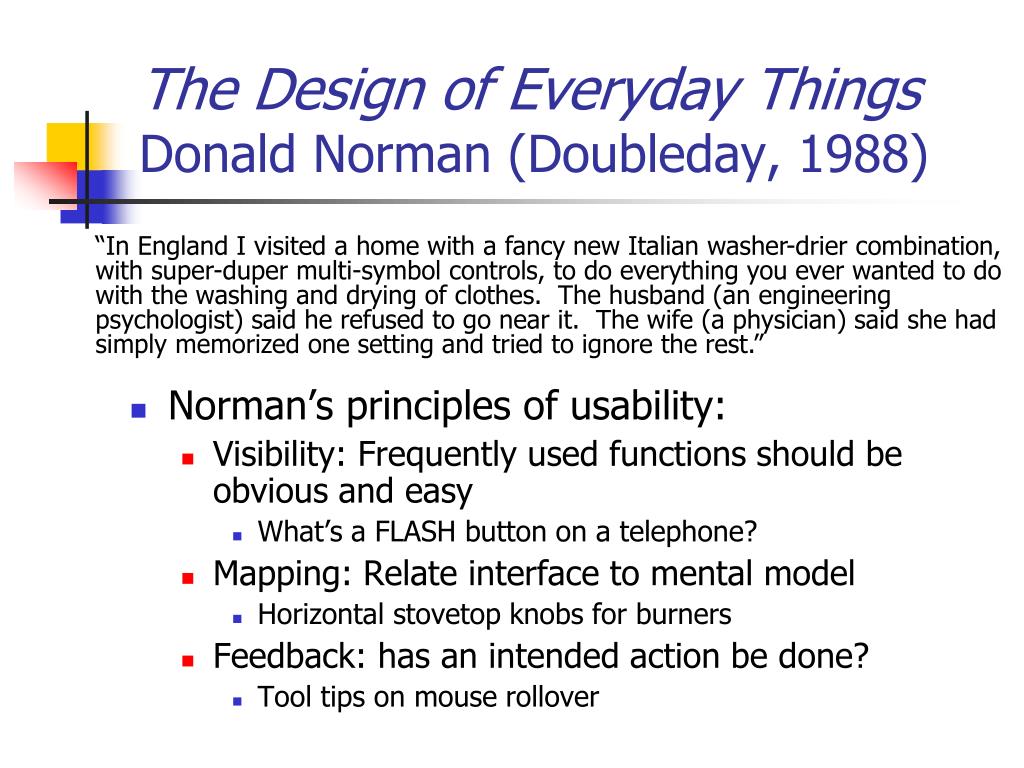

  3. The Design of Everyday ThingsDonald Norman (Doubleday, 1988) • Norman’s principles of usability: • Visibility: Frequently used functions should be obvious and easy • What’s a FLASH button on a telephone? • Mapping: Relate interface to mental model • Horizontal stovetop knobs for burners • Feedback: has an intended action be done? • Tool tips on mouse rollover “In England I visited a home with a fancy new Italian washer-drier combination, with super-duper multi-symbol controls, to do everything you ever wanted to do with the washing and drying of clothes. The husband (an engineering psychologist) said he refused to go near it. The wife (a physician) said she had simply memorized one setting and tried to ignore the rest.”

  4. Exercise • Have you ever walked into a room and fumbled with the light switches, often turning on the wrong ones? • Which of Norman’s principles does this interface violate? How so? • Visibility: light switches should be obvious • Mapping: position of switches should correspond to model of room

  5. More UI principles • Real world mapping: correspond to familiar layouts • Consistency: common features should stay in same place, work in same way • Less is more: less important features out of the way • Anticipation: hide or grey out inactive features • Customization: give expert users more efficient features • Transparency: UI shouldn’t’ cover up content • Contiguity: keep explanatory words near graphics • Memory load: remind user about details • User control: who’s in charge? • Speak user’s language: understandable instructions, feedback, error messages…

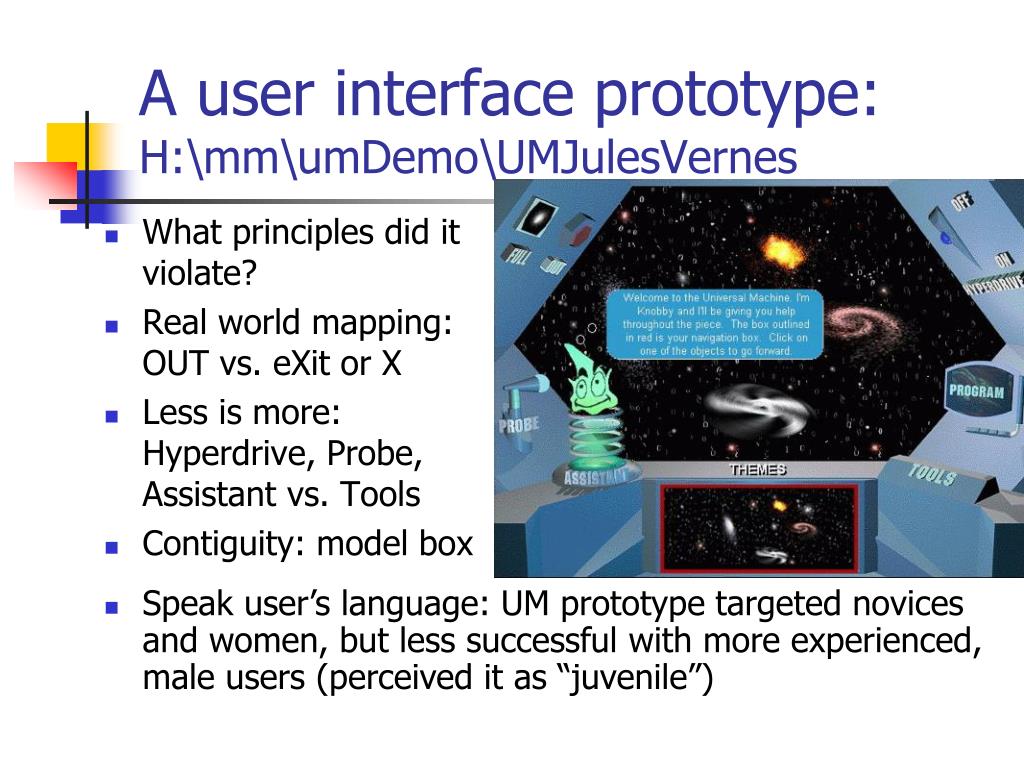

  6. A user interface prototype: H:\mm\umDemo\UMJulesVernes • What principles did it violate? • Real world mapping: OUT vs. eXit or X • Less is more: Hyperdrive, Probe, Assistant vs. Tools • Contiguity: model box • Speak user’s language: UM prototype targeted novices and women, but less successful with more experienced, male users (perceived it as “juvenile”)

  7. Your next assignment: • In The Universal Computer, go to the chapter on User Interface and Web Design and study the section called Usability, • Look at its precursor, The Universal Machine (available on campus LAN by entering “umwords”) • Write a short paper comparing The Universal Computer and its precursor, The Universal Machine (on any campus machine, enter “umwords”): • Discuss at least three UI design principles • Discuss lessons learned from changes in design • Discuss how each might appeal to different learners • Due Monday, via Blackboard

  8. Metaphors in UI design • Can help users develop a mental model • Desktop, street map, doorknob, screwdriver as metaphors • Metaphor should be obvious to user • Example in H:\transistors1.exe • Is the metaphor transparent? • Compare H:\transistors.exe

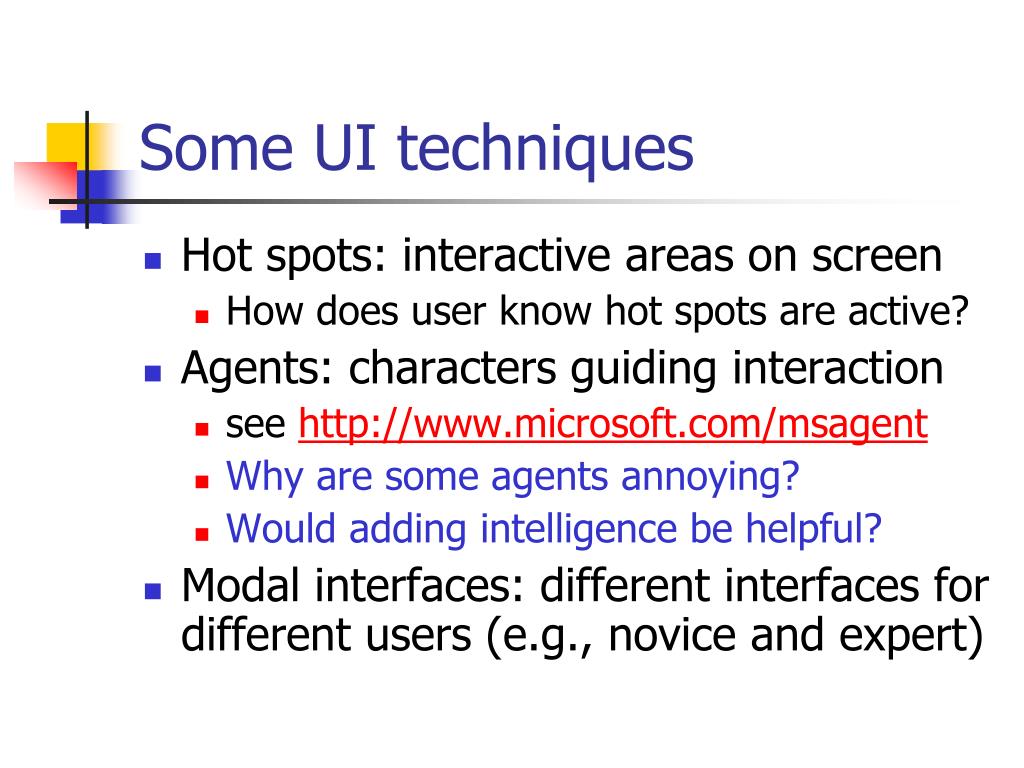

  9. Some UI techniques • Hot spots: interactive areas on screen • How does user know hot spots are active? • Agents: characters guiding interaction • see http://www.microsoft.com/msagent • Why are some agents annoying? • Would adding intelligence be helpful? • Modal interfaces: different interfaces for different users (e.g., novice and expert)

  10. Two approaches to UI design • Lisa Lopuck’s 3 steps to UI design: 1) Identify your audience and message 2) Determine the setting 3) Create an experience • Tay Vaughan’s approach to UI design: 1) determine all the functionality that a UI should provide, 2) design UI that provides this functionality • Does form follows function?

  11. Prototyping a user interface • Implementation paradox: • You can’t evaluate or improve a design until it’s been implemented, but changes are hard to make after it’s implemented • How can prototyping break this paradox? • Can evaluate and improve designs early • So, do you want to prototype early?

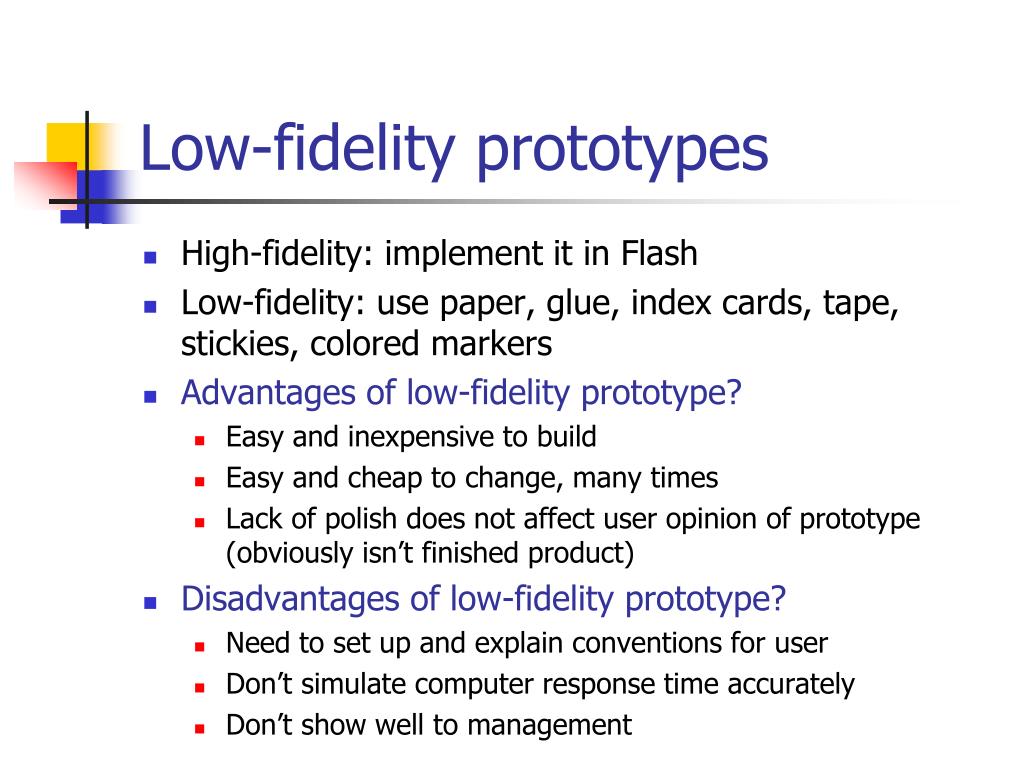

  12. Low-fidelity prototypes • High-fidelity: implement it in Flash • Low-fidelity: use paper, glue, index cards, tape, stickies, colored markers • Advantages of low-fidelity prototype? • Easy and inexpensive to build • Easy and cheap to change, many times • Lack of polish does not affect user opinion of prototype (obviously isn’t finished product) • Disadvantages of low-fidelity prototype? • Need to set up and explain conventions for user • Don’t simulate computer response time accurately • Don’t show well to management

  13. An example

  14. Testing your prototype • Test team constructs paper prototype • Test by letting one member “play computer,” rearranging UI in response to a user’s actions • Another member takes notes during test • Afterwards, the team discusses and distills the notes, evaluating what works and doesn’t • Plan improvements • Make another prototype?

  15. Plan test scenarios for prototypes • First, describe the following: • User goals and end results: • E.g., “You want to buy a sweater. Find a woman’s blue V-neck sweater for under $80.” • Initial state of the system • E.g., User is visiting the site’s home page for the first time, nothing in shopping cart. • Displays available to user: • E.g., home page, ladies’ apparel department, sweaters page, search dialog and results • Given test scenario(s), create prototype

  16. User-centered evaluation • Formative evaluation during development (cook tastes the soup) • Summative evaluation at completion of project (guests taste the soup) • Which kind is a paper prototype? • When should you test with actual users? • Later, we’ll talk about how to plan and conduct actual user evaluations

  17. Project assignment • Plan a test scenario for your project • Create a low-fidelity prototype • Show main user interface • Show a snippet of sample content • Test and improve within your team • Let your customer or expert try it • Bring it to class February 24
