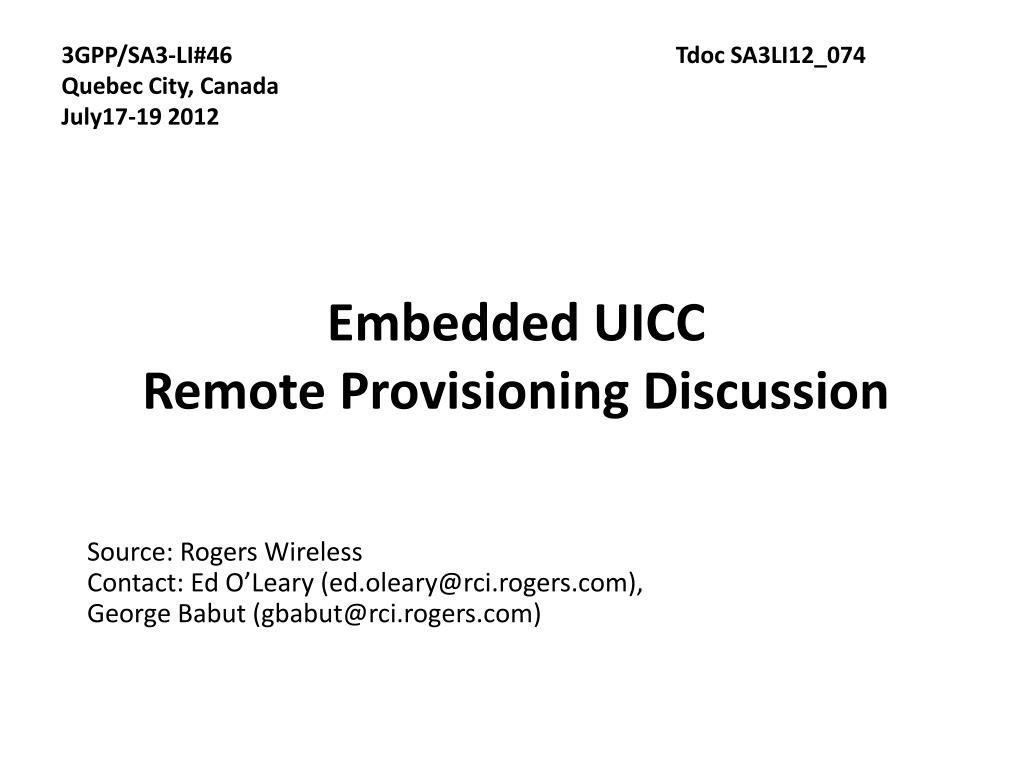

Embedded uicc remote provisioning discussion

3GPP/SA3-LI#46Tdoc SA3LI12_074

Quebec City, Canada

July17-19 2012

Embedded UICC Remote Provisioning Discussion

Source: Rogers Wireless

Contact: Ed O’Leary ([email protected]),

George Babut ([email protected])


Introduction

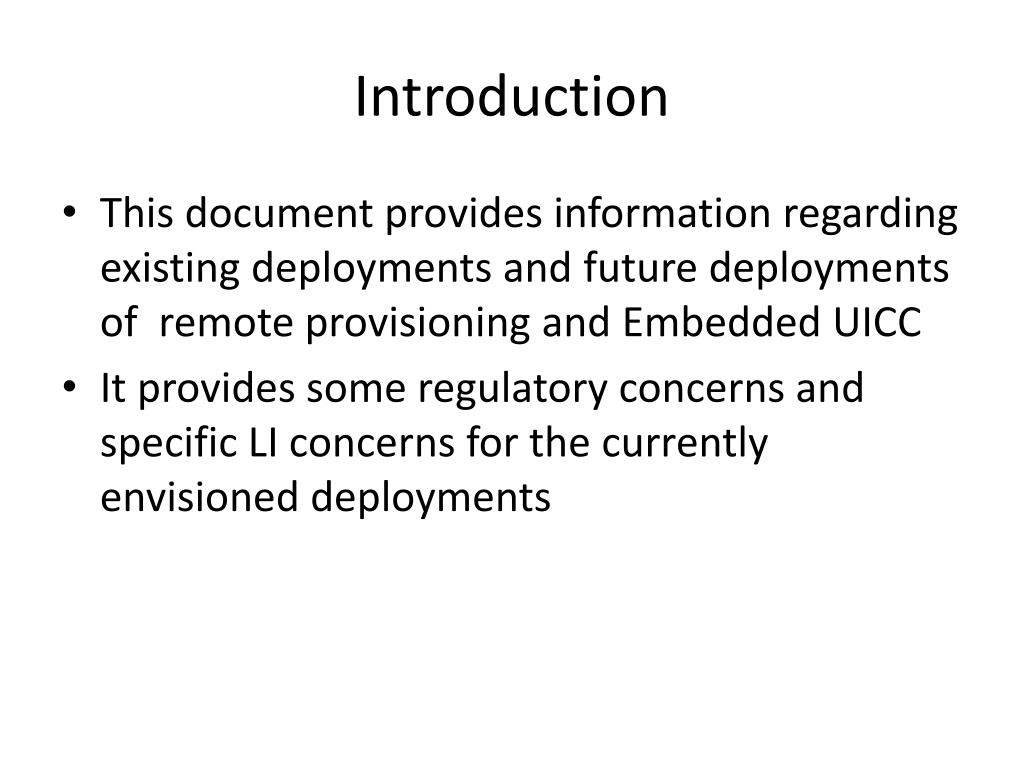

Introduction

  • This document provides information regarding existing deployments and future deployments of remote provisioning and Embedded UICC

  • It provides some regulatory concerns and specific LI concerns for the currently envisioned deployments


A brief history

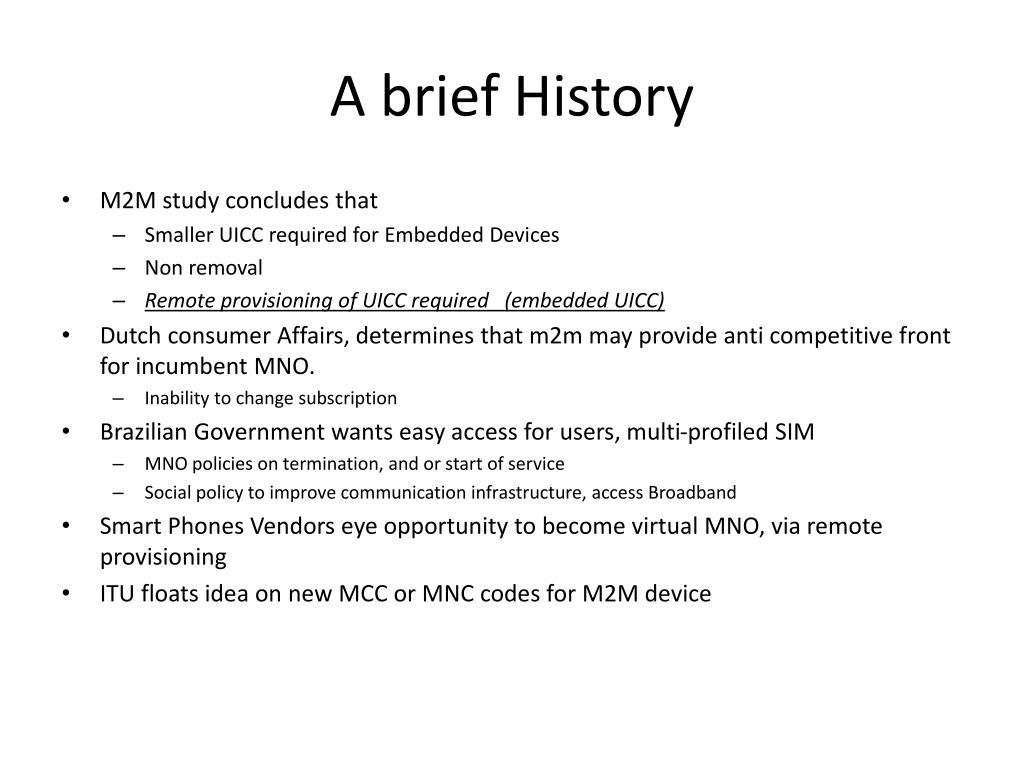

A brief History

  • M2M study concludes that

    • Smaller UICC required for Embedded Devices

    • Non removal

    • Remote provisioning of UICC required (embedded UICC)

  • Dutch consumer Affairs, determines that m2m may provide anti competitive front for incumbent MNO.

    • Inability to change subscription

  • Brazilian Government wants easy access for users, multi-profiled SIM

    • MNO policies on termination, and or start of service

    • Social policy to improve communication infrastructure, access Broadband

  • Smart Phones Vendors eye opportunity to become virtual MNO, via remote provisioning

  • ITU floats idea on new MCC or MNC codes for M2M device

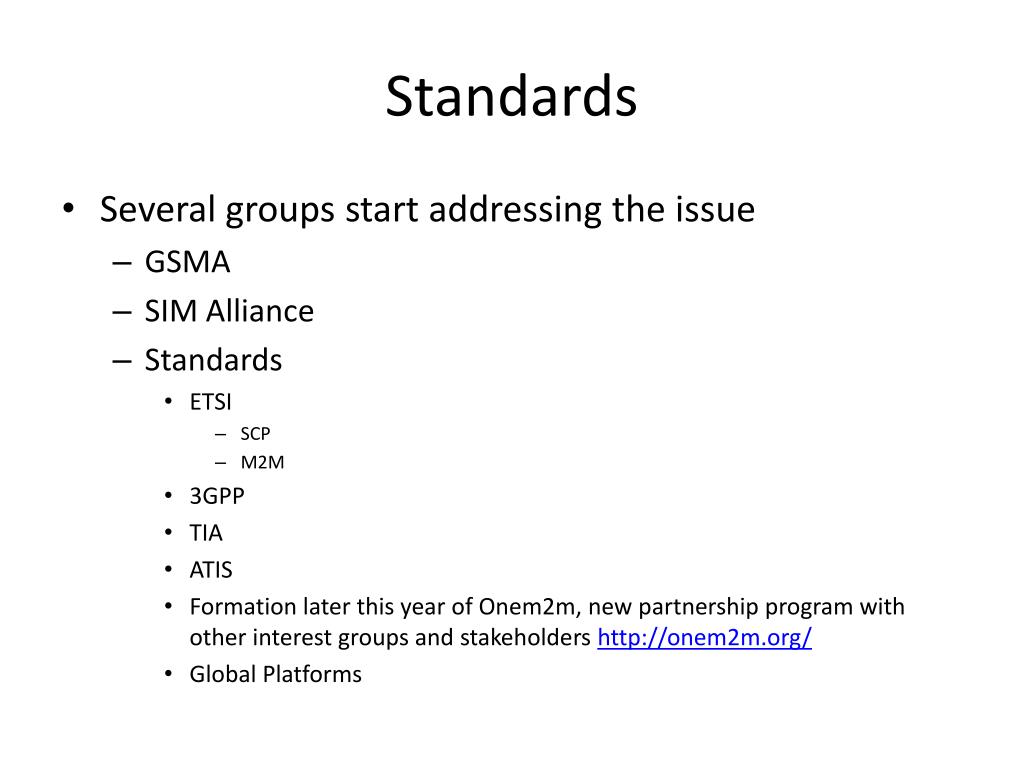

Standards

Standards

  • Several groups start addressing the issue

    • GSMA

    • SIM Alliance

    • Standards

      • ETSI

        • SCP

        • M2M

      • 3GPP

      • TIA

      • ATIS

      • Formation later this year of Onem2m, new partnership program with other interest groups and stakeholders http://onem2m.org/

      • Global Platforms


Mno impetus

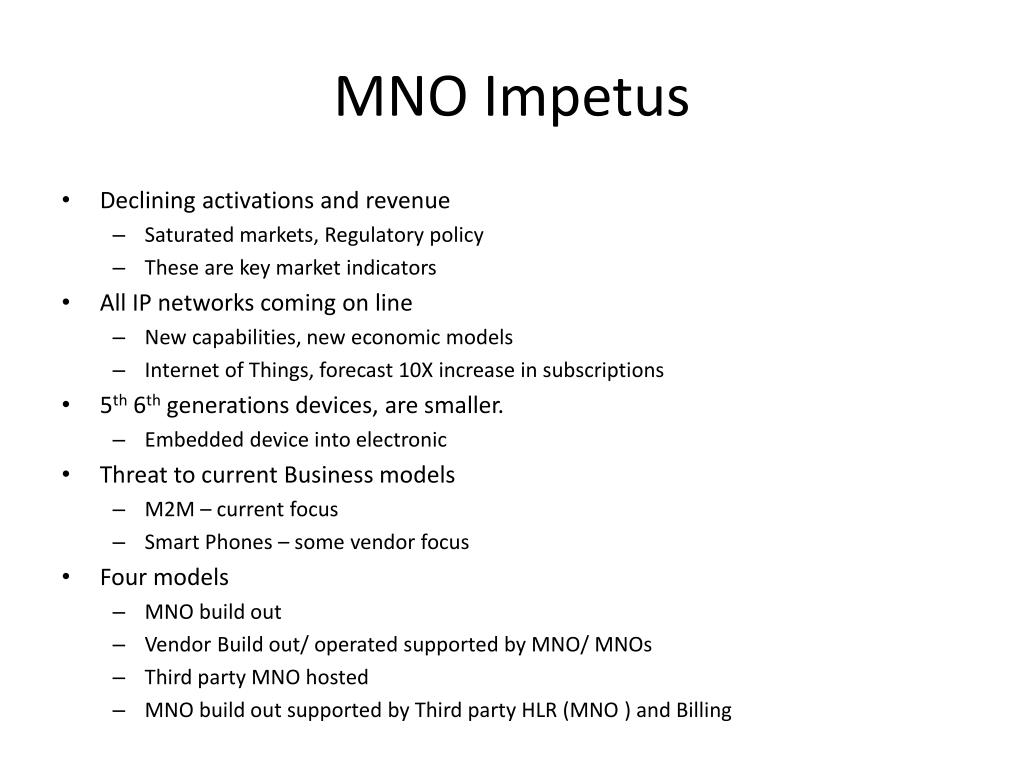

MNO Impetus

  • Declining activations and revenue

    • Saturated markets, Regulatory policy

    • These are key market indicators

  • All IP networks coming on line

    • New capabilities, new economic models

    • Internet of Things, forecast 10X increase in subscriptions

  • 5th 6th generations devices, are smaller.

    • Embedded device into electronic

  • Threat to current Business models

    • M2M – current focus

    • Smart Phones – some vendor focus

  • Four models

    • MNO build out

    • Vendor Build out/ operated supported by MNO/ MNOs

    • Third party MNO hosted

    • MNO build out supported by Third party HLR (MNO ) and Billing


Mno focus

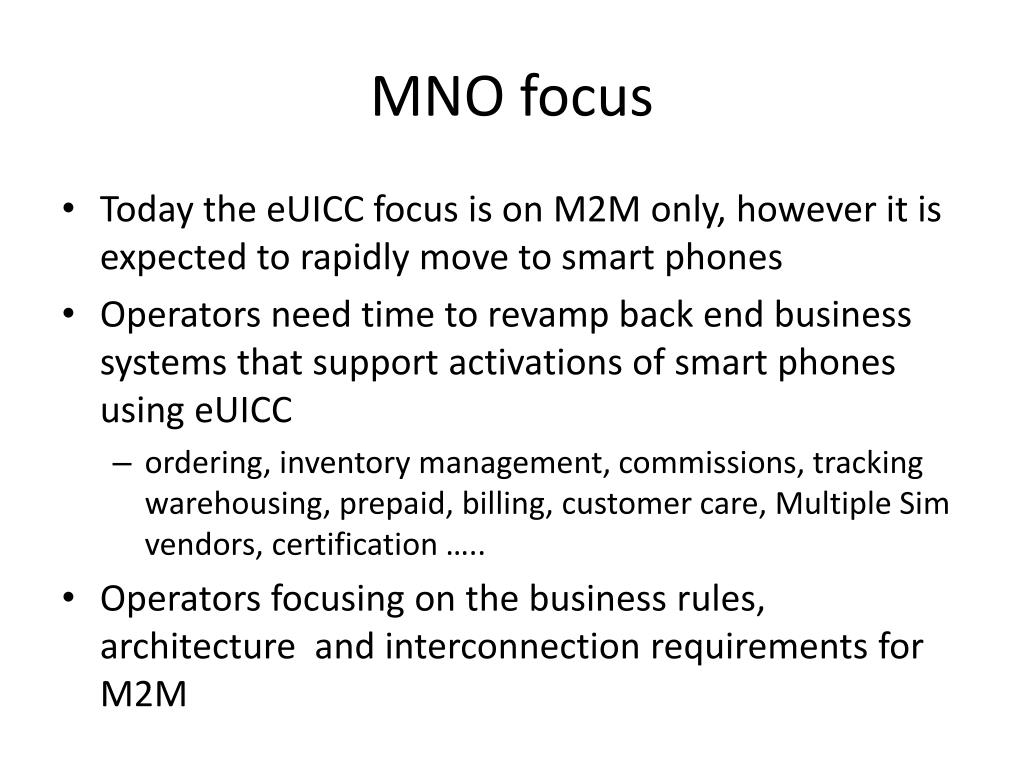

MNO focus

  • Today the eUICC focus is on M2M only, however it is expected to rapidly move to smart phones

  • Operators need time to revamp back end business systems that support activations of smart phones using eUICC

    • ordering, inventory management, commissions, tracking warehousing, prepaid, billing, customer care, Multiple Sim vendors, certification …..

  • Operators focusing on the business rules, architecture and interconnection requirements for M2M

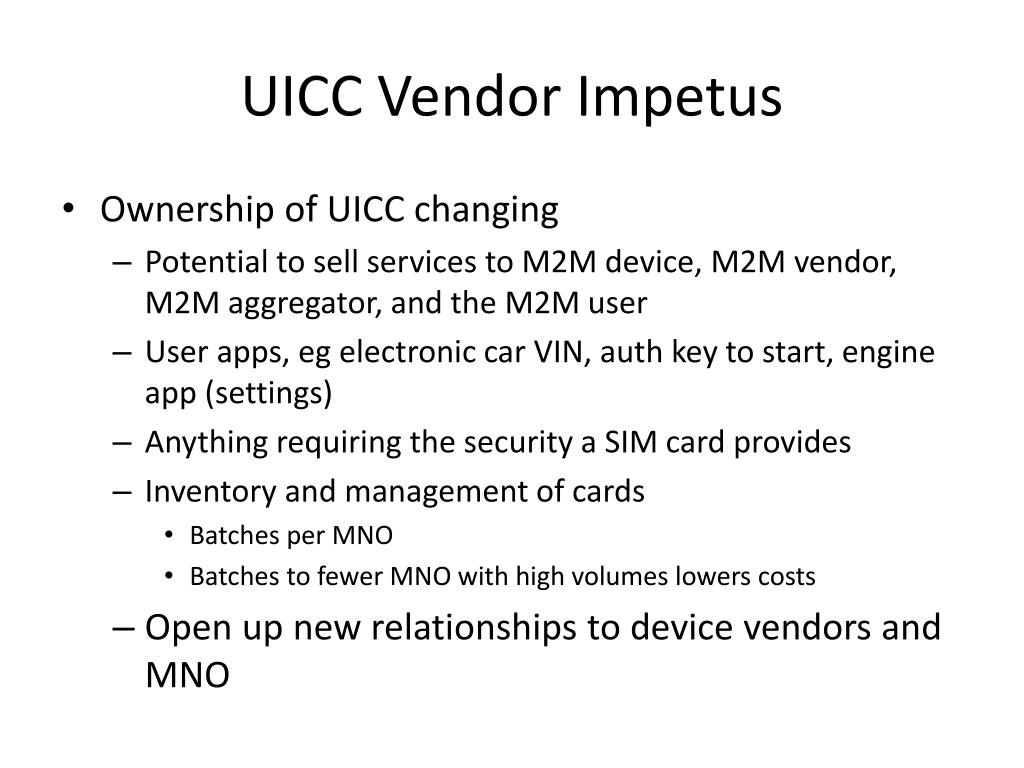

Uicc vendor impetus

UICC Vendor Impetus

  • Ownership of UICC changing

    • Potential to sell services to M2M device, M2M vendor, M2M aggregator, and the M2M user

    • User apps, eg electronic car VIN, auth key to start, engine app (settings)

    • Anything requiring the security a SIM card provides

    • Inventory and management of cards

      • Batches per MNO

      • Batches to fewer MNO with high volumes lowers costs

    • Open up new relationships to device vendors and MNO


Uicc vendor focus

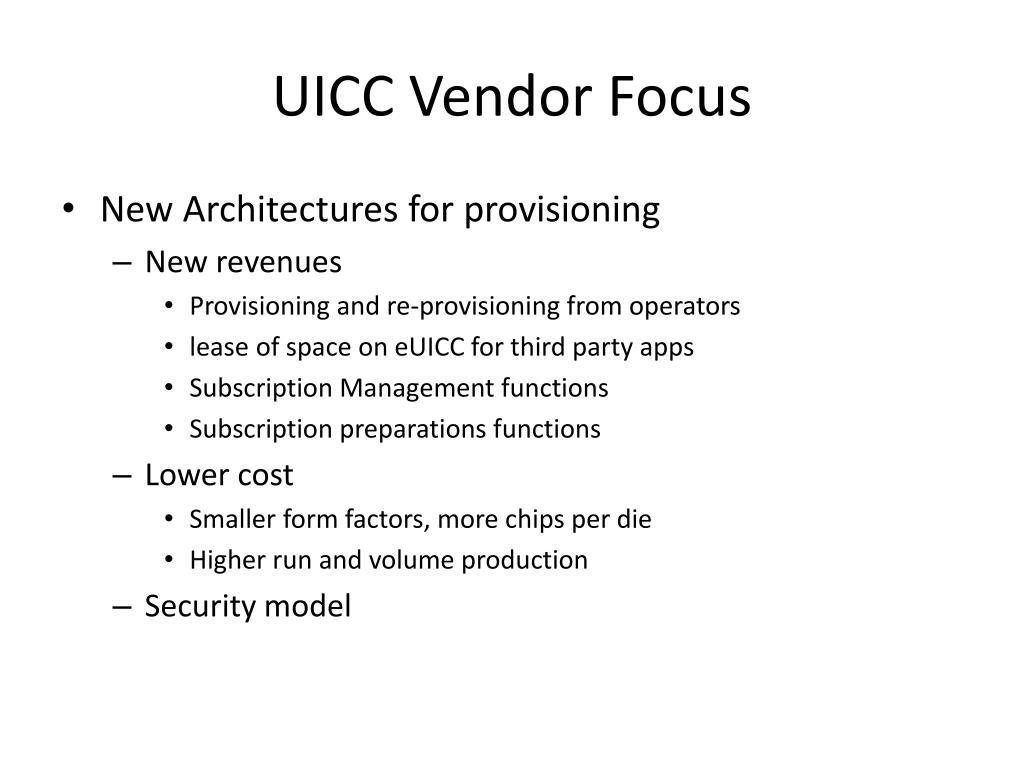

UICC Vendor Focus

  • New Architectures for provisioning

    • New revenues

      • Provisioning and re-provisioning from operators

      • lease of space on eUICC for third party apps

      • Subscription Management functions

      • Subscription preparations functions

    • Lower cost

      • Smaller form factors, more chips per die

      • Higher run and volume production

    • Security model


M2m vendor impetus

M2M vendor impetus

  • Remote activation of devices

    • Can be tied to payment and commissions

  • Reduced costs

    • Size of pluggable SIM, and its receiving connector

    • Inventory, management for operators

  • Reduced foot print, access to more devices

    • Competition with WIFI access in device

      • Camera, printers, eHealth


M2m vendor focus

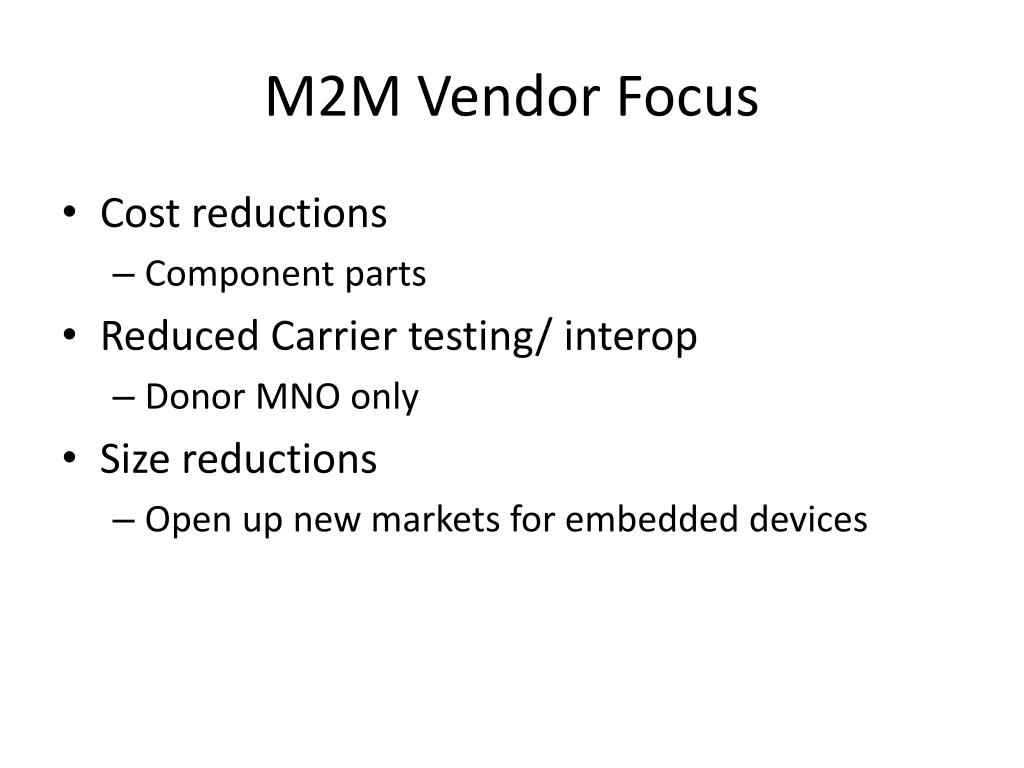

M2M Vendor Focus

  • Cost reductions

    • Component parts

  • Reduced Carrier testing/ interop

    • Donor MNO only

  • Size reductions

    • Open up new markets for embedded devices

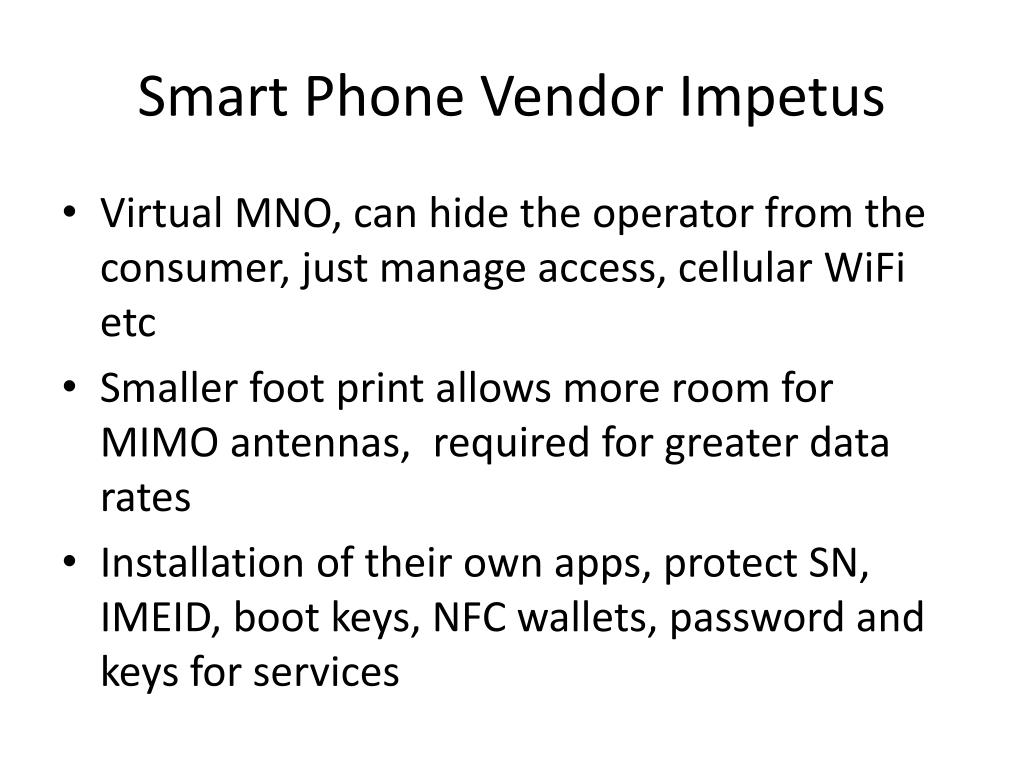

Smart phone vendor impetus

Smart Phone Vendor Impetus

  • Virtual MNO, can hide the operator from the consumer, just manage access, cellular WiFi etc

  • Smaller foot print allows more room for MIMO antennas, required for greater data rates

  • Installation of their own apps, protect SN, IMEID, boot keys, NFC wallets, password and keys for services

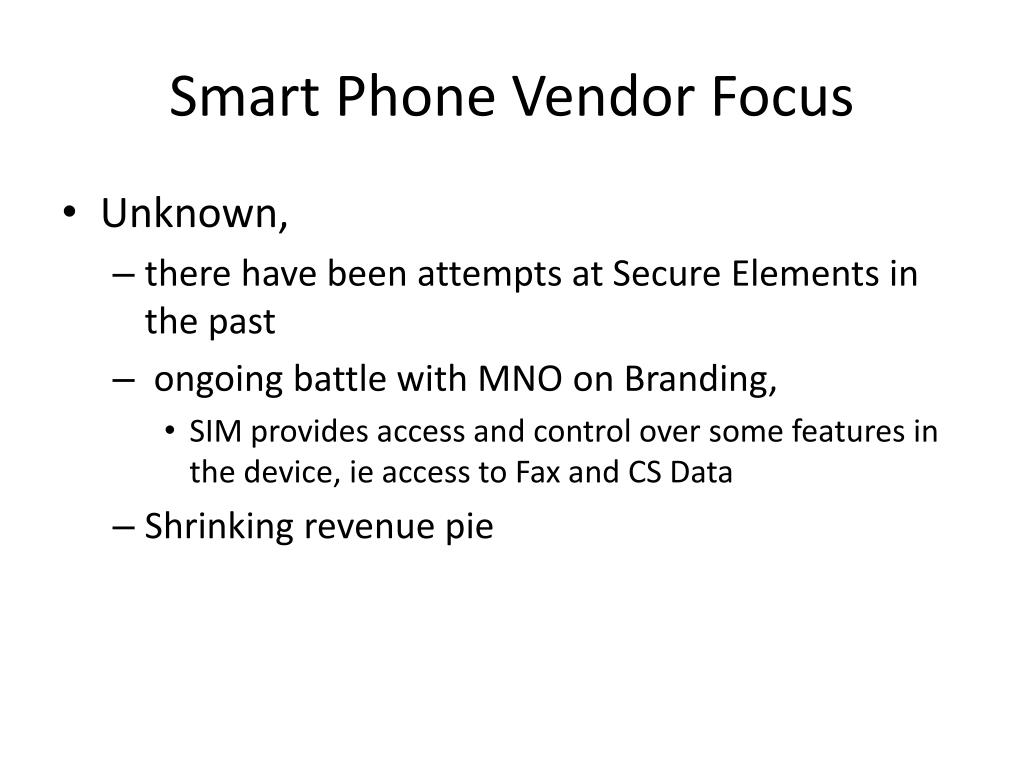

Smart phone vendor focus

Smart Phone Vendor Focus

  • Unknown,

    • there have been attempts at Secure Elements in the past

    • ongoing battle with MNO on Branding,

      • SIM provides access and control over some features in the device, ie access to Fax and CS Data

    • Shrinking revenue pie


Deployments

Deployments

  • Jasper

    • A MNO which utilizing their HLR or hosting the MNO M2M HLR and providing a unique Billing options provide third party MNO m2m services

      • Control, and Billing not very well supported in existing MNO service complex’s

        • Many m2m devices to one customer

        • Specific pricing plans for low data rates or off hr usage

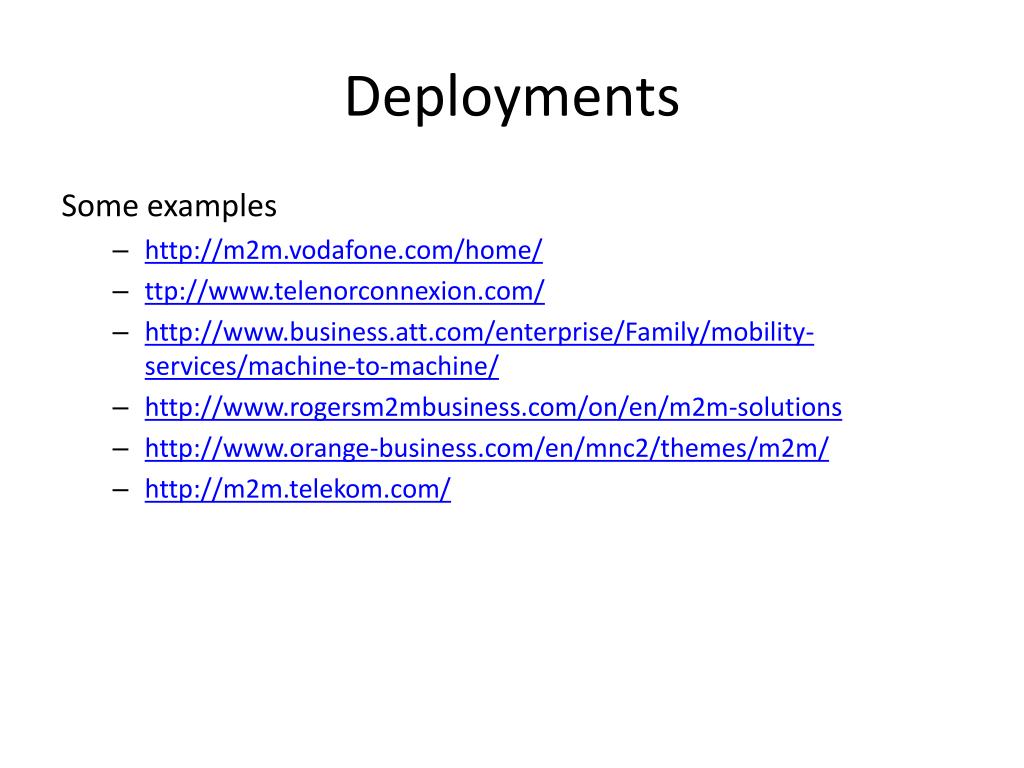

Deployments1

Deployments

Some examples

  • http://m2m.vodafone.com/home/

  • ttp://www.telenorconnexion.com/

  • http://www.business.att.com/enterprise/Family/mobility-services/machine-to-machine/

  • http://www.rogersm2mbusiness.com/on/en/m2m-solutions

  • http://www.orange-business.com/en/mnc2/themes/m2m/

  • http://m2m.telekom.com/

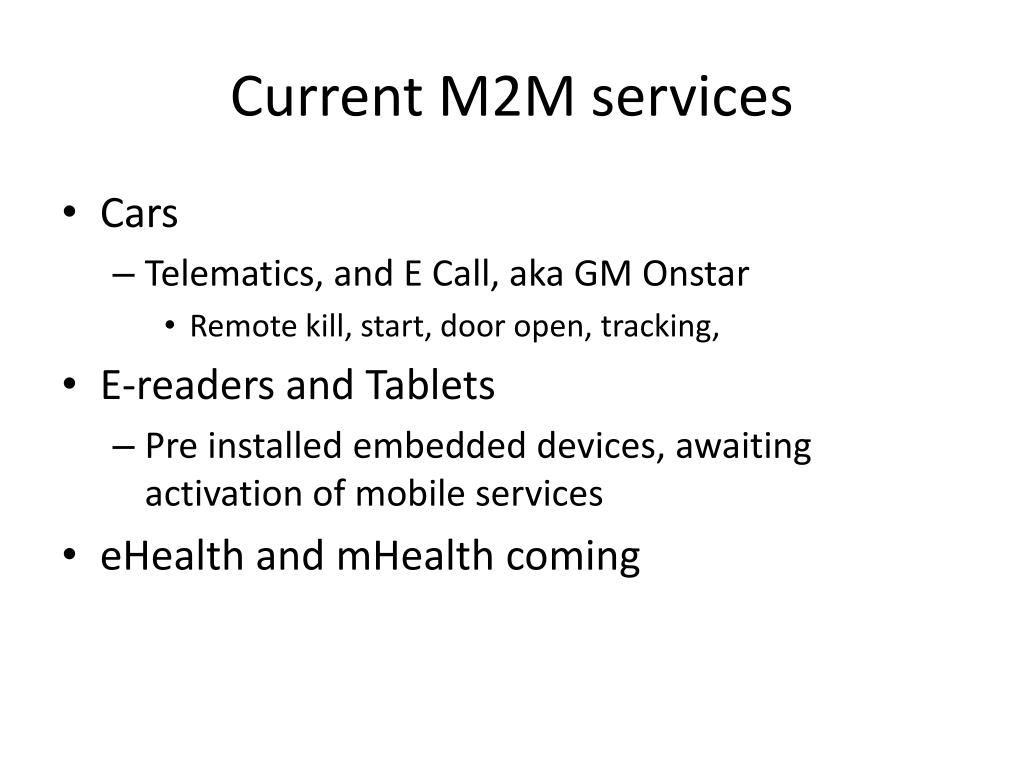

Current m2m services

Current M2M services

  • Cars

    • Telematics, and E Call, aka GM Onstar

      • Remote kill, start, door open, tracking,

  • E-readers and Tablets

    • Pre installed embedded devices, awaiting activation of mobile services

  • eHealth and mHealth coming

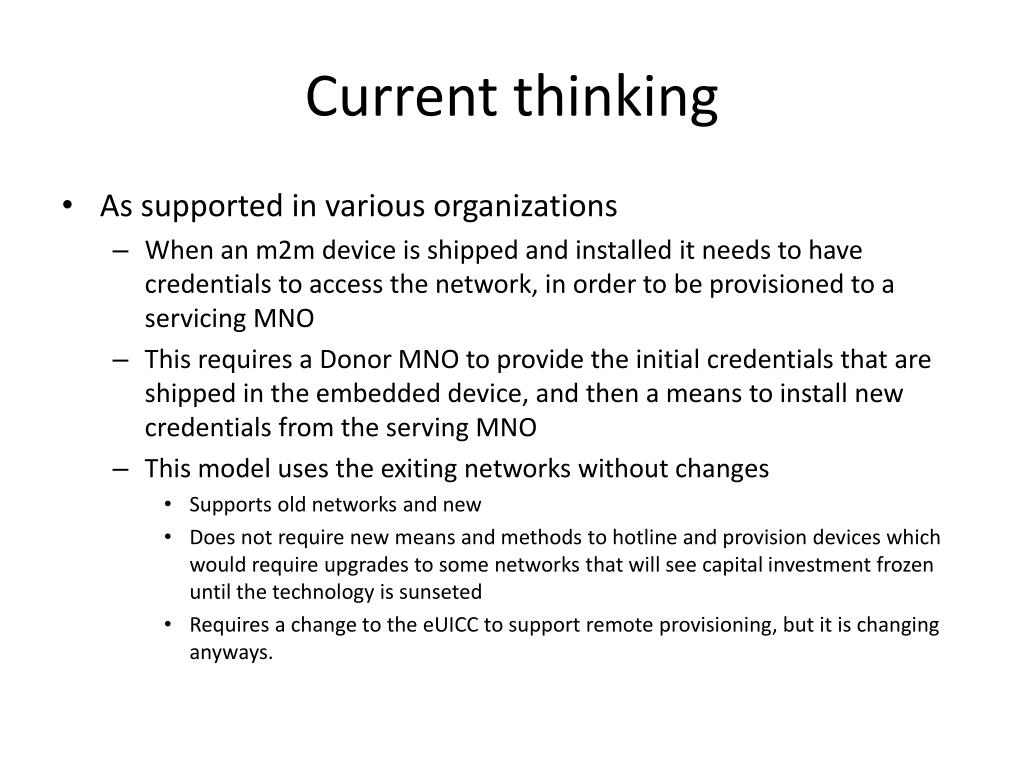

Current thinking

Current thinking

  • As supported in various organizations

    • When an m2m device is shipped and installed it needs to have credentials to access the network, in order to be provisioned to a servicing MNO

    • This requires a Donor MNO to provide the initial credentials that are shipped in the embedded device, and then a means to install new credentials from the serving MNO

    • This model uses the exiting networks without changes

      • Supports old networks and new

      • Does not require new means and methods to hotline and provision devices which would require upgrades to some networks that will see capital investment frozen until the technology is sunseted

      • Requires a change to the eUICC to support remote provisioning, but it is changing anyways.

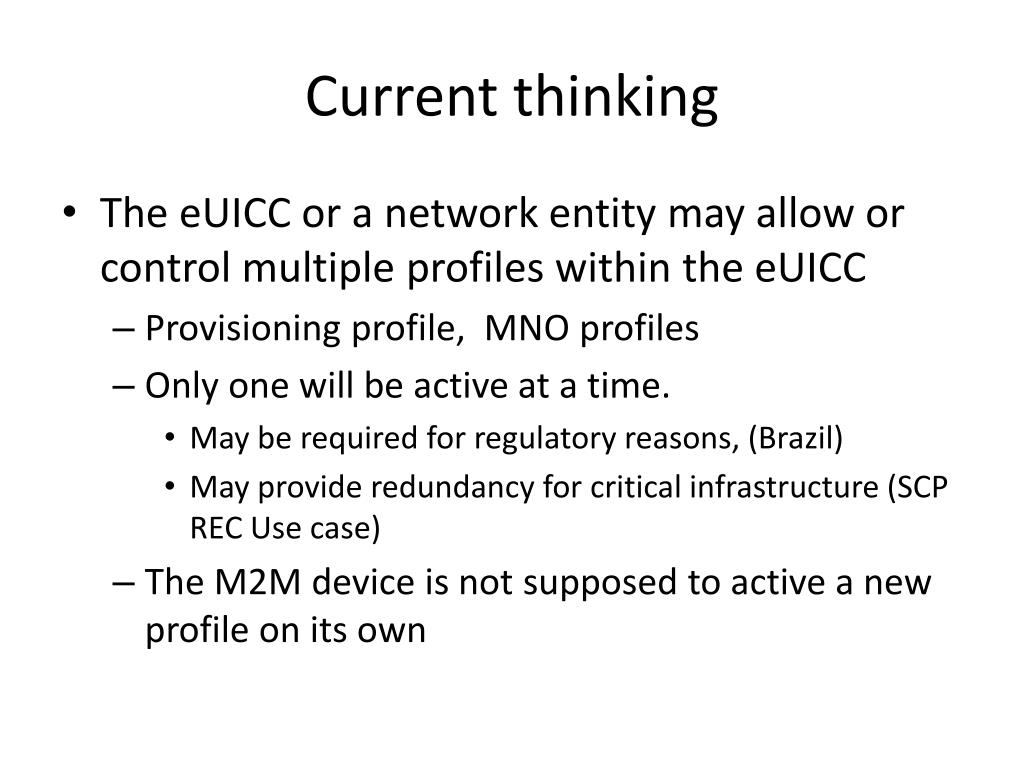

Current thinking1

Current thinking

  • The eUICC or a network entity may allow or control multiple profiles within the eUICC

    • Provisioning profile, MNO profiles

    • Only one will be active at a time.

      • May be required for regulatory reasons, (Brazil)

      • May provide redundancy for critical infrastructure (SCP REC Use case)

    • The M2M device is not supposed to active a new profile on its own


Current thinking2

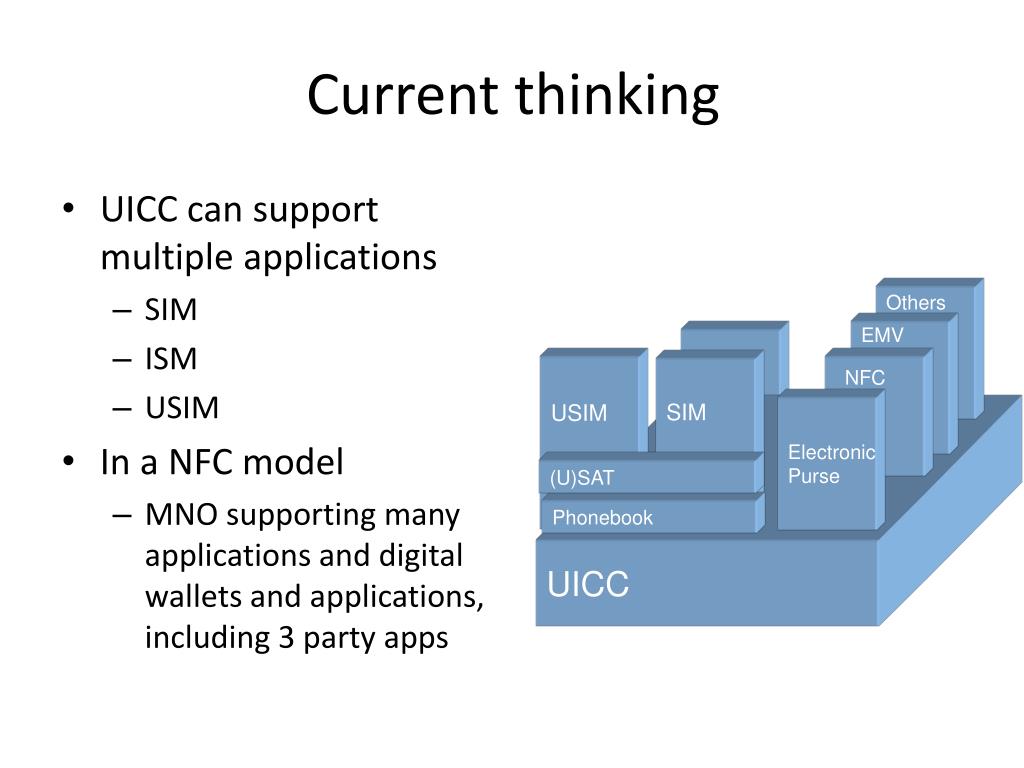

Current thinking

  • UICC can support multiple applications

    • SIM

    • ISM

    • USIM

  • In a NFC model

    • MNO supporting many applications and digital wallets and applications, including 3 party apps

Others

EMV

USIM

USIM

SIM

NFC

Electronic

Purse

(U)SAT

Phonebook

UICC


One possible envision

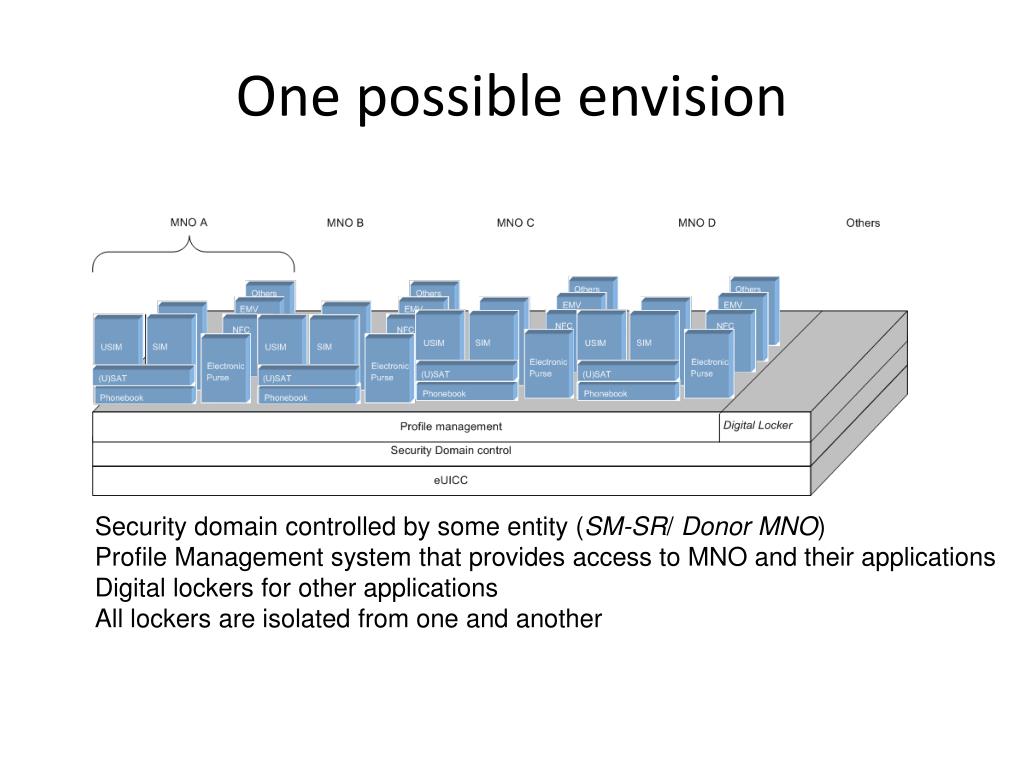

One possible envision

Security domain controlled by some entity (SM-SR/ Donor MNO)

Profile Management system that provides access to MNO and their applications

Digital lockers for other applications

All lockers are isolated from one and another


And for something completely different

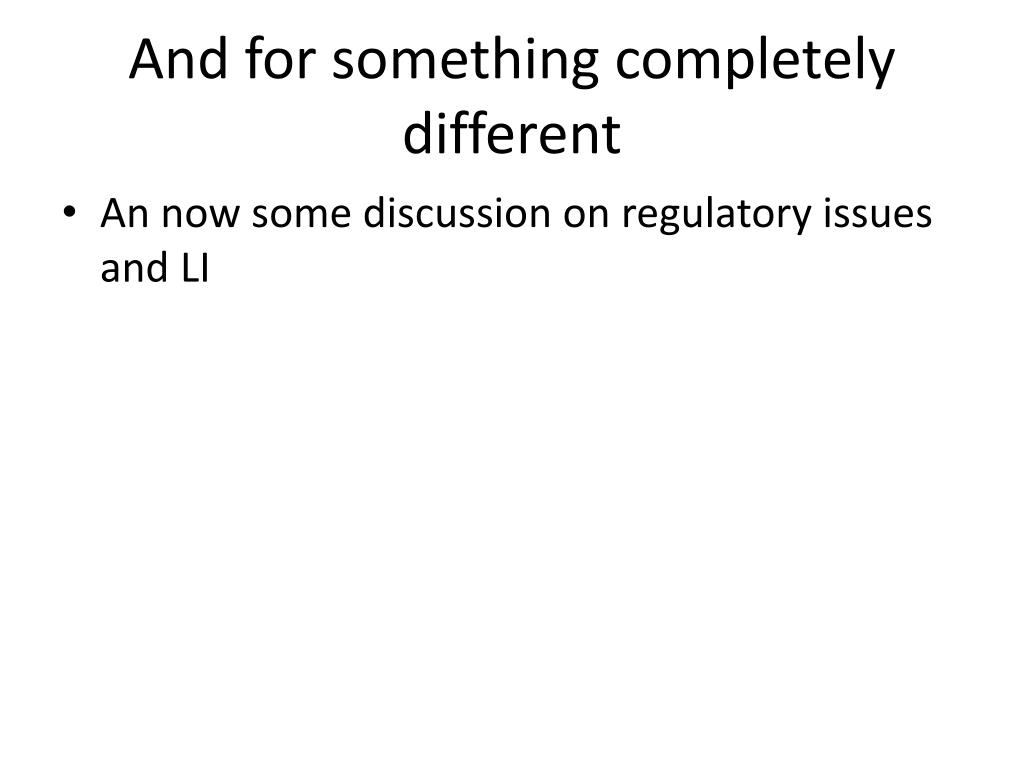

And for something completely different

  • An now some discussion on regulatory issues and LI

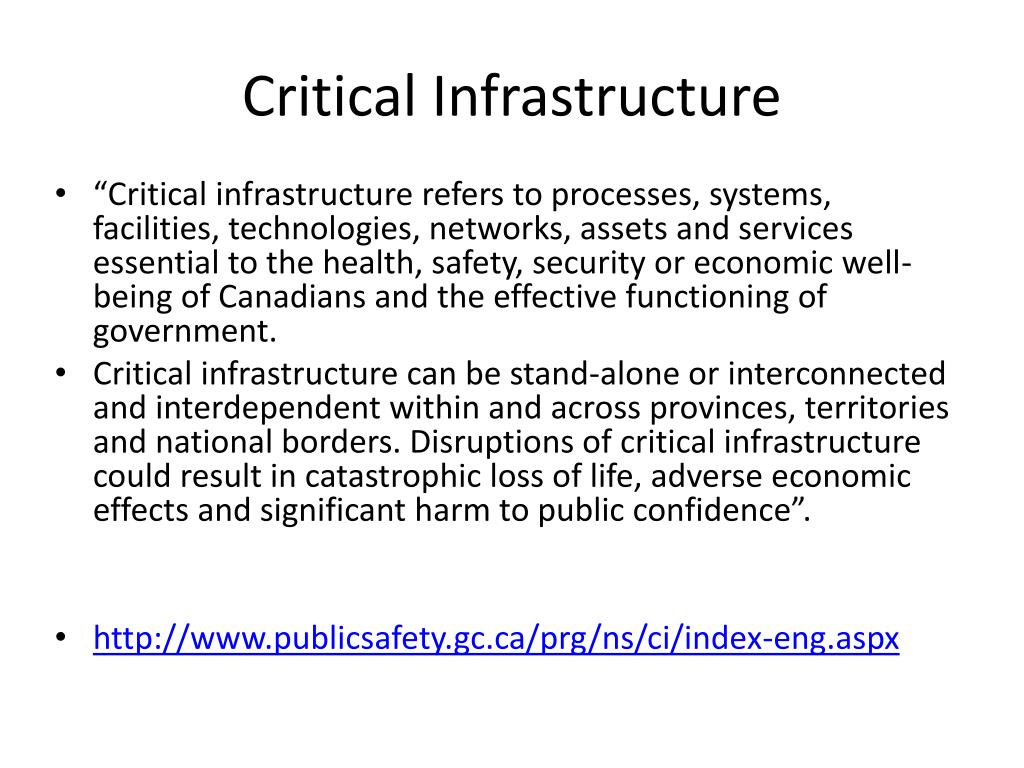

Critical infrastructure

Critical Infrastructure

  • “Critical infrastructure refers to processes, systems, facilities, technologies, networks, assets and services essential to the health, safety, security or economic well-being of Canadians and the effective functioning of government.

  • Critical infrastructure can be stand-alone or interconnected and interdependent within and across provinces, territories and national borders. Disruptions of critical infrastructure could result in catastrophic loss of life, adverse economic effects and significant harm to public confidence”.

  • http://www.publicsafety.gc.ca/prg/ns/ci/index-eng.aspx


Critical infrastructure1

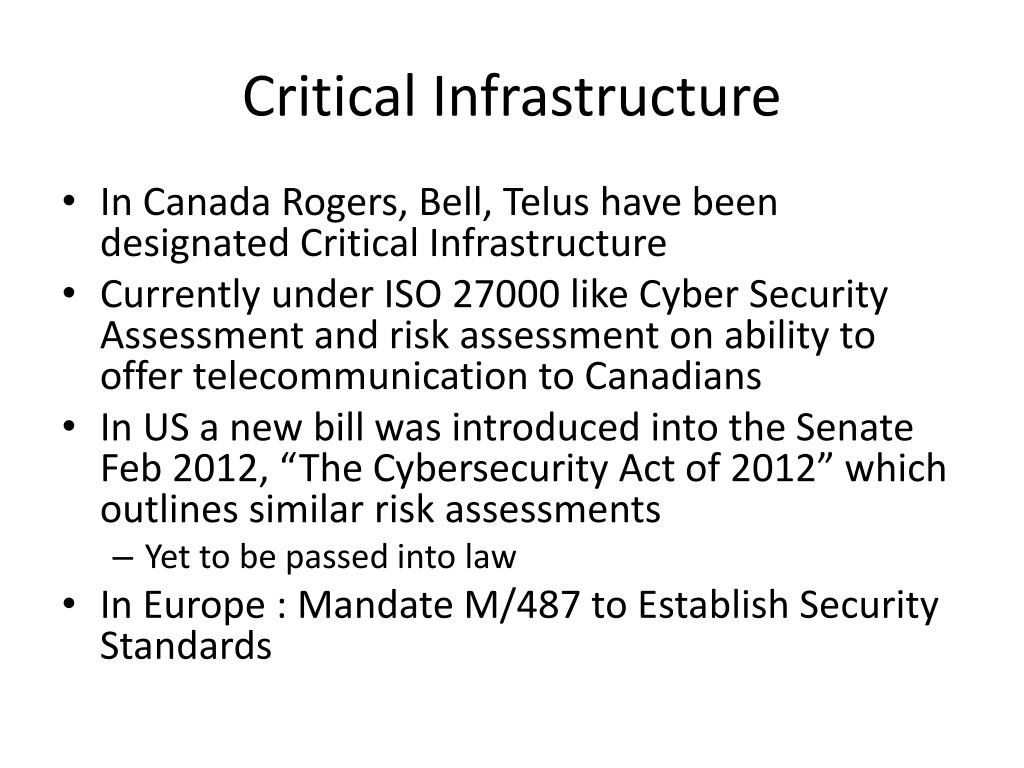

Critical Infrastructure

  • In Canada Rogers, Bell, Telus have been designated Critical Infrastructure

  • Currently under ISO 27000 like Cyber Security Assessment and risk assessment on ability to offer telecommunication to Canadians

  • In US a new bill was introduced into the Senate Feb 2012, “The Cybersecurity Act of 2012” which outlines similar risk assessments

    • Yet to be passed into law

  • In Europe : Mandate M/487 to Establish Security Standards


Critical infrastructure2

Critical Infrastructure

  • Other governments are in the process of such actions

  • Why

    • Recent attacks of Stuxnet on essential M2M devices

    • 2003 Black out in Northeast North America

      • Highlighted Hydro grid, and Smart grid reliability and its consequences on the public

      • Banking, cellular, gas pumps, transportation all affected

        • Standstill of economy and people

        • Threat to the digital economy


High level architecture proposal

High level architecture proposal

Source (ETSI SCP 11 0101)


Critical infrastructure3

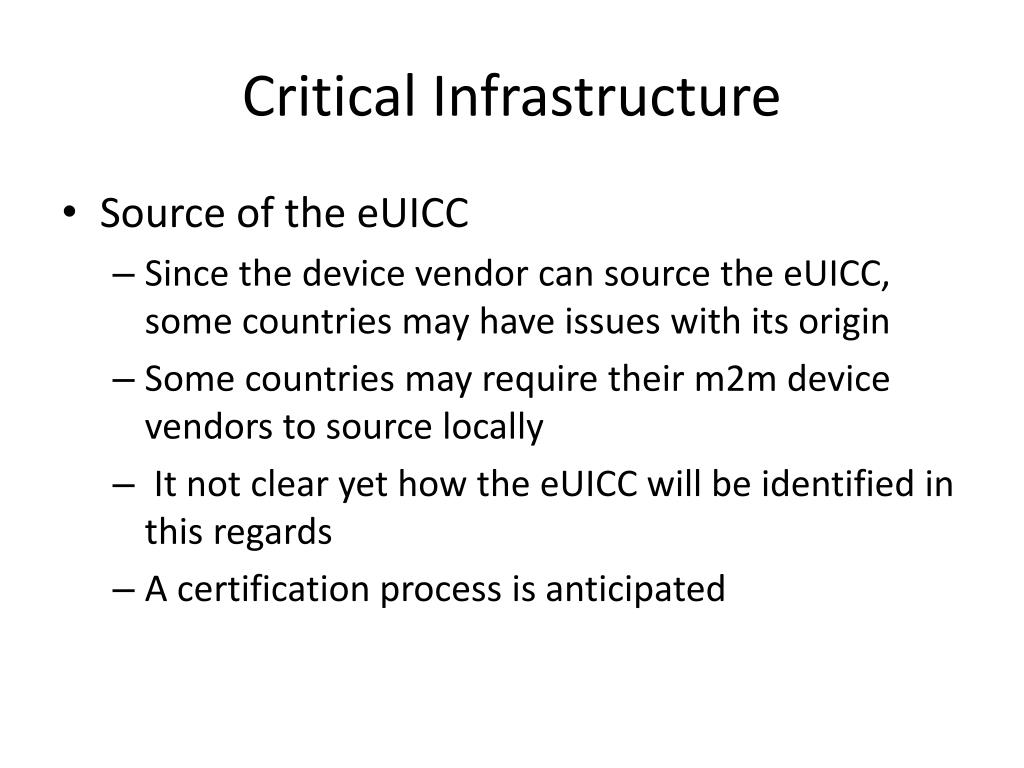

Critical Infrastructure

  • Source of the eUICC

    • Since the device vendor can source the eUICC, some countries may have issues with its origin

    • Some countries may require their m2m device vendors to source locally

    • It not clear yet how the eUICC will be identified in this regards

    • A certification process is anticipated


Critical infrastructure4

Critical Infrastructure

  • Issues

    • Location of SM-SR (Subscription management- Secure Routing)

      • Would likely be required to reside in Canada, under Canadian control

        • Removes the risk of outside influences

          • Governments

          • Disasters

          • Cyber attacks on specific countries

      • Profile management

        • Changing MNO profiles during a warrant


Critical infrastructure5

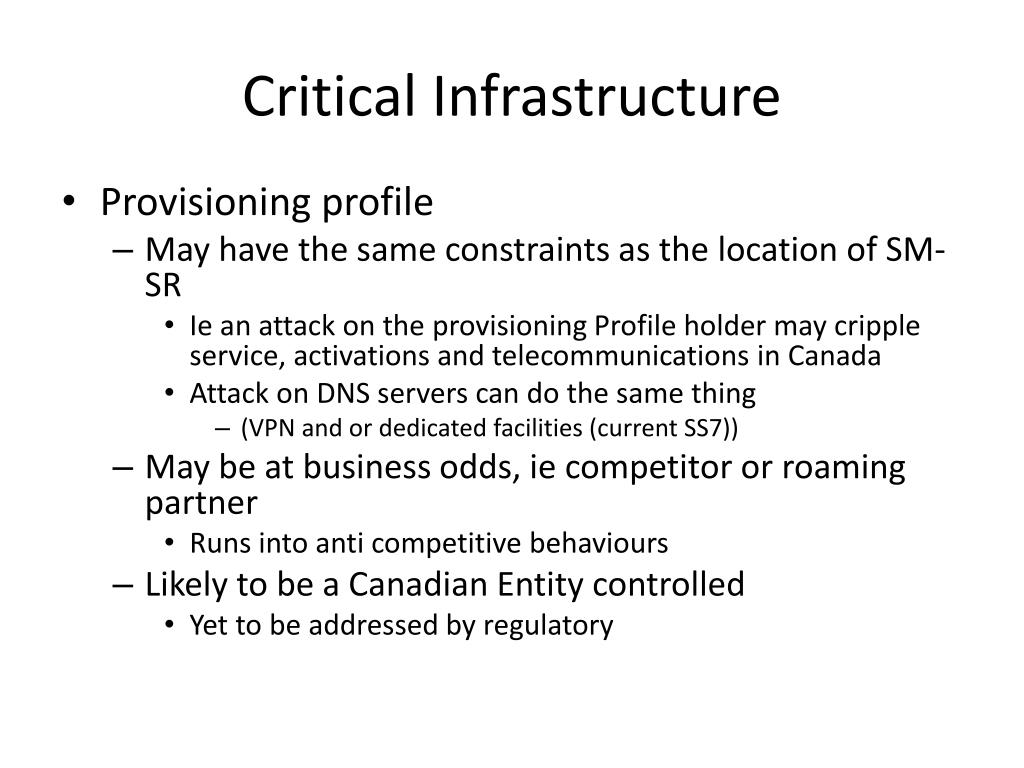

Critical Infrastructure

  • Provisioning profile

    • May have the same constraints as the location of SM-SR

      • Ie an attack on the provisioning Profile holder may cripple service, activations and telecommunications in Canada

      • Attack on DNS servers can do the same thing

        • (VPN and or dedicated facilities (current SS7))

    • May be at business odds, ie competitor or roaming partner

      • Runs into anti competitive behaviours

    • Likely to be a Canadian Entity controlled

      • Yet to be addressed by regulatory

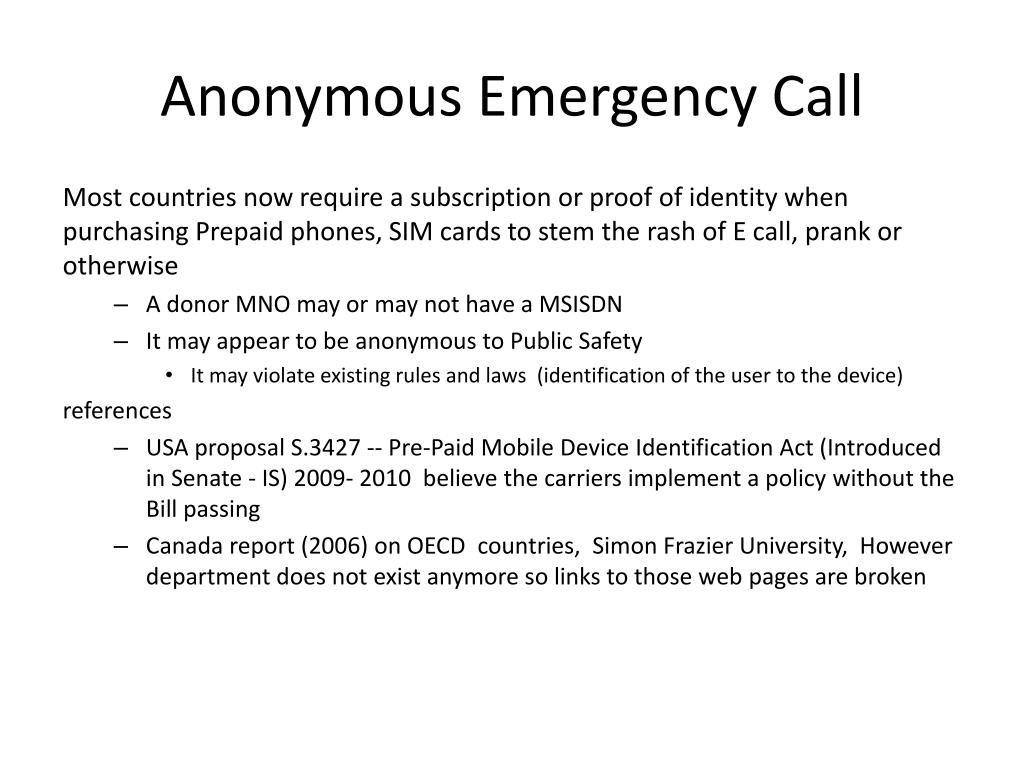

Anonymous emergency call

Anonymous Emergency Call

Most countries now require a subscription or proof of identity when purchasing Prepaid phones, SIM cards to stem the rash of E call, prank or otherwise

  • A donor MNO may or may not have a MSISDN

  • It may appear to be anonymous to Public Safety

    • It may violate existing rules and laws (identification of the user to the device)

      references

  • USA proposal S.3427 -- Pre-Paid Mobile Device Identification Act (Introduced in Senate - IS) 2009- 2010 believe the carriers implement a policy without the Bill passing

  • Canada report (2006) on OECD countries, Simon Frazier University, However department does not exist anymore so links to those web pages are broken

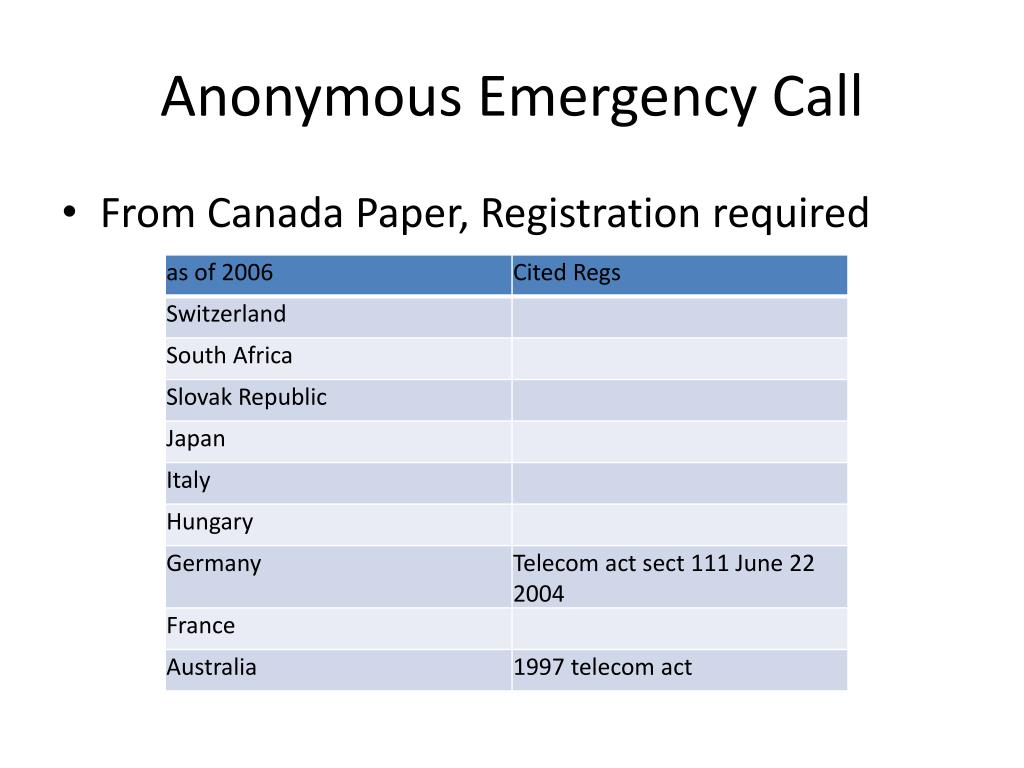

Anonymous emergency call1

Anonymous Emergency Call

  • From Canada Paper, Registration required

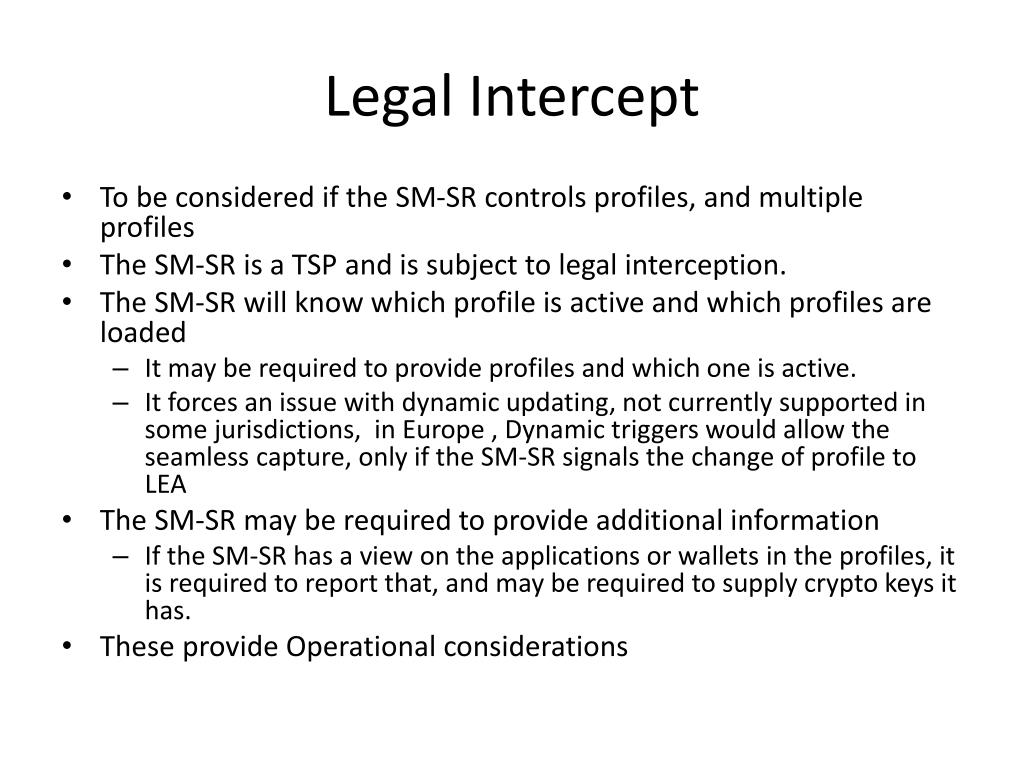

Legal intercept

Legal Intercept

  • To be considered if the SM-SR controls profiles, and multiple profiles

  • The SM-SR is a TSP and is subject to legal interception.

  • The SM-SR will know which profile is active and which profiles are loaded

    • It may be required to provide profiles and which one is active.

    • It forces an issue with dynamic updating, not currently supported in some jurisdictions, in Europe , Dynamic triggers would allow the seamless capture, only if the SM-SR signals the change of profile to LEA

  • The SM-SR may be required to provide additional information

    • If the SM-SR has a view on the applications or wallets in the profiles, it is required to report that, and may be required to supply crypto keys it has.

  • These provide Operational considerations

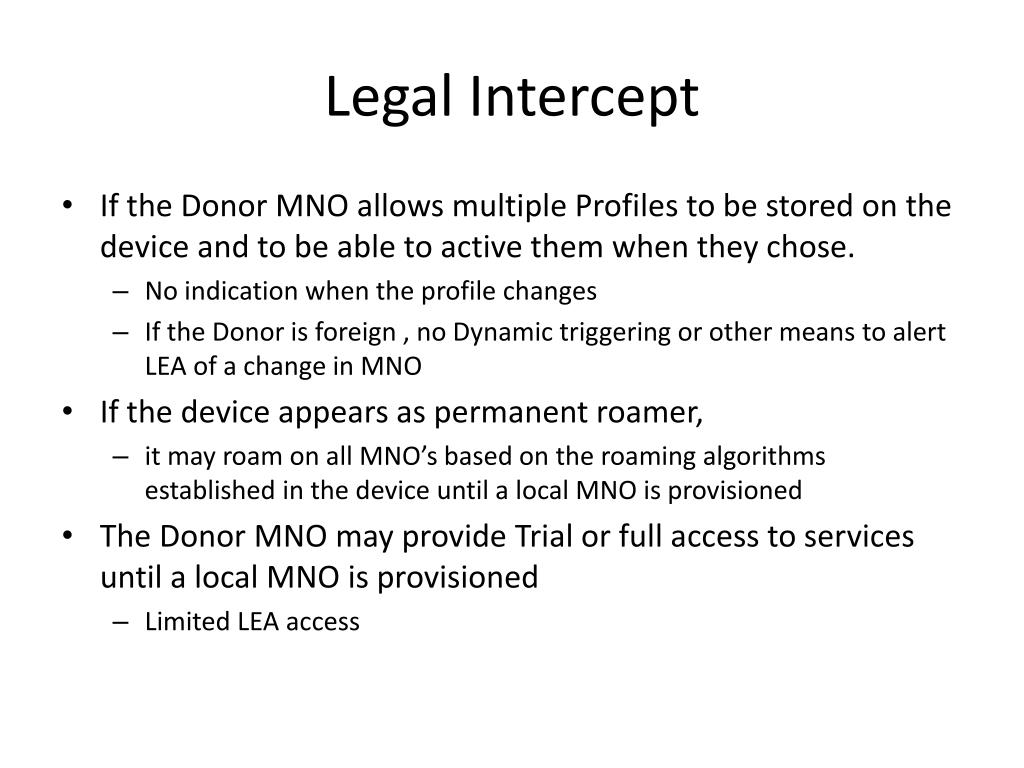

Legal intercept1

Legal Intercept

  • If the Donor MNO allows multiple Profiles to be stored on the device and to be able to active them when they chose.

    • No indication when the profile changes

    • If the Donor is foreign , no Dynamic triggering or other means to alert LEA of a change in MNO

  • If the device appears as permanent roamer,

    • it may roam on all MNO’s based on the roaming algorithms established in the device until a local MNO is provisioned

  • The Donor MNO may provide Trial or full access to services until a local MNO is provisioned

    • Limited LEA access


Wireless number portability

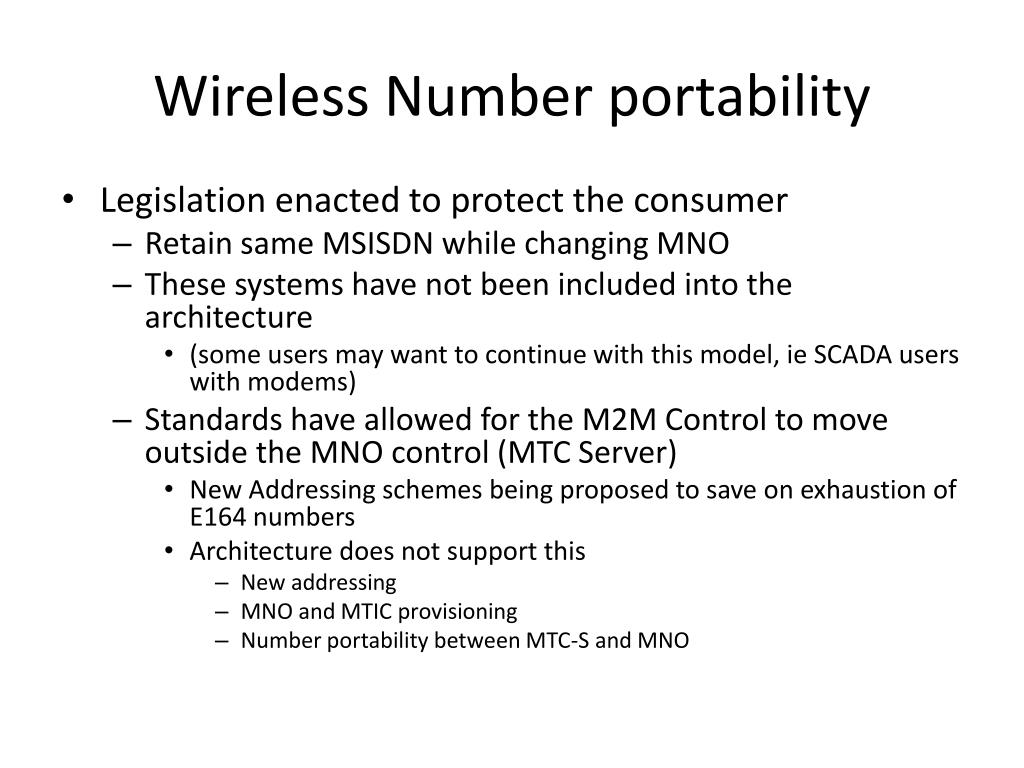

Wireless Number portability

  • Legislation enacted to protect the consumer

    • Retain same MSISDN while changing MNO

    • These systems have not been included into the architecture

      • (some users may want to continue with this model, ie SCADA users with modems)

    • Standards have allowed for the M2M Control to move outside the MNO control (MTC Server)

      • New Addressing schemes being proposed to save on exhaustion of E164 numbers

      • Architecture does not support this

        • New addressing

        • MNO and MTIC provisioning

        • Number portability between MTC-S and MNO


Privacy

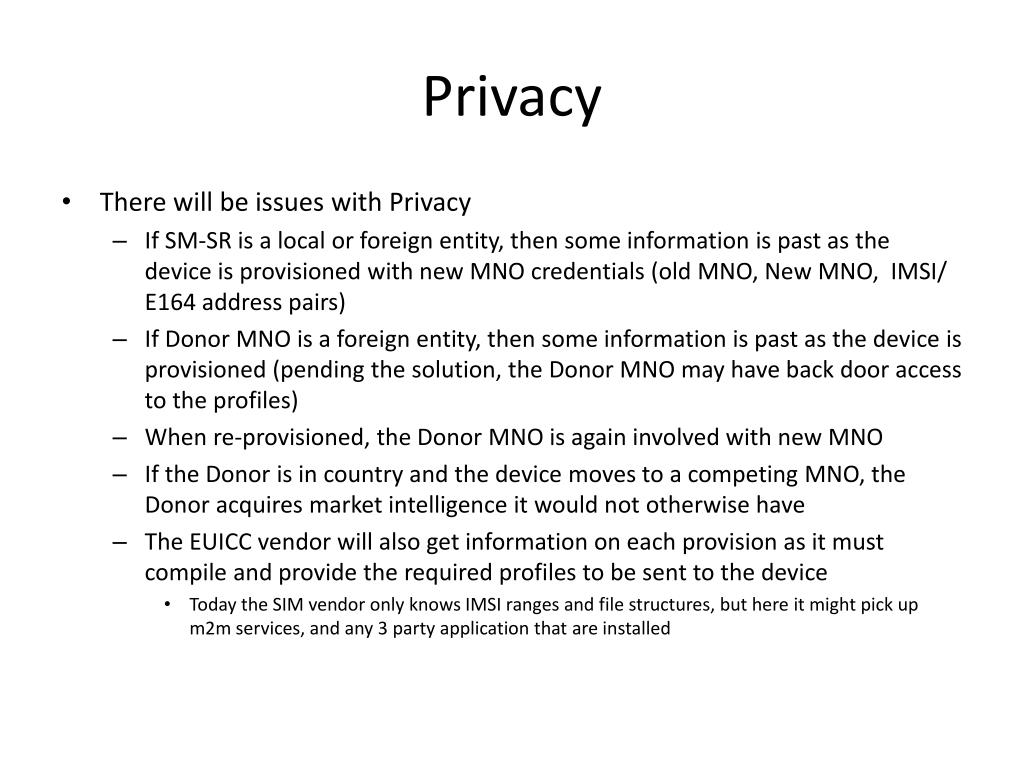

Privacy

  • There will be issues with Privacy

    • If SM-SR is a local or foreign entity, then some information is past as the device is provisioned with new MNO credentials (old MNO, New MNO, IMSI/ E164 address pairs)

    • If Donor MNO is a foreign entity, then some information is past as the device is provisioned (pending the solution, the Donor MNO may have back door access to the profiles)

    • When re-provisioned, the Donor MNO is again involved with new MNO

    • If the Donor is in country and the device moves to a competing MNO, the Donor acquires market intelligence it would not otherwise have

    • The EUICC vendor will also get information on each provision as it must compile and provide the required profiles to be sent to the device

      • Today the SIM vendor only knows IMSI ranges and file structures, but here it might pick up m2m services, and any 3 party application that are installed


Privacy1

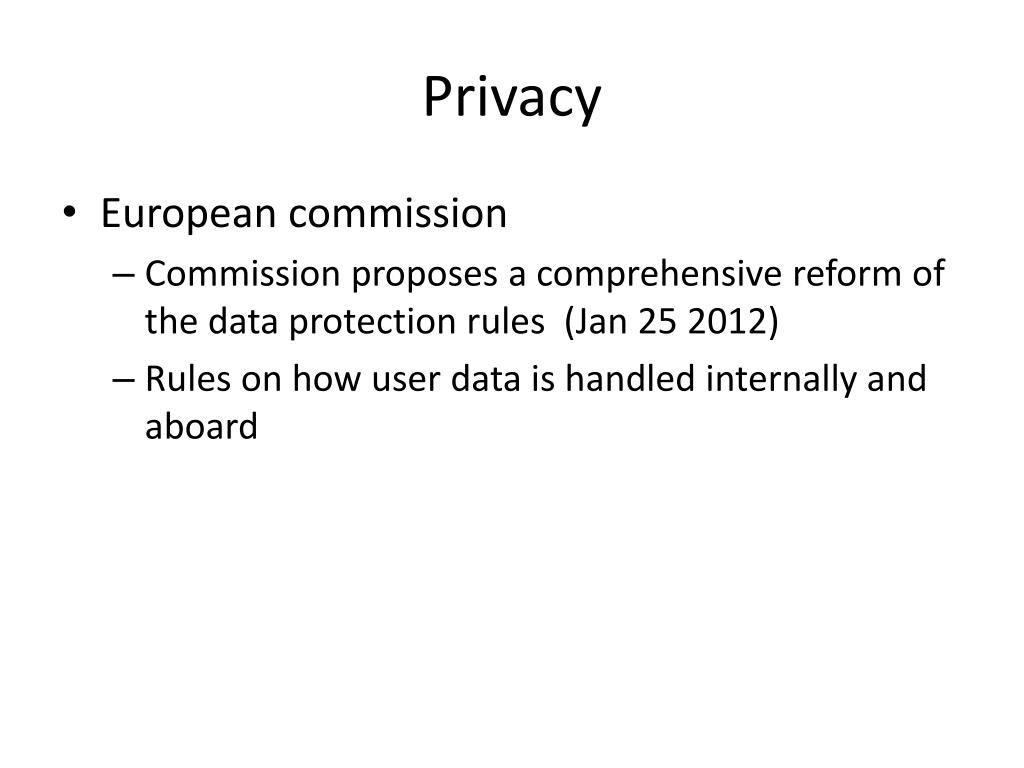

Privacy

  • European commission

    • Commission proposes a comprehensive reform of the data protection rules (Jan 25 2012)

    • Rules on how user data is handled internally and aboard


Summary

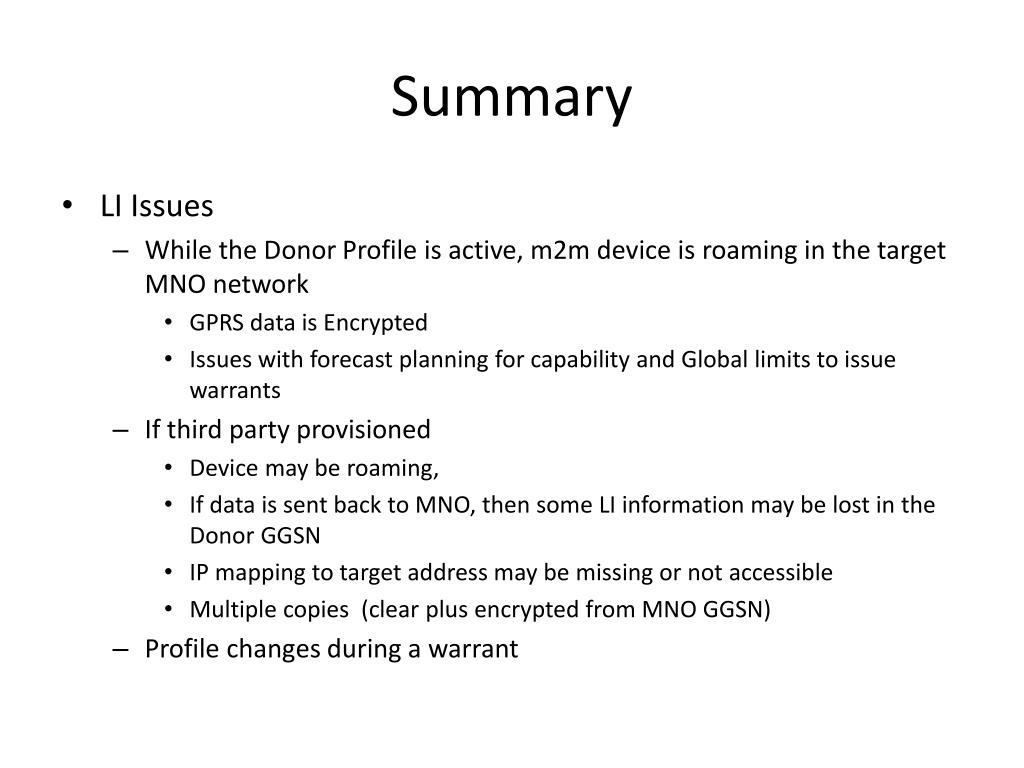

Summary

  • LI Issues

    • While the Donor Profile is active, m2m device is roaming in the target MNO network

      • GPRS data is Encrypted

      • Issues with forecast planning for capability and Global limits to issue warrants

    • If third party provisioned

      • Device may be roaming,

      • If data is sent back to MNO, then some LI information may be lost in the Donor GGSN

      • IP mapping to target address may be missing or not accessible

      • Multiple copies (clear plus encrypted from MNO GGSN)

    • Profile changes during a warrant


Reference material

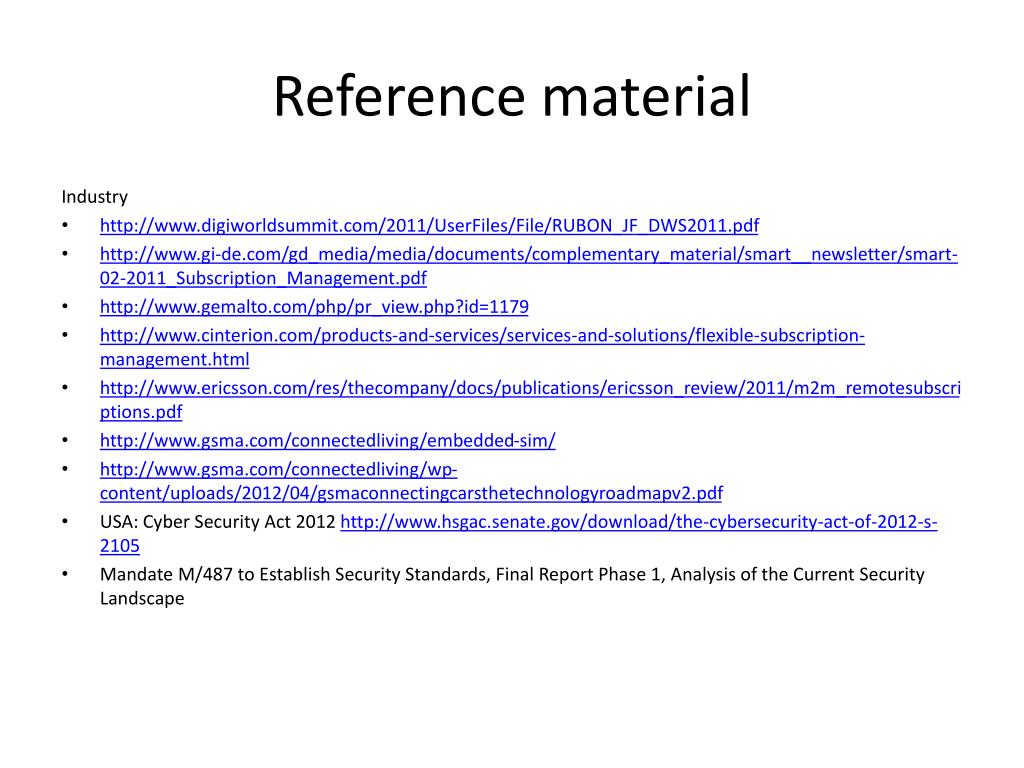

Reference material

Industry

  • http://www.digiworldsummit.com/2011/UserFiles/File/RUBON_JF_DWS2011.pdf

  • http://www.gi-de.com/gd_media/media/documents/complementary_material/smart__newsletter/smart-02-2011_Subscription_Management.pdf

  • http://www.gemalto.com/php/pr_view.php?id=1179

  • http://www.cinterion.com/products-and-services/services-and-solutions/flexible-subscription-management.html

  • http://www.ericsson.com/res/thecompany/docs/publications/ericsson_review/2011/m2m_remotesubscriptions.pdf

  • http://www.gsma.com/connectedliving/embedded-sim/

  • http://www.gsma.com/connectedliving/wp-content/uploads/2012/04/gsmaconnectingcarsthetechnologyroadmapv2.pdf

  • USA: Cyber Security Act 2012 http://www.hsgac.senate.gov/download/the-cybersecurity-act-of-2012-s-2105

  • Mandate M/487 to Establish Security Standards, Final Report Phase 1, Analysis of the Current Security Landscape


Reference material1

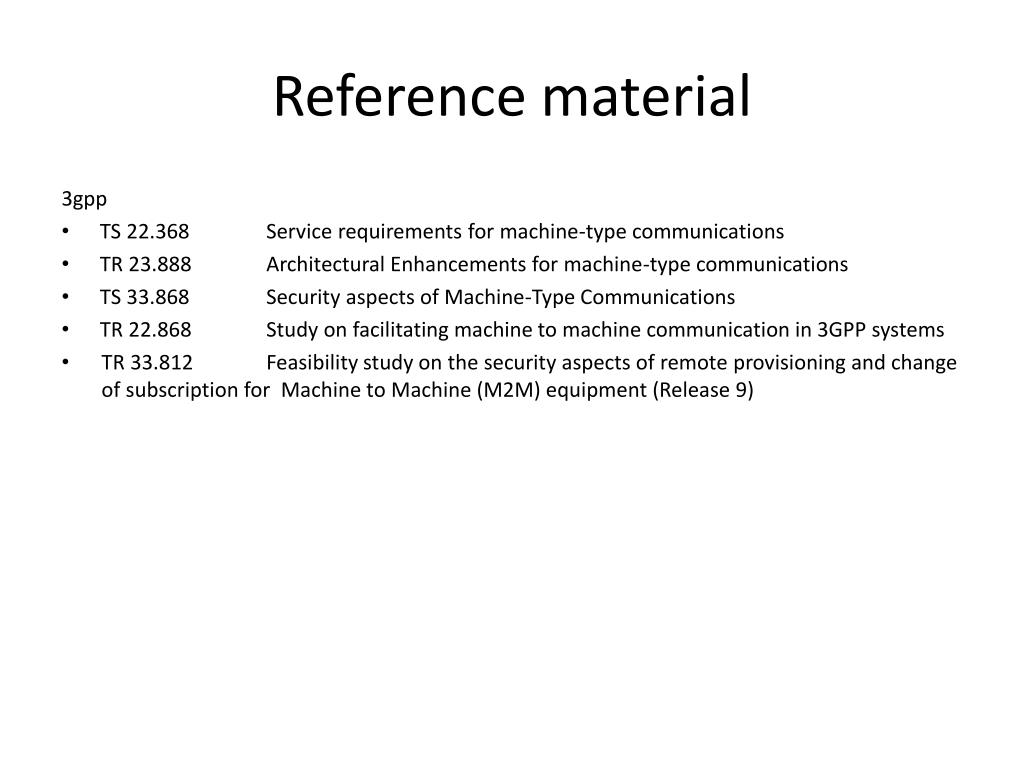

Reference material

3gpp

  • TS 22.368Service requirements for machine-type communications

  • TR 23.888Architectural Enhancements for machine-type communications

  • TS 33.868Security aspects of Machine-Type Communications

  • TR 22.868Study on facilitating machine to machine communication in 3GPP systems

  • TR 33.812 Feasibility study on the security aspects of remote provisioning and change of subscription for Machine to Machine (M2M) equipment (Release 9)


Reference material2

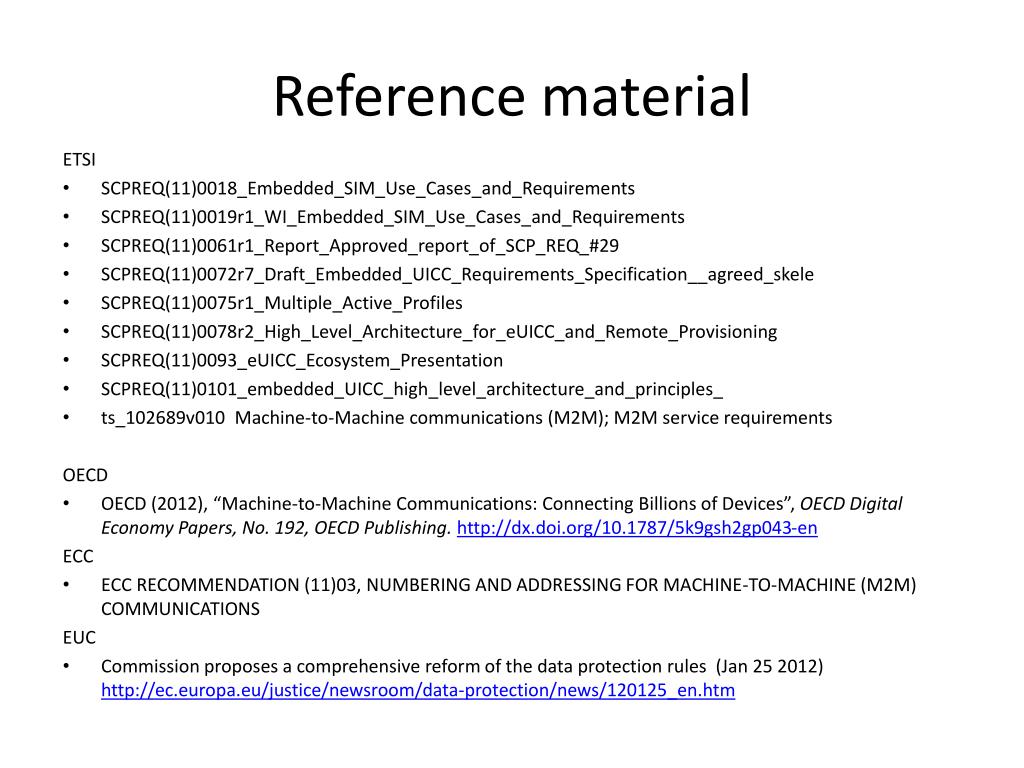

Reference material

ETSI

  • SCPREQ(11)0018_Embedded_SIM_Use_Cases_and_Requirements

  • SCPREQ(11)0019r1_WI_Embedded_SIM_Use_Cases_and_Requirements

  • SCPREQ(11)0061r1_Report_Approved_report_of_SCP_REQ_#29

  • SCPREQ(11)0072r7_Draft_Embedded_UICC_Requirements_Specification__agreed_skele

  • SCPREQ(11)0075r1_Multiple_Active_Profiles

  • SCPREQ(11)0078r2_High_Level_Architecture_for_eUICC_and_Remote_Provisioning

  • SCPREQ(11)0093_eUICC_Ecosystem_Presentation

  • SCPREQ(11)0101_embedded_UICC_high_level_architecture_and_principles_

  • ts_102689v010 Machine-to-Machine communications (M2M); M2M service requirements

    OECD

  • OECD (2012), “Machine-to-Machine Communications: Connecting Billions of Devices”, OECD Digital Economy Papers, No. 192, OECD Publishing. http://dx.doi.org/10.1787/5k9gsh2gp043-en

    ECC

  • ECC RECOMMENDATION (11)03, NUMBERING AND ADDRESSING FOR MACHINE-TO-MACHINE (M2M) COMMUNICATIONS

    EUC

  • Commission proposes a comprehensive reform of the data protection rules (Jan 25 2012) http://ec.europa.eu/justice/newsroom/data-protection/news/120125_en.htm


Reference material3

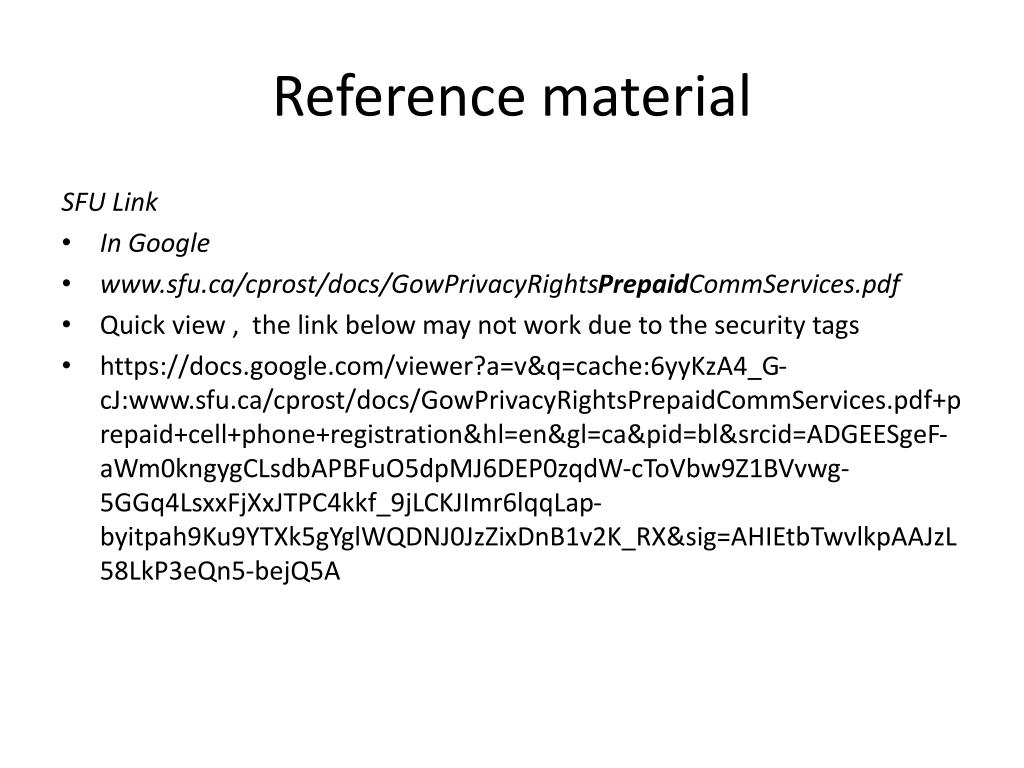

Reference material

SFU Link

  • In Google

  • www.sfu.ca/cprost/docs/GowPrivacyRightsPrepaidCommServices.pdf

  • Quick view , the link below may not work due to the security tags

  • https://docs.google.com/viewer?a=v&q=cache:6yyKzA4_G-cJ:www.sfu.ca/cprost/docs/GowPrivacyRightsPrepaidCommServices.pdf+prepaid+cell+phone+registration&hl=en&gl=ca&pid=bl&srcid=ADGEESgeF-aWm0kngygCLsdbAPBFuO5dpMJ6DEP0zqdW-cToVbw9Z1BVvwg-5GGq4LsxxFjXxJTPC4kkf_9jLCKJImr6lqqLap-byitpah9Ku9YTXk5gYglWQDNJ0JzZixDnB1v2K_RX&sig=AHIEtbTwvlkpAAJzL58LkP3eQn5-bejQ5A


  • Login
