Presentation Transcript


5681281

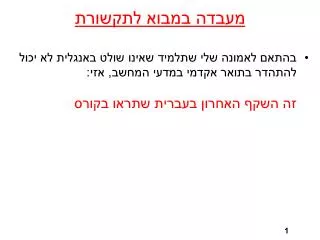

מעבדה במבוא לתקשורת

  • בהתאם לאמונה שלי שתלמיד שאינו שולט באנגלית לא יכול להתהדר בתואר אקדמי במדעי המחשב, אזי:זה השקף האחרון בעברית שתראו בקורס


Rs 232c standard

RS-232C Standard

  • The RS-232C standard is an asynchronous serial communication method.

  • Serial means that the information is sent 1-bit at a time.

  • Asynchronous means that no clock signal is sent with the data. Each side uses its own clock and a start and stop bit. Synchronous communication means that a clock signal is sent in addition to a data signal (or interwoven with it)See http://en.wikipedia.org/wiki/Asynchronous_serial_communication

  • The RS-232C standard works at the physical layer of the communication standard. This is the lowest level and the one that physically connects the devices.

  • The communication is done through the serial port of the PC. This is a male connector with 25 (old) or 9 (new) pins, in both cases only 9 pins, at the most, are used.


Why use a serial interface

Why Use a Serial Interface?

  • Good question? We program in parallel (writing a value to a char, int, float), why communicate serially? Less data is transferred per send.

  • There are several reasons:

    • Serial cables can be longer than parallel cables.

    • Serial cables are cheaper than parallel cables, although there is a cost of converting parallel data to the serial connection.

    • Infra Red are serial. Detecting 1 point of light isn't easy, try detecting 8 or more points of light.

    • Many microcontrollers (מיקרו-מעבדים) use SCI (Serial Communication Interface) to communicate with the outer world.

    • SATA disks are serial. See http://en.wikipedia.org/wiki/Serial_ATA


The connector

The Connector

The pins abbreviations are (numbers in parentheses are the 25D pin numbers.

1. CD (8)

2. RD (Rx) (3)

3. TD (Tx) (2)

4. DTR (20)

5. SG (Ground) (7)

6. DSR (6)

7. RTS (4)

8. CTS (5)

9. RI (22)


9 d to 25d conversion

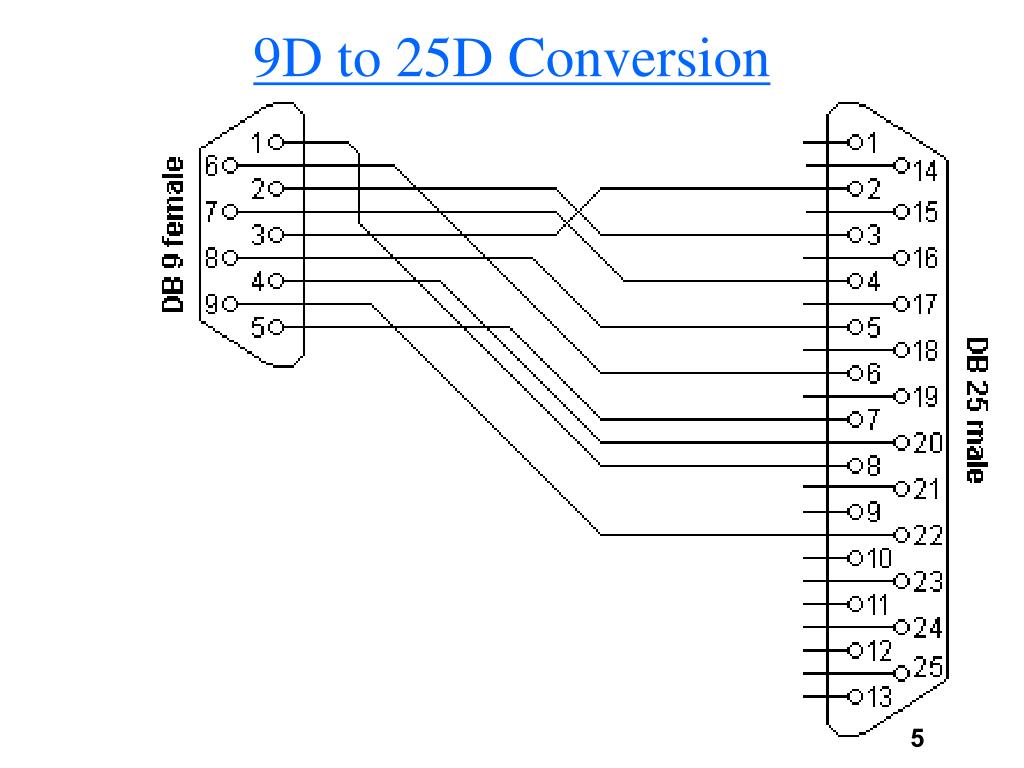

9D to 25D Conversion


Dte and dce

DTE and DCE

  • A DTE (Data Terminal Device) is usually a computer.

  • A DCE (Data Communication Device) is usually a Modem. A Cable connecting 2 PCs is also a Modem. It is called a NULL Modem.

  • The problem with communications is that the DTE speed is much greater than the DCE speed. The communication protocol bridges this gap (מגשר על הפער).

  • The DCE to DCE speed is also called the line speed.

  • Maximum Modem speed today is 56K BPS (56K Bits Per Second), this is the line speed. On the other hand the maximum DTE/DCE speed is 115,200 BPS. This is the gap software must bridge.


The uart 8250

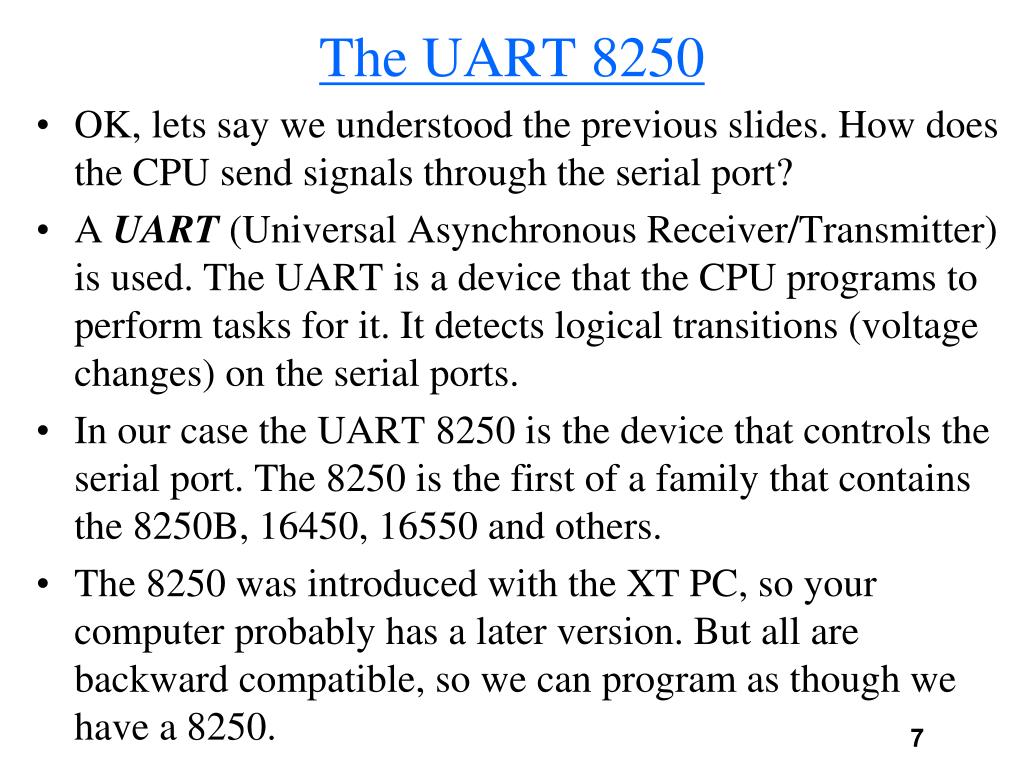

The UART 8250

  • OK, lets say we understood the previous slides. How does the CPU send signals through the serial port?

  • A UART (Universal Asynchronous Receiver/Transmitter) is used. The UART is a device that the CPU programs to perform tasks for it. It detects logical transitions (voltage changes) on the serial ports.

  • In our case the UART 8250 is the device that controls the serial port. The 8250 is the first of a family that contains the 8250B, 16450, 16550 and others.

  • The 8250 was introduced with the XT PC, so your computer probably has a later version. But all are backward compatible, so we can program as though we have a 8250.


Programming the uart 8250

Programming the UART 8250

  • Programming is done by reading and writing registers of the 8250. The registers are:

    Base Address Mode Name

    +0 (DLAB=0)WriteTransmitter Holding Buffer THR

    +0 (DLAB=0)ReadReceiver Buffer RBR

    +0 (DLAB=1)Rd/WrDivisor Latch Low Byte DLL

    +1 (DLAB=0)Rd/WrInterrupt Enable Register IER

    +1 (DLAB=1)Rd/WrDivisor Latch High ByteDLM

    +2ReadInterrupt Idendification Register IIR

    +2WriteFIFO Control RegisterFCR

    +3Rd/WrLine Control Register LCR

    +4Rd/WrModem Control RegisterMCR

    +5ReadLine Status Register LSR

    +6ReadModem Status Register MSR

    +7Rd/WrScratch RegisterSCR


Accessing the registers

Accessing the Registers

  • On the 80x86 architecture I/O devices are accessed usingspecial I/O instructions. These instructions are called IN and OUT, access I/O Ports.

  • I/O Ports are addresses in what's called I/O space, these are addresses that when accessed using the special I/O instructions access the registers of I/O devices.

  • The PC has standard ports for the serial interfaces, these ports are called COM1 - COM4. They are mapped to the following port numbers and IRQ (Interrupt Request) lines.

    Name Port address IRQ

    COM 13F84

    COM 22F83 (usually the serial mouse)

    COM 33E84

    COM 42F83


Getting the port addresses

Getting the Port Addresses

#include <stdio.h>

#include <dos.h>

void main(void)

{ unsigned int far *ptraddr; /* Pointer to location of Port Addresses */

unsigned int address,a; /* Address of Port */

ptraddr=(unsigned int far *)0x00000400; //where addresses of com ports are

for (a = 0; a < 4; a++) {

address = *ptraddr;

if (address == 0)

printf("No port found for COM%d \n",a+1);

else

printf("Address assigned to COM%d is %Xh\n",a+1,address); ptraddr++; }

}


Accessing the registers1

Accessing the Registers

  • The port addresses for the COMs are defined in the BIOS (Basic I/O System) ROM (Read Only Memory) from addresses 0x400 to 0x408.

  • OK. So how do we access the registers?

  • There is a C interface to the IN and OUT instructions:int inp(unsigned short port); // read a byte from the portint outp(unsigned short port, int val); // write a byte to the port

  • Using these two instruction is is possible to access the registers defined in the previous slides. For instance to read the LCR we have to write:int val;val = inp(0x3F8 + 3); // or inp(0x3FB);

  • Look at the functions descriptions in the help manuals of Visual C++ or BorlandC.


Real vs protected mode

Real vs. Protected Mode

  • Protected mode is the mode that the computer runs in when it has to support multiple users. UNIX and XP run only in protected mode. A regular user can’t access the I/O ports.

  • Real mode (or single-user mode, or priveleged-mode) is the mode used by the OS to access I/O devices. DOS runs in real mode. So we will use a Virtual PC to run DOS in order to run our programs.

  • inp and outp work when compiled with BorlandC, the Visual C++ versions (_inp and _outp) might create problems, try it out.


Baud rate

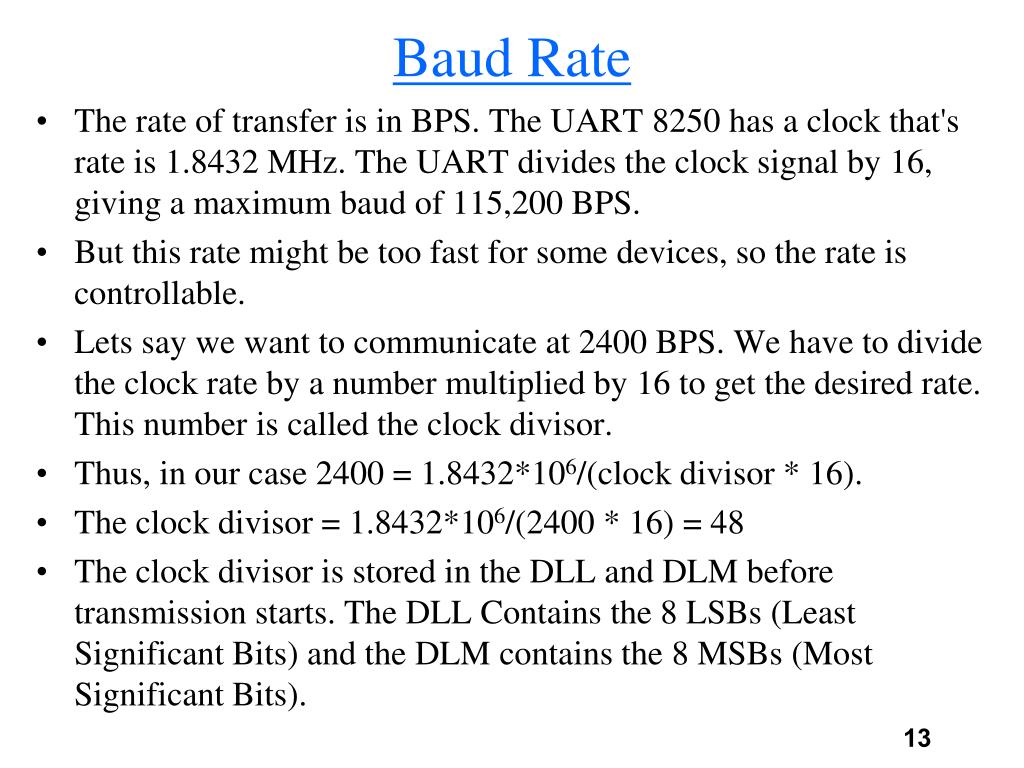

Baud Rate

  • The rate of transfer is in BPS. The UART 8250 has a clock that's rate is 1.8432 MHz. The UART divides the clock signal by 16, giving a maximum baud of 115,200 BPS.

  • But this rate might be too fast for some devices, so the rate is controllable.

  • Lets say we want to communicate at 2400 BPS. We have to divide the clock rate by a number multiplied by 16 to get the desired rate. This number is called the clock divisor.

  • Thus, in our case 2400 = 1.8432*106/(clock divisor * 16).

  • The clock divisor = 1.8432*106/(2400 * 16) = 48

  • The clock divisor is stored in the DLL and DLM before transmission starts. The DLL Contains the 8 LSBs (Least Significant Bits) and the DLM contains the 8 MSBs (Most Significant Bits).


Rs 232c waves

RS-232C Waves

  • So far we have introduced RS-232 Communications in relation to the PC. RS-232 communication is asynchronous. That is a clock signal is not sent with the data. Each word is synchronized using its start bit, and an internal clock on each side (defined by the baud rate) reads the data.

  • The signal is in the logical 1 state (a.k.a. "mark“ or “stop”), a start bit in logical 0 state (a.k.a. "space") signals that data is about to be sent. Then 8 bits of data are sent (this can be changed), a parity bit is optional (not shown here) and the a stop bit or bits (logical 1) is sent. This is called a frame (מסגרת). The data is framed between a stop and start bit. The start and stop bits ensure a state transition.

  • The above waveform is relevant to the TD and RD lines only.


The line control register lcr

The Line Control Register (LCR)

  • The LCR is a 8-bit register (as all 8250 registers) that controls the data that goes on the TD and RD lines. Its bits are:

  • Bits 0,1: Select the word length, from 5 to 8 bits.

    • 00: 5 bit word

    • 01: 6 bit word

    • 10: 7 bit word

    • 11: 8 bit word

  • Bit 2: Sets the length of the stop bit.

    • 0: 1 bit length

    • 1: 1.5 bit length if 5 bit word selected, 2 bit length if 6,7,8 bit word selected

  • Bit 6: Sets the break control bit. When this bit is set to 1 the TD line is permanently set to 0 (space).

  • Bit 7: Sets the DLAB (Divisor Latch Access Bit).

    • 0: enables access to RBR, THR, and IER.

    • 1: enables access to DLL and DLM (to set the baud).


The lcr parity bits

The LCR Parity Bits

  • Bit 3: Parity enable bit.

    • 0: no parity bit sent

    • 1: parity bit sent

  • Bit 4: Chooses between odd and even parity.

    • 0: odd parity. The number of '1's in the word is counted. If odd, the parity bit is set, if even, it isn't set.

    • 1: even parity. The number of '1's in the word is counted. If even, the parity bit is set, if odd it isn't set.

    • For instance the word 11001011 has odd parity. So if parity is enabled (bit 3) and bit 4 is 0 (odd parity), the parity bit sent will be 1 and the receiver will check the data and expect to find a 1 in the parity bit.

  • Bit 5: Sets the "sticky" parity bit. The parity bit is always the same value, "high" (1) or "low" (0).

    • 0: The parity bit is set by the input word.

    • 1: The parity bit is 0 if bit 4 is 1, the parity bit is 1 if bit 4 is 0. This setting is permanent as long as bit 6 is set.


Sending a word

Sending a Word

  • In order to send a word the following steps must be taken on both sides (sender and receiver).

  • Set the baud rate by computing it and loading DLL and DLM.

  • Set the parity (enabled on/off, odd/even).

  • Set the word length (5-8 bits).

  • Set the number of stop bits.

  • Write a word to the THR. This word (lets assume 8-bit words) is written into the TSR (Transmit Shift Register). The TSR then shifts the bits out one by one and transmits them on the TD line.

  • The word is received by the RD on the receivers side and stored in the RBR register.

THR

TSR

TD


The line status register lsr

The Line Status Register (LSR)

  • The LSR shows the current status of communication, errors in transmission will be written into the register.

  • Bit 0: Data Ready (DR) indicator. When set, it indicates that a byte is ready to be read from the RBR. Reading from the RBR sets the DR bit to 0.

  • Bit 1: Overrun Error (OE) indicator. When set indicates that a new byte has been received before the current byte in the RBR has been read. The OE is reset (set to 0) when the LSR is read.

  • Bit 2: Parity Error (PE) indicator. When set indicates that a parity error has occurred. Is reset by reading the LSR.

  • Bit 3: Framing Error (FE) indicator. Is set whenever the received word doesn't have a valid stop bit. The stop bit following the last data bit or parity is detected as a 0 instead of a 1.

  • Bit 4: Break Interrupt (BI) indicator. Is set whenever the RD line is held in the space state for longer than it takes to send a word.


The lsr cont

The LSR (cont.)

  • Bit 5: Transmitter Holding Register Empty (THRE) indicator. When set it is possible to write another byte into the THR. The bit is set when the byte is transferred from the THR to the TSR. The bit is reset when the processor starts loading a byte into the THR.

  • Bit 6: Transmitter Shift Register Empty (TSRE) indicator. When set, indicates that the TSR is empty. It is reset when a word is loaded into it from the THR.

  • Bit 7: Unused. Permanent 0.
