Mathematical Treasure-hunt: Sine & Cosine

Mathematical Treasure-hunt: Sine & Cosine. Mathematical Treasure-hunt: Sine & Cosine. Previous Answer. Previous Answer. 2. 1. To the next clue. To the next clue. 6.66. 2.96.

edison
Download Presentation

Mathematical Treasure-hunt: Sine & Cosine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Mathematical Treasure-hunt: Sine & Cosine Mathematical Treasure-hunt: Sine & Cosine Previous Answer Previous Answer 2 1 To the next clue To the next clue 6.66 2.96 The area of a triangle is 10 sq cm. The angle between two of the sides of length 6 cm and 8 cm resp. are obtuse. Work out the size of this angle. In the triangle below work out the value of the area. 3 cm 5 cm 40

  2. Mathematical Treasure-hunt: Sine & Cosine Mathematical Treasure-hunt: Sine & Cosine Previous Answer Previous Answer 4 3 To the next clue To the next clue 13.7 11.2 The sides of a triangle are 3,5 and 7 cm. Show that the largest angle is 120 and find the area. Triangle ABC is such that AB = 4cm, BC = 6 cm and angle ACB = 36. Find the length AC.

  3. Mathematical Treasure-hunt: Sine & Cosine Mathematical Treasure-hunt: Sine & Cosine Previous Answer Previous Answer 6 5 To the next clue To the next clue 6.50 22.3 A triangle has sides AB = 4.5 cm, BC = 6.8 cm and angle ACB = 30. Find the largest angle. From a point A a boat sails due north for 7 km to B. The boat leaves B and moves on a bearing of 100 for 20 km until it reaches C. calculate the distance C from A.

  4. Mathematical Treasure-hunt: Sine & Cosine Mathematical Treasure-hunt: Sine & Cosine Previous Answer Previous Answer 8 7 To the next clue To the next clue 101 or 131 104 A helicopter flies on a bearing of 080 from A to B where AB = 50km.It then flies for 60 km to a point C. Given that C is 80 km from A calculate the bearing of C from A. In triangle ABC AB = 5 cm , BC = 6 cm and AC = 10 cm. Calculate the value of the largest angle.

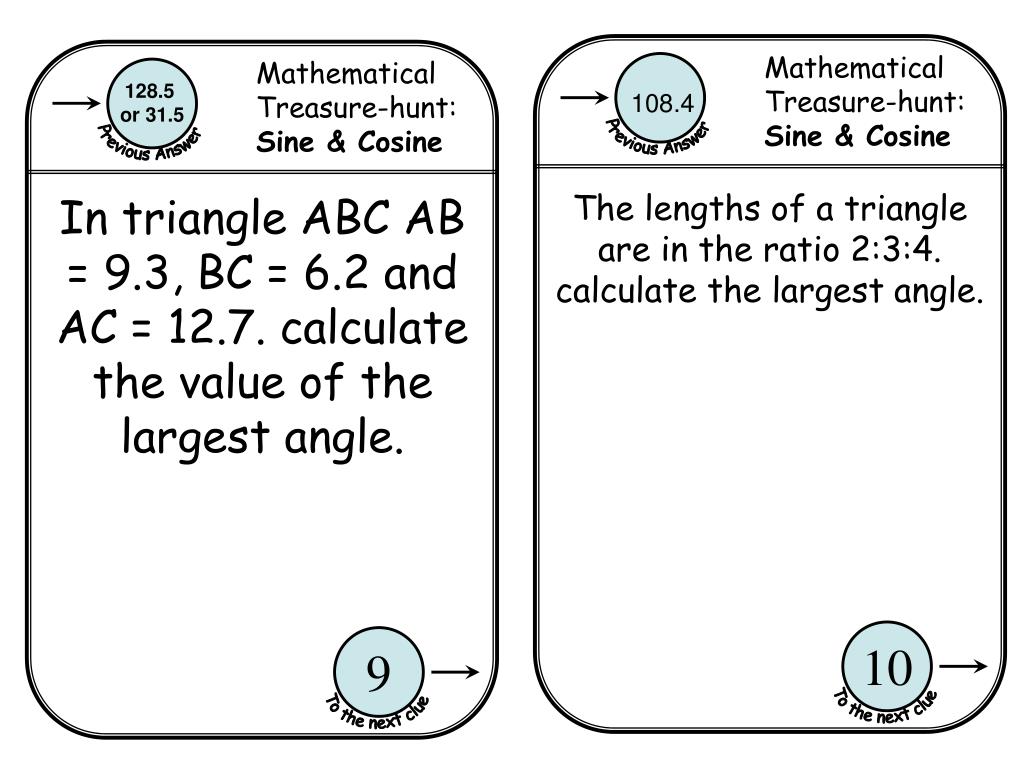

  5. Mathematical Treasure-hunt: Sine & Cosine Mathematical Treasure-hunt: Sine & Cosine Previous Answer Previous Answer 10 9 To the next clue To the next clue 128.5 or 31.5 108.4 The lengths of a triangle are in the ratio 2:3:4. calculate the largest angle. In triangle ABC AB = 9.3, BC = 6.2 and AC = 12.7. calculate the value of the largest angle.
