Product Design Specifications

Product Design Specifications. 1. Thermal Continuous operation at 900 °F Acceptable surface burning, 5/5 or better (ASTM E-84) 2. Sound Sound Transfer Coefficient comparable to mineral wool (STC 10) 3. Mechanical Compressive strength greater than mineral wool desirable (>1.7 psi)

eden
Download Presentation

Product Design Specifications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Product Design Specifications 1. Thermal • Continuous operation at 900 °F • Acceptable surface burning, 5/5 or better (ASTM E-84) 2. Sound • Sound Transfer Coefficient comparable to mineral wool (STC 10) 3. Mechanical • Compressive strength greater than mineral wool desirable (>1.7 psi) 4. Environmental • Must not adsorb water (<1 % by volume) • Must no allow for mold growth 5. Workability • One step installation process • Reduction in manufacturing steps (Currently 3 step) 6. Cost • Not more than 2x cost of mineral wool ($14.8/ft3)

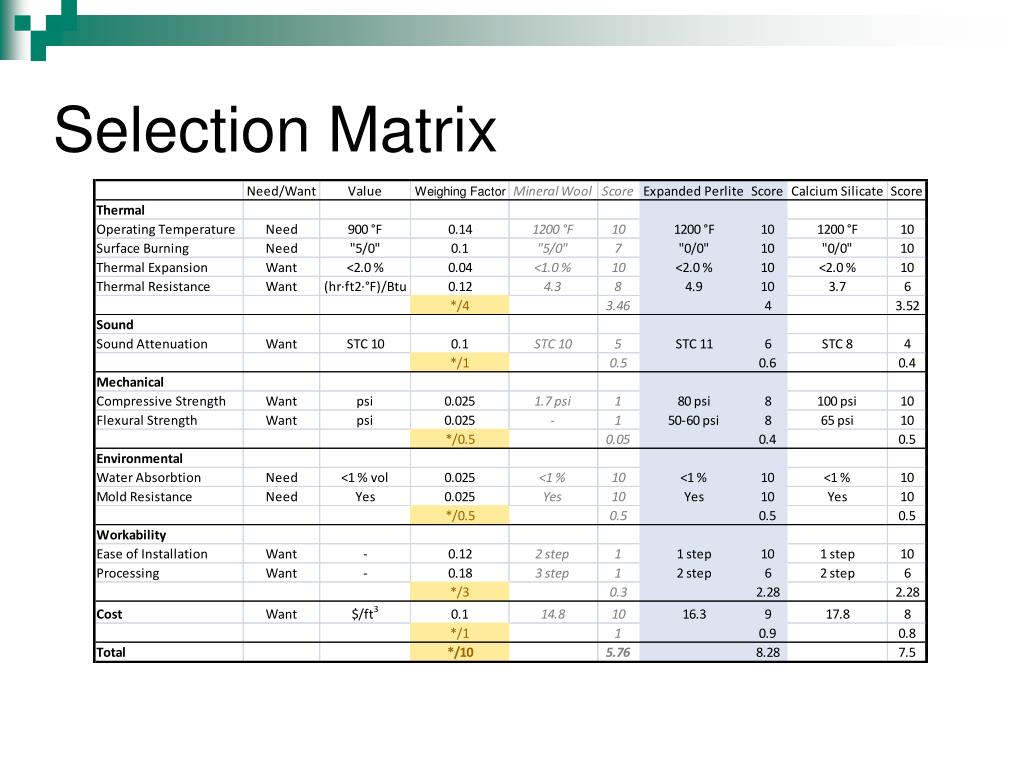

  2. Selection Matrix

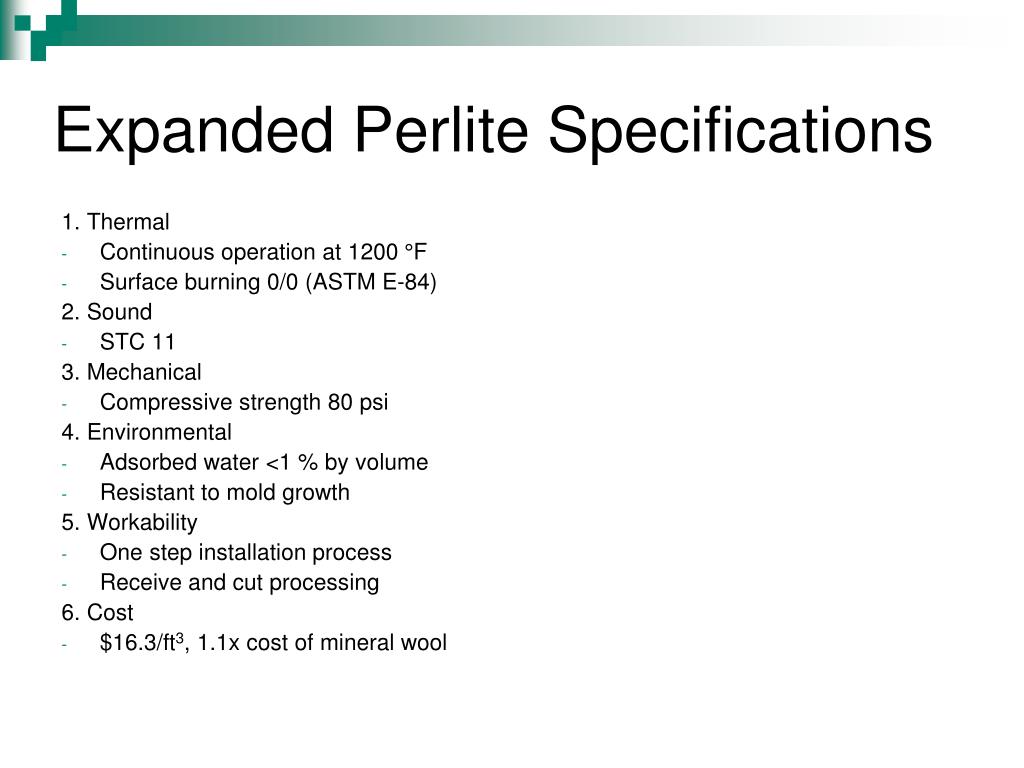

  3. Expanded Perlite Specifications 1. Thermal • Continuous operation at 1200 °F • Surface burning 0/0 (ASTM E-84) 2. Sound • STC 11 3. Mechanical • Compressive strength 80 psi 4. Environmental • Adsorbed water <1 % by volume • Resistant to mold growth 5. Workability • One step installation process • Receive and cut processing 6. Cost • $16.3/ft3, 1.1x cost of mineral wool
