  1. Realizations of CMOS Fully Differential Current Followers/Amplifiers by Hussain Alzaher and Noman TasadduqElectrical Engineering Department King Fahd University of Petroleum & Minerals Dhahran, Saudi Arabia

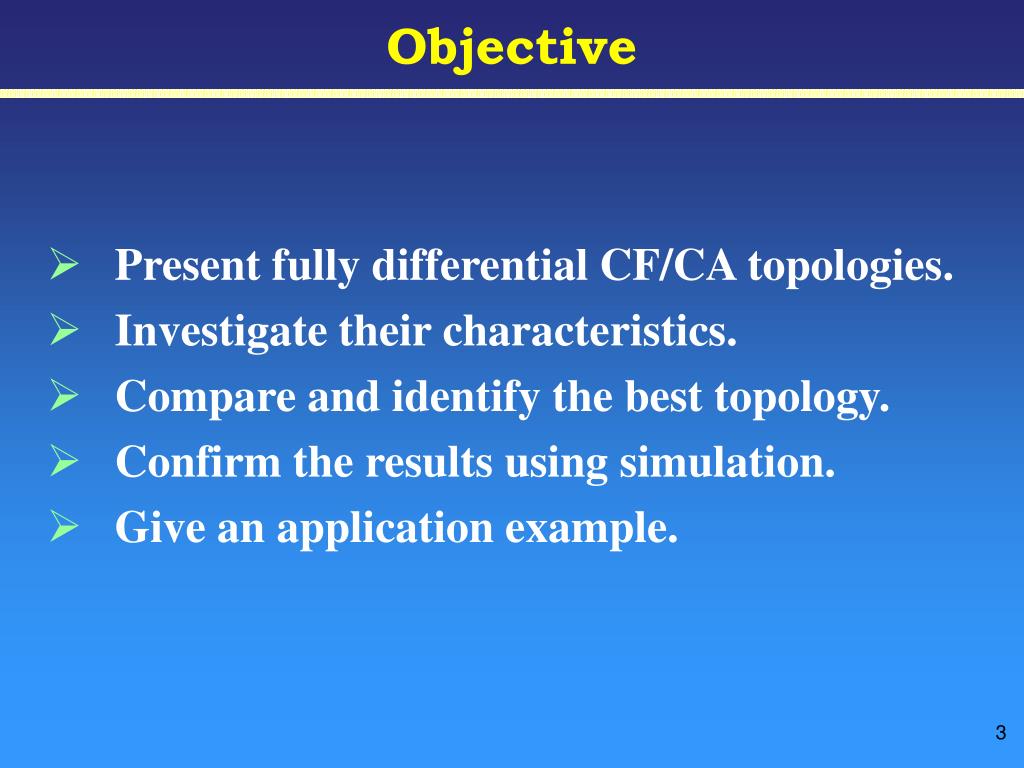

  2. Objective • Present fully differential CF/CA topologies. • Investigate their characteristics. • Compare and identify the best topology. • Confirm the results using simulation. • Give an application example.

  3. Introduction Why Fully Differential Architecture? Fully differential architectures are essential to enhance the performance of mixed signal applications in terms of • Supply noise rejection. • Dynamic range. • Harmonic distortion.

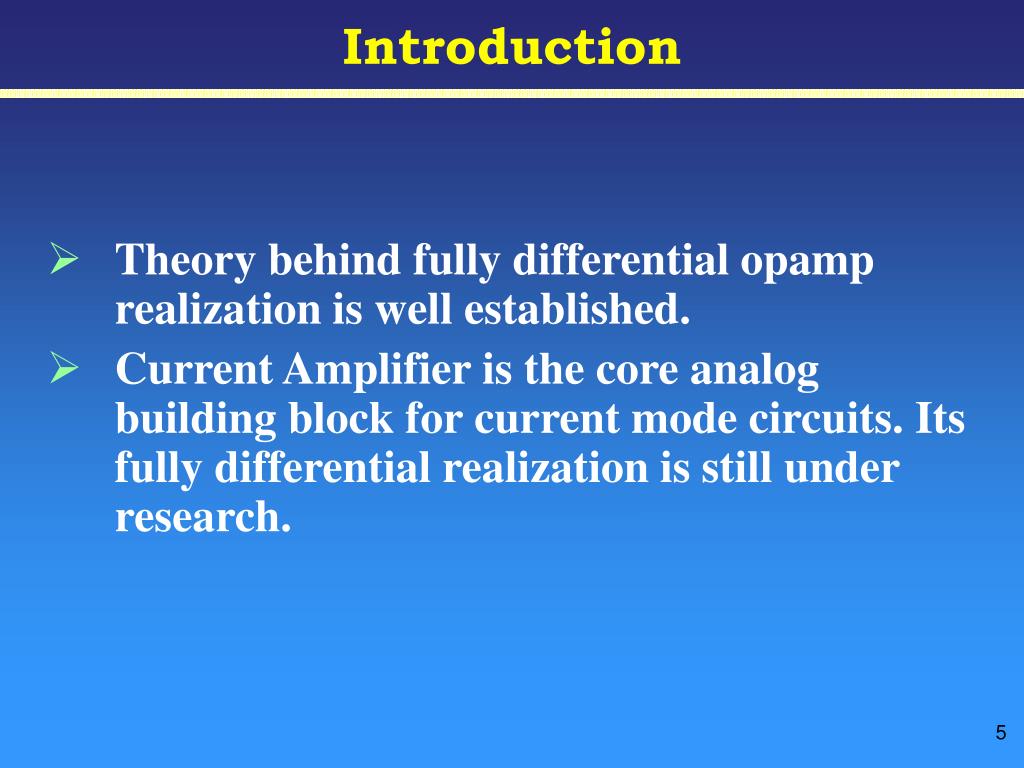

  4. Introduction • Theory behind fully differential opamp realization is well established. • Current Amplifier is the core analog building block for current mode circuits. Its fully differential realization is still under research.

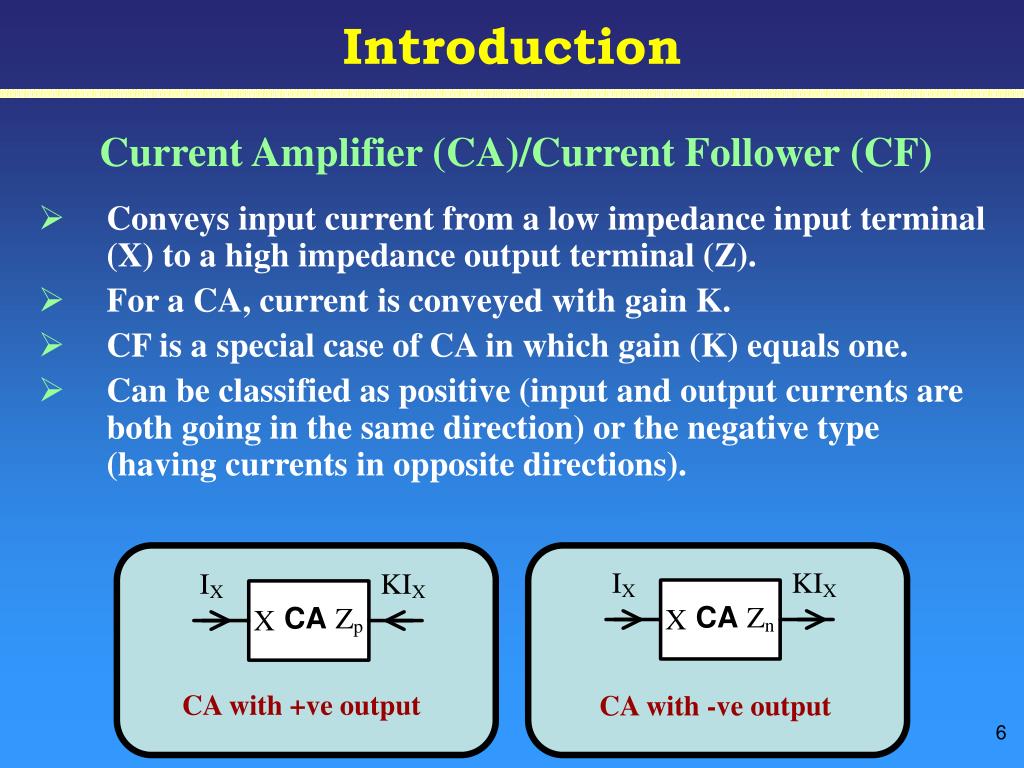

  5. Introduction Current Amplifier (CA)/Current Follower (CF) • Conveys input current from a low impedance input terminal (X) to a high impedance output terminal (Z). • For a CA, current is conveyed with gain K. • CF is a special case of CA in which gain (K) equals one. • Can be classified as positive (input and output currents are both going in the same direction) or the negative type (having currents in opposite directions). CA with +ve output CA with -ve output

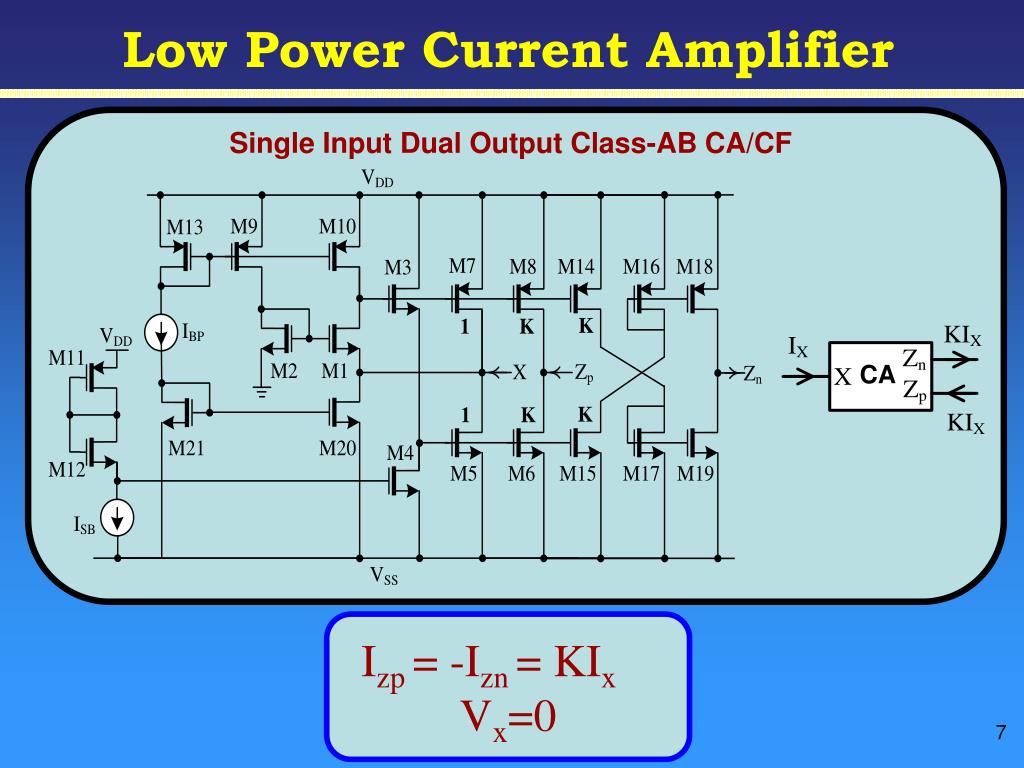

  6. Low Power Current Amplifier Single Input Dual Output Class-AB CA/CF Izp = -Izn = KIx Vx=0

  7. Fully Differential CA (FDCA) • Four terminal device, with two input and two output currents. • Differential output current can be expressed as, • Ideally, Acm = 0.

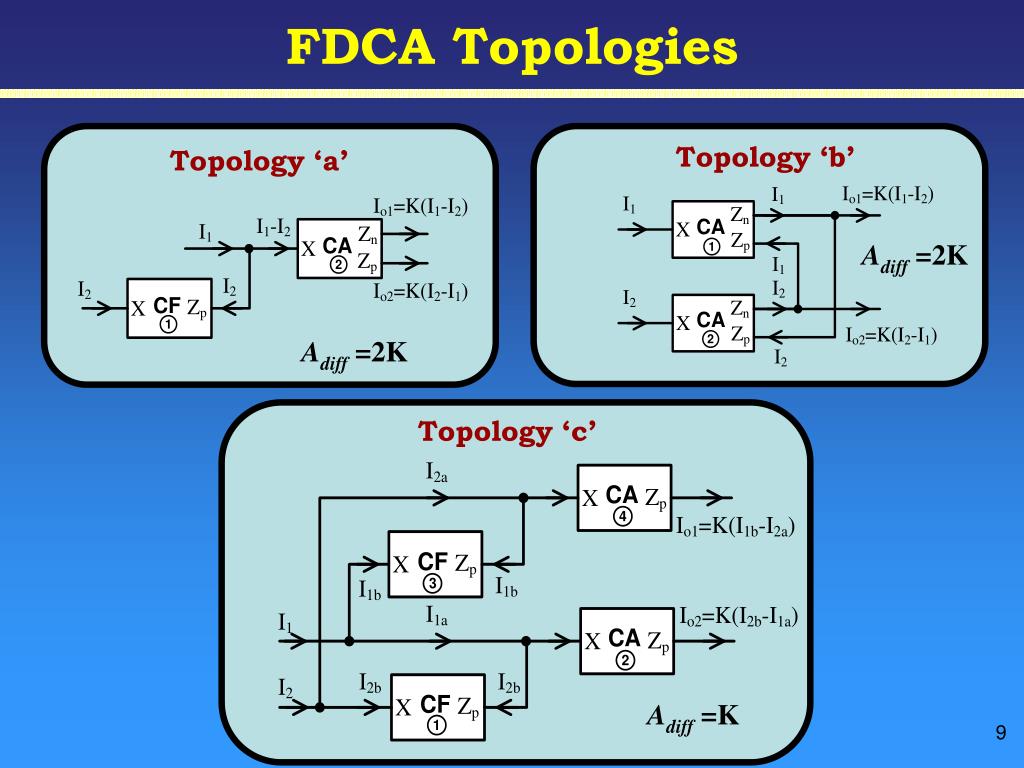

  8. FDCA Topologies Topology ‘b’ Topology ‘a’ Adiff=2K Adiff =2K Topology ‘c’ Adiff =K

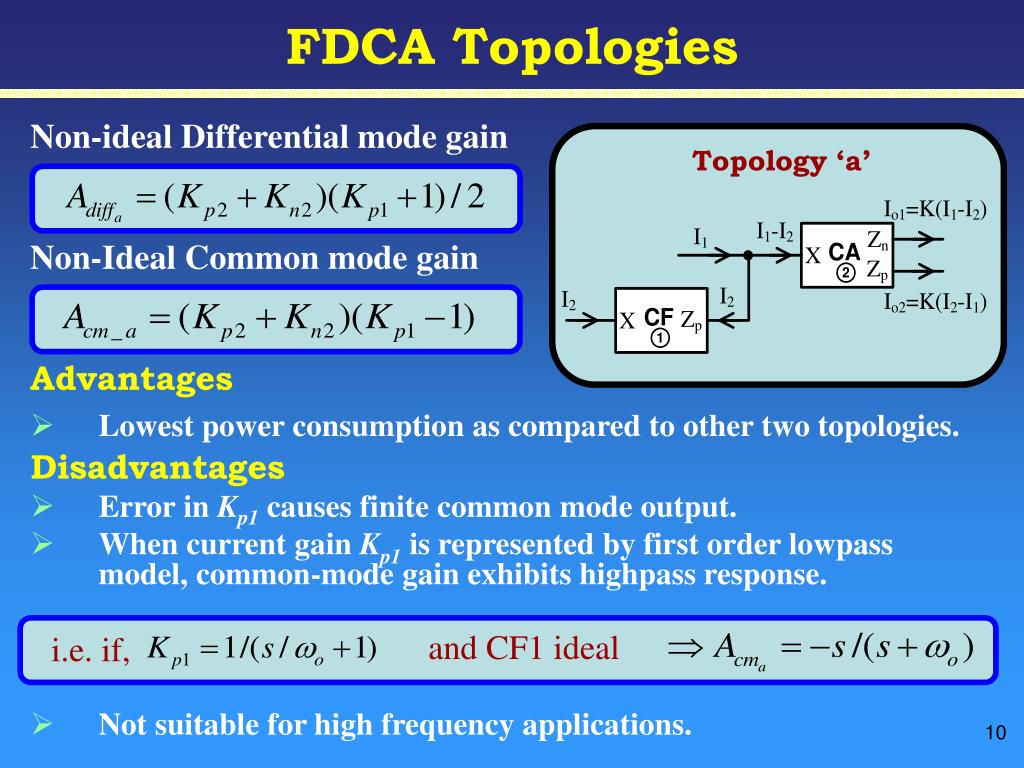

  9. and CF1 ideal i.e. if, FDCA Topologies Non-ideal Differential mode gain Topology ‘a’ Non-Ideal Common mode gain Advantages • Lowest power consumption as compared to other two topologies. Disadvantages • Error in Kp1 causes finite common mode output. • When current gain Kp1 is represented by first order lowpass model, common-mode gain exhibits highpass response. • Not suitable for high frequency applications.

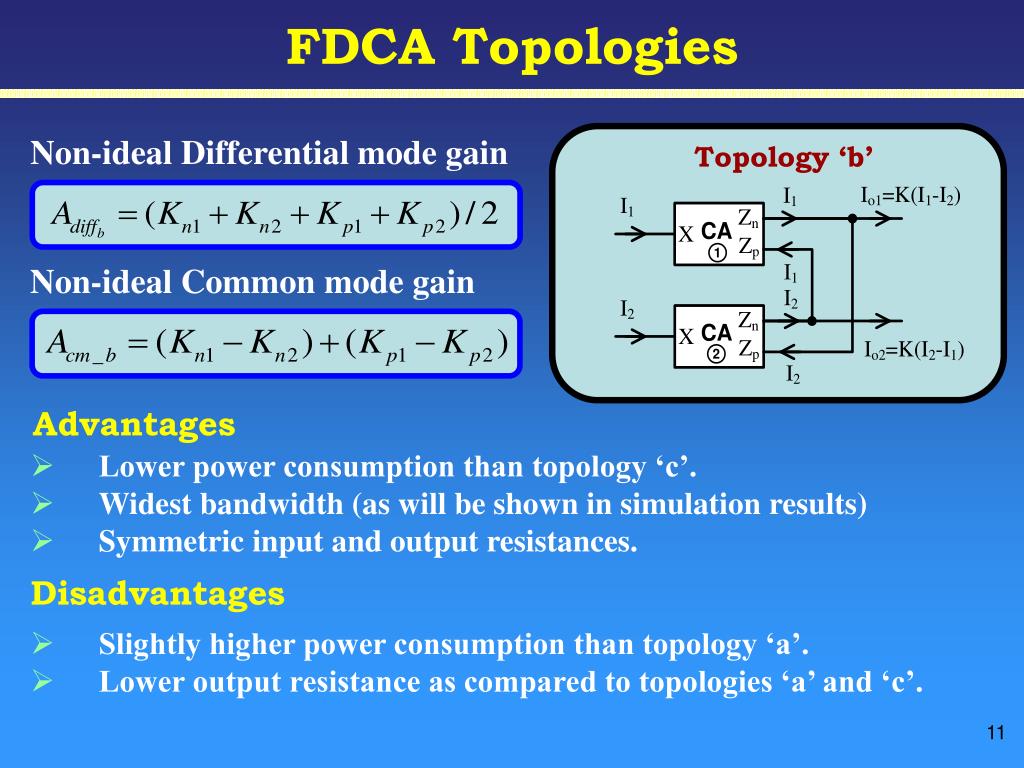

  10. FDCA Topologies Non-ideal Differential mode gain Topology ‘b’ Non-ideal Common mode gain Advantages • Lower power consumption than topology ‘c’. • Widest bandwidth (as will be shown in simulation results) • Symmetric input and output resistances. Disadvantages • Slightly higher power consumption than topology ‘a’. • Lower output resistance as compared to topologies ‘a’ and ‘c’.

  11. FDCA Topologies Advantages Topology ‘c’ • Smallest input R. • Output R= twice that of ‘b’ Disadvantages • Highest power consumption. • Most no. of active elements. Ideal differential gain Io1=K(I1b-I2a) and Io2= K(I2b-I1a) Io= K(I1b-I2a)-K(I2b-I1a)=K(I1b+I1a)-K(I2a+I2b)=K(I1-I2) Non-ideal Differential mode gain Non-ideal Common mode gain

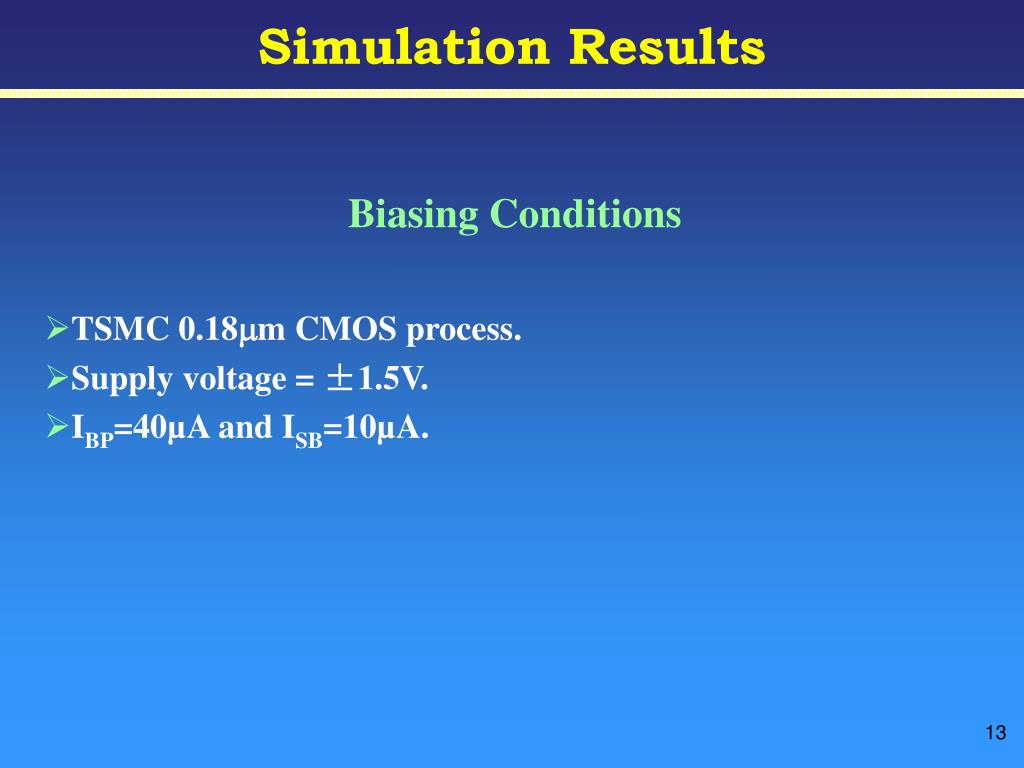

  12. Simulation Results • Biasing Conditions • TSMC 0.18mm CMOS process. • Supply voltage = ±1.5V. • IBP=40µA and ISB=10µA.

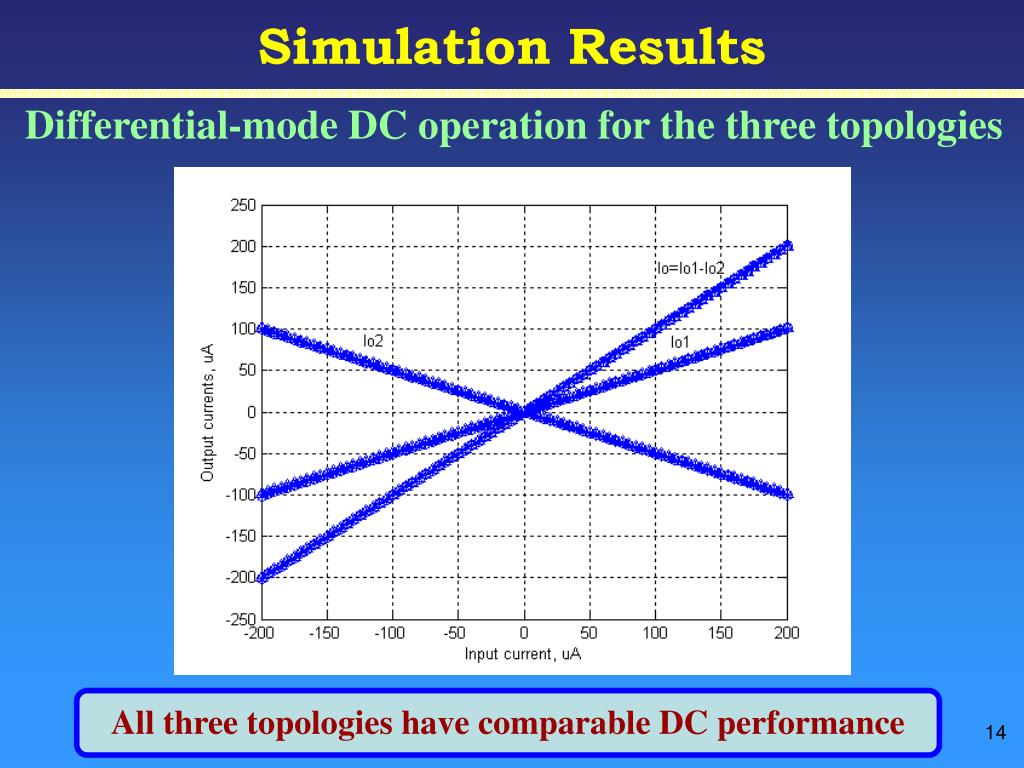

  13. Simulation Results Differential-mode DC operation for the three topologies All three topologies have comparable DC performance

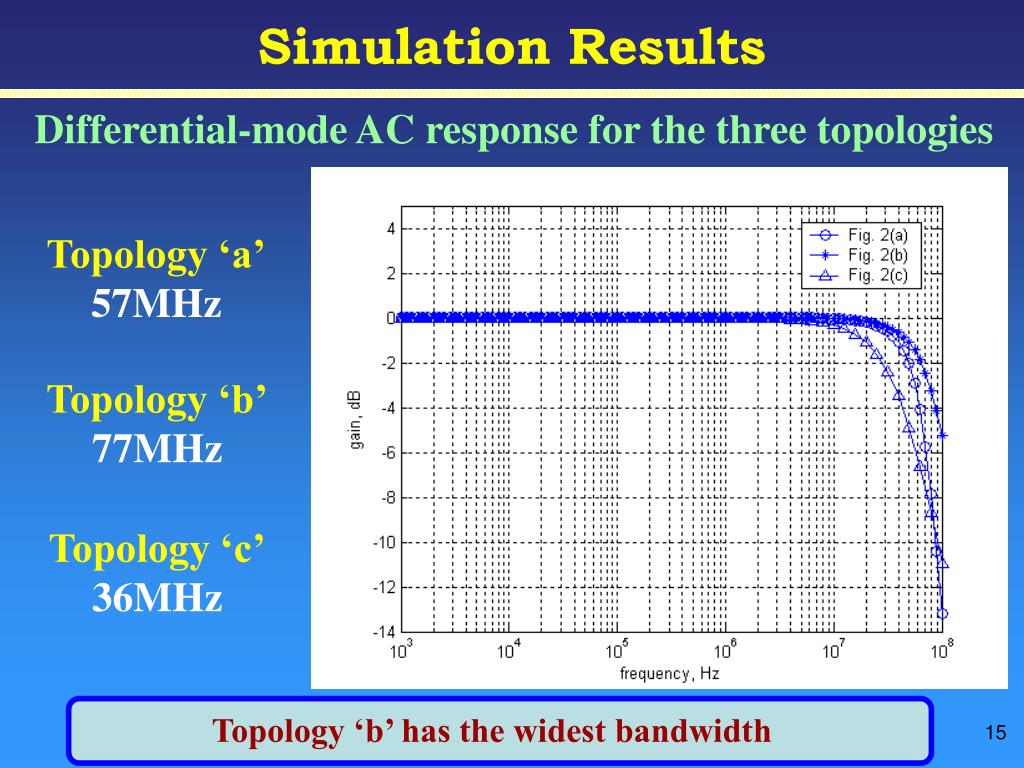

  14. Simulation Results Differential-mode AC response for the three topologies Topology ‘a’ 57MHz Topology ‘b’ 77MHz Topology ‘c’ 36MHz Topology ‘b’ has the widest bandwidth

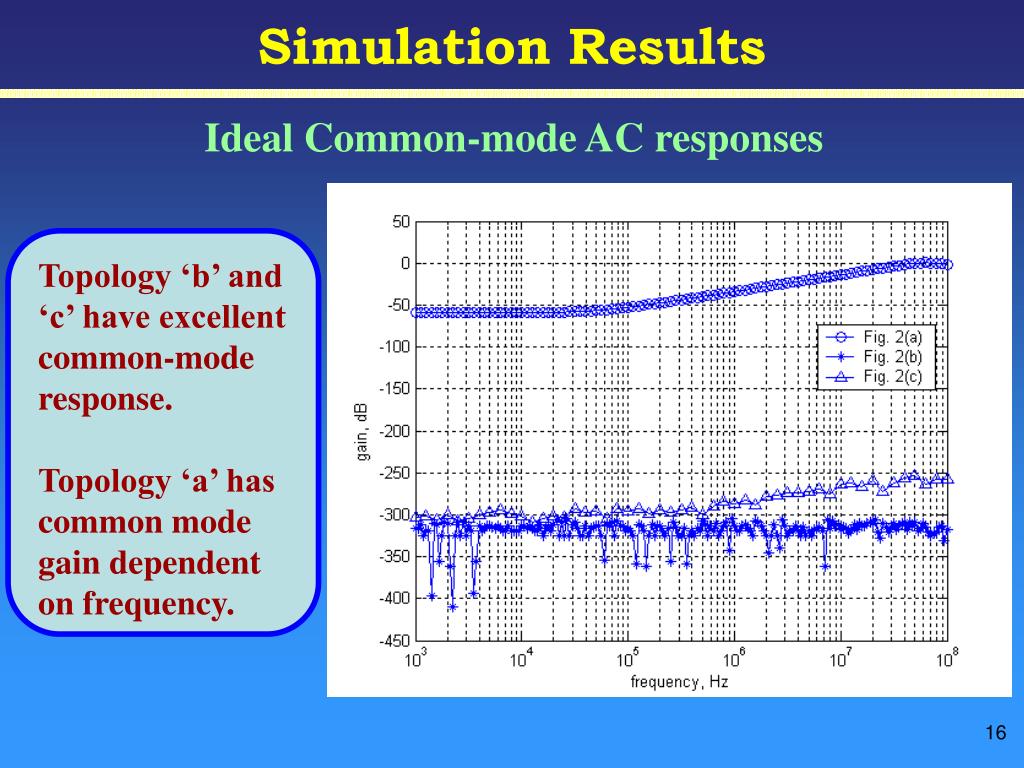

  15. Simulation Results Ideal Common-mode AC responses Topology ‘b’ and ‘c’ have excellent common-mode response. Topology ‘a’ has common mode gain dependent on frequency.

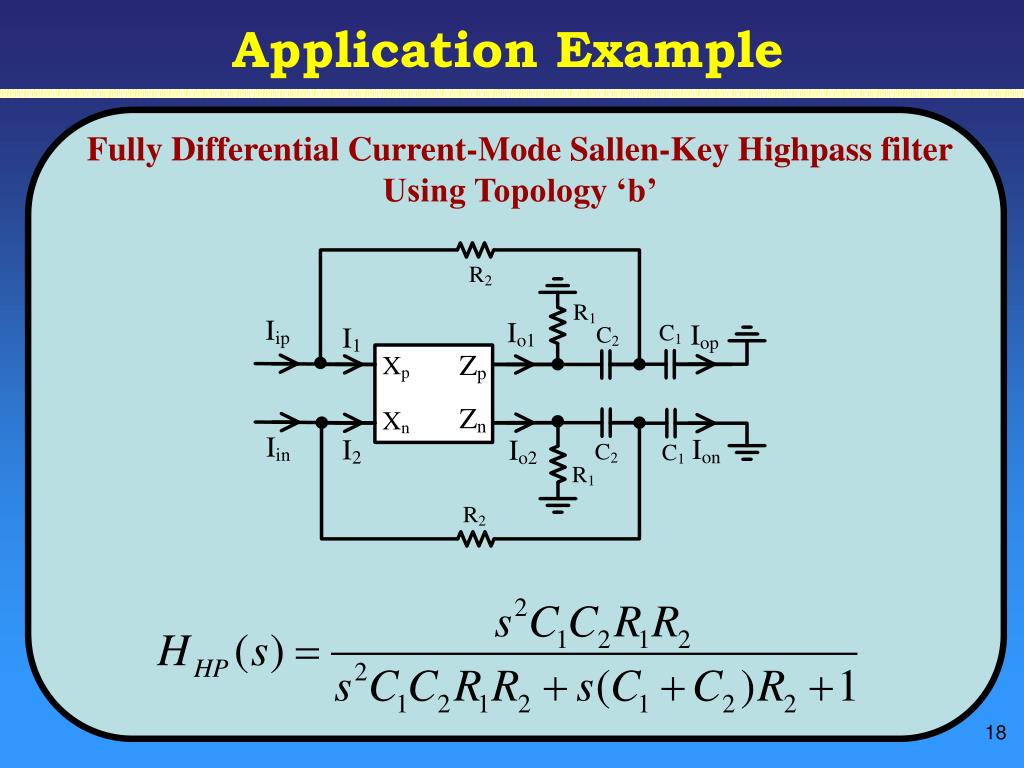

  16. Application Example Fully Differential Current-Mode Sallen-Key Highpass filter Using Topology ‘b’

  17. Application Example Magnitude response of the Sallen-Key Highpass filter Results in good agreement

  18. Conclusion Topology ‘a’ +: Least power consumption. - : Freq. dependent Acm. Topology ‘c’ +: Best Rin and Rout. - : Power consumption and area are highest. - : Differential-mode bandwidth is narrowest. - : Mismatch results show freq. dependent Acm. Topology ‘b’ -+: Consumes slightly more power than ‘a’ but much lower than ‘c’. +: Widest differential-mode bandwidth. +: Frequency independent common-mode gain. • Best solution for high freq. applications.
