Presentation Transcript

F for architects hitting the sweet spot

F# for ArchitectsHitting the Sweet Spot

Chris Smith, Microsoft

Twitter @aChrisSmith


Why this talk will be awesome

Why this talk will be awesome

F facts

F# Facts

  • Commonly known F# facts

    • “Write tomorrow’s legacy code today in C#”

    • F# will parallelize things for free

    • Functional programming is the future

    • F# developers are smarter and better looking that other programmers

    • You should rewrite all your ASP.NET apps in F#



  • Before you get started

  • F#’s Strengths

  • F#’s Weaknesses

  • Bottom Line

F in five minutes

F# in Five Minutes



First-class language in VS2010*

F# Interactive Window

F# PowerPack

  • Multi-paradigm language

  • Type inferred

  • Just another .NET language

F# = Fun

Lap around f in vs2010

Lap around F# in VS2010

F interop

F# Interop

F# can do…

… as well as

Function values

Discriminated unions

Pattern matching

Lazy evaluation




Computation expressions / Monads (Über-geek stuff)

  • Classes

  • Generics

  • Delegates

  • Enumerations

  • Structures

  • P/Invoke

Microsoft net ecosystem

Microsoft .NET Ecosystem

  • Tools & Languages

    • Visual Studio

    • Expression Studio

    • VB, C#, F#, Iron R/P, …

  • Platforms

    • XNA

    • Compact Framework

    • Visual Studio Tools for Office

    • Silverlight

So what is it good at

So what is it good at?



Functional vs object oriented

Functional vs. Object-Oriented

FP : small :: OO : large

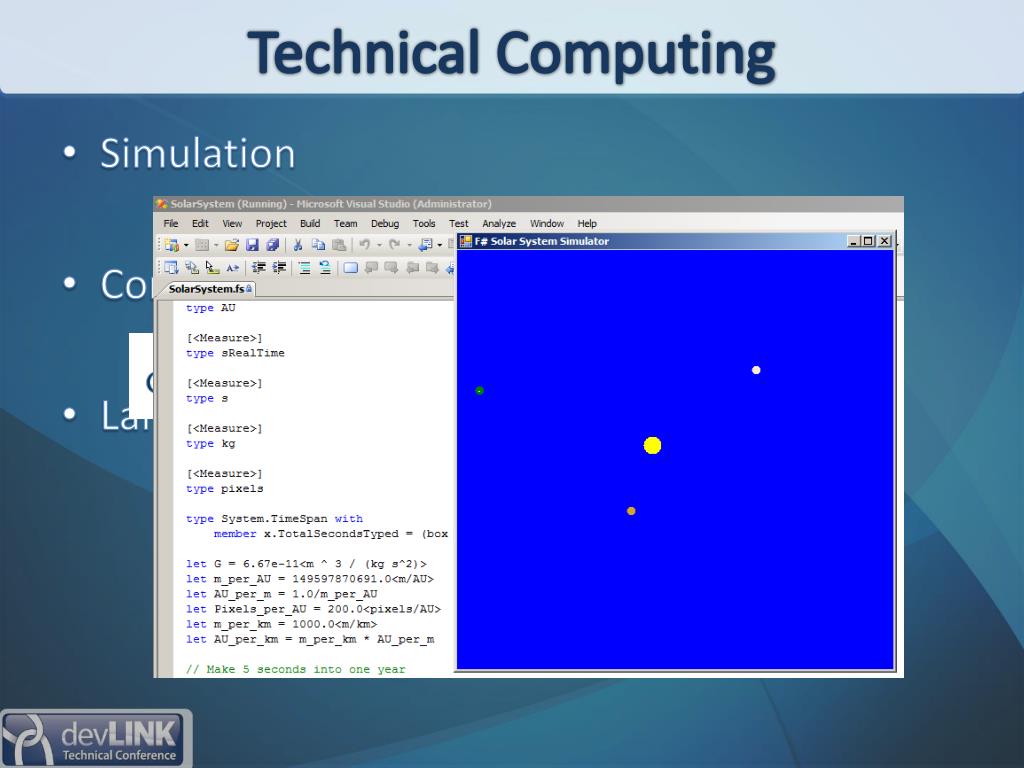

Technical computing

Technical Computing

  • Simulation

  • Computational Finance

  • Large-scale Data Processing

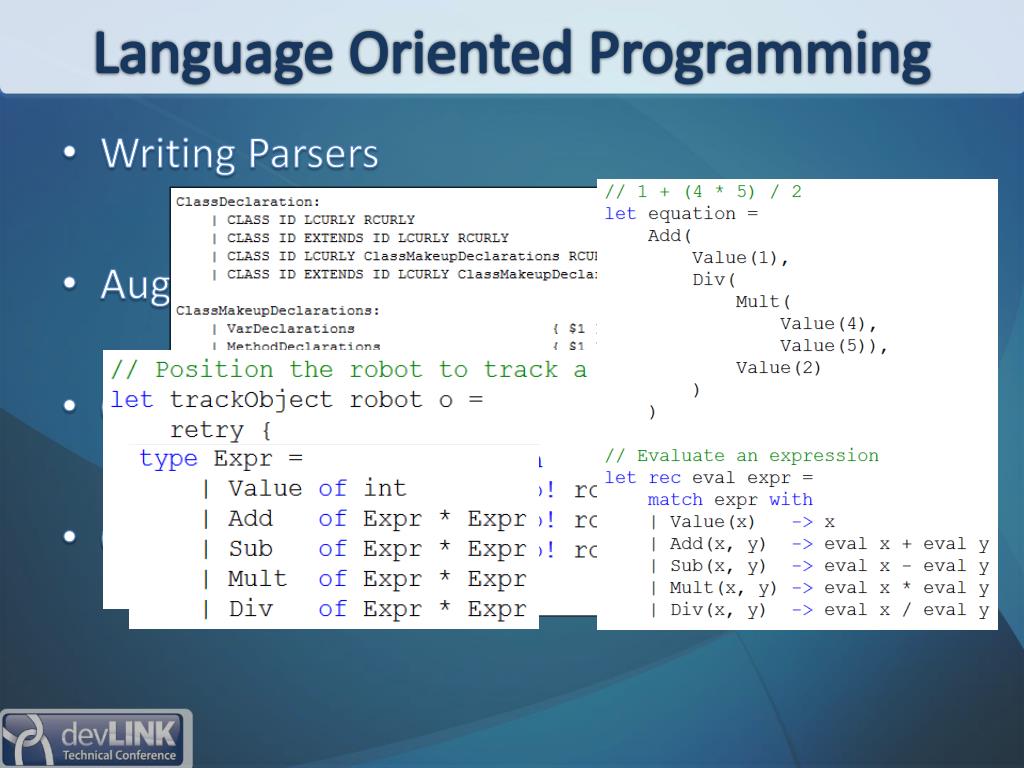

Language oriented programming

Language Oriented Programming

  • Writing Parsers

  • Augmenting F# Code

  • Creating New Languages

  • Quotations (Expression Trees)

Parallel programming

Parallel Programming*

  • Immutable by default

  • Parallel Extensions to .NET

    • Task Parallel Library

    • Concurrent Data Structures

  • Asynchronous Workflows

*Parallel, Asynchronous, Concurrent, and Reactive Programming

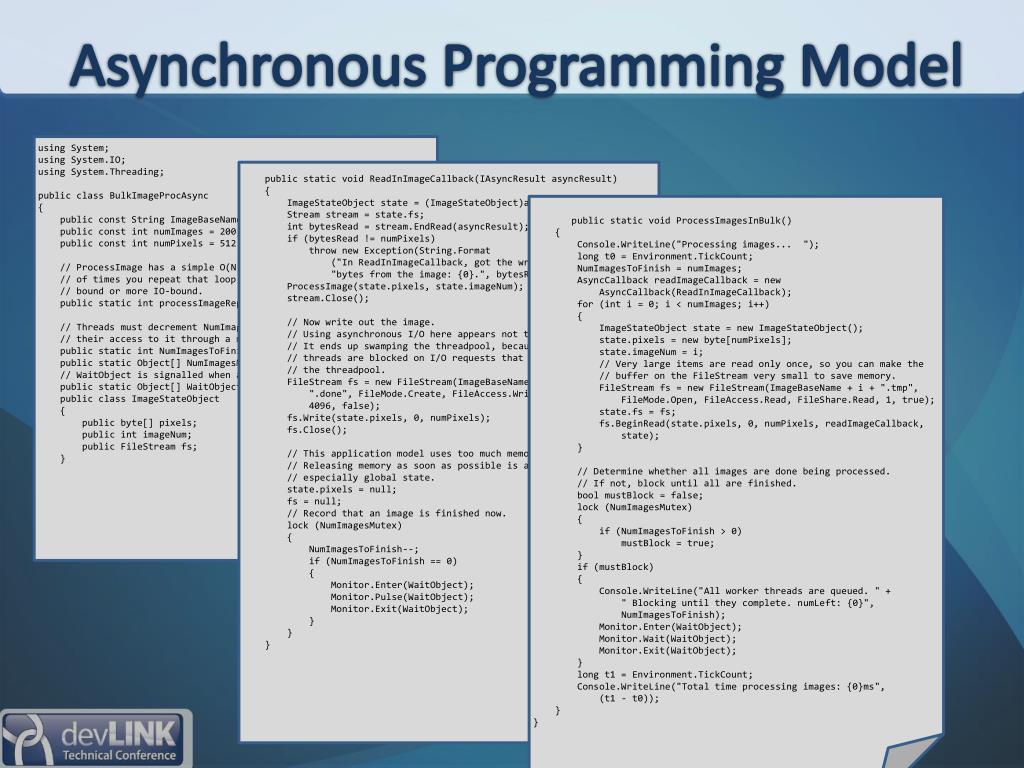

Asynchronous programming model

Asynchronous Programming Model

using System;

using System.IO;

using System.Threading;

public class BulkImageProcAsync


    public const String ImageBaseName = "tmpImage-";

    public const intnumImages = 200;

    public const intnumPixels = 512 * 512;

    // ProcessImage has a simple O(N) loop, and you can vary the number

    // of times you repeat that loop to make the application more CPU-

    // bound or more IO-bound.

    public static intprocessImageRepeats = 20;

    // Threads must decrement NumImagesToFinish, and protect

    // their access to it through a mutex.

    public static intNumImagesToFinish = numImages;

    public static Object[] NumImagesMutex = new Object[0];

    // WaitObject is signalled when all image processing is done.

    public static Object[] WaitObject = new Object[0];

    public class ImageStateObject


        public byte[] pixels;

        public intimageNum;

        public FileStreamfs;


    public static void ReadInImageCallback(IAsyncResultasyncResult)


ImageStateObject state = (ImageStateObject)asyncResult.AsyncState;

        Stream stream = state.fs;

intbytesRead = stream.EndRead(asyncResult);

        if (bytesRead != numPixels)

            throw new Exception(String.Format

                ("In ReadInImageCallback, got the wrong number of " +

                "bytes from the image: {0}.", bytesRead));

ProcessImage(state.pixels, state.imageNum);


        // Now write out the image.

        // Using asynchronous I/O here appears not to be best practice.

        // It ends up swamping the threadpool, because the threadpool

        // threads are blocked on I/O requests that were just queued to

        // the threadpool.

FileStreamfs = new FileStream(ImageBaseName + state.imageNum +

            ".done", FileMode.Create, FileAccess.Write, FileShare.None,

            4096, false);

fs.Write(state.pixels, 0, numPixels);


        // This application model uses too much memory.

        // Releasing memory as soon as possible is a good idea,

        // especially global state.

state.pixels = null;

fs = null;

        // Record that an image is finished now.

        lock (NumImagesMutex)



            if (NumImagesToFinish == 0)








       public static void ProcessImagesInBulk()


Console.WriteLine("Processing images...  ");

        long t0 = Environment.TickCount;

NumImagesToFinish = numImages;

AsyncCallbackreadImageCallback = new


        for (inti = 0; i < numImages; i++)


ImageStateObject state = new ImageStateObject();

state.pixels = new byte[numPixels];

state.imageNum = i;

            // Very large items are read only once, so you can make the

            // buffer on the FileStream very small to save memory.

FileStreamfs = new FileStream(ImageBaseName + i + ".tmp",

FileMode.Open, FileAccess.Read, FileShare.Read, 1, true);

state.fs = fs;

fs.BeginRead(state.pixels, 0, numPixels, readImageCallback,



        // Determine whether all images are done being processed.

        // If not, block until all are finished.

boolmustBlock = false;

        lock (NumImagesMutex)


            if (NumImagesToFinish > 0)

mustBlock = true;


        if (mustBlock)


Console.WriteLine("All worker threads are queued. " +

                " Blocking until they complete. numLeft: {0}",






        long t1 = Environment.TickCount;

Console.WriteLine("Total time processing images: {0}ms",

            (t1 - t0));

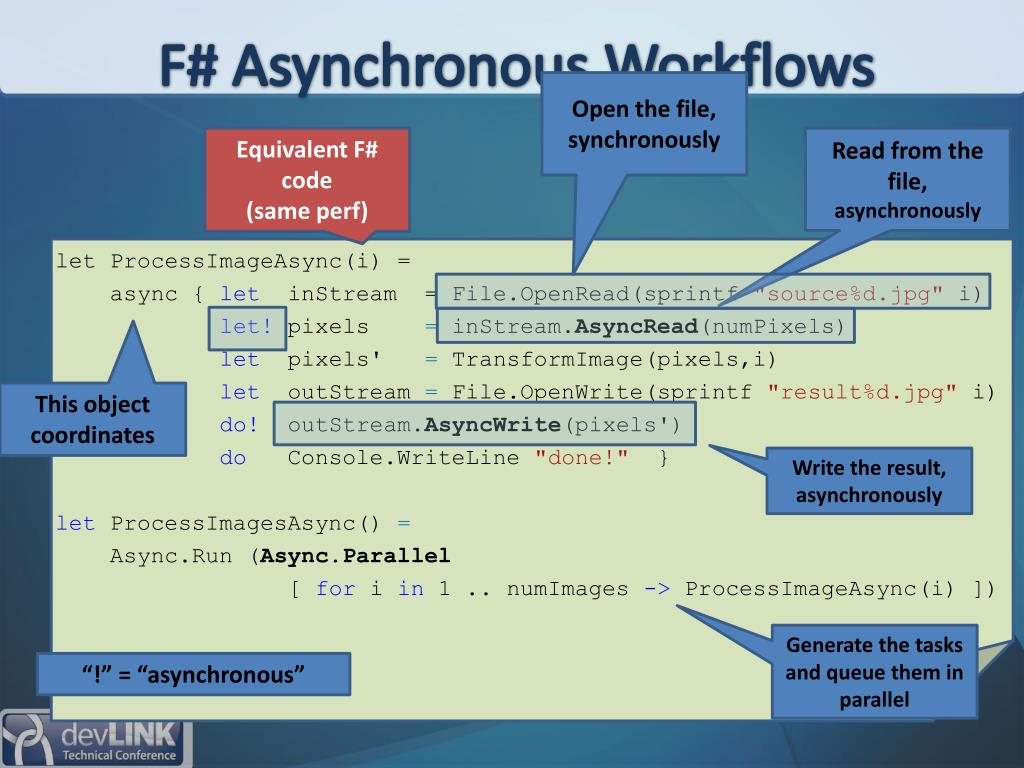

F asynchronous workflows

F# Asynchronous Workflows

Open the file, synchronously

Equivalent F# code

(same perf)

Read from the file,


let ProcessImageAsync(i) =

async{letinStream =File.OpenRead(sprintf"source%d.jpg"i)

let!pixels =inStream.AsyncRead(numPixels)

letpixels' =TransformImage(pixels,i)



doConsole.WriteLine"done!" }

letProcessImagesAsync() =

Async.Run (Async.Parallel

[foriin1 .. numImages->ProcessImageAsync(i) ])

This object coordinates

Write the result, asynchronously

Generate the tasks and queue them in parallel

“!” = “asynchronous”

Let s pour on some cold water

Let’s pour on some cold water

F s not as strong but they are still strengths

F#’s not-as-strong-but-they-are-still-strengths

  • Presentation Layer

  • Object-oriented Hierarchies

  • ASP.NET*

Training your team

Training Your Team

  • F#: Not for eggheads

  • Pay attention to what you hear

    • “Oh, it is just like C#”

    • “It is too simplistic for real-world development”

    • “Functional programming hurts my brain”

Maintenance costs

Maintenance Costs

  • Code Maintenance

    • Terse syntax matters!

    • Idiomatic vs. non-idiomatic code

  • Deploying F# Tools and Applications

Bottom line

Bottom Line

How to get f

How to Get F#

  • Download the May, 2009 CTP for Visual Studio 2008 from http://fsharp.net

  • Get Visual Studio 2010 Beta1 from http://msdn.com

  • Run F# on Linux via Mono http://mono-project.com



  • Books

    • Programming F#, O’Reilly (November, 2009)

    • Expert F#, Apress 2007

  • Blogs

    • F# Team blogs

    • http://fsharp.net

  • Bugging other people

    • http://hubfs.net

    • http://stackoverflow.com


Thanks for your time!
