Advanced Crew Served Weapon (ACSW)

1. Advanced Crew Served Weapon (ACSW) XM307 ACSW 25mm System Status Update 2004 Small Arms Symposium & Exhibition National Defense Industrial Association May 11, 2004 Matt Solverson - General Dynamics Ordnance and Tactical Systems Dave Steimke – General Dynamics Armament & Technical Products Al Tatka US Army PMO-Crew Served Weapons

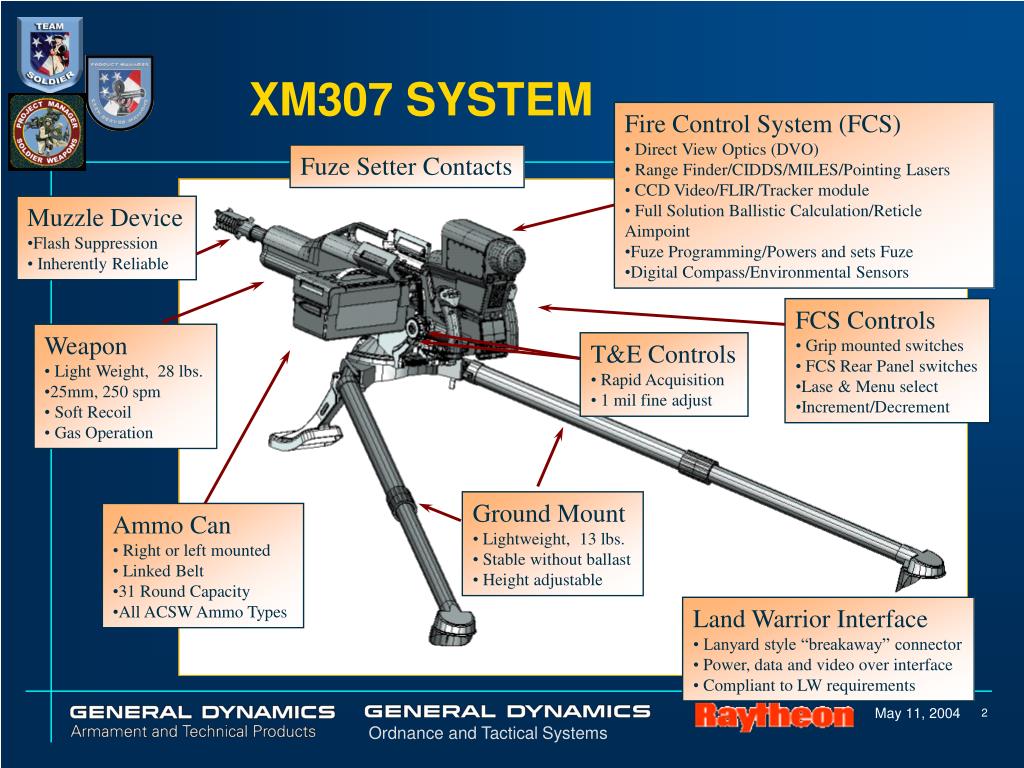

2. XM307 SYSTEM Fire Control System (FCS) • Direct View Optics (DVO) • Range Finder/CIDDS/MILES/Pointing Lasers • CCD Video/FLIR/Tracker module • Full Solution Ballistic Calculation/Reticle Aimpoint • Fuze Programming/Powers and sets Fuze • Digital Compass/Environmental Sensors Fuze Setter Contacts Muzzle Device • Flash Suppression • Inherently Reliable T&E Controls • Rapid Acquisition • 1 mil fine adjust FCS Controls • Grip mounted switches • FCS Rear Panel switches • Lase & Menu select • Increment/Decrement Weapon • Light Weight, 28 lbs. • 25mm, 250 spm • Soft Recoil • Gas Operation T&E Controls • Rapid Acquisition • 1 mil fine adjust Ground Mount • Lightweight, 13 lbs. • Stable without ballast • Height adjustable Ammo Can • Right or left mounted • Linked Belt • 31 Round Capacity • All ACSW Ammo Types Land Warrior Interface • Lanyard style “breakaway” connector • Power, data and video over interface • Compliant to LW requirements

3. Current XM307 Program • XM307 Meets All ATD Exit Criteria • Maturity TRL 6 • Demonstrated: • Full System Integration • Fire Control • Ammunition through System Integration Tests • Progressing Weapon Maturity, Durability and Reliability. Starting SDD program. • Application of XM307 to New Weapon Platforms

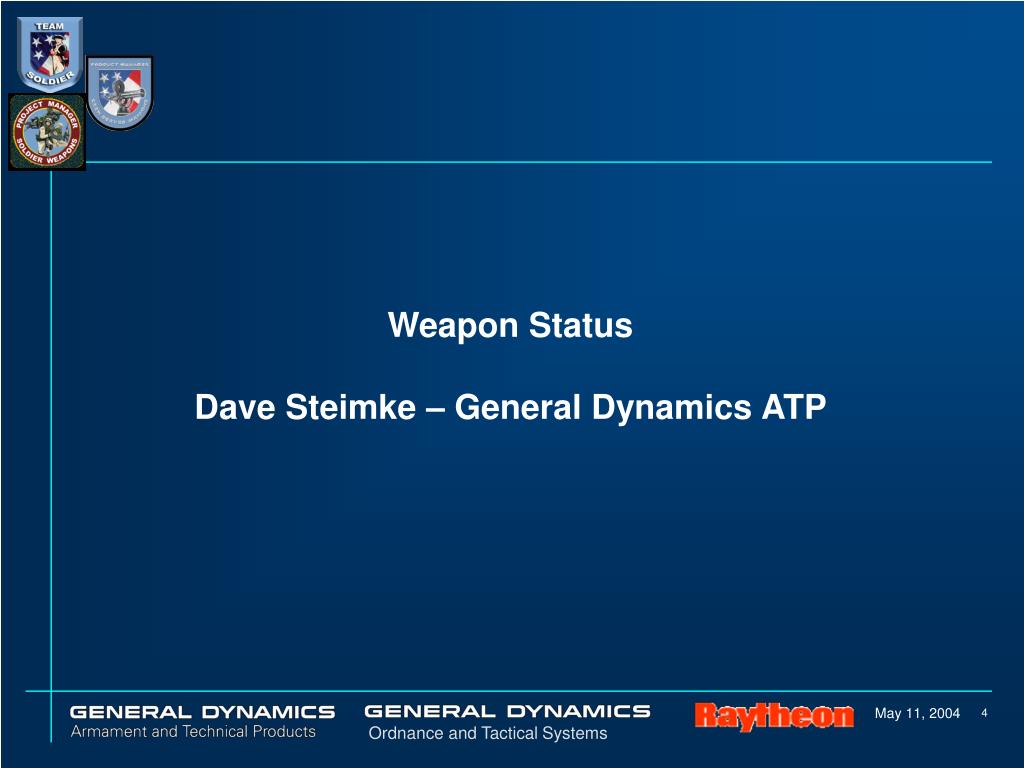

4. Weapon Status Dave Steimke – General Dynamics ATP

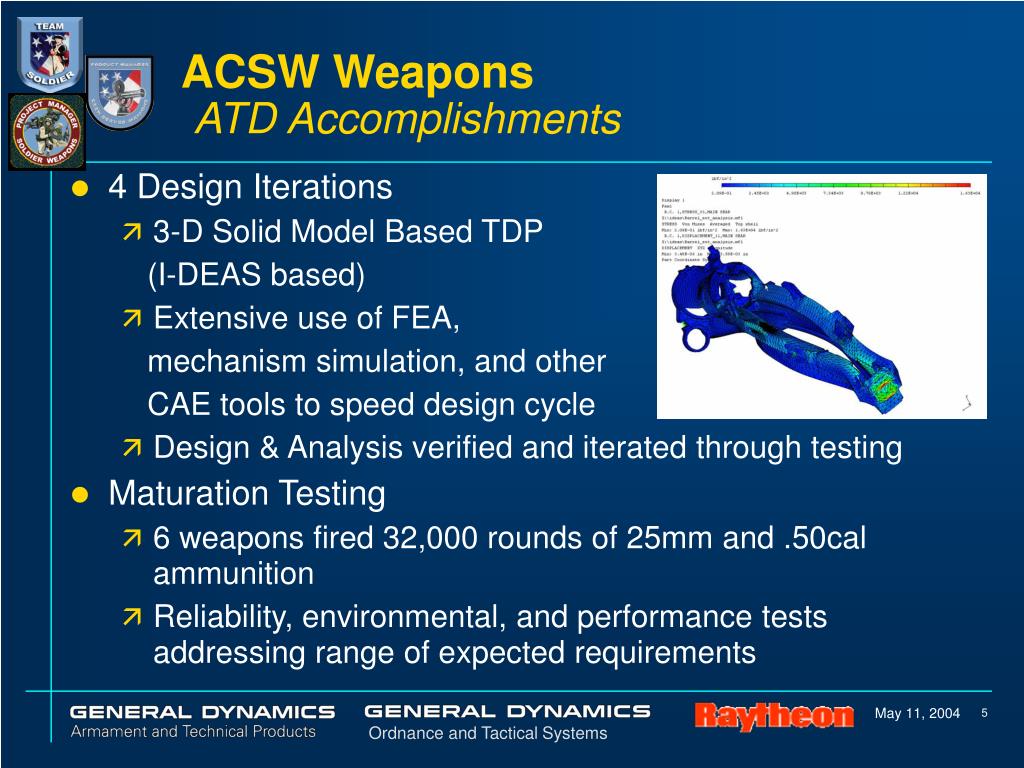

5. ACSW Weapons ATD Accomplishments • 4 Design Iterations • 3-D Solid Model Based TDP (I-DEAS based) • Extensive use of FEA, mechanism simulation, and other CAE tools to speed design cycle • Design & Analysis verified and iterated through testing • Maturation Testing • 6 weapons fired 32,000 rounds of 25mm and .50cal ammunition • Reliability, environmental, and performance tests addressing range of expected requirements

6. ACSW Weapons ATD Accomplishments • Met All ATD Exit Criteria • Weight: 28 lb weapon, 13 lb ground mount • Dispersion: 1.1 mils • Low Recoil: 250 lbs max • Weapon/fuze interface: fuze set at cyclic rate

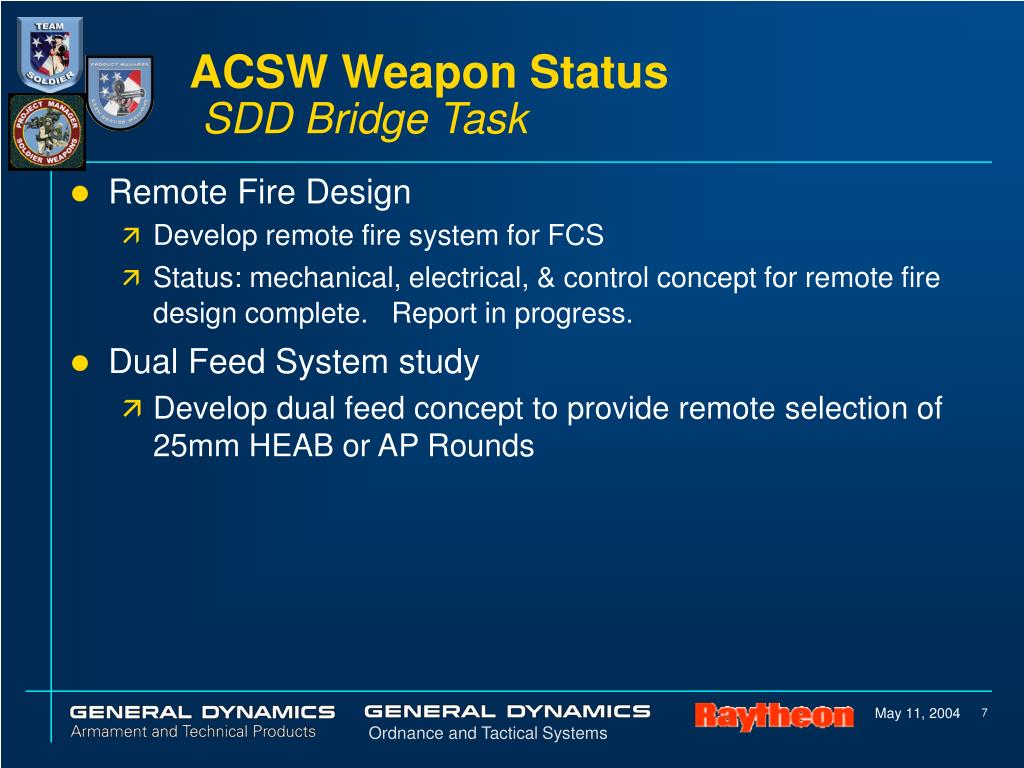

7. Remote Fire Design Develop remote fire system for FCS Status: mechanical, electrical, & control concept for remote fire design complete. Report in progress. Dual Feed System study Develop dual feed concept to provide remote selection of 25mm HEAB or AP Rounds ACSW Weapon StatusSDD Bridge Task

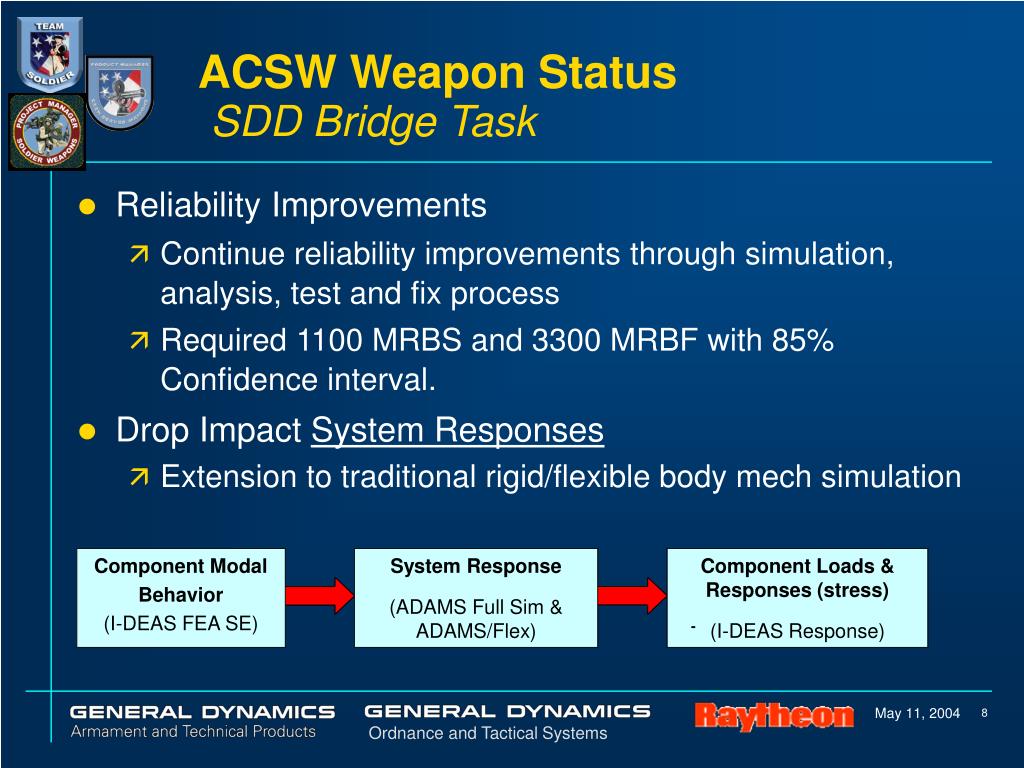

8. ACSW Weapon StatusSDD Bridge Task • Reliability Improvements • Continue reliability improvements through simulation, analysis, test and fix process • Required 1100 MRBS and 3300 MRBF with 85% Confidence interval. • Drop Impact System Responses • Extension to traditional rigid/flexible body mech simulation Component Modal Behavior (I-DEAS FEA SE) System Response (ADAMS Full Sim & ADAMS/Flex) Component Loads & Responses (stress) (I-DEAS Response) Component Modal System Response Component Loads & Behavior Responses (stress) (ADAMS Full Sim & (I - DEAS FEA SE) ADAMS/Flex) (I - - DEAS Response)

9. ACSW Weapon StatusSDD Bridge Task • Vibration Loads System Responses • Advanced features in I-DEAS Version 9 (supported at Version 11) • Durability Improvements DROP TEST AND VIBRATION • Develop analytical means of determining durability of system before testing Component Modal Behavior (I-DEAS FEA SE) System Response (I-DEAS Assem FEA & Assem Solution) Component Loads & Responses (stress) (I-DEAS Response) Component Modal System Response Component Loads & Behavior Responses (stress) (ADAMS Full Sim & (I - DEAS FEA SE) ADAMS/Flex) (I - - DEAS Response)

10. Ammunition Status Matt Solverson – General Dynamics-OTS

11. Ammunition ATD Accomplishments • All ATD exit criteria achieved • Development by Kaman-Dayron of a survivable Safe & Arm. • Development by GD-OTS of a fuze electronics package capable of: • Launch @ 100,000 G’s. • Power and set in feed system. • Two-way communication @ full automatic firing (250 shots/minute). • Capacitor power > 2000m (10 sec. Flight ). • Precision airburst < 2m SD • High operational reliability. • Development of a passive Muzzle Velocity Correction (MVC) device when coupled with electronics - yields precision airburst. • Development under MANTECH of a two (2) step Blank, Cup and Draw (BCD) process for fragmenting warheads. • Development by GD-OTS of a functional link.

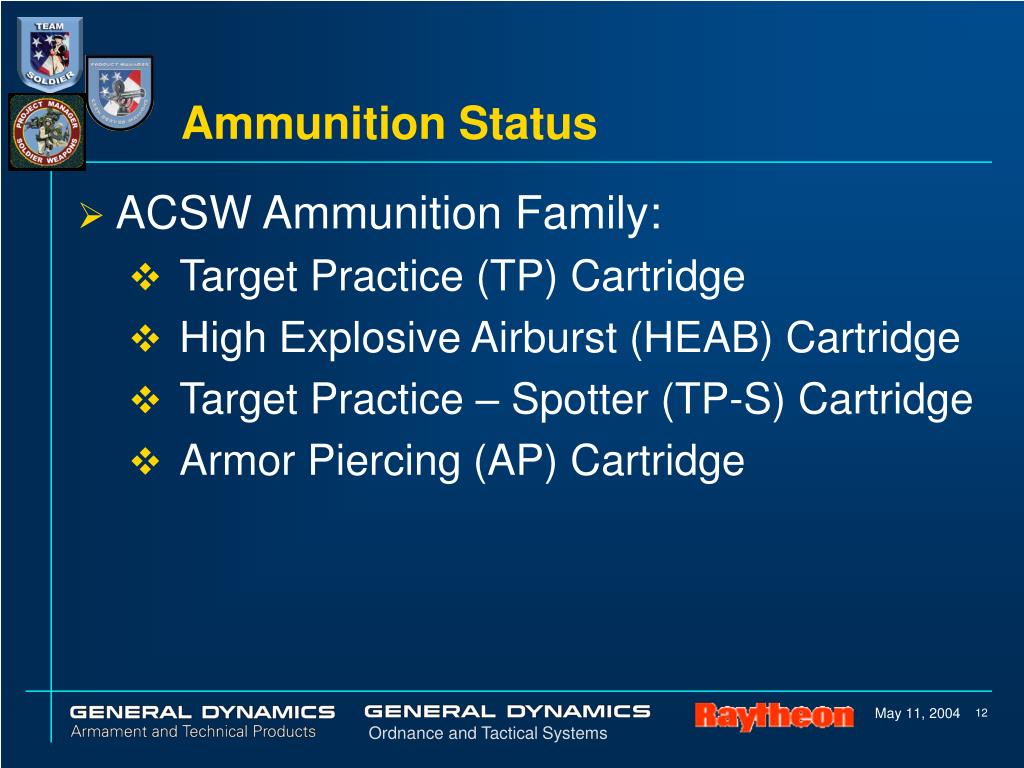

12. Ammunition Status • ACSW Ammunition Family: • Target Practice (TP) Cartridge • High Explosive Airburst (HEAB) Cartridge • Target Practice – Spotter (TP-S) Cartridge • Armor Piercing (AP) Cartridge

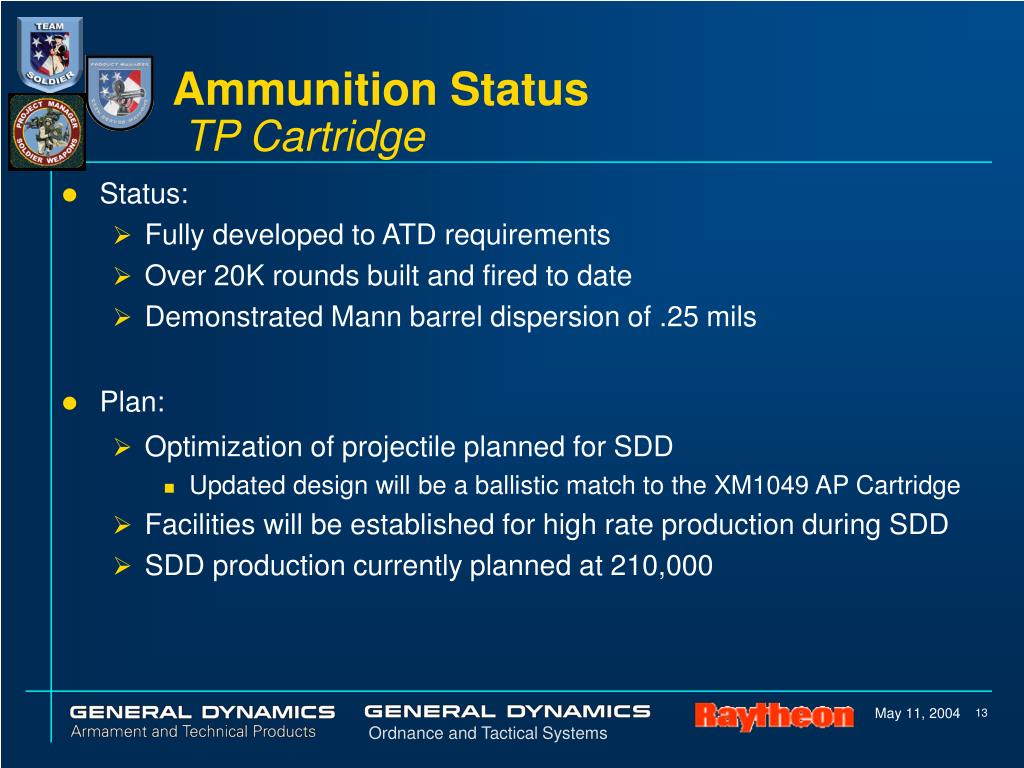

13. Ammunition StatusTP Cartridge • Status: • Fully developed to ATD requirements • Over 20K rounds built and fired to date • Demonstrated Mann barrel dispersion of .25 mils • Plan: • Optimization of projectile planned for SDD • Updated design will be a ballistic match to the XM1049 AP Cartridge • Facilities will be established for high rate production during SDD • SDD production currently planned at 210,000

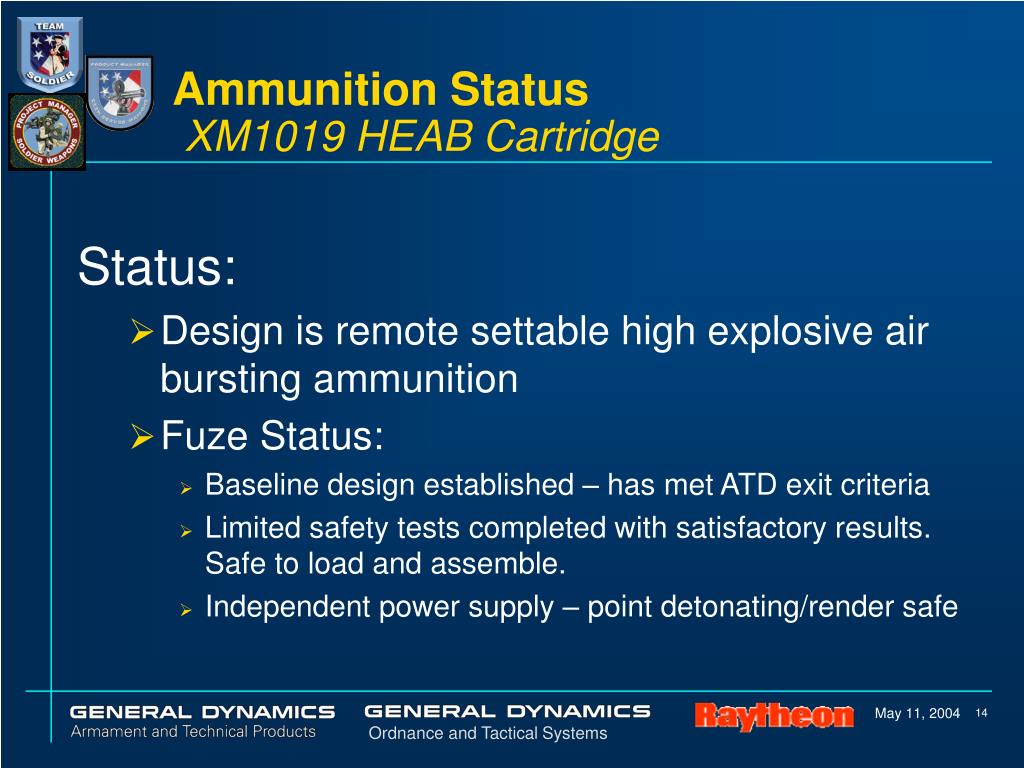

14. Ammunition StatusXM1019 HEAB Cartridge Status: • Design is remote settable high explosive air bursting ammunition • Fuze Status: • Baseline design established – has met ATD exit criteria • Limited safety tests completed with satisfactory results. Safe to load and assemble. • Independent power supply – point detonating/render safe

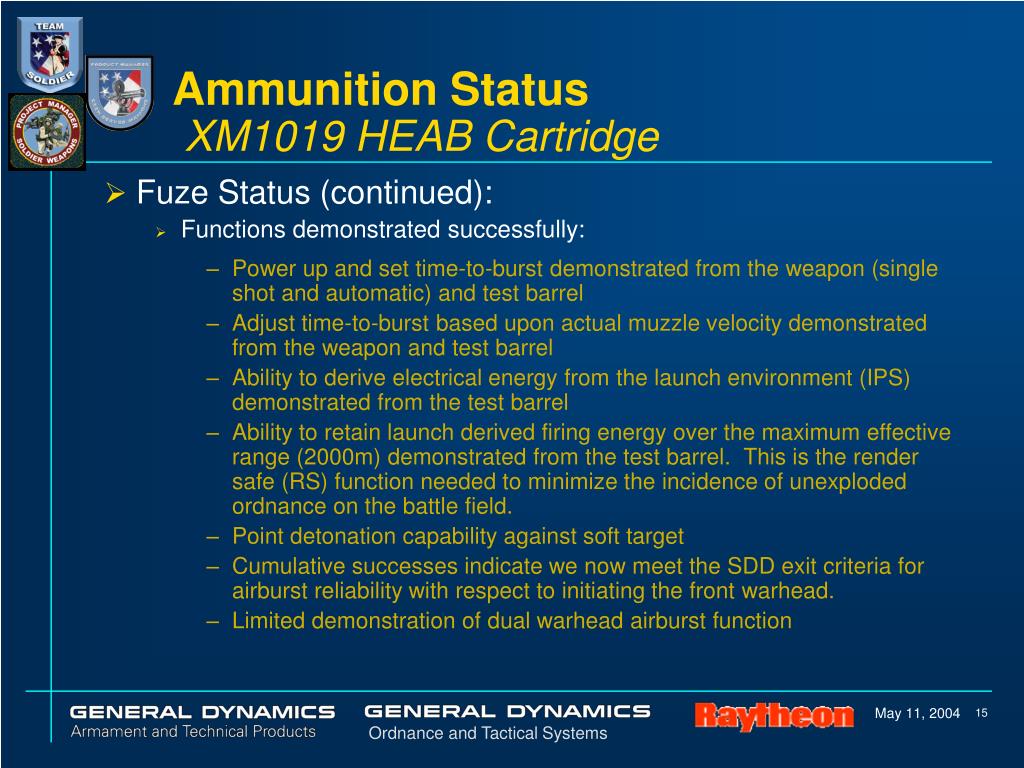

15. Ammunition StatusXM1019 HEAB Cartridge • Fuze Status (continued): • Functions demonstrated successfully: • Power up and set time-to-burst demonstrated from the weapon (single shot and automatic) and test barrel • Adjust time-to-burst based upon actual muzzle velocity demonstrated from the weapon and test barrel • Ability to derive electrical energy from the launch environment (IPS) demonstrated from the test barrel • Ability to retain launch derived firing energy over the maximum effective range (2000m) demonstrated from the test barrel. This is the render safe (RS) function needed to minimize the incidence of unexploded ordnance on the battle field. • Point detonation capability against soft target • Cumulative successes indicate we now meet the SDD exit criteria for airburst reliability with respect to initiating the front warhead. • Limited demonstration of dual warhead airburst function

16. Ammunition StatusXM1019 HEAB Cartridge

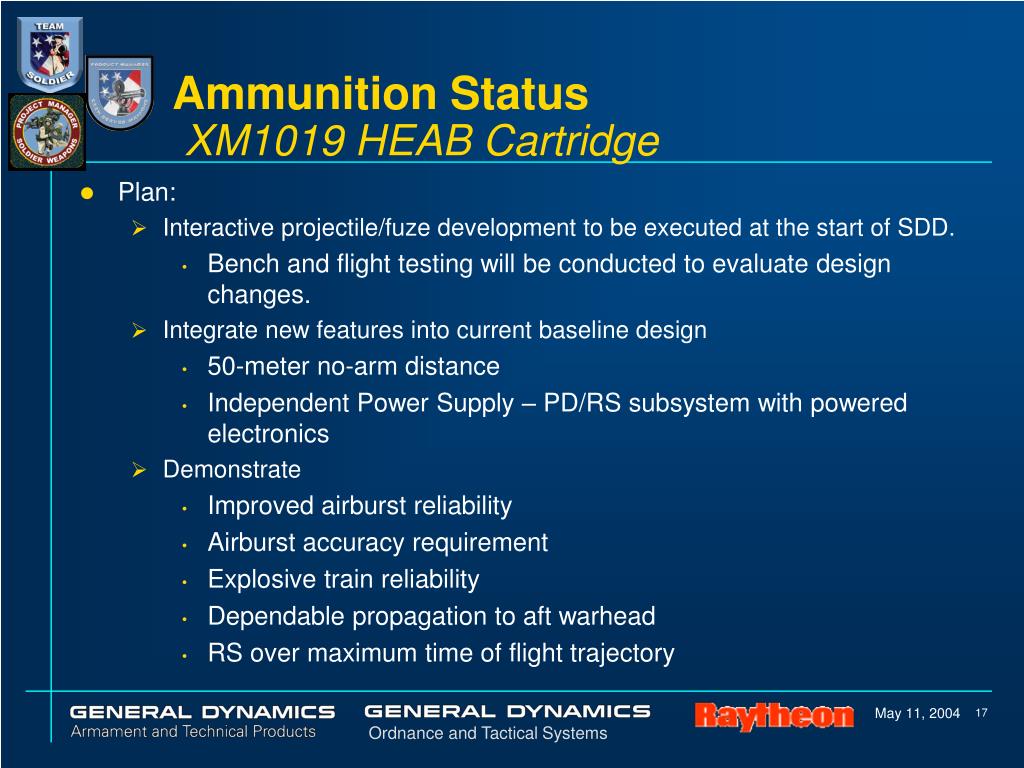

17. Ammunition StatusXM1019 HEAB Cartridge • Plan: • Interactive projectile/fuze development to be executed at the start of SDD. • Bench and flight testing will be conducted to evaluate design changes. • Integrate new features into current baseline design • 50-meter no-arm distance • Independent Power Supply – PD/RS subsystem with powered electronics • Demonstrate • Improved airburst reliability • Airburst accuracy requirement • Explosive train reliability • Dependable propagation to aft warhead • RS over maximum time of flight trajectory

18. Ammunition StatusXM1019 HEAB Cartridge • Address producibility and cost goals throughout SDD • Regular updates to the Army Fuze Safety Review Board (AFSRB) are planned • Development test success will lead to a cartridge design verification test series (2500 cartridges). • Environmental • Safety • Reliability • Cartridge delivery for Government type classification

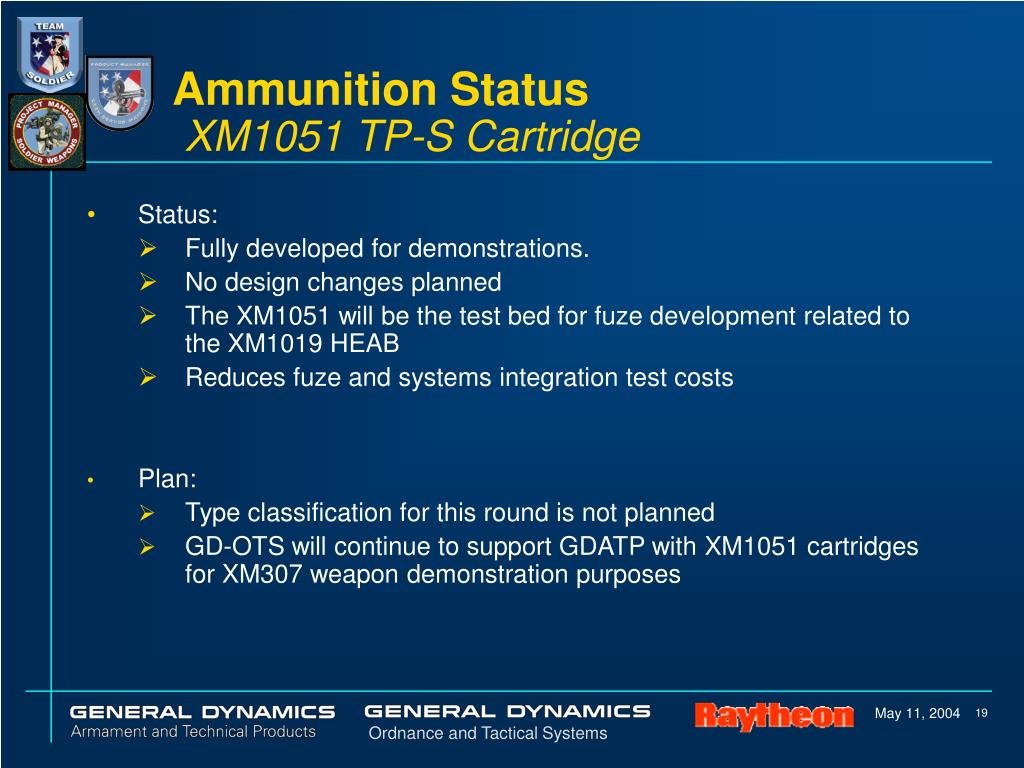

19. Ammunition StatusXM1051 TP-S Cartridge • Status: • Fully developed for demonstrations. • No design changes planned • The XM1051 will be the test bed for fuze development related to the XM1019 HEAB • Reduces fuze and systems integration test costs • Plan: • Type classification for this round is not planned • GD-OTS will continue to support GDATP with XM1051 cartridges for XM307 weapon demonstration purposes

20. Ammunition StatusXM1049 AP Cartridge • Status: • Current effort underway to develop a projectile design to maximize armor penetration • Program is in support of the XM109 25mm Anti-Materiel Payload Rifle • Current program ends in Sept. 04 – Resulting design will be SDD start point

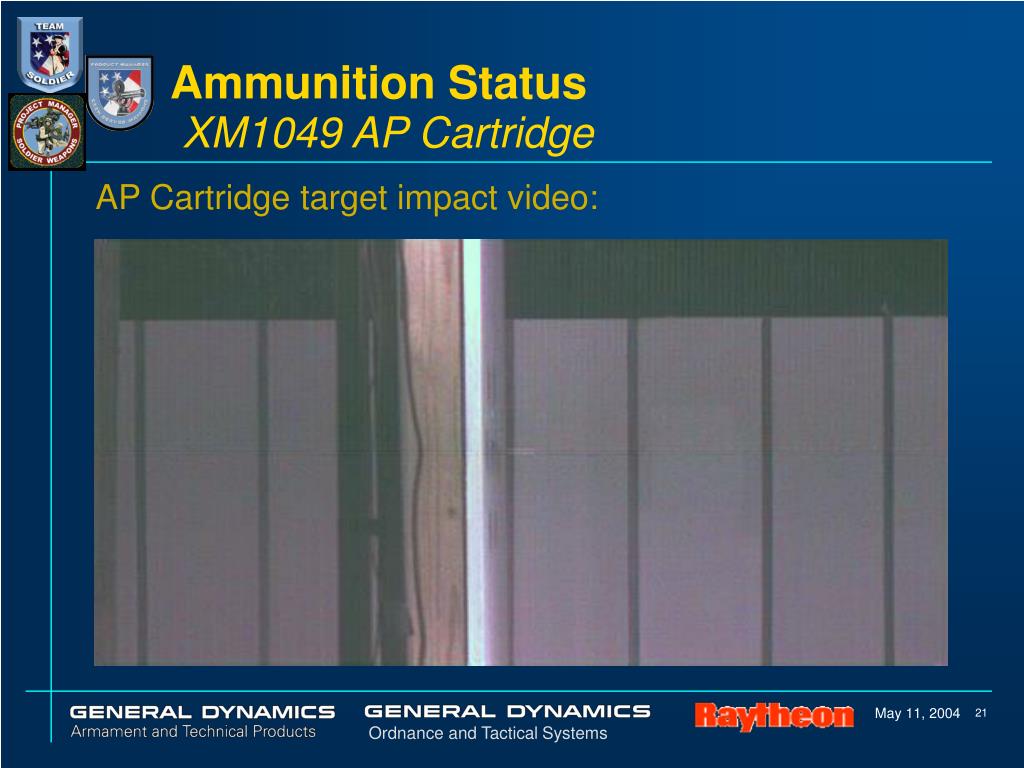

21. Ammunition StatusXM1049 AP Cartridge AP Cartridge target impact video:

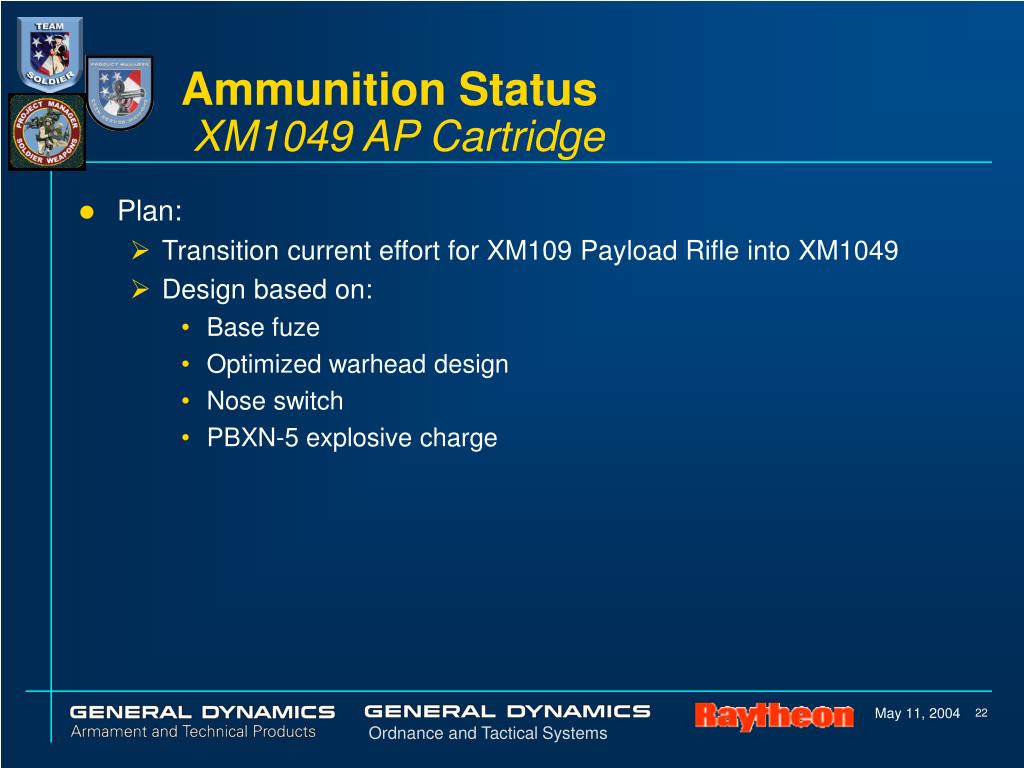

22. Ammunition StatusXM1049 AP Cartridge • Plan: • Transition current effort for XM109 Payload Rifle into XM1049 • Design based on: • Base fuze • Optimized warhead design • Nose switch • PBXN-5 explosive charge

23. Ammunition StatusXM1049 AP Cartridge • Goal of 51mm penetration • Near-term plans: • Warhead spin / penetration testing is planned for May 04 • Ballistic projectile testing is schedule for June 04 • Delivery of 100 Optimized projectiles by end of Sept. 04 • Conduct cartridge verification test series (Environmental, Safety, Reliability) • Address produciblity and cost goals

24. U of A/FCS Integration and XM307 SDD Program Al Tatka U.S. Army PMO-Crew Served Weapons

25. Common Close Support Weapon (CCSW) Weapons Trade Study • Participants from- USAIC, UAMBL, LSI, VIs, PM-Lethality, PM-SW, PM-MAS, AMSAA, ARL • Eight weapons traded: - M240 - MK19 - MK47 - M2 - XM312 - XM307 - M230 - RMK30 • Trade Criteria included: • Weapon & Ammo Life Cycle Costs • Lethality • Risk f/ Increment #1 • Integration Issues • Study found XM307 not best in any one category but selected as weapon of choice w/ all aspects considered • XM307/XM312 amongst lightest weight and smallest volume • XM307 amongst most lethal • XM307 rated low risk w/ XM312 & off-the-shelf ammo as fallback

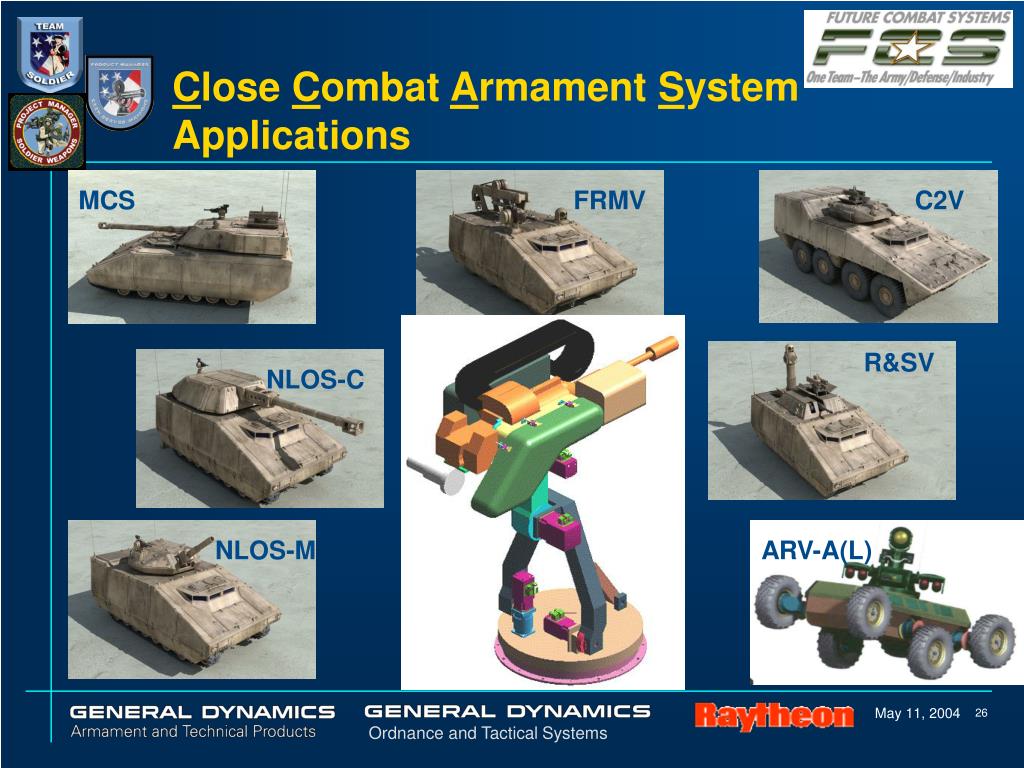

26. Close Combat Armament System Applications MCS FRMV C2V R&SV NLOS-C NLOS-M ARV-A(L)

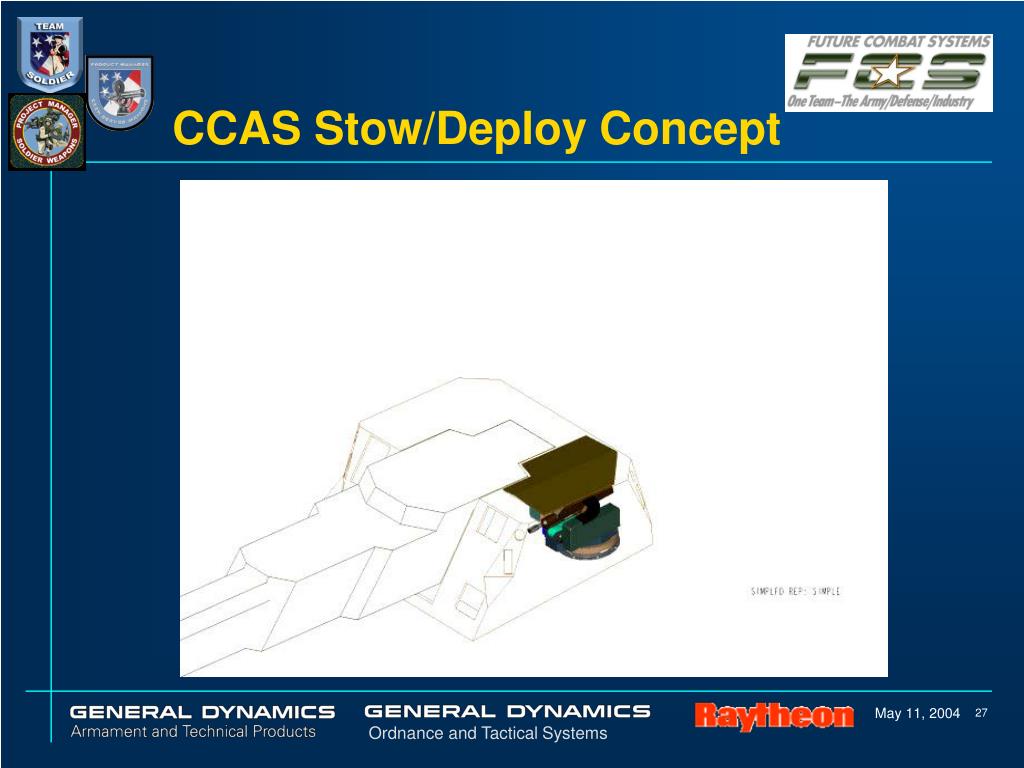

27. CCAS Stow/Deploy Concept

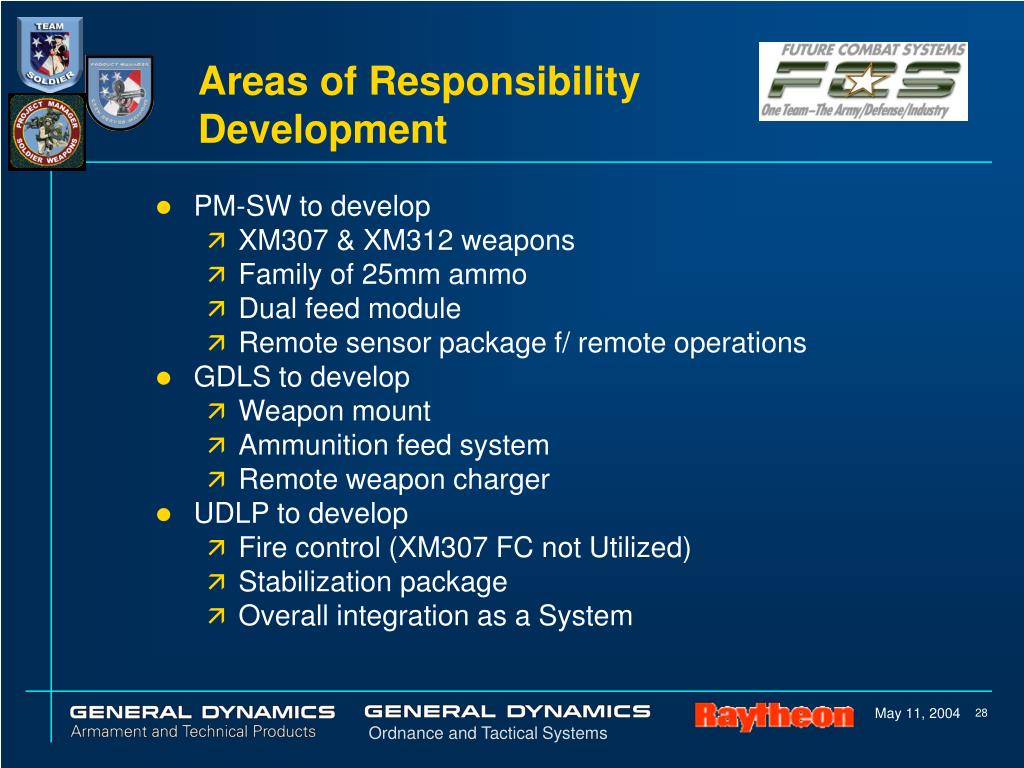

28. Areas of ResponsibilityDevelopment • PM-SW to develop • XM307 & XM312 weapons • Family of 25mm ammo • Dual feed module • Remote sensor package f/ remote operations • GDLS to develop • Weapon mount • Ammunition feed system • Remote weapon charger • UDLP to develop • Fire control (XM307 FC not Utilized) • Stabilization package • Overall integration as a System

29. Remote Operations Kit • ROK Functional for 25mm and .50 cal Use • Requires External Power • Includes: • Remote Charger & Sensor • Remote Safe /Arm & Sensor • Misfire Sensor • Charged/Uncharged Sensor • ROK to be Mounted on Gun Cradle • Will Facilitate Dismounting f/ Tripod Use

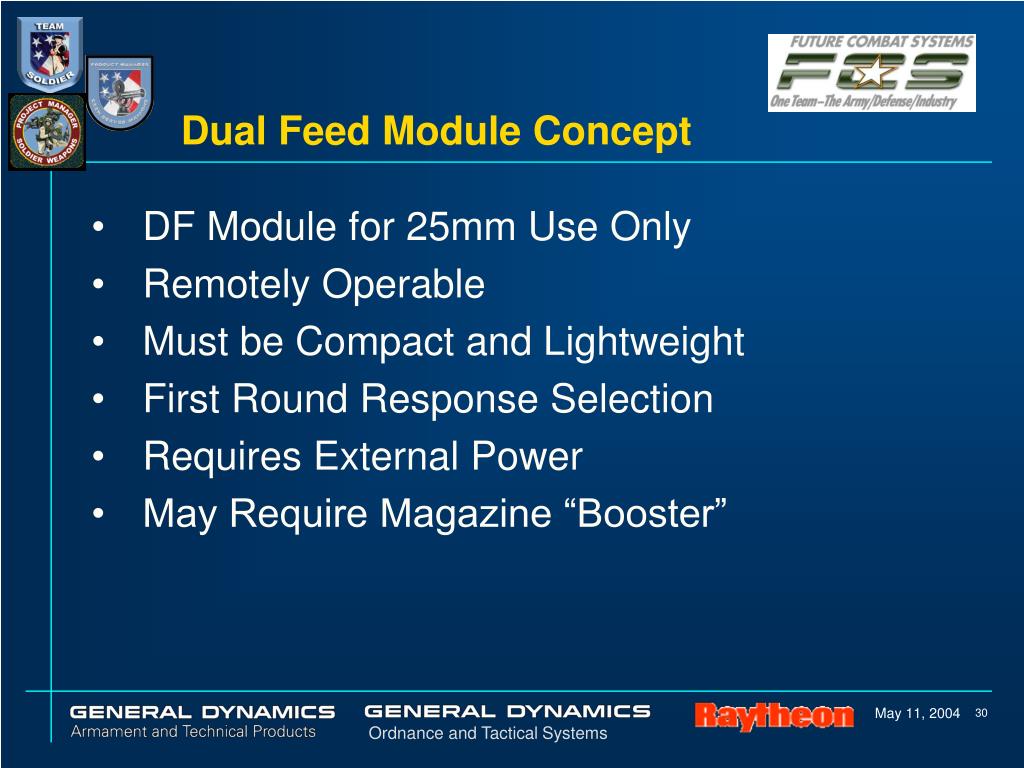

30. Dual Feed Module Concept • DF Module for 25mm Use Only • Remotely Operable • Must be Compact and Lightweight • First Round Response Selection • Requires External Power • May Require Magazine “Booster”

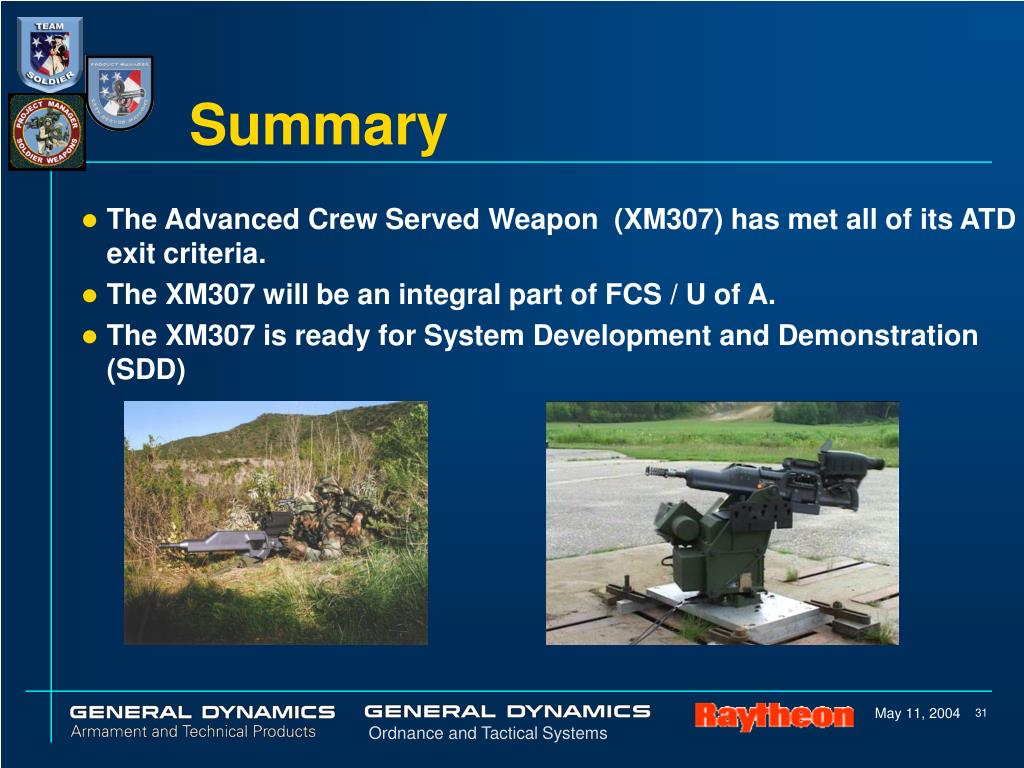

31. Summary • The Advanced Crew Served Weapon (XM307) has met all of its ATD exit criteria. • The XM307 will be an integral part of FCS / U of A. • The XM307 is ready for System Development and Demonstration (SDD)
