Modul 14

BATANG TEKAN DIUBAH DARI GANDA MENJADI TUNGGAL (2)





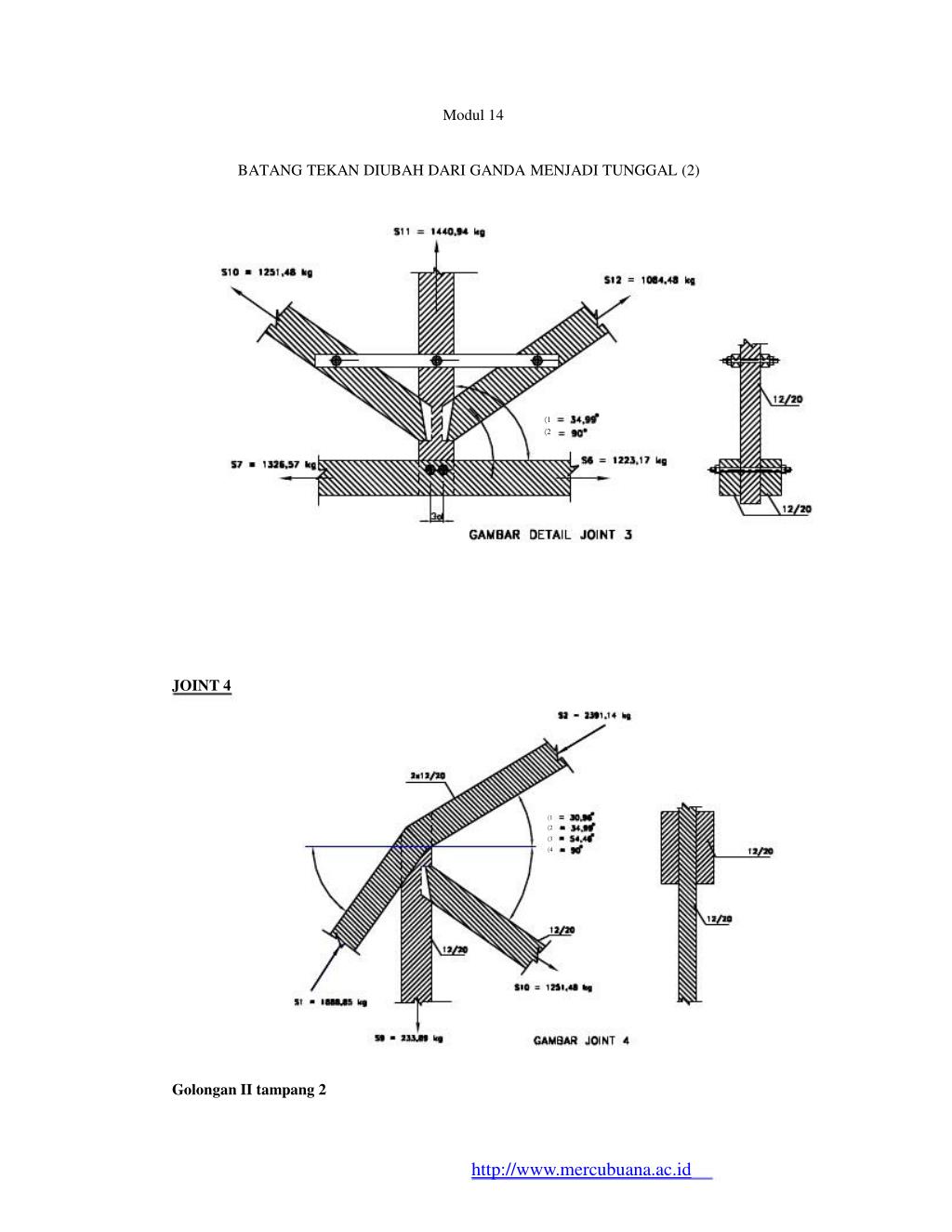

JOINT 4









Golongan II tampang 2

http://www.mercubuana.ac.id


Untuk = 54,4623;

 S = 100 x 2,54 x 12 x (1 – 0,6 sin 54,4623o) = 1559,84 kg

 S = 200 x 2,54 x 12 x (1 – 0,6 sin 54,4623o) = 3119,68 kg

 S = 430 x 2,542 x (1 – 0,35 sin 54,4623o)

Diambil S = 1559,84 kg

Sr = 1559,84 x 5/4 x 1

= 1949 kg

= 1984,08 kg

P

Sr

1888,85



1949,8

n

 0,97 1 baut

Jumlah baut

Dipakai 2 baut (minimal))

Untuk = 90o;

 S = 100 x 2,54 x 12 x (1 – 0,6 sin 90o) = 1219,20 kg

 S = 200 x 2,54 x 12 x (1 – 0,6 sin 90o) = 2438,40 kg

 S = 430 x 2,542 x (1 – 0,35 sin 90o)

Diambil S = 1219,20 kg

Sr = 1219,20 x 5/4 x 1

= 1524 kg

= 1803,22 kg

P

Sr

233,89

1524

n



 0,15 1 baut

Jumlah baut

Maka dipakai 2 baut (minimal)









http://www.mercubuana.ac.id


P

Sr

2391,14

2633,98

n



 0,91 1 baut

Jumlah baut

Dipakai 2 baut (minimal)

Untuk = 90o;

 S = 100 x 2,54 x 12 x (1 – 0,6 sin 90o) = 1219,20 kg

 S = 200 x 2,54 x 12 x (1 – 0,6 sin 90o) = 2438,40 kg

 S = 430 x 2,542 x (1 – 0,35 sin 90o)

Diambil S = 1219,20 kg

Sr = 1219,20 x 5/4 x 1

= 1524 kg

= 1803,22 kg

P

Sr

1440,94



1524

n

 0,95 1 baut

Jumlah baut

Maka dipakai 2 baut (minimal)


