Parallelograms

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

B

C

D

A

Definition:

A quadrilateral with both pairs of opposite sides parallel.

- The symbol for parallelogram is a smaller version of the figure.
- A parallelogram is named using all four vertices.
- You can start from any one vertex, but you must continue in a clockwise or counterclockwise direction.
- For example, the figure above can be either ABCD or
ADCB.

A

B

P

D

C

1.Both pairs of opposite sides are congruent.

2.Both pairs of opposite angles are congruent.

3. Diagonals bisect each other but are not congruent

P is the midpoint of AC and BD, so BP = PD and AP = PC.

H

K

M

P

L

Draw HKLP.

HK = _______ and HP = ________ .

m< K = m<______ .

m< L + m<______ = 180°.

If m< P = 65°, then m< H = ____, m< K = ____ and

m< L =____.

Draw the diagonals with their point of intersection labeled M.

If HM = 5, then ML = ____ .

If KM = 7, then KP = ____ .

If HL = 15, then ML = ____ .

If m<HPK = 36°, then m<PKL = _____ .

PL

KL

P

P or K

115°

65°

115°

5 units

(Alternate interior

angles are congruent.)

14 units

7.5 units

36°

- ABCD is a parallelogram. Find the values of x, y, and z.

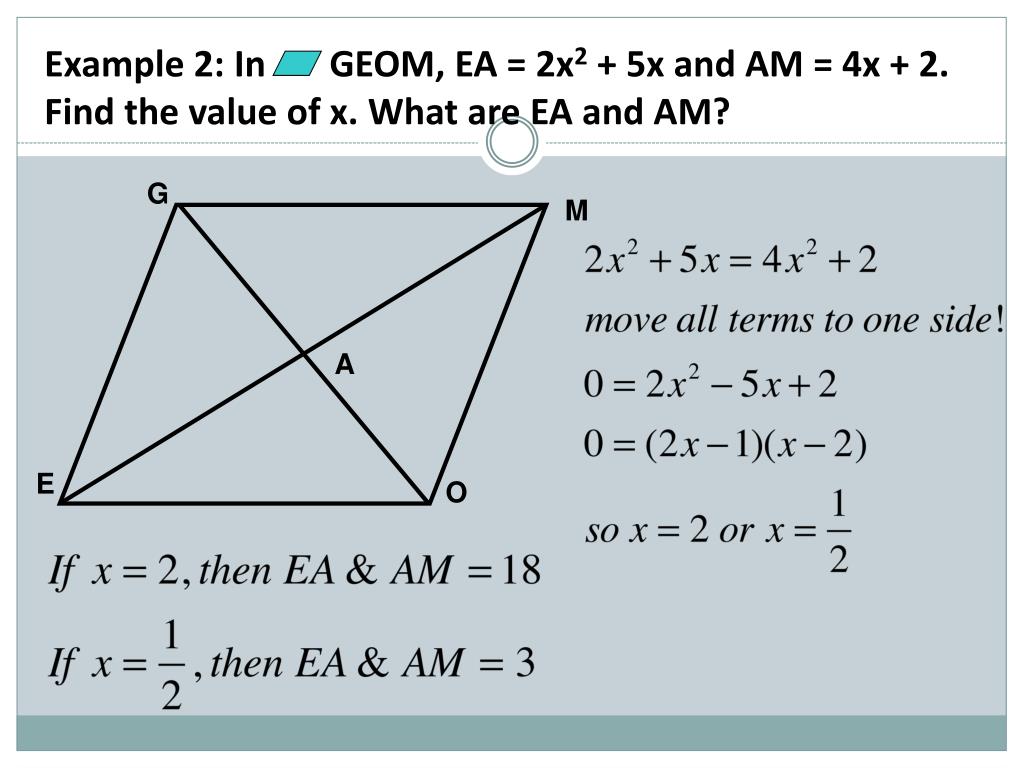

Example 2: In GEOM, EA = 2x2 + 5x and AM = 4x + 2. Find the value of x. What are EA and AM?

G

M

A

E

O

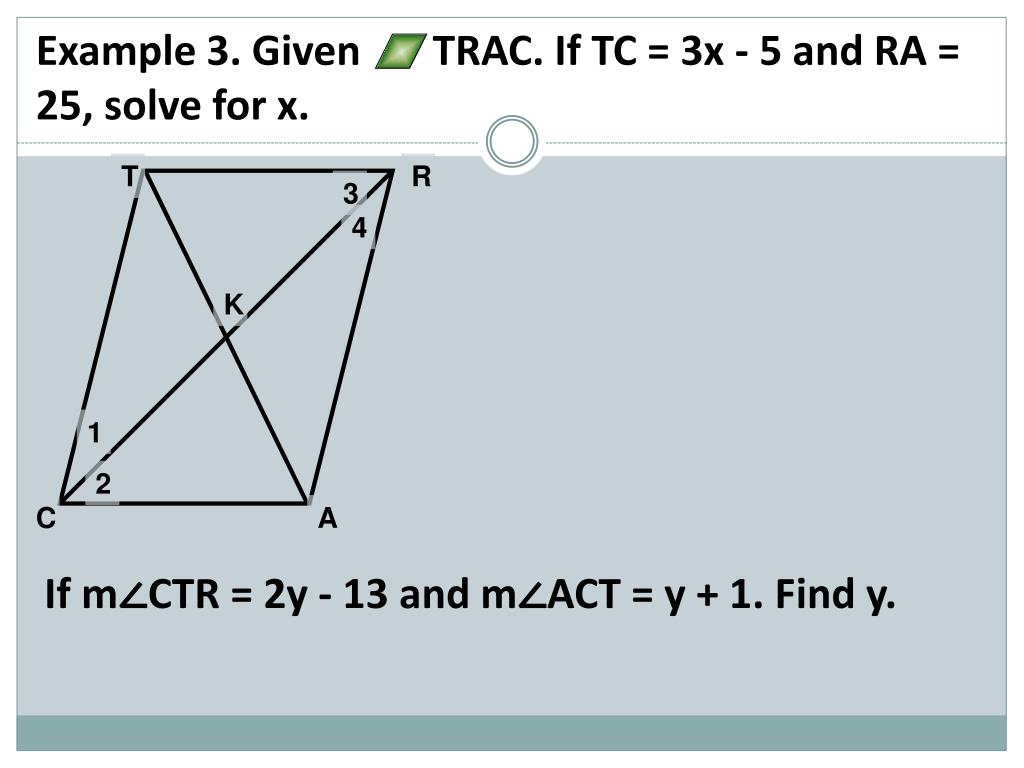

Example 3. Given TRAC. If TC = 3x - 5 and RA = 25, solve for x.

T

R

3

4

K

1

2

If m∠CTR = 2y - 13 and m∠ACT = y + 1. Find y.

C

A
