Aam based face tracking with temporal matching and face segmentation

CVPR 2010

AAM based Face Tracking with Temporal Matching and Face Segmentation

Mingcai Zhou1、 Lin Liang2、 Jian Sun2、Yangsheng Wang1

1Institute of Automation Chinese Academy of Sciences, Beijing, China

2Microsoft Research Asia Beijing, China

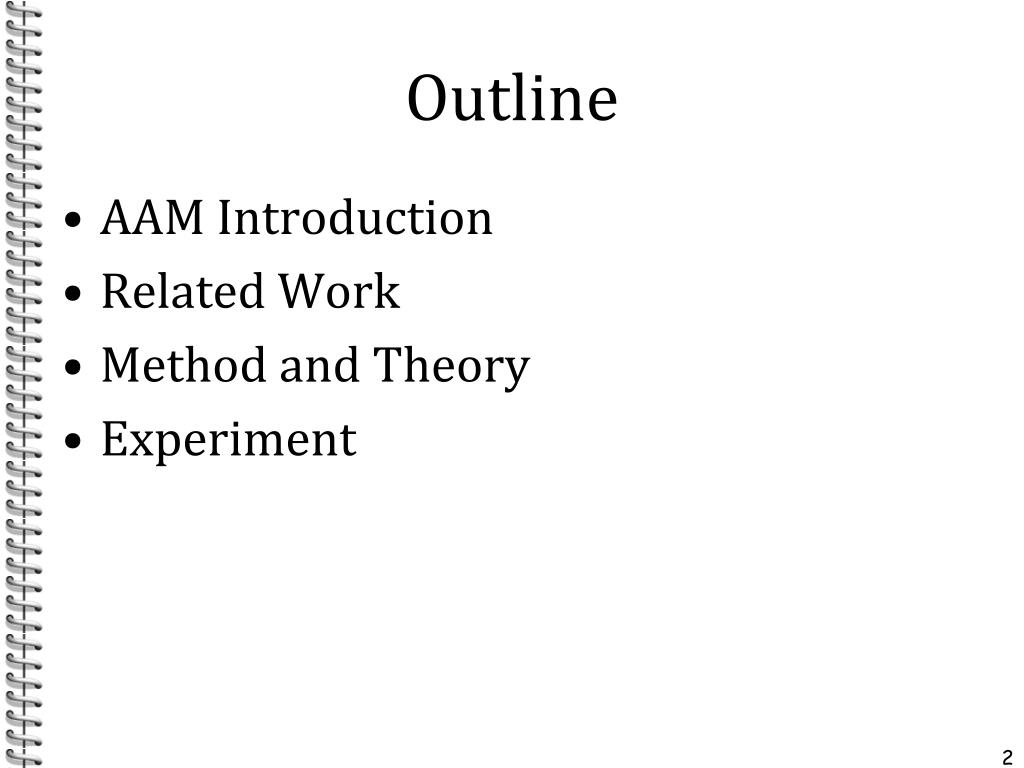

  • AAM Introduction

  • Related Work

  • Method and Theory

  • Experiment

Aam introduction

AAM Introduction

  • A statistical model of shape and grey-level appearance

Shape model

Appearance model

Shape model building

Shape Model Building

:mean shape

:shape bases

,shape parameters

learn by PCA

generate mean shape、

shape bases

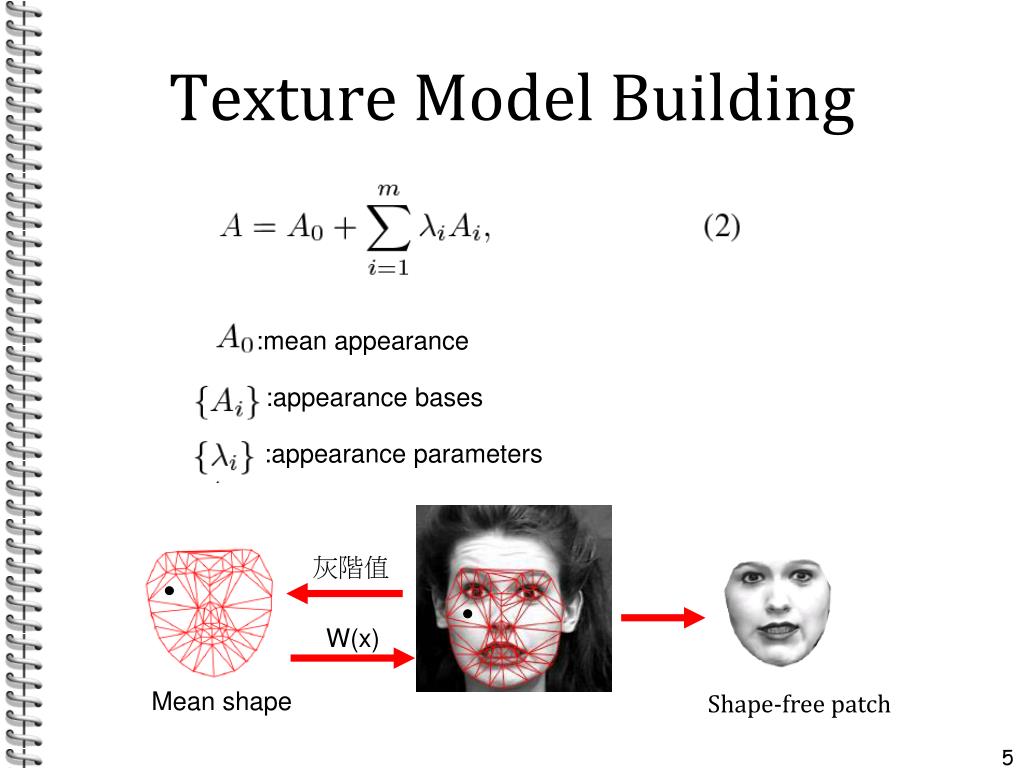

Texture model building

Texture Model Building

:mean appearance

:appearance bases

:appearance parameters



Mean shape

Shape-free patch

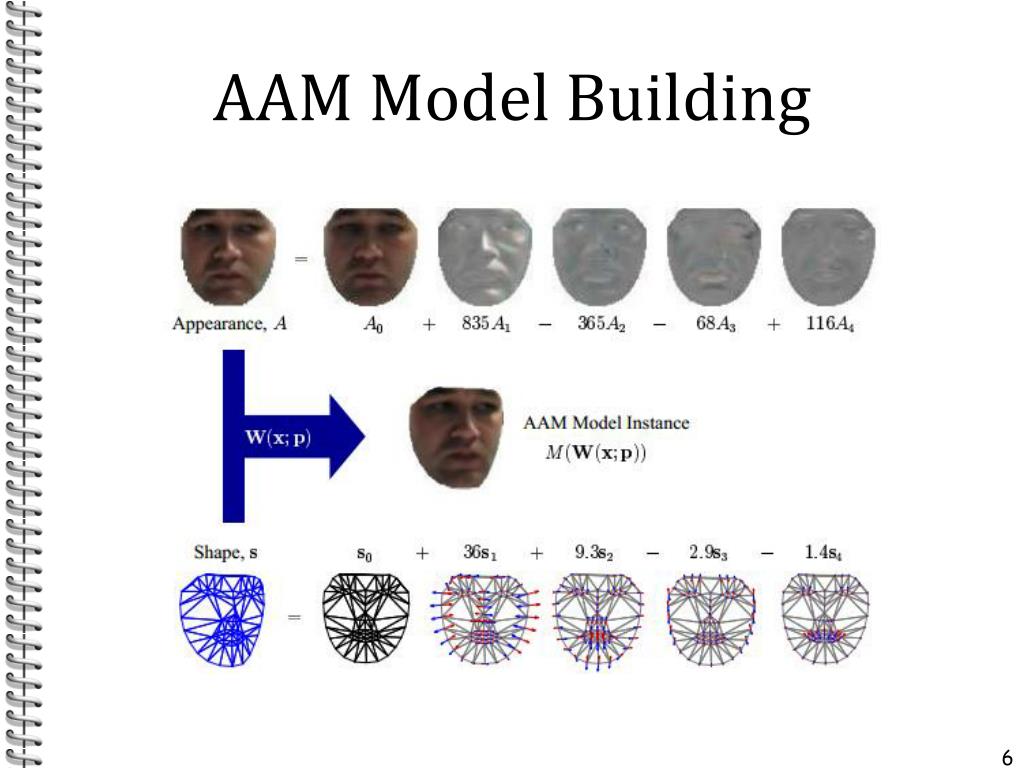

Aam model building

AAM Model Building

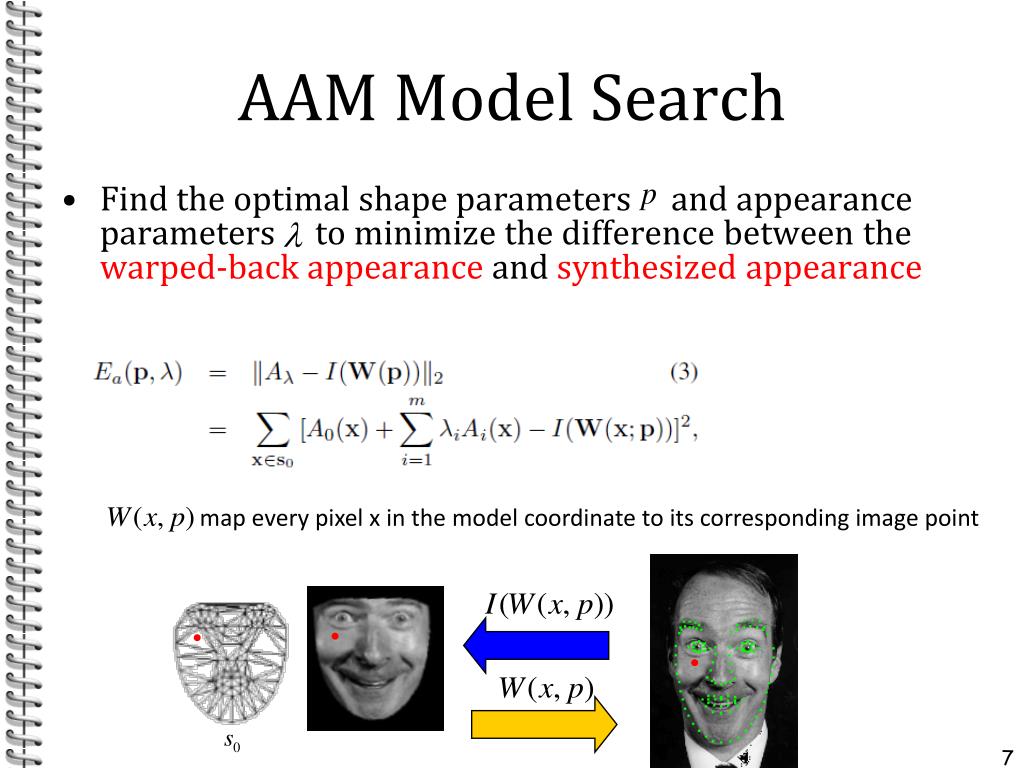

Aam model search

AAM Model Search

  • Find the optimal shape parameters and appearance parameters to minimize the difference between the warped-back appearance and synthesized appearance

map every pixel x in the model coordinate to its corresponding image point

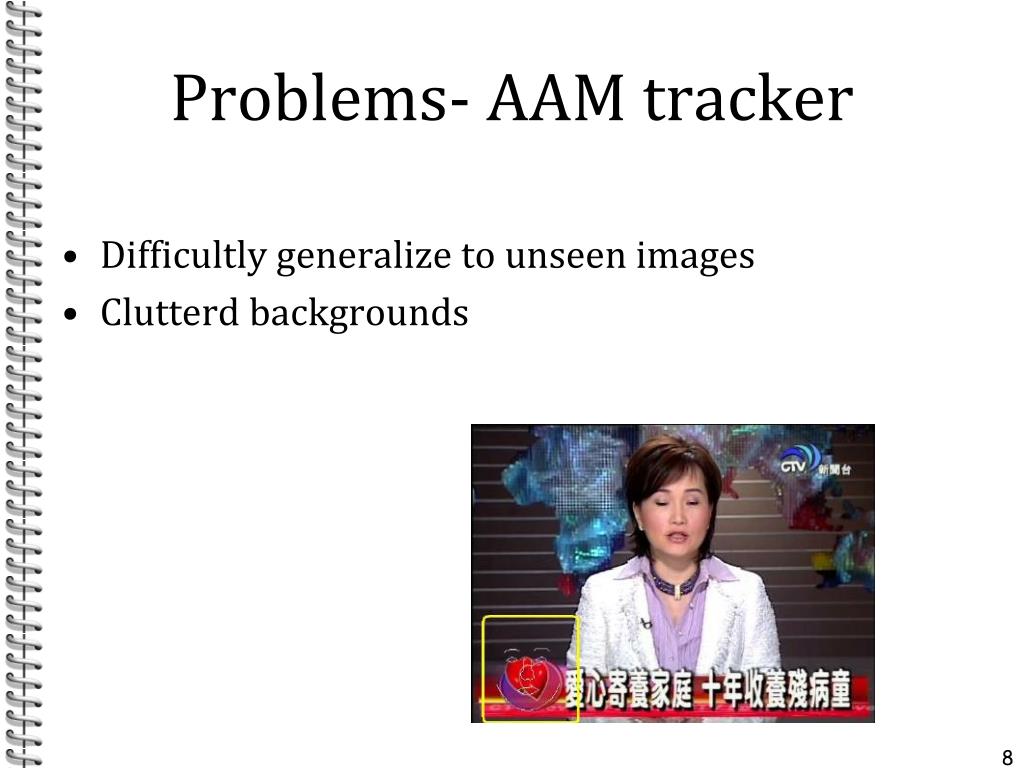

Problems aam tracker

Problems- AAM tracker

  • Difficultly generalize to unseen images

  • Clutterd backgrounds

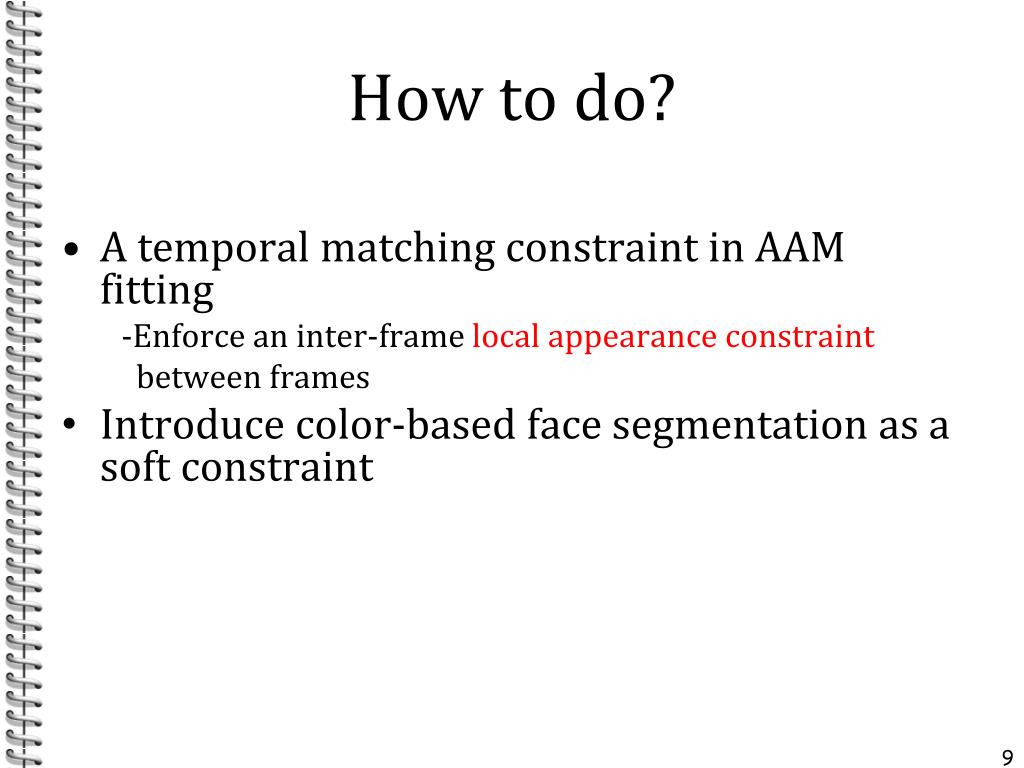

How to do

How to do?

  • A temporal matching constraint in AAM fitting

    -Enforce an inter-frame local appearance constraint

    between frames

    • Introduce color-based face segmentation as a soft constraint

Related work

Related Work

-feature-based (mismatched local feature)

Integrating multiple visual cues for robust real-time

3d face tracking,W.-K. Liao, D. Fidaleo, and G. G. Medioni. 2007

-intensity-based (fast illumination changes)

Improved face model fitting on video sequences, X. Liu, F.

Wheeler, and P. Tu. 2007

temporal matching constraint

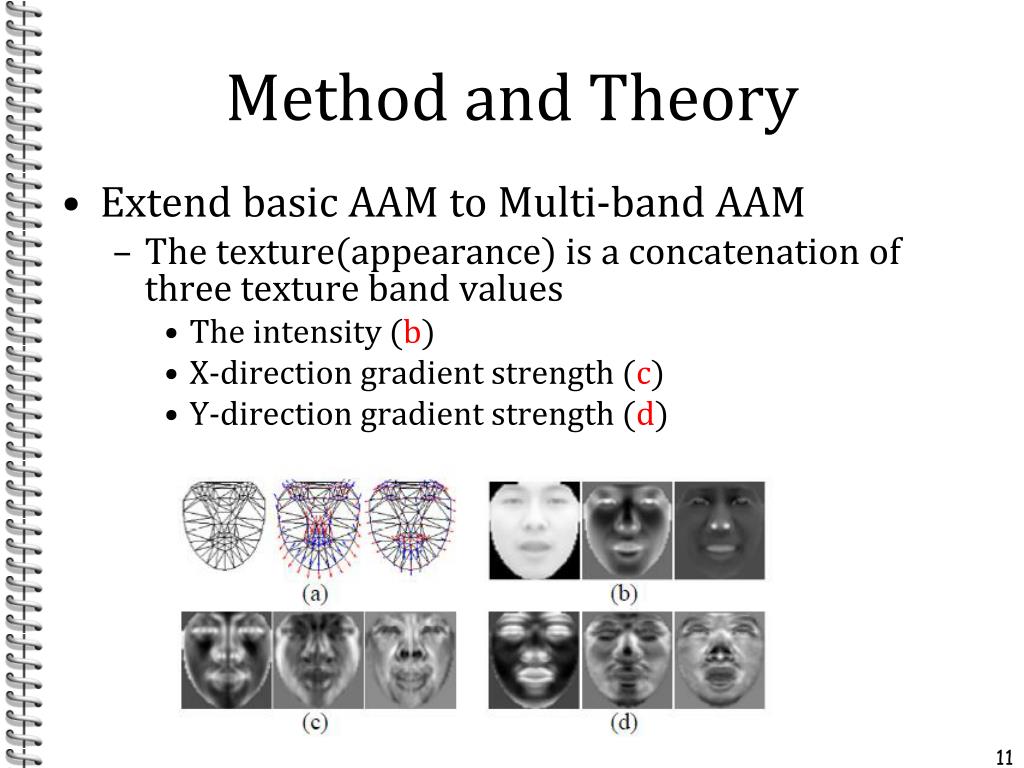

Method and theory

Method and Theory

  • Extend basic AAM to Multi-band AAM

    • The texture(appearance) is a concatenation of three texture band values

      • The intensity (b)

      • X-direction gradient strength (c)

      • Y-direction gradient strength (d)

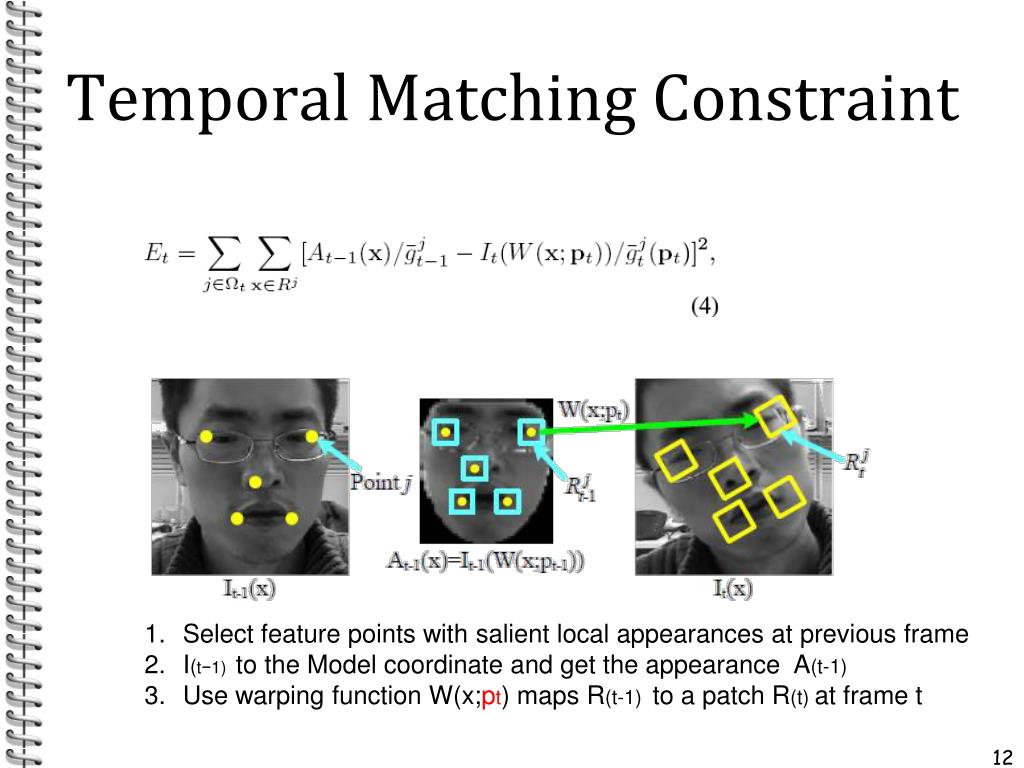

Temporal matching constraint

Temporal Matching Constraint

  • Select feature points with salient local appearances at previous frame

  • I(t−1) to the Model coordinate and get the appearance A(t-1)

  • Use warping function W(x;pt) maps R(t-1) to a patch R(t) at frame t

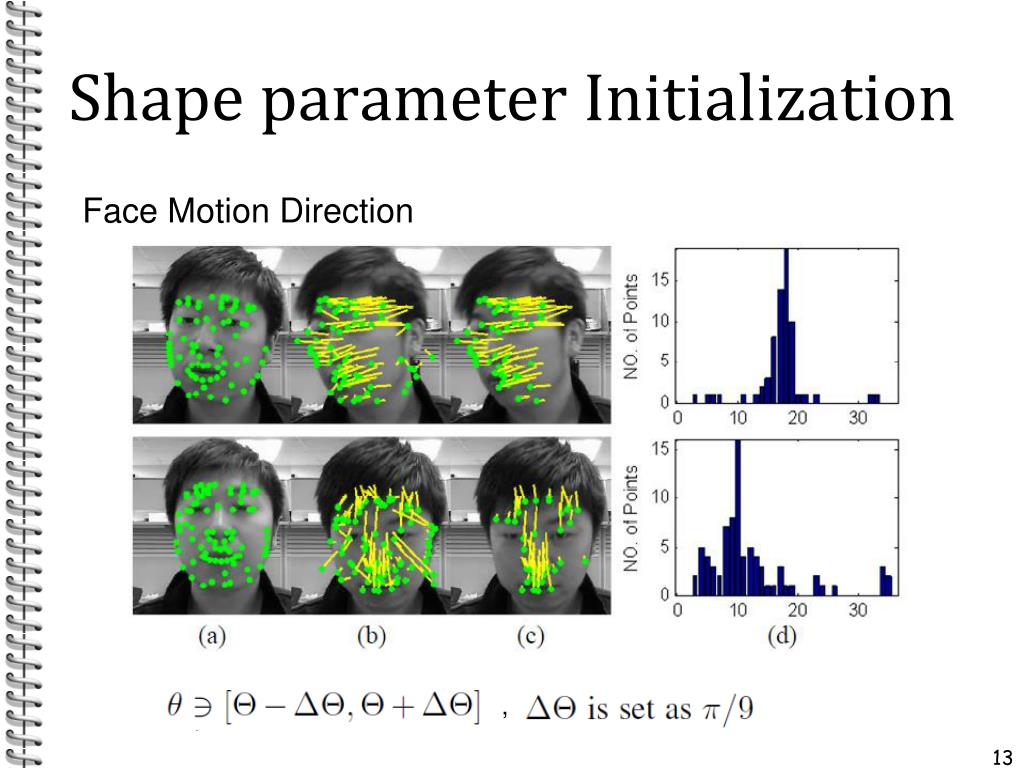

Shape parameter initialization

Shape parameter Initialization

Face Motion Direction

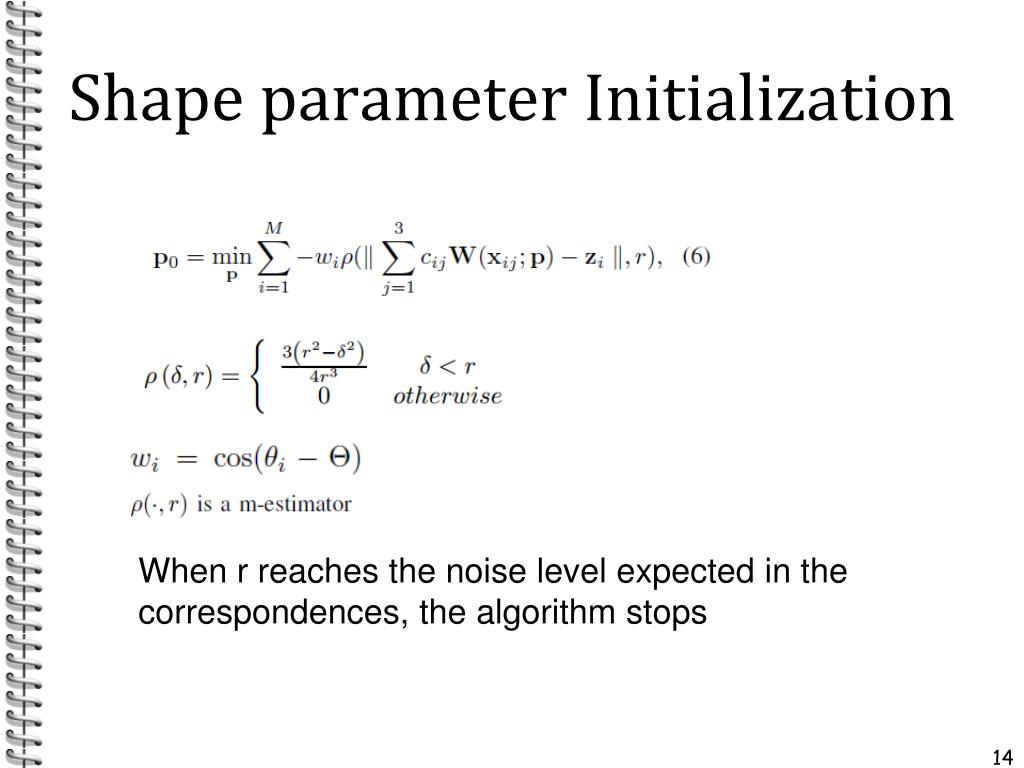

Shape parameter initialization1

Shape parameter Initialization

When r reaches the noise level expected in the

correspondences, the algorithm stops

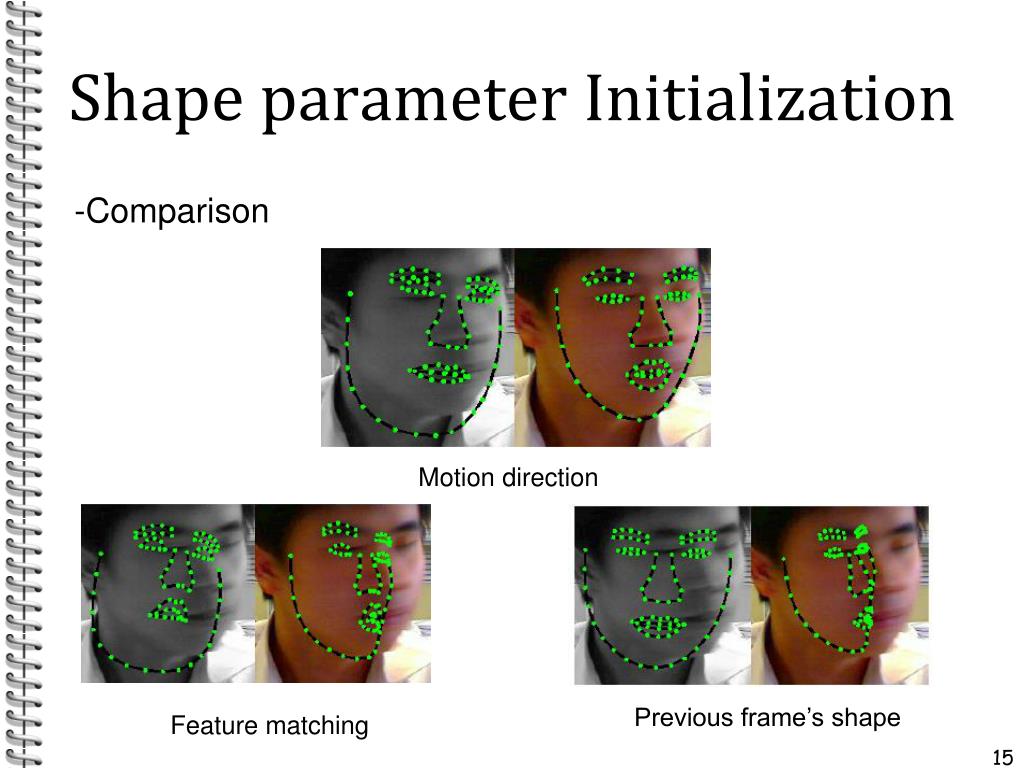

Shape parameter initialization2

Shape parameter Initialization


Motion direction

Previous frame’s shape

Feature matching

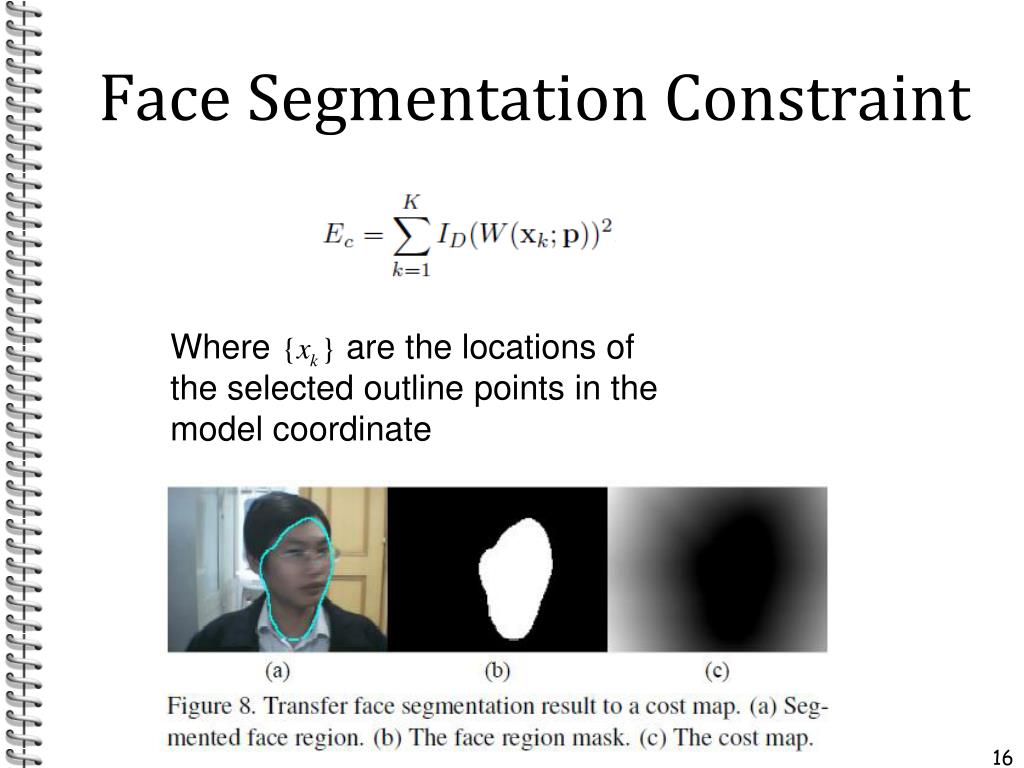

Face segmentation constraint

Face Segmentation Constraint

Where are the locations of the selected outline points in the model coordinate

Face segmentation constraint1

Face Segmentation Constraint

-Face Segmentation

Face segmentation constraint2

Face Segmentation Constraint



Lost frame num

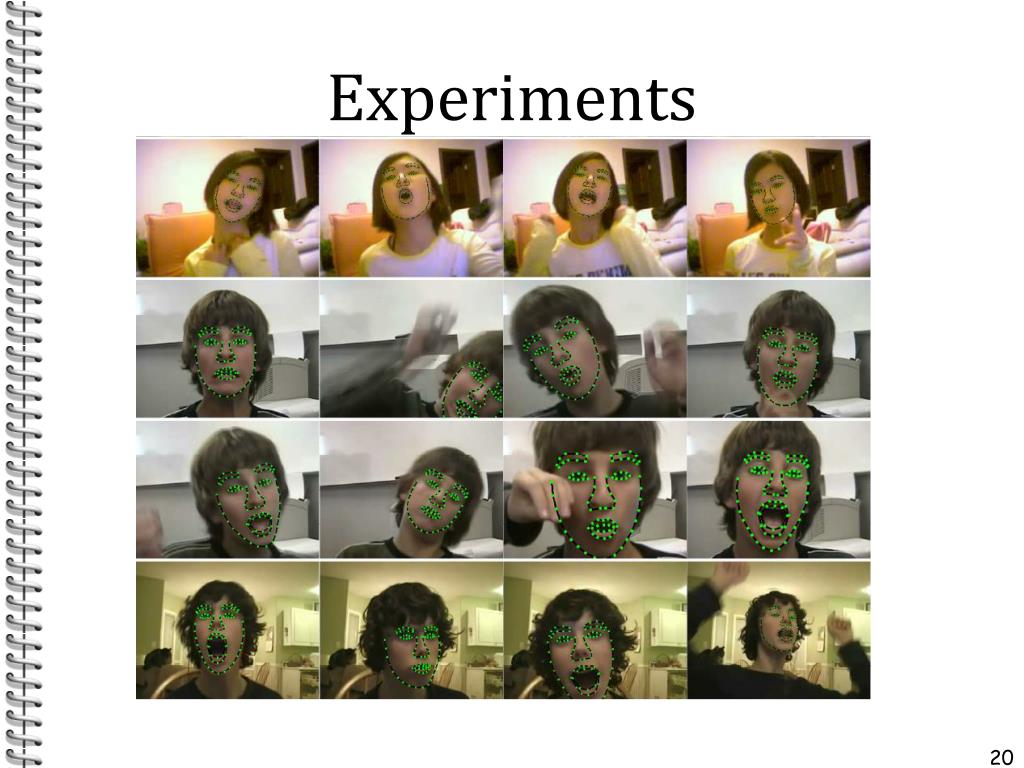

─ Our tracking algorithm accurately localizes the facial

components, such as eyes, brows, noses and mouths,

under illumination changes as well as large expression

and pose variations.

─ Our tracking algorithm runs in real-time. On a

Pentium-43.0G computer, the algorithm’s speed is

about 50 fps for thevideo with 320 × 240 resolution

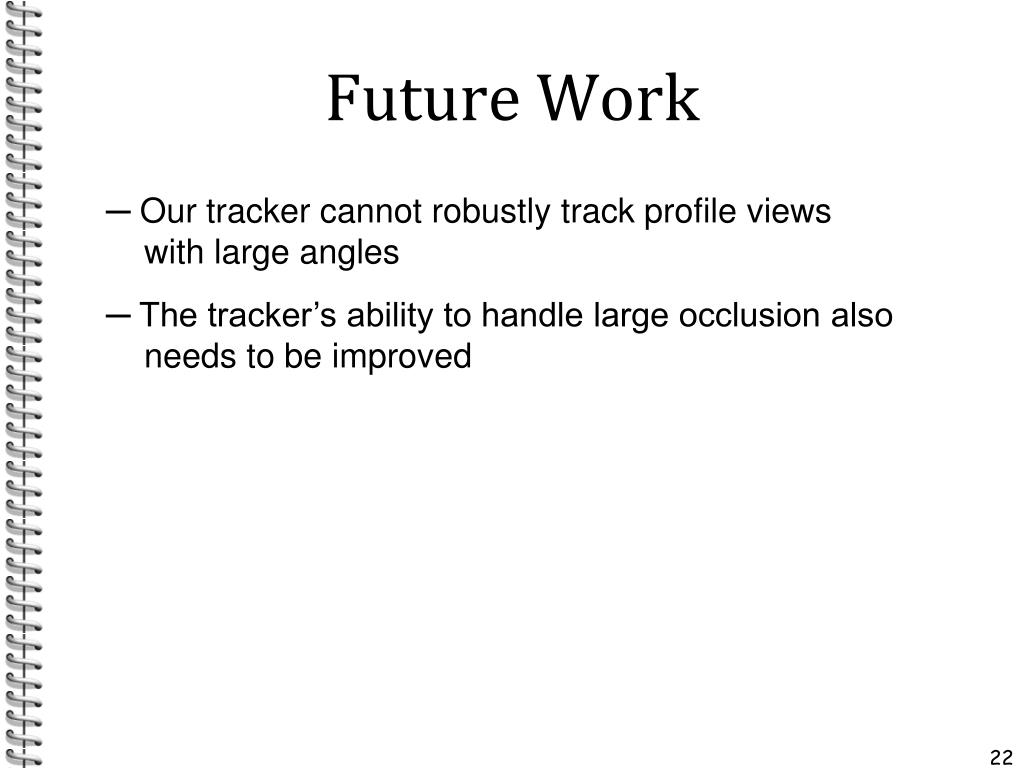

Future work

Future Work

─ Our tracker cannot robustly track profile views

with large angles

─ The tracker’s ability to handle large occlusion also

needs to be improved
