Arrays

Arrays


Overview

Overview

  • Defining arrays

  • Arrays with for-loops

  • Passing arrays as arguments

  • Constant arrays as parameters

  • Projects with arrays and functions (Disposable kitchen utensils plants)

  • Searching and sorting arrays


Array definition

Array Definition

  • array - a list of similar variables with two names:

    • name of the array it is the same for all variables in the array

    • index (or subscript) - different for every variable, put in square brackets []

  • Variables in the array are indexed variables or elements of the array

  • All variables in the array have the same type called base type of the array

  • Number of indexed variables is the size of the array

  • Array declaration

    int score[5];

  • Indexes start from 0

    score[0], score[1], score[2], score[3], score[4]

    • score[5]is not there!

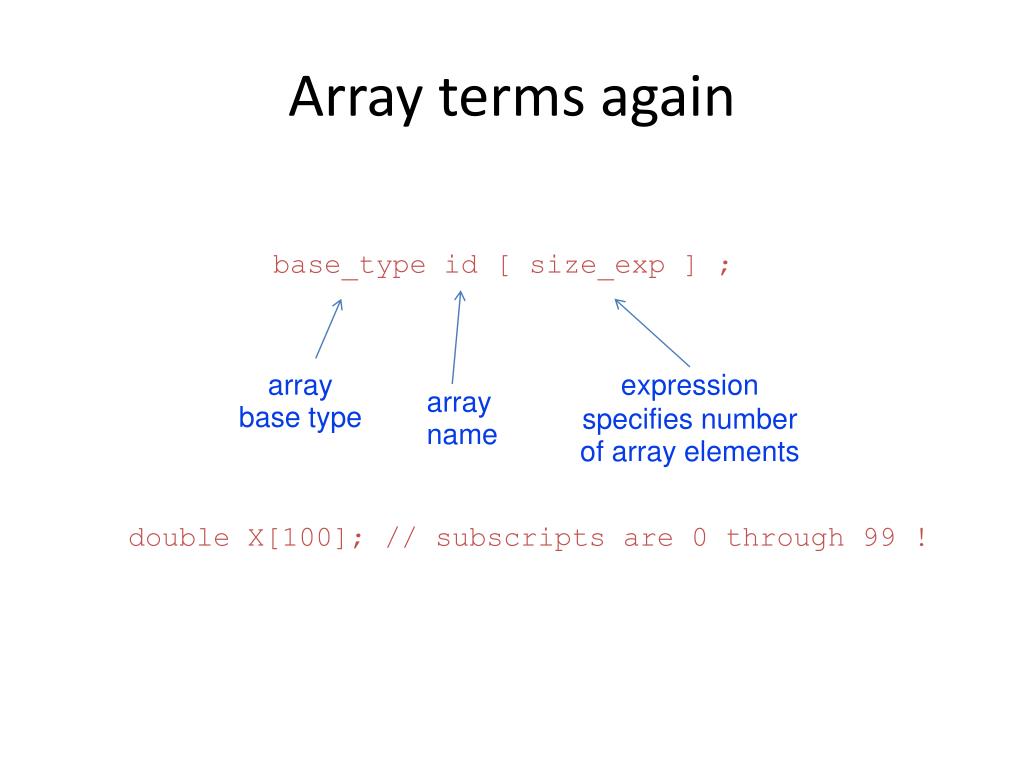

Array terms again

Array terms again

base_type id [ size_exp ] ;

arraybase type

expressionspecifies number

of array elements

array name

double X[100];// subscripts are 0 through 99 !


Array usage

Array Usage

  • Indexed variables can be used anywhere a regular variable can be:

    cin >> score[4] >> score[2];

    max = score[4] + score [2];

    score [4]=max;

    cout << score[2] << “ “ << score[4];

  • Index can be any expression:

    int student=2;

    score[student]=99;

    score[student+1]=100;

    cout << score[1] << “ “ << score[student];

  • Loops are ideal for arrays:

    for (int index=0; index < array_size; index++){

    // do something with myarray[index]

    }


Example of array with loops

Example of Array with Loops

int main() {

int i, score[5], max;

cout << "Enter 5 scores:\n";

cin >> score[0];

max = score[0];

for (i=1; i < 5; i++) {

cin >> score[i];

if (score[i] > max)

max = score[i]; //max is the largest

}

cout << "The highest score is " << max << endl

<< ”the differences from the highest are:\n";

for (i = 0; i < 5; i++)

cout << score[i] << " off by "

<< (max - score[i]) << endl;

}

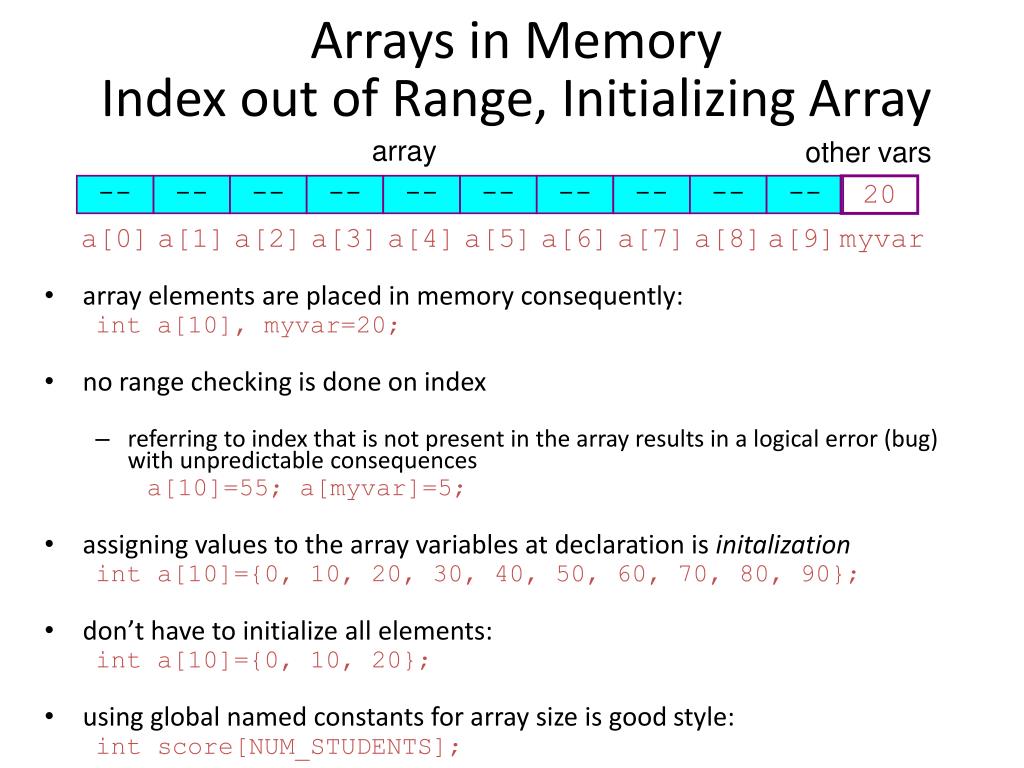

Arrays in memory index out of range initializing array

array

other vars

--

--

--

--

--

--

--

--

--

--

20

a[0]

a[1]

a[2]

a[3]

a[4]

a[5]

a[6]

a[7]

a[8]

a[9]

myvar

Arrays in MemoryIndex out of Range, Initializing Array

  • array elements are placed in memory consequently:

    int a[10], myvar=20;

  • no range checking is done on index

    • referring to index that is not present in the array results in a logical error (bug) with unpredictable consequences

      a[10]=55; a[myvar]=5;

  • assigning values to the array variables at declaration is initalization

    int a[10]={0, 10, 20, 30, 40, 50, 60, 70, 80, 90};

  • don’t have to initialize all elements:

    int a[10]={0, 10, 20};

  • using global named constants for array size is good style:

    int score[NUM_STUDENTS];


Arrays and functions

Arrays and Functions

  • Array elements can be passed as arguments to functions:

    int i=5, n, a[10];

    myfunc(n);// ordinary variable as argument

    myfunc(a[3]); // element as argument

    myfunc(a[i]);// which element are we passing?

  • Entire arrays can be passed as arguments

    • always passed by reference ( no & needed)

    • function does not know array size, it is usually passed as a separate variable

  • Example:

    void fill_up(int [], int); // prototype

    void fill_up(int a[], int size){ // definition

    cout << “Enter “ << size << “numbers:”;

    for(int i=0; i < size; i++)

    cin >> a[i];

    }

    fill_up(score, 5); // invocation, note no brackets


Const parameter type modifier

const Parameter Type Modifier

  • When function accepts array as parameter, const type modifier can be used with array

  • const specifies that the elements of the array are not modified in the function. This specification allows compiler to check for errors at time of compilation. If function is not intended to modify array use const

  • Example:

    void printarray(const int [], int); // prototype

    void printarray(const int a[], int size){ // def.

    for(int i=0; i < size; i++)

    cout << a[i];

    }

  • Function prototype and head have to agree on modifiers

  • Function invocation is the same regardless of modifiers


Disposable kitchen utensils plants

Disposable kitchen utensils plants

Example


Input output for the program

Input/Output for the program

Items of each type foreach plant (4 plants, arbitrary number of types )

245 567 -1

1567 2456 456 -1

3457 -1

6891 987 -1

total production for each plant, round to thousands, output bar graph

Units produced in thousands of units:

Plant #1 *

Plant #2 ****

Plant #3 ***

Plant #4 ********


Functions used

Functions Used

input functions

// inputs data on plants

void input_data(int a[],

int last_plant_number);

// inputs the number of units // produced by each department

// at a plant, returns the sum

void get_total (int& sum);

processing functions

// scales the values a down to // thousands

void scale(int a[], int size);

// returns number rounded to

// the nearest integer.

int round(double number);

output functions

// displays a bar graph on the number // for each value of a

void graph(const int asterisk_count[], int last_plant_number);

// prints n asterisks to the screen

void print_asterisks(int n);


Files used

Files used

plants.h

wrapper, tests input functions

testinput.cpp

plants.cpp

input_data

get_total

scale

round

graph

print_asterisks

wrapper, tests scale functions

testscale.cpp

final main() function

useplants.cpp
