Presentation Transcript


Malvino

SIXTH EDITION

MALVINO

Electronic

PRINCIPLES


Malvino

Emitter Followers

Chapter 12


Malvino

vout

The common-collector or emitter follower amplifier

+VCC

R1

ac ground

vin

R2

RE

RL


Malvino

re

A =

re + re’

re = RE RL

Tmodel of the emitter follower amplifier

re’

R2

R1

vin

vout = iere

re

vin= ie(re + re’)


Malvino

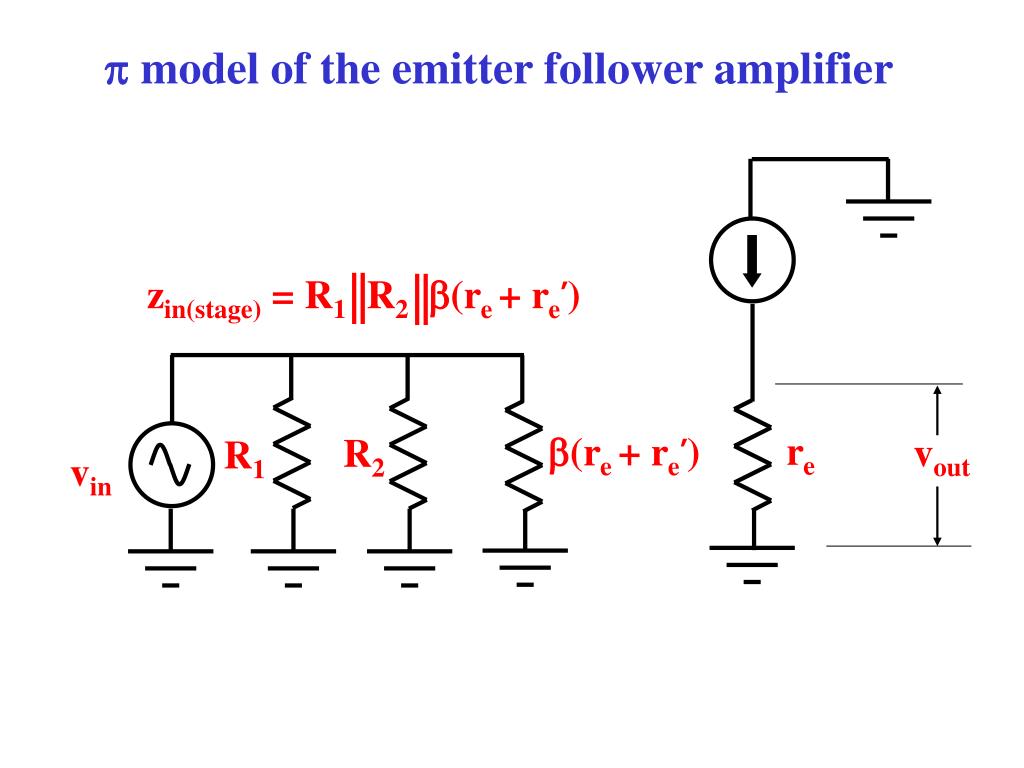

zin(stage) = R1 R2 b(re + re’)

p model of the emitter follower amplifier

re

b(re + re’)

vout

R2

R1

vin


Malvino

RC

vth

RL

The output side of a common-emitter amplifier

Applying Thevenin’s theorem:

RC

RL

The output impedance is equal to RC.


Malvino

zout

A

vth

RL

RL

Tmodel of the emitter follower amplifier

Apply Thevenin’s theorem to point A:

re’

R2

RG

R1

A

RE

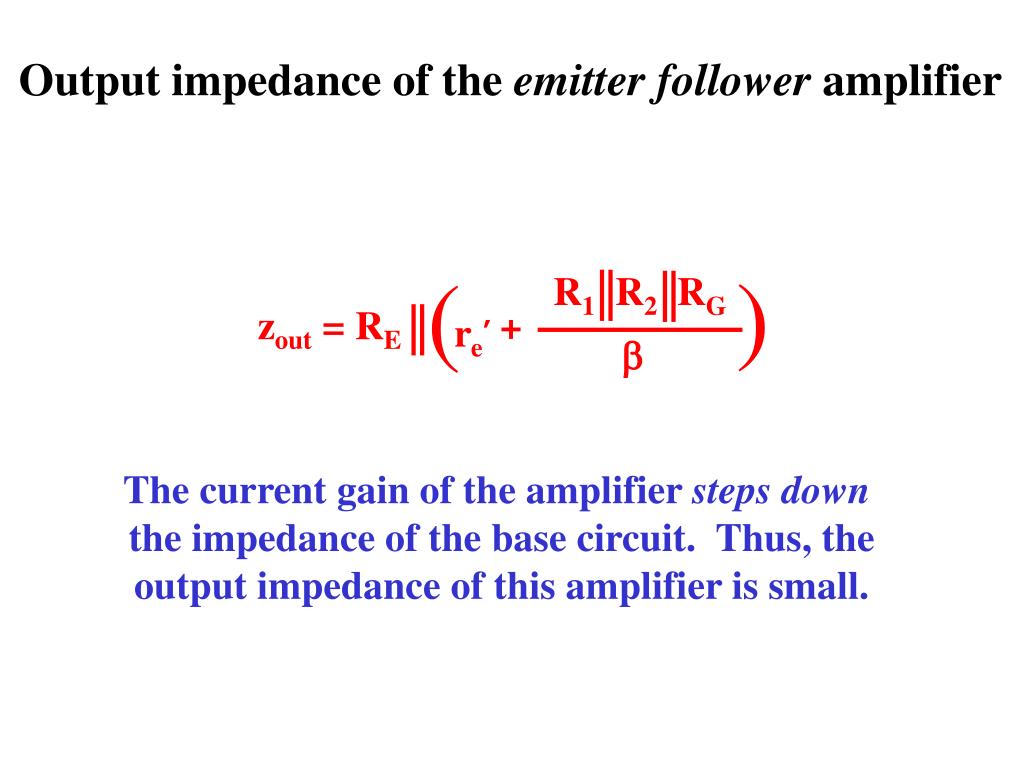

Malvino

re’+

)

(

zout = RE

R1 R2 RG

b

Output impedance of the emitter follower amplifier

The current gain of the amplifier steps down

the impedance of the base circuit. Thus, the

output impedance of this amplifier is small.


Malvino

100 mA

80 mA

60 mA

40 mA

20 mA

0 mA

re = RE RL

The ac load line has a higher slope:

VCC

VCE(cutoff) = VCC

The dc load line

IC(sat) =

RE

14

12

10

IC in mA

8

6

Q

4

2

6

16

2

4

10

12

0

14

18

8

VCE in Volts


Large signal operation

Large signal operation

  • When the Q point is at the center of the dc load line, the signal cannot use all of the ac load line without clipping.

  • MPP < VCC

  • MP = ICQreor VCEQ (whichever is smaller)

  • MPP = 2MP

  • When the Q point is at the center of the ac load line: ICQre= VCEQ


Malvino

Darlington connection

Darlington transistor

Q1

Q2

b = b1b2


Malvino

When Q2 is on,

the capacitor

discharges.

vout

Push-pull emitter follower

+VCC

R1

When Q1 is on,

the capacitor

charges.

Q1

R2

R3

vin

RL

Q2

R4


Class b push pull emitter follower

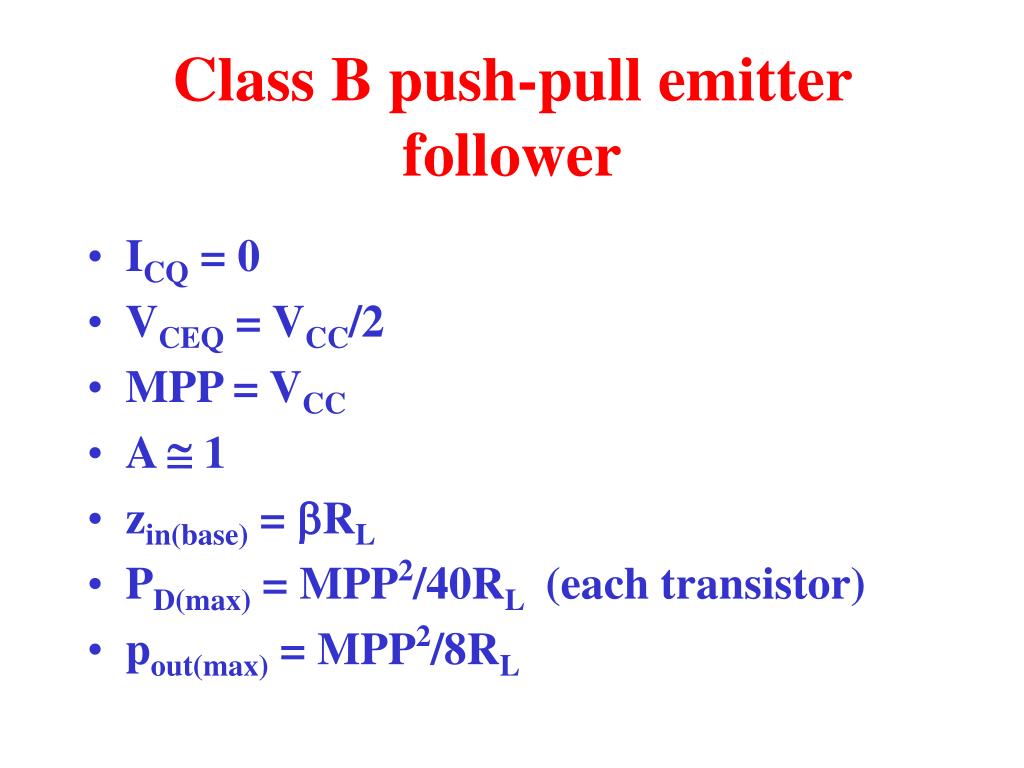

Class B push-pull emitter follower

  • ICQ = 0

  • VCEQ = VCC/2

  • MPP = VCC

  • A @ 1

  • zin(base) = bRL

  • PD(max) = MPP2/40RL (each transistor)

  • pout(max) = MPP2/8RL


Malvino

vout

Crossover distortion in class B

+VCC

R1

Q1

R2

R3

vin

RL

Q2

R4


Class ab

Class AB

  • Crossover distortion is caused by the barrier potential of the emitter diodes.

  • ICQ must be increased to 1 to 5 percent of IC(sat) to eliminate crossover distortion.

  • The new operating point is between class A and B but is much closer to B.


Thermal runaway

Thermal runaway

  • When temperature increases, collector current increases.

  • More current produces more heat.

  • Compensatingdiodes that match the VBE curves of the transistors are often used.

  • Any increase in temperature reduces the bias developed across the diodes.


Malvino

Ibias =

VCC - 2VBE

IC(sat) =

VCC

2R

2RL

Iav =

IC(sat)

p

pout

VCC2

x 100%

h =

Pdc

pout(max) =

8RL

+VCC

R

Diode bias

ICQ@ Ibias

Idc(total) = ICQ + Iav

2VBE

Pdc(in) = VCCIdc(total)

RL

vin

R


Malvino

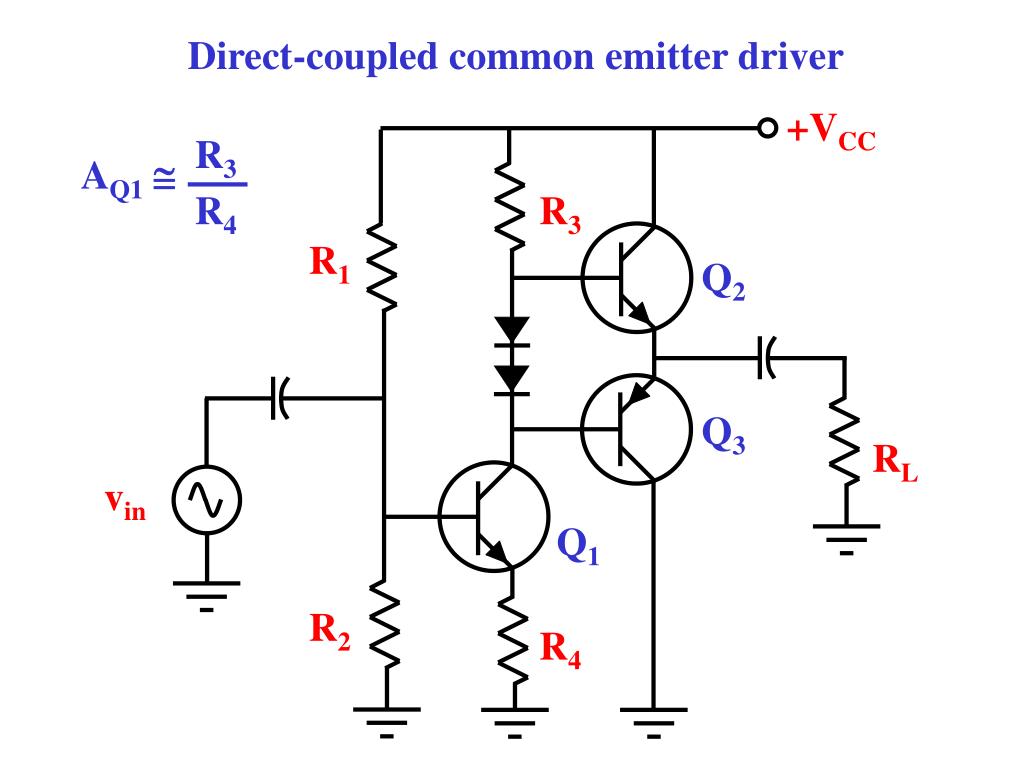

R3

AQ1@

R4

Q1

Direct-coupled common emitter driver

+VCC

R3

R1

Q2

Q3

RL

vin

R2

R4


Malvino

Two-stage negative feedback

+VCC

R1

R2 provides both dc and

ac negative feedback

to stabilize the bias

and the voltage gain.

Q2

Q3

Q1

vin

R2


Malvino

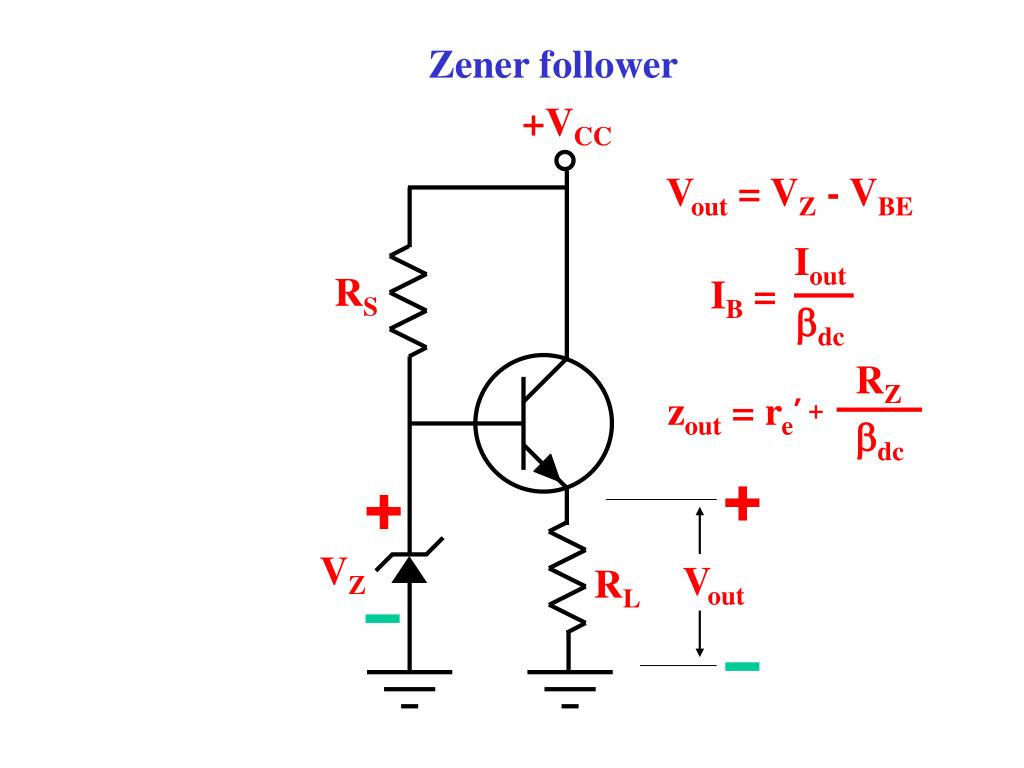

RZ

IB =

zout = re’ +

bdc

Iout

bdc

Zener follower

+VCC

Vout = VZ - VBE

RS

VZ

Vout

RL


Malvino

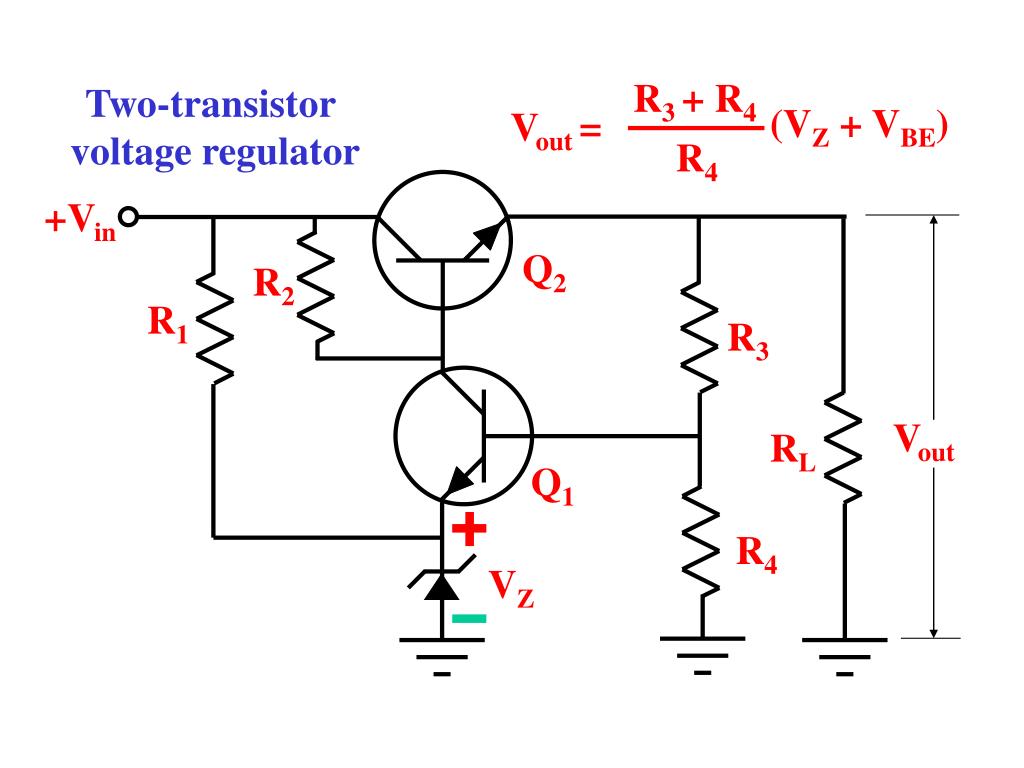

Vout

R3 + R4

(VZ + VBE)

R4

Two-transistor

voltage regulator

Vout =

+Vin

Q2

R2

R1

R3

RL

Q1

R4

VZ
