  1. Distributed Coordination-Based Systems II CSE5306 Lecture Quiz due 31 March 2014

  2. Synchronization • Synchronization always is a problem in generative communications. • It is easy to synchronize one publishing server with many clients: simply block the clients’ subscriber until a publication matching their tuples becomes available. • Replicating and distributing publications across many servers makes their synchronization much more difficult.

  3. R U O K ? • How can you synchronize just one publishing server with each client? • Program each of them to consult radio station WWV daily. • Provide each of them a GPS receiver. • Block the client’s subscriber until a tuple matching its template is available. • All of the above. • None of the above.

  4. Consistency and Replication • Replication enables us to scale up coordination-based systems. • This is especially true of those engaged in generative communications. • Publications’ tuples can be distributed statically or (in some cases) automatically and dynamically.

  5. R U O K ? 2. Why is replication an especially good way to scale coordination-based systems that are engaged in generative communications. • Their subscribers are a potentially large pool of anonymous commodity service providers. • Actually it is a good way to scale all distributed systems. • All of the above. • None of the above.

  6. Static Approaches • First let’s insert tuples into a JavaSpace. • Then let’s distribute that JavaSpace across several machines.

  7. General Considerations • Efficient distributed JavaSpaces solve two problems: • Associative addressing without massive searches. • Distributes tuples now, and locate them later. • JavaSpacessolves these problems by: • Partitioning tuples into subspaces by their types. • Organize subspaces as (one tuple) hash tables. • Hash modulo = number of machines for scalability. • Customize storage according to each network’s strength: • Good broadcaster (above left): replicate all tuples on all servers. • Local read and broadcasted writes. • Good listener (above center): each tuple stored on only one server. • Local writeand broadcasted reads. • Tuple can’t be found, repeat request at longer time intervals. • Locally replicating requested tuple saves search time later. • Combination (above right): partial replication. • Publisher broadcasts (writes) tuple to all servers on her row. • Subscriber sends template to (reads) all servers on her column.

  8. R U O K ? 3. What coordination-based system problem do efficient distributed JavaSpacessolve? • Associative addressing without massive searches. • Distributes tuples now; locate them later. • Message storage when a client is not available. • All of the above. • Both a and b above.

  9. Dynamic Replication • Scalability is limited in static replication: • Broadcasting takes time. • Many tuple spaces on many servers in one network is only partial replication. • Simple commercial dataspaces subject to a single network administration policy lack robustness. • Scalability is unlimited in dynamic replication: • Globule’s fine-grained Web documents truly are replicated (pp.63-5). • Gspacedifferentiates replication mechanisms among the various data types in its dataspace.

  10. R U O K ? 4. Why is scalability limited in static replication? • Broadcasting takes time. • Many tuple spaces on many servers in one network is only partial replication. • Simple commercial dataspaces, which are subject to a single network administration policy, lack robustness. • All of the above. • Both a and b above.

  11. GSpace Overview • The Gspace kernel has a centralized version of JavaSpaces in its “Dataspace slice.” • Policies have tuples that match the application’s read, write and take subscription templates. • Independent policies apply to matching publications in the Dataspace slice. • For example, a master/slave policy permits reads but asks a distant master node’s permission for writes. • Policies can be edited at runtime.

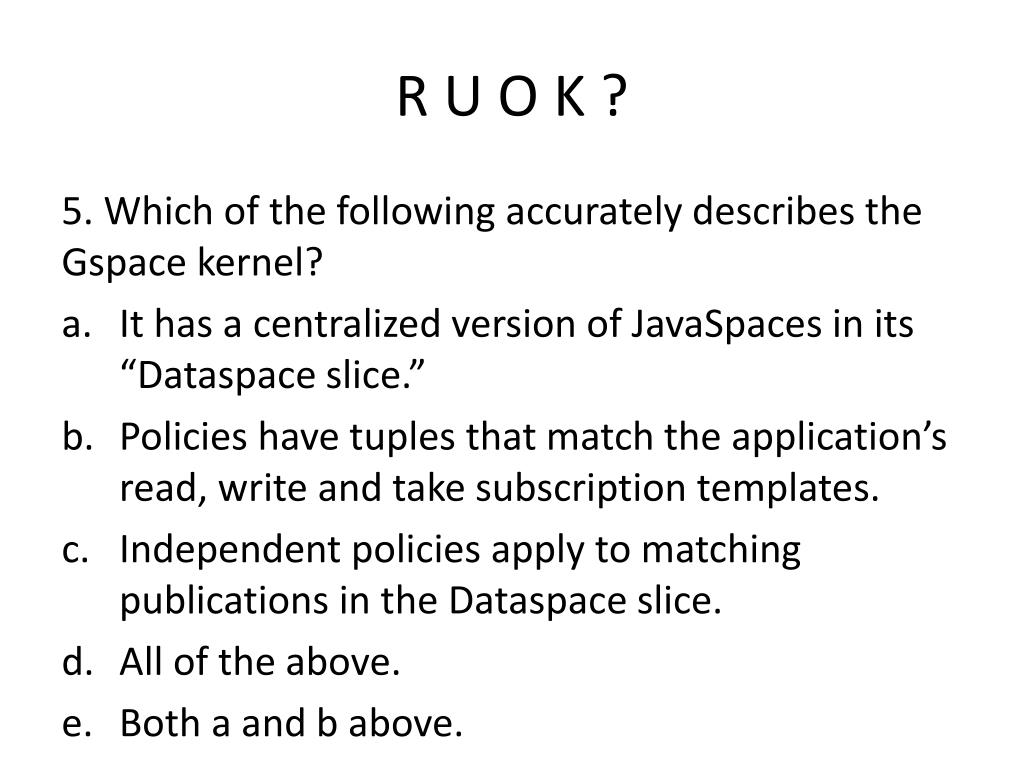

  12. R U O K ? 5. Which of the following accurately describes the Gspacekernel? • It has a centralized version of JavaSpaces in its “Dataspace slice.” • Policies have tuples that match the application’s read, write and take subscription templates. • Independent policies apply to matching publications in the Dataspace slice. • All of the above. • Both a and b above.

  13. Adaptive Replication • Policies are automatically generated based on: • Available network bandwidth, latency and memory. • The weighted importance of each of these. • The policies result in a central coordinator: • Moving tuples to different nodes. • Choosing ways to keep replicas current. • Transition policies decide how policies should change and when; e.g., • Banish a group of tuples into the outer darkness. • Stop replicating a group of tuples. • Lazily copy tuples to subscribers after the first call.

  14. R U O K ? 6. What network parameters determine how GSpace policies are automatically generated? • Bandwidth. • Latency. • Unused message storage capacity. • All of the above. • Both a and b above.

  15. Fault Tolerance • Fault tolerance design problems in coordination-based communication systems: • Reliable communications. • Reliable storage (in generative communication systems).

  16. Reliable Pub-Sub Communication • Live subscribers—no data storage required. • A live multicast system… • Under the publish/subscribe application and • Over an unreliable network transport layer. • Design challenges: • Implementing a reliable multicast channel. • Fault tolerance must be handled.

  17. Fault Tolerance in TIB/Rendezvous • Reliability measures: • All nodes keep publication 60 seconds after sending. • Certified message delivery retransmits all messages notACKed. • Deactivates running processes that can only handle events. • Strives to keeps at least one process active (sends heartbeat) in each group. • Inactive nodes accept publications in anticipation of going active later. • Needy receiver asks prior node to send lost packet. • Pragmatic General Multicast (PGM) scalability: • Node forwards only one retransmission request (NAK), after receiving many. • Node retransmits only to requesting nodes.

  18. R U O K ? 7. How do reliable pub/sub (live) communicators “handle fault tolerance”? • All nodes keep publication 60 seconds after sending. • Certified message delivery retransmits all messages notACKed. • Needy receiver asks prior node to resend lost packet. • All of the above. • None of the above.

  19. Fault Tolerance in Shared Dataspaces with Generative Communications • Its regularly writing timestamps to persistent storage reveals each Gspace node’s ups and downs. • Uptime = “time to failure” = restart time – crash time = Tend–Tstart. • Downtime = “time to repair” = crash time – restart time = Tstart – Tend. • Mean time to failure, MTTF = Σn(Tend– Tstart). • Mean time to repair, MTTR = Σn(Tstart– Tend). • One node’s availability, a = MTTF / (MTTF + MTTR). • Availability of a data item replicated among m nodes = 1 – Πk(1 – ak). • Replication policy automatically optimizes node availabilities, network bandwidth and CPU loading.

  20. R U O K ? 8. What is the availability of a data item replicated on two servers, which are up only 20% and 30% of the time respectively? • 28% • 56% • 44% MTTF1 = (Tend–Tstart) = 0.20, MTTR1 = (Tstart–Tend) = 0.80. So a1 = MTTF1/ (MTTF1+ MTTR1) = 0.20 and a2 = 0.30. Data availability = 1–(1–a1)*(1–a2) = 1–0.80*0.70 = 44%. • 94% • None of the above.

  21. Security • Senders and receivers must authenticate each other. • But that violates referential decoupling – I shouldn’t know (explicitly) who you are (bottom p.590). • Ah, a trusted broker (i.e., our mutual friend’s recommendation) can handle your data processing and subscriptions. • And we need not trust all brokers.

  22. R U O K ? 9. Give a practical example of a trusted broker enabling senders and receivers to authenticate each other without violating referential decoupling? • “Manuel Reyes is a great gardener, and his prices are very reasonable.” • “Trust me, here is the phone number of someone who will remodel your house very nicely for only $3K.” • “Lowes will install your new garage door for the lowest price.” • All of the above. • None of the above.

  23. Confidentiality • Information confidentiality • End-to-end encryption (router sees addresses only). • Encrypt only the secret fields (real estate address). • Subscription confidentiality • Keywords are hashes of many encrypted tuples. • Subscriber does same, and router matches them. • Publication confidentiality • Publishers sell texts to students and keys to teachers. • Out-of-band communication authenticates teacher.

  24. R U O K ? 10. Give a practical example of confidential publishing that paradoxically allows content-based routing? • A U.K. Ministry of Defense courier drops off a BAE’s classified document at Boeing’s document control department. • A well-dressed lady buys Vogue magazine from a newstand, without first reading its Table of Contents. • A U.S. government lawyer subpoenas Intel’s tax records. • All of the above. • None of the above.

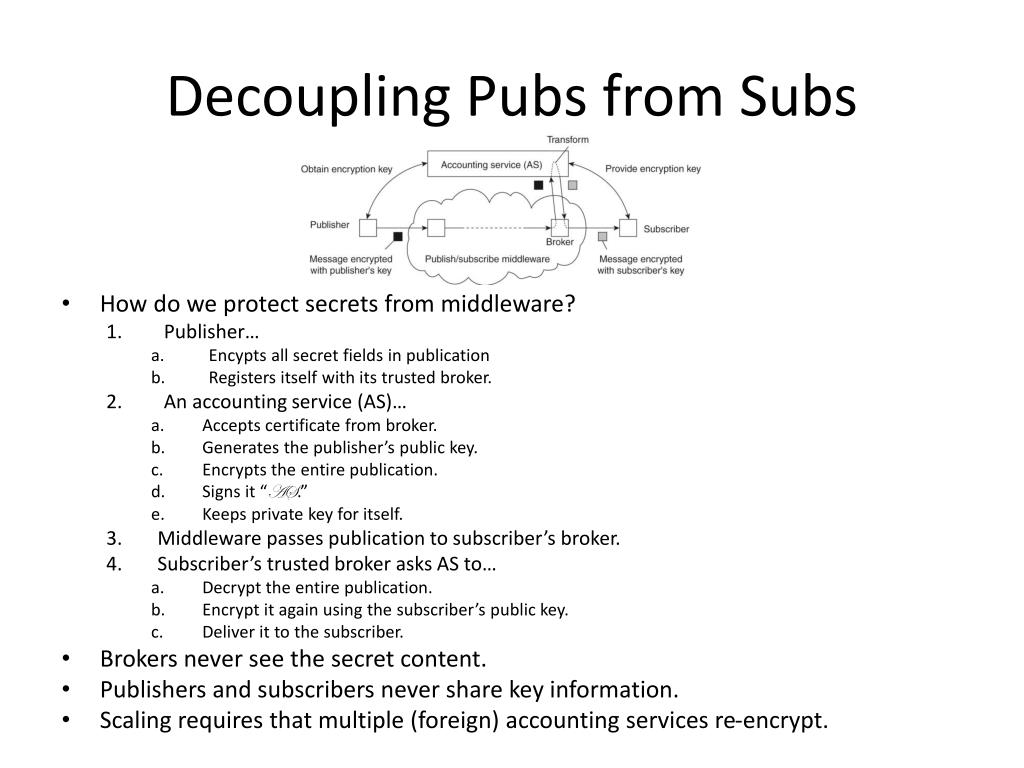

  25. Decoupling Pubs from Subs • How do we protect secrets from middleware? • Publisher… • Encypts all secret fields in publication • Registers itself with its trusted broker. • An accounting service (AS)… • Accepts certificate from broker. • Generates the publisher’s public key. • Encrypts the entire publication. • Signs it “AS.” • Keeps private key for itself. • Middleware passes publication to subscriber’s broker. • Subscriber’s trusted broker asks AS to… • Decrypt the entire publication. • Encrypt it again using the subscriber’s public key. • Deliver it to the subscriber. • Brokers never see the secret content. • Publishers and subscribers never share key information. • Scaling requires that multiple (foreign) accounting services re-encrypt.

  26. R U O K ? 11. How can one accounting service (AS) help two brokers (PB and SB) keep secrets from a publisher’s (P) and subscriber’s (S) middlewares? • AS accepts PB’s certificate to authenticate P. • AS generates P’s public key and encrypts the document with it. It signs and sends document. • AS verifies its own signature and accepts SB’s certificate to authenticate S. • AS receives and decrypts document. It generates S’s public key and encrypts the document with it. It hands document to S. • All of the above.

  27. Secure Shared Dataspaces • Trusted dataspaces (i.e., processes may see the content) are easy to share. • Global dataspaces allow the subscriber to match templates with published tuples, only if they can decrypt them. • The latter requires publishers to share encryption keys with authorized subscribers.

  28. R U O K ? 12. How might I subscribe to confidential documents in a global shared dataspace? • The publisher hashes all of the document’s keywords, including a secret code word (e.g., “over lord” was the code word for the Normandy invasion in WWII) into a secret key, with which he encrypts the document. • I hash all of the tuples in my template into a key, including the same secret code word into a secret key, with which I decrypt the document. • All of the above. • It can’t be done.

  29. Summary • Coordination-based systems tend to be independently-administered, anonymous (referentially uncoupled) commodity services, and that leads to scalability and fault tolerance. • Furthermore, generative communicators are not necessarily available 24/7 (temporally uncoupled). • TIB/ Rendezvous is a publisher that addresses its subscribers by subject instead of by name. • Content-based pub/sub systems formulate predicates over the many attributes of their published data, and their routers sort messages according to subscribers reading interests. • Generative communicators share dataspaces XML-like tuples; i.e., record-like typed data structures. If a subscribing reader’s template matches a tuple, it is sent, else it blocks.
