Ch 11 - Electron Configuration

Ch 11 - Electron Configuration. Radiant Energy. Light travels as both Waves and Packets of energy. These packets are called photons. Waves. Light is a form of Electromagnetic Radiation. EM Radiation has waves in the electric and magnetic fields. Electromagnetic waves.

ebony-donovan
Download Presentation

Ch 11 - Electron Configuration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ch 11 - Electron Configuration Radiant Energy

  2. Light travels as both Waves and Packets of energy. These packets are called photons. Waves • Light is a form of Electromagnetic Radiation. • EM Radiation has waves in the electric and magnetic fields

  3. Electromagnetic waves • Electromagnetic waves have two basic parts. • electric field • magnetic field • The fields are • perpendicular to each • other.

  4. All waves (Water or Electromagnetic) have 4 key characteristics: Amplitude Wavelength Period Frequency Waves

  5. Wave Characteristics • Amplitude. • Height of a wave from origin to a peak/crest. • Affects brightness and intensity. • Wavelength. • Distance from crest to crest. Distance for one full cycle. • Visible light: 400-750nm.

  6. Wave Characteristics • Period • time that it takes to complete a full cycle. • Measured in seconds • Frequency. • number of cycles per second. • Measured in hertz(Hz) • High frequency = high energy

  7. Wave Characteristics • Speed of light • Speed of light a constant: 3.00 X 108 m/s. • Frequency and Wavelength related by the equation:  = c / 

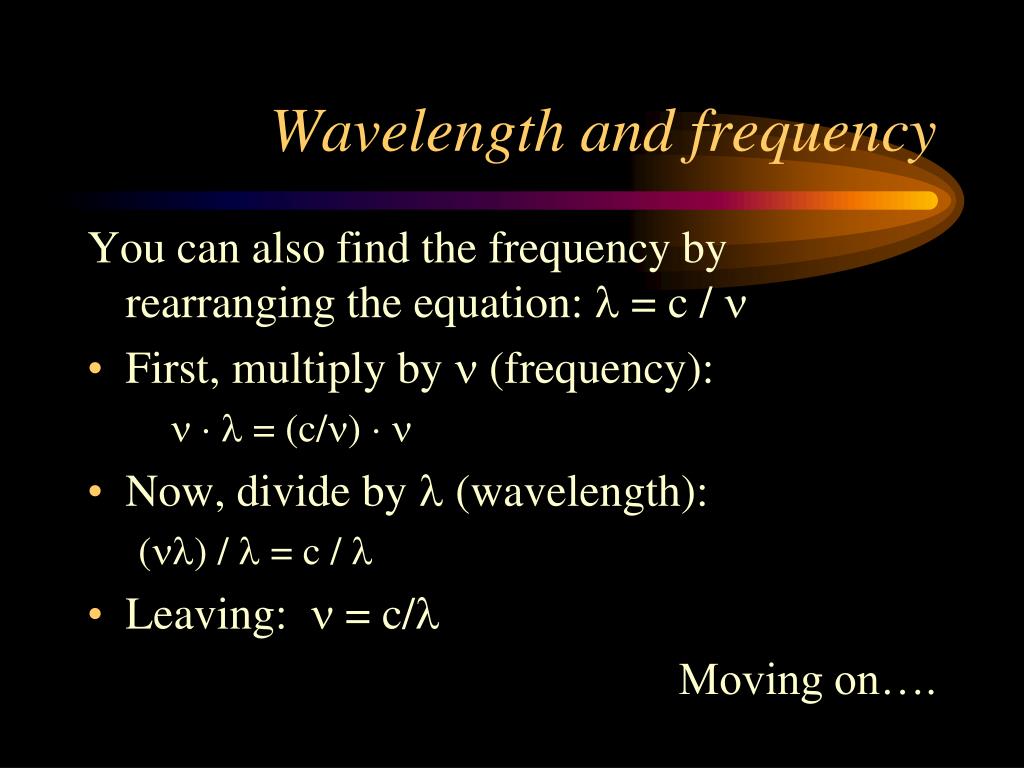

  8. Wavelength and frequency You can also find the frequency by rearranging the equation:  = c /  • First, multiply by  (frequency):    = (c/)   • Now, divide by  (wavelength): () /  = c /  • Leaving:  = c/ Moving on….

  9. Try this… Remember:  = c /  1) If the frequency of a wave is 93.1 x 106 , what is the wavelength? 2) If the wavelength of a wave is 1.54 m, what is it’s frequency?

  10. Try this… • Split up into groups of 3. • Draw one wave with wavelength 4 cm • Draw second wave with wavelength twice of the first wave. • Draw a third wave with 3 times the wavelength the first wave. • Draw 3 more waves with the same wavelengths as the first set but with an amplitude of 6 cm.

  11. Try this… • Order the waves from lowest to highest frequency. • Order the waves from lowest to highest energy. • Order the waves from lowest to highest amplitude.

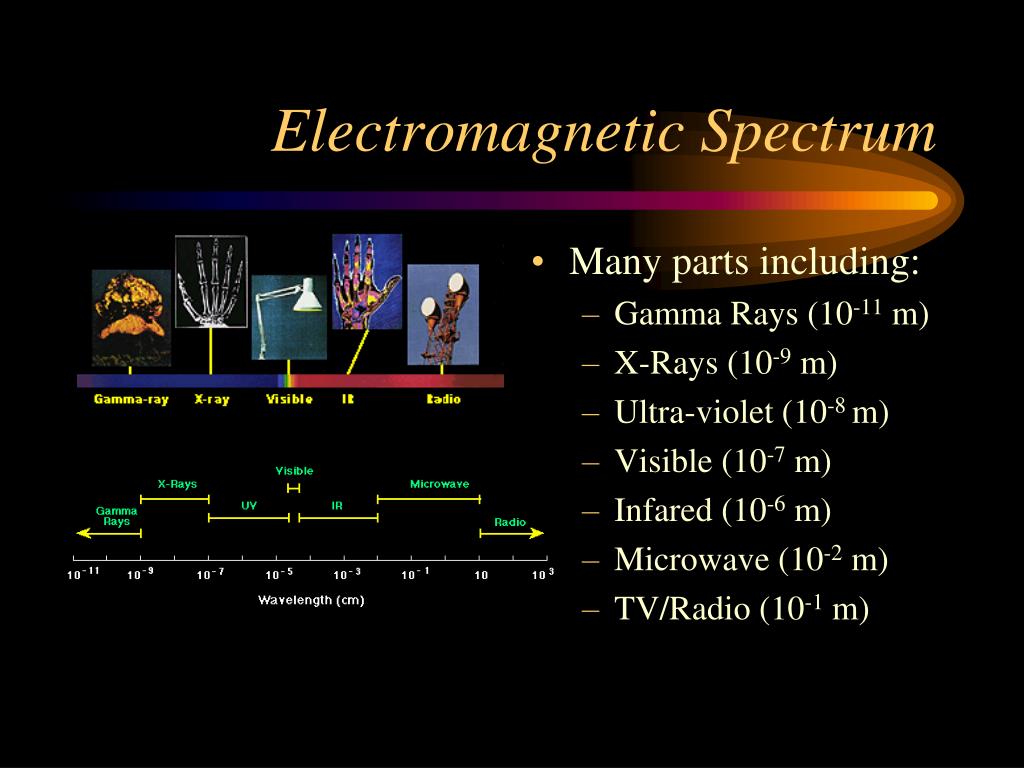

  12. Electromagnetic Spectrum • Many parts including: • Gamma Rays (10-11 m) • X-Rays (10-9 m) • Ultra-violet (10-8 m) • Visible (10-7 m) • Infared (10-6 m) • Microwave (10-2 m) • TV/Radio (10-1 m)

  13. Electromagnetic Spectrum • Visible Spectrum: ROY G BIV • Red • Orange • Yellow • Green • Blue • Indigo • Violet

  14. Electromagnetic Spectrum (once more)

  15. Wavelength practice… Remember:  = c /  For the following questions assume that the speed of light is = 3000m/s • If the frequency of a wave is 847 Hz, what is the wavelength? • If the frequency of a wave is 4,985 Hz, what is the wavelength? • If the frequency of a wave is 290 Hz, what is the wavelength? • If the frequency of a wave is 38,759 Hz, what is the wavelength? 2) If the wavelength of a wave is 1.54 m, what is it’s frequency?

  16. Wavelength practice… Remember:  = c /  For the following questions assume that the speed of light is = 3000m/s • If the wavelength of a wave is 1.54 m, what is it’s frequency? • If the wavelength of a wave is .875 m, what is it’s frequency? • If the wavelength of a wave is 3.39 m, what is it’s frequency? • If the wavelength of a wave is .657 m, what is it’s frequency?

  17. Electron Configuration Quantum Theory

  18. Wave model for light was originally accepted by scientific community. This couldn’t explain why metals heating first emitted invisible radiation and then visible radiation. Other questions included why elements only emitted certain characteristic colors of light. Early Puzzlements

  19. Ground State – when an atom is at the lowest possible energy state. Excited State – when an atom has excess energy Terminology

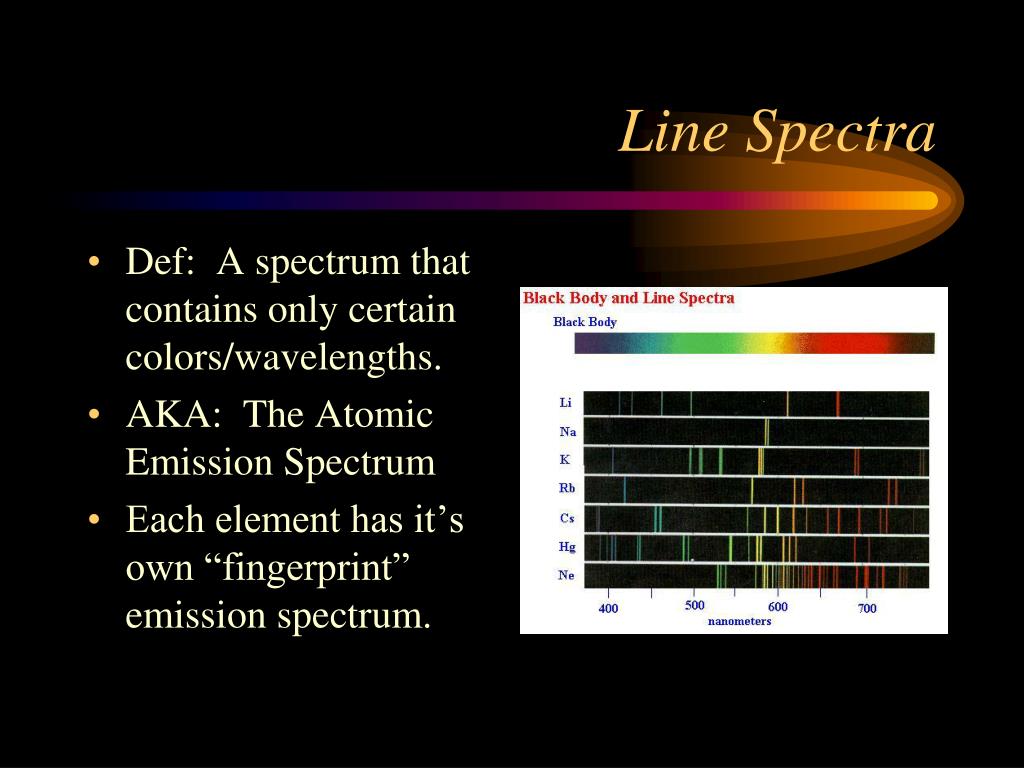

  20. Line Spectra • Def: A spectrum that contains only certain colors/wavelengths. • AKA: The Atomic Emission Spectrum • Each element has it’s own “fingerprint” emission spectrum.

  21. Line Spectra • Assume you “energize” some H atoms. • There are only certain types of photons emitted. • We see only selected colors that correspond to these photons energy levels.

  22. Line Spectra • Each photon has a frequency that is proportional to the change in energy of the electron.

  23. Plank’s Theory • Every object can only absorb or emit a fundamental amount of energy. • This amount is called a quantum. • The amount is like moving up or down steps.

  24. Plank’s Theory • Plank’s Theory is based on the relationship between frequency and the energy of the particle. • Energy = h x frequency • E = h • Plank’s Constant: • h = 6.6262 X 10-34 J-s

  25. Dual Nature of Radiant Energy • Proven in 1923 by Arthur Compton • Showed photon could collide with an electron like tiny balls. • Summary: • Light behaves as a wave ( = c/) • Light behaves as a particle (E = h)

  26. Electron Configuration Another Look at the Atom

  27. The Bohr Model • Bohr drew the connection between Rutherford's model of the atom and Planks idea of quantization. • Energy levels labeled with Quantum Numbers (n) • Ground state, or lowest energy level – n=1 • Excited State – level of higher energy

  28. Matter Waves • If energy has dual nature, why not matter? • De Broglie thought so. • Matter Waves – the wavelike behavior of waves. • Didn’t stand without experimental proof • Davison and Germer proved this with experiments in 1927. • Why don’t we see these matter waves? Mass must be very small to observe wavelength.

  29. Heisenberg Uncertainty • Uncertainty Principle • The position and momentum of a moving object cannot simultaneously be measured and known exactly. • Translation: • Cannot know exactly where and how fast an electron is moving at the same time.

  30. Electron Configurations A New Approach to the Atom

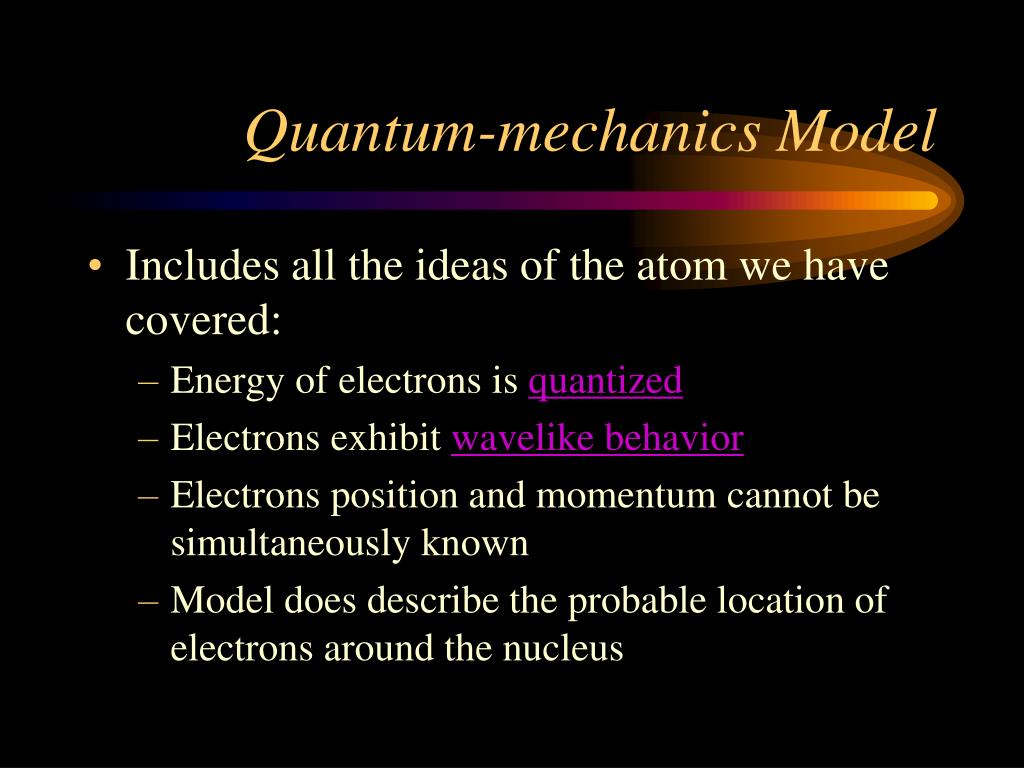

  31. Quantum-mechanics Model • Includes all the ideas of the atom we have covered: • Energy of electrons is quantized • Electrons exhibit wavelike behavior • Electrons position and momentum cannot be simultaneously known • Model does describe the probable location of electrons around the nucleus

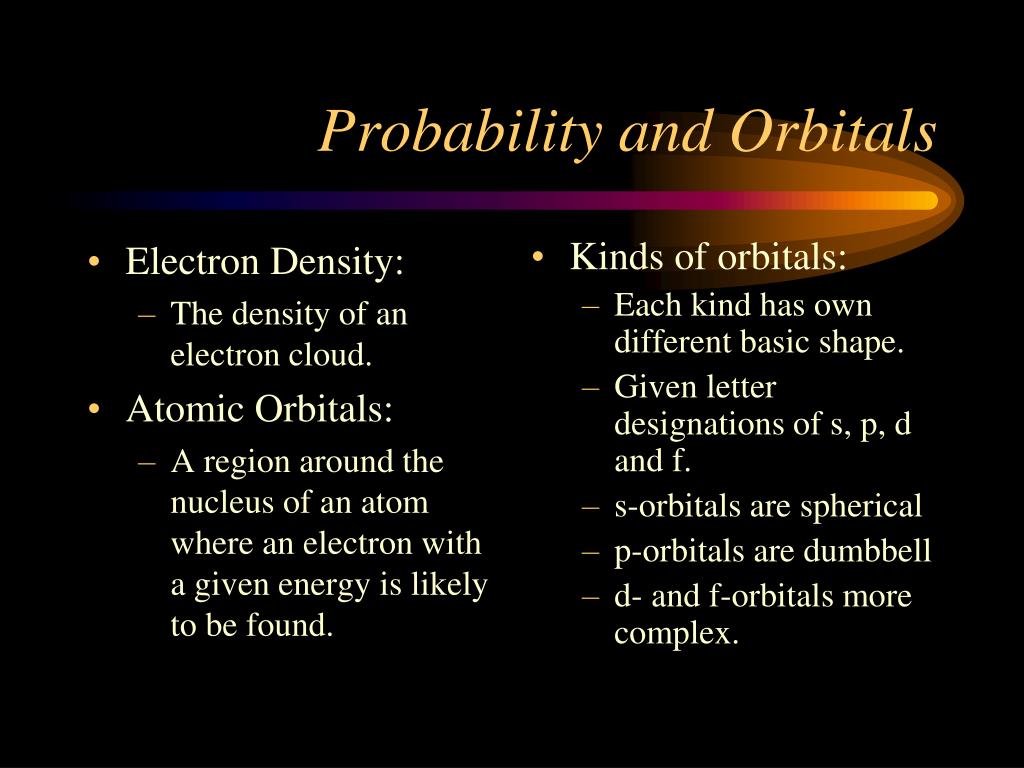

  32. Electron Density: The density of an electron cloud. Atomic Orbitals: A region around the nucleus of an atom where an electron with a given energy is likely to be found. Kinds of orbitals: Each kind has own different basic shape. Given letter designations of s, p, d and f. s-orbitals are spherical p-orbitals are dumbbell d- and f-orbitals more complex. Probability and Orbitals

  33. Electron Density: The density of an electron cloud. Atomic Orbitals: A region around the nucleus of an atom where an electron with a given energy is likely to be found. Orbitals are nothing like orbits of a planet! Probability and Orbitals

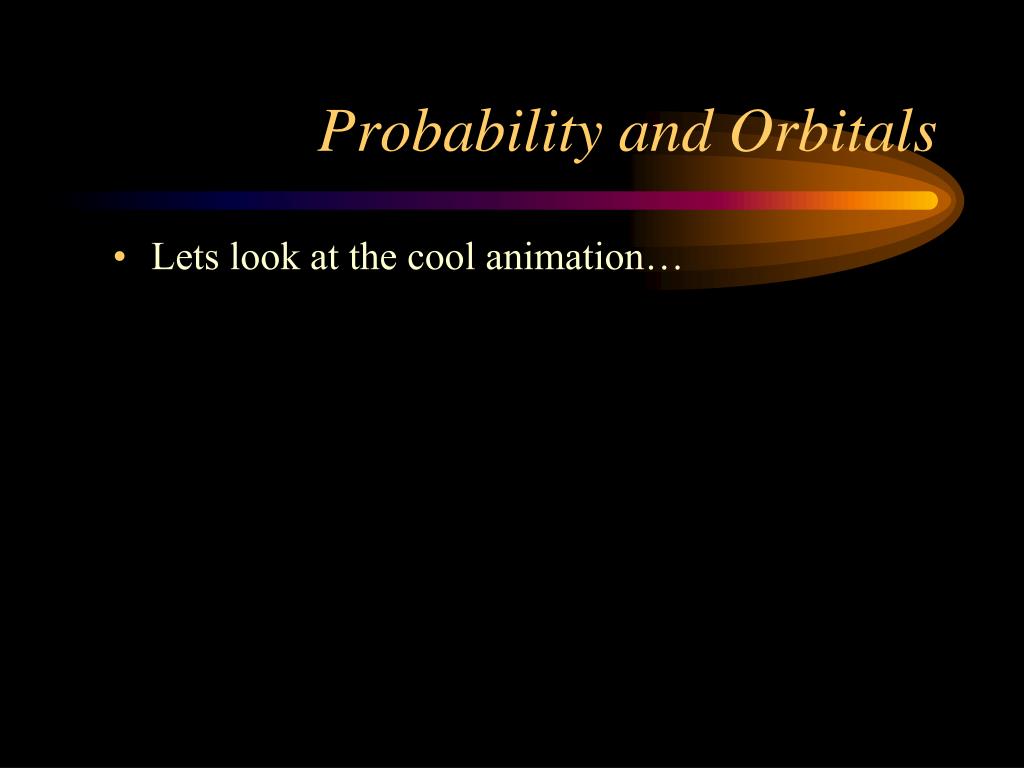

  34. Lets look at the cool animation… Probability and Orbitals

  35. Orbitlas and Energy • Principle energy levels (n) can be divided into sublevels. • Number of sublevels is equal to the number of the principle energy level.

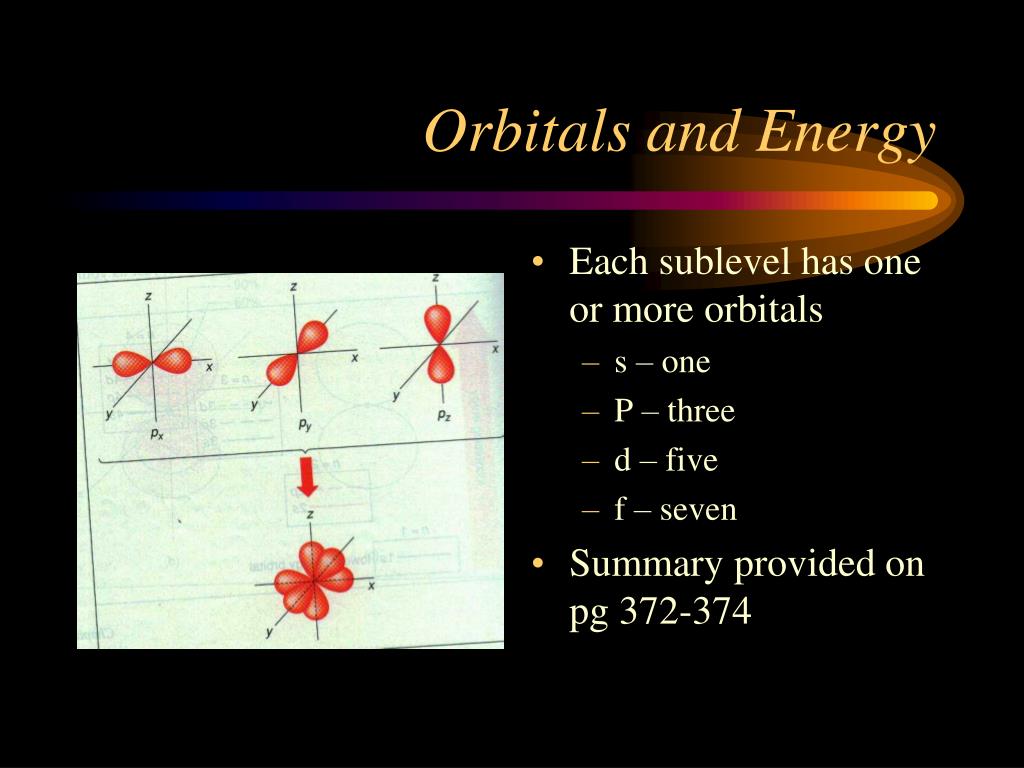

  36. Orbitals and Energy • Each sublevel has one or more orbitals • s – one • P – three • d – five • f – seven • Summary provided on pg 372-374

  37. Electron Spin • Electrons have two spins: • Up or clockwise • Down or counterclockwise • Only two electrons (one of each spin) can occupy an orbital. These electrons are said to be “paired”.

  38. Electron Configurations Electron Configurations

  39. Electron Configurations • Notation which shows how the electrons are distributed among the various atomic orbital and energy levels. 1s2

  40. How it works 1s2 • “1” refers to the principle quantum number “n=1” • This “n=1” stands for the energy level • The electrons occupy the first energy level of the atom

  41. How it works 1s2 • “s” refers to the angular momentum. • Tells us electrons occupy an “s” or spherical orbital

  42. How it works 1s2 • “2” refers to the total number of electrons in that orbital (s)

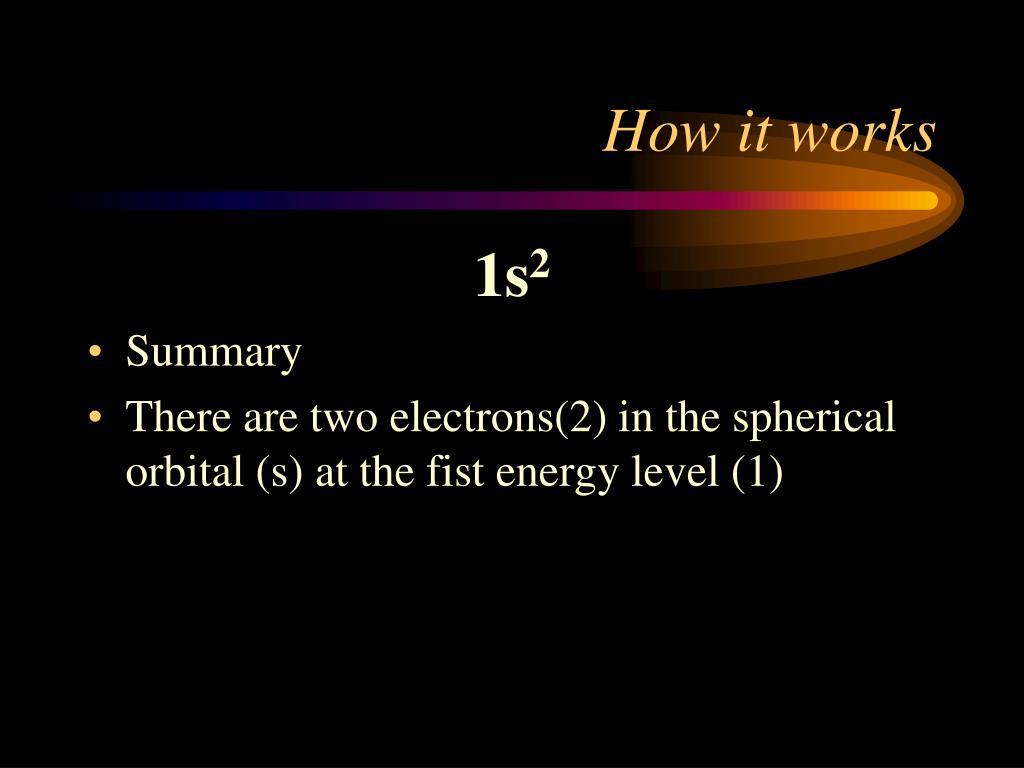

  43. How it works 1s2 • Summary • There are two electrons(2) in the spherical orbital (s) at the fist energy level (1)

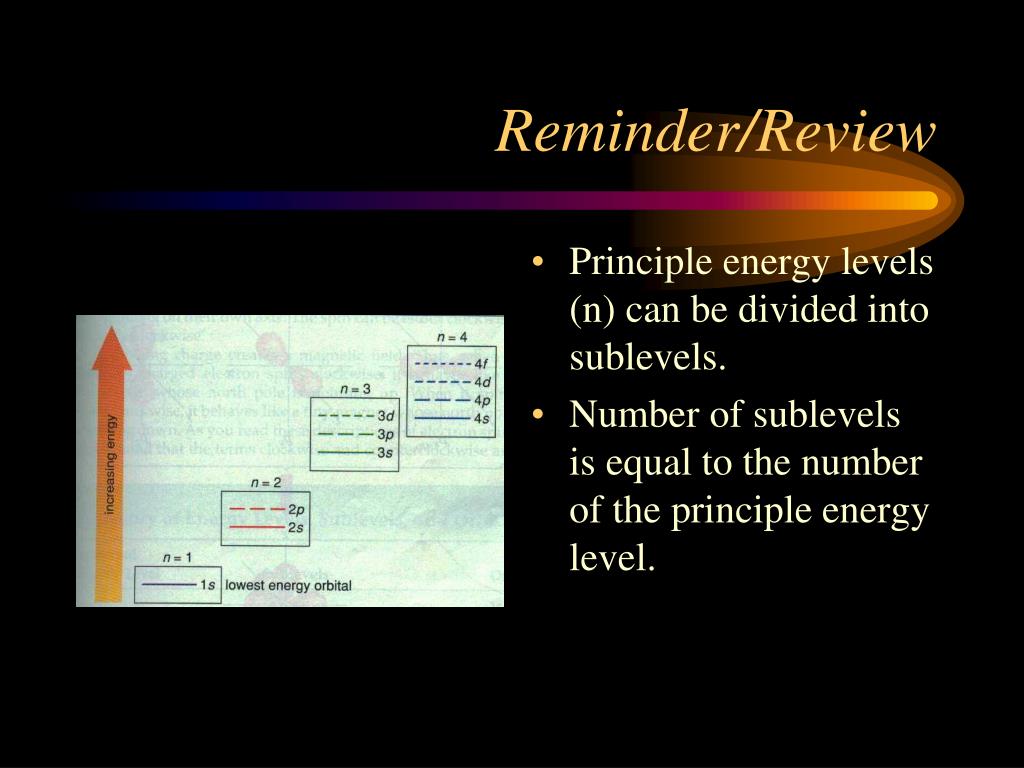

  44. Reminder/Review • Principle energy levels (n) can be divided into sublevels. • Number of sublevels is equal to the number of the principle energy level.

  45. Orbitals • An orbital is a space that can be occupied by up to two electrons. • Each sublevel holds different number of orbitals.

  46. Orbitals • To calculate # of orbitals: • # of orbitals = n2 • ex. Thrid energy level (principle level) (n=3) • # of orbitals = 32 • # of orbitals = 9 • 3 sublevels (s+p+d) => (1+3+5), see above chart

  47. Orbitals • To calculate # of electrons: • # of electrons = 2n2 • ex. fourth energy level (principle level) (n=4) • # of orbitals = 2(4)2 • # of orbitals = 32

  48. Filling Sublevels with Electrons • There is a specific order that energy sublevels fill up. Follow the chart. • Or…. • Read the PT like a book!

  49. Filling Sublevels with Electrons • Read the PT like a book! • Remember: • d elements move up 1 principle # • f elements move up 2 principle #

  50. Practice
