Shells system calls and signals

Shells, System Calls, and Signals

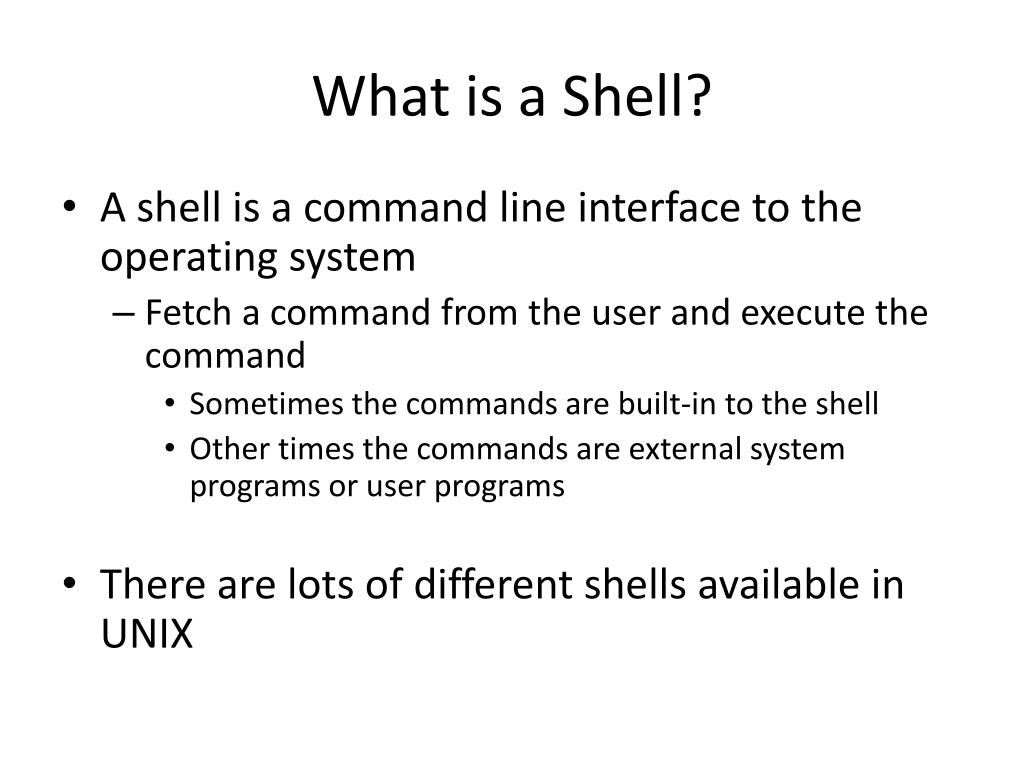

What is a shell

What is a Shell?

  • A shell is a command line interface to the operating system

    • Fetch a command from the user and execute the command

      • Sometimes the commands are built-in to the shell

      • Other times the commands are external system programs or user programs

  • There are lots of different shells available in UNIX


Bourne shell

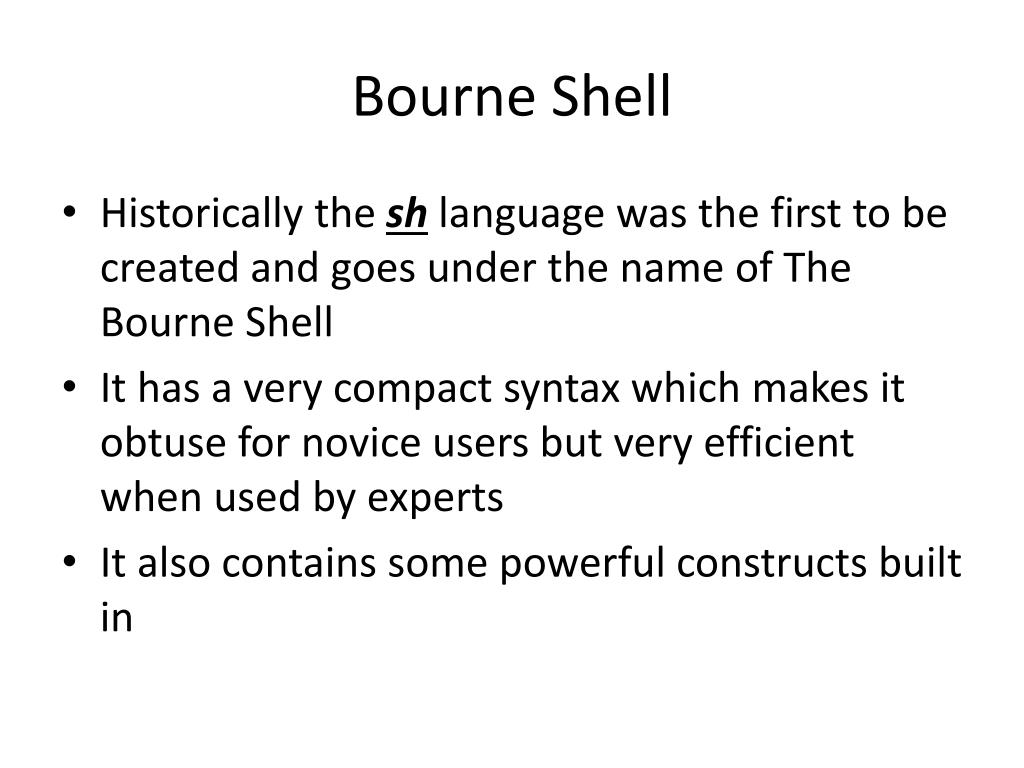

Bourne Shell

  • Historically the sh language was the first to be created and goes under the name of The Bourne Shell

  • It has a very compact syntax which makes it obtuse for novice users but very efficient when used by experts

  • It also contains some powerful constructs built in

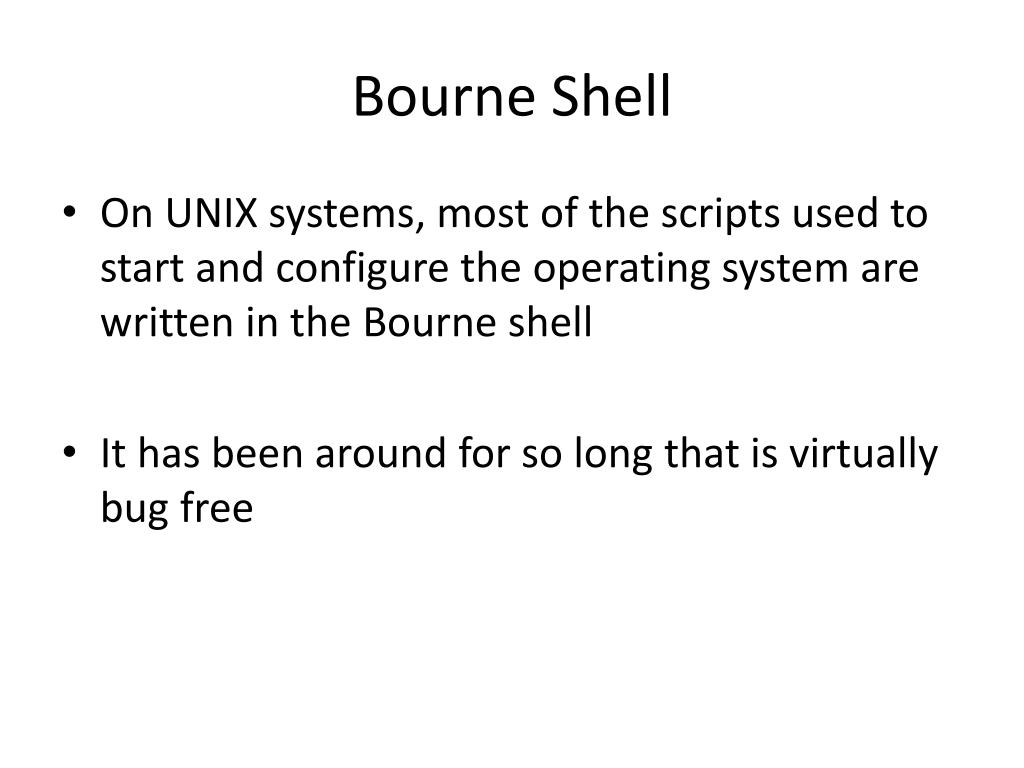

Bourne shell1

Bourne Shell

  • On UNIX systems, most of the scripts used to start and configure the operating system are written in the Bourne shell

  • It has been around for so long that is virtually bug free


C shell

C Shell

  • The C Shell (csh)

    • Similar syntactical structures to the C language

  • The UNIX man pages contain almost twice as much information for the C Shell as the pages for the Bourne Shell, leading most users to believe that it is twice as good


C shell1

C Shell

  • Actually, there are several compromises within the C Shell which makes using the language for serious work difficult

  • (Check the list of bugs at the end of the man pages!).


C shell2

C Shell

  • The real reason why the C Shell is so popular is that it is usually selected as the default login shell for most users

  • The features that guarantee its continued use in this arena are aliases and history lists


Tcsh an enhanced c shell

tcsh – An Enhanced C Shell

  • An enhanced but completely compatible version of the Berkeley UNIX C Shell, csh

  • It is a command language interpreter usable both as an interactive login shell and a shell script command processor

  • Uses a C-like syntax


Tcsh an enhanced c shell1

tcsh – An Enhanced C Shell

  • It includes:

    • Command-line editor

    • Programmable word completion

    • Spelling correction

    • History mechanism

    • Job control


Shells system calls and signals

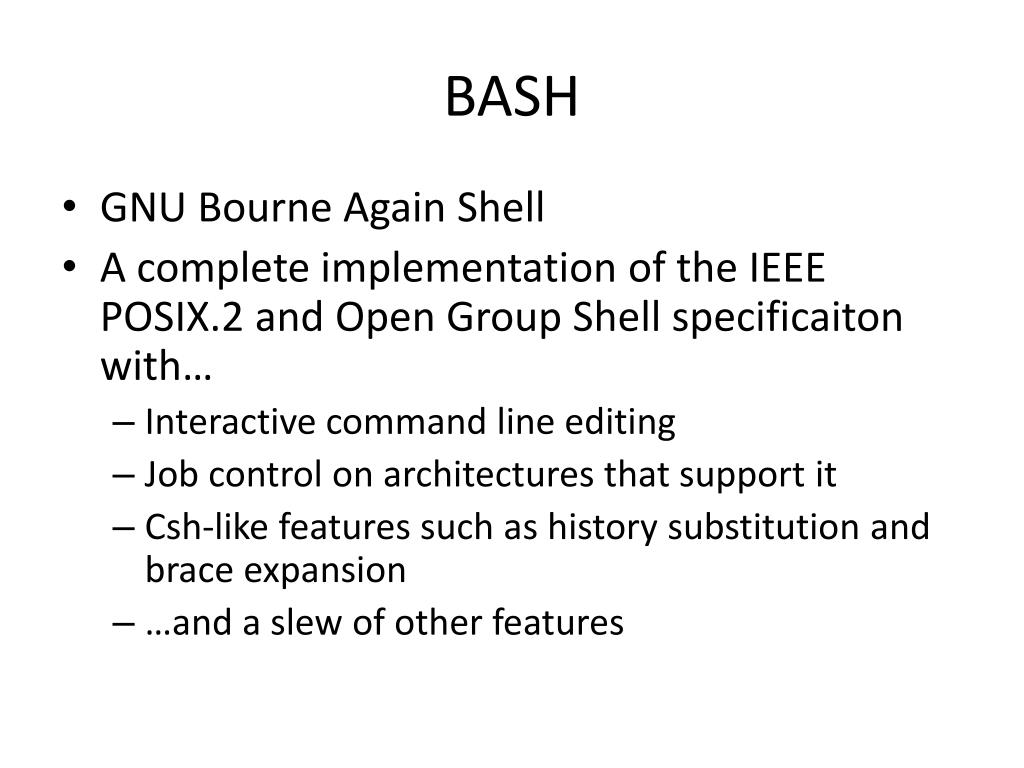

BASH

  • GNU Bourne Again Shell

  • A complete implementation of the IEEE POSIX.2 and Open Group Shell specificaiton with…

    • Interactive command line editing

    • Job control on architectures that support it

    • Csh-like features such as history substitution and brace expansion

    • …and a slew of other features


Korne shell

Korne Shell

  • The ksh was made famous by IBM’s AIX version of UNIX

  • The Korne Shell can be thought of as a superset of the Borne Shell as it contains the whole of the Borne Shell world within its own syntax rules


Processes and the cwd

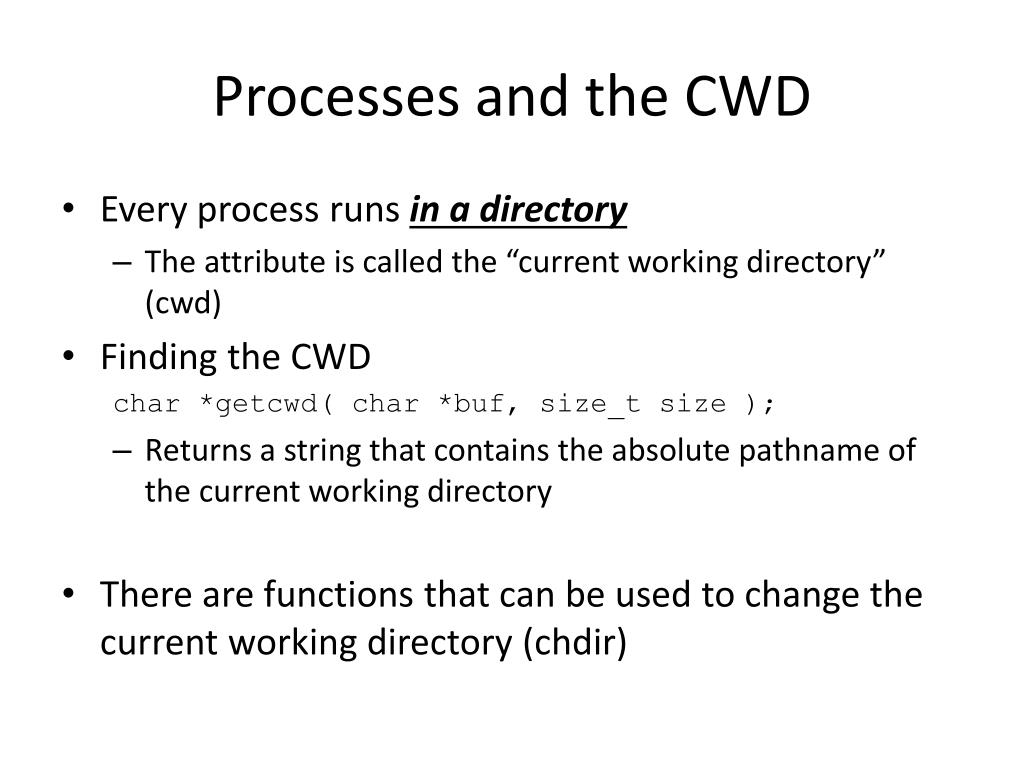

Processes and the CWD

  • Every process runs in a directory

    • The attribute is called the “current working directory” (cwd)

  • Finding the CWD

    char *getcwd( char *buf, size_t size );

    • Returns a string that contains the absolute pathname of the current working directory

  • There are functions that can be used to change the current working directory (chdir)


Other process attributes

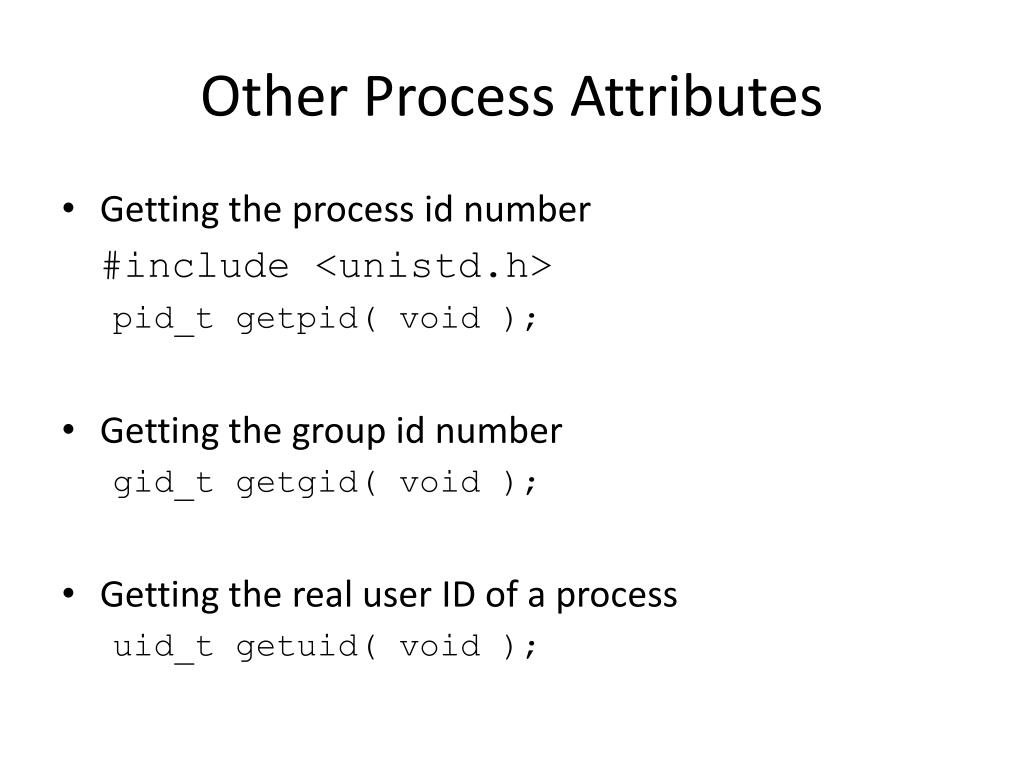

Other Process Attributes

  • Getting the process id number

    #include <unistd.h>

    pid_t getpid( void );

  • Getting the group id number

    gid_t getgid( void );

  • Getting the real user ID of a process

    uid_t getuid( void );

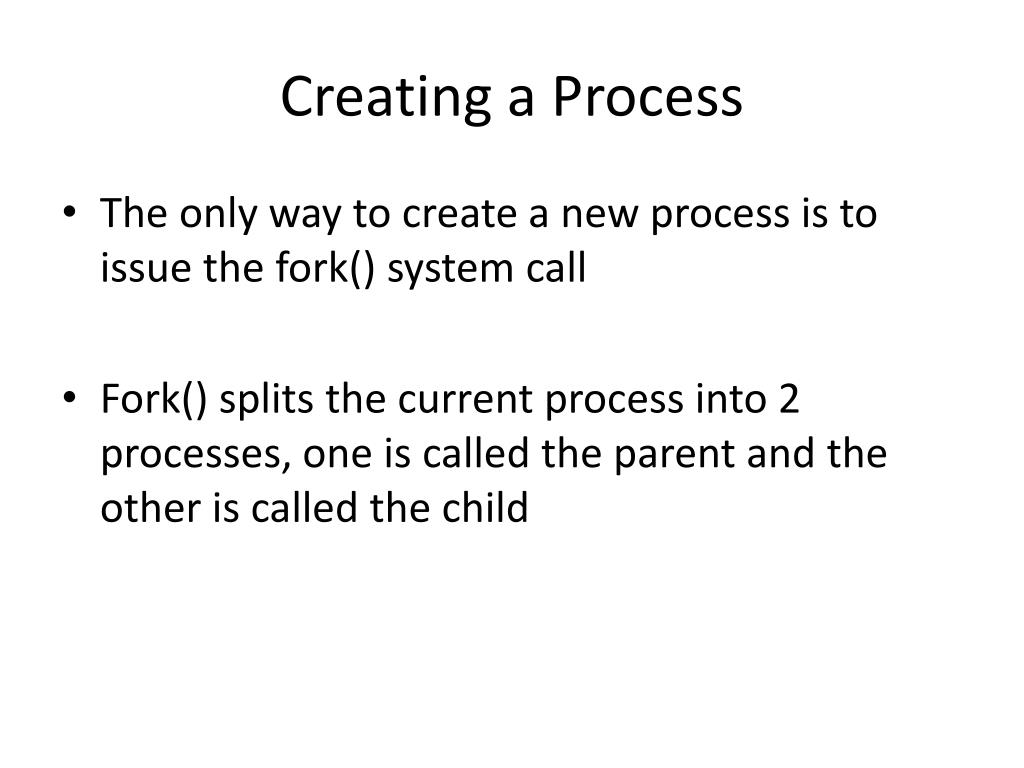

Creating a process

Creating a Process

  • The only way to create a new process is to issue the fork() system call

  • Fork() splits the current process into 2 processes, one is called the parent and the other is called the child


Parent and child processes

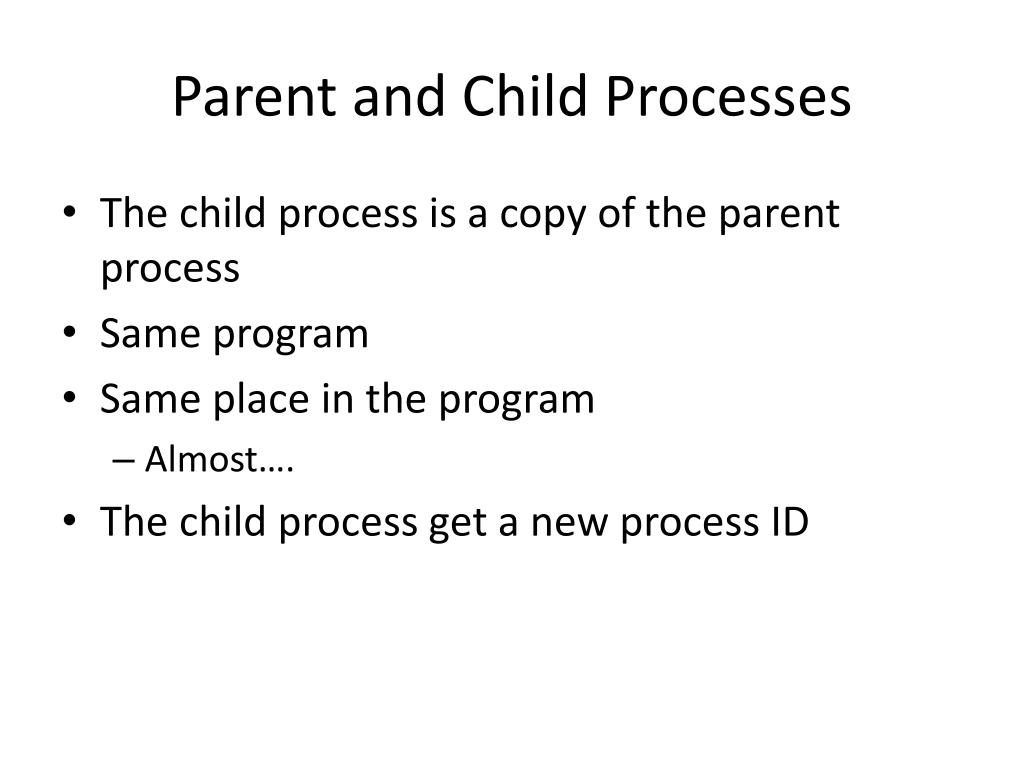

Parent and Child Processes

  • The child process is a copy of the parent process

  • Same program

  • Same place in the program

    • Almost….

  • The child process get a new process ID

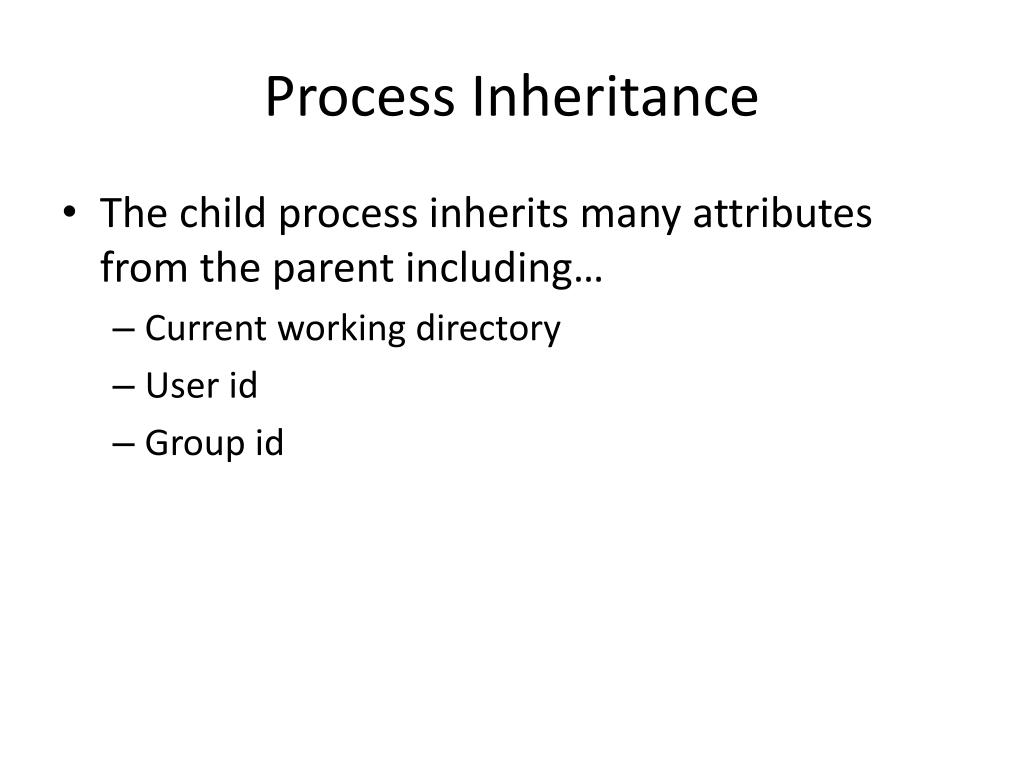

Process inheritance

Process Inheritance

  • The child process inherits many attributes from the parent including…

    • Current working directory

    • User id

    • Group id


The fork system call

The fork() system call

#include <unistd.h>

Pid_t fork( void );

  • fork() returns a process id (small unsigned integer)

  • fork() returns twice!!!!!!!

    • In the parent process, fork returns the id of the child process

    • In the child, fork returns a 0


Example

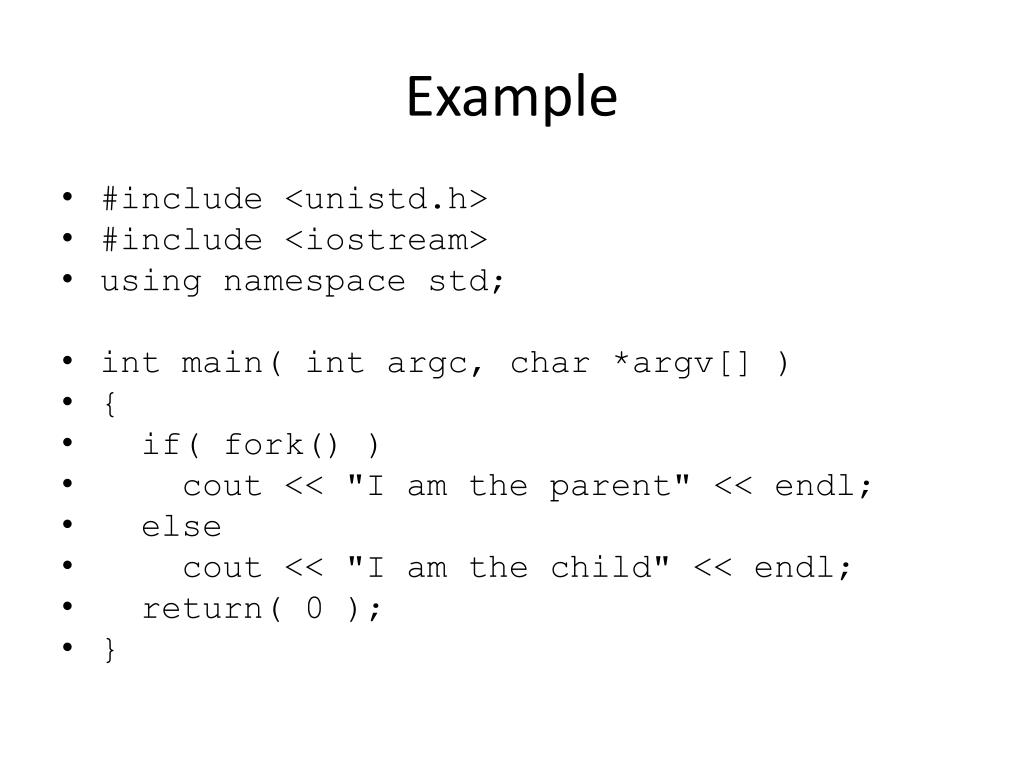

Example

  • #include <unistd.h>

  • #include <iostream>

  • using namespace std;

  • int main( int argc, char *argv[] )

  • {

  • if( fork() )

  • cout << "I am the parent" << endl;

  • else

  • cout << "I am the child" << endl;

  • return( 0 );

  • }


Bad example don t do this

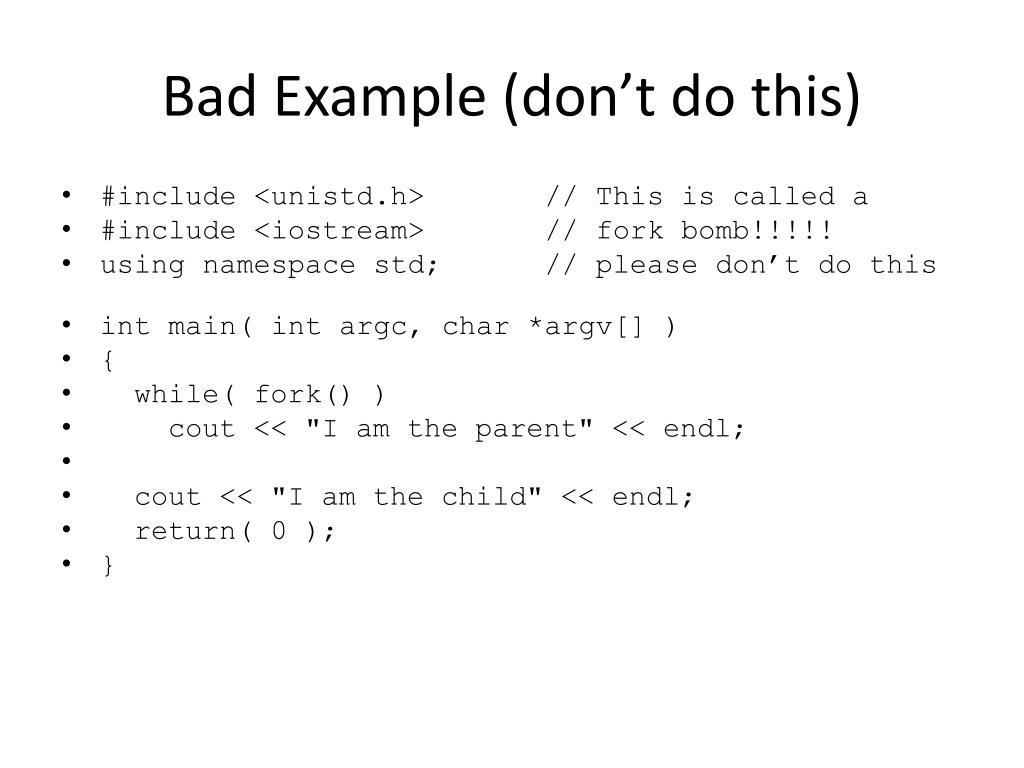

Bad Example (don’t do this)

  • #include <unistd.h> // This is called a

  • #include <iostream> // fork bomb!!!!!

  • using namespace std; // please don’t do this

  • int main( int argc, char *argv[] )

  • {

  • while( fork() )

  • cout << "I am the parent" << endl;

  • cout << "I am the child" << endl;

  • return( 0 );

  • }


Switching programs

Switching Programs

  • fork() is the only way to create a new process

  • This would be almost useless if there was not a way to switch what program is associated with a process

  • The exec() system call is used to start a new program


Shells system calls and signals

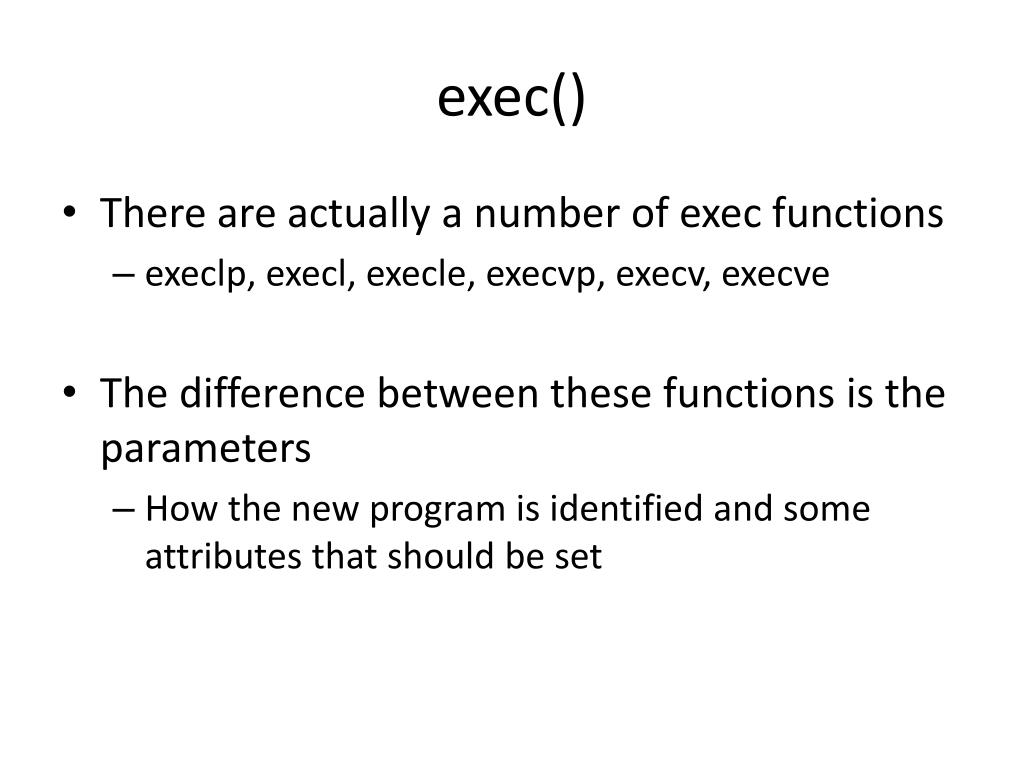

exec()

  • There are actually a number of exec functions

    • execlp, execl, execle, execvp, execv, execve

  • The difference between these functions is the parameters

    • How the new program is identified and some attributes that should be set


The exec family

The exec Family

  • When you call a member of the exec family, you give it the pathname of the executable file that you want to run

  • If all goes well, exec will never return!!!

  • The process becomes the new program!!!


Execl

Execl()

  • int execl(char *path,

    char *arg0,

    char *arg1,

    …,

    char *argN,

    (char *) 0);

    execl( “/home/bin/foobar”, “alpha”, “beta”, NULL );


A complete execl example

A Complete execl Example

  • #include <unistd.h>

  • #include <iostream>

  • using namespace std;

  • int main( int argc, char *argv[] )

  • {

  • char buf[ 1000 ];

  • cout << "Here are the files in " << getcwd( buf, 1000 ) << endl;

  • execl( "/bin/ls", "ls", "-al", NULL );

  • cout << "If all goes well, this line will not be printed!!!" << endl;

  • return( 0 );

  • }


Fork and exec together

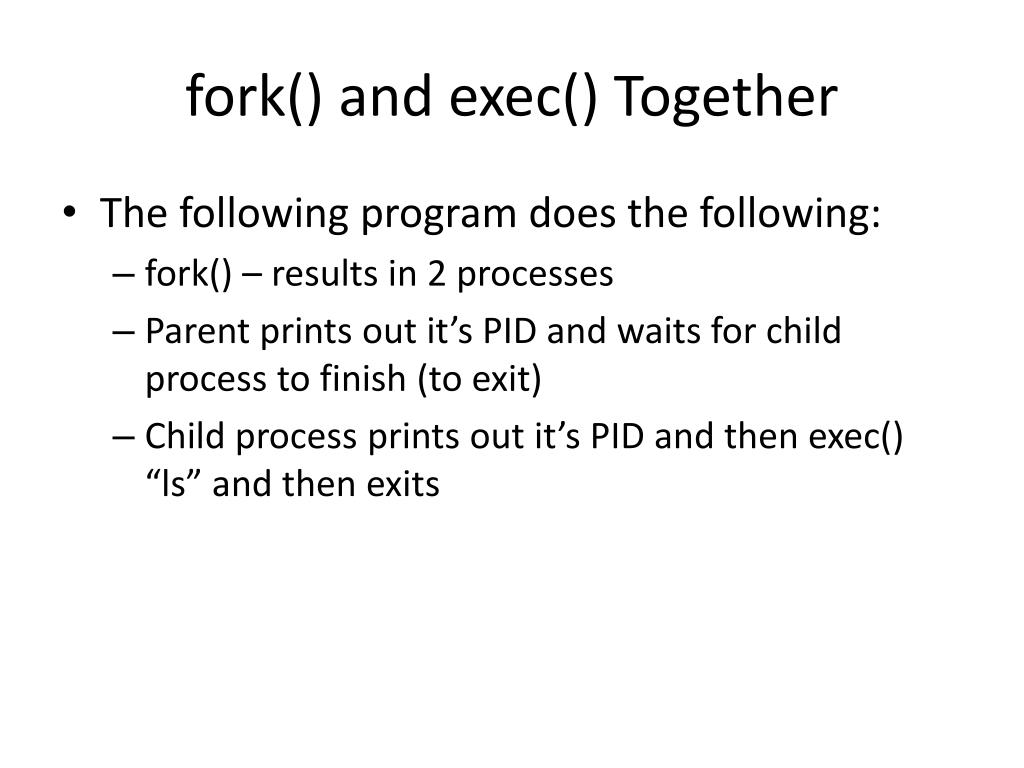

fork() and exec() Together

  • The following program does the following:

    • fork() – results in 2 processes

    • Parent prints out it’s PID and waits for child process to finish (to exit)

    • Child process prints out it’s PID and then exec() “ls” and then exits

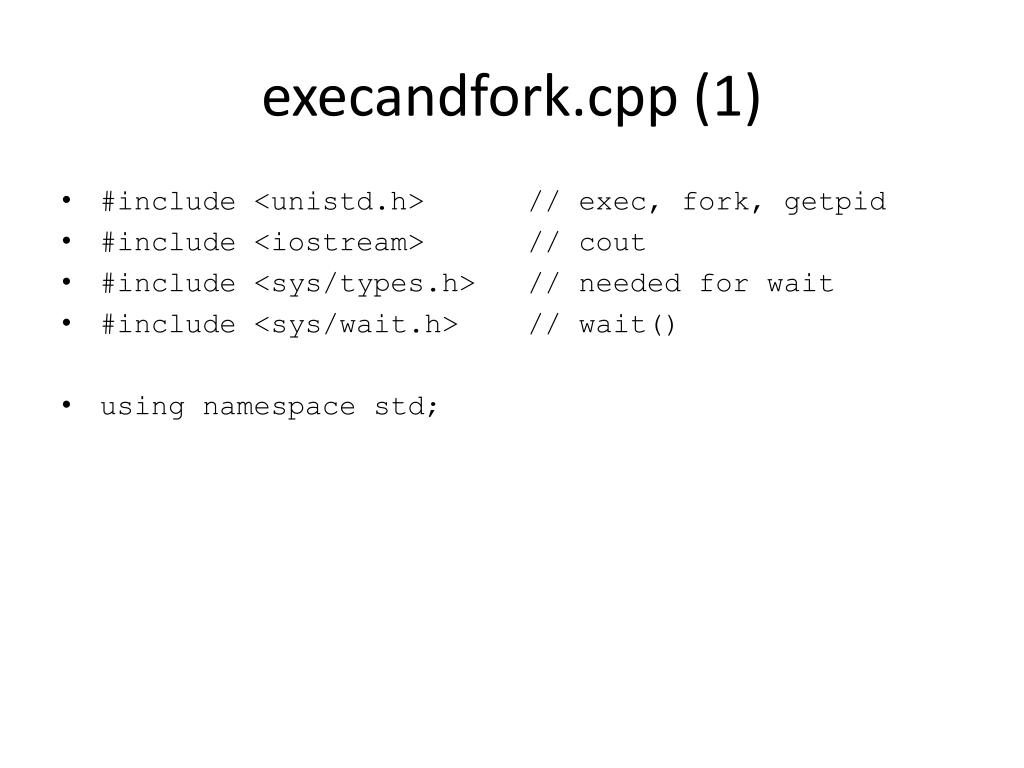

Execandfork cpp 1

execandfork.cpp (1)

  • #include <unistd.h> // exec, fork, getpid

  • #include <iostream> // cout

  • #include <sys/types.h> // needed for wait

  • #include <sys/wait.h> // wait()

  • using namespace std;


Execandfork cpp 2

execandfork.cpp (2)

  • void child( void )

  • {

  • int pid = getpid();

  • cout << "CHILD: Child process PID is " << pid << endl;

  • cout << "CHILD: Child process now ready to exec ls" << endl;

  • execl( "/bin/ls", "ls", NULL );

  • }


Execandfork cpp 3

execandfork.cpp (3)

  • void parent( void )

  • {

  • int pid = getpid();

  • int stat;

  • cout << "PARENT: Parent process PID is " << pid << endl;

  • cout << "PARENT: Parent waiting for child" << endl;

  • wait( &stat );

  • cout << "PARENT: Child is done. Parent returning" << endl;

  • }


Execandfork cpp 4

execandfork.cpp (4)

  • int main( int argc, char *argv[] )

  • {

  • cout << "MAIN: Starting fork system call" << endl;

  • if( fork() )

  • parent();

  • else

  • child();

  • cout << "MAIN: Done" << endl;

  • return( 0 );

  • }


Execandfork cpp output

execandfork.cpp (output)

neptune.cs.kent.edu] {58}% a.out

MAIN: Starting fork system call

CHILD: Child process PID is 32557

CHILD: Child process now ready to exec ls

PARENT: Parent process PID is 32556

PARENT: Parent waiting for child

a.out lowcost_DB_NOW.pdf Project 1.pdf

asc mail public_html

Backup MASC Software

bin MPISpawn2 ZephyrDemo

hybrid_parallel_system.pdf Parallaxis

icp_fall2004_prj4.txt Pictures

PARENT: Child is done. Parent returning

MAIN: Done

neptune.cs.kent.edu] {59}%


A more concise example

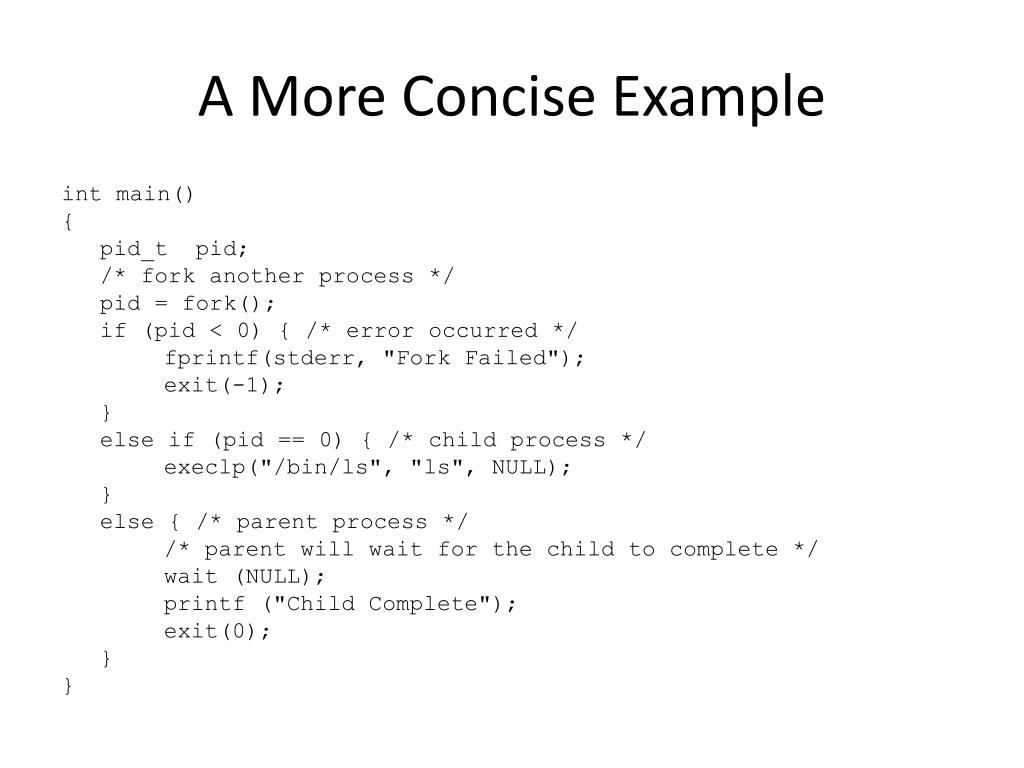

A More Concise Example

int main()

{

pid_t pid;

/* fork another process */

pid = fork();

if (pid < 0) { /* error occurred */

fprintf(stderr, "Fork Failed");

exit(-1);

}

else if (pid == 0) { /* child process */

execlp("/bin/ls", "ls", NULL);

}

else { /* parent process */

/* parent will wait for the child to complete */

wait (NULL);

printf ("Child Complete");

exit(0);

}

}


System calls for files and directories

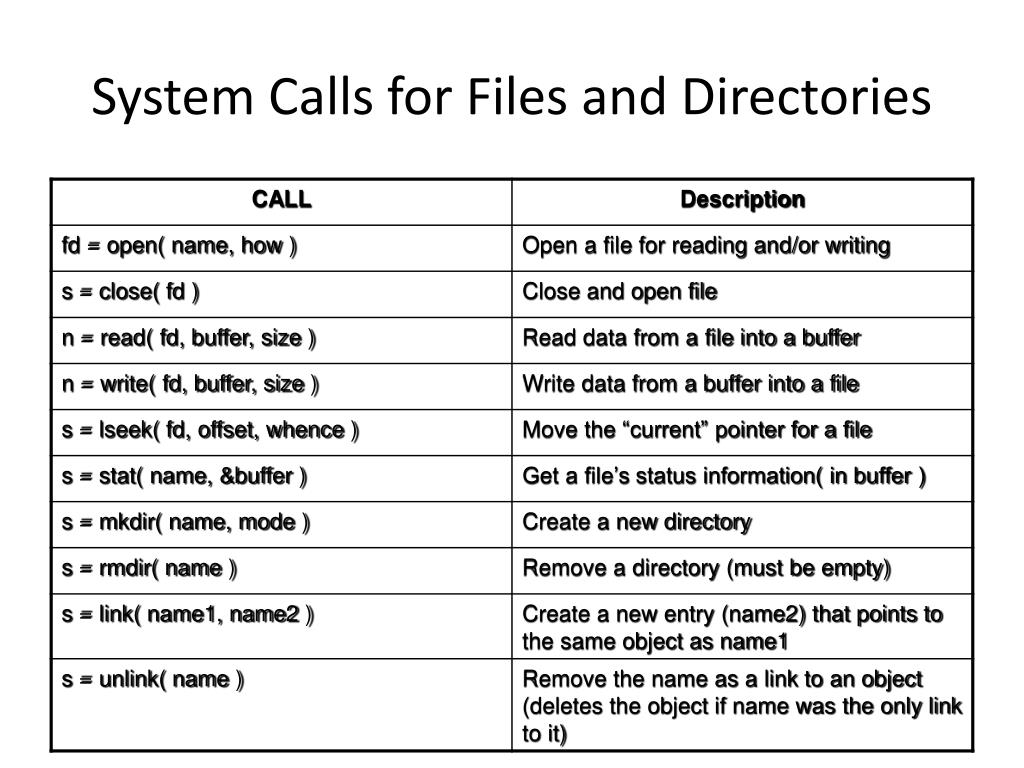

System Calls for Files and Directories


More system calls

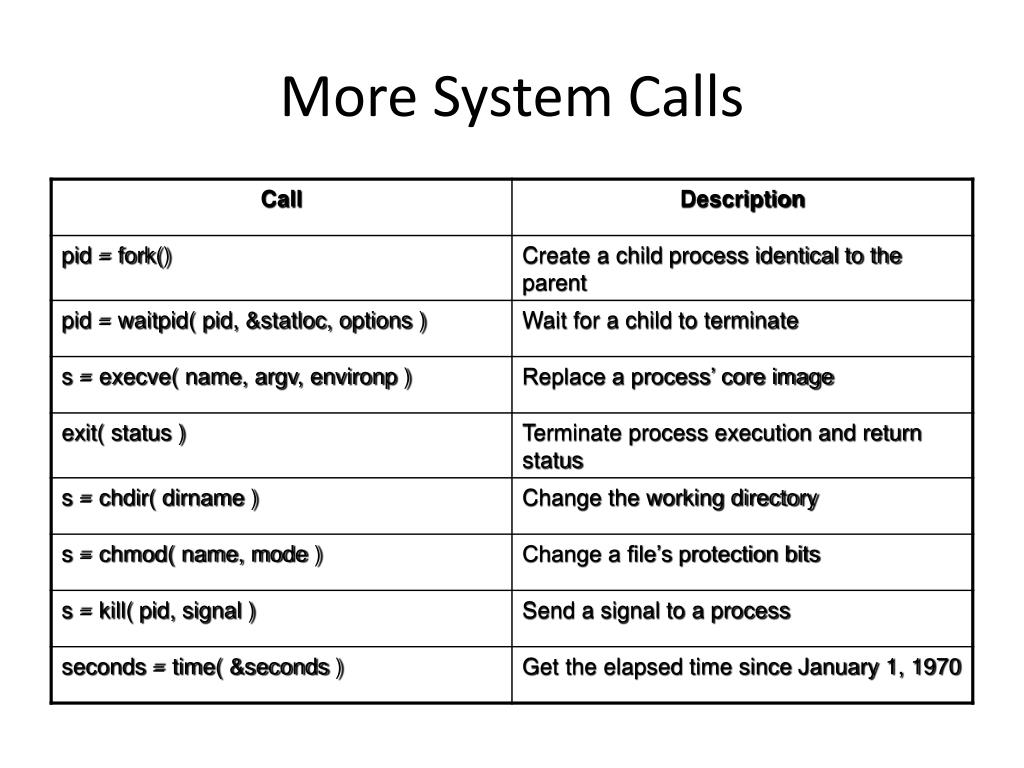

More System Calls


A simple shell

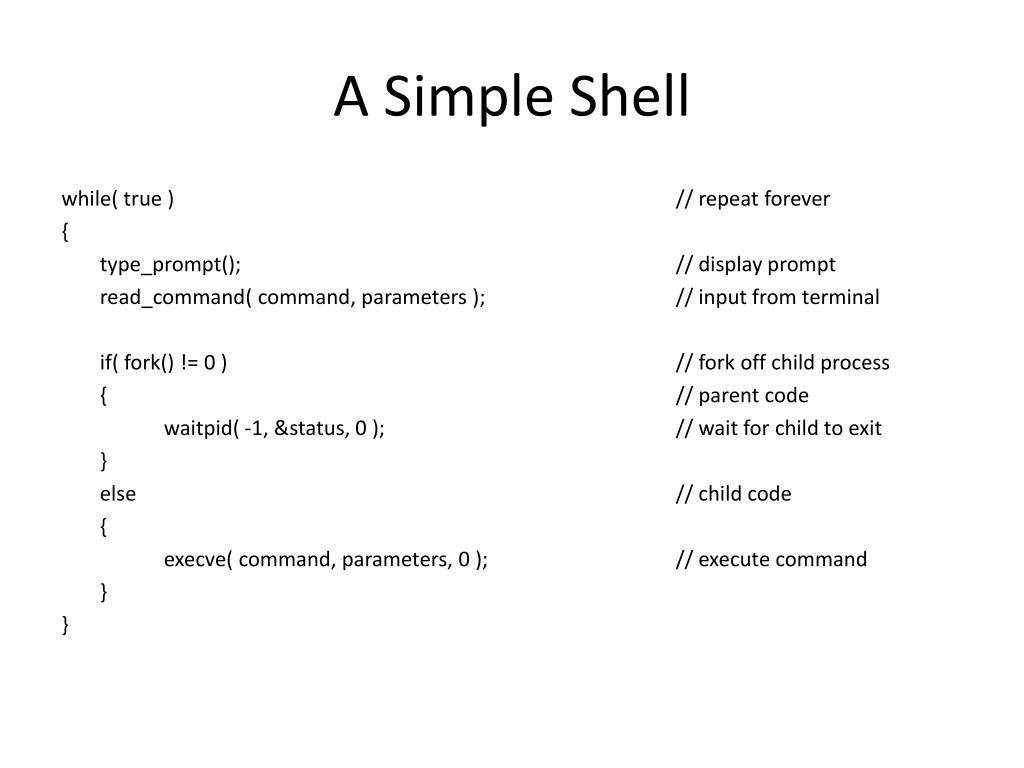

A Simple Shell

while( true )// repeat forever

{

type_prompt();// display prompt

read_command( command, parameters );// input from terminal

if( fork() != 0 )// fork off child process

{// parent code

waitpid( -1, &status, 0 );// wait for child to exit

}

else// child code

{

execve( command, parameters, 0 );// execute command

}

}


Signaling processes

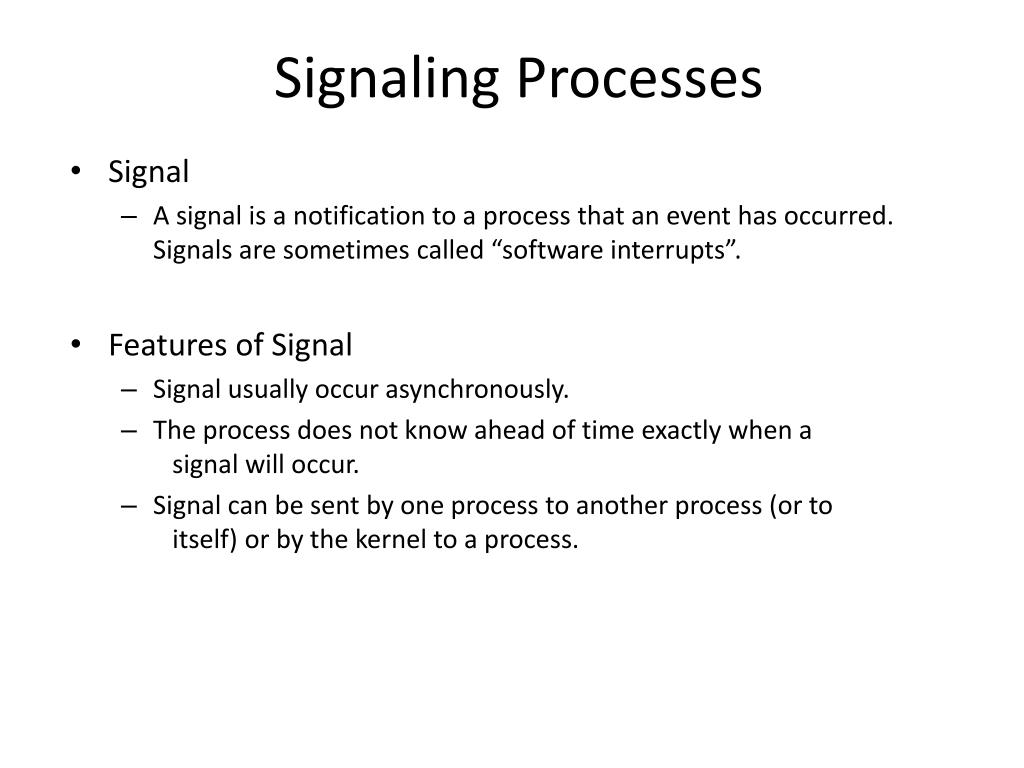

Signaling Processes

  • Signal

    • A signal is a notification to a process that an event has occurred. Signals are sometimes called “software interrupts”.

  • Features of Signal

    • Signal usually occur asynchronously.

    • The process does not know ahead of time exactly when a signal will occur.

    • Signal can be sent by one process to another process (or to itself) or by the kernel to a process.


Sources for generating signals

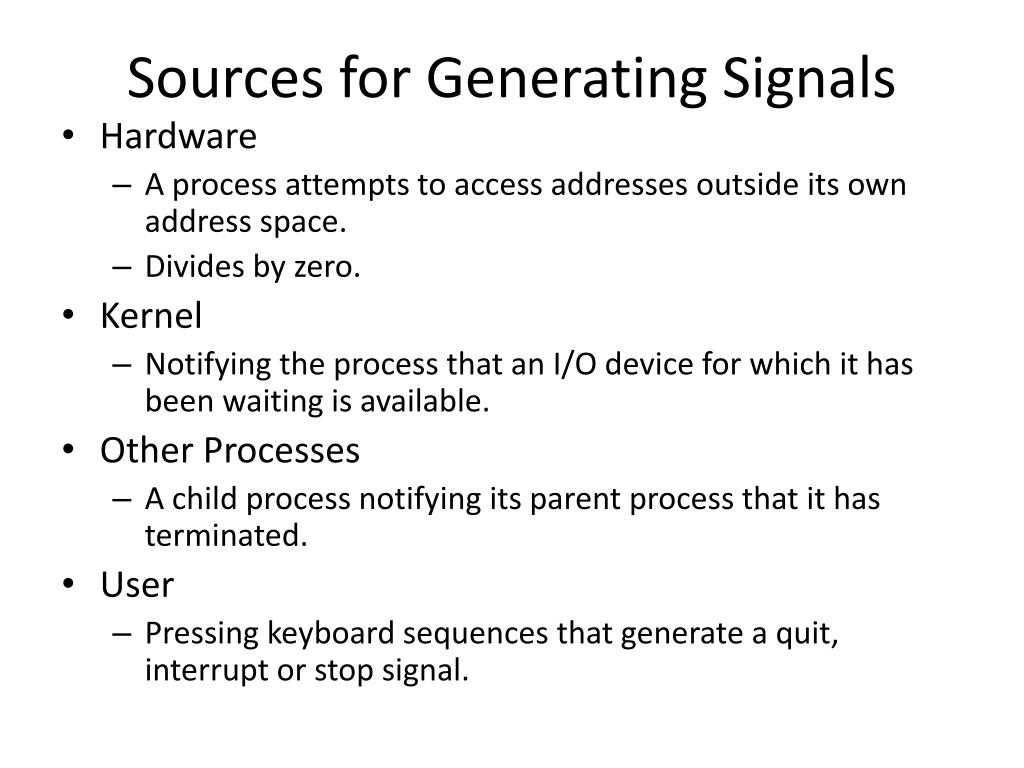

Sources for Generating Signals

  • Hardware

    • A process attempts to access addresses outside its own address space.

    • Divides by zero.

  • Kernel

    • Notifying the process that an I/O device for which it has been waiting is available.

  • Other Processes

    • A child process notifying its parent process that it has terminated.

  • User

    • Pressing keyboard sequences that generate a quit, interrupt or stop signal.


Three courses of action

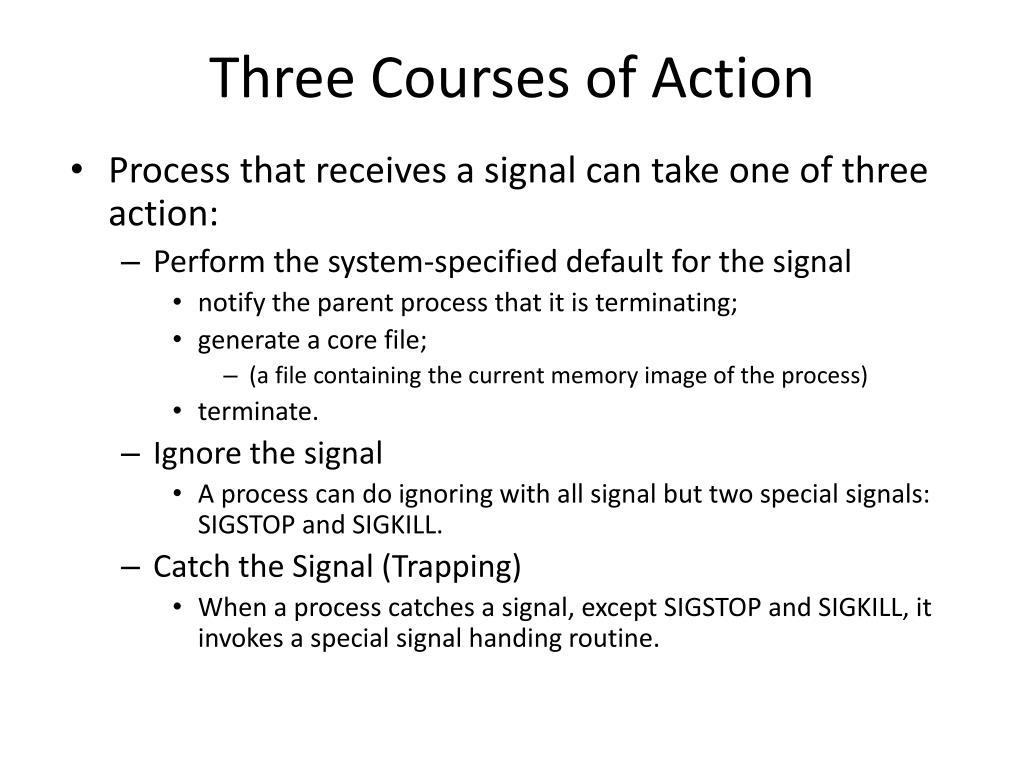

Three Courses of Action

  • Process that receives a signal can take one of three action:

    • Perform the system-specified default for the signal

      • notify the parent process that it is terminating;

      • generate a core file;

        • (a file containing the current memory image of the process)

      • terminate.

    • Ignore the signal

      • A process can do ignoring with all signal but two special signals: SIGSTOP and SIGKILL.

    • Catch the Signal (Trapping)

      • When a process catches a signal, except SIGSTOP and SIGKILL, it invokes a special signal handing routine.

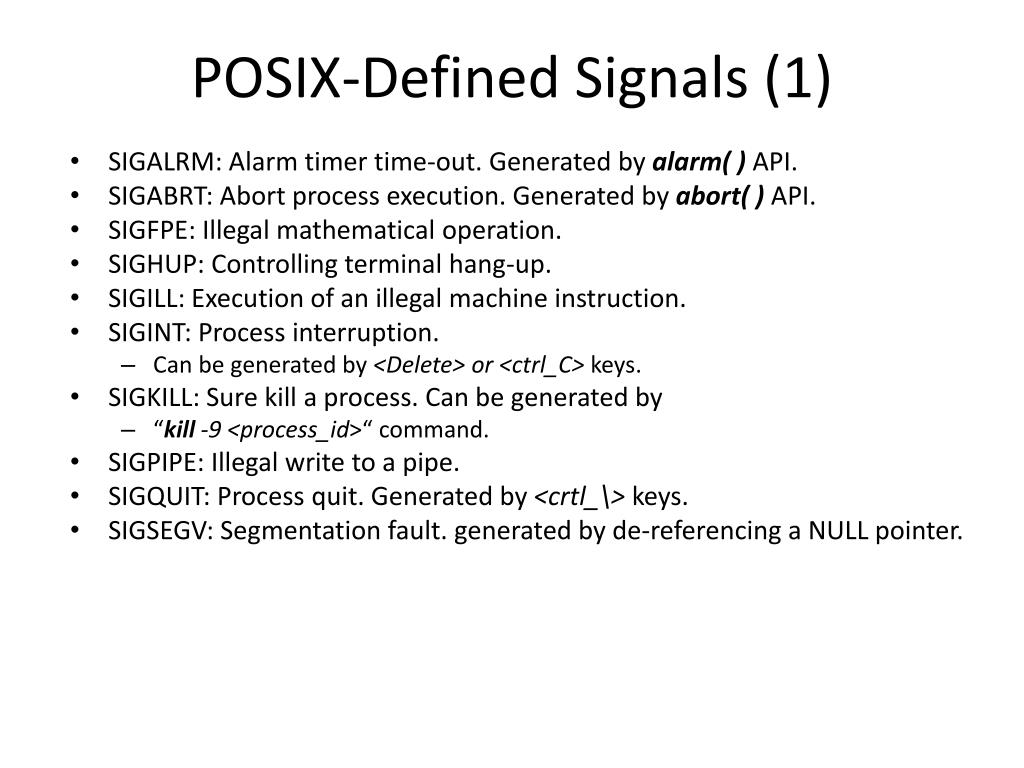

Posix defined signals 1

POSIX-Defined Signals (1)

  • SIGALRM: Alarm timer time-out. Generated by alarm( ) API.

  • SIGABRT: Abort process execution. Generated by abort( ) API.

  • SIGFPE: Illegal mathematical operation.

  • SIGHUP: Controlling terminal hang-up.

  • SIGILL: Execution of an illegal machine instruction.

  • SIGINT: Process interruption.

    • Can be generated by <Delete> or <ctrl_C> keys.

  • SIGKILL: Sure kill a process. Can be generated by

    • “kill -9 <process_id>“ command.

  • SIGPIPE: Illegal write to a pipe.

  • SIGQUIT: Process quit. Generated by <crtl_\> keys.

  • SIGSEGV: Segmentation fault. generated by de-referencing a NULL pointer.


Posix defined signals 2

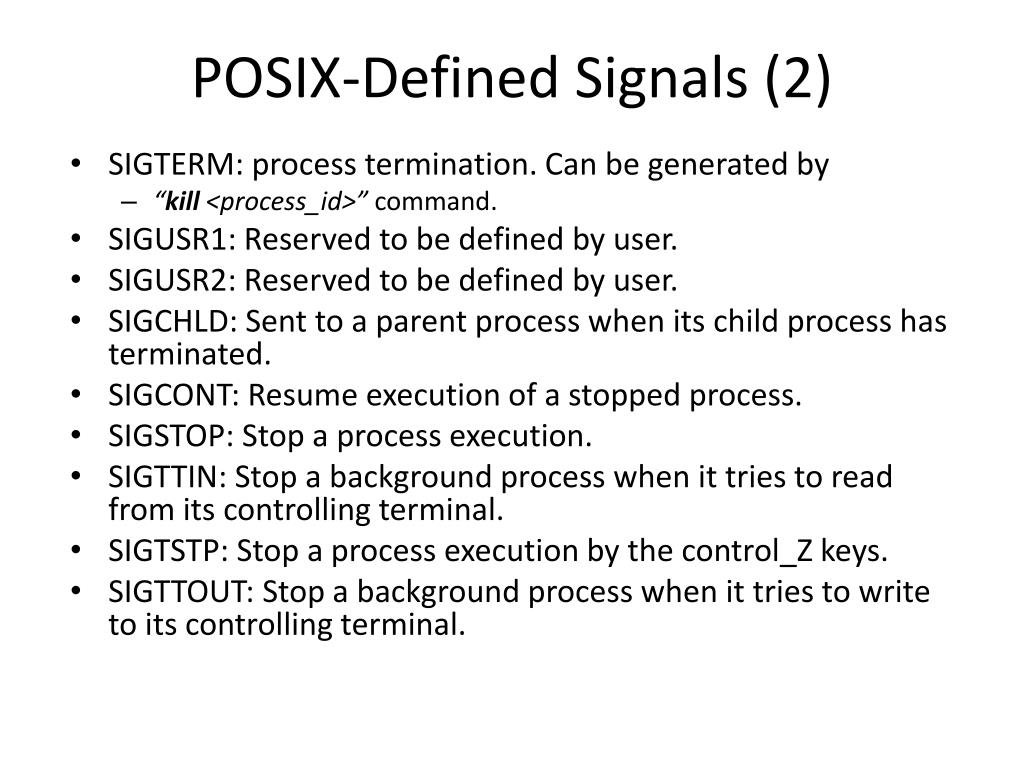

POSIX-Defined Signals (2)

  • SIGTERM: process termination. Can be generated by

    • “kill <process_id>” command.

  • SIGUSR1: Reserved to be defined by user.

  • SIGUSR2: Reserved to be defined by user.

  • SIGCHLD: Sent to a parent process when its child process has terminated.

  • SIGCONT: Resume execution of a stopped process.

  • SIGSTOP: Stop a process execution.

  • SIGTTIN: Stop a background process when it tries to read from its controlling terminal.

  • SIGTSTP: Stop a process execution by the control_Z keys.

  • SIGTTOUT: Stop a background process when it tries to write to its controlling terminal.

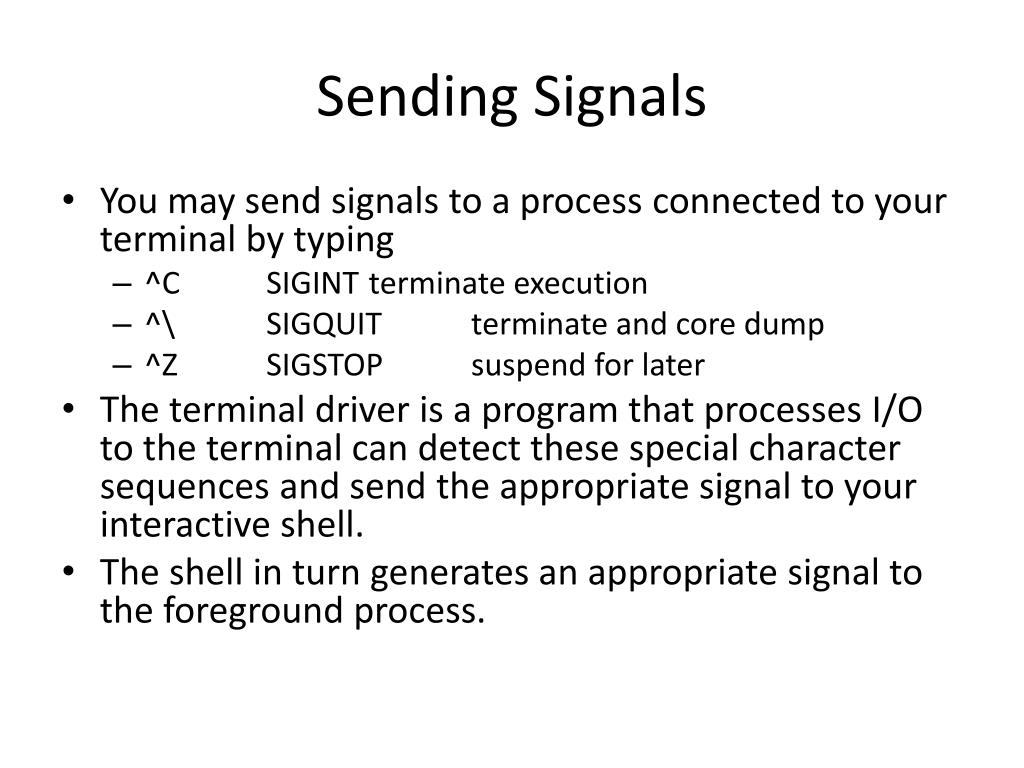

Sending signals

Sending Signals

  • You may send signals to a process connected to your terminal by typing

    • ^CSIGINTterminate execution

    • ^\SIGQUITterminate and core dump

    • ^ZSIGSTOPsuspend for later

  • The terminal driver is a program that processes I/O to the terminal can detect these special character sequences and send the appropriate signal to your interactive shell.

  • The shell in turn generates an appropriate signal to the foreground process.


Shells system calls and signals

Kill

  • The user can use the csh built-in kill command or use regular UNIX kill command to send a specific signal to a named process.

    • % kill [-sig] process

      • If no signal is specified, then SIGTERM (15)(terminate) is assumed

  • In C/C++ the system call is

    • #include <signal.h>

    • int kill( int pid, int sig_id );

    • Return values: Success = 0, Failure = -1, Sets errno…YES


Signal delivery and processing

Signal Delivery and Processing

  • When an interrupt or event causes a signal to occur, the signal is added to a set of signals that are waiting for delivery to a process.

  • Signals are delivered to a process in a manner similar to hardware interrupts.

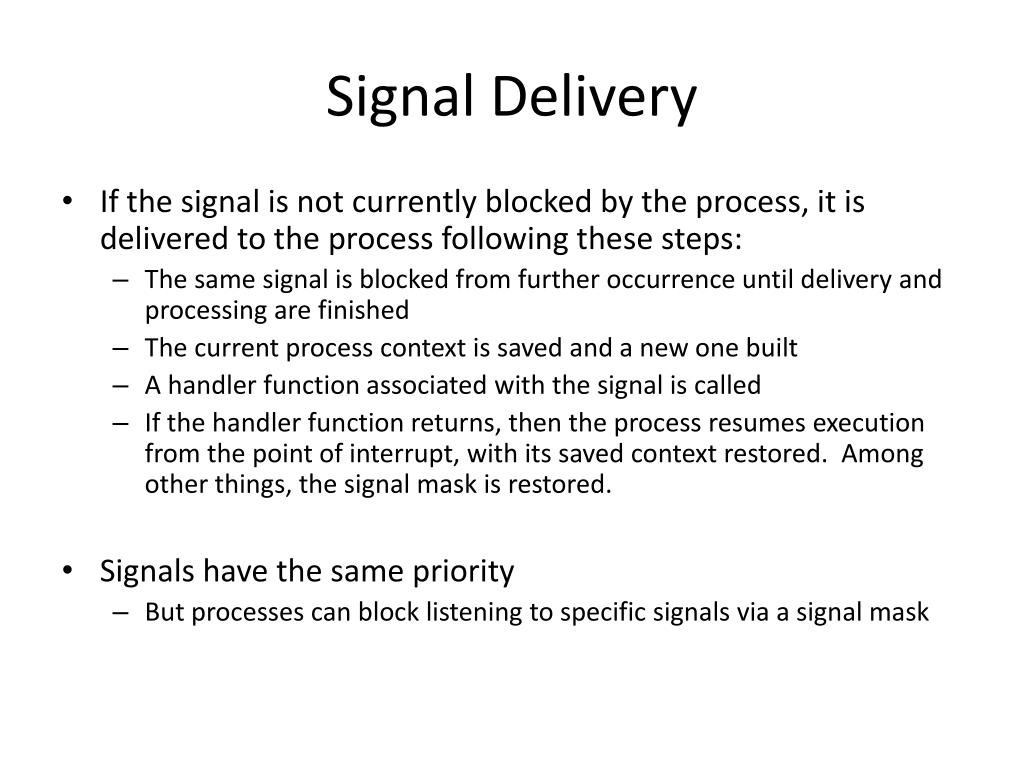

Signal delivery

Signal Delivery

  • If the signal is not currently blocked by the process, it is delivered to the process following these steps:

    • The same signal is blocked from further occurrence until delivery and processing are finished

    • The current process context is saved and a new one built

    • A handler function associated with the signal is called

    • If the handler function returns, then the process resumes execution from the point of interrupt, with its saved context restored. Among other things, the signal mask is restored.

  • Signals have the same priority

    • But processes can block listening to specific signals via a signal mask

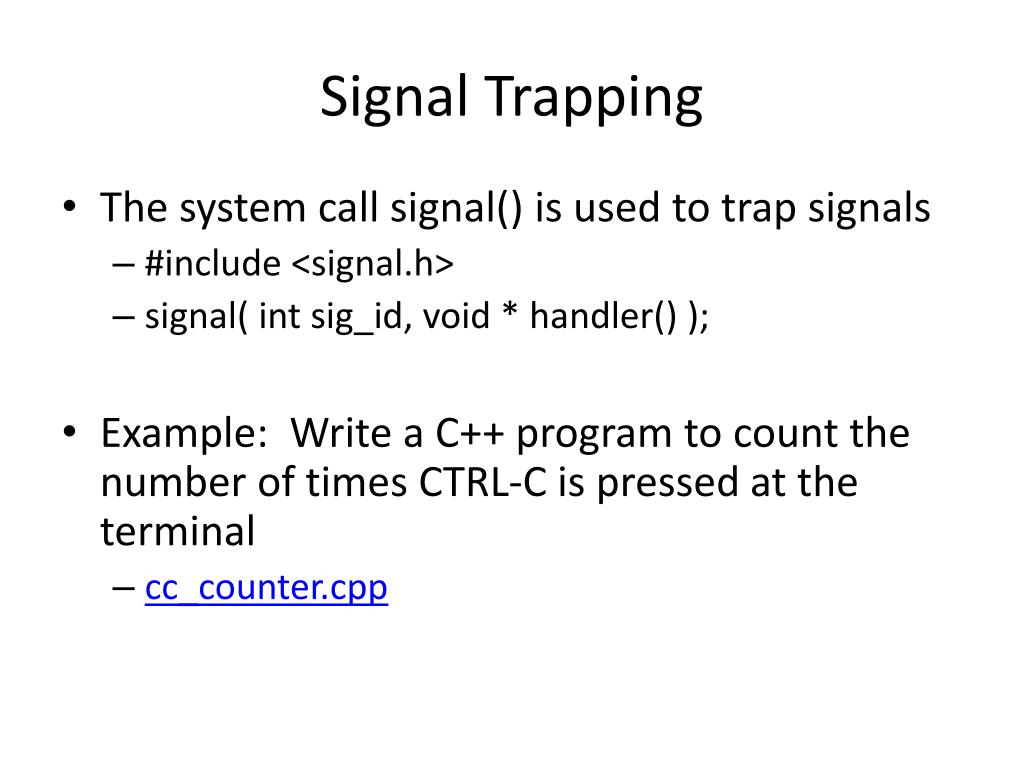

Signal trapping

Signal Trapping

  • The system call signal() is used to trap signals

    • #include <signal.h>

    • signal( int sig_id, void * handler() );

  • Example: Write a C++ program to count the number of times CTRL-C is pressed at the terminal

    • cc_counter.cpp


Alarms

Alarms

  • Function

    • The alarm API requests the kernel to send the SIGALRM signal after a certain number of real clock seconds.

    • #include <signal.h>

    • int alarm( unsigned int time_interval);

    • Return:

      • Success: the number of CPU seconds left in the process timer; Failure: -1; Sets errno: Yes

    • Argument

      • time_interval: the number of CPU seconds elapse time. After which the kernel will send the SIGALRM signal to the calling process.

  • Example: Write a C++ program to set an alarm for signal 5 seconds after process startup and trap the alarm signal.

    • alarmer.cpp


  • Login
