  1. EE 6332, Spring, 2014Wireless Telecommunication Zhu Han Department of Electrical and Computer Engineering Class 2 Jan. 15th, 2014

  2. Large-scale small-scale propagation

  3. Models are Specialized • Refraction, diffraction and scattering • Different scales • Large scale (averaged over meters) • Small scale (order of wavelength) • Different environmental characteristics • Outdoor, indoor, land, sea, space, etc. • Different application areas • macrocell (2km), microcell(500m), picocell • Chapter 2 • Some figures in the slides from Rappaport book

  4. Radio Propagation Mechanisms • Refraction • Conductors & Dielectric materials (refraction) • Propagation wave impinges on an object which is large as compared to wavelength - e.g., the surface of the Earth, buildings, walls, etc. • Diffraction • Fresnel zones • Radio path between transmitter and receiver obstructed by surface with sharp irregular edges • Waves bend around the obstacle, even when LOS (line of sight) does not exist • Scattering • Objects smaller than the wavelength of the propagation wave - e.g. foliage, street signs, lamp posts • “Clutter” is small relative to wavelength

  5. Refraction • Perfect conductors reflect with no attenuation • Like light to the mirror • Dielectrics reflect a fraction of incident energy • “Grazing angles” reflect max* • Steep angles transmit max* • Like light to the water • Reflection induces 180 phase shift • Why? See yourself in the mirror q qr qt

  6. Classical 2-ray ground bounce model • One line of sight and one ground bound

  7. Method of image

  8. Vector addition of 2 rays

  9. Simplified model • Far field simplified model • Example 2.2

  10. Diffraction Diffraction occurs when waves hit the edge of an obstacle “Secondary” waves propagated into the shadowed region Water wave example Diffraction is caused by the propagation of secondary wavelets into a shadowed region. Excess path length results in a phase shift The field strength of a diffracted wave in the shadowed region is the vector sum of the electric field components of all the secondary wavelets in the space around the obstacle. Huygen’s principle: all points on a wavefront can be considered as point sources for the production of secondary wavelets, and that these wavelets combine to produce a new wavefront in the direction of propagation.

  11. Diffraction geometry Fresnel-Kirchoff distraction parameters,

  12. Fresnel Screens Fresnel zones relate phase shifts to the positions of obstacles A rule of thumb used for line-of-sight microwave links 55% of the first Fresnel zone is kept clear.

  13. Fresnel Zones Bounded by elliptical loci of constant delay Alternate zones differ in phase by 180 Line of sight (LOS) corresponds to 1st zone If LOS is partially blocked, 2nd zone can destructively interfere (diffraction loss) How much power is propagated this way? 1st FZ: 5 to 25 dB below free space prop. LOS 0 -10 -20 -30 -40 -50 -60 0o 90 180o dB Obstruction Tip of Shadow 1st 2nd Obstruction of Fresnel Zones 

  14. Knife-edge diffraction loss Gain

  15. Scattering Rough surfaces Lamp posts and trees, scatter all directions Critical height for bumps is f(,incident angle), Smooth if its minimum to maximum protuberance h is less than critical height. Scattering loss factor modeled with Gaussian distribution, Nearby metal objects (street signs, etc.) Usually modeled statistically Large distant objects Analytical model: Radar Cross Section (RCS) Bistatic radar equation,

  16. Impulse Response Model of a Time Variant Multipath Channel

  17. Transition • Stochastic large scale models: • Log-distance path loss model • log-normal shadowing • Outdoor propagation models • Indoor propagation models

  18. Three scales of path model Figure 2.1

  19. Propagation Models Large scale models predict behavior averaged over distances >>  Function of distance & significant environmental features, roughly frequency independent Breaks down as distance decreases Useful for modeling the range of a radio system and rough capacity planning, Experimental rather than the theoretical for previous three models Path loss models, Outdoor models, Indoor models Small scale (fading) models describe signal variability on a scale of  Multipath effects (phase cancellation) dominate, path attenuation considered constant Frequency and bandwidth dependent Focus is on modeling “Fading”: rapid change in signal over a short distance or length of time.

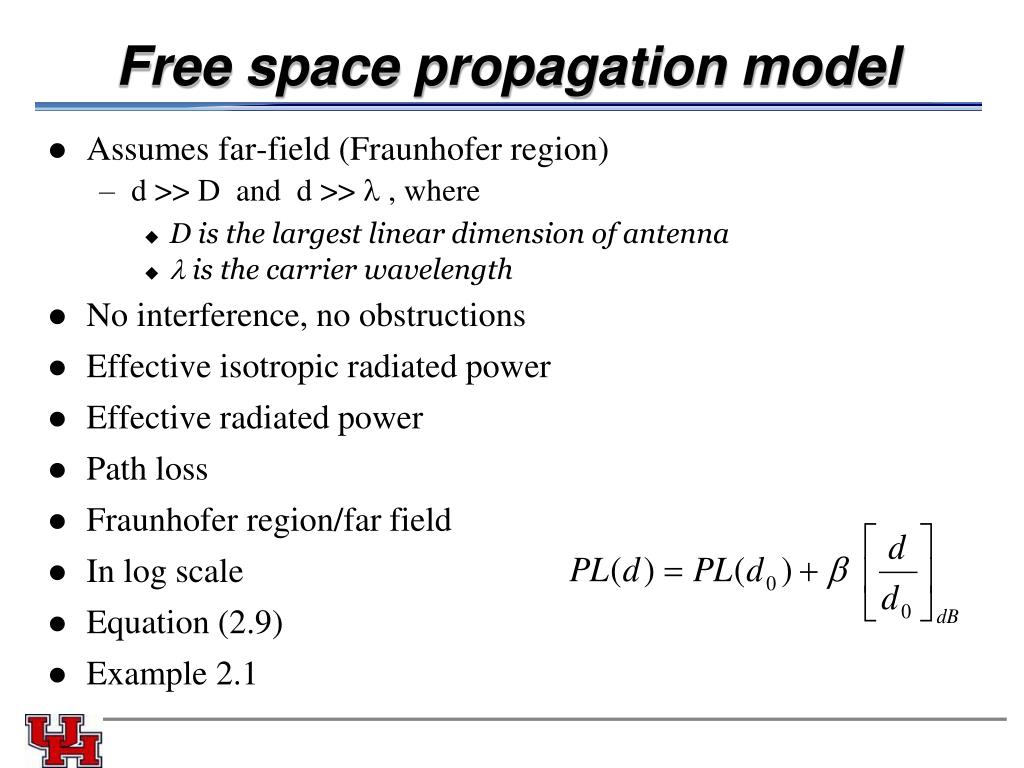

  20. Free space propagation model • Assumes far-field (Fraunhofer region) • d >> D and d >>  , where • D is the largest linear dimension of antenna •  is the carrier wavelength • No interference, no obstructions • Effective isotropic radiated power • Effective radiated power • Path loss • Fraunhofer region/far field • In log scale • Equation (2.9) • Example 2.1

  21. Free Space Path Loss Path Loss is a measure of attenuation based only on the distance to the transmitter Free space model only valid in far-field; Path loss models typically define a “close-in” point d0 and reference other points from there: Log-distance generalizes path loss to account for other environmental factors Choose a d0 in the far field. Measure PL(d0) or calculate Free Space Path Loss. Take measurements and derive  empirically.

  22. Typical large-scale path loss

  23. Log-Normal Shadowing Model Shadowing occurs when objects block LOS between transmitter and receiver A simple statistical model can account for unpredictable “shadowing” PL(d)(dB)=PL(d)+X0, Add a 0-mean Gaussian RV to Log-Distance PL Variance  is usually from 3 to 12. Reason for Gaussian

  24. Measured large-scale path loss Determine n and  by mean and variance Basic of Gaussian Distribution Example 2.3 Example 2.4

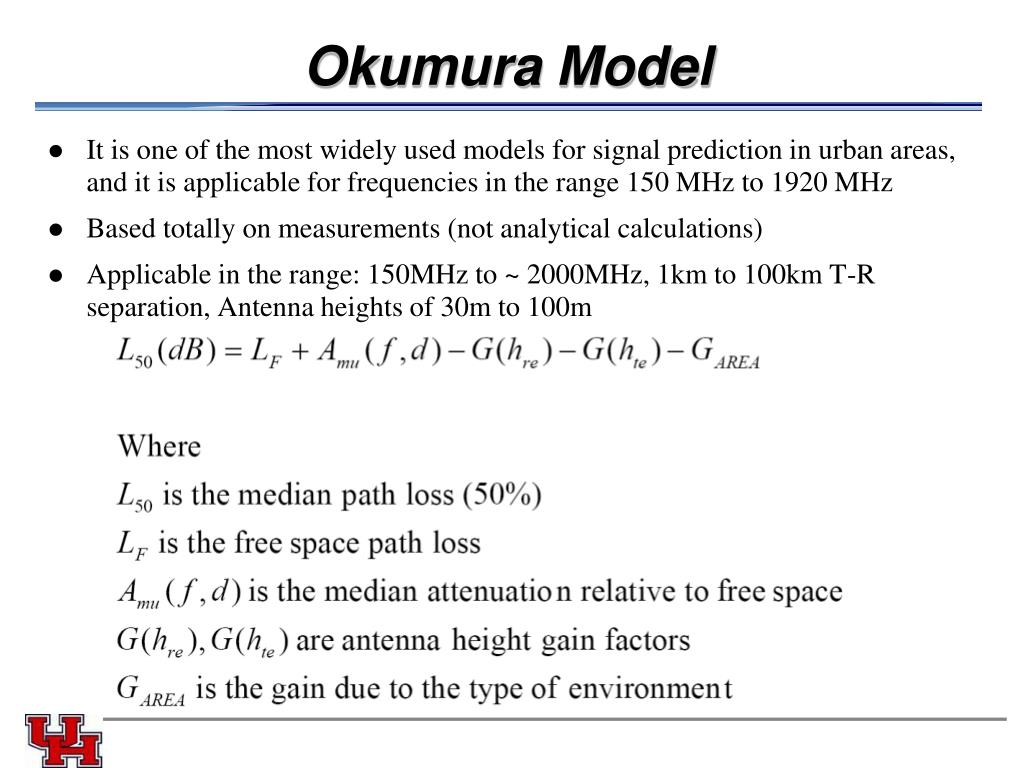

  25. Okumura Model It is one of the most widely used models for signal prediction in urban areas, and it is applicable for frequencies in the range 150 MHz to 1920 MHz Based totally on measurements (not analytical calculations) Applicable in the range: 150MHz to ~ 2000MHz, 1km to 100km T-R separation, Antenna heights of 30m to 100m

  26. Okumura Model The major disadvantage with the model is its low response to rapid changes in terrain, therefore the model is fairly good in urban areas, but not as good in rural areas. Common standard deviations between predicted and measured path loss values are around 10 to 14 dB. G(hre):

  27. Okumura and Hata’s model

  28. Hata Model Empirical formulation of the graphical data in the Okamura model. Valid 150MHz to 1500MHz, Used for cellular systems The following classification was used by Hata: ■Urban area ■Suburban area ■Open area

  29. PCS Extension of Hata Model COST-231 Hata Model, European standard Higher frequencies: up to 2GHz Smaller cell sizes Lower antenna heights f >1500MHz Metropolitan centers Medium sized city and suburban areas

  30. Indoor Propagation Models The distances covered are much smaller The variability of the environment is much greater Key variables: layout of the building, construction materials, building type, where the antenna mounted, …etc. In general, indoor channels may be classified either as LOS or OBS with varying degree of clutter The losses between floors of a building are determined by the external dimensions and materials of the building, as well as the type of construction used to create the floors and the external surroundings. Floor attenuation factor (FAF)

  31. Partition losses between floors

  32. Partition losses between floors

  33. Log-distance Path Loss Model The exponent n depends on the surroundings and building type X is the variable in dB having a standard deviation .

  34. Ericsson Multiple Breakpoint Model

  35. Attenuation Factor Model FAF represents a floor attenuation factor for a specified number of building floors. PAF represents the partition attenuation factor for a specific obstruction encountered by a ray drawn between the transmitter and receiver in 3-D  is the attenuation constant for the channel with units of dB per meter.

  36. Measured indoor path loss

  37. Measured indoor path loss

  38. Measured indoor path loss

  39. Signal Penetration into Buildings RF penetration has been found to be a function of frequency as well as height within the building. Signal strength received inside a building increases with height, and penetration loss decreases with increasing frequency. Walker’s work shows that building penetration loss decrease at a rate of 1.9 dB per floor from the ground level up to the 15th floor and then began increasing above the 15th floor. The increase in penetration loss at higher floors was attributed to shadowing effects of adjacent buildings. Some devices to conduct the signals into the buildings

  40. Ray Tracing and Site Specific Modeling Site specific propagation model and graphical information system. Ray tracing. Deterministic model. Data base for buildings, trees, etc. SitePlanner

  41. Cell Coverage Area Example 2.6 and 2.7

  42. Homework HW 1: 2.1, 2.4, 2.11, 2.13, 2.14, 2.18, 2.24 Due 1/29/14
