What is current?

What is current?. It is a flow….but what is flowing?. Electrons!. How do we measure the flow rate?. How can we measure how many electrons are flowing?. Measure charge!. What is the unit for charge?. Coulomb (C). But if we are examining a rate, what else do we need to take into account?.

eaton-guzman
Download Presentation

What is current?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

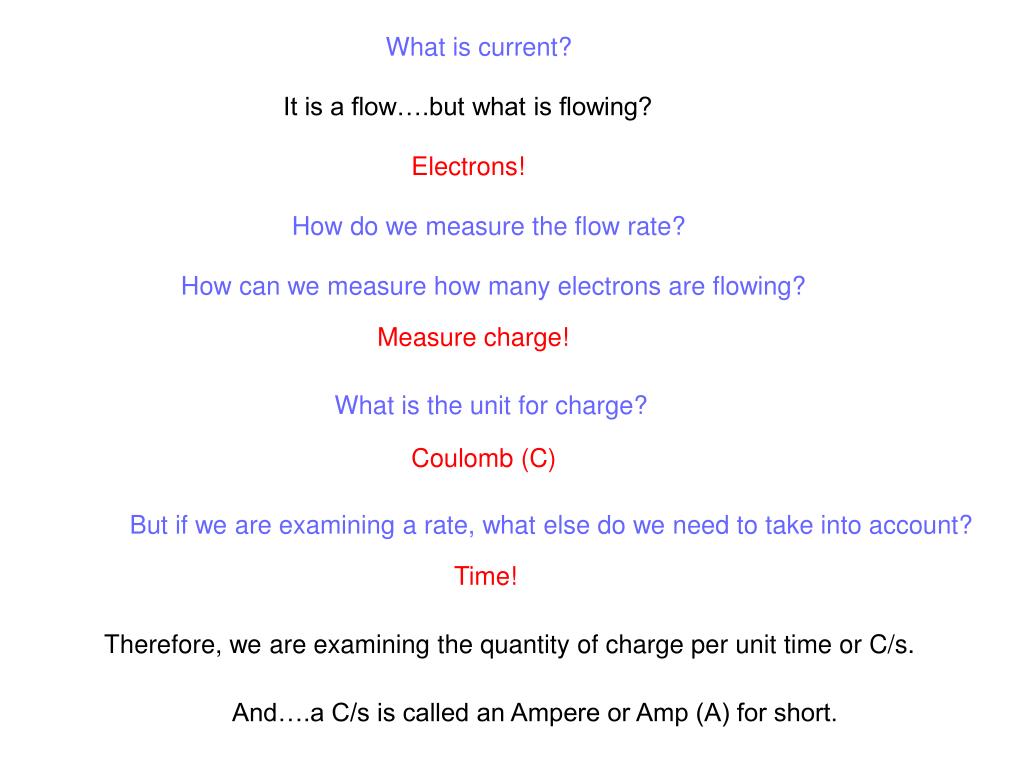

  1. What is current? It is a flow….but what is flowing? Electrons! How do we measure the flow rate? How can we measure how many electrons are flowing? Measure charge! What is the unit for charge? Coulomb (C) But if we are examining a rate, what else do we need to take into account? Time! Therefore, we are examining the quantity of charge per unit time or C/s. And….a C/s is called an Ampere or Amp (A) for short.

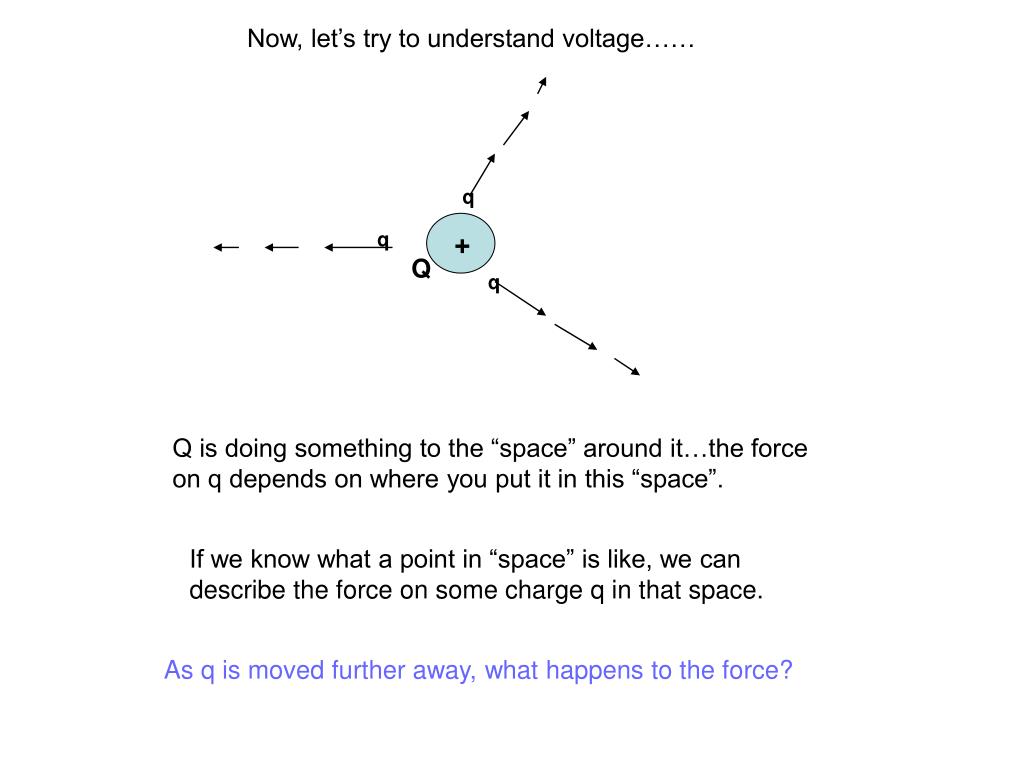

  2. Now, let’s try to understand voltage…… q + q Q q Q is doing something to the “space” around it…the force on q depends on where you put it in this “space”. If we know what a point in “space” is like, we can describe the force on some charge q in that space. As q is moved further away, what happens to the force?

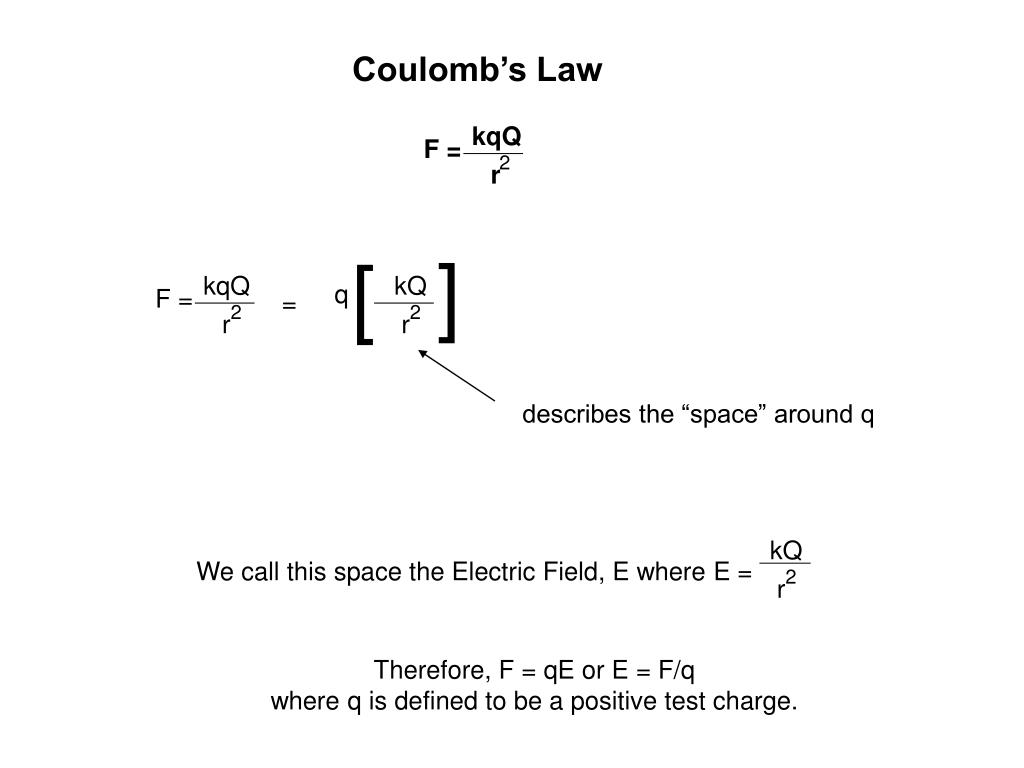

  3. kqQ kqQ F = F = 2 2 r r kQ kQ 2 2 r r Coulomb’s Law ] [ q = describes the “space” around q We call this space the Electric Field, E where E = Therefore, F = qE or E = F/q where q is defined to be a positive test charge.

  4. d Uniform Electric Field (with fringing around edges) + - + - F Field Lines 1. Leave +, Enter – 2. Perpendicular to Conductor q - + + - + - Potential Energy = 0 If the charge is free to move, what will happen? How much work is done by the force acting on the charge? 2 Work done = Fd = qEd = ½ mv Change in energy Work done

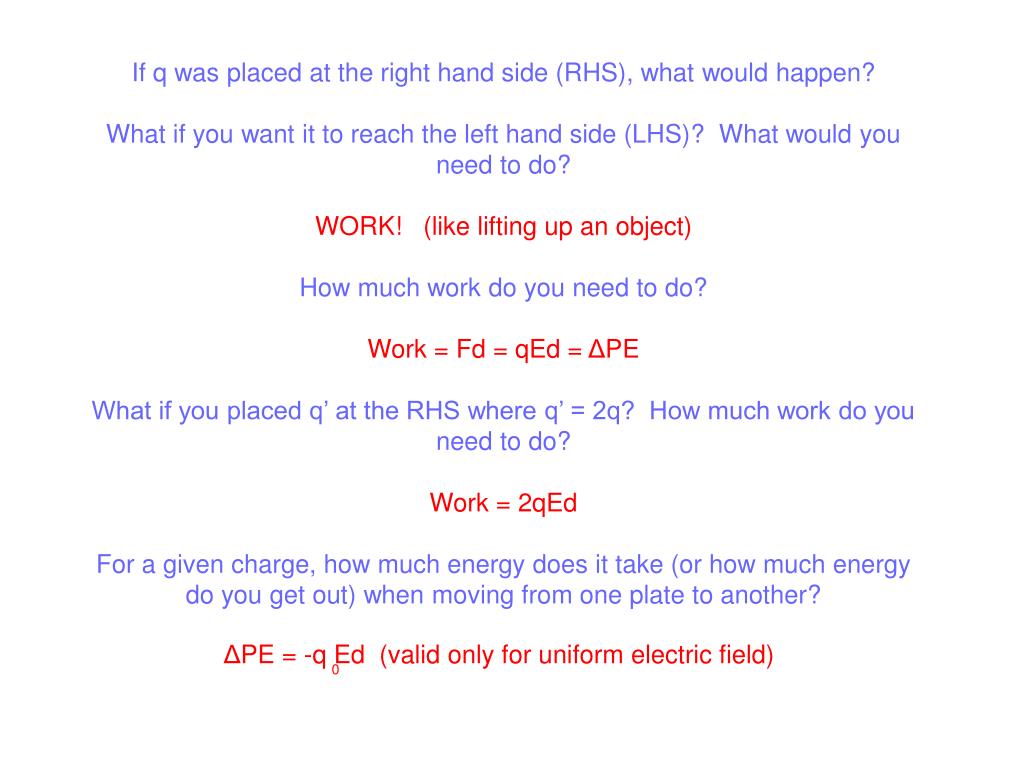

  5. If q was placed at the right hand side (RHS), what would happen? What if you want it to reach the left hand side (LHS)? What would you need to do? WORK! (like lifting up an object) How much work do you need to do? Work = Fd = qEd = ΔPE What if you placed q’ at the RHS where q’ = 2q? How much work do you need to do? Work = 2qEd For a given charge, how much energy does it take (or how much energy do you get out) when moving from one plate to another? ΔPE = -q Ed (valid only for uniform electric field) 0

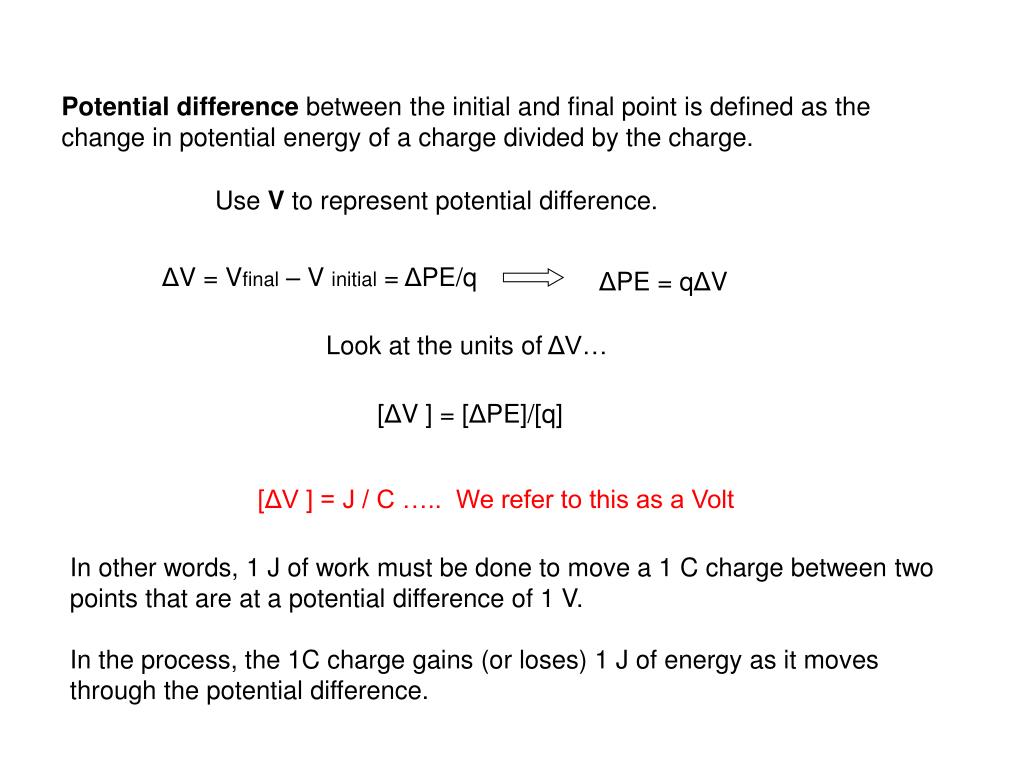

  6. Potential difference between the initial and final point is defined as the change in potential energy of a charge divided by the charge. Use V to represent potential difference. ΔV = Vfinal – V initial = ΔPE/q ΔPE = qΔV Look at the units of ΔV… [ΔV ] = [ΔPE]/[q] [ΔV ] = J / C ….. We refer to this as a Volt In other words, 1 J of work must be done to move a 1 C charge between two points that are at a potential difference of 1 V. In the process, the 1C charge gains (or loses) 1 J of energy as it moves through the potential difference.
