  1. Fluid Types Ch.3 Hydraulic Fluids Matthew Berning Derrick Shea

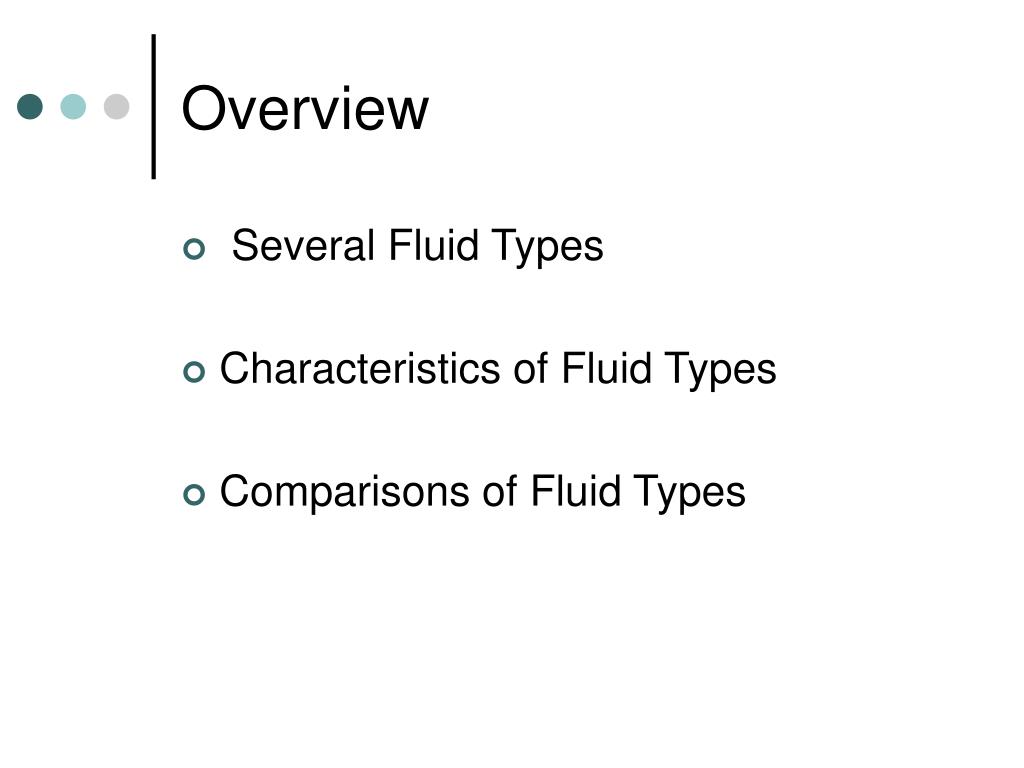

  2. Overview • Several Fluid Types • Characteristics of Fluid Types • Comparisons of Fluid Types

  3. Fluid Applications • Transmits power • Absorbs temperature • Lubricates fluid system • Cools devices • Carries away contaminants • Creates internal seals

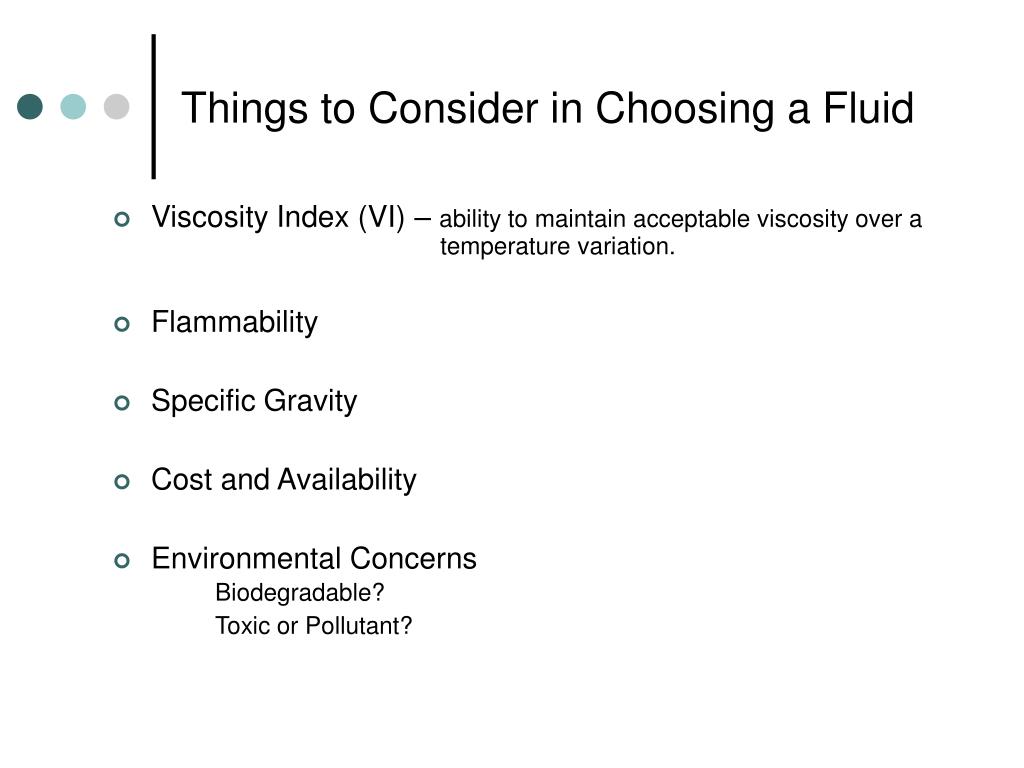

  4. Things to Consider in Choosing a Fluid • Viscosity Index (VI) – ability to maintain acceptable viscosity over a temperature variation. • Flammability • Specific Gravity • Cost and Availability • Environmental Concerns Biodegradable? Toxic or Pollutant?

  5. General Categories • Petroleum Oils • Fire Resistant Fluids • Biodegradable Fluids

  6. Figure 3-14 Page 61

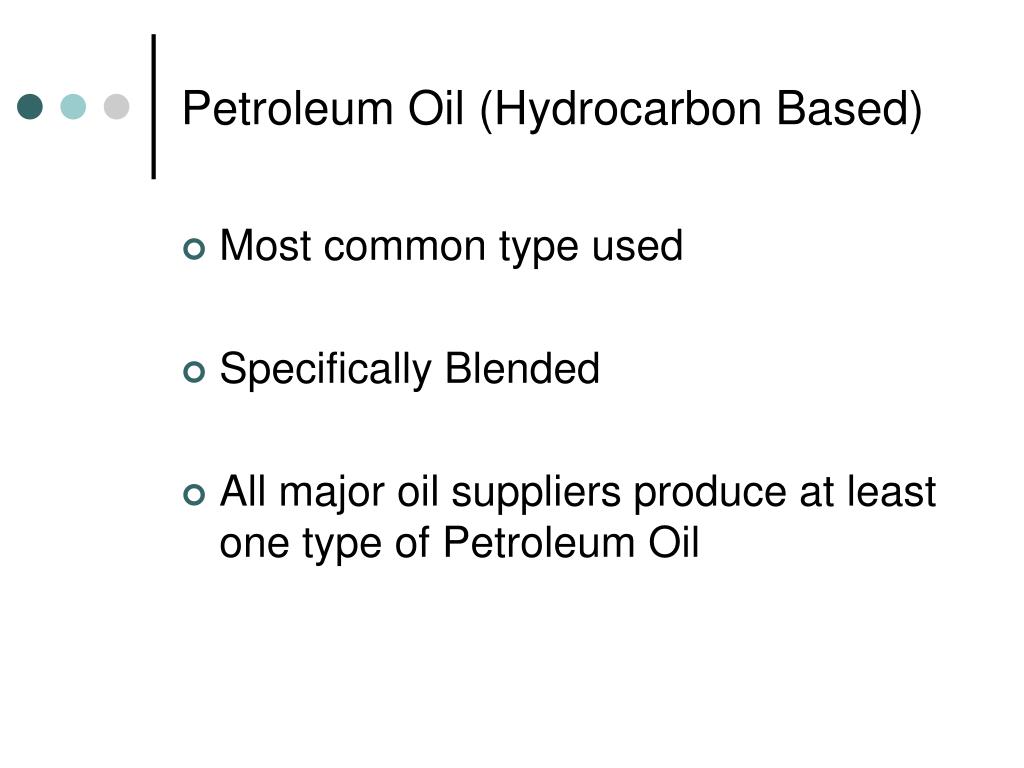

  7. Petroleum Oil (Hydrocarbon Based) • Most common type used • Specifically Blended • All major oil suppliers produce at least one type of Petroleum Oil

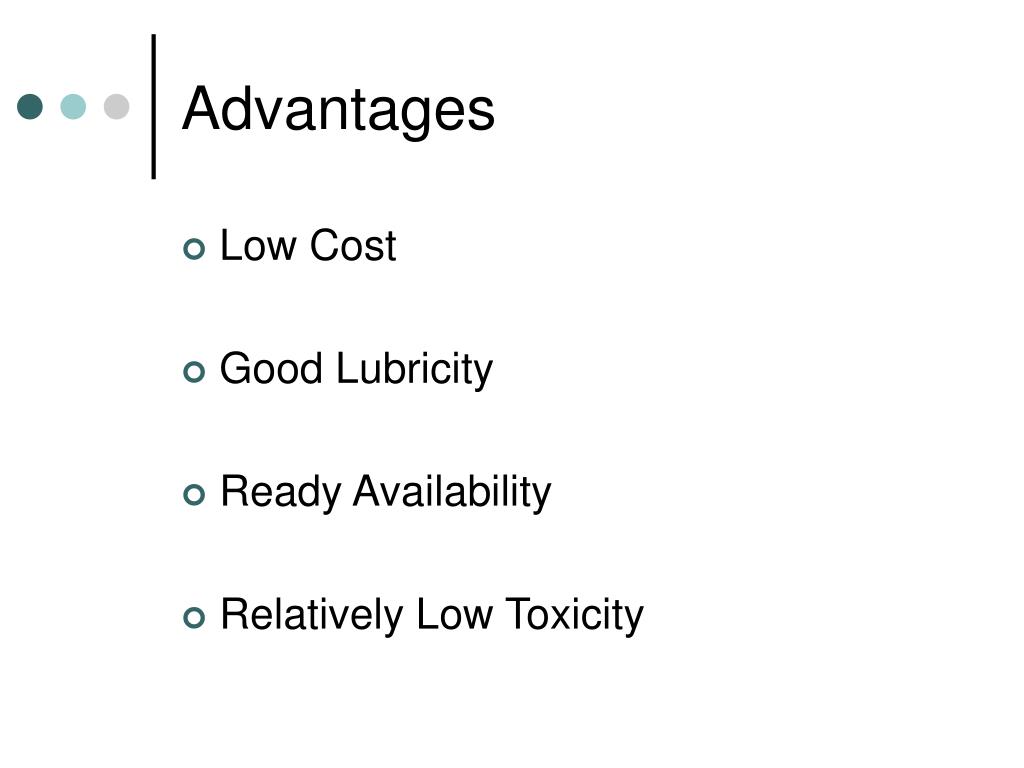

  8. Advantages • Low Cost • Good Lubricity • Ready Availability • Relatively Low Toxicity

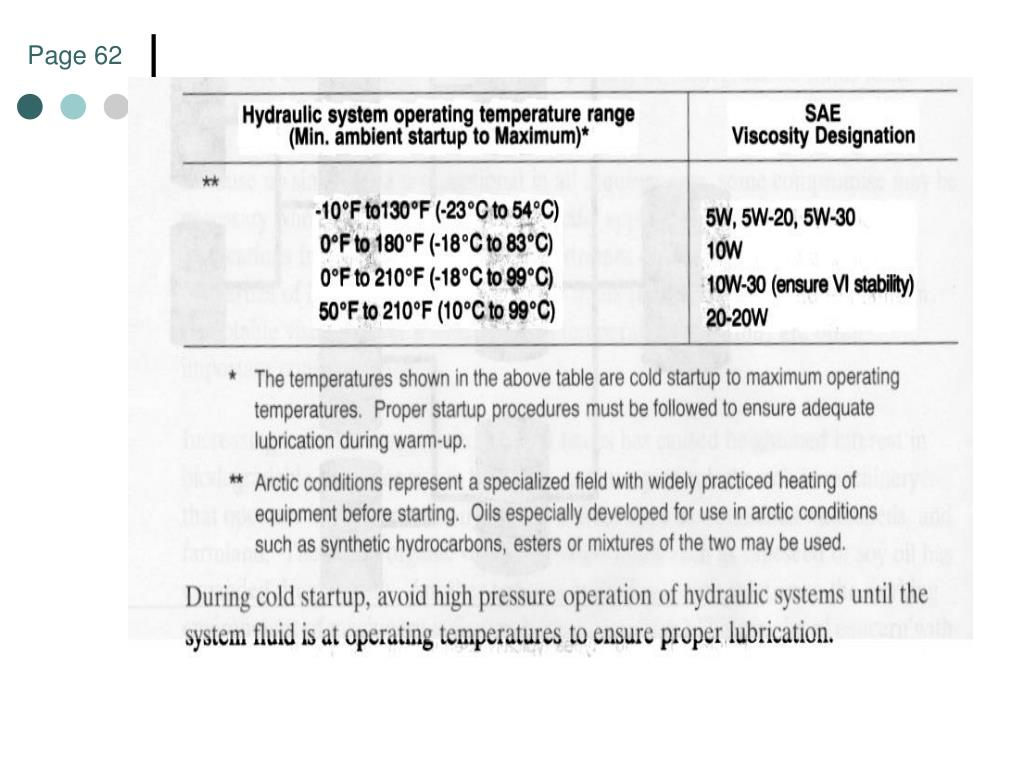

  9. Page 62

  10. Fire Resistant FluidsHigh-Water Based Fluids These Include: • Water-In-Oil Emulsions • Oil-In-Water Emulsions • Water-Glycols

  11. Fire Resistant Fluids (cont…) • High Specific Gravity • Withstand Somewhat High Temperatures • High Cost • High Maintenance * Require Flooded Conditions to Prevent Cavitations

  12. Phosphate Esters • Attack: Elastomers Paint Plastics • Require rubber or fluorocarbon seals

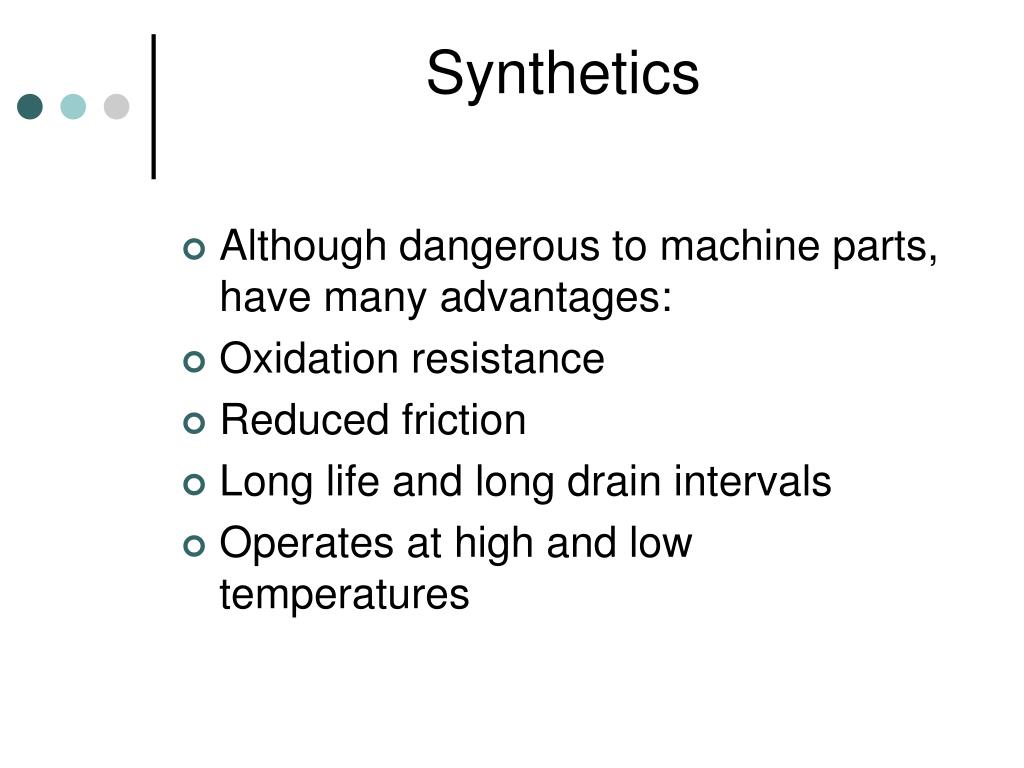

  13. Synthetics • Although dangerous to machine parts, have many advantages: • Oxidation resistance • Reduced friction • Long life and long drain intervals • Operates at high and low temperatures

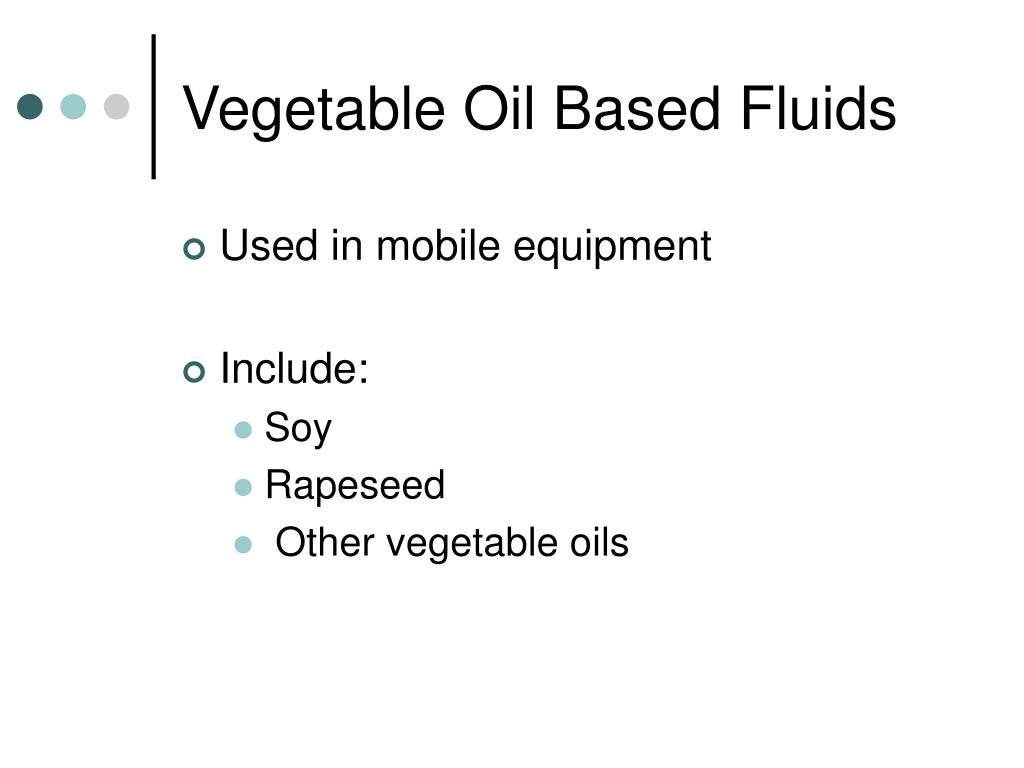

  14. Vegetable Oil Based Fluids • Used in mobile equipment • Include: • Soy • Rapeseed • Other vegetable oils

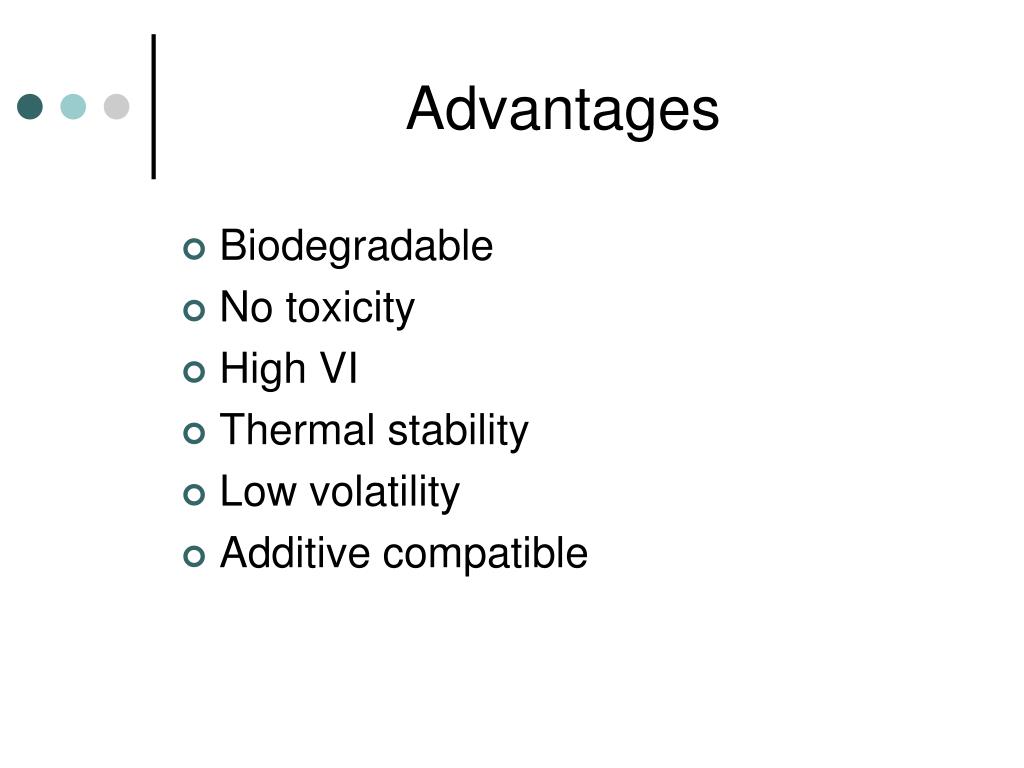

  15. Advantages • Biodegradable • No toxicity • High VI • Thermal stability • Low volatility • Additive compatible

  16. Disadvantages • Expensive • Water will degrade (poor Hydrolytic stability) • Poor at low temperatures • Oxidation stability

  17. Additives • Used in stable fluids • Creates: • Antiwear • Antioxidation • Antitrust

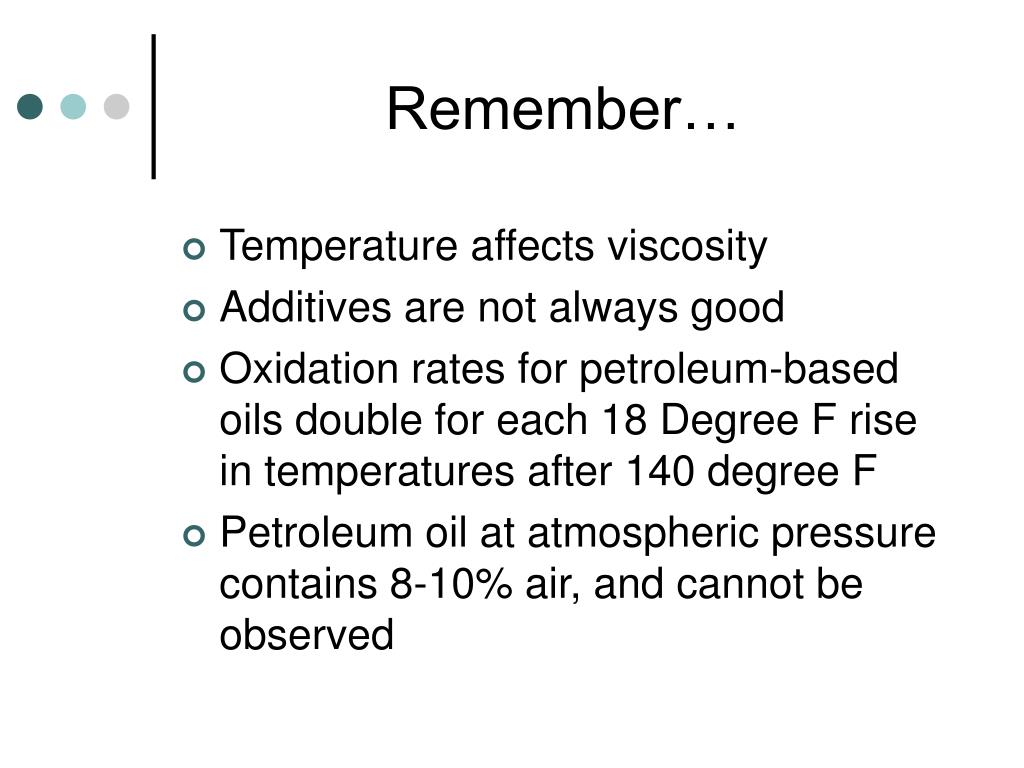

  18. Remember… • Temperature affects viscosity • Additives are not always good • Oxidation rates for petroleum-based oils double for each 18 Degree F rise in temperatures after 140 degree F • Petroleum oil at atmospheric pressure contains 8-10% air, and cannot be observed

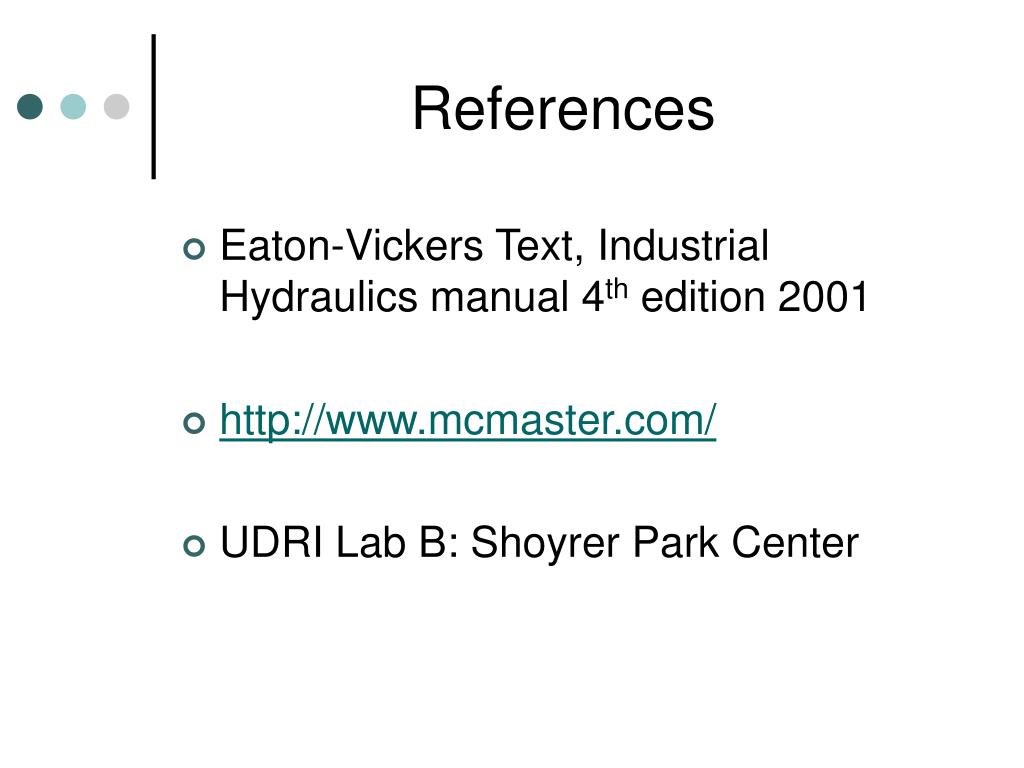

  19. References • Eaton-Vickers Text, Industrial Hydraulics manual 4th edition 2001 • http://www.mcmaster.com/ • UDRI Lab B: Shoyrer Park Center
