  1. Optimizing optical networks with Ekinops DWDM solutions MAY 2010

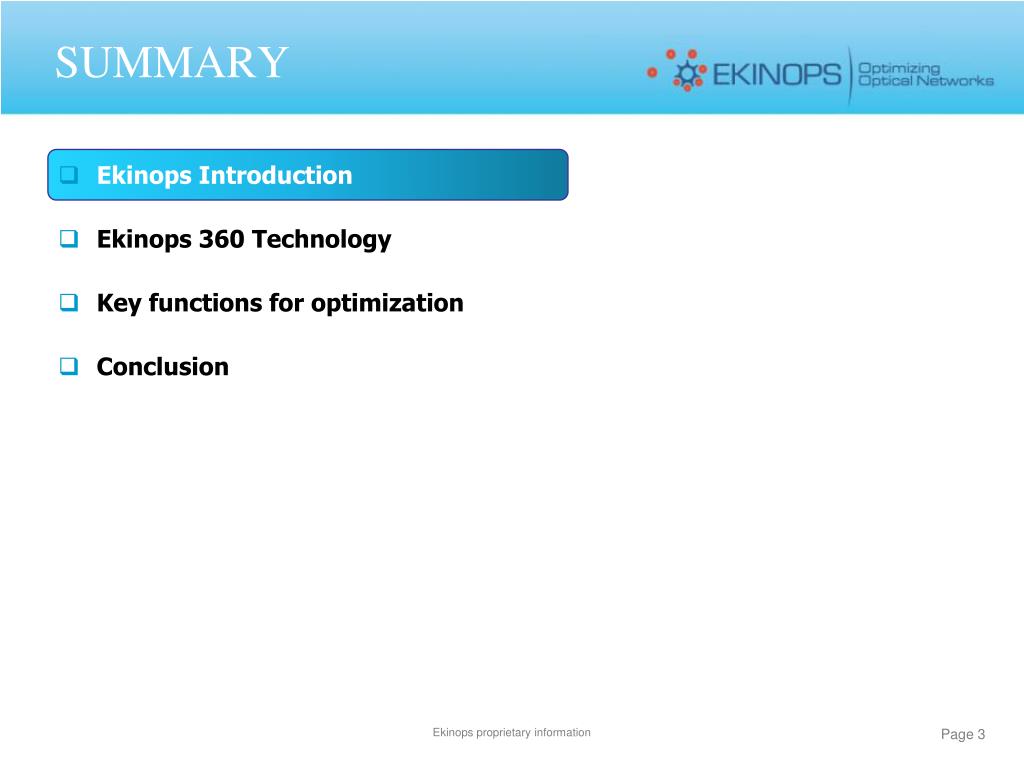

  2. SUMMARY • Ekinops Introduction • Ekinops 360 Technology • Key functions for optimization • Conclusion Ekinops proprietary information

  3. SUMMARY • Ekinops Introduction • Ekinops 360 Technology • Key functions for optimization • Conclusion Ekinops proprietary information

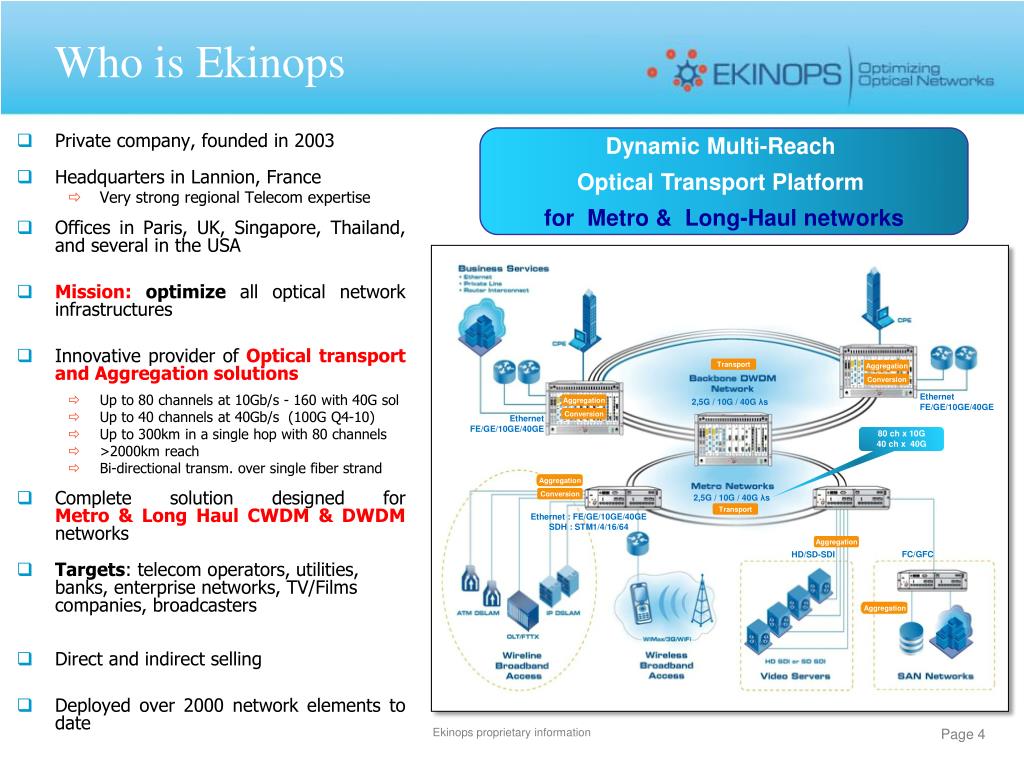

  4. Who is Ekinops Private company, founded in 2003 Headquarters in Lannion, France Very strong regional Telecom expertise Offices in Paris, UK, Singapore, Thailand, and several in the USA Mission:optimize all optical network infrastructures Innovative provider of Optical transport and Aggregation solutions Up to 80 channels at 10Gb/s - 160 with 40G sol Up to 40 channels at 40Gb/s (100G Q4-10) Up to 300km in a single hop with 80 channels >2000km reach Bi-directional transm. over single fiber strand Complete solution designed for Metro & Long HaulCWDM & DWDM networks Targets: telecom operators, utilities, banks, enterprise networks, TV/Films companies, broadcasters Direct and indirect selling Deployed over 2000 network elements to date Dynamic Multi-Reach Optical Transport Platform for Metro & Long-Haul networks Transport Aggregation Conversion Ethernet FE/GE/10GE/40GE 2,5G / 10G / 40G λs Aggregation Conversion Ethernet FE/GE/10GE/40GE 80 ch x 10G 40 ch x 40G Aggregation 2,5G / 10G / 40G λs Conversion Transport Ethernet : FE/GE/10GE/40GE SDH : STM1/4/16/64 Aggregation FC/GFC HD/SD-SDI Aggregation Ekinops proprietary information

  5. Ekinops major referencesDeployed Globally infracom

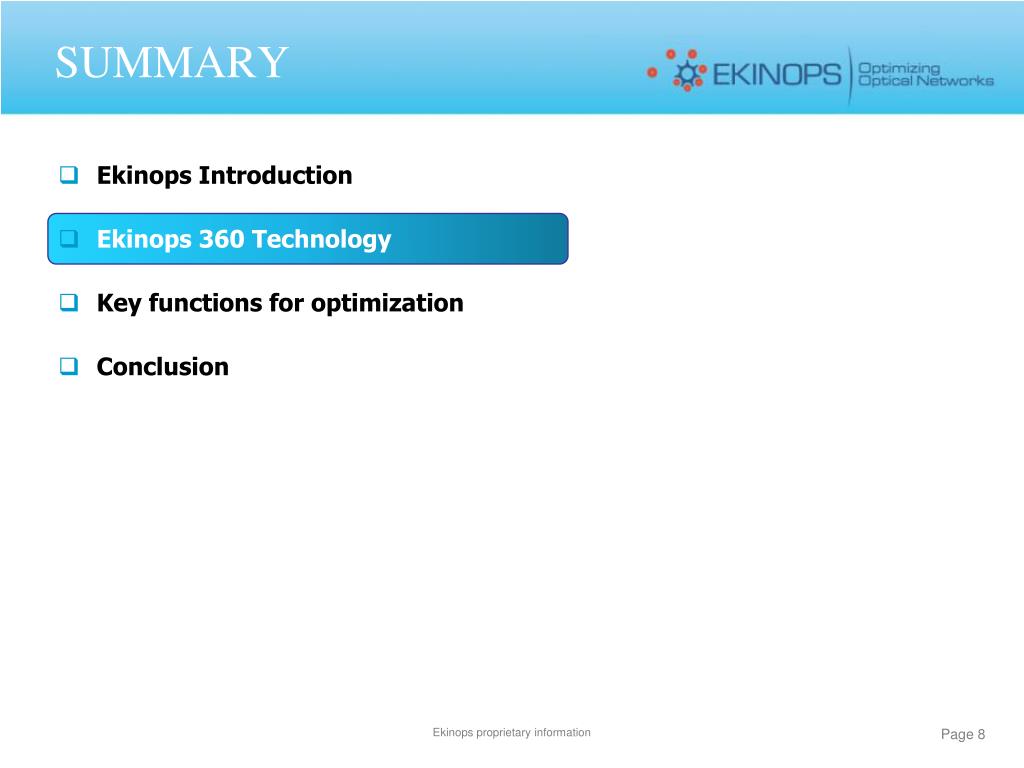

  6. SUMMARY • Ekinops Introduction • Ekinops 360 Technology • Key functions for optimization • Conclusion Ekinops proprietary information

  7. Enabling Technology T-Chip (Transport on a Chip) Client Card Electronics Client Card Composite Services Over Fiber Client Ports, 1 Client Port Per Service (GigE, etc.) Composite Services Over Fiber Benefits: Fully Programmable – Allows for creation of new services quickly (Deliver Services Faster) Fully Programmable – Can be programmed in the field to adapt to new service types (Deliver Services Flexibly) Ease of Manufacturing – Fewer chips on the board (Deliver Services Faster) Lower Power Consumption – Fewer chips to draw power (Deliver Services more cost effectively) Less Space – Cheaper to house equipment (Deliver Services more cost effectively) In general, fewer chips = lower cost Ekinops Proprietary information

  8. The Flexibility of the T-ChipBringing Cost Effective Solutions to you Quickly • Client Protocols: • Ethernet • SONET/SDH • Fiber Channel • ESCON • Video (HD-SDI, SD-SDI, ASI) • Future • T-Chip Capabilities: • Flexible Multiplexing • Generic Gateway • Forward Error Correction • Add-Drop • Future • Line • Protocols: • SONET/SDH • OTN • Ethernet • Proprietary • 2.5Gig • 10 Gig • 40 Gig • Future • Client Protocols: • Ethernet • Video (HD-SDI, SD-SDI, ASI) • T-Chip Capabilities: • Flexible Multiplexing • Generic Gateway • Forward Error Correction • Line • Protocols: • Ethernet • 10 Gig Cost Optimize the Hardware Package Size! What Client Protocols Does the Application Require? You want Flexible Muxing, FEC, and a Gateway Capability?… OK 10GigE on the Line Side…. We have that covered! A Real Example Created in 4 Months!... Ekinops’ HD-SDI Video Solution! The Value is in the FIRMware!.... Your Application Optimized for Cost, Delivered Quickly Ekinops Proprietary information

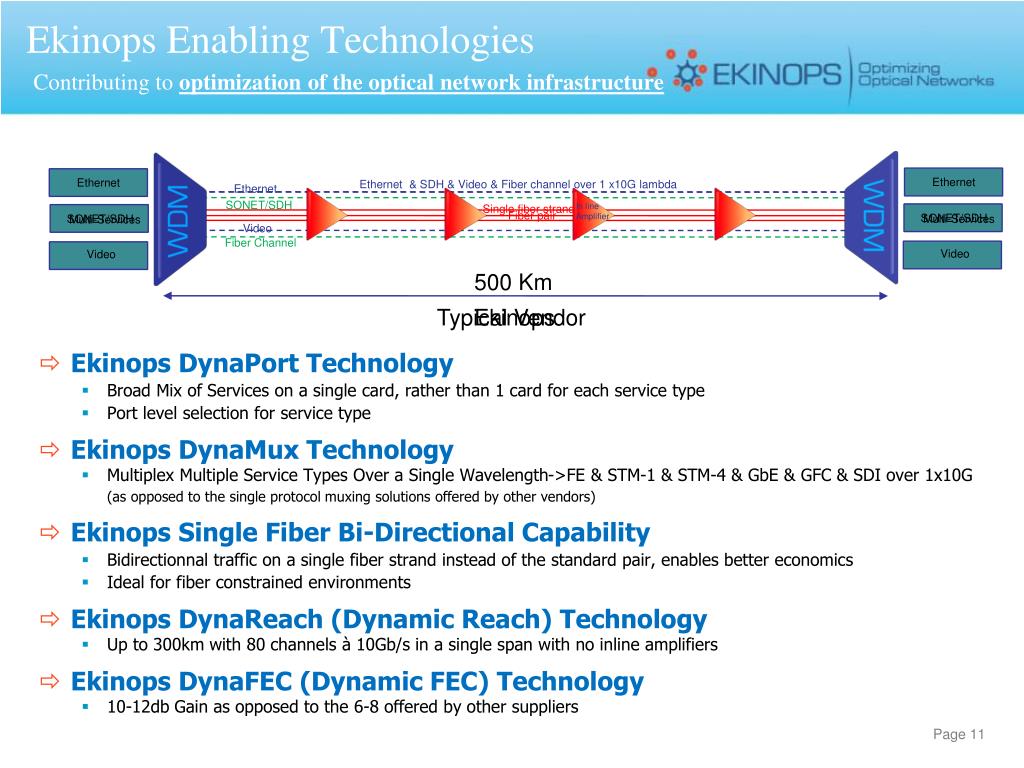

  9. Ekinops DynaPort Technology Broad Mix of Services on a single card, rather than 1 card for each service type Port level selection for service type Ekinops DynaMux Technology Multiplex Multiple Service Types Over a Single Wavelength->FE & STM-1 & STM-4 & GbE & GFC & SDI over 1x10G (as opposed to the single protocol muxing solutions offered by other vendors) Ekinops Single Fiber Bi-Directional Capability Bidirectionnal traffic on a single fiber strand instead of the standard pair, enables better economics Ideal for fiber constrained environments Ekinops DynaReach (Dynamic Reach) Technology Up to 300km with 80 channels à 10Gb/s in a single span with no inline amplifiers Ekinops DynaFEC (Dynamic FEC) Technology 10-12db Gain as opposed to the 6-8 offered by other suppliers Ekinops Enabling TechnologiesContributing to optimization of the optical network infrastructure Ethernet Ethernet Ethernet & SDH & Video & Fiber channel over 1 x10G lambda In line Amplifier Single fiber strand Fiber pair SONET/SDH SONET/SDH Multi-Services Multi-Services Video Video Typical Vendor Ekinops Ethernet SONET/SDH Video Fiber Channel 500 Km

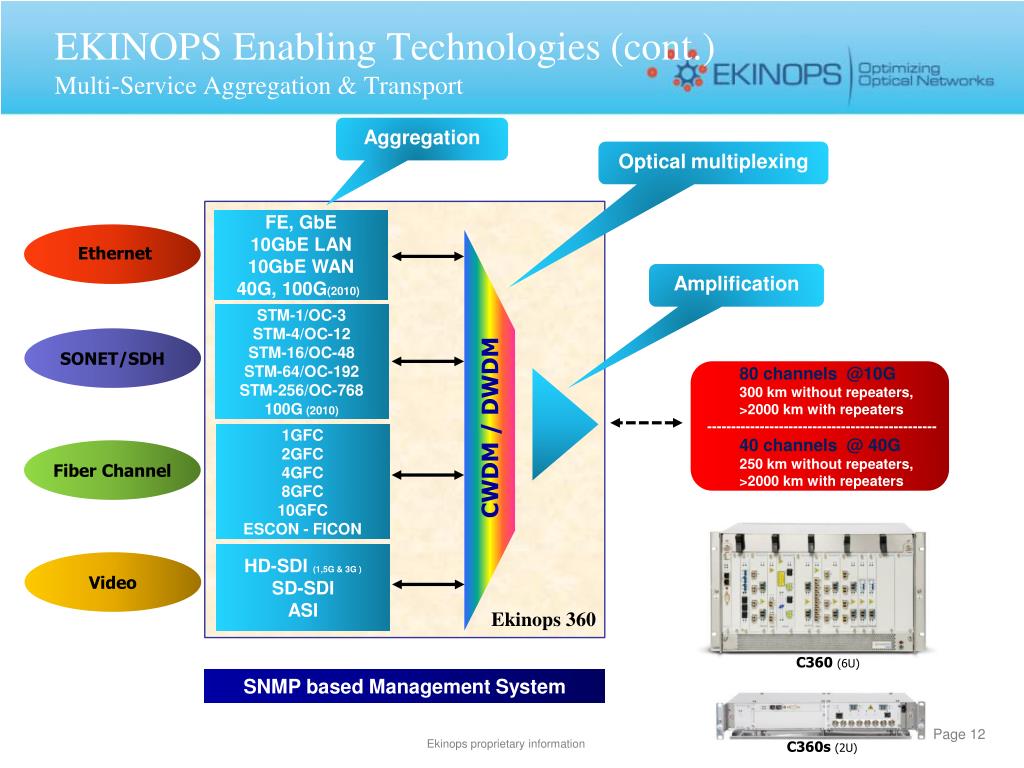

  10. EKINOPS Enabling Technologies (cont.)Multi-Service Aggregation & Transport Aggregation Optical multiplexing FE, GbE 10GbE LAN 10GbE WAN 40G, 100G(2010) Ethernet Amplification STM-1/OC-3 STM-4/OC-12 STM-16/OC-48 STM-64/OC-192 STM-256/OC-768 100G (2010) SONET/SDH 80 channels @10G 300 km without repeaters, >2000 km with repeaters ------------------------------------------------ 40 channels @ 40G 250 km without repeaters, >2000 km with repeaters CWDM / DWDM 1GFC 2GFC 4GFC 8GFC 10GFC ESCON - FICON Fiber Channel HD-SDI (1,5G & 3G ) SD-SDI ASI Video Ekinops 360 C360 (6U) SNMP based Management System Ekinops proprietary information C360s (2U)

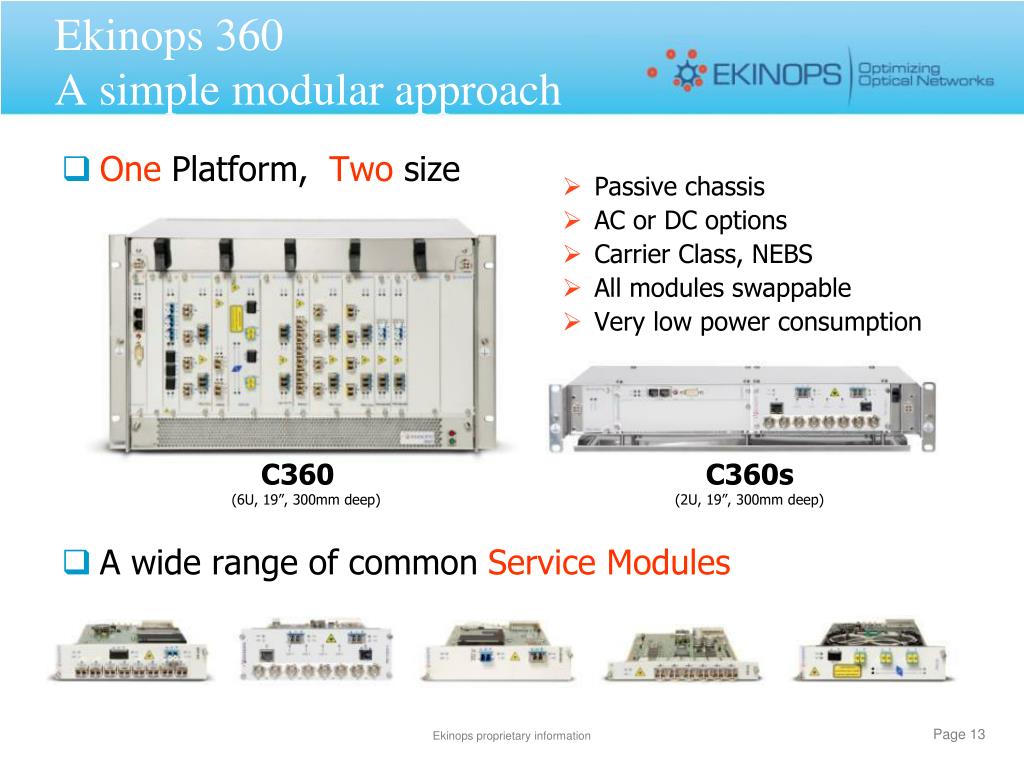

  11. Ekinops 360 A simple modular approach • One Platform, Two size • A wide range of common Service Modules • Passive chassis • AC or DC options • Carrier Class, NEBS • All modules swappable • Very low power consumption C360 (6U, 19”, 300mm deep) C360s (2U, 19”, 300mm deep) Ekinops proprietary information

  12. SUMMARY • Ekinops Introduction • Ekinops 360 Technology • Key functions for optimization • Conclusion Ekinops proprietary information

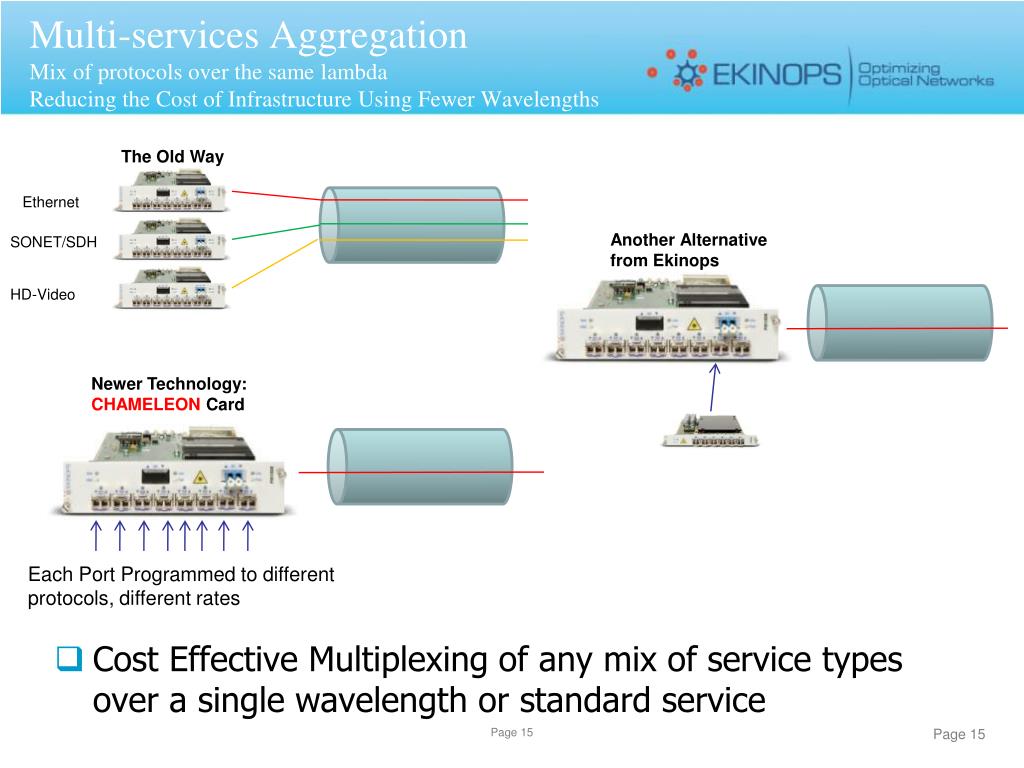

  13. Multi-services Aggregation Mix of protocols over the same lambdaReducing the Cost of Infrastructure Using Fewer Wavelengths The Old Way Ethernet Another Alternative from Ekinops SONET/SDH HD-Video Newer Technology: CHAMELEON Card Each Port Programmed to different protocols, different rates Cost Effective Multiplexing of any mix of service types over a single wavelength or standard service

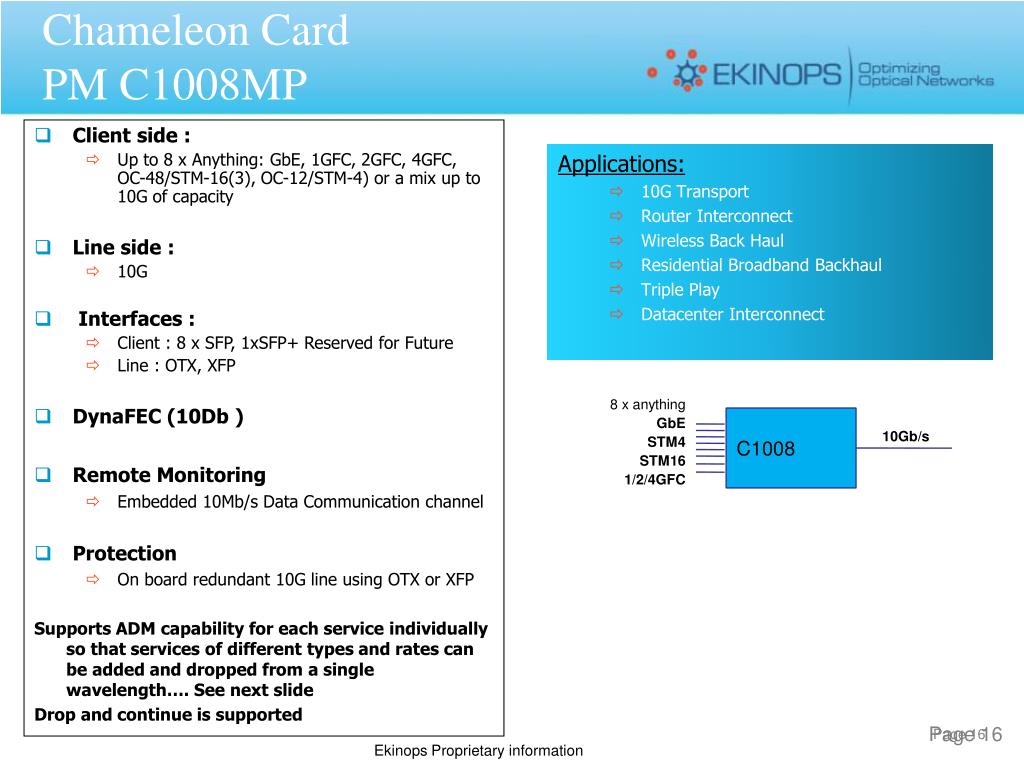

  14. Chameleon CardPM C1008MP • Client side : • Up to 8 x Anything: GbE, 1GFC, 2GFC, 4GFC, OC-48/STM-16(3), OC-12/STM-4) or a mix up to 10G of capacity • Line side: • 10G • Interfaces : • Client : 8 x SFP, 1xSFP+ Reserved for Future • Line : OTX, XFP • DynaFEC (10Db ) • Remote Monitoring • Embedded 10Mb/s Data Communication channel • Protection • On board redundant 10G line using OTX or XFP • Supports ADM capability for each service individually so that services of different types and rates can be added and dropped from a single wavelength…. See next slide • Drop and continue is supported Applications: • 10G Transport • Router Interconnect • Wireless Back Haul • Residential Broadband Backhaul • Triple Play • Datacenter Interconnect • 8 x anything • GbE • STM4 • STM16 • 1/2/4GFC C1008 10Gb/s Page 16 Ekinops Proprietary information

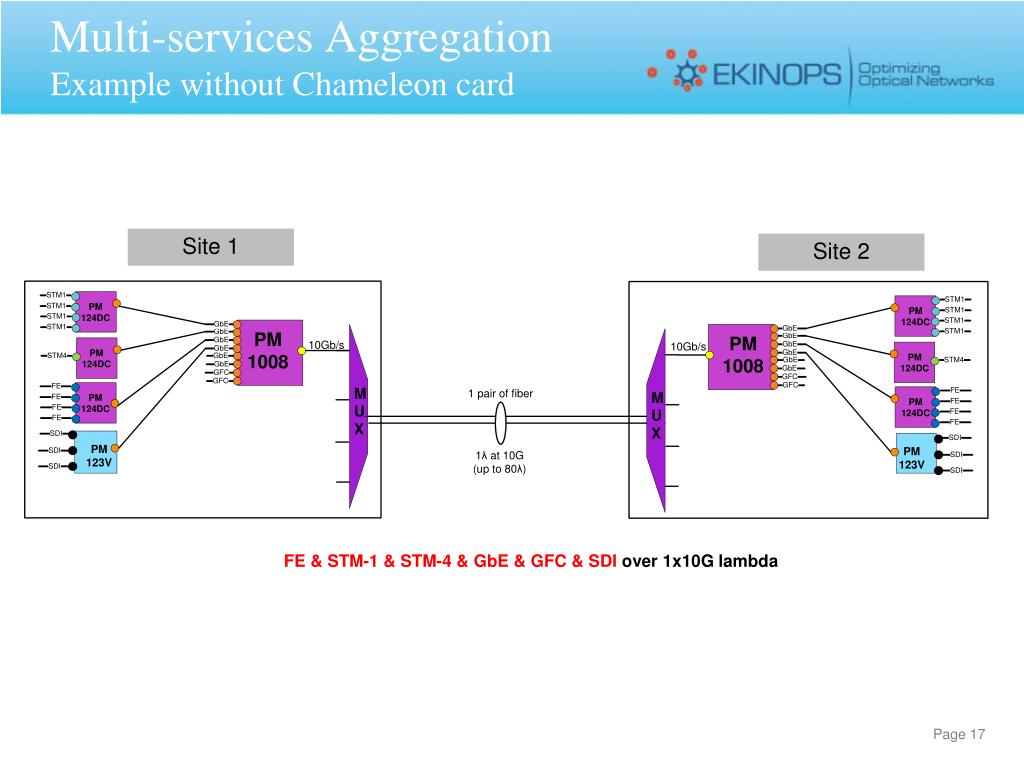

  15. Multi-services Aggregation Example without Chameleon card FE & STM-1 & STM-4 & GbE & GFC & SDI over 1x10G lambda

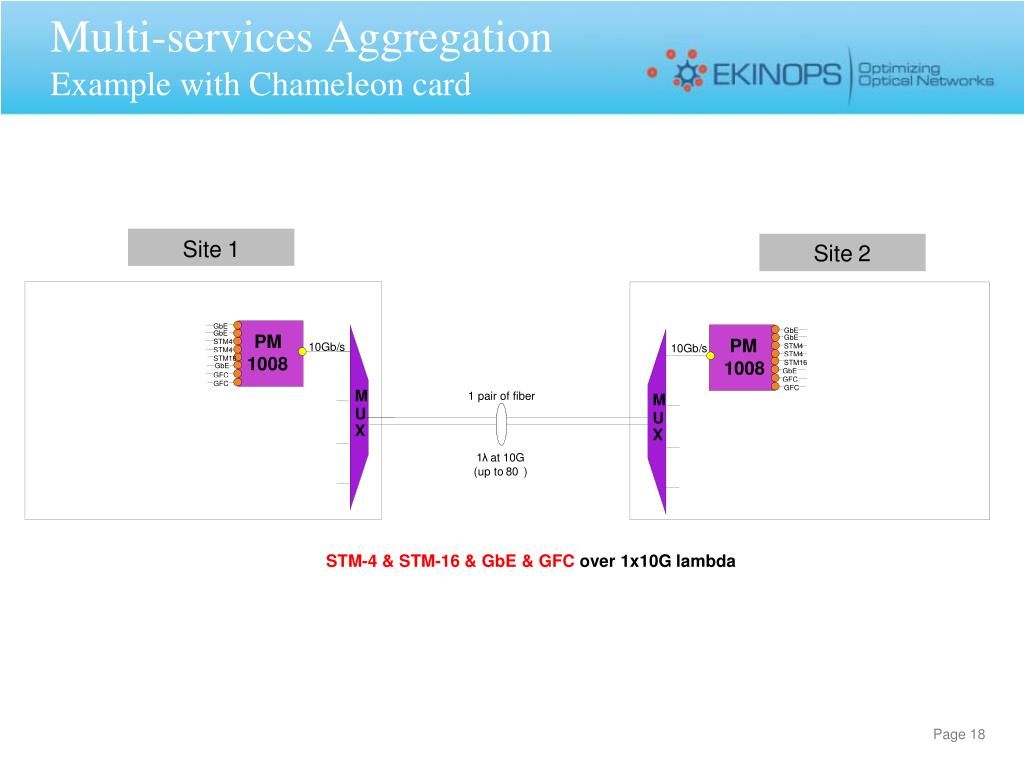

  16. Multi-services Aggregation Example with Chameleon card Site 1 Site 2 GbE GbE GbE PM GbE PM STM4 10 Gb / s 10 Gb / s STM4 STM4 STM4 1008 STM16 1008 STM16 GbE GbE GFC GFC GFC GFC M 1 pair of fiber M U U X X 1 λ at 10 G ( up to 80 ) STM-4 & STM-16 & GbE & GFC over 1x10G lambda

  17. Multi-protocol ADMReducing the Cost of Infrastructure using Fewer Wavelengths • Typical Point to Point Transport Solution • Multi-Protocol ADM Aggregation of services without the Ekinops Multi-Protocol ADM takes 2 line cards (source and dest) and 1 wavelength for each service type being aggregated. Aggregation of services with the Ekinops Multi-Protocol ADM takes 1 line card for each site (regardless of number of protocols dropped) and 1 wavelength is shared across all aggregation sites. Less Equipment, Better Utilization of your infrastructure Less Equipment = Lower Ongoing Costs (Power) Can be implemented over a wavelength or leased service

  18. Multi-Protocol/Rate ADM using the unique card C1008DC Multiple service types and rates can be added and dropped off of a single 10G wavelength shared by multiple sites with only 1 muxponder at each site

  19. Serving Multiple Applications more Efficiently Router ATM/IP DSLAM MPLS Core 2G, 3G, 4G Wireless (TDM/ATM/Ethernet) TDM Core Private Line (TDM) G.PON, FTTC More efficiently aggregate traffic from multiple applications using the multi-rate, multi-protocol ADM And you can do this on 1 fiber, with fewer amplifiers Ekinops proprietary information

  20. 90km+ @10G Going the DistanceWithout Inline Amplifiers • Submarine links • Hosting / Storage / DisasterRecovery Amp 150km @10G Amp OPM Amp 300km with 80 channels @10G 250km with 40 channels @40G • > 2,000km Non-Regenerated distance • No need to maintain interim amp sites for distances of up to 300Km • Or…. Go with cheaper fiber and use our distances to pave the way

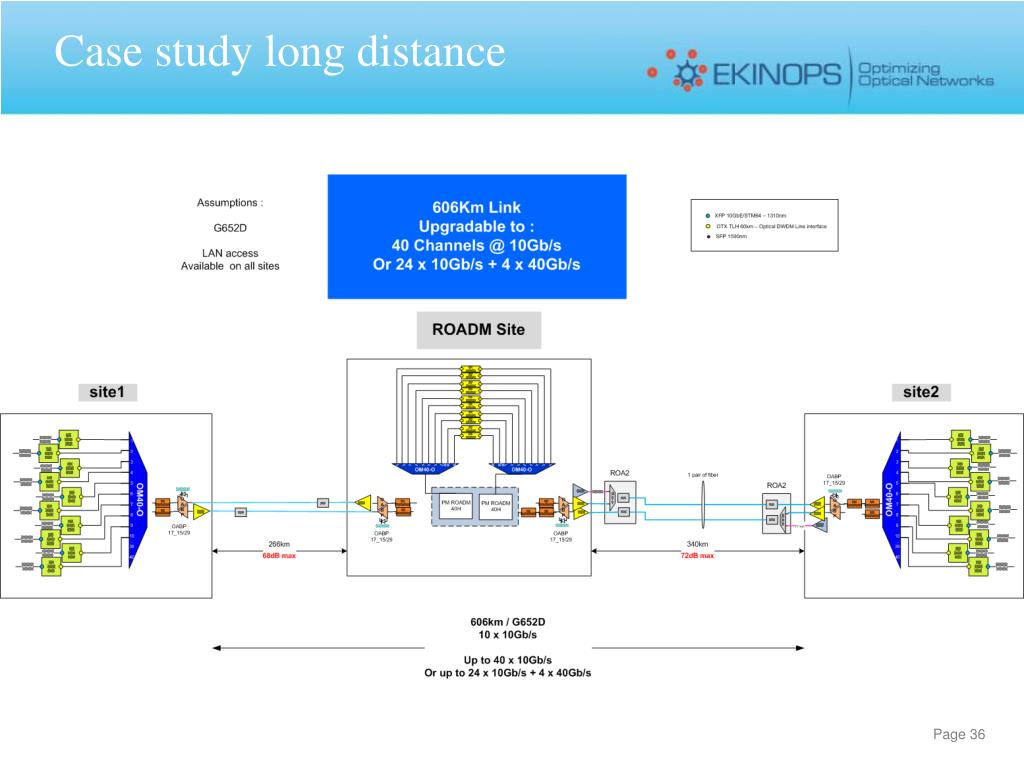

  21. Case study long distance

  22. Case study long distance

  23. Foreign Wavelengths Easy integration with existing systems • Get next generation services utilizing existing equipments already deployed • Adding wavelengths to existing DWDM/CWDM systems • Works with Huwaei, Cisco, Nortel, E//, ALU etc… • Easily increase capacity Advantages of EKINOPS solution • Any module from Ekinops can be used for adding 10G foreign wavelengths into an existing CWDM and DWDM system • When transponders are not available for the existing system or are too expensive • Easy integration with existing suppliers • Optimized CAPEX • Ekinops OADMs can be added to increase the capacity of installed base Ekinops proprietary information

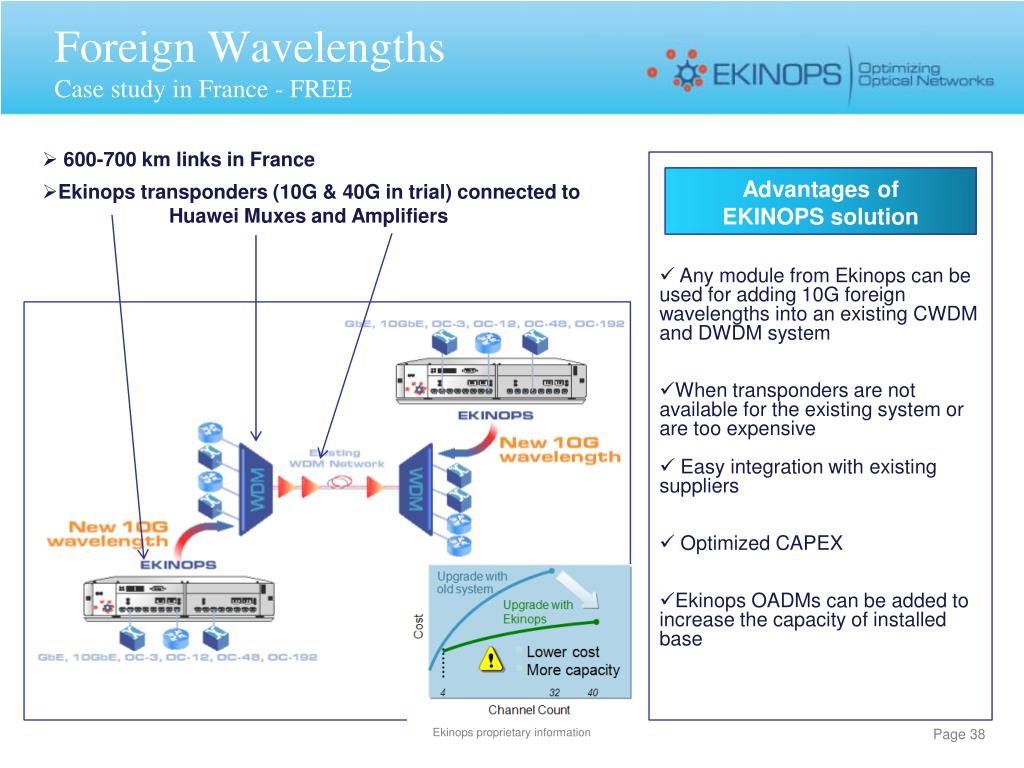

  24. Foreign Wavelengths Case study in France - FREE • 600-700 km links in France • Ekinops transponders (10G & 40G in trial) connected to HuaweiMuxes and Amplifiers Advantages of EKINOPS solution • Any module from Ekinops can be used for adding 10G foreign wavelengths into an existing CWDM and DWDM system • When transponders are not available for the existing system or are too expensive • Easy integration with existing suppliers • Optimized CAPEX • Ekinops OADMs can be added to increase the capacity of installed base Ekinops proprietary information

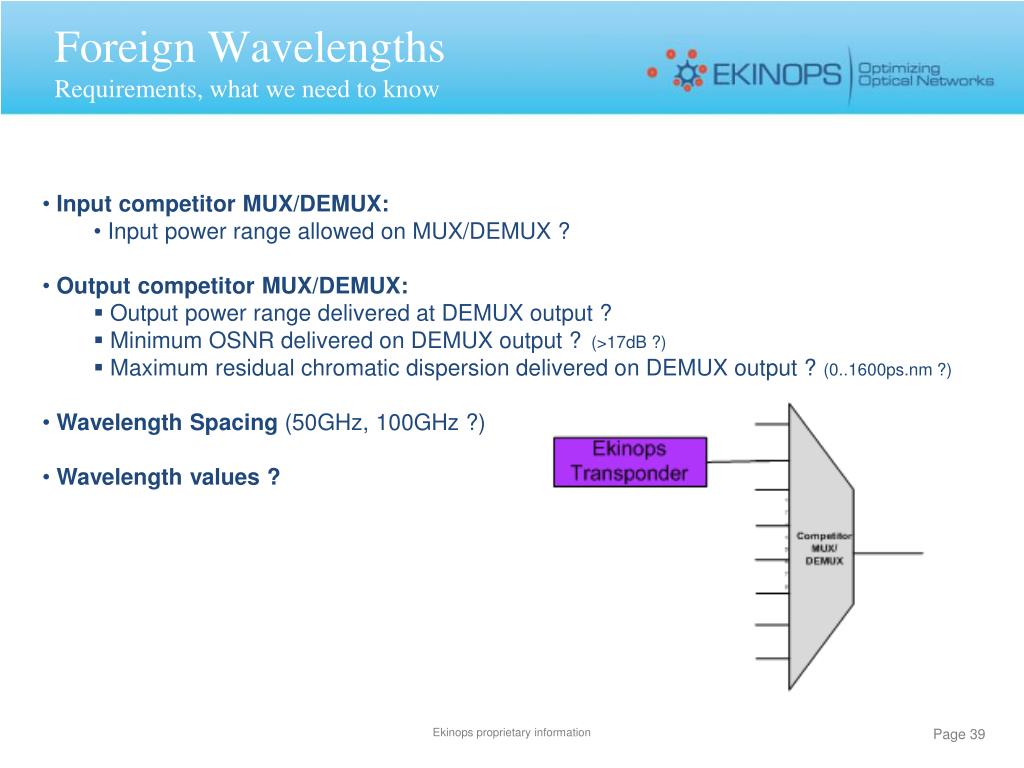

  25. Foreign Wavelengths Requirements, what we need to know • Input competitor MUX/DEMUX: • Input power range allowed on MUX/DEMUX ? • Output competitor MUX/DEMUX: • Output power range delivered at DEMUX output ? • Minimum OSNR delivered on DEMUX output ? (>17dB ?) • Maximum residual chromatic dispersion delivered on DEMUX output ? (0..1600ps.nm ?) • Wavelength Spacing (50GHz, 100GHz ?) • Wavelength values ? Ekinops proprietary information

  26. Single Fiber capabilityFor fiber constraints environments • Bi-directional traffic over 1 single fiber strand • Up to 32 channels at 10 G in each direction • Up to 64 channels at 10G using the 40G Muxponder • Specificenterprise projects • Fiber Network optimization Advantages of Single Fiber Solution • ReduceOpex by Saving Fiber Utilization • Operational Simplification • Less to Manage • Excellent solution for fiber constrained Environments DWDM network Over a pair of fiber EKINOPS EKINOPS DWDM network Over a single fiber Chassis with an Optical Combiner module Chassis with an Optical Combiner module Ekinops proprietary information

  27. HD-SDI & SD-SDI solutions Native video transport • Transport any digital video format : HD-SDI, SD-SDI, ASI + GbE and FE in the same 10G wavelength • Customers: TV/Video broadcasters, Pre-Post Production companies, Film distributors who all need to work on uncompressed video signals • All services over the same fiber/λ: Video & Ethernet services • Auto sense or individually configurable video ports • Unidirectional channels: enables for both unidirectional and bidirectional connections • IPTV / Videoprojects • Specificenterprise projects Advantages of EKINOPS solution • Ultimate bandwidth utilization : up to 4x HD/SD SDI +GE over 1x10Gλ • Transport over extra long distances without signal degradation • Build large-scale media networks with many different traffic types • Cost efficient aggregation and transport over long distances (300km without amplification, 2000km with amplifiers) Less than ½ the cost of traditional mechanisms for doing this! Ekinops proprietary information

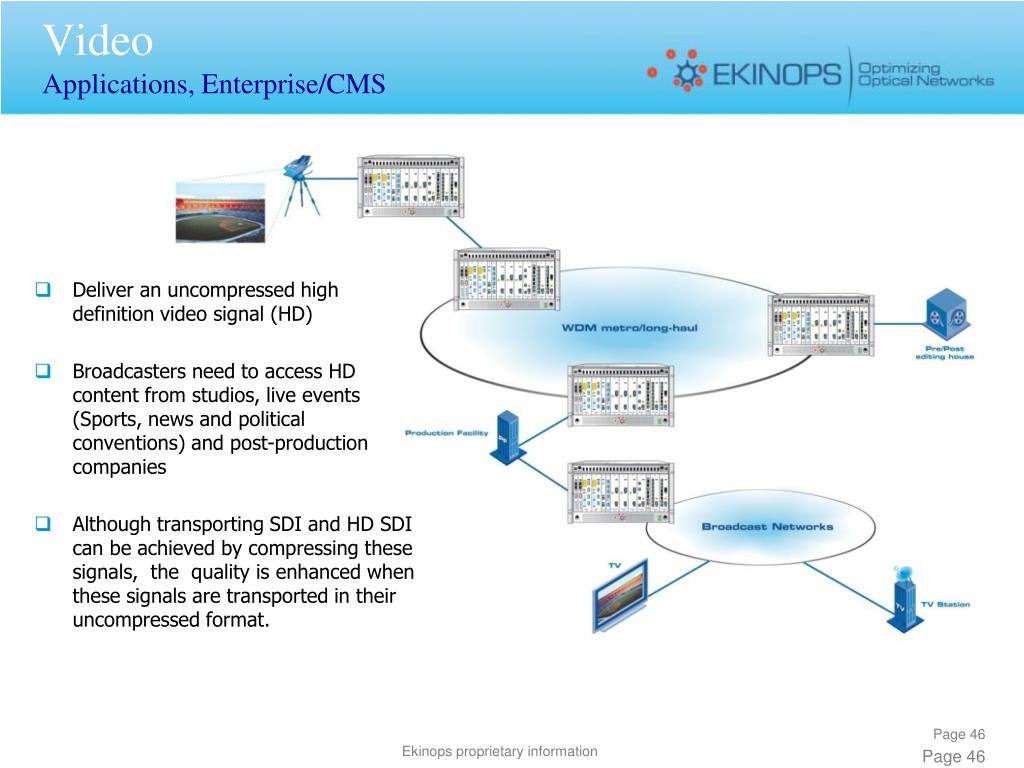

  28. VideoApplications, Enterprise/CMS • Deliver an uncompressed high definition video signal (HD) • Broadcasters need to access HD content from studios, live events (Sports, news and political conventions) and post-production companies • Although transporting SDI and HD SDI can be achieved by compressing these signals, the quality is enhanced when these signals are transported in their uncompressed format. Ekinops proprietary information

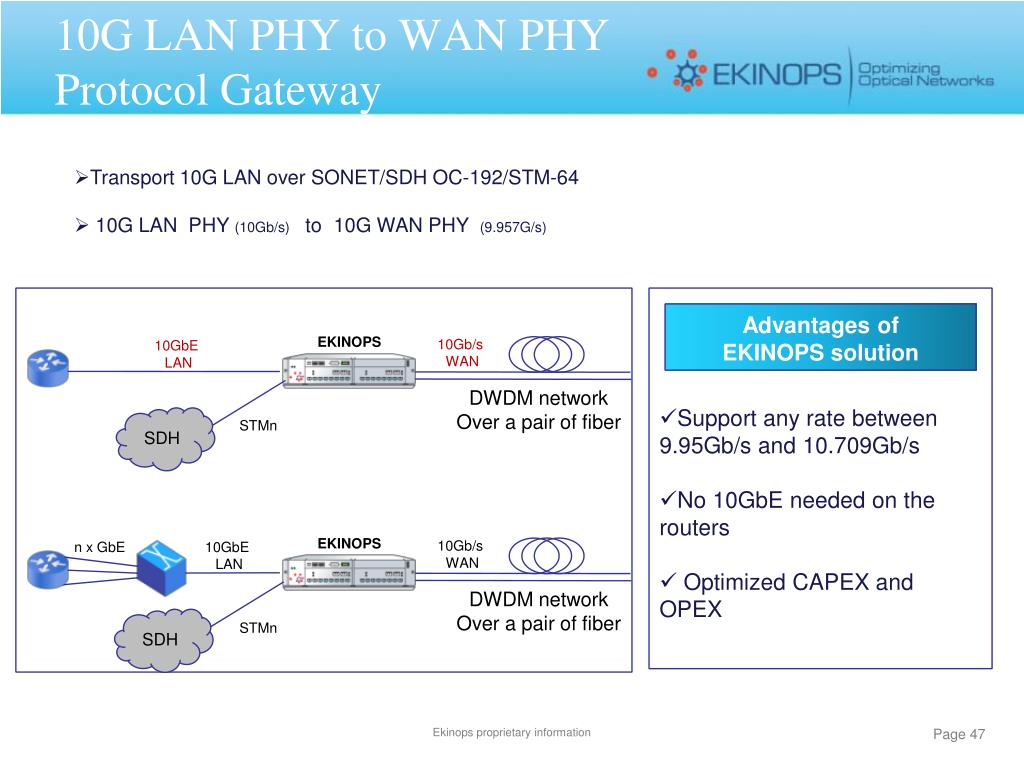

  29. 10G LAN PHY to WAN PHY Protocol Gateway • Transport 10G LAN over SONET/SDH OC-192/STM-64 • 10G LAN PHY (10Gb/s) to10G WAN PHY (9.957G/s) Advantages of EKINOPS solution EKINOPS 10Gb/s WAN 10GbE LAN DWDM network Over a pair of fiber • Support any rate between 9.95Gb/s and 10.709Gb/s • No 10GbE needed on the routers • Optimized CAPEX and OPEX SDH STMn EKINOPS 10Gb/s WAN n x GbE 10GbE LAN DWDM network Over a pair of fiber SDH STMn Ekinops proprietary information

  30. Going the Distance Over Poor FiberInverse Mux Capability • Transmission of 10G traffic over performance limited fiber • Transmission of 10G traffic over an existing OC-48/STM-16 network Advantages of EKINOPS solution • 10 G traffic can be easily transported on long distances even when fiber characteristics do not allow plain 10G transport • If your wavelength requirement is low, buy the cheap stuff • Utilization of existing fibers and network EKINOPS 4 x 2,5G 10G DWDM Network Lambdas at 2.5G Mux Page 49 Ekinops Proprietary information

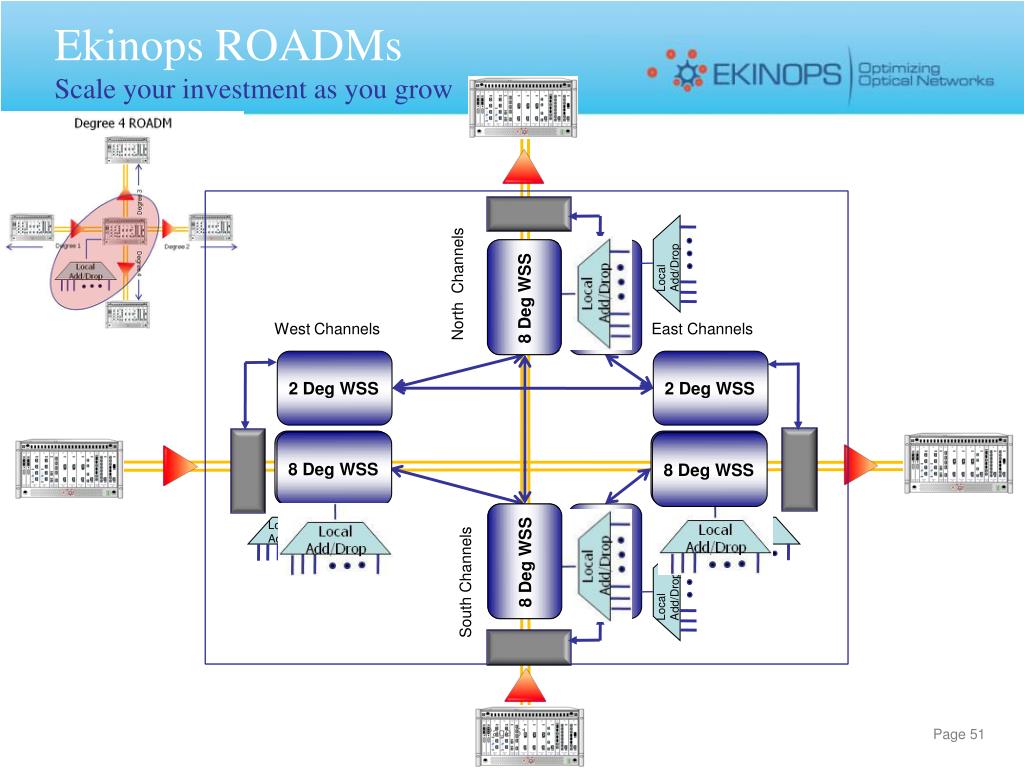

  31. Ekinops ROADMsScale your investment as you grow 8 Deg WSS 2 Deg WSS 2 Deg WSS North Channels West Channels East Channels 2 Deg WSS 2 Deg WSS 8 Deg WSS 2 Deg WSS 2 Deg WSS 8 Deg WSS 2 Deg WSS 2 Deg WSS 8 Deg WSS Local Add/Drop Local Add/Drop Local Add/Drop Local Add/Drop South Channels

  32. Ekinops ROADMsScale your investment as you grow • Degrees: starts with 2, scales to up to 6 • Channels: 40 upgradeable to 80 • Drops: Any 8 consecutive channels scales to 16 channels in 2 groups of 8 consecutive channels • Spacing: 100GHz for 40, 50GHz for 80 ROADM 8H • Degrees: starts with 2 scales to up to 6 • Channels: 40 Upgradeable to 80 • Drops: 40 Channels Upgradeable to 80 Channels • Spacing: 100GHz for 40, 50GHz for 80 ROADM 40H • Degrees: starts with 4 upgrades to 8 • Channels: 80 • Drops: 80 Channels • Spacing: 50GHz ROADM 80H4 • Allows you to scale your investment as you need the extra drops or degrees • Also allows you not to pay the full price for 8 degrees and 80 Add Drops at every ROADM node when the majority of nodes will never need more than a couple of degrees and a few waves • Allows you to cost optimize for your application!

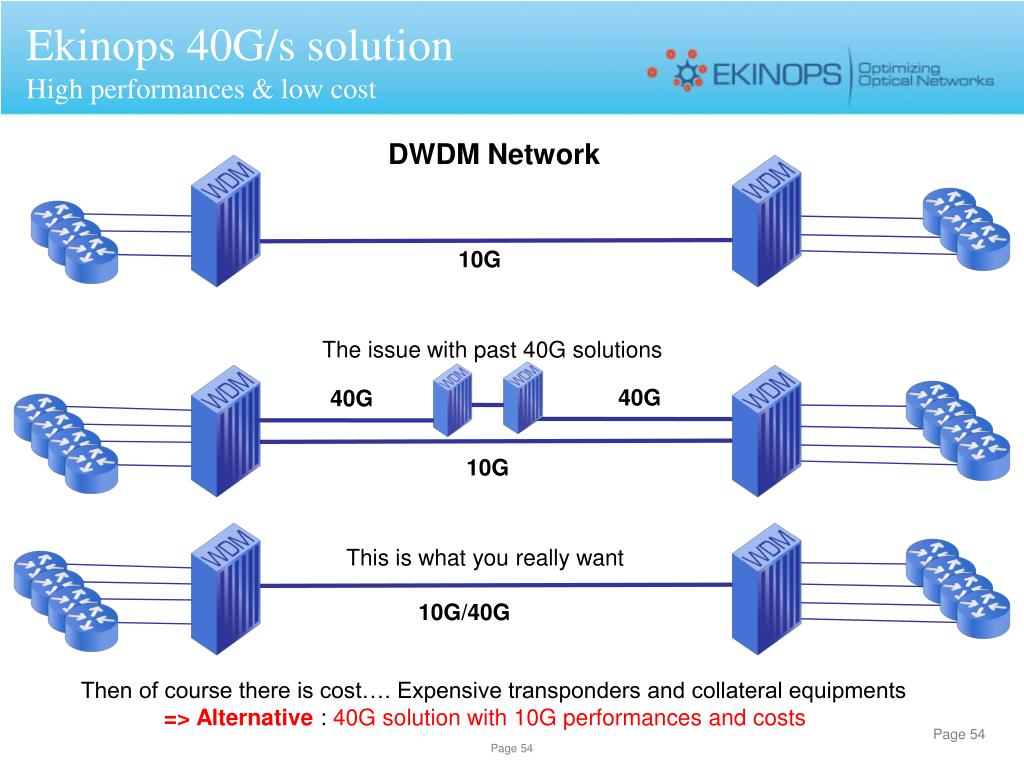

  33. Ekinops 40G/s solutionHigh performances & low cost DWDM Network 10G The issue with past 40G solutions 40G 40G 10G This is what you really want 10G/40G Then of course there is cost…. Expensive transponders and collateral equipments => Alternative : 40G solution with 10G performances and costs

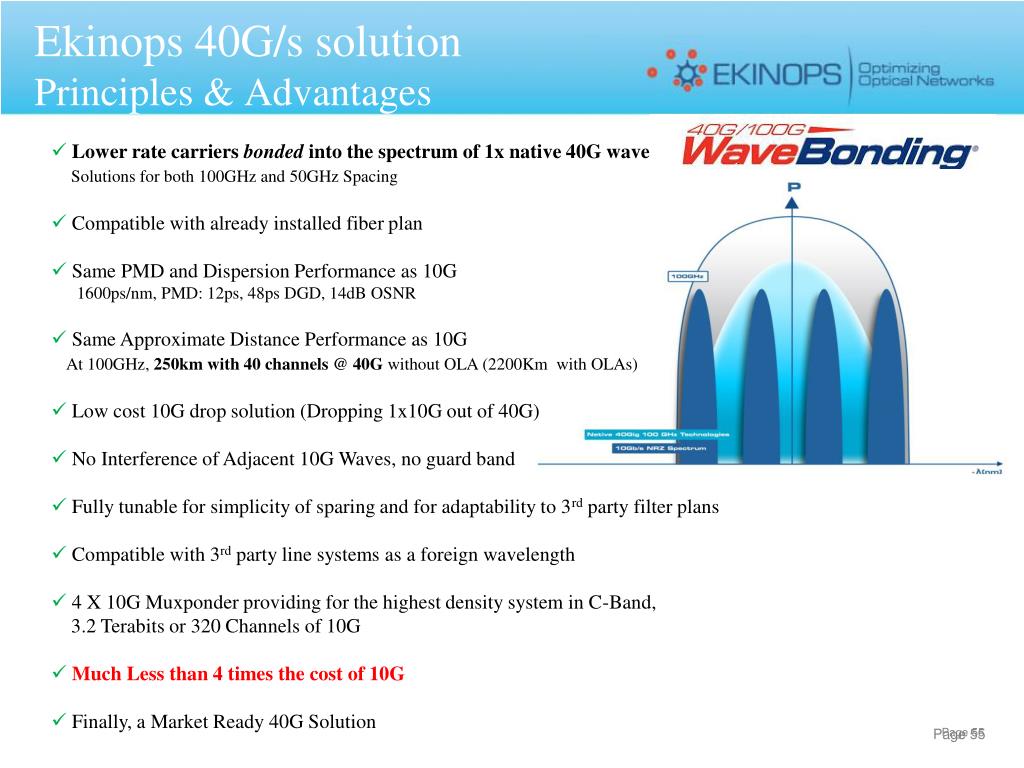

  34. Ekinops 40G/s solution Principles & Advantages • Lower rate carriers bonded into the spectrum of 1x native 40G waveSolutions for both 100GHz and 50GHz Spacing • Compatible with already installed fiber plan • Same PMD and Dispersion Performance as 10G 1600ps/nm, PMD: 12ps, 48ps DGD, 14dB OSNR • Same Approximate Distance Performance as 10GAt 100GHz, 250km with 40 channels @ 40G without OLA (2200Km with OLAs) • Low cost 10G drop solution (Dropping 1x10G out of 40G) • No Interference of Adjacent 10G Waves, no guard band • Fully tunable for simplicity of sparing and for adaptability to 3rd party filter plans • Compatible with 3rd party line systems as a foreign wavelength • 4 X 10G Muxponder providing for the highest density system in C-Band, 3.2 Terabits or 320 Channels of 10G • Much Less than 4 times the cost of 10G • Finally, a Market Ready 40G Solution Page 55

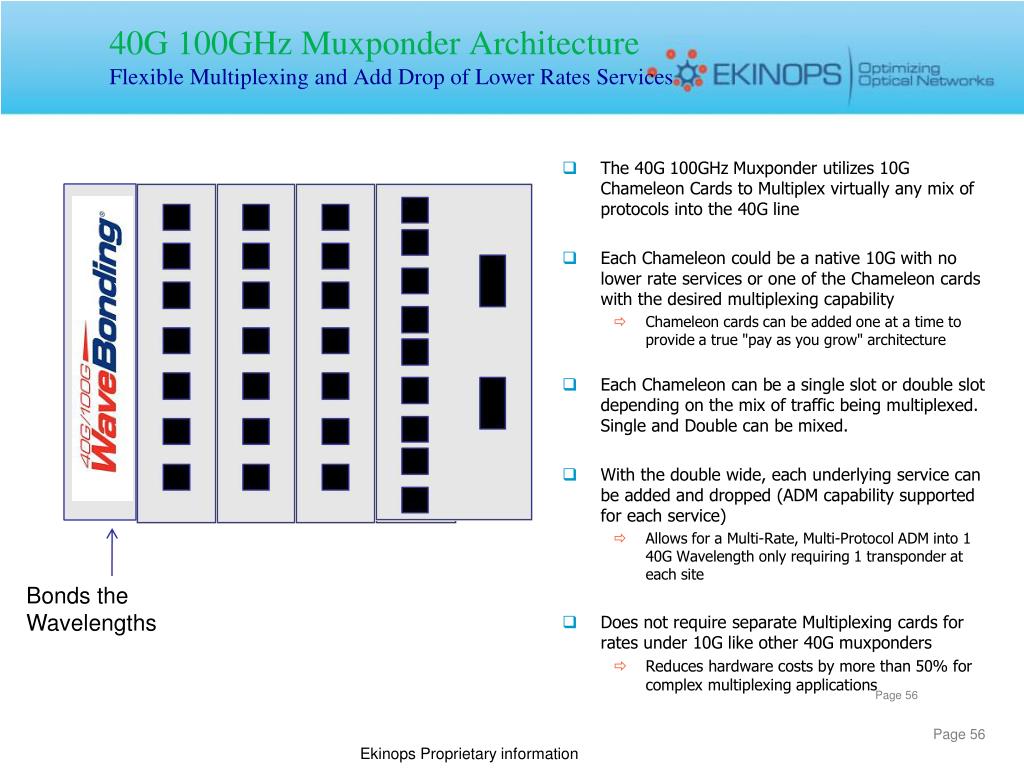

  35. 40G 100GHz Muxponder ArchitectureFlexible Multiplexing and Add Drop of Lower Rates Services Bonds the Wavelengths • The 40G 100GHz Muxponder utilizes 10G Chameleon Cards to Multiplex virtually any mix of protocols into the 40G line • Each Chameleon could be a native 10G with no lower rate services or one of the Chameleon cards with the desired multiplexing capability • Chameleon cards can be added one at a time to provide a true "pay as you grow" architecture • Each Chameleon can be a single slot or double slot depending on the mix of traffic being multiplexed. Single and Double can be mixed. • With the double wide, each underlying service can be added and dropped (ADM capability supported for each service) • Allows for a Multi-Rate, Multi-Protocol ADM into 1 40G Wavelength only requiring 1 transponder at each site • Does not require separate Multiplexing cards for rates under 10G like other 40G muxponders • Reduces hardware costs by more than 50% for complex multiplexing applications Ekinops Proprietary information

  36. 40G 100GHz Muxponder ArchitectureReuse your 10G Investment Deploy Ekinops 10G transponders and muxponders stand-alone today Reuse those same modules to build a 40G muxponder! Ekinops Proprietary information

  37. Very Low Power Consumption

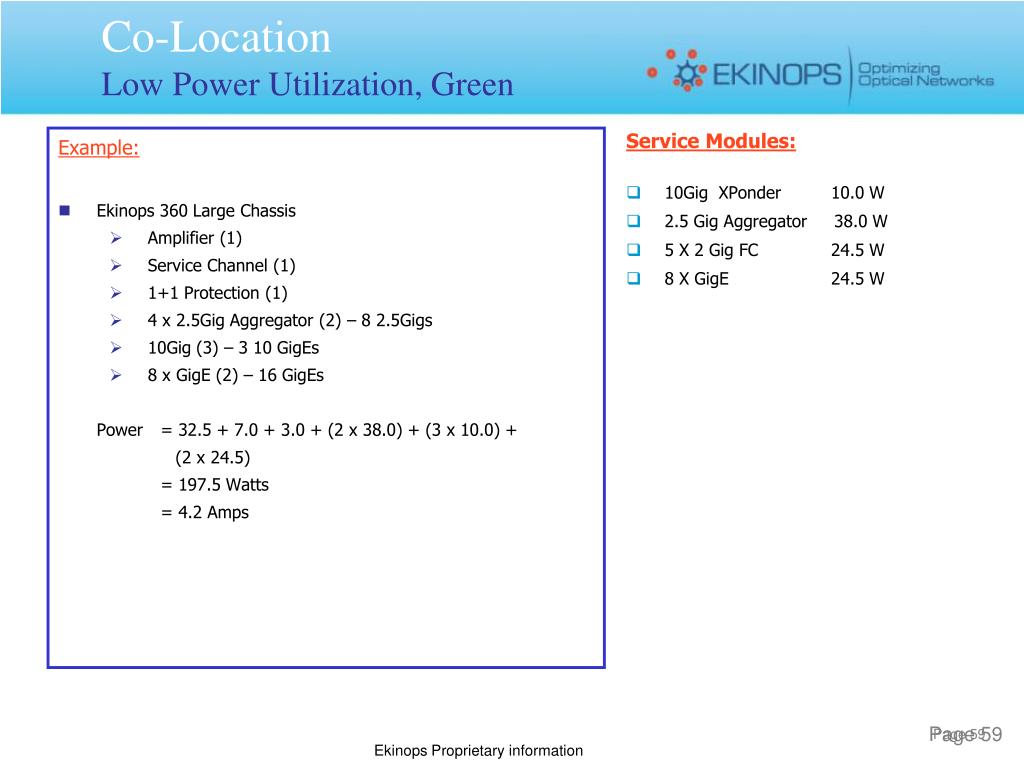

  38. Service Modules: 10Gig XPonder 10.0 W 2.5 Gig Aggregator 38.0 W 5 X 2 Gig FC 24.5 W 8 X GigE 24.5 W Co-LocationLow Power Utilization, Green Example: • Ekinops 360 Large Chassis • Amplifier (1) • Service Channel (1) • 1+1 Protection (1) • 4 x 2.5Gig Aggregator (2) – 8 2.5Gigs • 10Gig (3) – 3 10 GigEs • 8 x GigE (2) – 16 GigEs • Power = 32.5 + 7.0 + 3.0 + (2 x 38.0) + (3 x 10.0) + • (2 x 24.5) • = 197.5 Watts • = 4.2 Amps Page 59 Ekinops Proprietary information

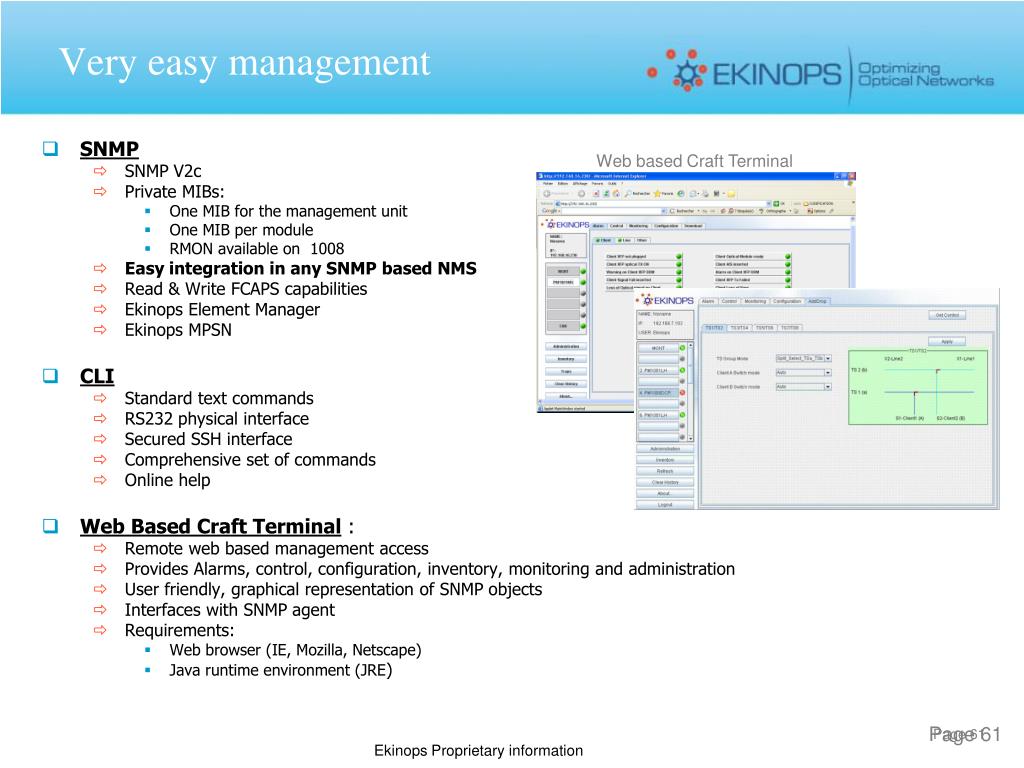

  39. Very easy management • SNMP • SNMP V2c • Private MIBs: • One MIB for the management unit • One MIB per module • RMON available on 1008 • Easy integration in any SNMP based NMS • Read & Write FCAPS capabilities • Ekinops Element Manager • Ekinops MPSN • CLI • Standard text commands • RS232 physical interface • Secured SSH interface • Comprehensive set of commands • Online help • Web Based Craft Terminal : • Remote web based management access • Provides Alarms, control, configuration, inventory, monitoring and administration • User friendly, graphical representation of SNMP objects • Interfaces with SNMP agent • Requirements: • Web browser (IE, Mozilla, Netscape) • Java runtime environment (JRE) Web based Craft Terminal Page 61 Ekinops Proprietary information

  40. Ekinops SNMP Element Manager • KEY FEATURES & BENEFITS • Scalable, Distributed Architecture (Supports Distributed Polling) • Email/Pager Event Notification • Can be used for generic management of 3rd party devices • Comprehensive Performance Data logging and trending • Comprehensive Performance Reporting • Live/Standby Servers with automatic failover • Runs as Windows Service • Real-time MIB Displays /Browser • Programming & Scripting Interfaces Page 62 Ekinops Proprietary information

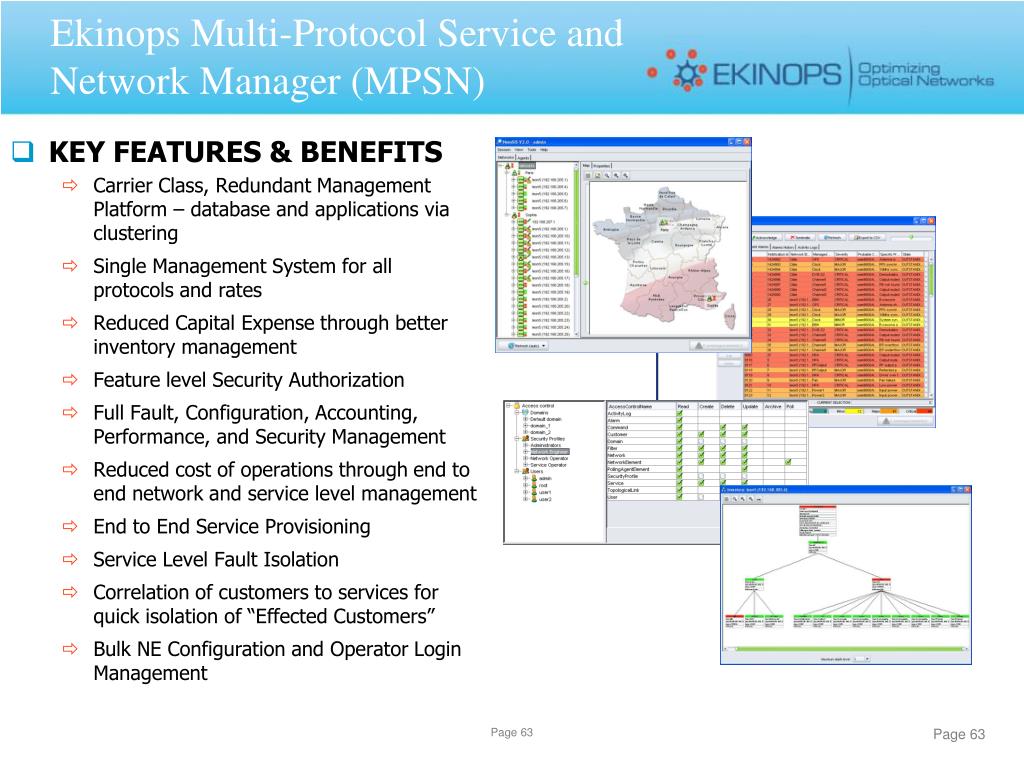

  41. Ekinops Multi-Protocol Service and Network Manager (MPSN) • KEY FEATURES & BENEFITS • Carrier Class, Redundant Management Platform – database and applications via clustering • Single Management System for all protocols and rates • Reduced Capital Expense through better inventory management • Feature level Security Authorization • Full Fault, Configuration, Accounting, Performance, and Security Management • Reduced cost of operations through end to end network and service level management • End to End Service Provisioning • Service Level Fault Isolation • Correlation of customers to services for quick isolation of “Effected Customers” • Bulk NE Configuration and Operator Login Management

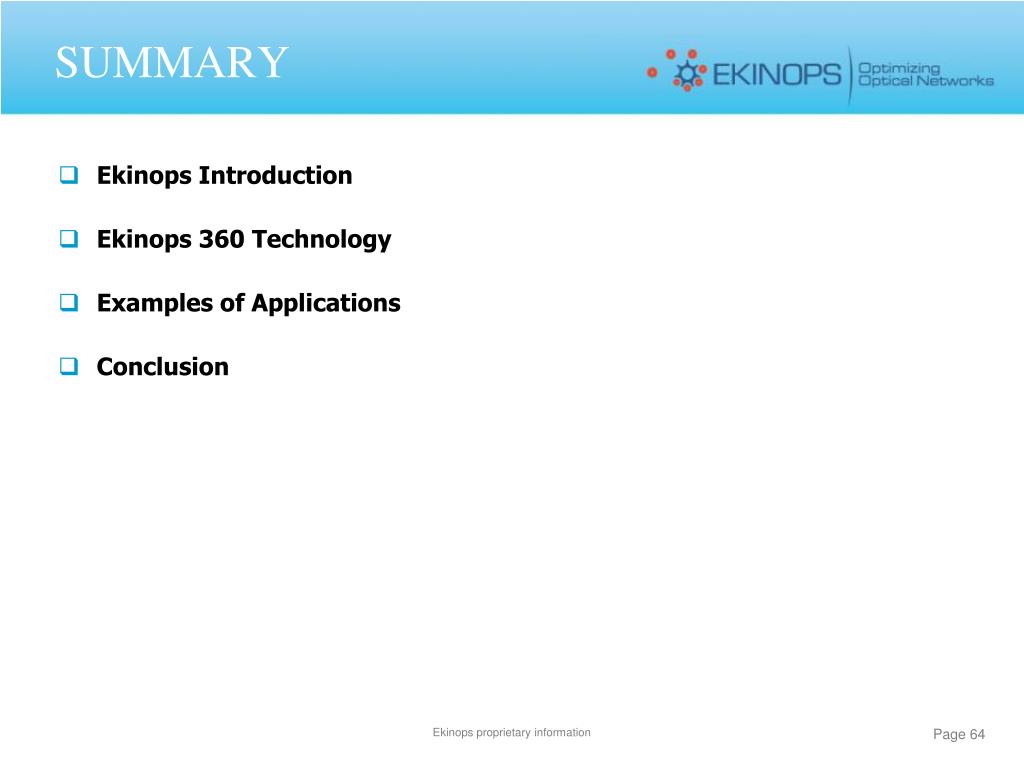

  42. SUMMARY • Ekinops Introduction • Ekinops 360 Technology • Examples of Applications • Conclusion Ekinops proprietary information

  43. SUMMARY • Ekinops Introduction • Ekinops 360 Technology • Examples of Applications • Conclusion Ekinops proprietary information

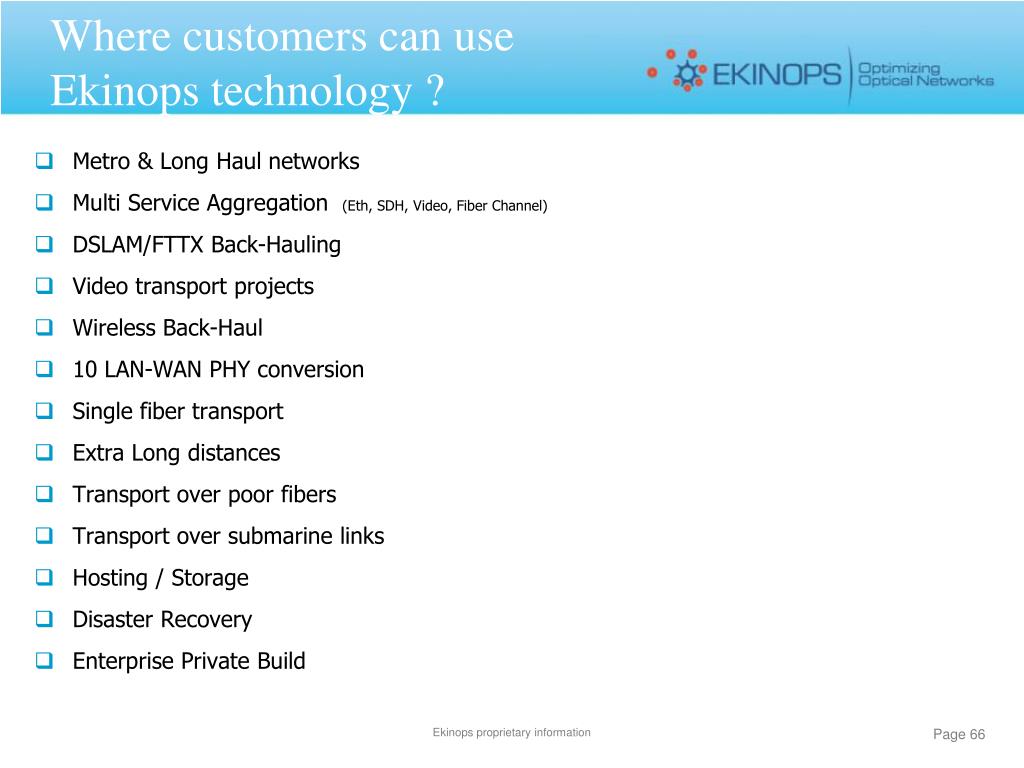

  44. Where customers can use Ekinops technology ? • Metro & Long Haul networks • Multi Service Aggregation (Eth, SDH, Video, Fiber Channel) • DSLAM/FTTX Back-Hauling • Video transport projects • Wireless Back-Haul • 10 LAN-WAN PHY conversion • Single fiber transport • Extra Long distances • Transport over poor fibers • Transport over submarine links • Hosting / Storage • Disaster Recovery • Enterprise Private Build Ekinops proprietary information

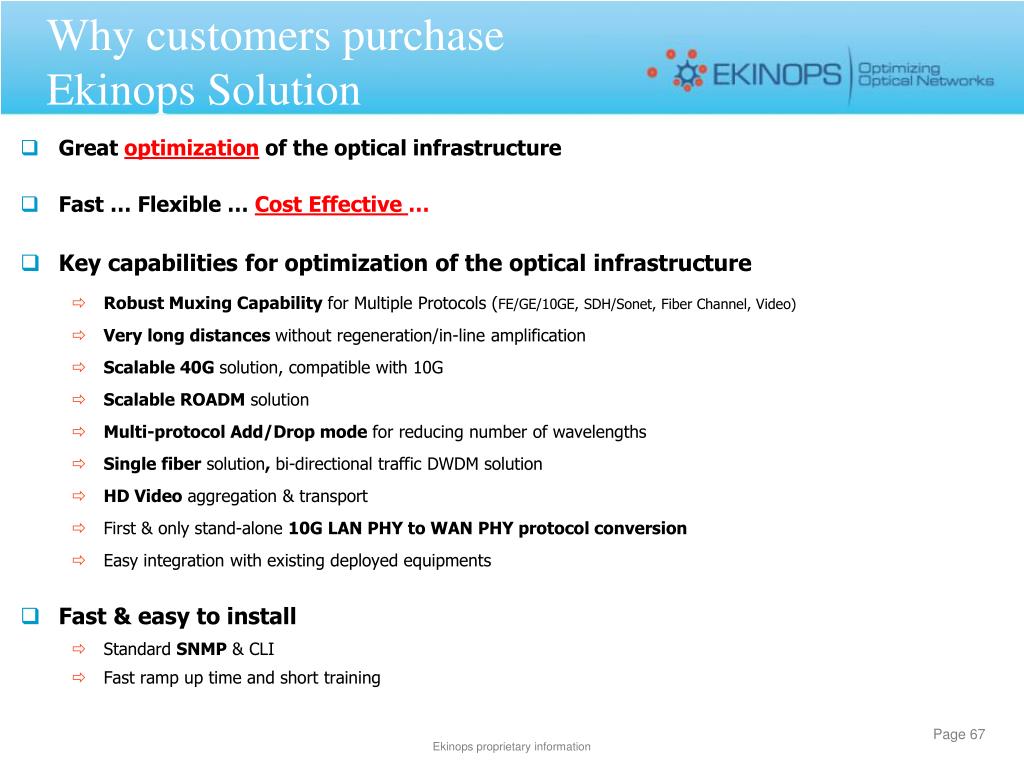

  45. Why customers purchase Ekinops Solution • Great optimization of the optical infrastructure • Fast … Flexible … Cost Effective … • Key capabilities for optimization of the optical infrastructure • Robust Muxing Capability for Multiple Protocols (FE/GE/10GE, SDH/Sonet, Fiber Channel, Video) • Very long distances without regeneration/in-line amplification • Scalable 40G solution, compatible with 10G • Scalable ROADM solution • Multi-protocol Add/Drop mode for reducing number of wavelengths • Single fiber solution, bi-directional traffic DWDM solution • HD Video aggregation & transport • First & only stand-alone 10G LAN PHY to WAN PHY protocol conversion • Easy integration with existing deployed equipments • Fast & easy to install • Standard SNMP & CLI • Fast ramp up time and short training Ekinops proprietary information

  46. Ekinops proprietary information
