  1. Qt and Slicer A short introduction September 16th, 2009

  2. Once upon a time … • Slicer developer got an awesome idea ! Slicer

  3. Slicer developer contacted KWWidget Slicer: I need this awesome Widget KWW :Will do my best … 3 to 4 weeks Bottleneck ! Slicer KWWidgets

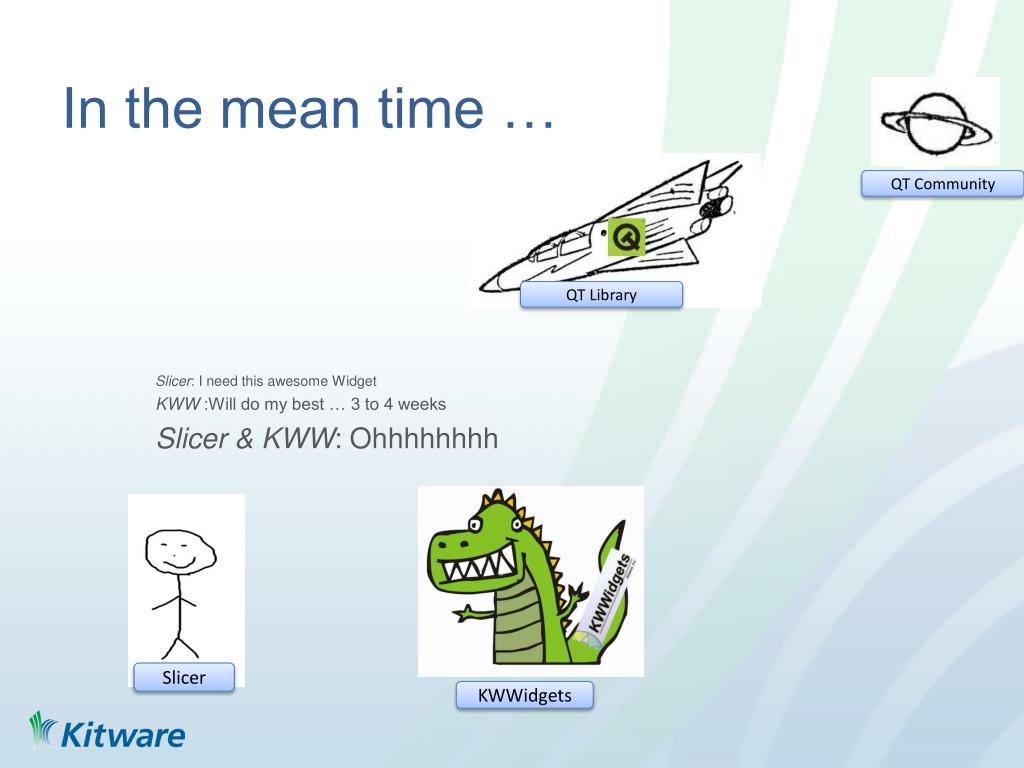

  4. In the mean time … QT Community QT Library Slicer: I need this awesome Widget KWW :Will do my best … 3 to 4 weeks Slicer & KWW: Ohhhhhhhh Slicer KWWidgets

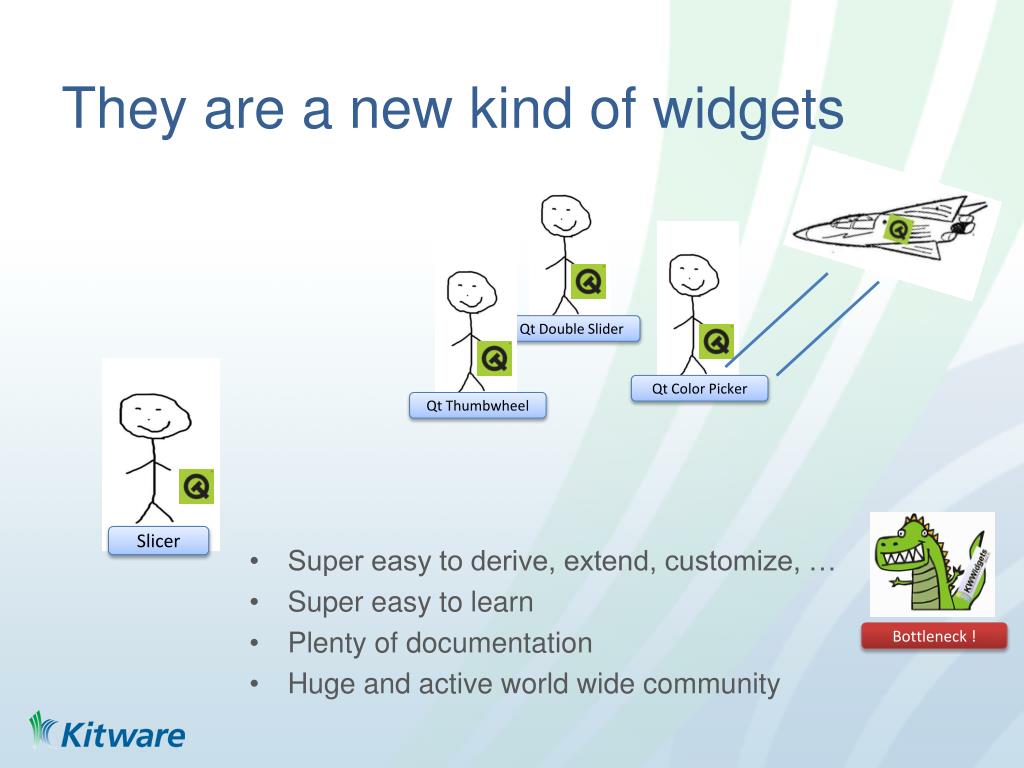

  5. They are a new kind of widgets Qt Double Slider Qt Color Picker Qt Thumbwheel • Super easy to derive, extend, customize, … • Super easy to learn • Plenty of documentation • Huge and active world wide community Slicer Bottleneck !

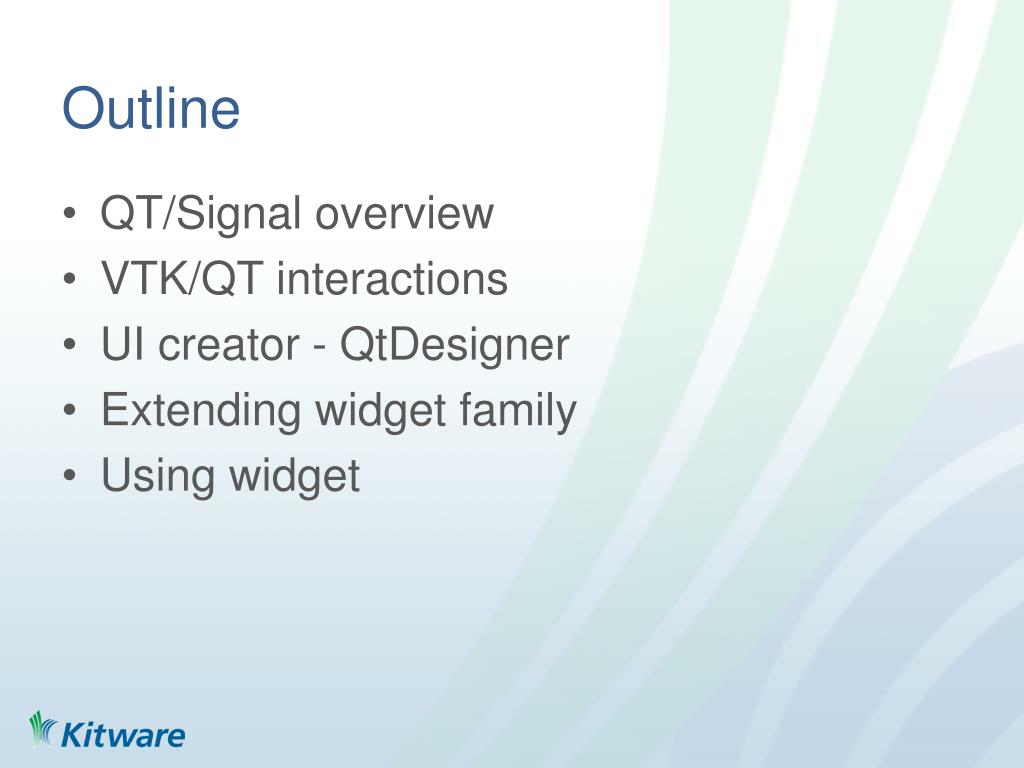

  6. Outline • QT/Signal overview • VTK/QT interactions • UI creator - QtDesigner • Extending widget family • Using widget

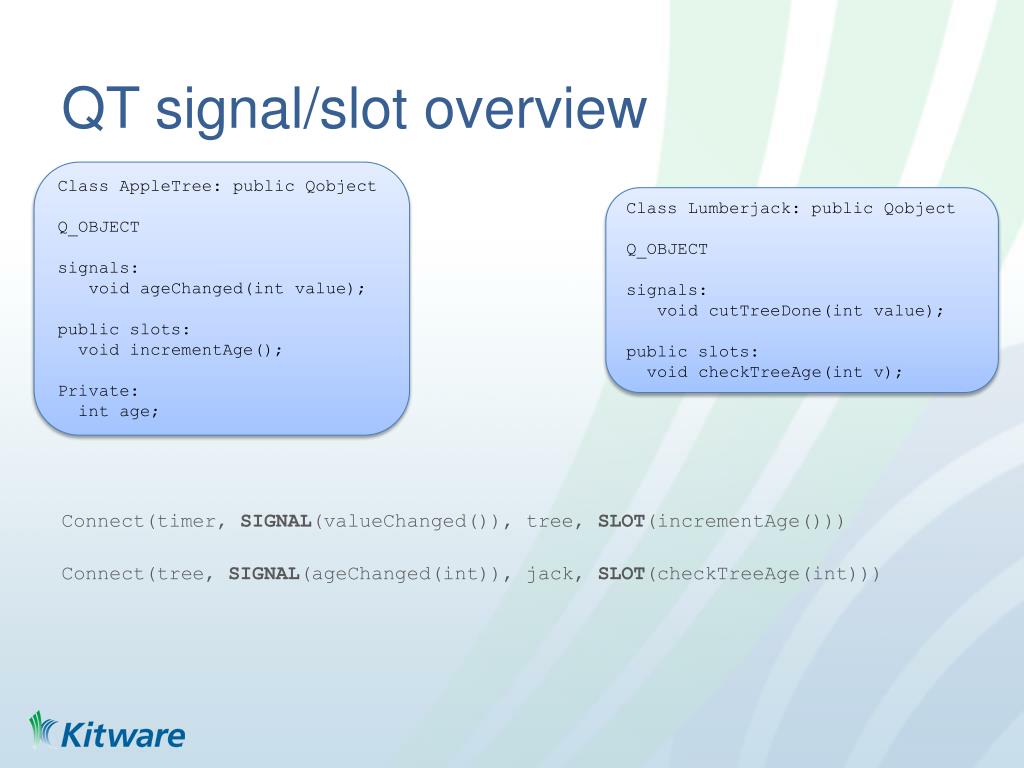

  7. QT signal/slot overview Class AppleTree: public Qobject Q_OBJECT signals: void ageChanged(int value);public slots: void incrementAge(); Private: int age; Connect(timer, SIGNAL(valueChanged()), tree, SLOT(incrementAge())) Connect(tree, SIGNAL(ageChanged(int)), jack, SLOT(checkTreeAge(int))) Class Lumberjack: public Qobject Q_OBJECT signals: void cutTreeDone(int value);public slots: void checkTreeAge(int v);

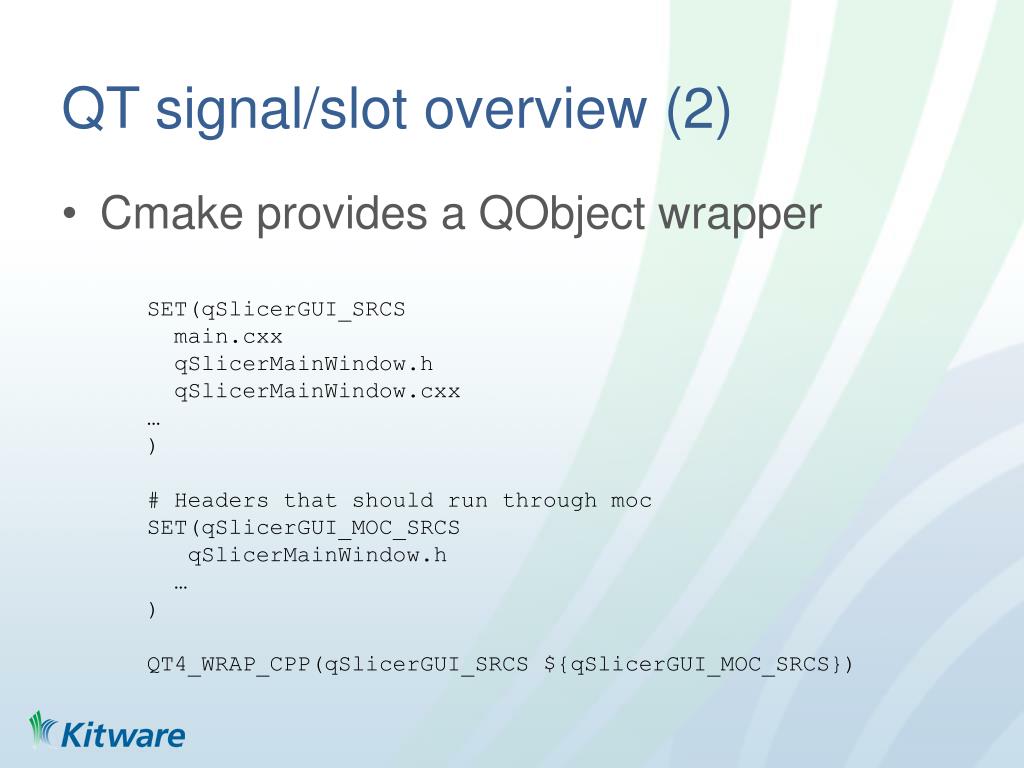

  8. QT signal/slot overview (2) • Cmake provides a QObject wrapper SET(qSlicerGUI_SRCS main.cxx qSlicerMainWindow.h qSlicerMainWindow.cxx … ) # Headers that should run through moc SET(qSlicerGUI_MOC_SRCS qSlicerMainWindow.h … ) QT4_WRAP_CPP(qSlicerGUI_SRCS ${qSlicerGUI_MOC_SRCS})

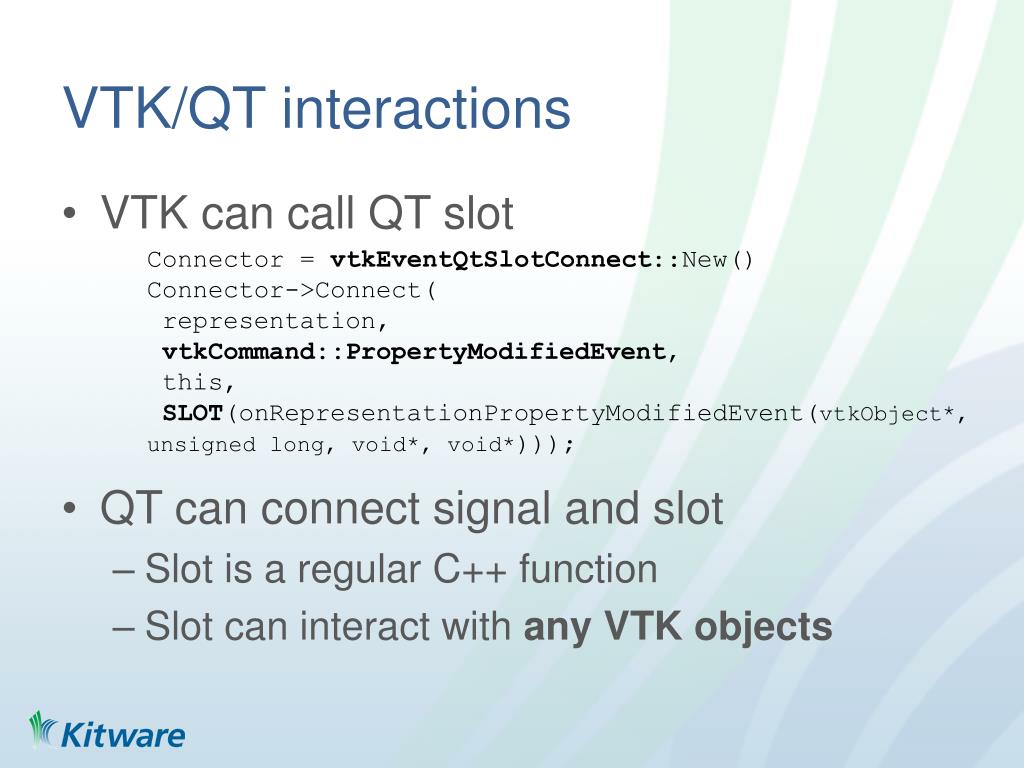

  9. VTK/QT interactions • VTK can call QT slot • QT can connect signal and slot • Slot is a regular C++ function • Slot can interact with any VTK objects • Connector = vtkEventQtSlotConnect::New() • Connector->Connect( representation, vtkCommand::PropertyModifiedEvent, • this,SLOT(onRepresentationPropertyModifiedEvent(vtkObject*, unsigned long, void*, void*)));

  10. UI Creator: QtDesigner • QtDesigner -> XML File -> ui_MyWidget.h • Setup the graphic layout of widget • Possible to extend QtDesigner capabilities • Widget promotion • QtDesignerplugin • qSlicerAwesomeWidget: public Ui::Mywidget • Connect the widget with the application

  11. UI Creator: Widget promotion • See http://doc.trolltech.com/4.5/designer-using-custom-widgets.html

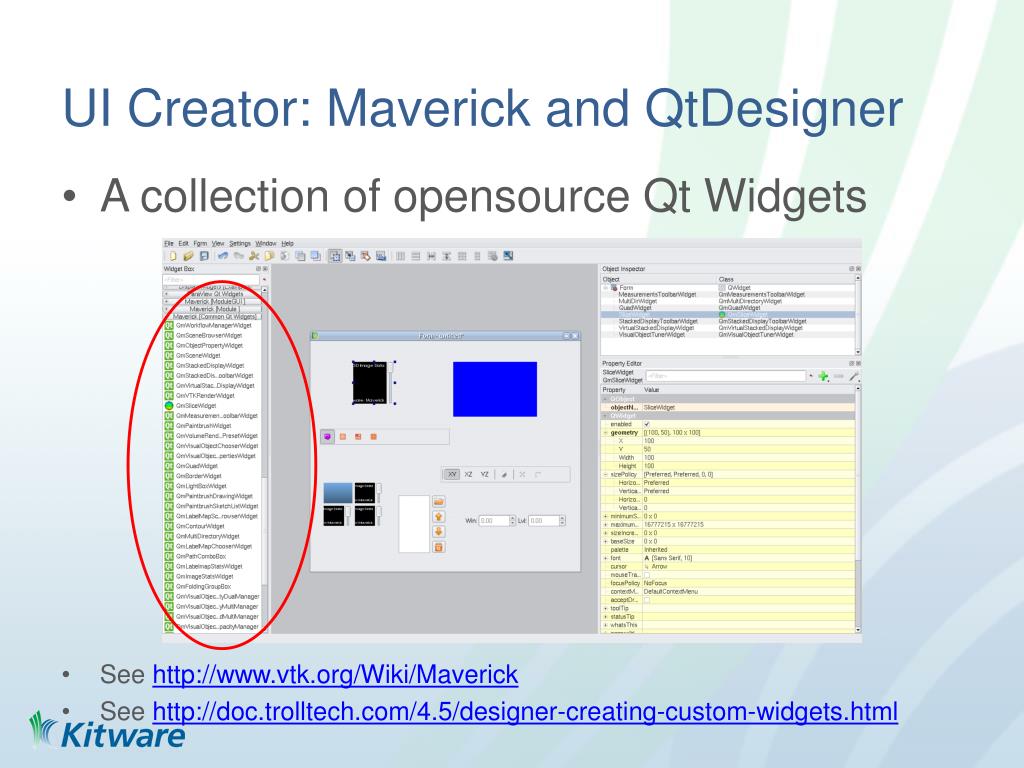

  12. UI Creator: Maverick and QtDesigner • A collection of opensource Qt Widgets • See http://www.vtk.org/Wiki/Maverick • See http://doc.trolltech.com/4.5/designer-creating-custom-widgets.html

  13. Extending a widget family • Example: QmDoubleRangeWidget • Extend from QSlider • Overload paintEvent( QPaintEvent* ) • Set of convenient methods provided by Qt API • QStylePainter::drawComplexControl(…) • Cross Platform

  14. Using widget from ‘others’ • Example QmDoubleRangeWidget • Developed by Karthik Krishnan • Self-documented interface • Signals and slots separation: Easy to understand • Cons: Handle only integers • Solution • Sub-classed into qSlicerDoubleRangeWidget

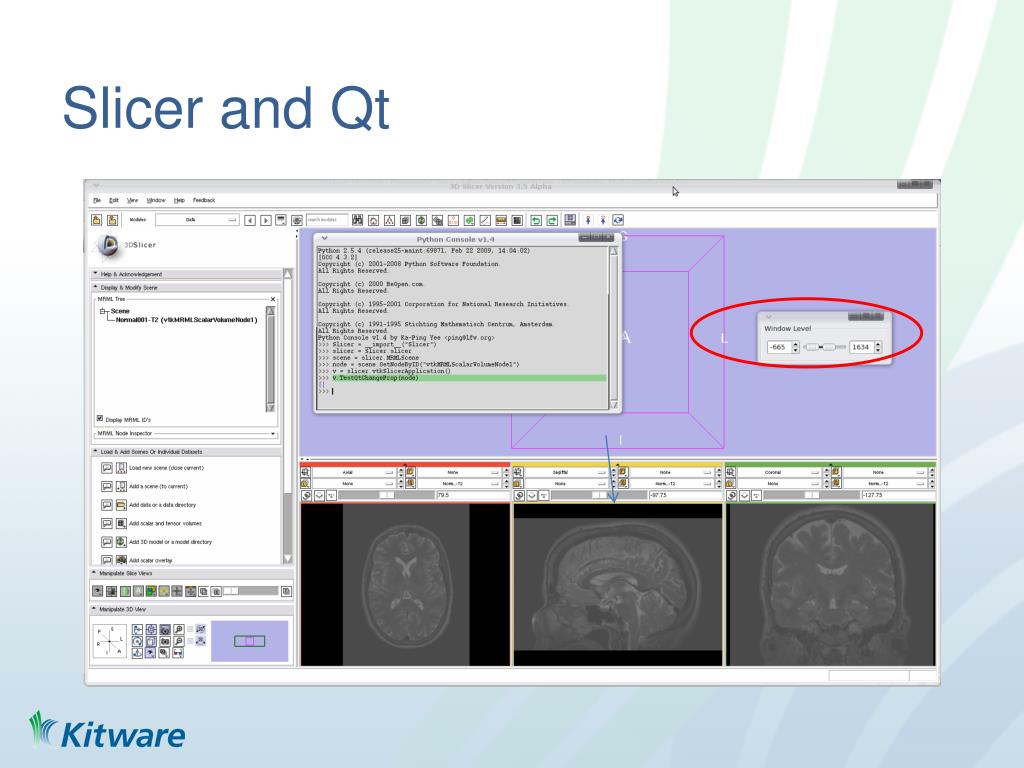

  15. Slicer and Qt

  16. Let’s do it Thanks for your attention Question ? QT Community Slicer Qt Double Slider Qt Color Picker Qt Thumbwheel KWWidgets And they lived happily forever after …
