Presentation Transcript


Aug 20 2002 l b l

US ATLAS SCT ROD FDR

Aug. 20, 2002 L.B.L.

DSP Software Status

DSP-BIOS Update

New DSP Packages

  • The Task Manager

  • The Event Manager (slaves)

Overview of DSP Primitives & Tasks

  • Common to Both DSP Types

  • Slave Primitives & Tasks

  • Master Primitives & Tasks

Histogramming Tasks Sequence

Douglas Ferguson

UW-Madison & LBL


Aug 20 2002 l b l

DSP-BIOS

  • New TI “operating system” for their DSPs.

  • Upgraded twice within 1 year: 1.1 to 1.2 to 2.0.

Status:

  • The DSPs are fully functional under version 1.2.

  • Upgrade to 2.0 has been done; preliminary testing performed.

  • Further testing planned in September.

Issues to be resolved:

  • BIOS is resource intensive. Many functions are inserted in IPRAM,

  • using ~26% of available memory; many of these do not need to be

  • there but version 1.2 does not have a mechanism for their placement

  • elsewhere. The DSP software would benefit if more could be placed

  • in IPRAM.

  • A similar situation exists for the IDRAM.


Aug 20 2002 l b l

Idle

Idle

yes

List inserted?

(host sets bit)

ready to Run?

Host cleared

inList bit?

(clear buffer

occupied bit)

no

yes

no

no

Acknowledged

Abort?

Resume?

yes

Buffer occupied?

Buffer read?

(readReqest reset)

yes

yes (set busy,

executing bits)

no

yes

Executing:

one primitive/ loop

iteration

no

Paused

Waiting

Frozen

Prepare reply data

no

yes

yes

read request?

Pause list?

yes

Finished/

Abort list?

no

State Machines

Primitive List Execution

Text Buffer Sending

Two types: Host List & Inter-DSP List


Aug 20 2002 l b l

DSP Packages

Task Manager:

  • Coded & Tested.

  • Maintains a list of functions that execute continuously on DSP, and

  • provides updates on their status.

  • Slave DSPs: event-based functions. Master DSP: control functions

  • Functions are added/removed from list by primitives: startTask,

  • taskOperation (inspection, pause, resume and stop).

Event Manager:

  • Coded & Tested.

Sequence:

a) Copying of incoming event data frames into DSP memory (ISR).

b) Buffer overflow handling.

c) Event building and insertion onto queue for distribution.

d) Removal of event from queue after processing.


Aug 20 2002 l b l

Primitives vs. Tasks

Primitives:

  • Generally are executed once. Primitives can return a value that requests that the

  • primitive be repeated (say, for polling), but only one primitive executes at a time.

  • Return data via the reply list. Each primitive in the input list contributes a header

  • block to the reply, and optionally adds data, which can either be structured or

  • unstructured.

  • Generally are simple. A primitive list is a “program”, and primitives are its functions.

Tasks:

  • Execute continuously, and together; all tasks are executed once per iteration of the

  • main program loop. Several tasks will happily co-exist on a DSP. Tasks can be

  • paused & aborted, just like primitive lists.

  • Return data asynchronously. When a task completes, it can send an info message to

  • the host. Any output data can be transferred via a primitive. sendData will handle

  • large chunks of data processed by tasks & primitives (events, histograms, fits etc.);

  • taskOperation:stop or query return the task’s internal variables. Some tasks

  • (histogramming) also report via registers.

  • Typically are more complex. Tasks can have several different internal states; the

  • task manager will report the states of any running or completed/halted tasks in the

  • running task register (idata).


Aug 20 2002 l b l

Beginning of Fragment (9 words total, 3 shown)

B0F00000 EE1234EE 00000009 …………

………… ………….. ………… …………

………… 21008E91 9CF09EB0 ………..

………… ………….. ………… …………

………… ………….. ………… …………

………… ………….. ………… …………

………… ………….. ………… …………

Link Header

Link Data

End of Fragment (6 words, last shown)

………… ………….. ………… …………

………… ………….. ………… …………

………… ………….. E0F0000 …………

………… ………….. ………… …………

………… ………….. ………… …………

………… ………….. ………… …………

………… ………….. ………… 40FF0127

Word 27 

Inserted by router 

Trailer Marker Word

Event Management

Event based data allows the DMA ISR to complete

its work quickly, since the event’s length is always

found at the end of a frame. The expense is that small

Events take up more space. Half-word 0x40ff should

never occur in data; the router adds the event’s length

to this to form the Trailer Marker Word.

Event Based Data

2 frame event

(1 frame= 0x100 words):

  • ISR fills in a set of “frame registers”, and an auxiliary

  • set of “frame summary registers.” (discussed next)

  • These are located in slave IPRAM at an (~) fixed

    location, and can be monitored to keep track of

    the DSP’s activity.

Event queuing sequence:

  • Header is detected: new event, begin filling in its data.

  • Any frames until trailer is found are marked in the

  • event’s frame mask.

  • Trailer is detected: event goes onto event queue.


Aug 20 2002 l b l

Event Management (cont)

Events in memory:

0x80008000 – 0x80010000 “burst buffer”,

0x02092000 – 0x020d2000 “external burst buffers”

8 frame sets, + 1 reserve.

Frame set 0  IDRAM,

all others are in SDRAM

  • Each frame set contains 32 frames.

  • Two register sets describe them:

Frame summary registers:

  • One per frame set, used by the DMA ISR to find where to put the next incoming

  • data frame. Show at a glance the DSP’s burst buffer usage (one bit per frame).

Frame set registers:

  • 32 per frame set, used by the event manager to jump from one frame to the

  • next when processing multi-frame events, and determine which tasks to give them to.

  • defined as 0xSSSD DDDD PPPP PETO FFFF FFFF IIII IIII

Frame set

delta

Delta to

Next within

Frame set

Pending

tasks

Evt frame #

Internal ID

Overflow bit

Trailer bit

Error bit


Aug 20 2002 l b l

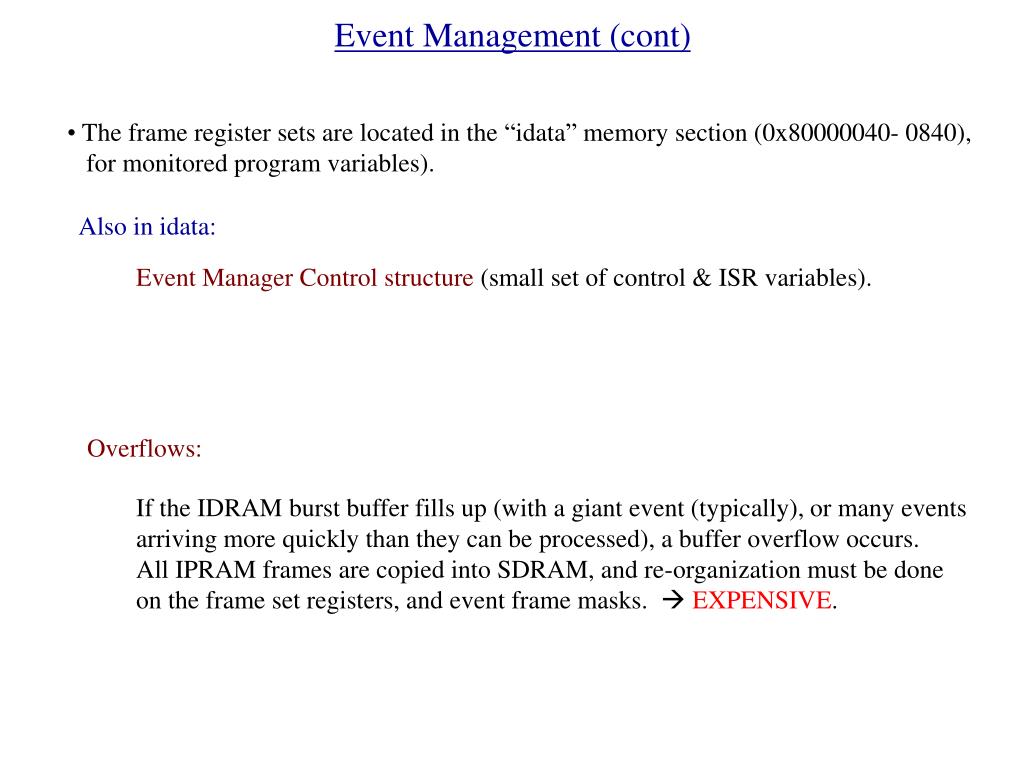

Event Management (cont)

  • The frame register sets are located in the “idata” memory section (0x80000040- 0840),

  • for monitored program variables).

Also in idata:

Event Manager Control structure (small set of control & ISR variables).

Overflows:

If the IDRAM burst buffer fills up (with a giant event (typically), or many events

arriving more quickly than they can be processed), a buffer overflow occurs.

All IPRAM frames are copied into SDRAM, and re-organization must be done

on the frame set registers, and event frame masks.  EXPENSIVE.


Aug 20 2002 l b l

Common Primitives:

Set Err Msg Mask

Event Trap Setup

Set LED

Set Memory

Pause List

Flash LED

Copy Memory

Echo

Memory Test

Send Data

Start Task

Task Operation

Module Mask

Set Trigger

Write Buffer

Slave Primitives & Tasks:

Start Event Trapping

Stop Event Trapping

Histogram Setup

Histogramming

Event Trapping

Occupancy Counting

Tasks:

Error Counting

Link Re-synchronization

Master Primitives & Tasks:

Start Slave Executing

Transmit Serial Data

R/W Register Field

Start Slave List

Configure Slave

R/W Module Data

Poll Register Field

Send Slave List

Send Configuration

R/W FIFO

R/W Slave Memory

Slave List Operation

Send Stream

Build Stream

Tasks:

Histogram Control

Memory Mirroring

Trap Request Monitoring


Aug 20 2002 l b l

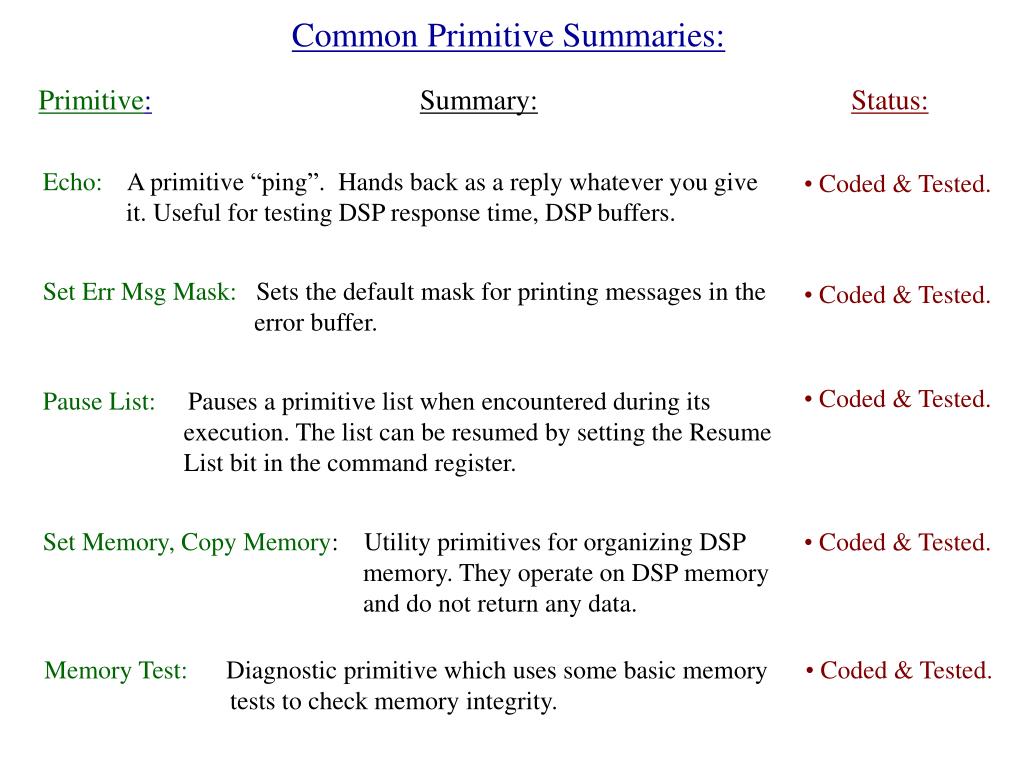

Common Primitive Summaries:

Primitive:

Summary:

Status:

Echo: A primitive “ping”. Hands back as a reply whatever you give

it. Useful for testing DSP response time, DSP buffers.

  • Coded & Tested.

Set Err Msg Mask: Sets the default mask for printing messages in the

error buffer.

  • Coded & Tested.

  • Coded & Tested.

Pause List: Pauses a primitive list when encountered during its

execution. The list can be resumed by setting the Resume

List bit in the command register.

Set Memory, Copy Memory: Utility primitives for organizing DSP

memory. They operate on DSP memory

and do not return any data.

  • Coded & Tested.

Memory Test: Diagnostic primitive which uses some basic memory

tests to check memory integrity.

  • Coded & Tested.


Aug 20 2002 l b l

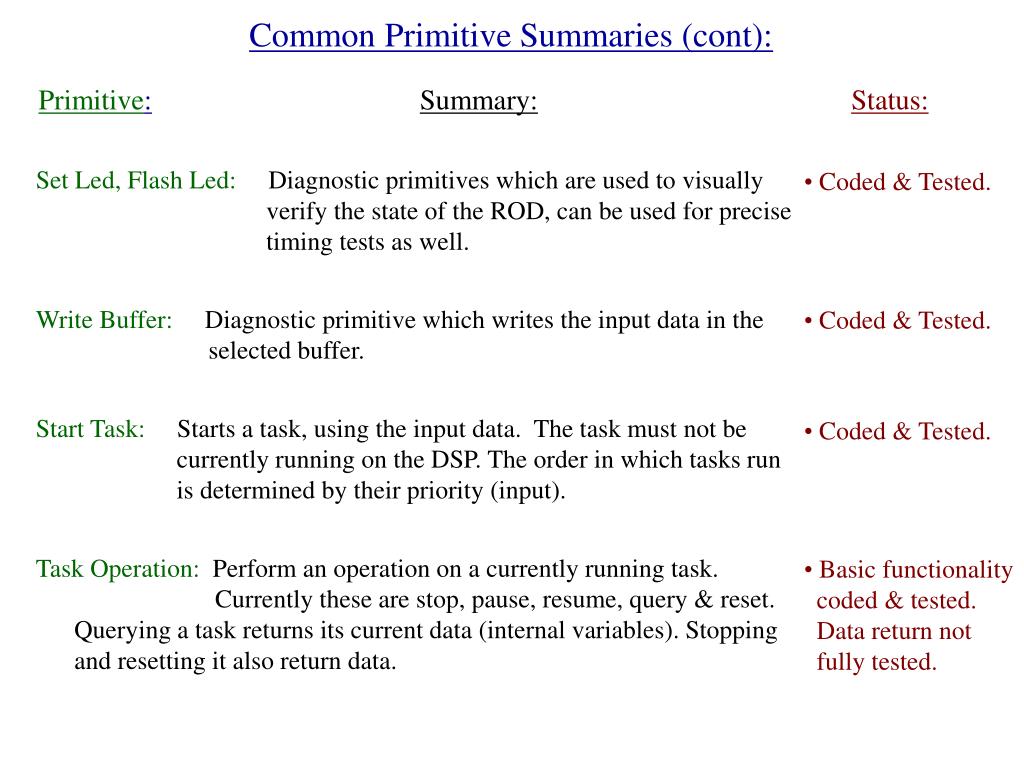

Common Primitive Summaries (cont):

Primitive:

Summary:

Status:

Set Led, Flash Led: Diagnostic primitives which are used to visually

verify the state of the ROD, can be used for precise

timing tests as well.

  • Coded & Tested.

Write Buffer: Diagnostic primitive which writes the input data in the

selected buffer.

  • Coded & Tested.

Start Task: Starts a task, using the input data. The task must not be

currently running on the DSP. The order in which tasks run

is determined by their priority (input).

  • Coded & Tested.

Task Operation: Perform an operation on a currently running task.

Currently these are stop, pause, resume, query & reset.

Querying a task returns its current data (internal variables). Stopping

and resetting it also return data.

  • Basic functionality

  • coded & tested.

  • Data return not

  • fully tested.


Aug 20 2002 l b l

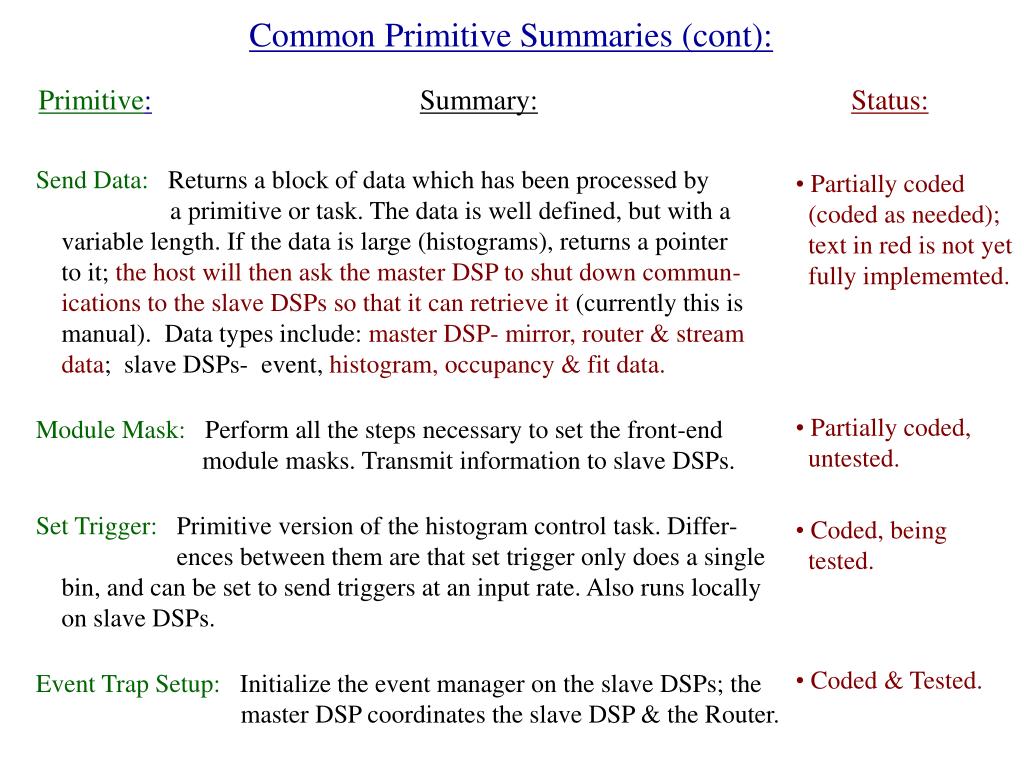

Common Primitive Summaries (cont):

Primitive:

Summary:

Status:

Send Data: Returns a block of data which has been processed by

a primitive or task. The data is well defined, but with a

variable length. If the data is large (histograms), returns a pointer

to it; the host will then ask the master DSP to shut down commun-

ications to the slave DSPs so that it can retrieve it (currently this is

manual). Data types include: master DSP- mirror, router & stream

data; slave DSPs- event, histogram, occupancy & fit data.

  • Partially coded

  • (coded as needed);

  • text in red is not yet

  • fully implememted.

  • Partially coded,

  • untested.

Module Mask: Perform all the steps necessary to set the front-end

module masks. Transmit information to slave DSPs.

Set Trigger:Primitive version of the histogram control task. Differ-

ences between them are that set trigger only does a single

bin, and can be set to send triggers at an input rate. Also runs locally

on slave DSPs.

  • Coded, being

  • tested.

  • Coded & Tested.

Event Trap Setup:Initialize the event manager on the slave DSPs; the

master DSP coordinates the slave DSP & the Router.


Aug 20 2002 l b l

Slave Primitive Summaries:

Primitive:

Summary:

Status:

Start Event Trapping: Once Event Trap Setup has been run, this

primitive is run to load the DMA engine, and

enable the router’s Trap Enable flag (controlled

by slave DSPs).

  • Coded & Tested.

Stop Event Trapping: Stops the DMA engine, and disables the

router’s Trap Enable flag.

  • Coded & Tested.

Histogram Setup: Sets up histogramming variables (# and size of

bins, placement of histograms, etc.), and initializes

the histograms.

  • Coded & Tested.

  • Some revisions

  • requested.


Aug 20 2002 l b l

Master Primitive Summaries:

Primitive:

Summary:

Status:

Read & WriteUsed to set any of the of the ROD’s FPGA RRIF

Register Field: Rod Register InterFace) registers.

The ROD Operations Manual explains these.

  • Coded & Tested.

Poll Register Field: Some RRIF registers are self-clearing. This

primitive monitors them to see when they have

done so.

  • Coded & Tested.

Read & Write FIFO: Places data in any of the ROD’s on-board FIFOs;

this is used in conjunction with R&W Reg. Field

to trigger the FIFOs to play their data into the

desired ROD FPGA (formatters, EFB, or Router).

  • Coded & Tested.

  • Coded & Tested.

Start Slave Executing: After loading the slave’s IPRAM, IDRAM and

external memories, SSE sets them running. Once

running, the board must be reset to stop them!

(the standard list does this).

Configure Slave: Turn communications with a slave DSP on and off.

  • Coded & Tested.


Aug 20 2002 l b l

Master Primitive Summaries (cont):

Primitive:

Summary:

Status:

R/W Slave Memory: Reads from or writes to specific locations in the

slave DSPs’ memory. The data length must be

less than ~150KB, the size of the primitive list buffers.

  • Coded & Tested.

  • Coded & Tested.

Start Slave List, When slave DSPs execute host lists, the master

Send Slave List, DSP serves as the intermediary, doing all the

Slave List Operation actual list coordination using these primitives.

Transmit Serial Data: Transmit the input data out of serial port 0, 1 or

both, and optionally capture the data in the ROD

input memories.

  • Coded & Tested.


Aug 20 2002 l b l

Master Primitive Summaries (cont):

Primitive:

Summary:

Status:

Build Stream: Build up a command stream from input command &

data lists, which can contain up to 6 commands at a

time; also used to reset a stream buffer. Successive calls to buildStream

will concatenate lists. Either of 2 stream buffers can be used, or both if

data is to be transmitted from both serial ports. Commands can be any

of the SCT delay, fast, slow, data or mask commands.

  • Coded & Tested.

  • Request for

  • additional cmds.

  • Add in equivalent

  • Pixel commands.

Send Stream: Sends any data contained in the stream buffer(s) out of the

requested serial port(s), with optional capture.

  • Coded & Tested.

Read & Write Module Reads from or writes to a C structure, stored on

Configuration: the master DSP, which contains all information

necessary to configure an SCT module.

  • Coded & Tested.

  • Add in equivalent

  • Pixel structure.

Send Configuration: Sends a serial stream constructed using the

structure information to the specified module(s).

Two modules can be configured simultaneously.

  • Coded & Tested.

  • Add code for dual

  • module config-

  • uration.


Aug 20 2002 l b l

Slave Task Summaries:

Task:

Summary:

Status:

Histogramming: Create histograms from incoming events, either

alone using pre-set binning, or in cooperation with

the histogram control task (or Set Trigger).

  • Coded & Tested.

  • Modify for Pixels.

  • Currently the histogramming engine is written in C, and is too slow.

  • I am re-writing it in assembly language to improve performance.

  • Coded & Tested.

Event Trapping: Trap (copy) incoming events of the desired type into

a trapping buffer. The router must be set properly

beforehand.

  • Currently this is a stand-alone slave task; will be modified to

  • cooperate with the master DSP in setting the router’s registers on the fly.

Occupancy counting:Creates occupancy maps for incoming events.

  • Not Yet Coded.

  • Not Yet Coded.

Error counting:Counts & categorizes events with errors.

Link Re-synchronization:Performs whatever corrective actions are

necessary to bring links/events back into

synchronization when a trigger is dropped.

  • Not Yet Coded.


Aug 20 2002 l b l

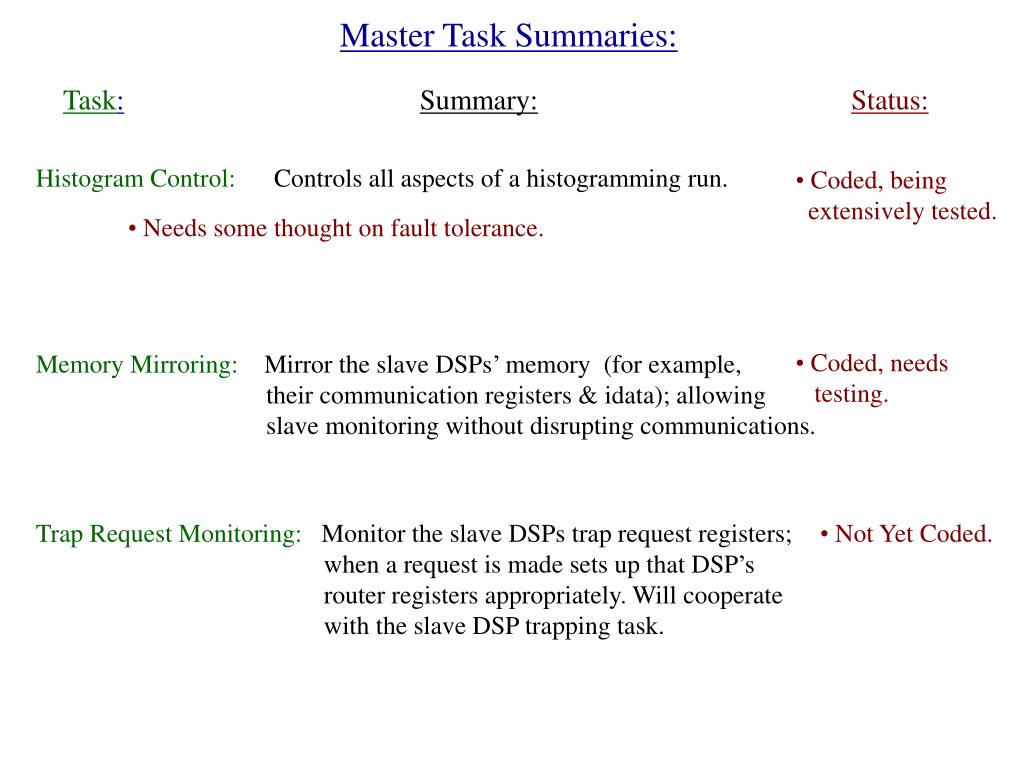

Master Task Summaries:

Task:

Summary:

Status:

Histogram Control: Controls all aspects of a histogramming run.

  • Coded, being

  • extensively tested.

  • Needs some thought on fault tolerance.

  • Coded, needs

  • testing.

Memory Mirroring:Mirror the slave DSPs’ memory (for example,

their communication registers & idata); allowing

slave monitoring without disrupting communications.

Trap Request Monitoring:Monitor the slave DSPs trap request registers;

when a request is made sets up that DSP’s

router registers appropriately. Will cooperate

with the slave DSP trapping task.

  • Not Yet Coded.


Aug 20 2002 l b l

Histogramming: Registers

Slave DSPs

Master DSP

Histogram CMD

Histogram CMD (really status)

current bin

set

current rep.

bin

set

# repetitions

16 4 12 bits

16 4 12 bits

Histogram STAT 0

Histogram STAT 0: events received

24

Bit 20

bin

set

evt rec.

DSP 3

DSP 2

DSP 1

DSP 0

events received

D P E R

8 8 8 8

R: Ready

Bit 8

Histogram STAT 1: Processing time &

event length

E: Expecting

P: Processing

D: Done


Aug 20 2002 l b l

Histogramming: Task States

Histogram Task

Histogram Control Task

INIT

INIT

  • Task variable setup.

  • Task variable setup.

  • Check HRDY in slaves.

  • HSTAT 0 RDY bit HI

Slave Polling (all states)

  • Copy slave HSTAT 0,1 to local

  • variables. Update own HSTAT 0.

READY

NEWBIN

  • Zero out events received variable.

  • Zero HSTAT 0,1. Place current

  • bin & set in HCMD.

  • Wait for #repetitions in

  • HCMD != 0. Then:

  • Zero out current repetitions

  • Set bin, histogram set, # rep.

  • this bin; copy bin & set to

  • own HSTAT 0.

  • Place current bin set, # rep in

  • all slave HCMD.

  • Create & send configuration

  • command stream. Prepare trigger

  • command stream.

  • Clear HSTAT 0 events received.

  • HSTAT 0 DONE LO, EXP HI.

WAITEXP

  • state  EXPECTING

  • Wait for all slave HSTAT EXP HI.


Aug 20 2002 l b l

Histogramming: Task States (cont)

Histogram Task

Histogram Control Task

PULSING

EXPECTING

  • Wait for the # events received

  • by all slaves == current rep per

  • slave. (= curr. Rep./# slaves).

  • Check for timeout. Then:

  • Wait for events to arrive on

  • queue. Then:

  • HSTAT 0 PROC HI.

  • Send out one trigger per slave,

  • update current rep., HCMD. # rep

  • Histogram the event

  • HSTAT 0 PROC LO.

  • If Current repetitions < # rep.

  • per bin, repeat.

  • Increment events received,

  • HSTAT 0 events received.

  • HSTAT 0 PROC LO.

WAITING

  • If events received < #rep.

  • this bin, repeat. Else:

  • Wait for all slave HSTAT 0

  • DONE HI

  • HSTAT 0 EXP LO, DONE HI

PREP

  • Clear HCMD #repetitions.

  • Increment # bins done.

  • state  READY

  • If bins done == # points:

  • state  DONE. Else:

  • Increment the data variables of

  • the configuration & trigger lists

  • state  NEWBIN


  • Login
