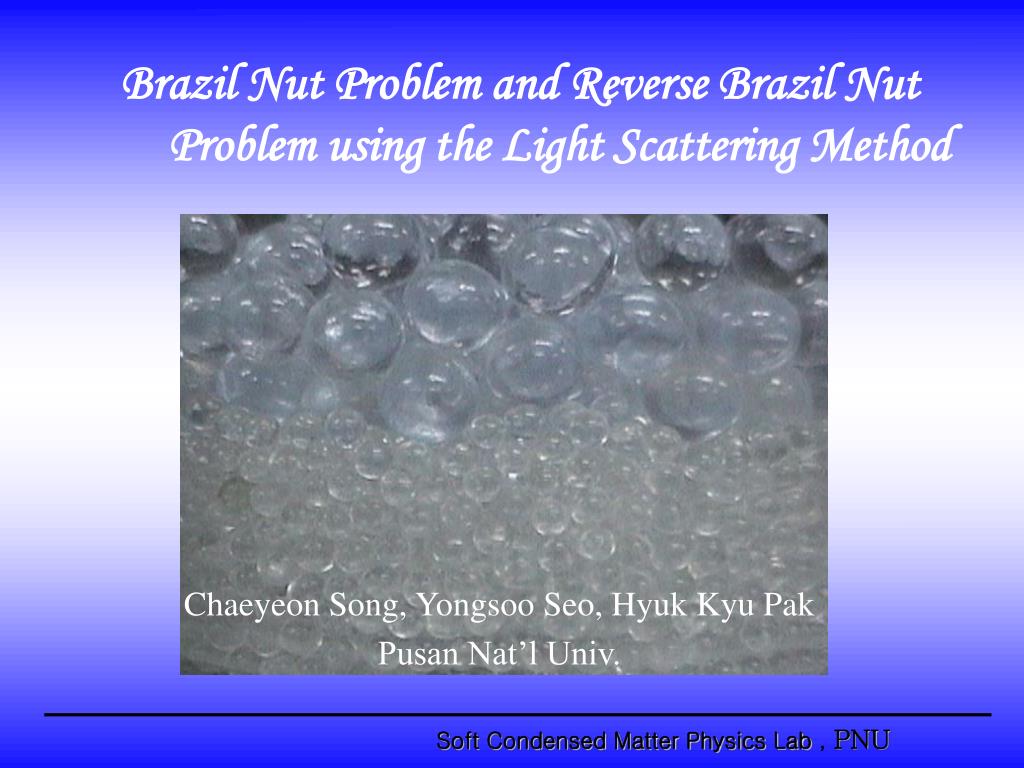

  1. Brazil Nut Problem and Reverse Brazil Nut Problem using the Light Scattering Method Chaeyeon Song, Yongsoo Seo, Hyuk Kyu Pak Pusan Nat’l Univ. Soft Condensed Matter Physics Lab , PNU

  2. Order • Brazil Nut Problem (BNP) and Reverse Brazil Nut Problem (RBNP) • When do BNP and RBNP occur? • Experiment and control parameter • What is the Light Scattering Method (Diffusing Wave Spectroscopy Method) ? • Experimental results • Summary Soft Condensed Matter Physics Lab , PNU

  3. BNP RBNP Brazil Nut Problem (BNP) and Reverse Brazil Nut Problem (RBNP) Brazil Nut Problem refers to the phenomenon where big particles up on the surface when a mixture of granule is vibrated vertically. Vertically vibration Soft Condensed Matter Physics Lab , PNU

  4. RBNP BNP Brazil Nut Problem Reverse Brazil Nut Problem When do BNP and RBNP occur ? • Percolation and condensation driven 2. Convection driven and Inertia driven 3. Reorganization controlled, Entropy driven, etc Soft Condensed Matter Physics Lab , PNU

  5. initiation percolation BNP RBNP Percolation and condensation process • A.P.J.Breu, H.-M.Ensner, C.A.Kruelle, and I. Rehberg(PRL. Vol 90,014302 ,2003) vibrationlowG vibrationhighG gaslike Soft Condensed Matter Physics Lab , PNU

  6. Experimental equipment Soft Condensed Matter Physics Lab , PNU

  7. Vacuum Granular vibration x(t)=Asin(2pft) Control parameter • Control Parameter Dimensionless Acceleration G=A(2pf)2/g A : amplitude g : acceleration of gravity f : frequency (50Hz) P : Pressure ( < 150mtorr ) Soft Condensed Matter Physics Lab , PNU

  8. What is the Light Scattering Method ?( Diffusing Wave Spectroscopy Method ) • Using the multiple scattering of light • Random walk (diffusing approximation) • Speckle analysis • The correlation function of DWS Speckle!! Soft Condensed Matter Physics Lab , PNU

  9. What is the Light Scattering Method? ( Diffusing Wave Spectroscopy Method) Soft Condensed Matter Physics Lab , PNU

  10. Experimental Results (3D) 6mm ball bullet( ) + 3mm glass bead( ) G= 4.58 F= 50Hz BNP initial state 6mm ball bullet ( ) + 6mm black glass bead( ) + 3mm glass bead( ) G= 4.58 F= 50Hz initial state BNP & RBNP Soft Condensed Matter Physics Lab , PNU

  11. 3mm, 4mm & 6mm glass bead (2D) G= 1.29 F= 50Hz I.3mm glass bead, relaxation time : τrelaxation≒ 82.5 μs II.4mm glass bead, relaxation time : τrelaxation≒112.2 μs III.6mm glass bead, relaxation time : τrelaxation≒170.3 μs Soft Condensed Matter Physics Lab , PNU

  12. 6mm ball bullet + 3mm glass bead (2D) τrelaxation≒38 μs τrelaxation≒345 μs Soft Condensed Matter Physics Lab , PNU

  13. 3mm glass bead + 6mm glass bead + 6mm ball bullet (3D) τrelaxation≒77 μs Soft Condensed Matter Physics Lab , PNU τrelaxation≒187 μs

  14. Summary • 브라질 땅콩 효과 는 수직 진동하는 용기 내에 두 종류의 알갱이가 섞여 있을 때 큰 알갱이가 맨 위로 올라가는 현상을 말하고 그 반대의 현상을 바로 역브라질 땅콩 효과 라고 말한다. • 이 현상에 대해 그동안 많은 연구가 행해졌으며 그 중에서 우리 실험은 percolation과 condensation 으로 설명했던 실험의 논리에 따라 실행하였다. 우리 실험에서 이 현상이 잘 재현되었고 실험 중에 나타났던 몇 가지 문제점을 해결하면서 앞으로 계속 실험해 나갈 것이다. • Light Scattering (Diffusing Wave Spectroscopy Method)을 이용하여 이 현상을 분석해보았다. Soft Condensed Matter Physics Lab , PNU
