  1. }Wood Holding{ Suggested Methods

  2. Holding a Bowl Turning Exterior • Mount blank on a faceplate • Mount blank on a screwchuck • Mount blank on a pinchuck • Mount blank on spigot jaws • Mount blank on small gripper jaws • Mount blank between centres

  3. Holding a Bowl

  4. Holding a Bowl Turning Interior • Hold on faceplate • Hold in dovetail recess • Hold on dovetail spigot • Hold in jam chuck • Hold on glue chuck • Turn inside & outside on base spigot

  5. Holding a Bowl Remounting • Use two jaws on distorted spigot • Hold in temporary internal recess • Hold on soft pad between centres • Hold in button jaws • Hold on vacuum chuck • Hold in clamping jig

  6. Holding a Goblet • Hold square section in external jaws • Hold on dovetail spigot • Hold on parallel spigot with gripper jaws • Hold in split ring chuck • Hold in coil chuck • Mount on faceplate • Use goblet centre to support stem turning

  7. Holding a Box • Hold on a jam chuck • Hold on cylinder jaws • Hold on gripper jaws with masking tape • Hold on internal jaws • Use body of box as jam chuck

  8. Holding a Breadboard • Mount on faceplate • Hold in dovetail recess • Mount on glue chuck using 2-sided tape • Hold in button jaws • Hold on vacuum chuck

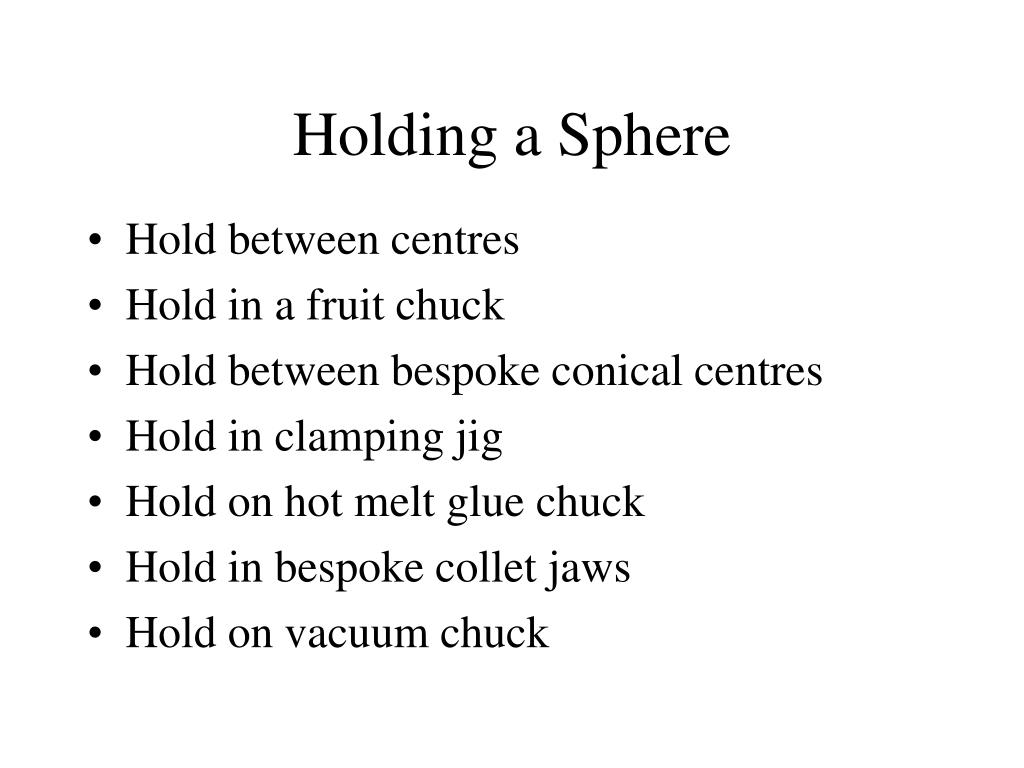

  9. Holding a Sphere • Hold between centres • Hold in a fruit chuck • Hold between bespoke conical centres • Hold in clamping jig • Hold on hot melt glue chuck • Hold in bespoke collet jaws • Hold on vacuum chuck

  10. End
