  1. DESIGN AND IMPLEMENTATION OF ANAGLYPH MOVIE MAKER APPLICATION RENOV YAPOLA 26406168

  2. BACKGROUND • It’s interesting to see 2D movie in 3D illusion when the images have an depth level. • Anaglyphic image illusion can be seen with cheap Anaglyphic Glasses, as filter. • No need for optical gymnastic, like crossing eyes.

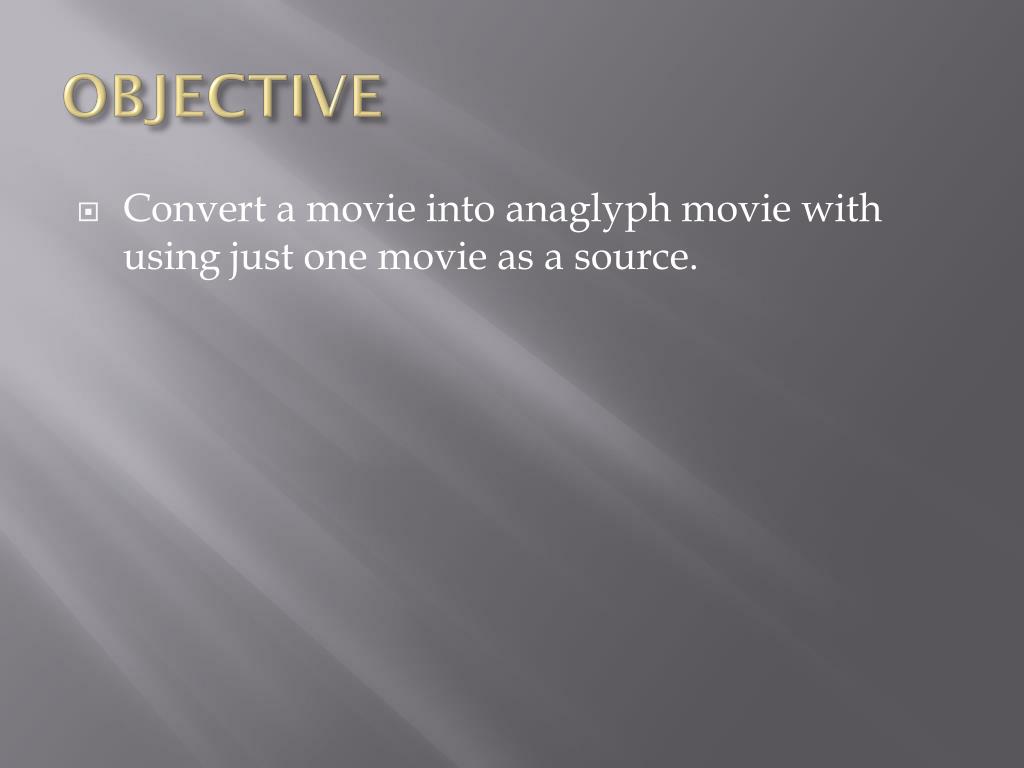

  3. OBJECTIVE • Convert a movie into anaglyph movie with using just one movie as a source.

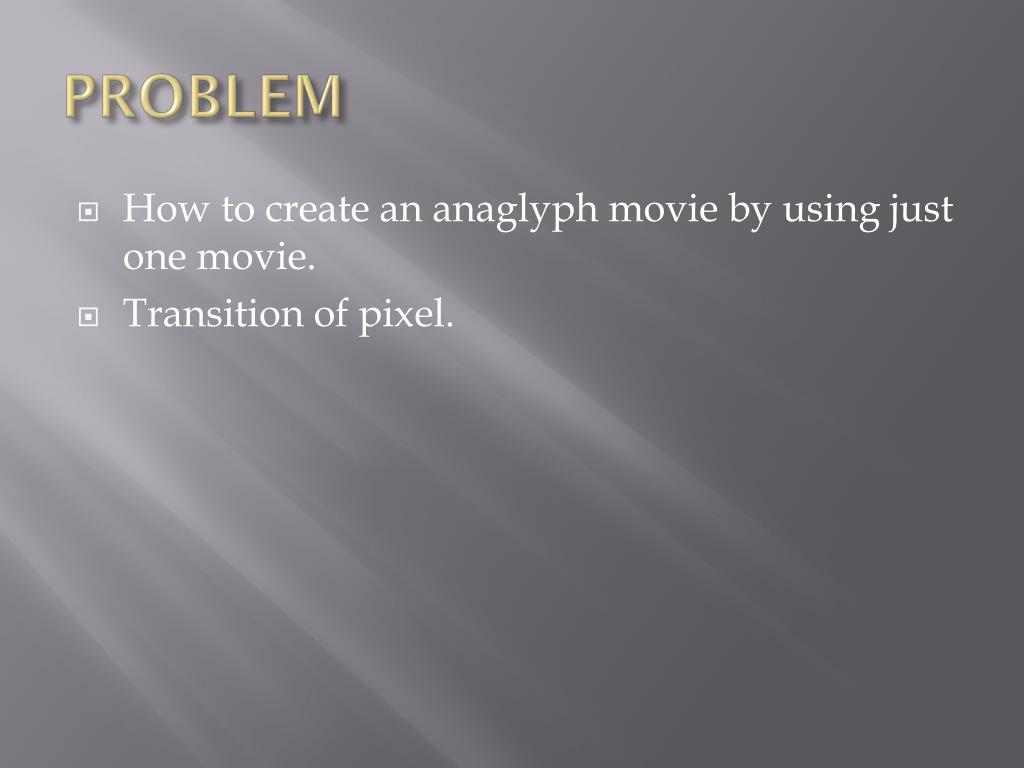

  4. PROBLEM • How to create an anaglyph movie by using just one movie. • Transition of pixel.

  5. ANAGLYPH IMAGING • Made of two slightly different image • The difference is in scope and color • The two images is superimposed with screen blending, then displayed.

  6. ANAGLYPH GLASSES • Filtering some color component, so each eye only see some part of the image color. • The brain interpret this as the result of the difference in distance, thus produce an image with depth level.

  7. FLOWCHART : MAIN

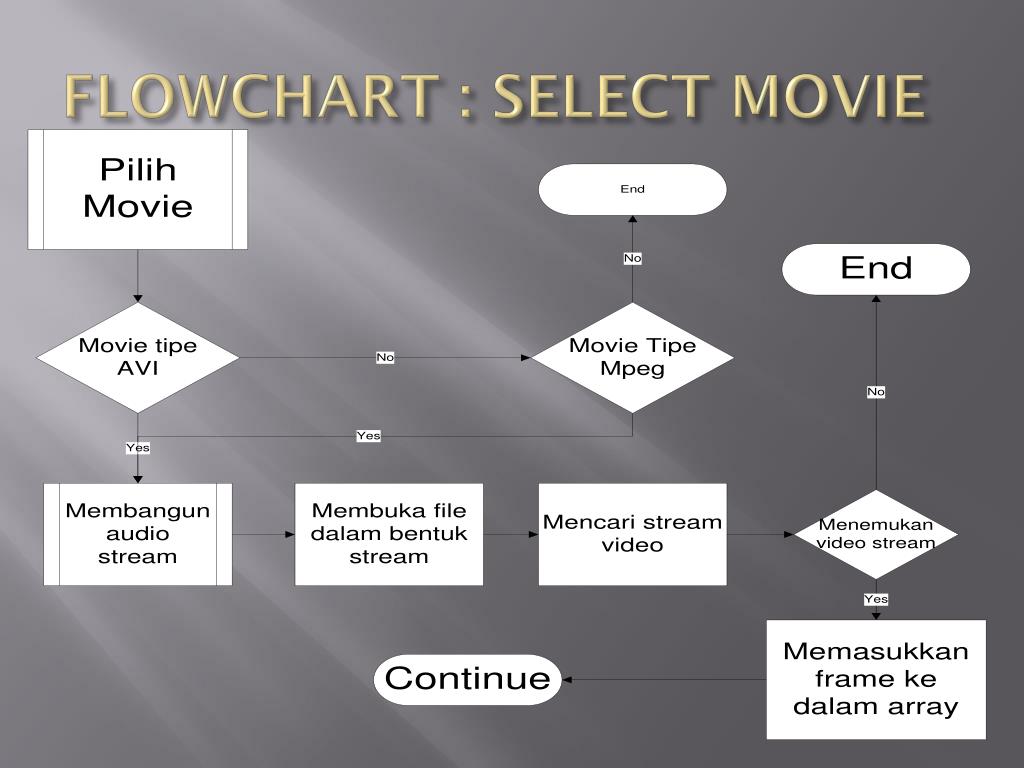

  8. FLOWCHART : SELECT MOVIE

  9. FLOWCHART : SELECT METHOD

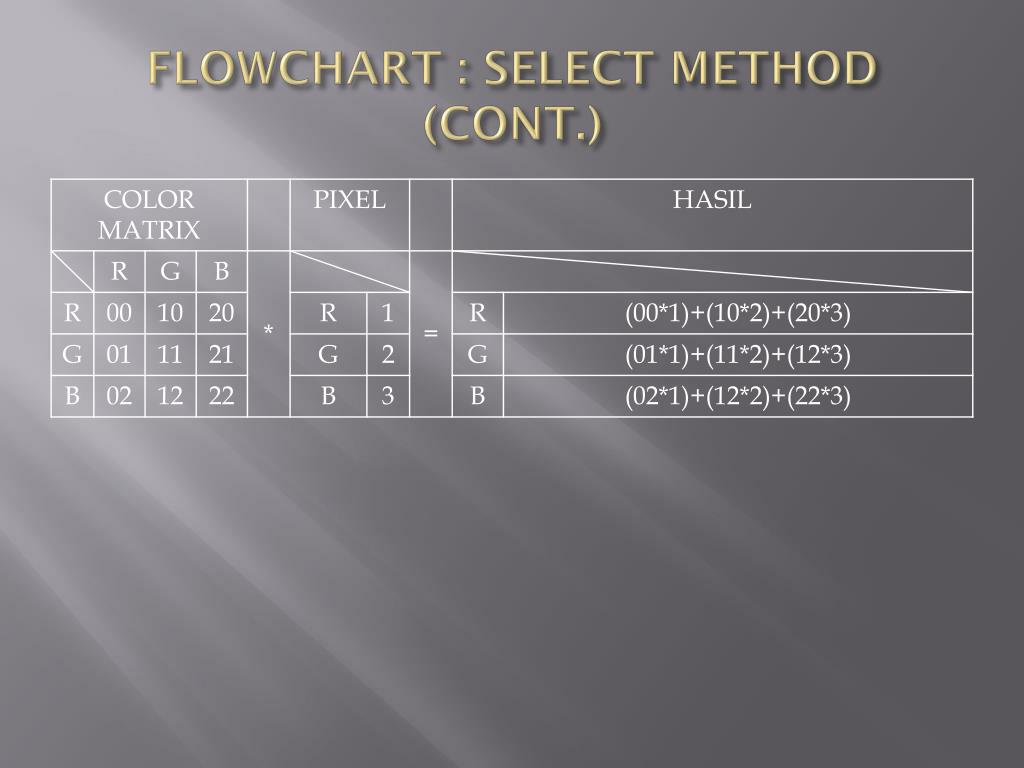

  10. FLOWCHART : SELECT METHOD (CONT.)

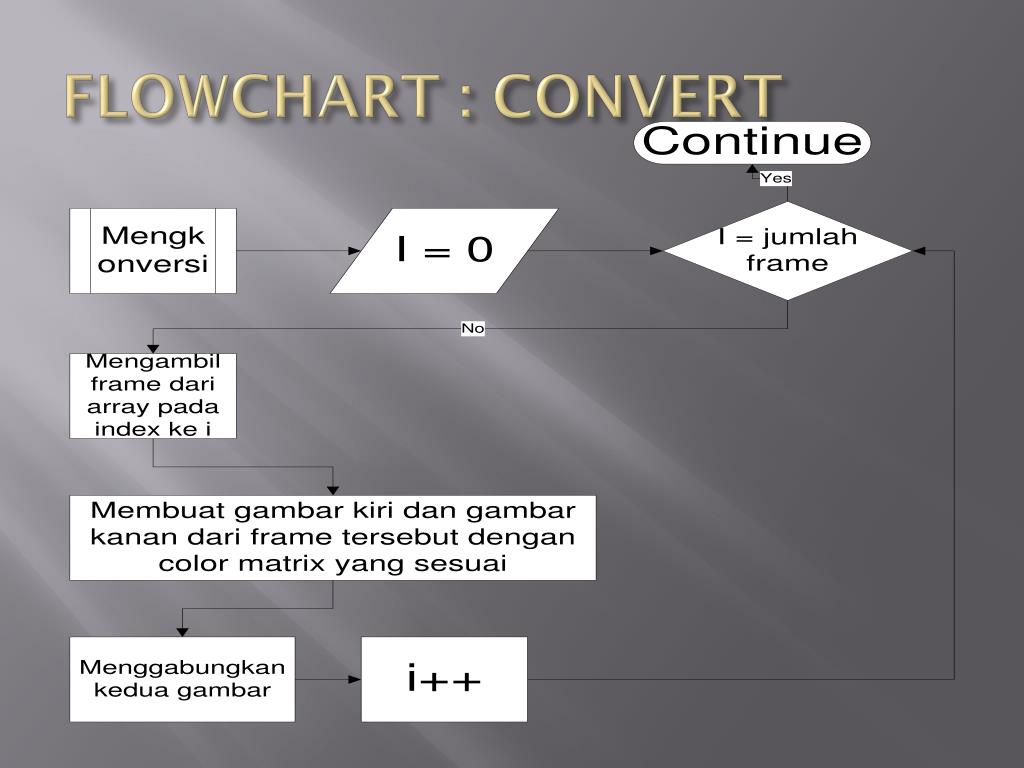

  11. FLOWCHART : CONVERT

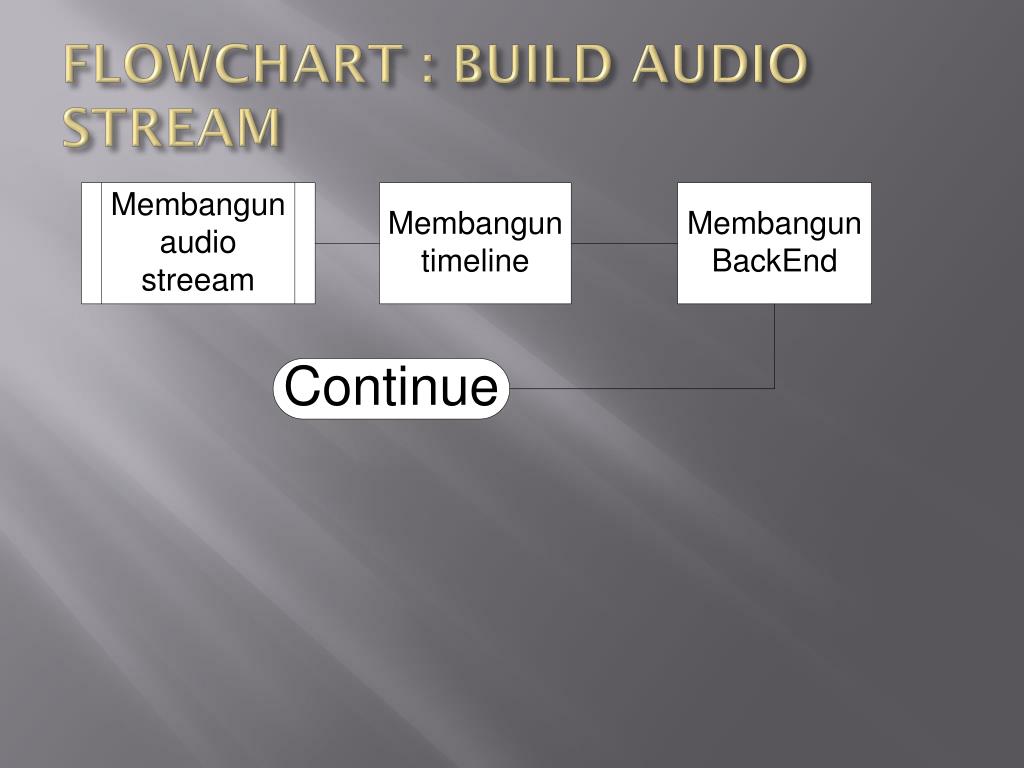

  12. FLOWCHART : BUILD AUDIO STREAM

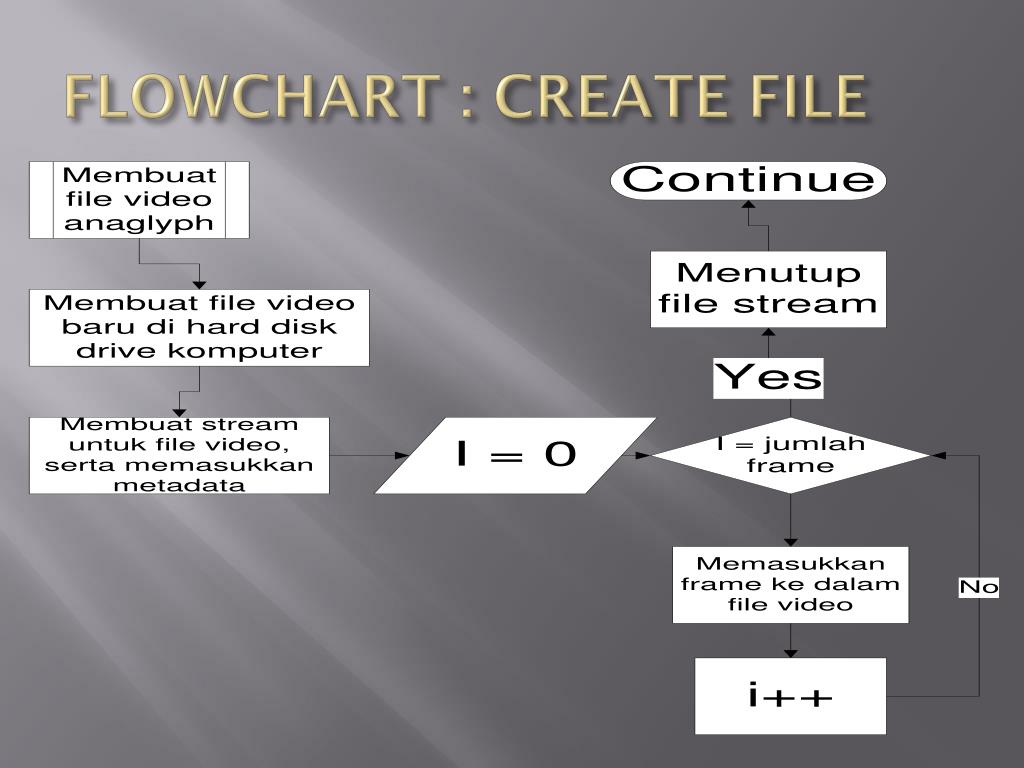

  13. FLOWCHART : CREATE FILE

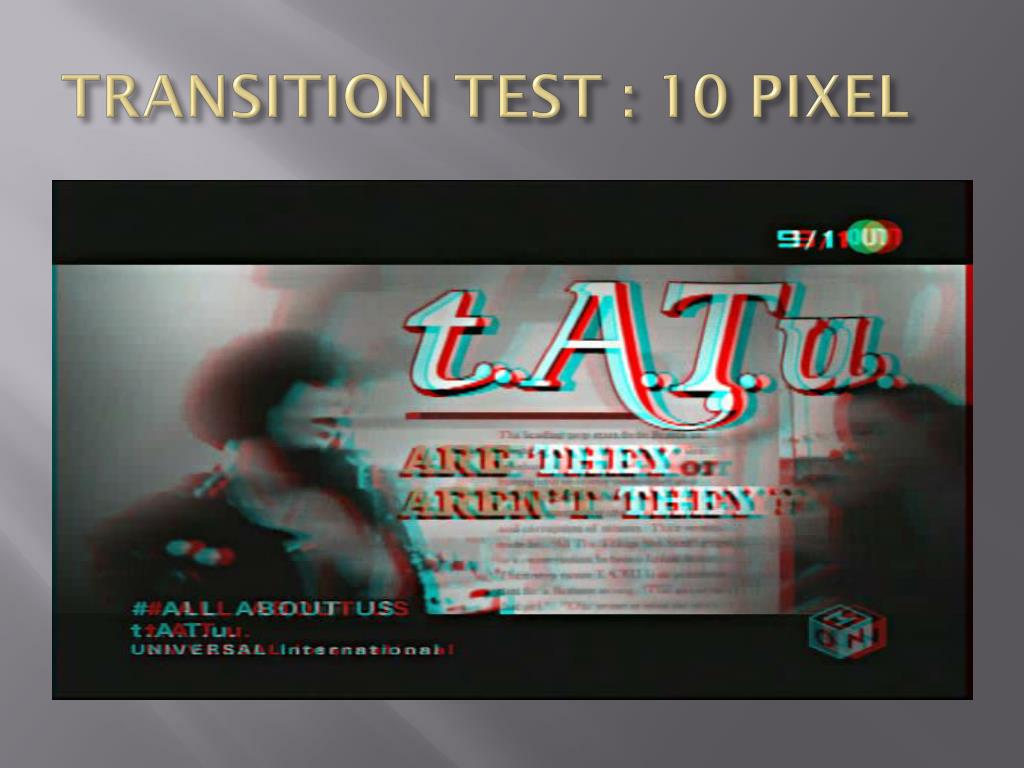

  14. TRANSITION TEST : 10 PIXEL

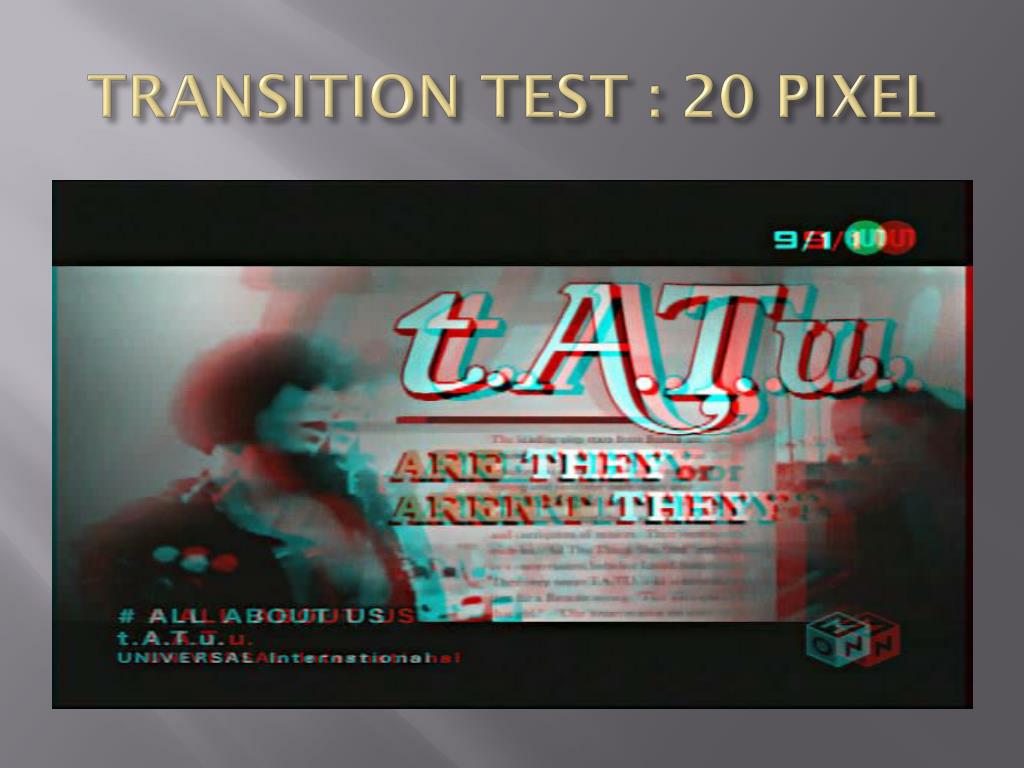

  15. TRANSITION TEST : 20 PIXEL

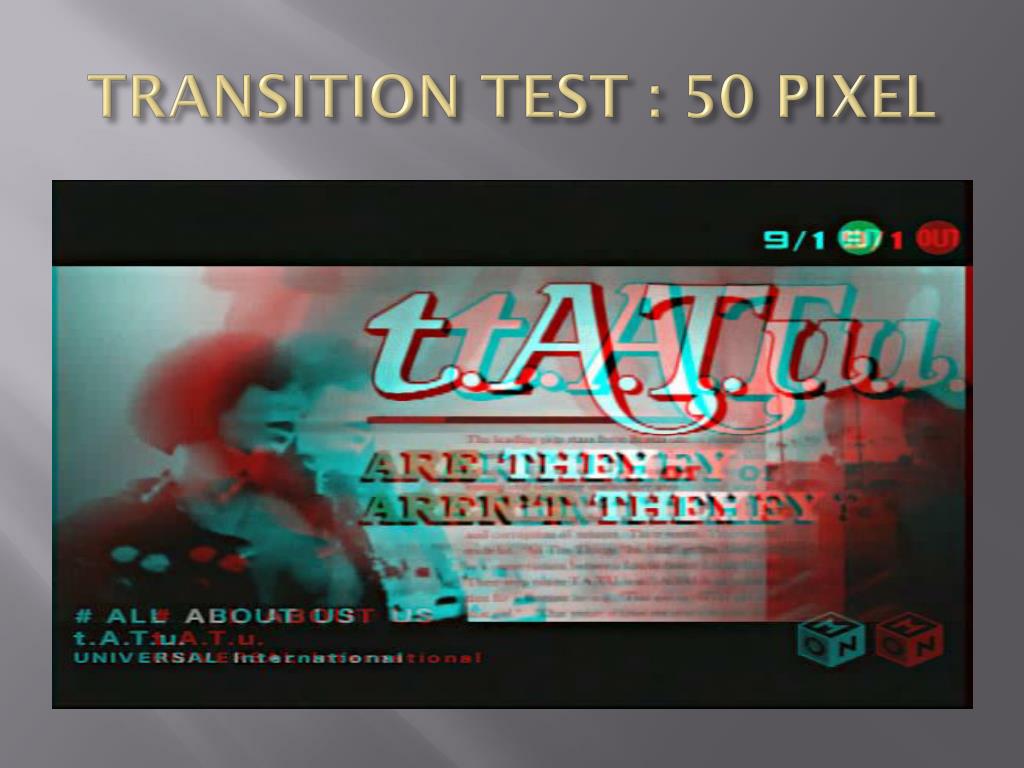

  16. TRANSITION TEST : 50 PIXEL

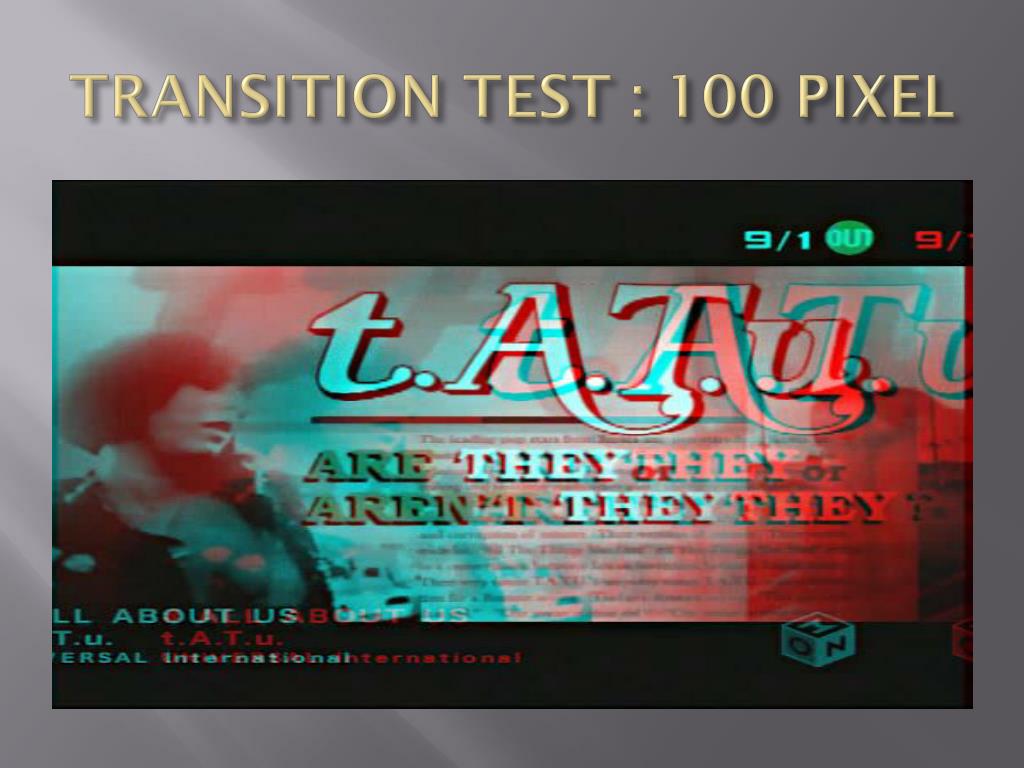

  17. TRANSITION TEST : 100 PIXEL

  18. METHOD TEST : TRUE ANAGLYPH

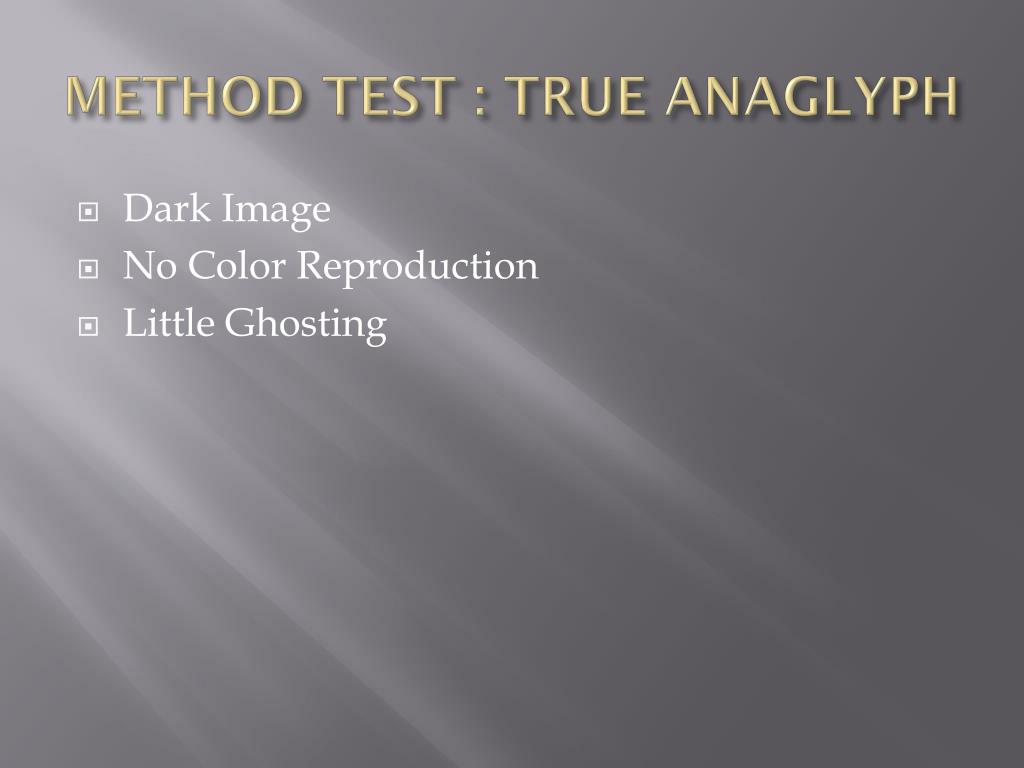

  19. METHOD TEST : TRUE ANAGLYPH • Dark Image • No Color Reproduction • Little Ghosting

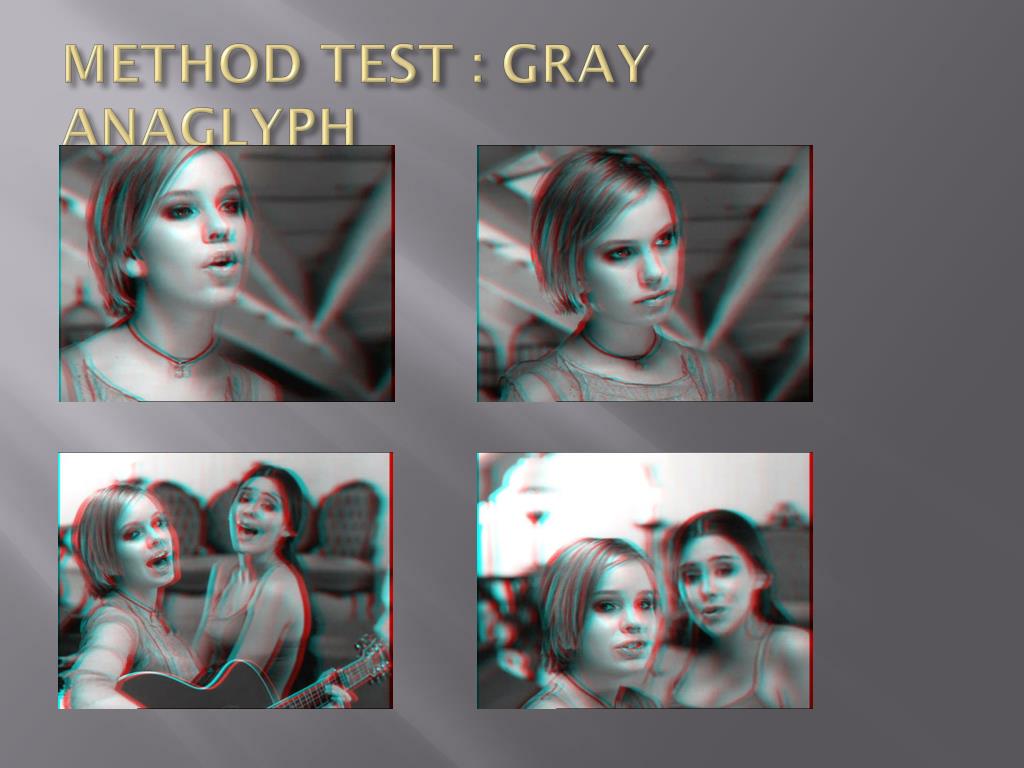

  20. METHOD TEST : GRAY ANAGLYPH

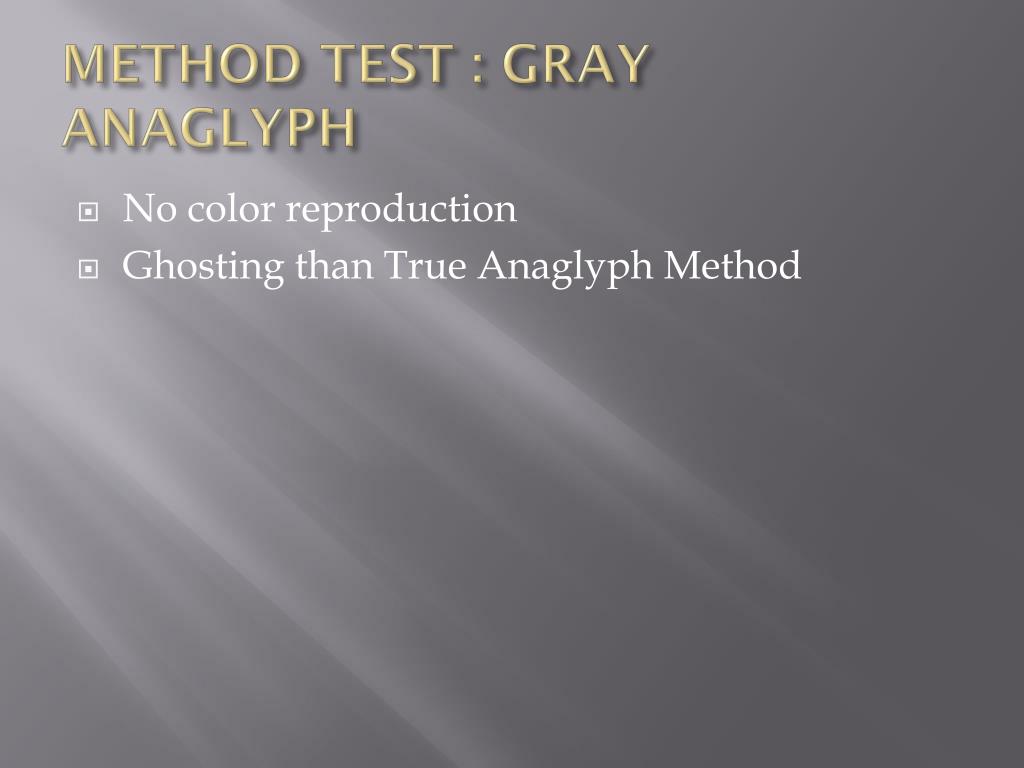

  21. METHOD TEST : GRAY ANAGLYPH • No color reproduction • Ghosting than True Anaglyph Method

  22. METHOD TEST : COLOR ANAGLYPH

  23. METHOD TEST : COLOR ANAGLYPH • Partial color reproduction • Retinal rivalry

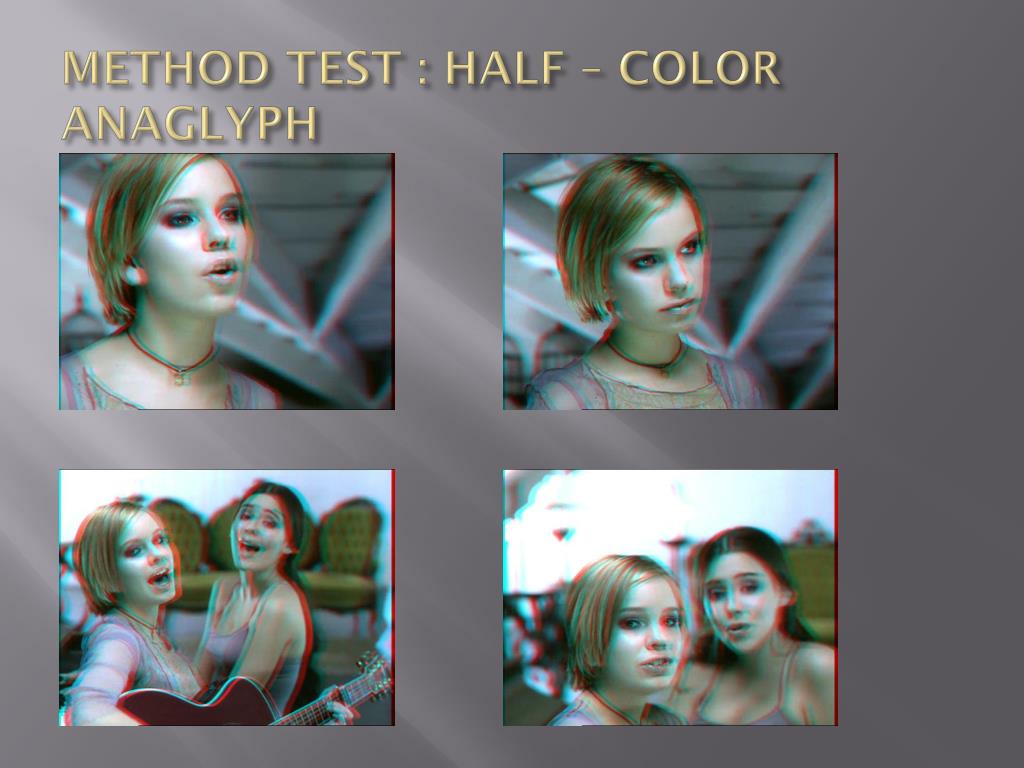

  24. METHOD TEST : HALF – COLOR ANAGLYPH

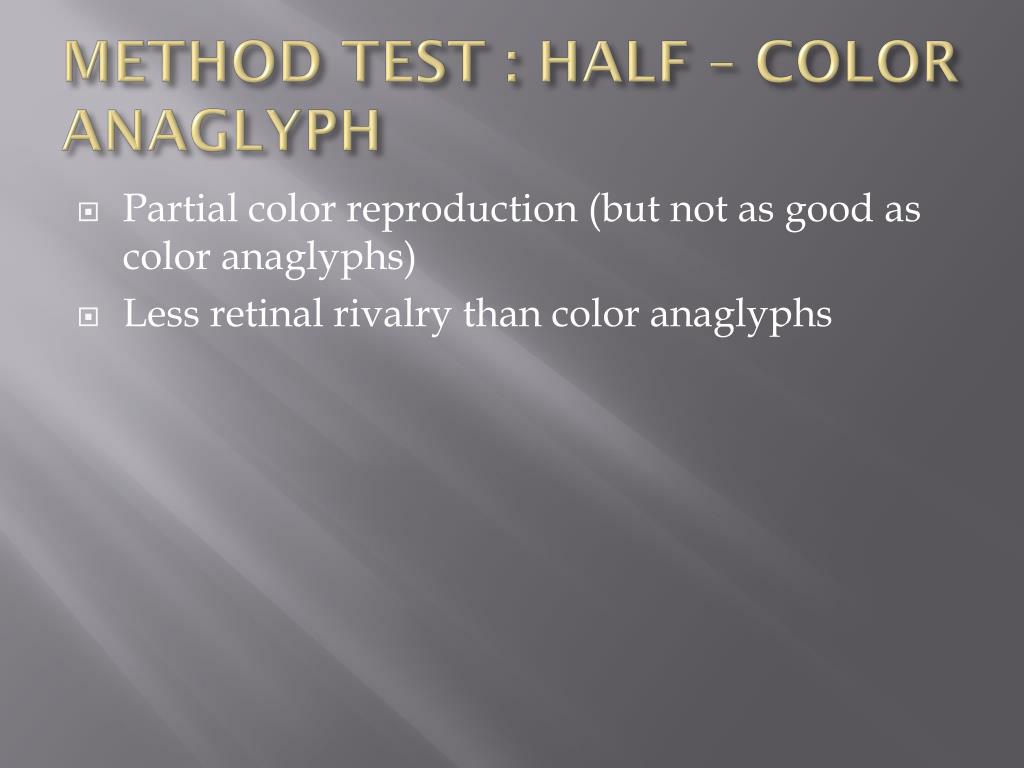

  25. METHOD TEST : HALF – COLOR ANAGLYPH • Partial color reproduction (but not as good as color anaglyphs) • Less retinal rivalry than color anaglyphs

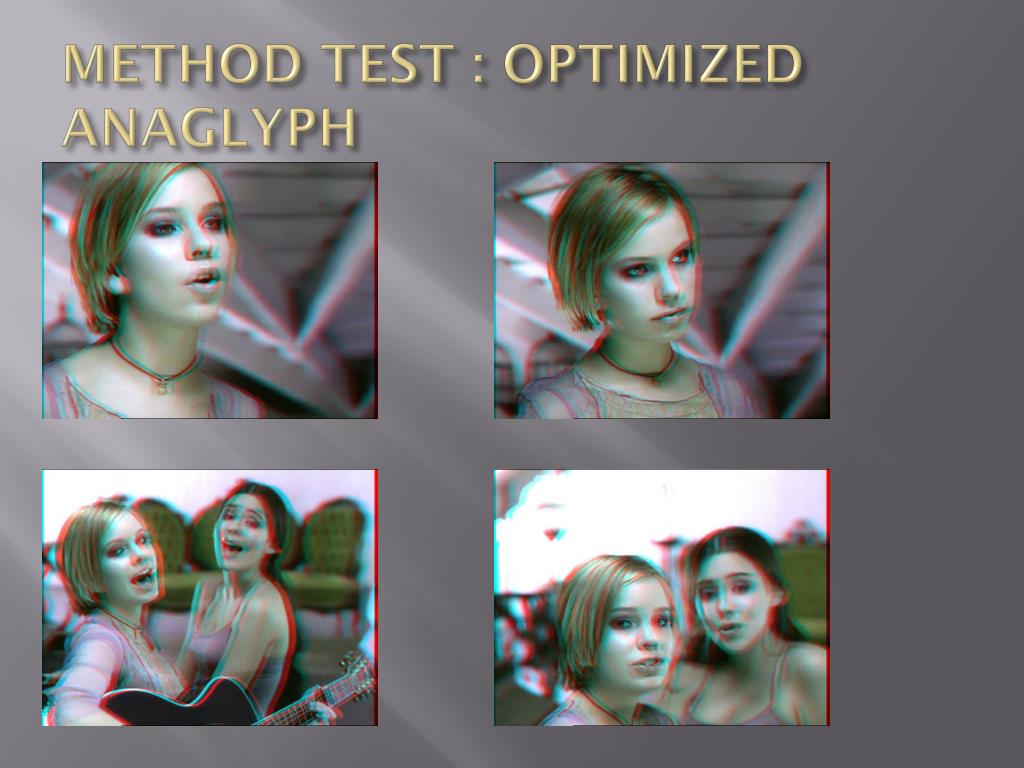

  26. METHOD TEST : OPTIMIZED ANAGLYPH

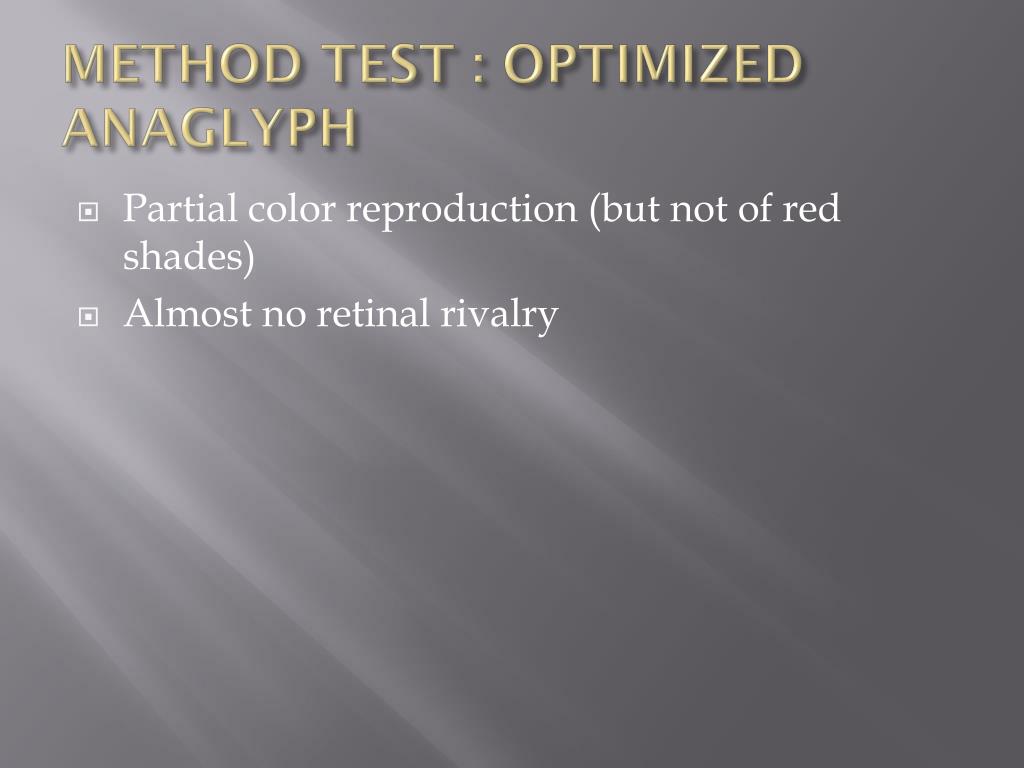

  27. METHOD TEST : OPTIMIZED ANAGLYPH • Partial color reproduction (but not of red shades) • Almost no retinal rivalry

  28. CONCLUSION • Color Anaglyph is the best method to produce an Anaglyphic image when the image have an object with contrast color from the background. • Gray Anaglyph and Half-color Anaglyph is the best method to produce an Anaglyphic Image with less or no Ghosting effect. • Optimized Anaglyph is the best method to produce an Anaglyphic Image with original color intact. • True Anaglyph method is not recomended because the result is dark and have Ghosting effect. • The DexterLib library used to read the video metadata, cannot read all extension of video.

  29. SUGGESTION • Because of the usage of lots of physical memory, the video to be converted before preview must less than 1 minute. • The file produced by Avifil32 library is huge, that’s why another library must be used to produce an output file. • The algorithm used in this program is slow, so there’s need for another faster algorithm.
