1. HONR 297Environmental Models Chapter 2: Ground Water 2.2: Physical Principles and Mathematical Models

2. Water Table • As discussed in the last section, if we dig down into the ground, we will eventually hit water. • Due to the force of gravity, water that enters the ground from surface water (such as rivers, streams, lakes, puddles, etc.) or precipitation (rain, lawn sprinklers, etc.) will move downward and fill up the open spaces within soil and rock to a certain height.

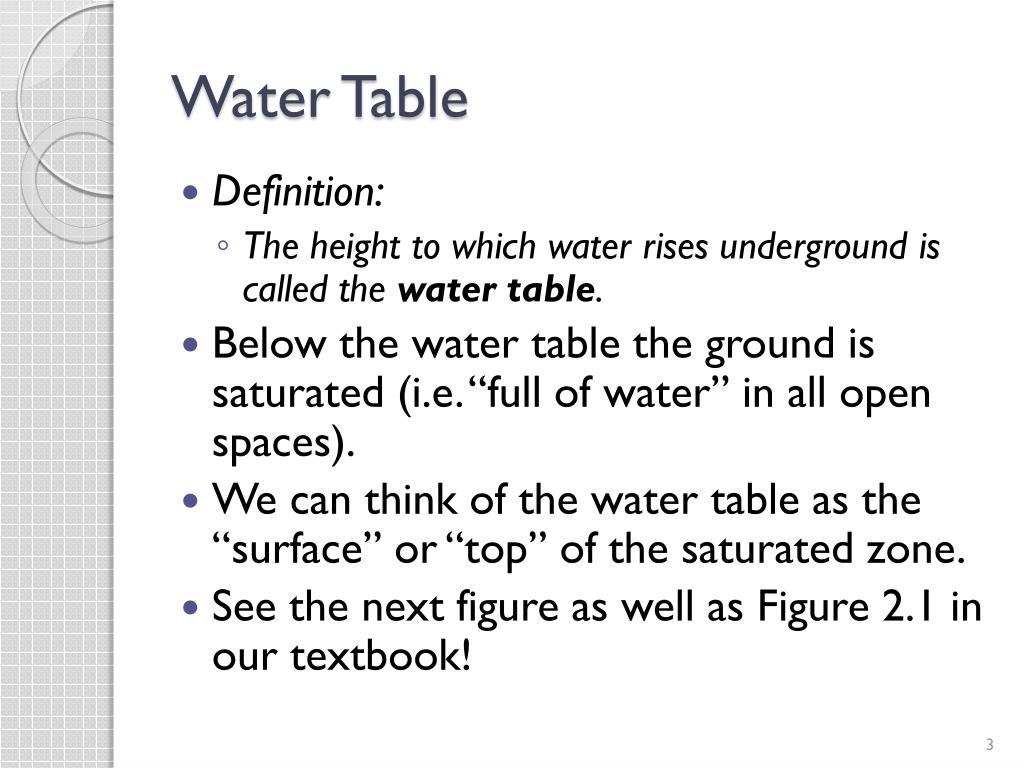

3. Water Table • Definition: • The height to which water rises underground is called the water table. • Below the water table the ground is saturated (i.e. “full of water” in all open spaces). • We can think of the water table as the “surface” or “top” of the saturated zone. • See the next figure as well as Figure 2.1 in our textbook!

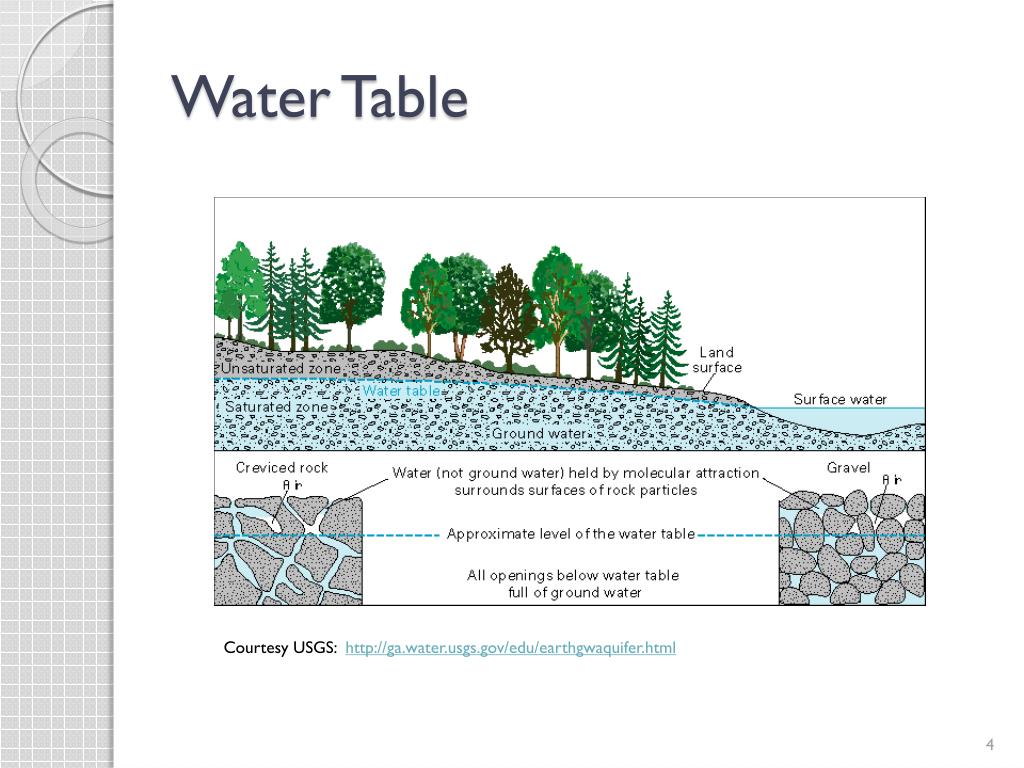

4. Water Table Courtesy USGS: http://ga.water.usgs.gov/edu/earthgwaquifer.html

5. Aquifer • Definition • An aquifer is any portion of the underground through which ground water can flow. • Note: • There may be more than one aquifer below the surface! • We call the aquifer with the water table as the upper border the water table aquifer!

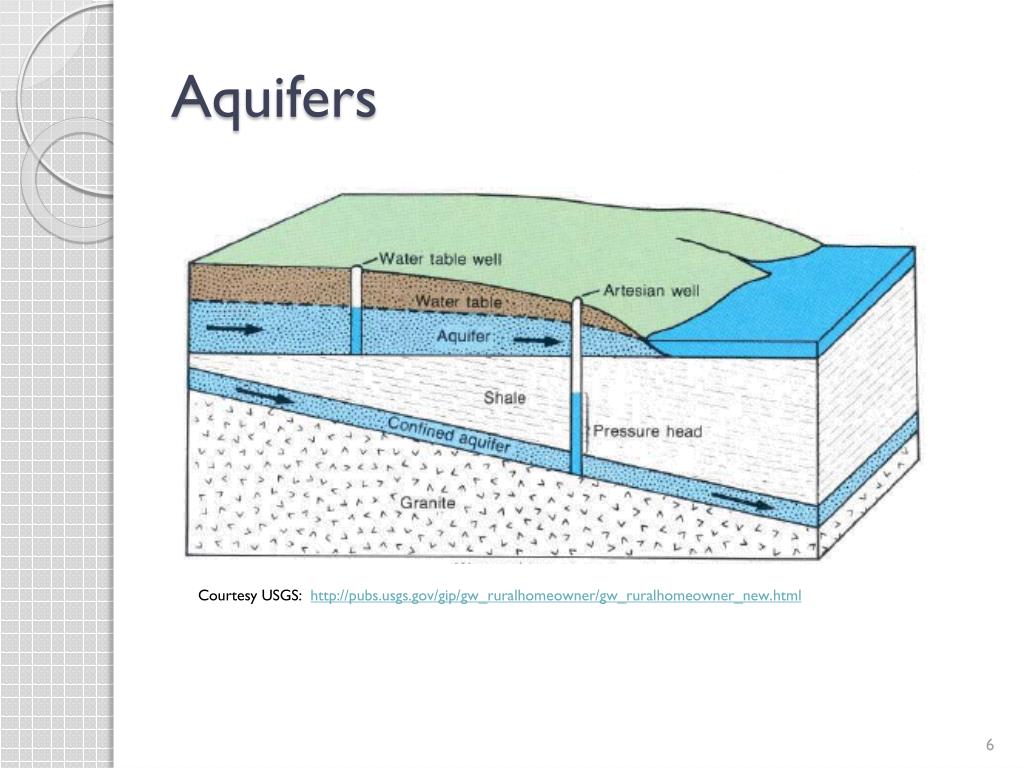

6. Aquifers Courtesy USGS: http://pubs.usgs.gov/gip/gw_ruralhomeowner/gw_ruralhomeowner_new.html

7. Recharge and Discharge • Water can move from one aquifer to the next, but tends to stay within a given aquifer and follows the “path of least resistance”. • Definition: • Areas where materials above the aquifer are permeable enough to permit infiltration of precipitation to the aquifer are known as points of recharge (or recharge areas). • Areas at which the water table intersects the land surface and water leaves an aquifer by way of springs, streams, or lakes and wetlands are known as points of discharge (or discharge areas). • Source of these definitions: http://pubs.usgs.gov/gip/gw_ruralhomeowner/gw_ruralhomeowner_new.html.

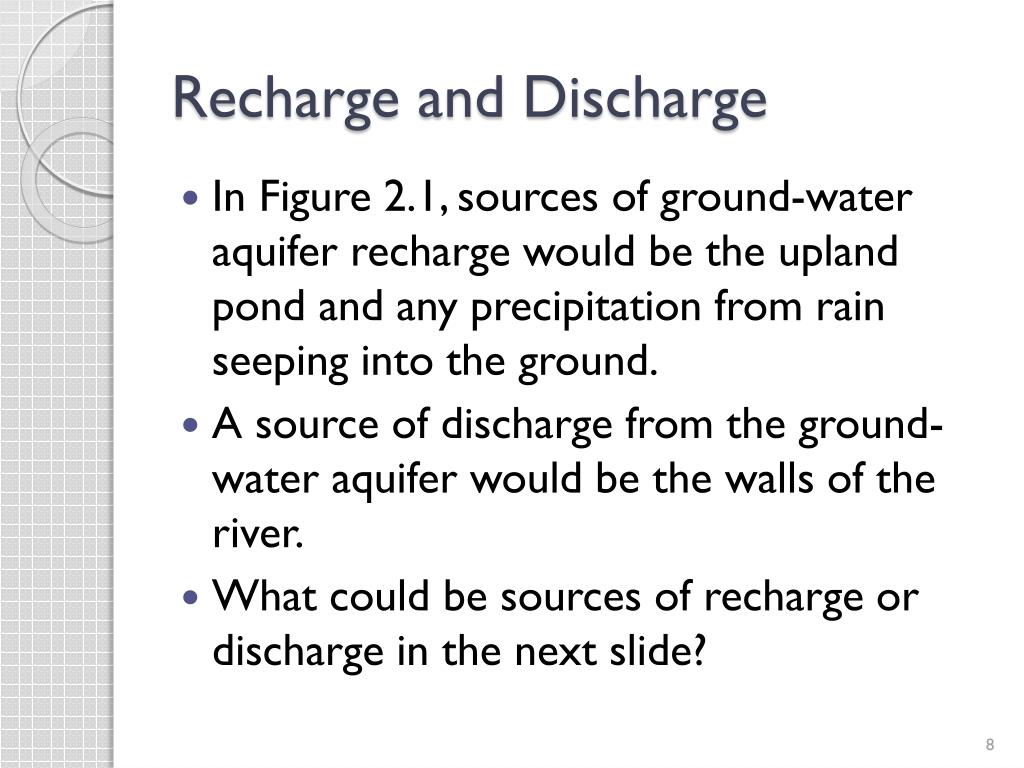

8. Recharge and Discharge • In Figure 2.1, sources of ground-water aquifer recharge would be the upland pond and any precipitation from rain seeping into the ground. • A source of discharge from the ground-water aquifer would be the walls of the river. • What could be sources of recharge or discharge in the next slide?

9. Recharge and Discharge Courtesy USGS: http://ga.water.usgs.gov/edu/watercyclegwdischarge.html

10. Source of Contamination? • Suppose we discover contamination in a stream or river. • The contamination may be from a factory upstream or it may be from contaminated ground water. • This in turn may be from a tank or landfill leaking into the ground water.

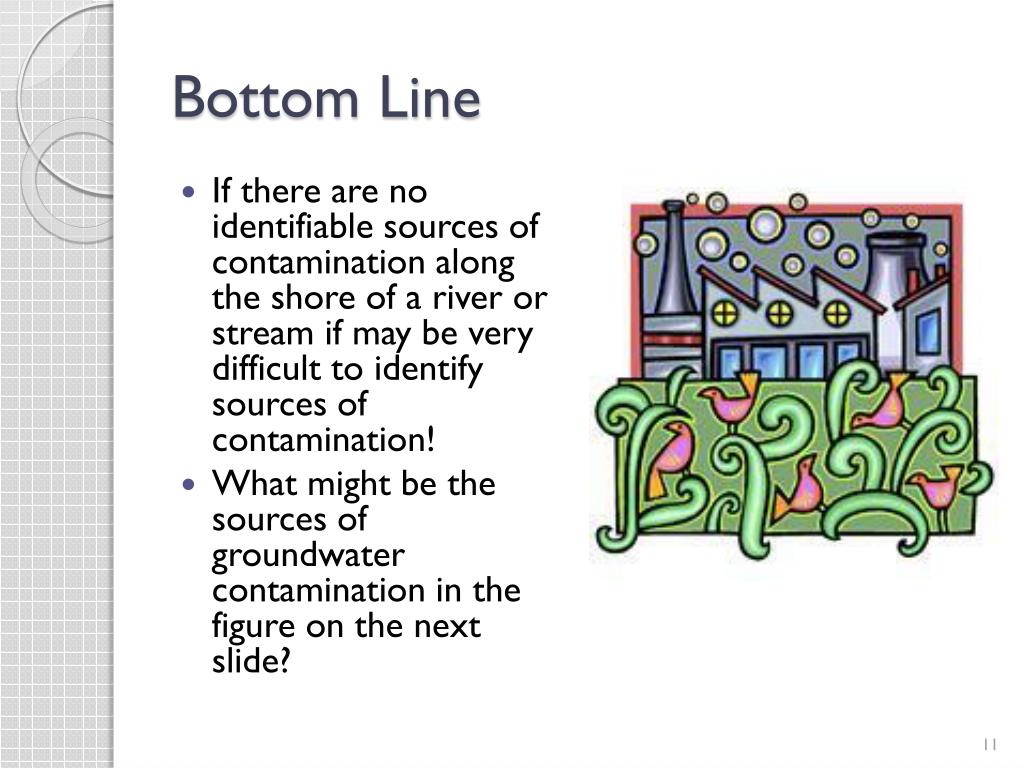

11. Bottom Line • If there are no identifiable sources of contamination along the shore of a river or stream if may be very difficult to identify sources of contamination! • What might be the sources of groundwater contamination in the figure on the next slide?

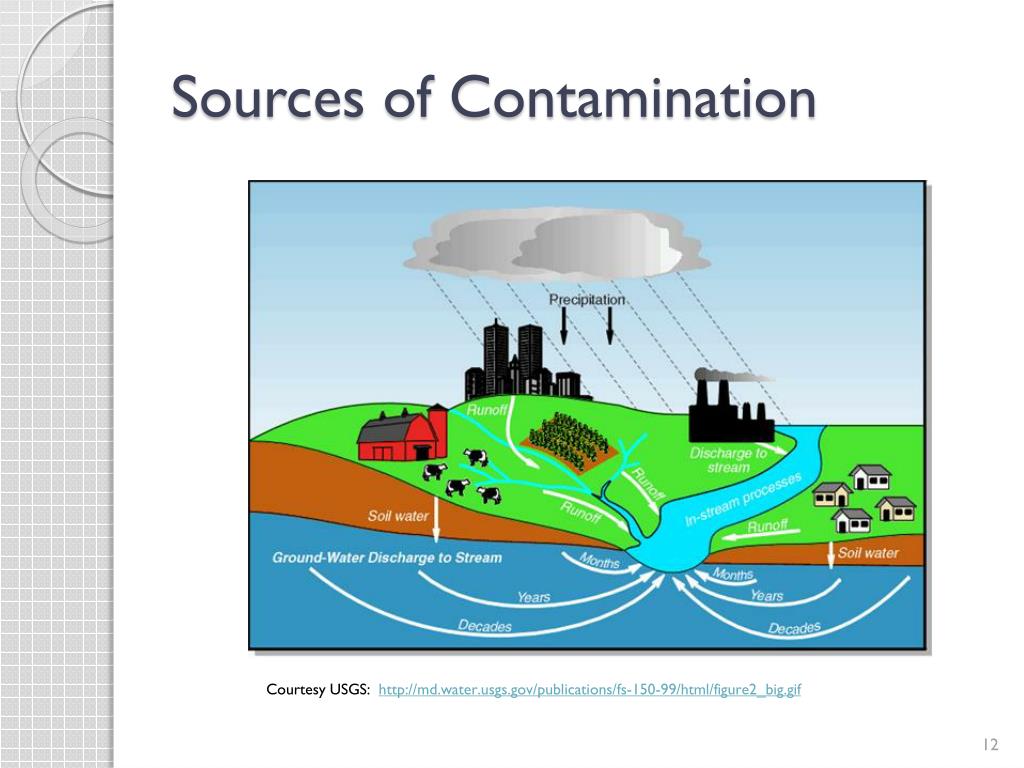

12. Sources of Contamination Courtesy USGS: http://md.water.usgs.gov/publications/fs-150-99/html/figure2_big.gif

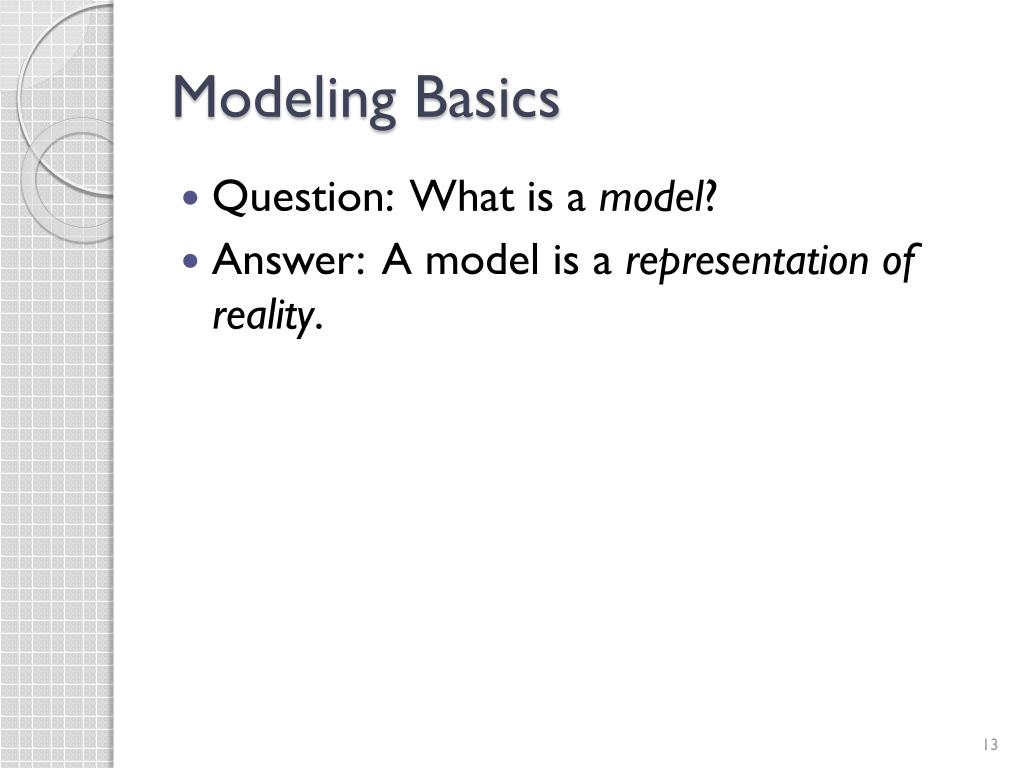

13. Modeling Basics • Question: What is a model? • Answer: A model is a representation of reality.

14. Example 1 • What are some examples of models? • Maps – cities, countries, world, roads, topographies, etc. • Model kits – cars, planes, buildings, legos, etc. • Games – war (chess, Battleship, Risk, etc.), Life, Settlers of Catan, computer games (angry birds, WoW), etc. • Movies – Star Wars, Pirates of the Caribbean Avatar, Inception, 2012, etc. • What are the advantages, disadvantages of each?

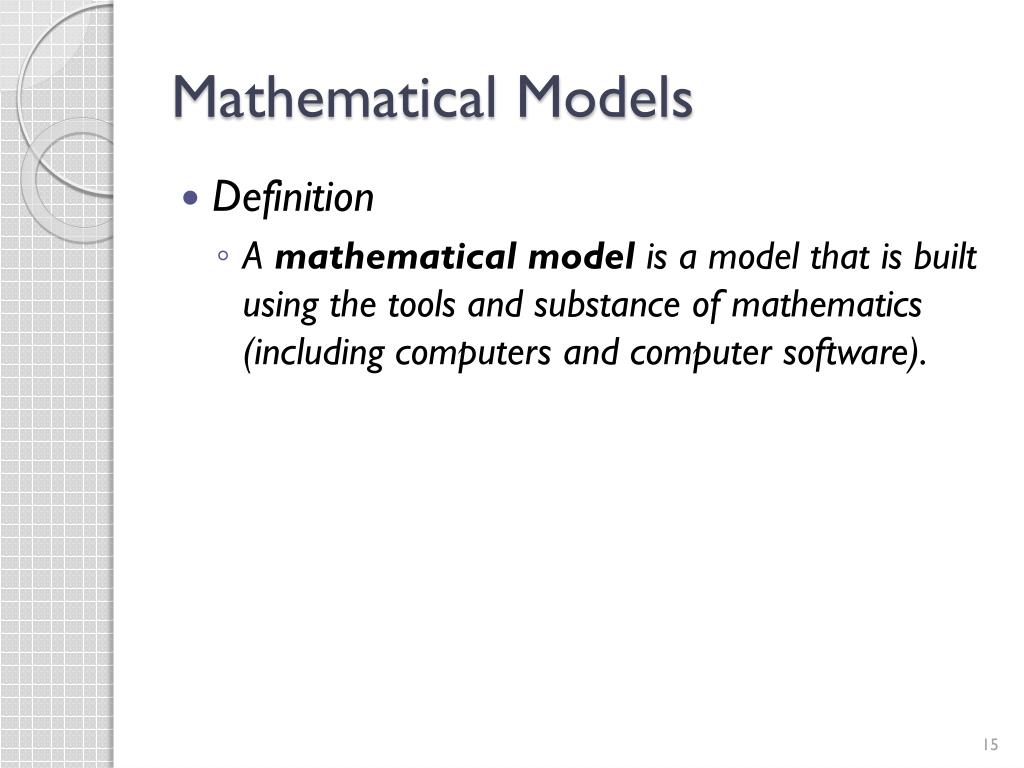

15. Mathematical Models • Definition • A mathematical model is a model that is built using the tools and substance of mathematics (including computers and computer software).

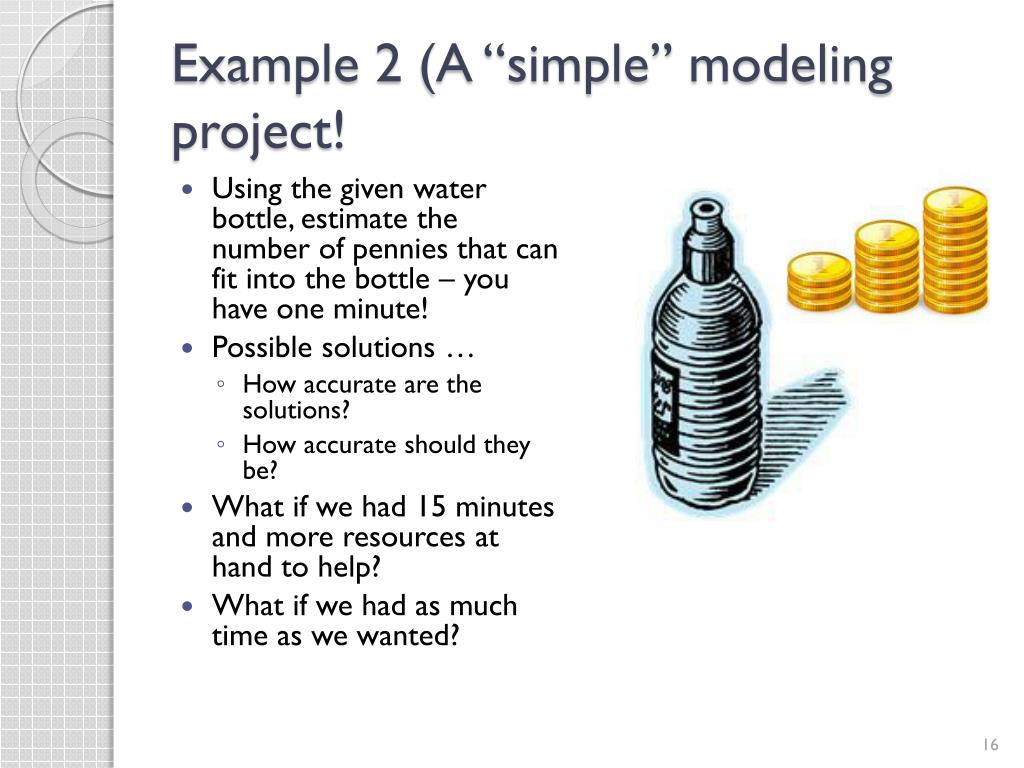

16. Example 2 (A “simple” modeling project! • Using the given water bottle, estimate the number of pennies that can fit into the bottle – you have one minute! • Possible solutions … • How accurate are the solutions? • How accurate should they be? • What if we had 15 minutes and more resources at hand to help? • What if we had as much time as we wanted?

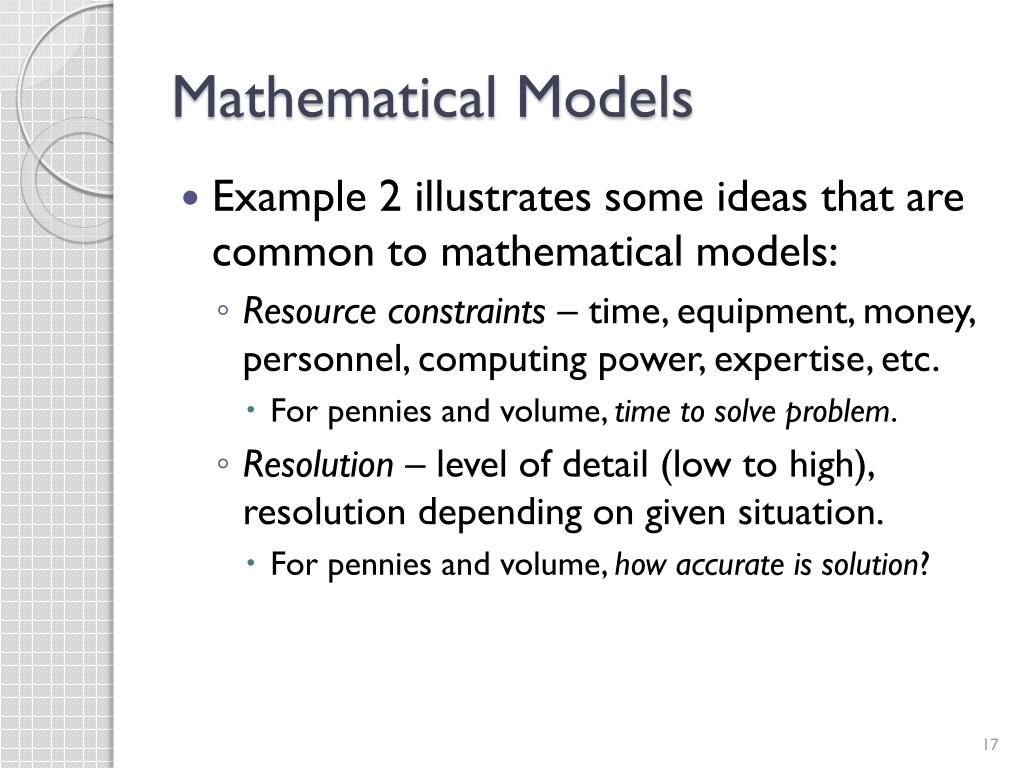

17. Mathematical Models • Example 2 illustrates some ideas that are common to mathematical models: • Resource constraints – time, equipment, money, personnel, computing power, expertise, etc. • For pennies and volume, time to solve problem. • Resolution – level of detail (low to high), resolution depending on given situation. • For pennies and volume, how accurate is solution?

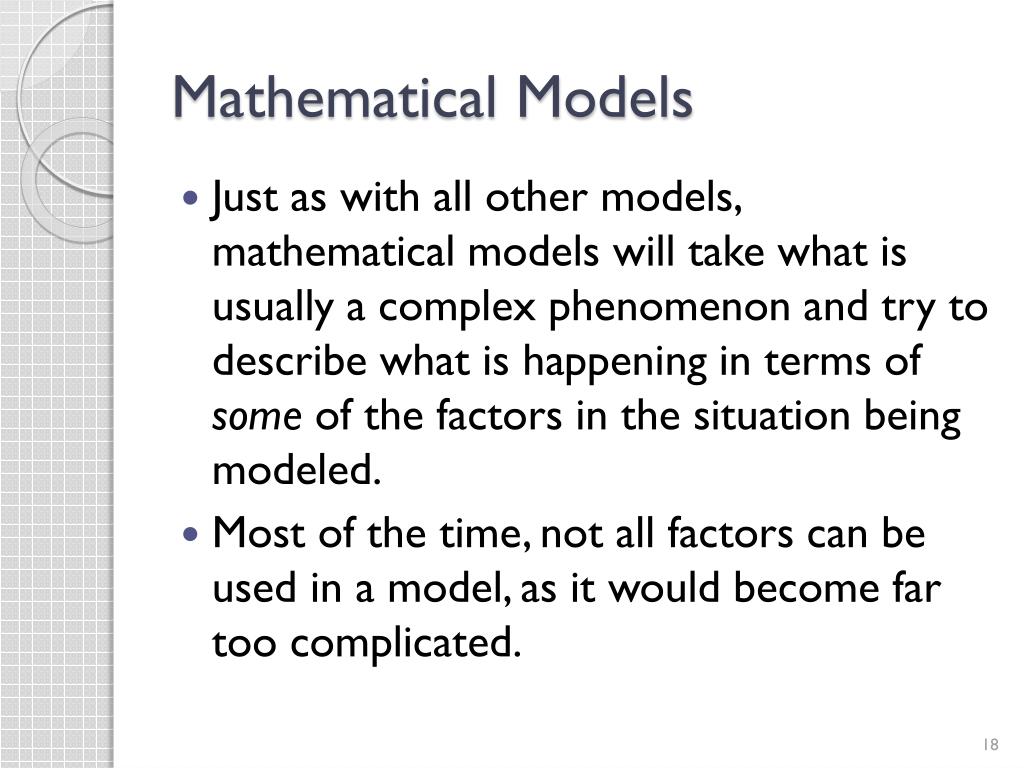

18. Mathematical Models • Just as with all other models, mathematical models will take what is usually a complex phenomenon and try to describe what is happening in terms of some of the factors in the situation being modeled. • Most of the time, not all factors can be used in a model, as it would become far too complicated.

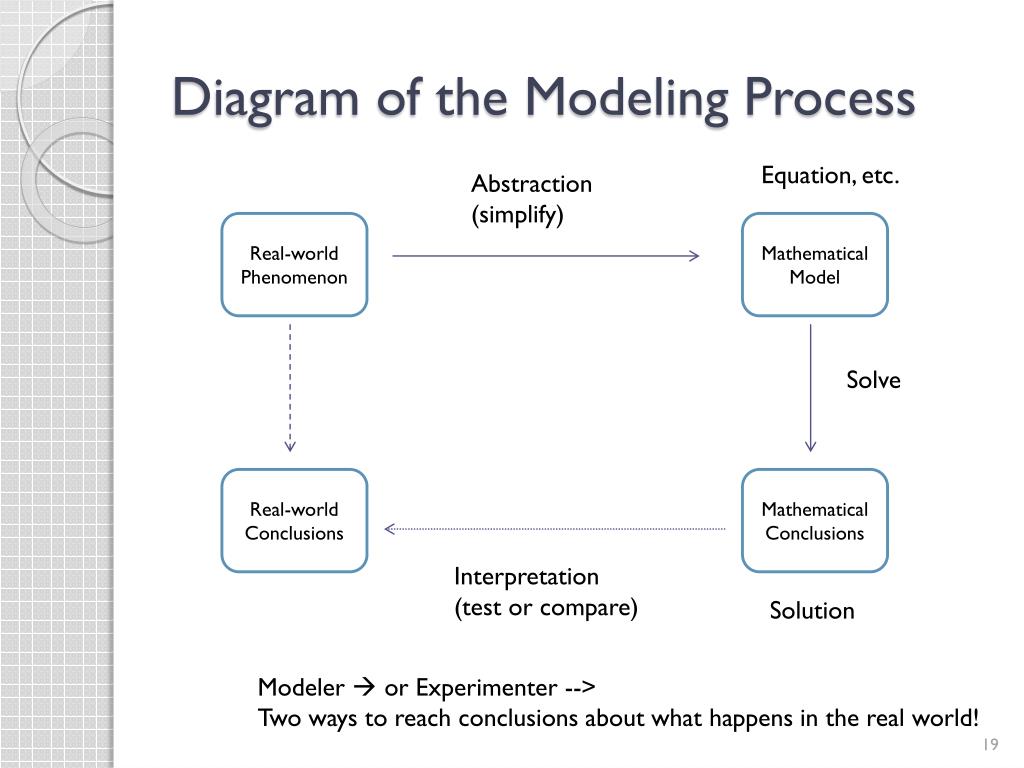

19. Diagram of the Modeling Process Equation, etc. Abstraction (simplify) Real-world Phenomenon Mathematical Model Solve Real-world Conclusions Mathematical Conclusions Interpretation (test or compare) Solution Modeler  or Experimenter --> Two ways to reach conclusions about what happens in the real world!

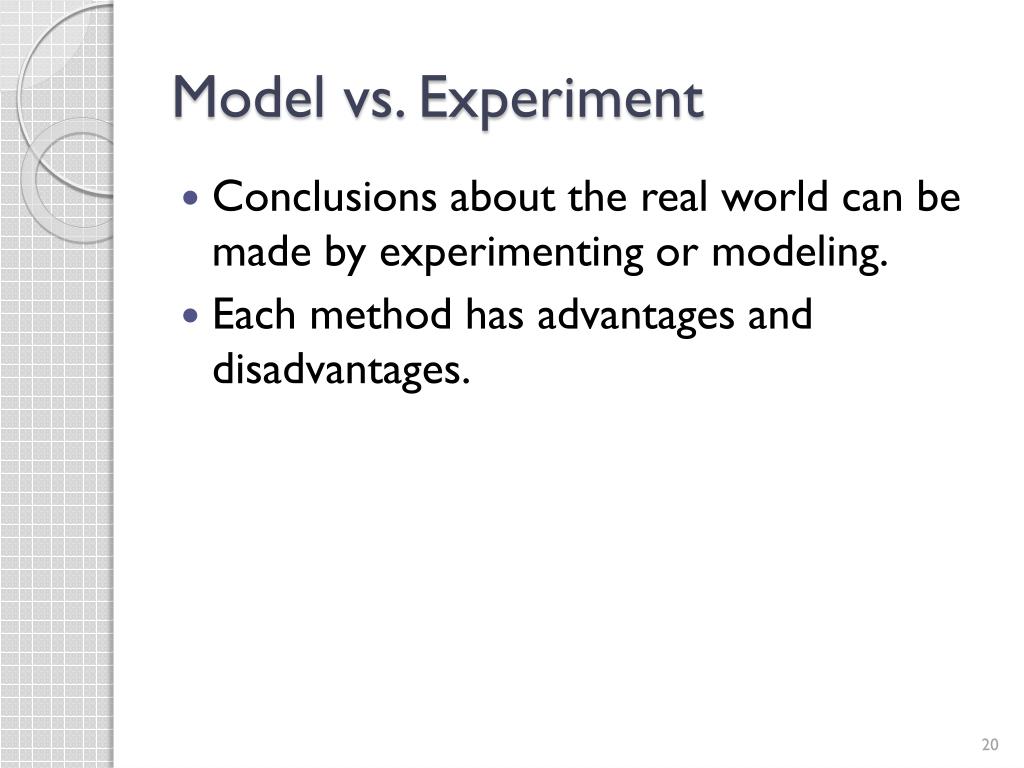

20. Model vs. Experiment • Conclusions about the real world can be made by experimenting or modeling. • Each method has advantages and disadvantages.

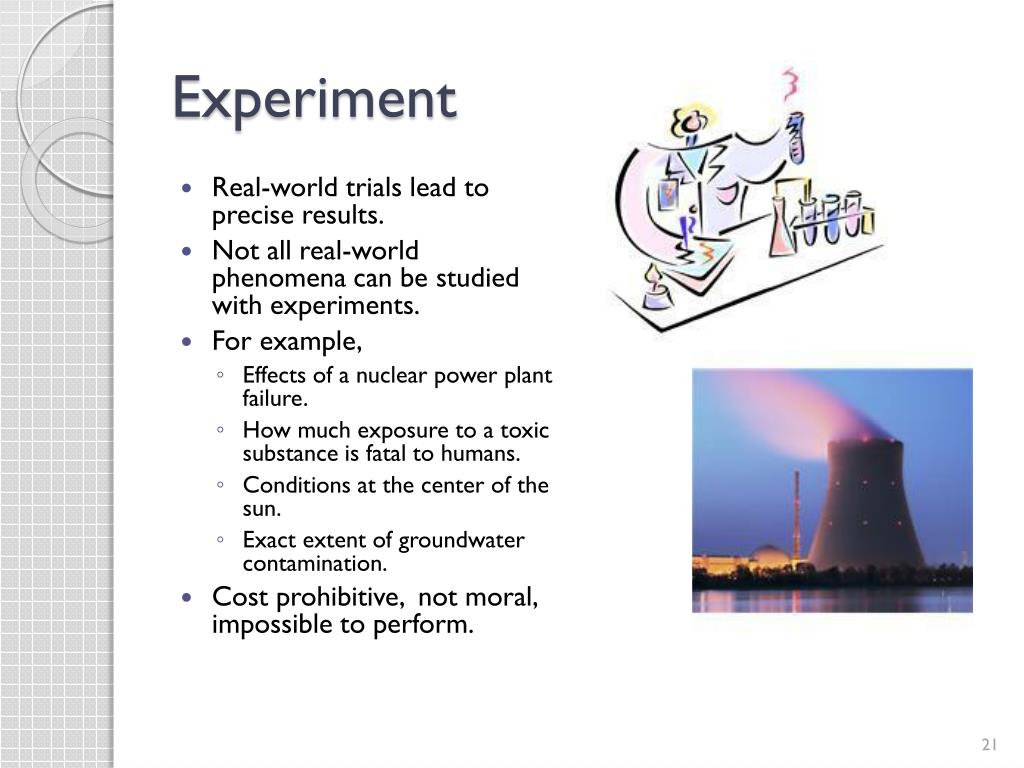

21. Experiment • Real-world trials lead to precise results. • Not all real-world phenomena can be studied with experiments. • For example, • Effects of a nuclear power plant failure. • How much exposure to a toxic substance is fatal to humans. • Conditions at the center of the sun. • Exact extent of groundwater contamination. • Cost prohibitive, not moral, impossible to perform.

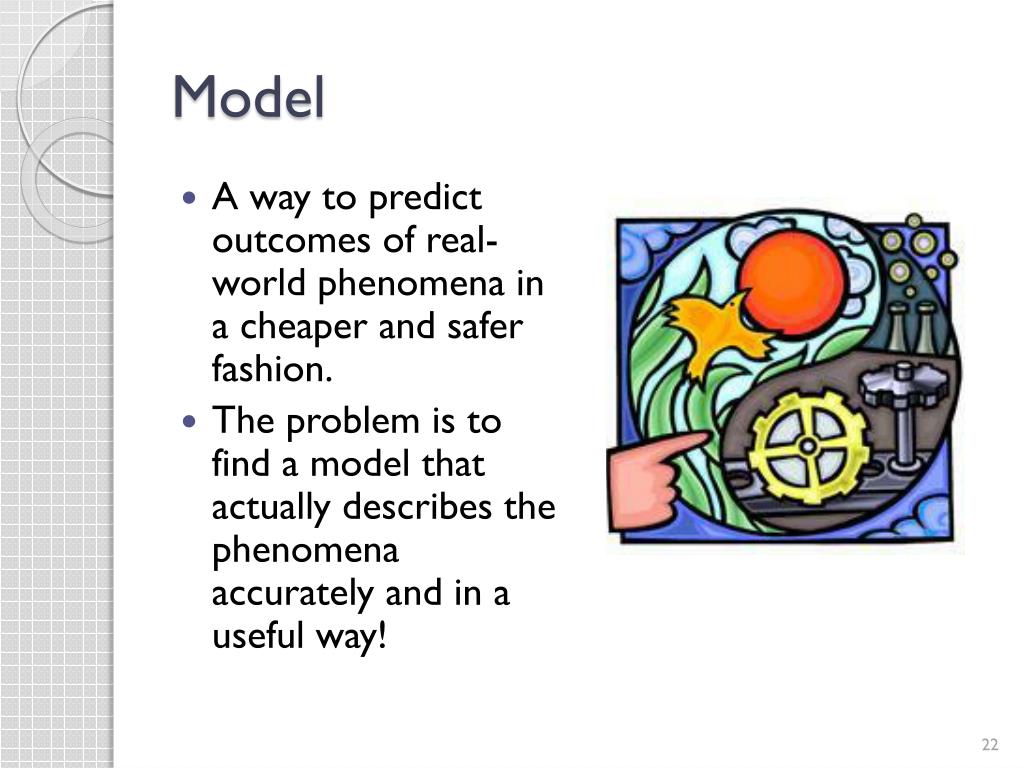

22. Model • A way to predict outcomes of real-world phenomena in a cheaper and safer fashion. • The problem is to find a model that actually describes the phenomena accurately and in a useful way!

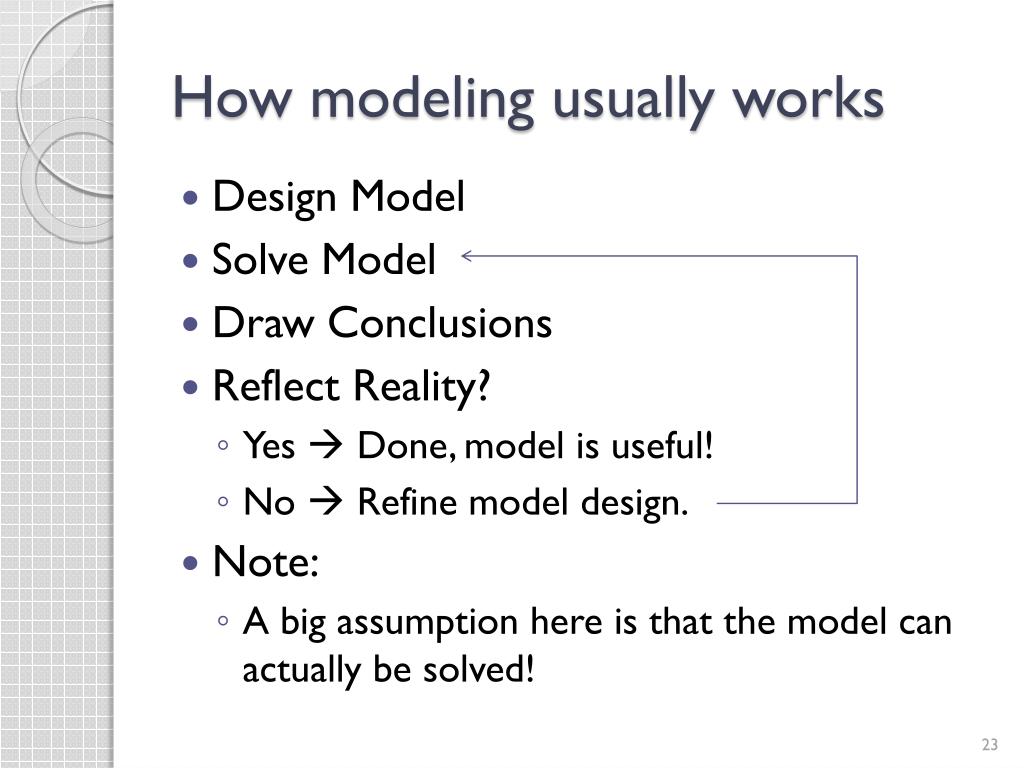

23. How modeling usually works • Design Model • Solve Model • Draw Conclusions • Reflect Reality? • Yes  Done, model is useful! • No  Refine model design. • Note: • A big assumption here is that the model can actually be solved!

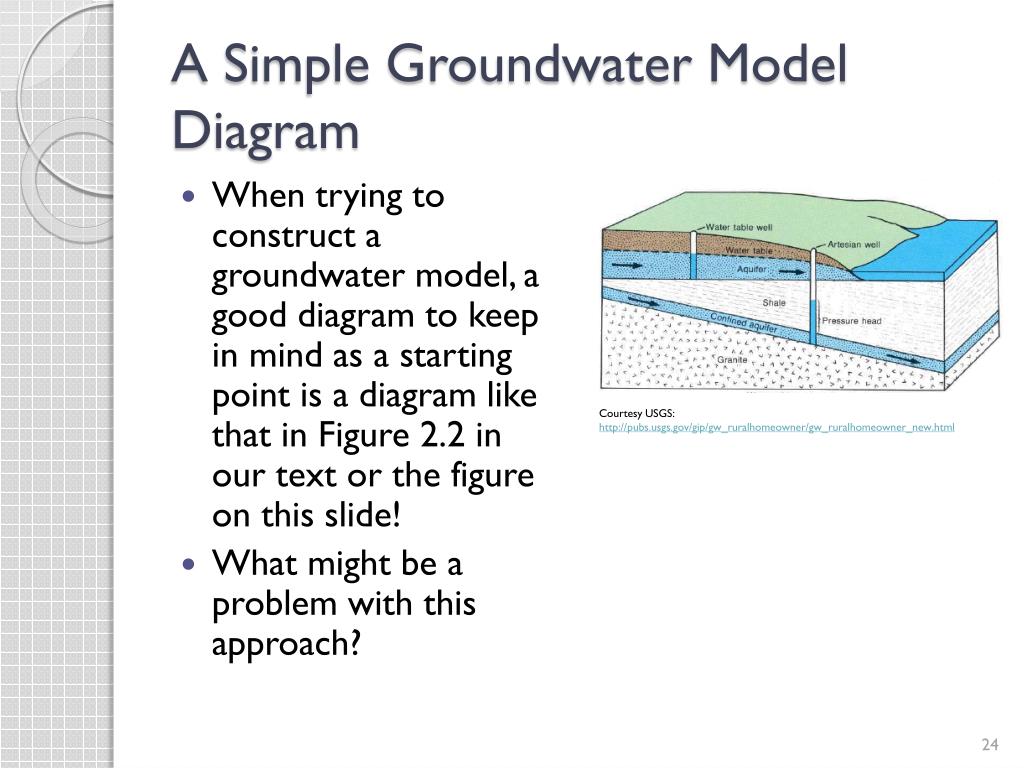

24. A Simple Groundwater Model Diagram • When trying to construct a groundwater model, a good diagram to keep in mind as a starting point is a diagram like that in Figure 2.2 in our text or the figure on this slide! • What might be a problem with this approach? Courtesy USGS: http://pubs.usgs.gov/gip/gw_ruralhomeowner/gw_ruralhomeowner_new.html

25. A More Complex Groundwater Model Diagram • Models like those on the last slide or Figure 2.2 in our text may be too simple for an initial model • The underground composition may be much more complicated, such as in the diagram on this slide or Figure 2.3 in our text! Courtesy USGS: http://md.water.usgs.gov/publications/fs-150-99/html/figure5_big.gif

26. “Real-life” Complexities - Soil • Looking at Figure 2.2, we’d expect that as we dig down from the surface, we’d first encounter a layer of unconsolidated (i.e. loose) materials known as soils, followed by a layer of rock, known as bedrock. • Types of soil include gravel, sand, silt, clay, and organic materials. • Soils vary in particle size, chemical composition, presence of organic matter, etc.

27. “Real-life” Complexities - Bedrock • Just like soil, bedrock can be made up of different types of rock. • Examples of sedimentary rock, which are made up of compacted sediments laid down by ancient bodies of water, include shale, sandstone, siltstone, and limestone. • Igneous rock is formed by melting and heating deep below the earth’s surface – examples include granite and obsidian. • See Figure 2.3 in our text! • Bedrock Geology of Indiana

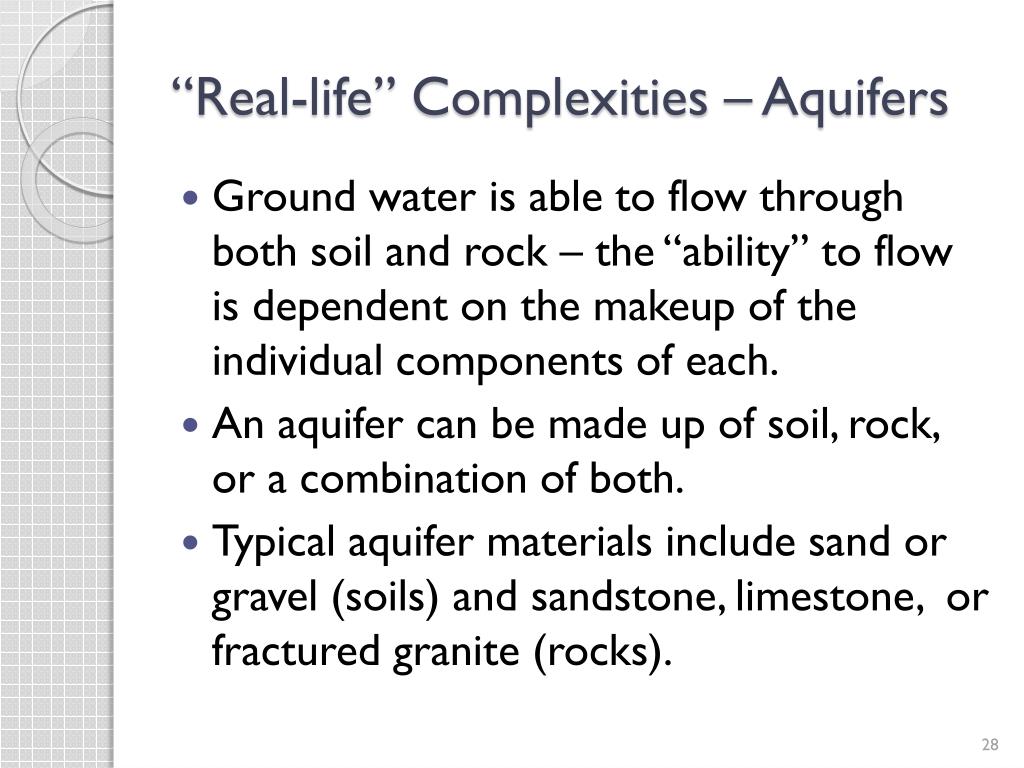

28. “Real-life” Complexities – Aquifers • Ground water is able to flow through both soil and rock – the “ability” to flow is dependent on the makeup of the individual components of each. • An aquifer can be made up of soil, rock, or a combination of both. • Typical aquifer materials include sand or gravel (soils) and sandstone, limestone, or fractured granite (rocks).

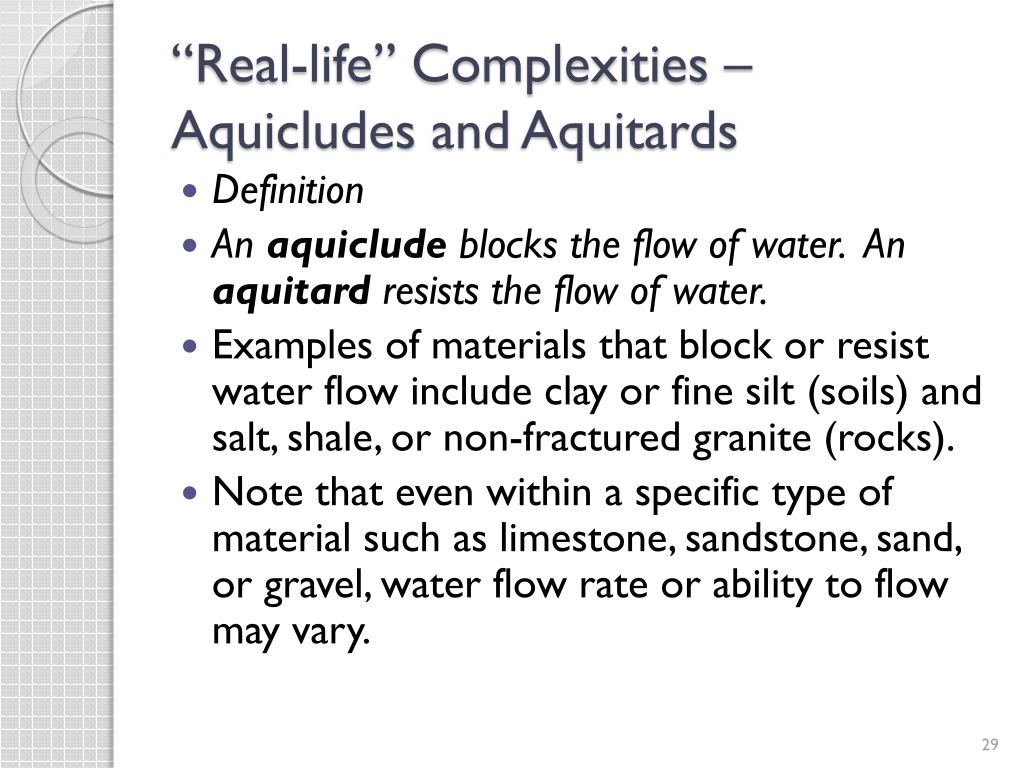

29. “Real-life” Complexities – Aquicludes and Aquitards • Definition • An aquiclude blocks the flow of water. An aquitard resists the flow of water. • Examples of materials that block or resist water flow include clay or fine silt (soils) and salt, shale, or non-fractured granite (rocks). • Note that even within a specific type of material such as limestone, sandstone, sand, or gravel, water flow rate or ability to flow may vary.

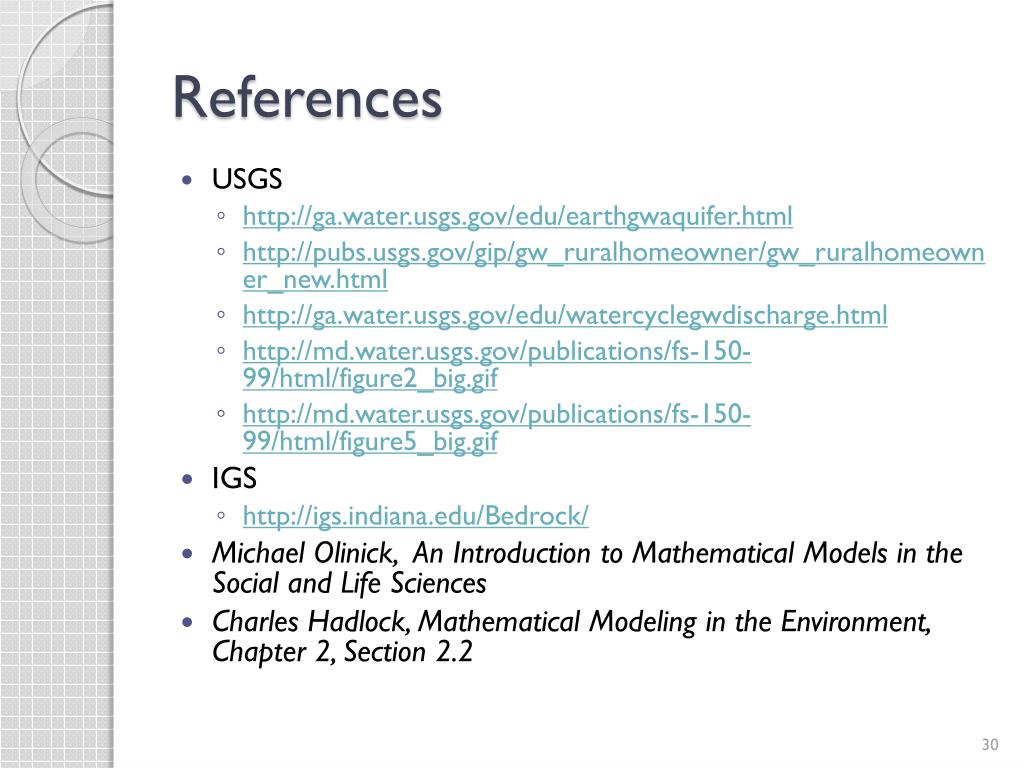

30. References • USGS • http://ga.water.usgs.gov/edu/earthgwaquifer.html • http://pubs.usgs.gov/gip/gw_ruralhomeowner/gw_ruralhomeowner_new.html • http://ga.water.usgs.gov/edu/watercyclegwdischarge.html • http://md.water.usgs.gov/publications/fs-150-99/html/figure2_big.gif • http://md.water.usgs.gov/publications/fs-150-99/html/figure5_big.gif • IGS • http://igs.indiana.edu/Bedrock/ • Michael Olinick, An Introduction to Mathematical Models in the Social and Life Sciences • Charles Hadlock, Mathematical Modeling in the Environment, Chapter 2, Section 2.2
