Presentation Transcript


Steps on the road to predictive medicine l.jpg

Steps on the Road to Predictive Medicine

Richard Simon, D.Sc.

Chief, Biometric Research Branch

National Cancer Institute

http://brb.nci.nih.gov


Brb website brb nci nih gov l.jpg

BRB Websitebrb.nci.nih.gov

  • Powerpoint presentations

  • Reprints & Presentations Reports

  • BRB-ArrayTools software

  • Web based Sample Size Planning

    • Clinical Trials using predictive biomarkers

    • Development of gene expression based predictive classifiers


Slide3 l.jpg

  • Many cancer treatments benefit only a minority of patients to whom they are administered

    • Particularly true for molecularly targeted drugs

  • Being able to predict which patients are likely to benefit would

    • save patients from unnecessary toxicity, and enhance their chance of receiving a drug that helps them

    • Help control medical costs

    • Improve the success rate of clinical drug development


Biomarkers l.jpg

Biomarkers

  • Prognostic

    • Measured before treatment to indicate long-term outcome for patients untreated or receiving standard treatment

  • Predictive

    • Measured before treatment to select good patient candidates for a particular treatment


Prognostic and predictive biomarkers in oncology l.jpg

Prognostic and Predictive Biomarkers in Oncology

  • Single gene or protein measurement

    • HER2 protein staining 2+ or 3+

    • HER2 amplification

    • KRAS mutation

  • Index or classifier that summarizes contributions of multiple genes/proteins

    • Empirically determined based on genome-wide correlating gene expression to patient outcome after treatment


Prospective co development of drugs and companion diagnostics l.jpg

Prospective Co-Development of Drugs and Companion Diagnostics

  • Develop a completely specified genomic classifier of the patients likely to benefit from a new drug

  • Establish analytical validity of the test

  • Design a pivotal RCT evaluating the new treatment with sample size, eligibility, and analysis plan prospectively based on use of the completely specified classifier/test.


Guiding principle l.jpg

Guiding Principle

  • The data used to develop the classifier must be distinct from the data used to test hypotheses about treatment effect in subsets determined by the classifier

    • Developmental studies can be exploratory

    • Studies on which treatment effectiveness claims are to be based should be definitive studies that test a treatment hypothesis in a patient population completely pre-specified by the classifier


New drug developmental strategy i l.jpg

New Drug Developmental Strategy I

  • Restrict entry to the phase III trial based on the binary predictive classifier, i.e. targeted design


Slide9 l.jpg

Develop Predictor of Response to New Drug

Using phase II data, develop predictor of response to new drug

Patient Predicted Responsive

Patient Predicted Non-Responsive

Off Study

New Drug

Control


Applicability of design i l.jpg

Applicability of Design I

  • Primarily for settings where the classifier is based on a single gene whose protein product is the target of the drug

    • eg Herceptin

  • With substantial biological basis for the classifier, it may be unacceptable ethically to expose classifier negative patients to the new drug

  • Strong biological rationale or phase II data on unselected patients needed for approval of test


Evaluating the efficiency of strategy i l.jpg

Evaluating the Efficiency of Strategy (I)

  • Simon R and Maitnourim A. Evaluating the efficiency of targeted designs for randomized clinical trials. Clinical Cancer Research 10:6759-63, 2004; Correction and supplement 12:3229, 2006

  • Maitnourim A and Simon R. On the efficiency of targeted clinical trials. Statistics in Medicine 24:329-339, 2005


Web based software for comparing sample size requirements l.jpg

Web Based Software for Comparing Sample Size Requirements

  • http://brb.nci.nih.gov


Developmental strategy ii l.jpg

DevelopPredictor of

Response to New Rx

Predicted Responsive

To New Rx

Predicted Non-responsive to New Rx

New RX

Control

New RX

Control

Developmental Strategy (II)

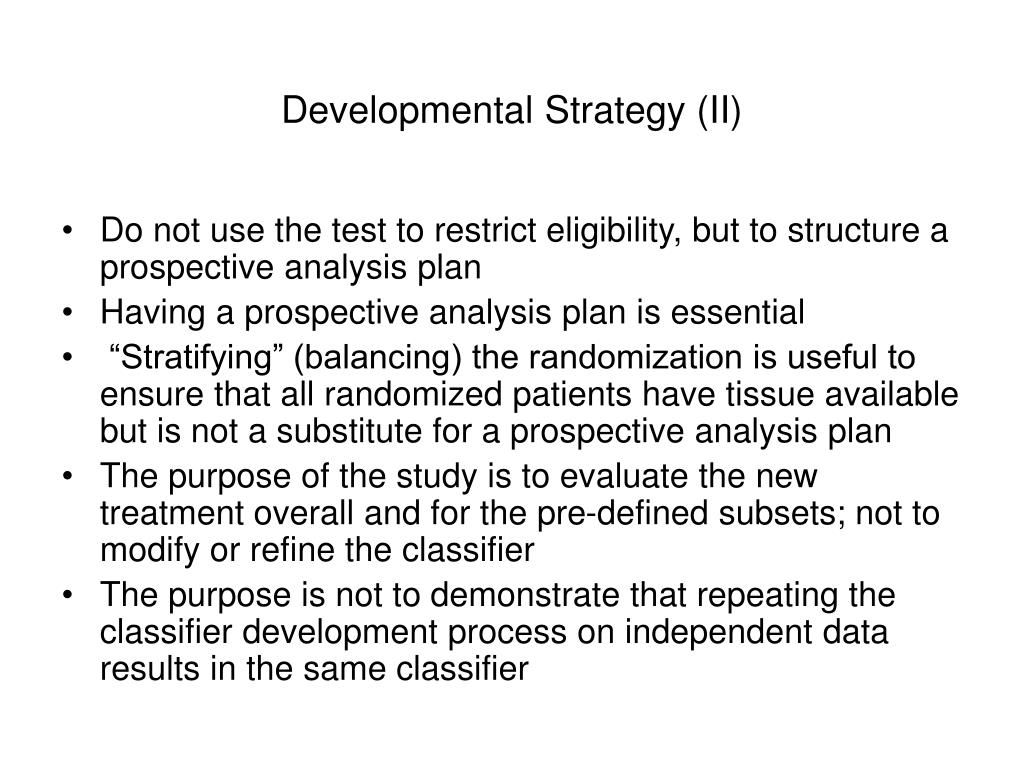

Developmental strategy ii19 l.jpg

Developmental Strategy (II)

  • Do not use the test to restrict eligibility, but to structure a prospective analysis plan

  • Having a prospective analysis plan is essential

  • “Stratifying” (balancing) the randomization is useful to ensure that all randomized patients have tissue available but is not a substitute for a prospective analysis plan

  • The purpose of the study is to evaluate the new treatment overall and for the pre-defined subsets; not to modify or refine the classifier

  • The purpose is not to demonstrate that repeating the classifier development process on independent data results in the same classifier


Slide20 l.jpg

  • R Simon. Using genomics in clinical trial design, Clinical Cancer Research 14:5984-93, 2008

  • R Simon. Designs and adaptive analysis plans for pivotal clinical trials of therapeutics and companion diagnostics, Expert Opinion in Medical Diagnostics 2:721-29, 2008

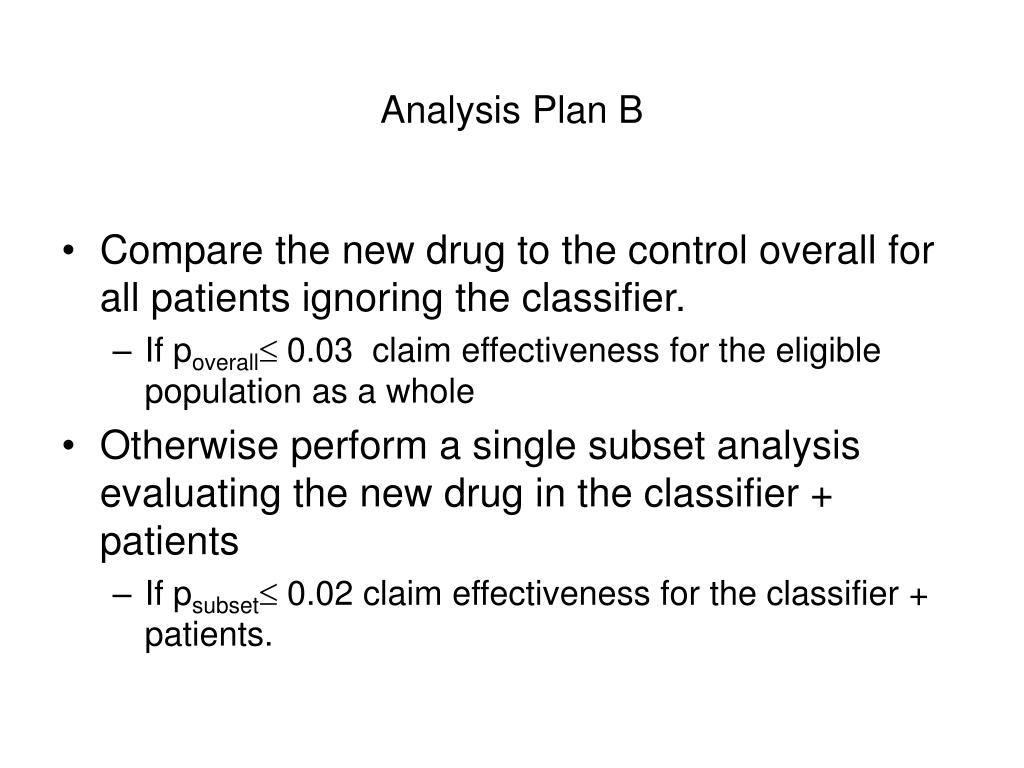

Analysis plan b l.jpg

Analysis Plan B

  • Compare the new drug to the control overall for all patients ignoring the classifier.

    • If poverall 0.03 claim effectiveness for the eligible population as a whole

  • Otherwise perform a single subset analysis evaluating the new drug in the classifier + patients

    • If psubset 0.02 claim effectiveness for the classifier + patients.


Slide22 l.jpg

  • This analysis strategy is designed to not penalize sponsors for having developed a classifier

  • It provides sponsors with an incentive to develop genomic classifiers


Sample size for analysis plan b l.jpg

Sample size for Analysis Plan B

  • To have 90% power for detecting uniform 33% reduction in overall hazard at 3% two-sided level requires 297 events (instead of 263 for similar power at 5% level)

  • If 25% of patients are positive, then when there are 297 total events there will be approximately 75 events in positive patients

    • 75 events provides 75% power for detecting 50% reduction in hazard at 2% two-sided significance level

    • By delaying evaluation in test positive patients, 80% power is achieved with 84 events and 90% power with 109 events


Analysis plan c l.jpg

Analysis Plan C

  • Test for interaction between treatment effect in test positive patients and treatment effect in test negative patients

  • If interaction is significant at level int then compare treatments separately for test positive patients and test negative patients

  • Otherwise, compare treatments overall

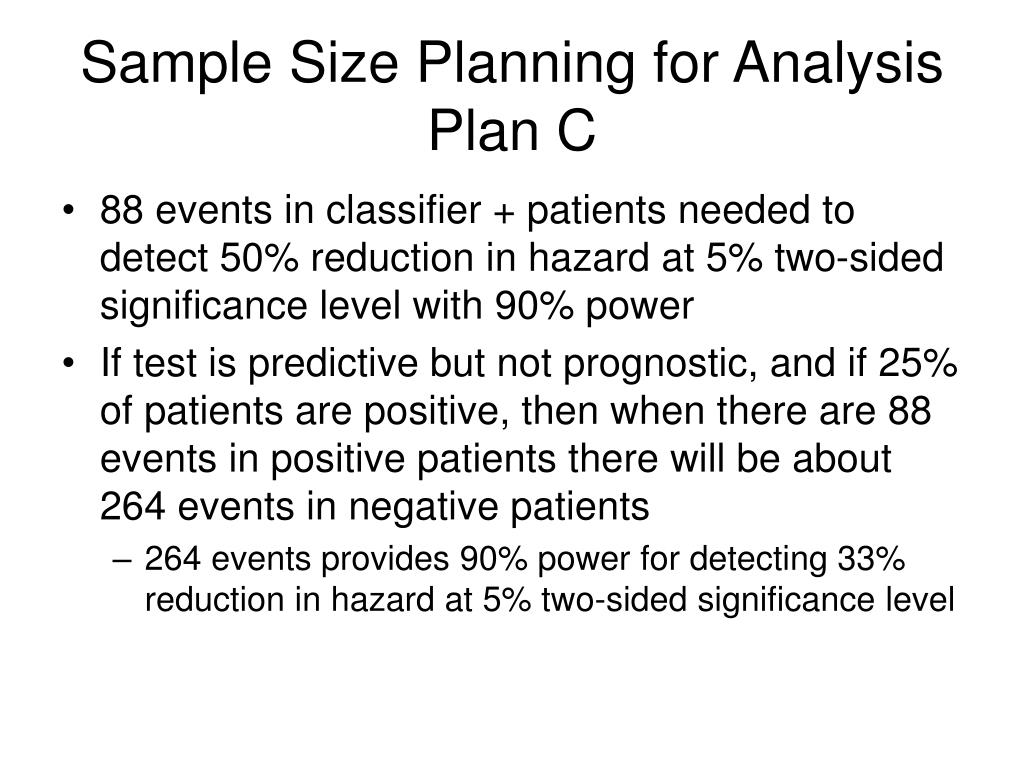

Sample size planning for analysis plan c l.jpg

Sample Size Planning for Analysis Plan C

  • 88 events in classifier + patients needed to detect 50% reduction in hazard at 5% two-sided significance level with 90% power

  • If test is predictive but not prognostic, and if 25% of patients are positive, then when there are 88 events in positive patients there will be about 264 events in negative patients

    • 264 events provides 90% power for detecting 33% reduction in hazard at 5% two-sided significance level


Simulation results for analysis plan c l.jpg

Simulation Results for Analysis Plan C

  • Using int=0.10, the interaction test has power 93.7% when there is a 50% reduction in hazard in test positive patients and no treatment effect in test negative patients

  • A significant interaction and significant treatment effect in test positive patients is obtained in 88% of cases under the above conditions

  • If the treatment reduces hazard by 33% uniformly, the interaction test is negative and the overall test is significant in 87% of cases


Biomarker adaptive threshold design l.jpg

Biomarker Adaptive Threshold Design

Wenyu Jiang, Boris Freidlin & Richard Simon

JNCI 99:1036-43, 2007

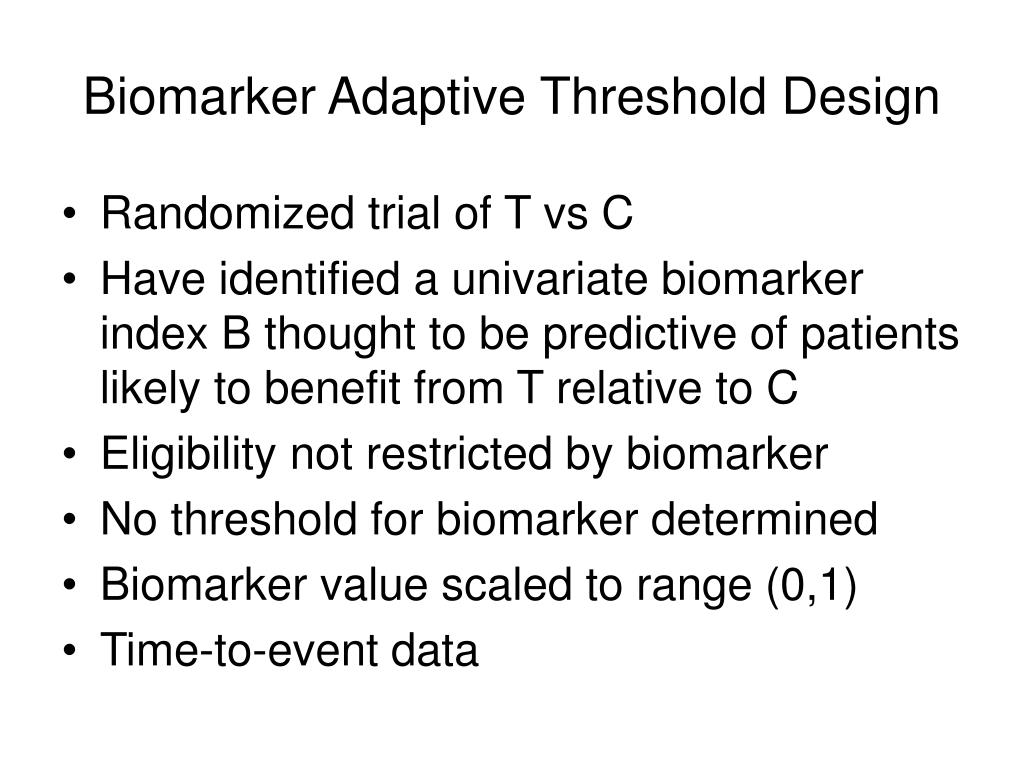

Biomarker adaptive threshold design31 l.jpg

Biomarker Adaptive Threshold Design

  • Randomized trial of T vs C

  • Have identified a univariate biomarker index B thought to be predictive of patients likely to benefit from T relative to C

  • Eligibility not restricted by biomarker

  • No threshold for biomarker determined

  • Biomarker value scaled to range (0,1)

  • Time-to-event data


Procedure a l.jpg

Procedure A

  • Compare T vs C for all patients

    • If results are significant at level .04 claim broad effectiveness of T

    • Otherwise proceed as follows


Procedure a33 l.jpg

Procedure A

  • Test T vs C restricted to patients with biomarker B > b

    • Let S(b) be log likelihood ratio statistic

  • Repeat for all values of b

  • Let S* = max{S(b)}

  • Compute null distribution of S* by permuting treatment labels

  • If the data value of S* is significant at 0.01 level, then claim effectiveness of T for a patient subset

  • Compute point and interval estimates of the threshold b


Procedure b l.jpg

Procedure B

  • S(b)=log likelihood ratio statistic for treatment effect in subset of patients with Bb

  • S*=max{S(0)+R, max{S(b)}}

  • Compute null distribution of T by permuting treatment labels

  • If the data value of T is significant at 0.05 level, then reject null hypothesis that T is ineffective

  • Compute point and interval estimates of the threshold b


Estimation of threshold l.jpg

Estimation of Threshold


Prostate cancer data l.jpg

Prostate Cancer Data

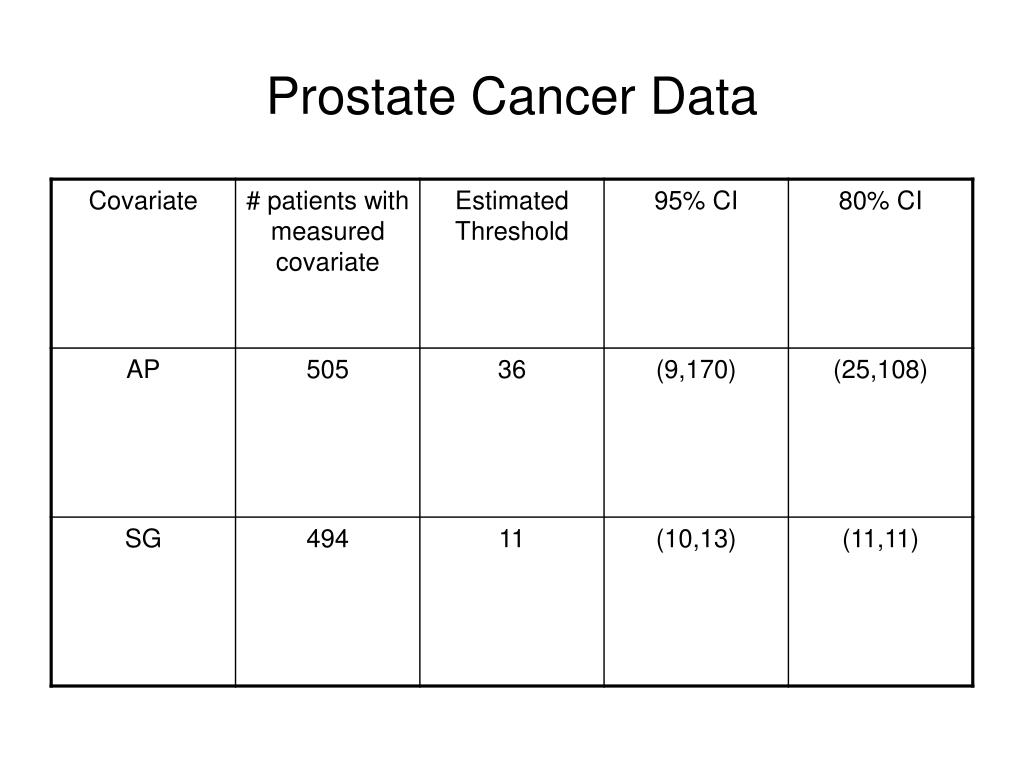

Prostate cancer data38 l.jpg

Prostate Cancer Data


Sample size planning a l.jpg

Sample Size Planning (A)

  • Standard broad eligibility trial is sized for 80% power to detect reduction in hazard D at significance level 5%

  • Biomarker adaptive threshold design is sized for 80% power to detect same reduction in hazard D at significance level 4% for overall analysis


Slide42 l.jpg

Estimated Power of Broad Eligibility Design (n=386 events) vs Adaptive Design A (n=412 events) 80% power for 30% hazard reduction


Sample size planning b l.jpg

Sample Size Planning (B)

  • Estimate power of procedure B relative to standard broad eligibility trial based on Table 1 for the row corresponding to the expected proportion of sensitive patients ( ) and the target hazard ratio for sensitive patients

    • e.g. =25% and =.4 gives RE=.429/.641=.67

  • When B has power 80%, overall test has power 80*.67=53%

  • Use formula B.2 to determine the approximate number of events needed for overall test to have power 53% for detecting =.4 limited to =25% of patients


Events needed to detect hazard ratio with proportional hazards l.jpg

Events needed to Detect Hazard Ratio  With Proportional Hazards


Events d needed for overall test to detect hazard ratio limited to fraction l.jpg

Events (D’) Needed for Overall Test to Detect Hazard Ratio  Limited to Fraction 


Example sample size planning for procedure b l.jpg

Example Sample Size Planning for Procedure B

  • Design a trial to detect =0.4 (60% reduction) limited to =25% of patients

    • Relative efficiency from Table 1 .429/.641=.67

  • When procedure B has power 80%, standard test has power 80%*.67=53%

  • Formula B.2 gives D’=230 events to have 53% power for overall test and thus approximate 80% power for B

  • Overall test needs D=472 events for 80% power for detecting the diluted treatment effect


Adaptive signature design l.jpg

Adaptive Signature Design

Boris Freidlin and Richard Simon

Clinical Cancer Research 11:7872-8, 2005


Adaptive signature design end of trial analysis l.jpg

Adaptive Signature DesignEnd of Trial Analysis

  • Compare T to C for all patients at significance level overall

    • If overall H0 is rejected, then claim effectiveness of T for eligible patients

    • Otherwise


Slide50 l.jpg

  • Otherwise:

    • Using only the first half of patients accrued during the trial, develop a binary classifier that predicts the subset of patients most likely to benefit from the new treatment T compared to control C

    • Compare T to C for patients accrued in second stage who are predicted responsive to E based on classifier

      • Perform test at significance level 0.05 - overall

      • If H0 is rejected, claim effectiveness of T for subset defined by classifier


True model l.jpg

True Model


Classifier development l.jpg

Classifier Development

  • Using data from stage 1 patients, fit all single gene logistic models (j=1,…,M)

  • Select genes with interaction significant at level 


Classification of stage 2 patients l.jpg

Classification of Stage 2 Patients

  • For i’th stage 2 patient, selected gene j votes to classify patient as preferentially sensitive to T if


Classification of stage 2 patients54 l.jpg

Classification of Stage 2 Patients

  • Classify i’th stage 2 patient as differentially sensitive to T relative to C if at least G selected genes vote for differential sensitivity of that patient


Simulation parameters l.jpg

Simulation Parameters

  • Gene expression levels of sensitivity genes MVN

    • mean m, variance v1 and correlation r in sensitive patients

    • mean 0, variance v2 and correlation r in non-sensitive patients

  • Gene expression levels of other genes MVN with mean 0, variance v0 and correlation r in all patients


Slide56 l.jpg

  • Treatment-expression interaction parameters (*) same for all sensitivity genes

  • * value scaled (depending on K) so that log odds ratio of treatment effect is 5 for hypothetical patient with sensitivity gene expression levels at their expected values

    • i.e. m *K=5

  • Intercept  scaled for control response rate of 25%


Slide57 l.jpg

Treatment effect restricted to subset.10% of patients sensitive, 10 sensitivity genes, 10,000 genes, 400 patients.


Slide58 l.jpg

Treatment effect restricted to subset.25% of patients sensitive, 10 sensitivity genes, 10,000 genes, 400 patients.


Slide59 l.jpg

Overall treatment effect, no subset effect.10% of patients sensitive, 10 sensitivity genes, 10,000 genes, 400 patients.


Slide60 l.jpg

Stronger treatment effect for sensitive subset.10% of patients sensitive, 10 sensitivity genes, 10,000 genes, 400 patients.


Empirical power rr for control patients 25 l.jpg

Empirical PowerRR for Control Patients 25%


Cross validated adaptive signature design l.jpg

Cross-Validated Adaptive Signature Design

Wenyu Jiang, Boris Freidlin, Richard Simon


Cross validated adaptive signature design end of trial analysis l.jpg

Cross-Validated Adaptive Signature DesignEnd of Trial Analysis

  • Compare T to C for all patients at significance level overall

    • If overall H0 is rejected, then claim effectiveness of T for eligible patients

    • Otherwise


Slide64 l.jpg

  • Otherwise:

    • Partition the full data set into K parts

    • Form a training set by omitting one of the K parts. The omitted part is the test set

      • Using the training set, develop a predictive classifier of the subset of patients who benefit preferentially from the new treatment T compared to control C using the methods developed for the ASD

      • Classify the patients in the test set as either sensitive or not sensitive to T relative to C

    • Repeat this procedure K times, leaving out a different part each time

      • After this is completed, all patients in the full dataset are classified as sensitive or insensitive

    • Compare T to C for sensitive patients by computing a test statistic S e.g. the difference in response proportions

    • Generate the null distribution of S by permuting the treatment labels and repeating the entire K-fold cross-validation proceedure

    • Perform test at significance level 0.05 - overall

    • If H0 is rejected, claim effectiveness of E for subset defined by classifier

      • The sensitive subset is determined by developing a classifier using the full dataset


80 response to t in sensitive patients 25 response to t or c otherwise 10 patients sensitive l.jpg

80% Response to T in Sensitive Patients25% Response to T or C Otherwise10% Patients Sensitive


70 response to t in sensitive patients 25 response to t or c otherwise 20 patients sensitive l.jpg

70% Response to T in Sensitive Patients25% Response to T or C Otherwise20% Patients Sensitive


70 response to t in sensitive patients 25 response to t or c otherwise 30 patients sensitive l.jpg

70% Response to T in Sensitive Patients25% Response to T or C Otherwise30% Patients Sensitive


35 response to t 25 response to c no subset effect l.jpg

35% Response to T 25% Response to CNo Subset Effect


25 response to t 25 response to c no subset effect l.jpg

25% Response to T 25% Response to CNo Subset Effect


  • Login
