  1. DSP + FPGA Supervisory Communications Infrastructure with possible implications/applications 22 Aug 2001 M. Haney, University of Illinois

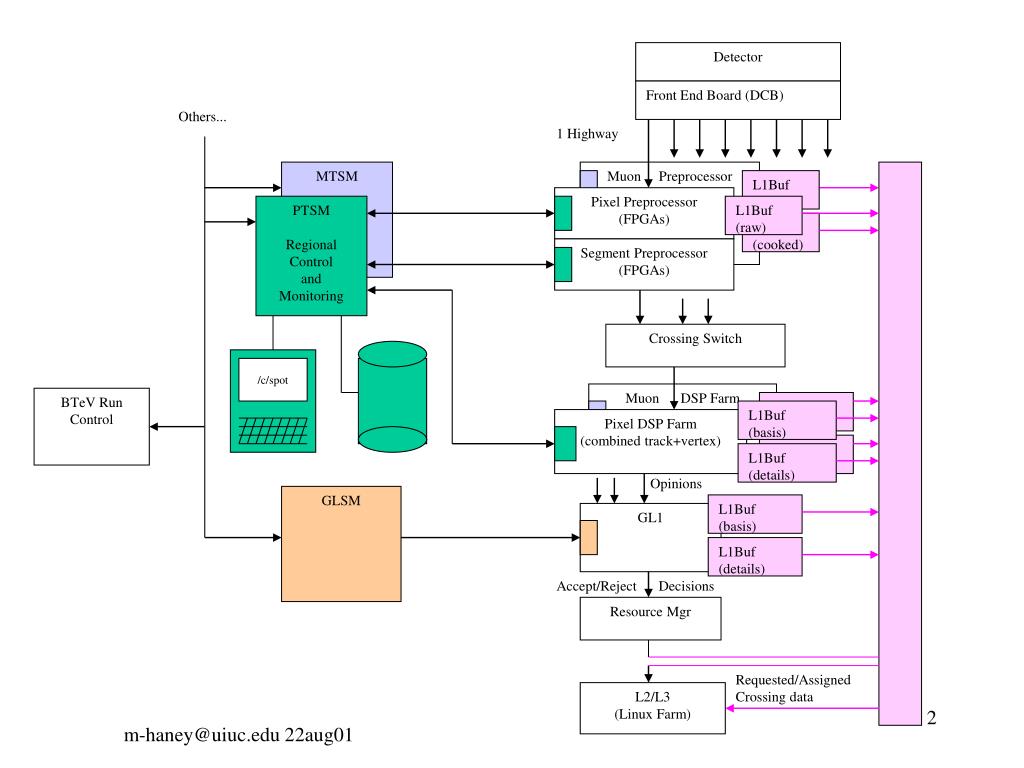

  2. Muon Preprocessor Pixel Preprocessor(FPGAs) Segment Preprocessor Segment Preprocessor(FPGAs) Detector Front End Board (DCB) Others... 1 Highway MTSM L1Buf PTSMRegionalControlandMonitoring L1Buf (raw) L1Buf (cooked) Crossing Switch /c/spot Muon DSP Farm BTeV Run Control L1Buf (basis) L1Buf (basis) Pixel DSP Farm(combined track+vertex) L1Buf (basis) L1Buf (details) Opinions GLSM L1Buf (basis) GL1 L1Buf (details) Accept/Reject Decisions Resource Mgr Requested/AssignedCrossing data L2/L3(Linux Farm) m-haney@uiuc.edu 22aug01

  3. Pixel (Muon) Trigger Supervisor Monitor (P/M)TSM • Control Functions: • Initialization • sets the maximum bandwidth necessary • can not take all day... • Command Parsing and Distribution • to subordinates, from RunControl • Error Response • autonomous, “local” (regional) • not to be confused with higher-level driven Error Handling, which appear as “Commands” m-haney@uiuc.edu 22aug01

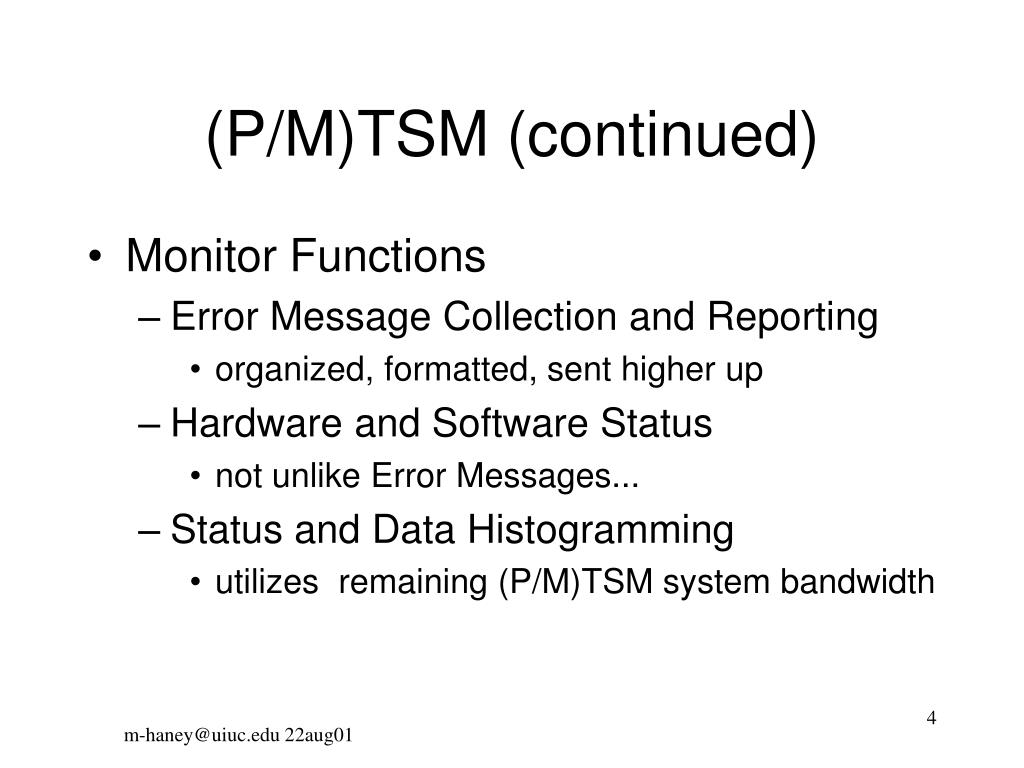

  4. (P/M)TSM (continued) • Monitor Functions • Error Message Collection and Reporting • organized, formatted, sent higher up • Hardware and Software Status • not unlike Error Messages... • Status and Data Histogramming • utilizes remaining (P/M)TSM system bandwidth m-haney@uiuc.edu 22aug01

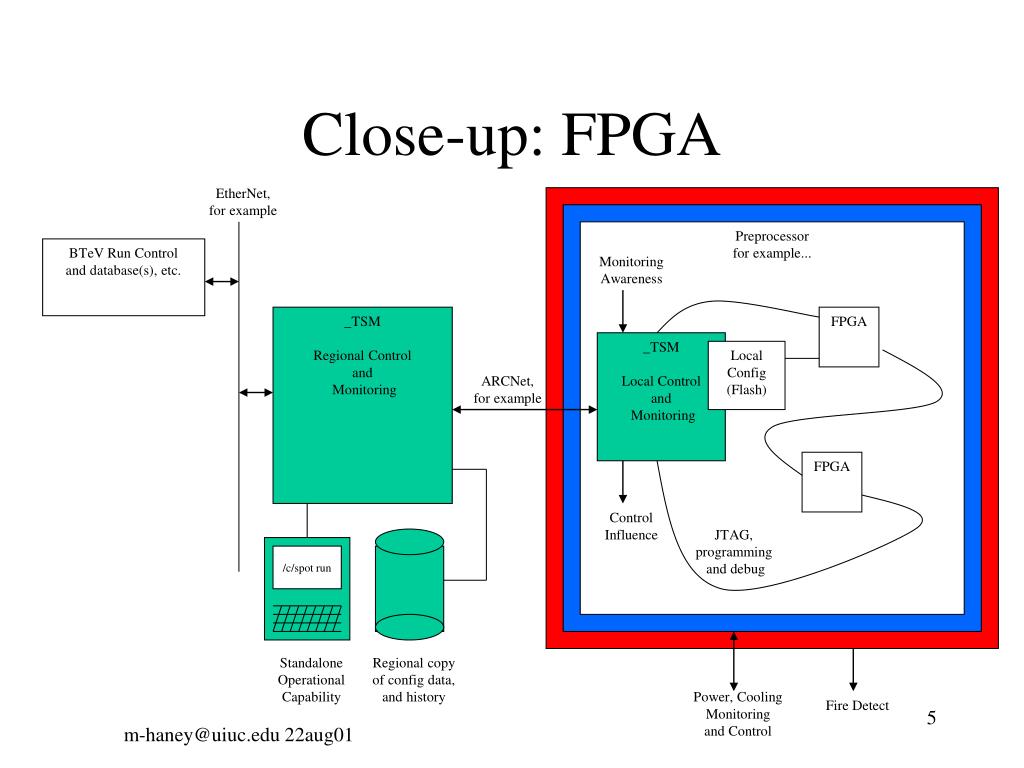

  5. Close-up: FPGA EtherNet,for example Preprocessorfor example... BTeV Run Controland database(s), etc. MonitoringAwareness _TSMRegional Controland Monitoring FPGA _TSMLocal Controland Monitoring Local Config(Flash) ARCNet,for example FPGA ControlInfluence JTAG,programming and debug /c/spot run StandaloneOperationalCapability Regional copyof config data,and history Power, Cooling Monitoringand Control Fire Detect m-haney@uiuc.edu 22aug01

  6. Close-up: DSP EtherNet,for example DSP BTeV Run Controland database(s), etc. MonitoringAwareness _TSMRegional Controland Monitoring FPGA _TSMLocal Controland Monitoring Local Config(Flash) ARCNet,for example DMAin Host PortInterface DSP BSPout ControlInfluence JTAG,programming,debug, and monitoring run(spot); run; StandaloneOperationalCapability Regional copyof config data,and history Power, Cooling Monitoringand Control Fire Detect m-haney@uiuc.edu 22aug01

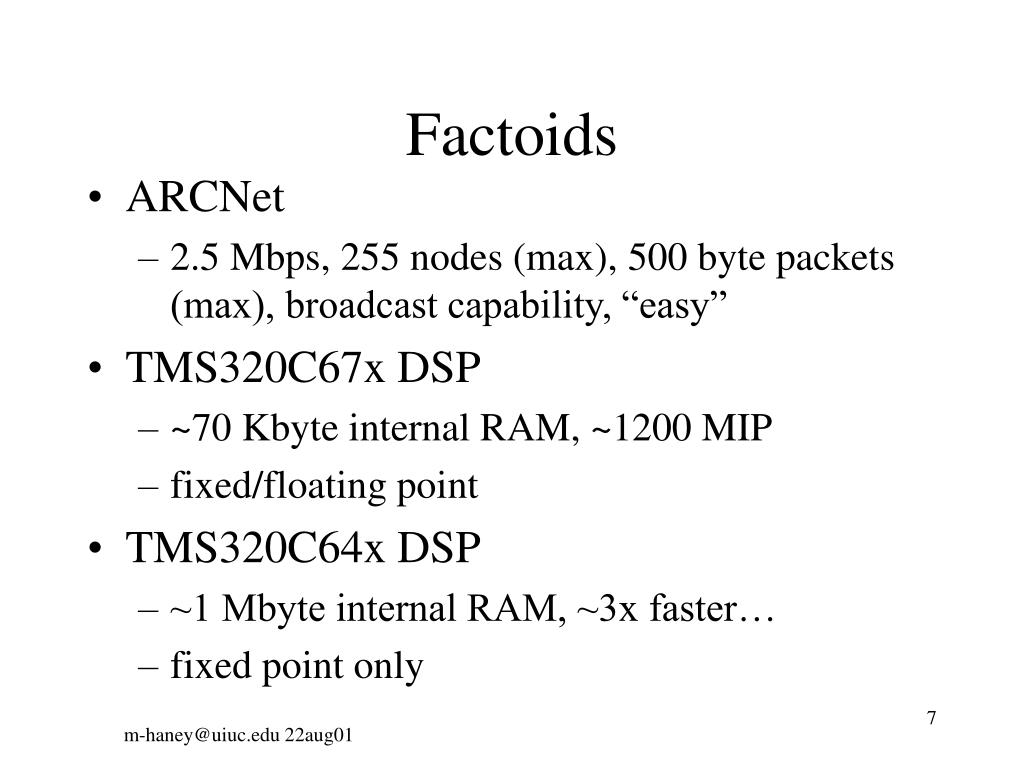

  7. Factoids • ARCNet • 2.5 Mbps, 255 nodes (max), 500 byte packets (max), broadcast capability, “easy” • TMS320C67x DSP • ~70 Kbyte internal RAM, ~1200 MIP • fixed/floating point • TMS320C64x DSP • ~1 Mbyte internal RAM, ~3x faster… • fixed point only m-haney@uiuc.edu 22aug01

  8. More Factoids • Host Port Interface (TI DSP only) • almost-direct access into the DSP • peek, poke • uses DMA (like) resources… • (concept not unique to TI) • DMA • crossing data in • Buffered Serial Port(s) • opinions out; dual, ~75Mbps (C6x) m-haney@uiuc.edu 22aug01

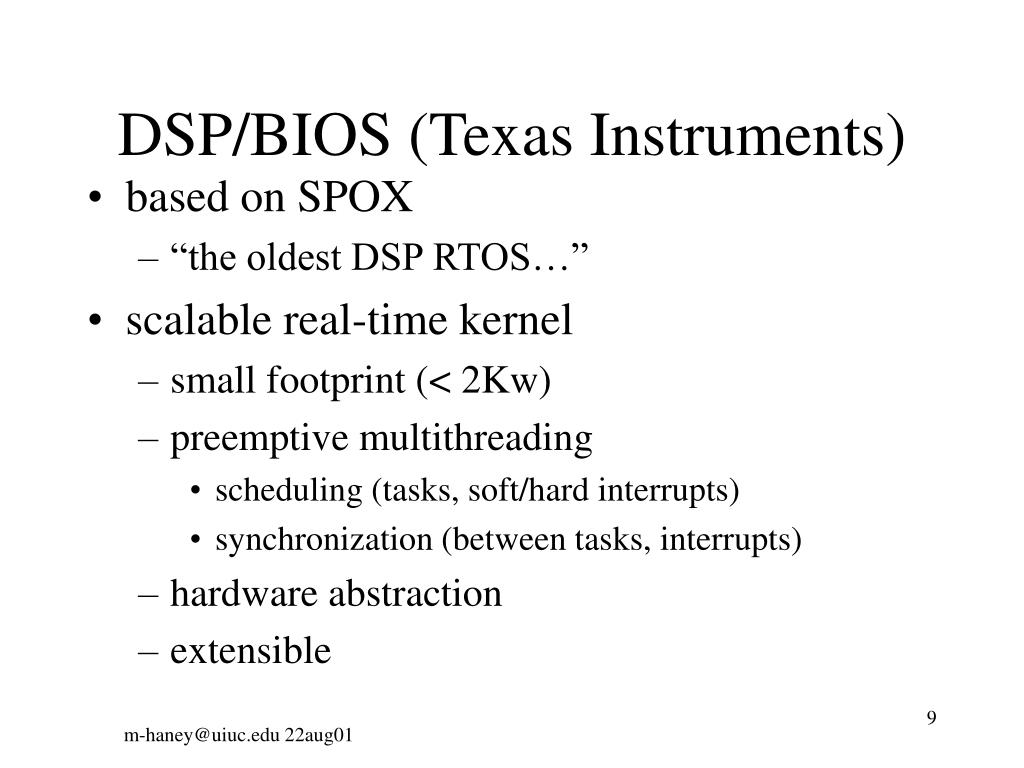

  9. DSP/BIOS (Texas Instruments) • based on SPOX • “the oldest DSP RTOS…” • scalable real-time kernel • small footprint (< 2Kw) • preemptive multithreading • scheduling (tasks, soft/hard interrupts) • synchronization (between tasks, interrupts) • hardware abstraction • extensible m-haney@uiuc.edu 22aug01

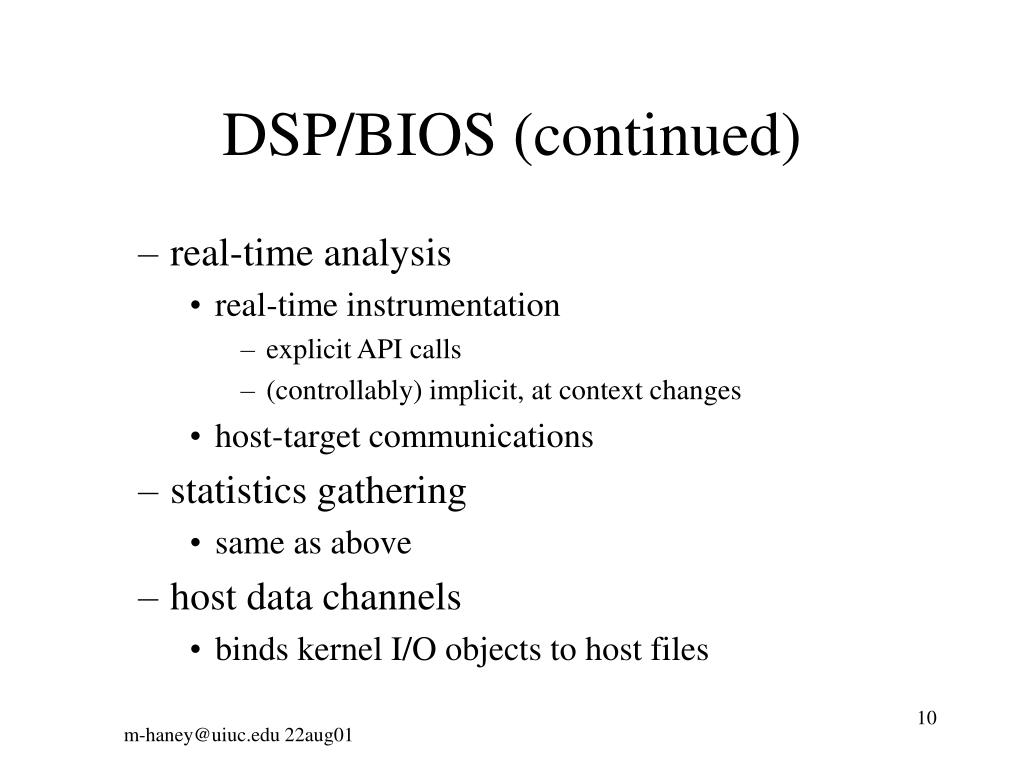

  10. DSP/BIOS (continued) • real-time analysis • real-time instrumentation • explicit API calls • (controllably) implicit, at context changes • host-target communications • statistics gathering • same as above • host data channels • binds kernel I/O objects to host files m-haney@uiuc.edu 22aug01

  11. RTDX - Real Time Data Exchange • utilizes JTAG chain (and emulation bits) • target (kernel) component • moves messages to/from DSP/BIOS queues from/to JTAG-accessible buffer • “real time” target to host (?) • host component • data visualization and analysis tools • data to target “not” real-time… (?) m-haney@uiuc.edu 22aug01

  12. RTDX (continued) • fundamental (TI) model • one PC running CCS (or app with CCS API calls) • small number (4’ish) of DSPs on one JTAG chain • JTAG/emulator “pod” connects PC to chain • (2 “extra” emulation bits, in addition to TDI/TDO/TMS/TCLK) • BTeV challenge • not buying 500 PC’s to support 2000 DSPs… m-haney@uiuc.edu 22aug01

  13. ITR (App/Imp)lications • FPGA JTAG chain • (available; role?) • FPGA local _TSM • local VLA comm channel • DSP/BIOS • RTOS for ARMORs? • Implicit monitoring and stat collection • explicit API calls as VLAs? • we have the source code; we can tailor our own… m-haney@uiuc.edu 22aug01

  14. ITR (continued) • RTDX, DSP JTAG chain • VLA(+ARMOR?) comm channel • DSP local _TSM • local manager (ARMORs!) • central _TSM node • regional manager (ARMORs) • RunControl • global manager & experiment interface m-haney@uiuc.edu 22aug01

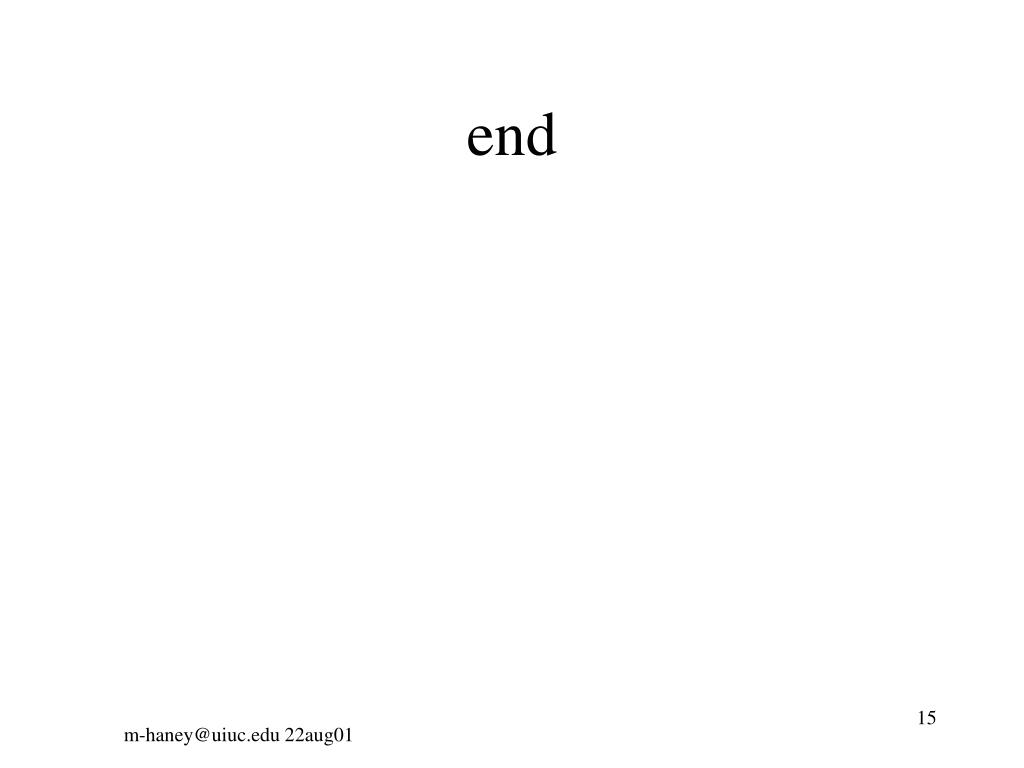

  15. end m-haney@uiuc.edu 22aug01
