  1. Signalling Requirements for End-to-End IP QoS Martin Dolly /Al Morton AT&T

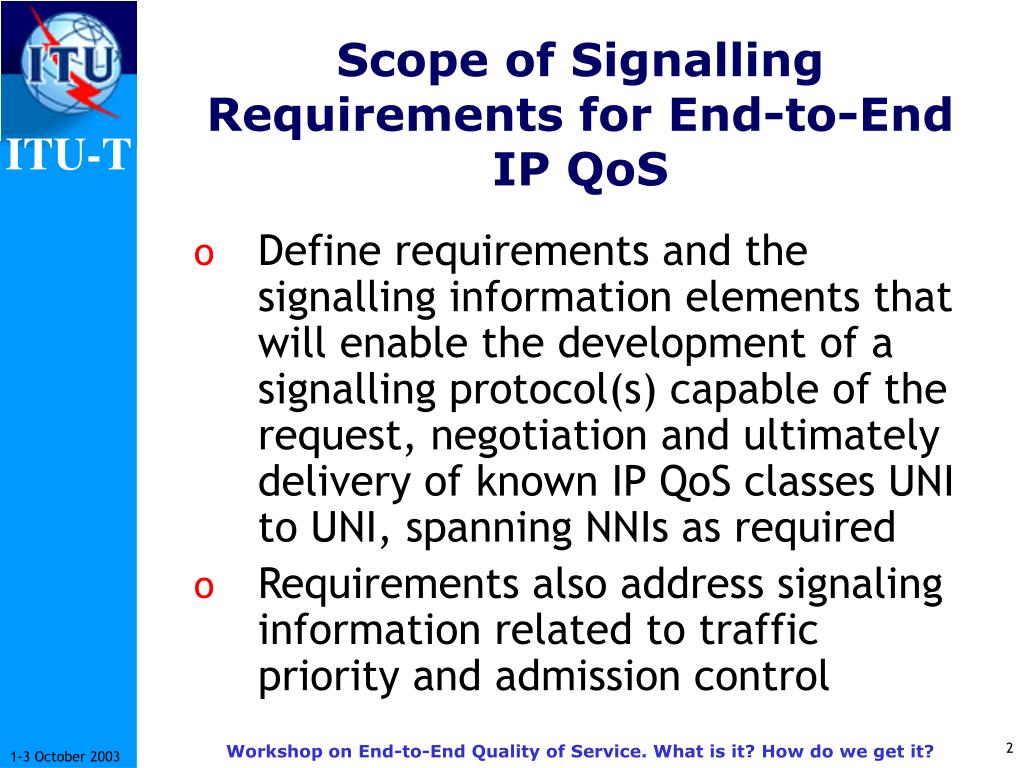

  2. Scope of Signalling Requirements for End-to-End IP QoS • Define requirements and the signalling information elements that will enable the development of a signalling protocol(s) capable of the request, negotiation and ultimately delivery of known IP QoS classes UNI to UNI, spanning NNIs as required • Requirements also address signaling information related to traffic priority and admission control Workshop on End-to-End Quality of Service. What is it? How do we get it?

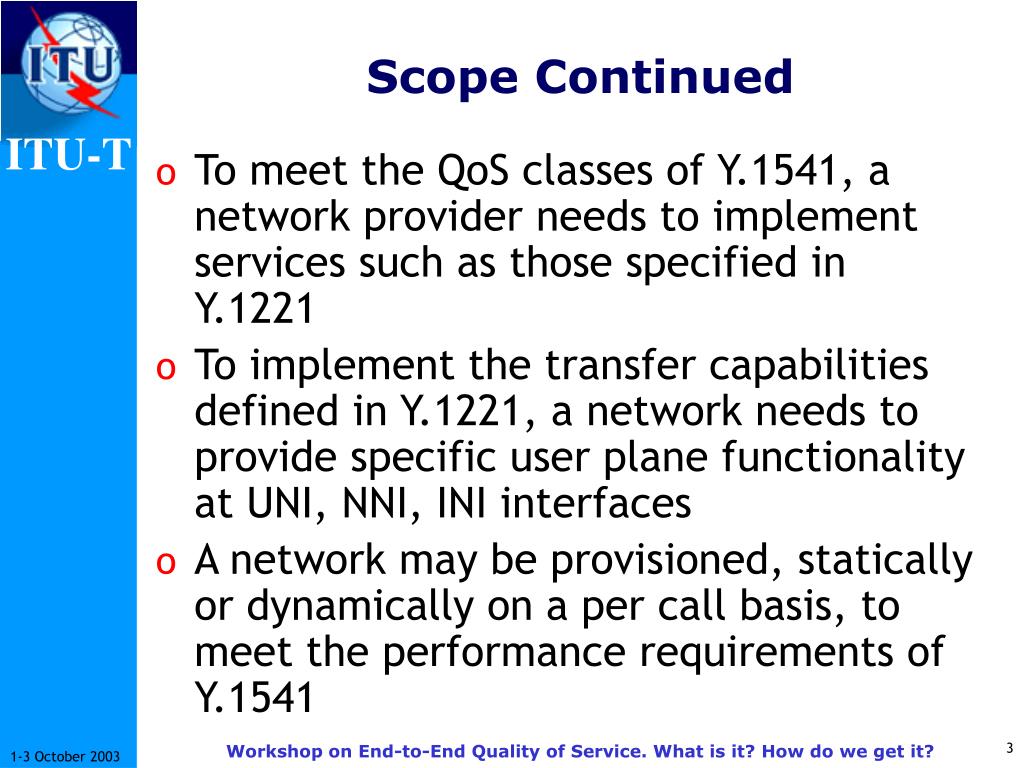

  3. Scope Continued • To meet the QoS classes of Y.1541, a network provider needs to implement services such as those specified in Y.1221 • To implement the transfer capabilities defined in Y.1221, a network needs to provide specific user plane functionality at UNI, NNI, INI interfaces • A network may be provisioned, statically or dynamically on a per call basis, to meet the performance requirements of Y.1541 Workshop on End-to-End Quality of Service. What is it? How do we get it?

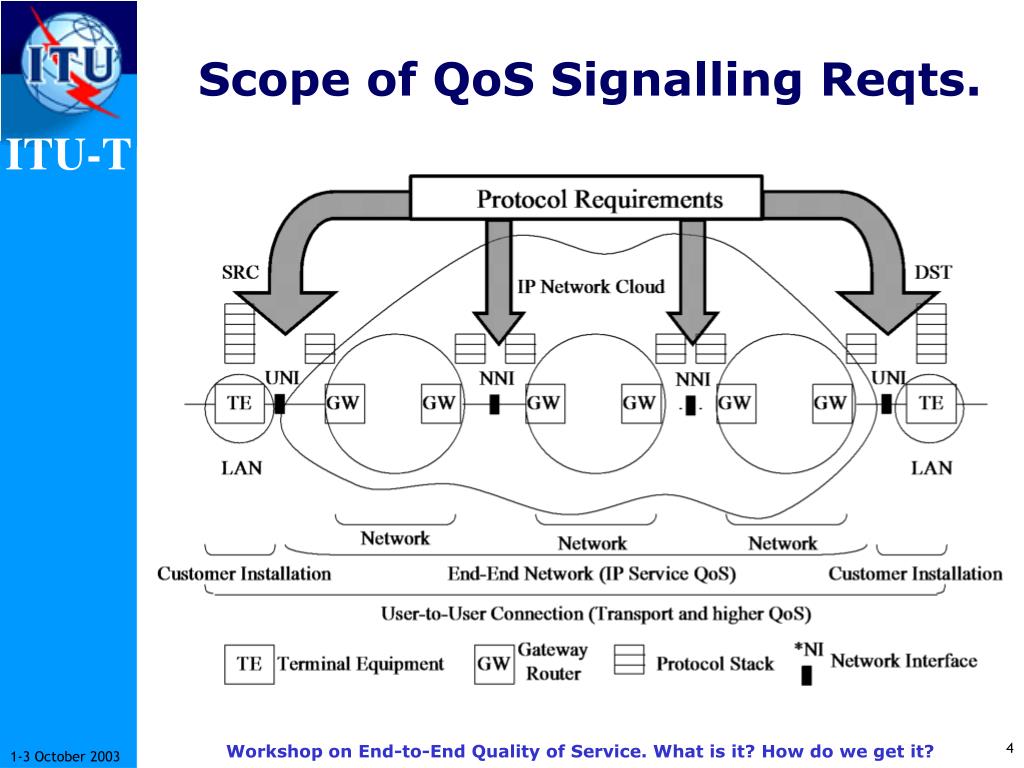

  4. Scope of QoS Signalling Reqts. Workshop on End-to-End Quality of Service. What is it? How do we get it?

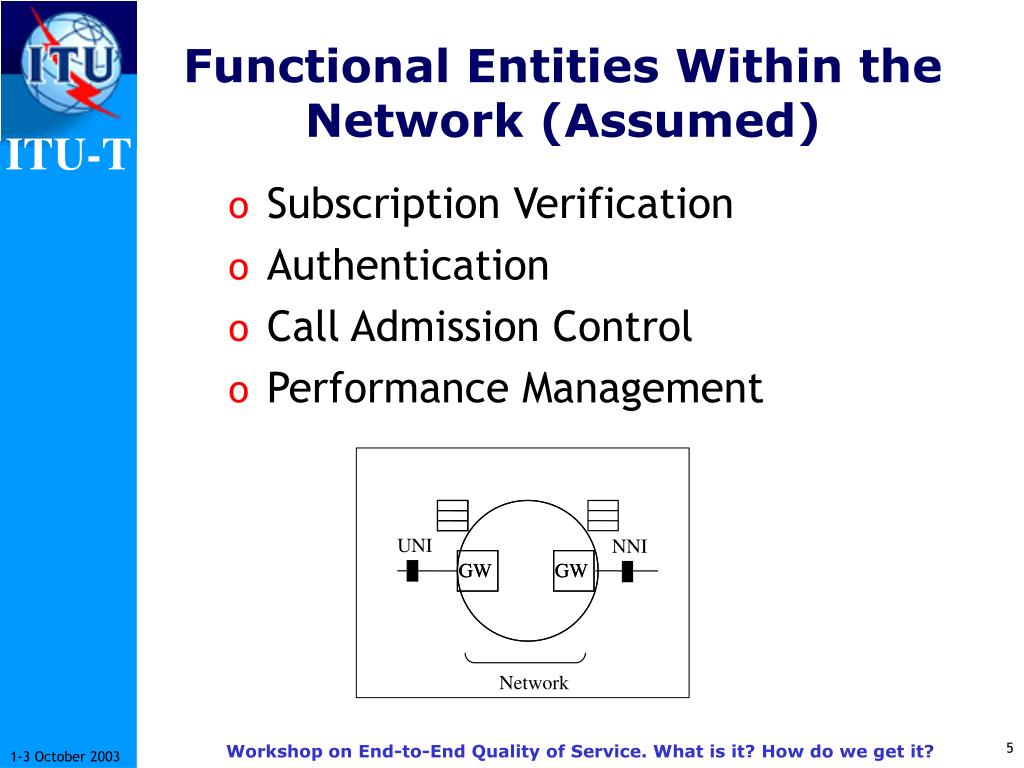

  5. UNI NNI GW GW GW GW Network Functional Entities Within the Network (Assumed) • Subscription Verification • Authentication • Call Admission Control • Performance Management Workshop on End-to-End Quality of Service. What is it? How do we get it?

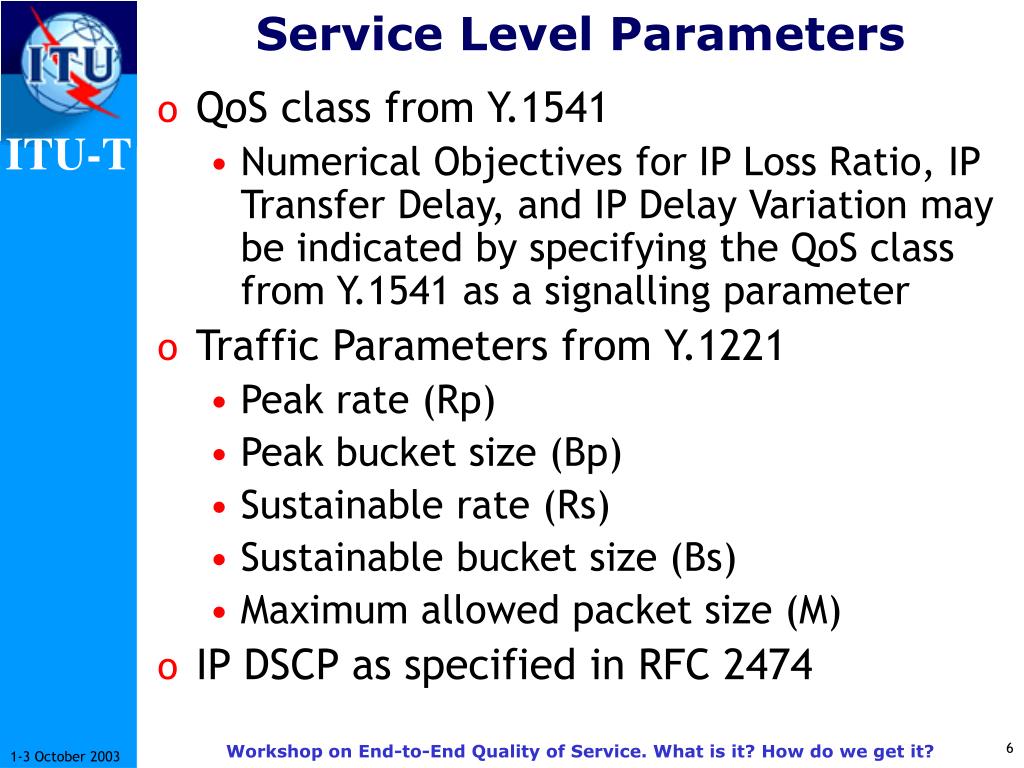

  6. Service Level Parameters • QoS class from Y.1541 • Numerical Objectives for IP Loss Ratio, IP Transfer Delay, and IP Delay Variation may be indicated by specifying the QoS class from Y.1541 as a signalling parameter • Traffic Parameters from Y.1221 • Peak rate (Rp) • Peak bucket size (Bp) • Sustainable rate (Rs) • Sustainable bucket size (Bs) • Maximum allowed packet size (M) • IP DSCP as specified in RFC 2474 Workshop on End-to-End Quality of Service. What is it? How do we get it?

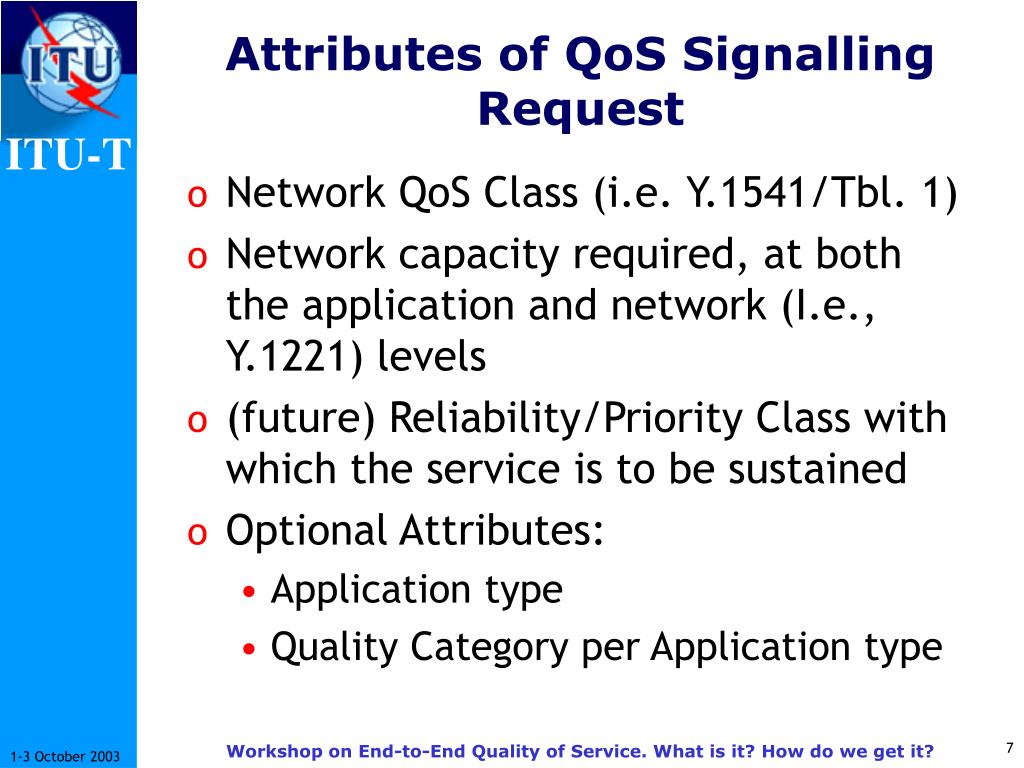

  7. Attributes of QoS Signalling Request • Network QoS Class (i.e. Y.1541/Tbl. 1) • Network capacity required, at both the application and network (I.e., Y.1221) levels • (future) Reliability/Priority Class with which the service is to be sustained • Optional Attributes: • Application type • Quality Category per Application type Workshop on End-to-End Quality of Service. What is it? How do we get it?

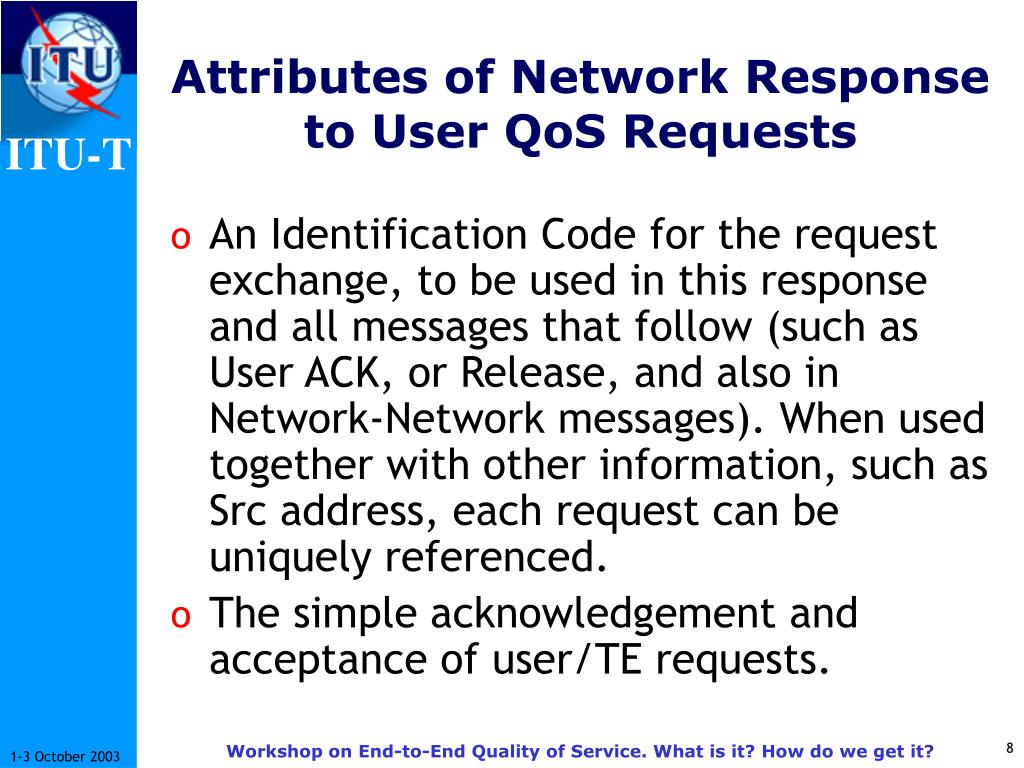

  8. Attributes of Network Response to User QoS Requests • An Identification Code for the request exchange, to be used in this response and all messages that follow (such as User ACK, or Release, and also in Network-Network messages). When used together with other information, such as Src address, each request can be uniquely referenced. • The simple acknowledgement and acceptance of user/TE requests. Workshop on End-to-End Quality of Service. What is it? How do we get it?

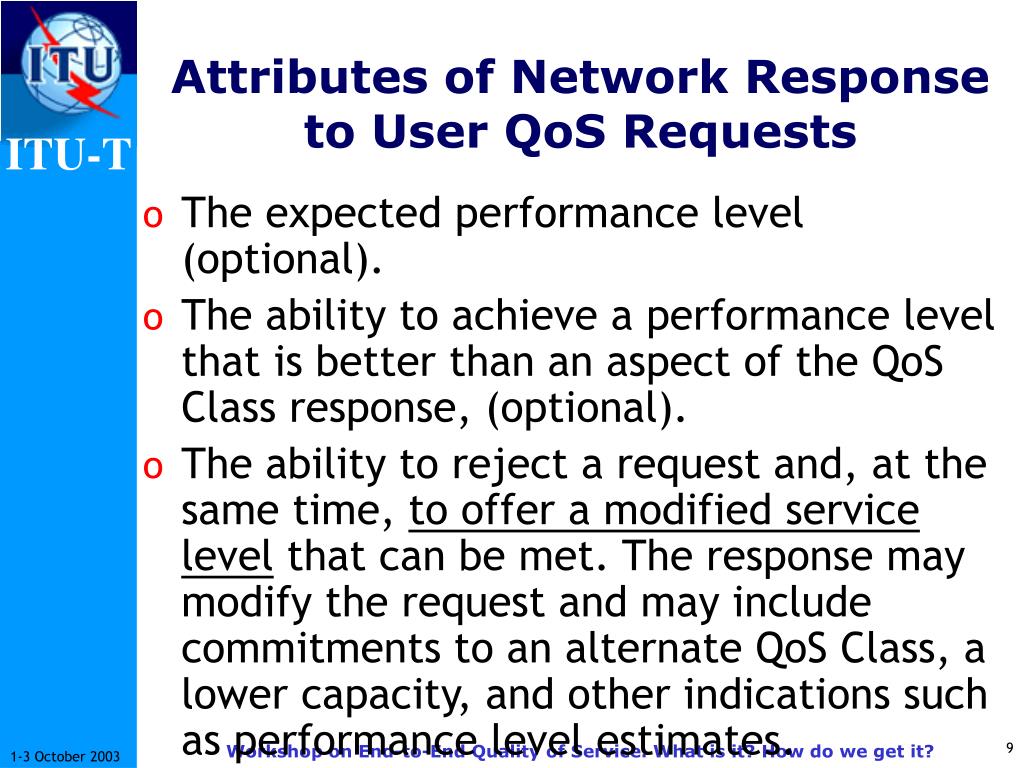

  9. Attributes of Network Response to User QoS Requests • The expected performance level (optional). • The ability to achieve a performance level that is better than an aspect of the QoS Class response, (optional). • The ability to reject a request and, at the same time, to offer a modified service level that can be met. The response may modify the request and may include commitments to an alternate QoS Class, a lower capacity, and other indications such as performance level estimates. Workshop on End-to-End Quality of Service. What is it? How do we get it?

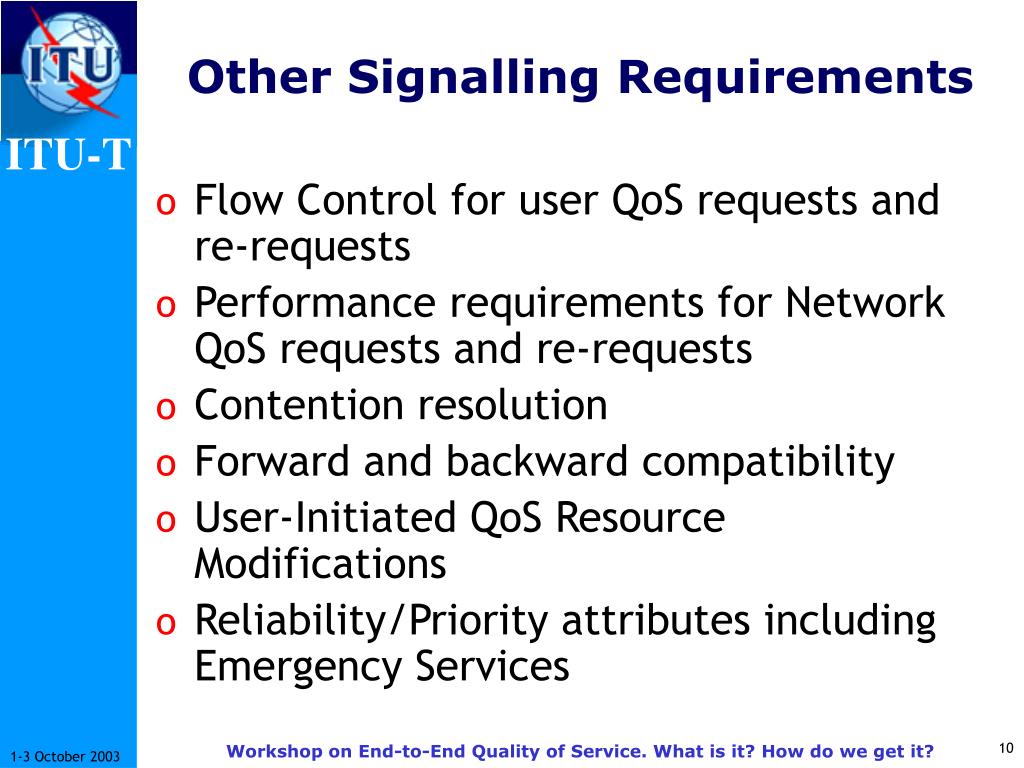

  10. Other Signalling Requirements • Flow Control for user QoS requests and re-requests • Performance requirements for Network QoS requests and re-requests • Contention resolution • Forward and backward compatibility • User-Initiated QoS Resource Modifications • Reliability/Priority attributes including Emergency Services Workshop on End-to-End Quality of Service. What is it? How do we get it?

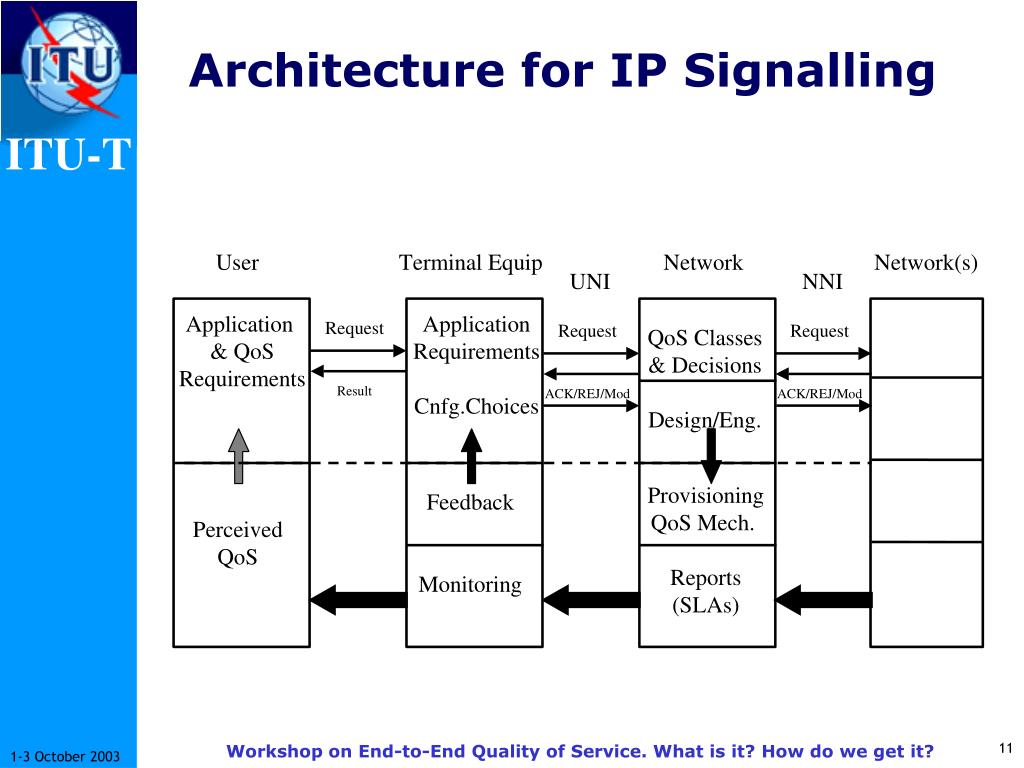

  11. Architecture for IP Signalling Workshop on End-to-End Quality of Service. What is it? How do we get it?

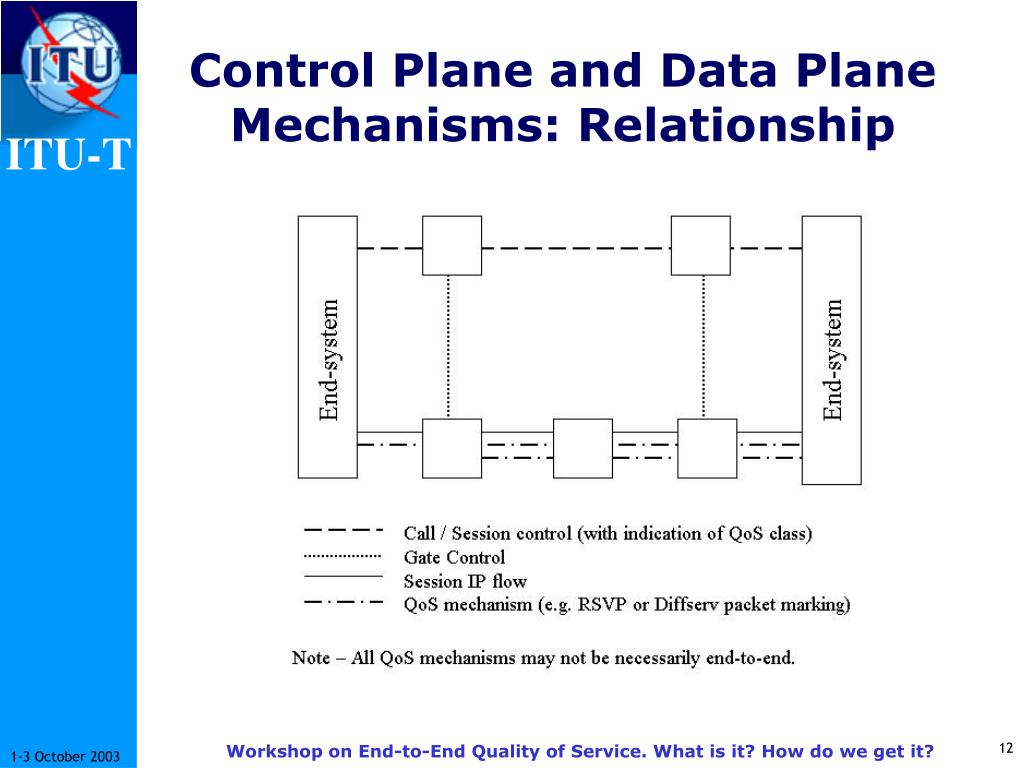

  12. Control Plane and Data Plane Mechanisms: Relationship Workshop on End-to-End Quality of Service. What is it? How do we get it?

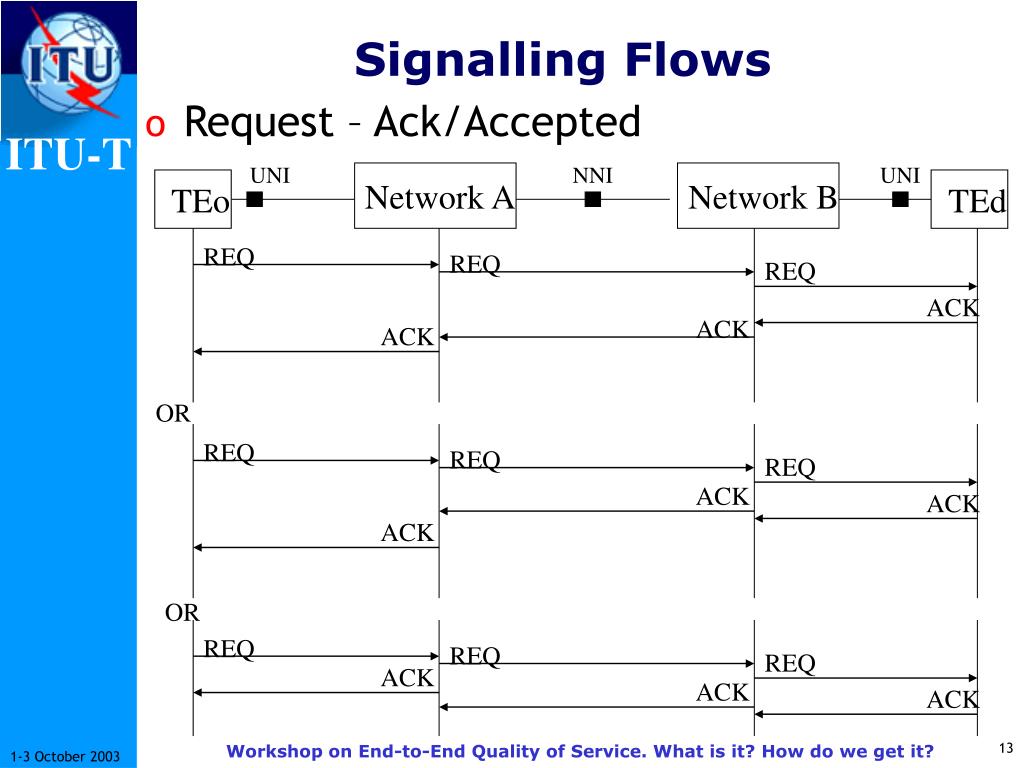

  13. UNI NNI UNI REQ Network A Network B REQ REQ ACK ACK ACK TEo TEd OR REQ REQ REQ ACK ACK ACK OR REQ REQ REQ ACK ACK ACK Signalling Flows • Request – Ack/Accepted Workshop on End-to-End Quality of Service. What is it? How do we get it?

  14. UNI NNI UNI REQo1 Network A Network B MODo2 ACCo2 REQo2 REQo2 ACK ACK ACK TEo TEd OR REQo1 REQo1 MODo2 MODo2 ACCo2 ACCo2 REQo2 ACK ACK ACK Signalling Flows • BW or Class Modification Workshop on End-to-End Quality of Service. What is it? How do we get it?

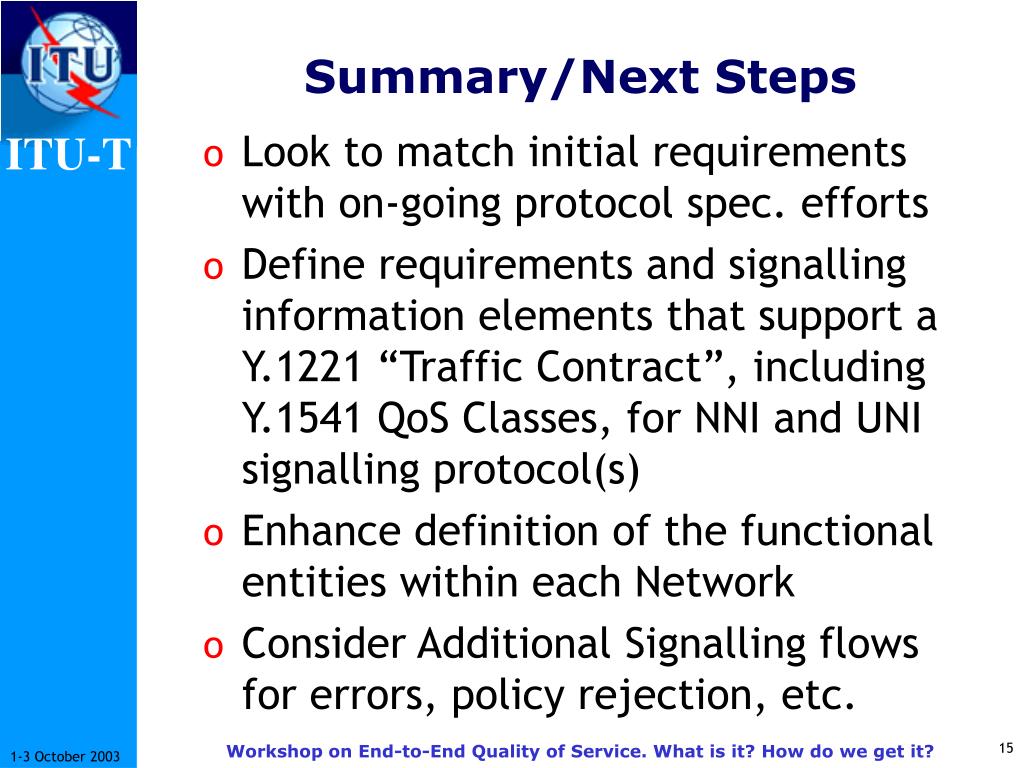

  15. Summary/Next Steps • Look to match initial requirements with on-going protocol spec. efforts • Define requirements and signalling information elements that support a Y.1221 “Traffic Contract”, including Y.1541 QoS Classes, for NNI and UNI signalling protocol(s) • Enhance definition of the functional entities within each Network • Consider Additional Signalling flows for errors, policy rejection, etc. Workshop on End-to-End Quality of Service. What is it? How do we get it?
