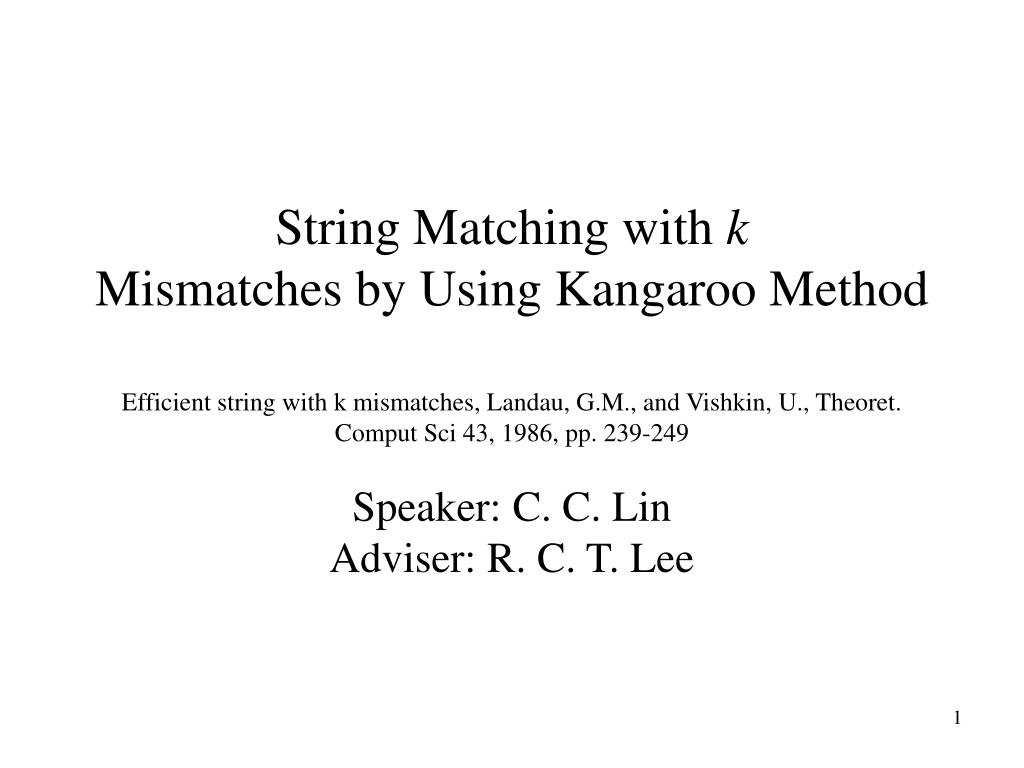

String Matching with k Mismatches by Using Kangaroo Method Efficient string with k mismatches, Landau, G.M., and Vishkin, U., Theoret. Comput Sci 43, 1986, pp. 239-249. Speaker: C. C. Lin Adviser: R. C. T. Lee. Problem definition: Input: A text T with length n , a pattern P with

dusan
Download Presentation

Speaker: C. C. Lin Adviser: R. C. T. Lee

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. String Matching with kMismatches by Using Kangaroo Method Efficient string with k mismatches, Landau, G.M., and Vishkin, U., Theoret. Comput Sci 43, 1986, pp. 239-249 Speaker: C. C. LinAdviser: R. C. T. Lee

  2. Problem definition: Input: A text T with length n , a pattern P with length m and a mismatching threshold k. Output: All sub-strings of T with length m matching P with k maximal number of mismatches. If k = 2 k: 1 3 2 4 T = A G C T G C D C A C G I A B... P = A G C C P = A G C C P = A G C C P = A G C C

  3. The concept of the Kangaroo method can be explained as the following figure. Assume that it is known before hand there t1t2…ta=p1p2…pa and ta+1 is not equal to pa+1. Thus we do not have to examine t1t2…ta+1 with p1p2…pa+1 and jump directly to match the suffixes beginning from ta+2 and pa+2. Text: t1 t2… ta ta+1 ta+2 ta+3…tk………… Pattern: p1p2…pa pa+1 pa+2pa+3...pk………… mismatch

  4. Kangaroo method will process as follows. k=0 P = ETBDBCCDFDC T = ABCCABDADBDETADBAADFDAAEERDXTDADCT… start

  5. Kangaroo method will process as follows. k=1 P = ETBDBCCDFDC T = ABCCABDADBDETADBAADFDAAEERDXTDADCT…

  6. Kangaroo method will process as follows. k=2 P = ETBDBCCDFDC T = ABCCABDADBDETADBAADFDAAEERDXTDADCT…

  7. Kangaroo method will process as follows. k=3 P = ETBDBCCDFDC T = ABCCABDADBDETADBAADFDAAEERDXTDADCT…

  8. Kangaroo method will process as follows. k=4 P = ETBDBCCDFDC T = ABCCABDADBDETADBAADFDAAEERDXTDADCT…

  9. We continue the above process. Whenever we come to the situation that it is known a substring of T exactly matching with a substring of P, we skip this substring. This process is stopped when k+1 mismatches have been found. Input: T=ABAABBCCDD, P=ACDCB and k=2. T=ABAABCCDD P=ACDCB k=3, we stop and discard ABAAB, then we start to compare “BAADB” and “ACDCB”.

  10. Before we introduce the Kangaroo algorithm, we shall first introduce the suffix tree and the lowest common ancestor of two nodes. The properties of suffix tree and the lowest common ancestor of two nodes will be used in Kangaroo algorithm.

  11. S = ABCDEADDBE Suffix tree of a string with length n can be constructed in O(n). Weiner, 1973 McCreight, 1976 Ukkonen, 1995

  12. The lowest common ancestor of two leaf nodes can be found in O(1) by O(n) preprocessing in constructing time. Harel and Tarjan, 1984

  13. The Kangaroo method constructs a suffix tree for text T and pattern P. Let the leaf node corresponding to the substring starting from the location be denoted as X. Let the leaf corresponding to the pattern be denoted as Y. The Kangaroo Method finds the lowest common ancestor of X and Y to verify a text location with k mismatches in O(k). Let us consider the next page to figure out the Kangaroo method.

  14. Two suffix strings: ANBECF$ ANCEC$ Then we can know that they have the same prefix “AN” and a mismatch “B” and “C”. ANBECF$ ANCEC$ ANBECF$ ANCEC$ ANBECF$ ANCEC$ We now have to find whether there is any mismatches between ECF and EC. mismatches=1

  15. We get remaining suffix strings: ECF$ EC$ Then we can know that they have the same prefix “EC” and because we touch $, we finish the verification. ECF$ EC$ Thus we could know that the mismatches between “ANBECF” and “ANCEC” is 1. ECF$ EC$ mismatches=1

  16. We will not have to compare all characters by using the finding of the lowest common ancestor of two strings of text and pattern in the suffix tree. This is useful if there are many equivalent characters between the text and the pattern because we will not have to compare those equivalent characters. Finding the lowest common ancestor between two suffixes is to find the next mismatch between two strings.

  17. Input: T=ABCCBDCDBC, P=ABCD and k=2 The suffix tree of T and P is:

  18. The lowest common ancestor of “ABCD” and “ABCCBDCDBC”. T=ABCCBDCDBC P=ABCD k=1, return “ABCC”.

  19. The lowest common ancestor of “ABCD” and “BCCBDCDBC”. T=ABCCBDCDBC P=ABCD k=1.

  20. The lowest common ancestor of “BCD” and “CCBDCDBC”. T=ABCCBDCDBC P=ABCD k=2.

  21. The lowest common ancestor of “CD” and “CBDCDBC”. T=ABCCBDCDBC P=ABCD k=3, discard “BCCB”.

  22. The lowest common ancestor of “ABCD” and “CCBDCDBC”. T=ABCCBDCDBC P=ABCD k=1.

  23. The lowest common ancestor of “BCD” and “CBDCDBC”. T=ABCCBDCDBC P=ABCD k=2.

  24. The lowest common ancestor of “CD” and “BDCDBC”. T=ABCCBDCDBC P=ABCD k=3, discard “CCBD”.

  25. The lowest common ancestor of “ABCD” and “CBDCDBC”. T=ABCCBDCDBC P=ABCD k=1.

  26. The lowest common ancestor of “BCD” and “BDCDBC”. T=ABCCBDCDBC P=ABCD k=2.

  27. The lowest common ancestor of “D” and “CDBC”. T=ABCCBDCDBC P=ABCD k=3, discard “CBDC”.

  28. The lowest common ancestor of “ABCD” and “BDCDBC”. T=ABCCBDCDBC P=ABCD k=1.

  29. The lowest common ancestor of “BCD” and “DCDBC”. T=ABCCBDCDBC P=ABCD k=2.

  30. The lowest common ancestor of “CD” and “CDBC”. T=ABCCBDCDBC P=ABCD k=2, return “BDCD”.

  31. The lowest common ancestor of “ABCD” and “DCDBC”. T=ABCCBDCDBC P=ABCD k=1.

  32. The lowest common ancestor of “BCD” and “CDBC”. T=ABCCBDCDBC P=ABCD k=2.

  33. The lowest common ancestor of “CD” and “DBC”. T=ABCCBDCDBC P=ABCD k=3, discard “DCDB”.

  34. The lowest common ancestor of “ABCD” and “CDBC”. T=ABCCBDCDBC P=ABCD k=1.

  35. The lowest common ancestor of “BCD” and “DBC”. T=ABCCBDCDBC P=ABCD k=2.

  36. The lowest common ancestor of “CD” and “BC”. T=ABCCBDCDBC P=ABCD k=3, discard “CDBC”.

  37. Input: T=ABCCBDCDBC, P=ABCD and k=2. Output: “ABCC” and “BDCD”.

  38. In order to use Kangaroo method, we construct a suffix tree for the text T with the length n and the pattern p with the length m in O(n+m). By using Kangaroo method, we take O(1) time to find one mismatch. We stop when there are more than k mismatches. Therefore, we take O(k) time to find at most k mismatches.

  39. Thus, the time complexity of finding out all locations of text T with k maximal mismatches with the pattern P is O(nk).
