### Linear algebra: matrices

Horacio Rodríguez

• Some of the slides are reused from my course on graph-based methods in NLP (U. Alicante, 2008)

• http://www.lsi.upc.es/~horacio/varios/graph.tar.gz

• so, some of the slides are in Spanish

• Material can be obtained from wikipedia (under the articles on matrices, linear algebra, ...)

• Another interesting source is Wolfram MathWorld

• (http://mathworld.wolfram.com)

• Several mathematical software packages provide implementation of the matrix operations and decompositions:

• Matlab (I have tested some features)

• Mapple

• Mathematica

• Vectorial Spaces

• dimension

• Bases

• Sub-spaces

• Kernel

• Image

• Linear maps

• Ortogonal base

• Metric Spaces

• Ortonormal base

• Matrix representation of a Linear map

• Basic operations on matrices

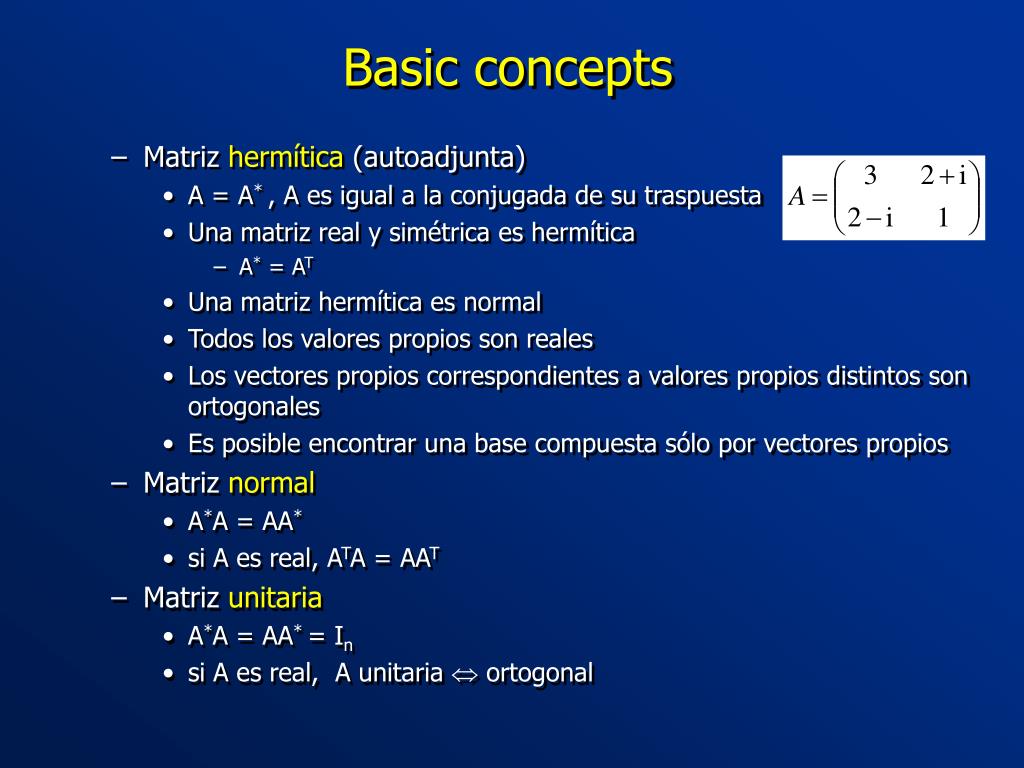

• A = A* , A es igual a la conjugada de su traspuesta

• Una matriz real y simétrica es hermítica

• A* = AT

• Una matriz hermítica es normal

• Todos los valores propios son reales

• Los vectores propios correspondientes a valores propios distintos son ortogonales

• Es posible encontrar una base compuesta sólo por vectores propios

• Matriz normal

• A*A = AA*

• si A es real, ATA = AAT

• Matriz unitaria

• A*A = AA* = In

• si A es real, A unitaria  ortogonal

• The transpose of a matrix A is another matrix AT created by any one of the following equivalent actions:

• write the rows of A as the columns of AT

• write the columns of A as the rows of AT

• reflect A by its main diagonal (which starts from the top left) to obtain AT

• For complex matrices, a positive-definite matrix is a (Hermitian) matrix if z*Mz > 0 for all non-zero complex vectors z. The quantity z*Mz is always real because M is a Hermitian matrix.

• For real matrices, an n × n real symmetric matrix M is positive definite if zTMz > 0 for all non-zero vectors z with real entries (i.e. z ∈ Rn).

• A Hermitian (or symmetric) matrix is positive-definite iff all its eigenvalues are > 0.

• Algunos conceptos a recordar de Álgebra Matricial

• Descomposición de una matriz en bloques

• bloques rectangulares

• Descomposición de una matriz en bloques

• Suma directa A  B, A m  n, B p  q

• Different decompositions are used to implement efficient matrix algorithms..

• For instance, when solving a system of linear equations Ax = b, the matrix A can be decomposed via the LU decomposition. The LU decomposition factorizes a matrix into a lower triangular matrix L and an upper triangular matrix U. The systems L(Ux) = b and Ux = L− 1b are much easier to solve than the original.

• Matrix decomposition at wikipedia:

• Decompositions related to solving systems of linear equations

• Decompositions based on eigenvalues and related concepts

• Descomposiciones de matrices

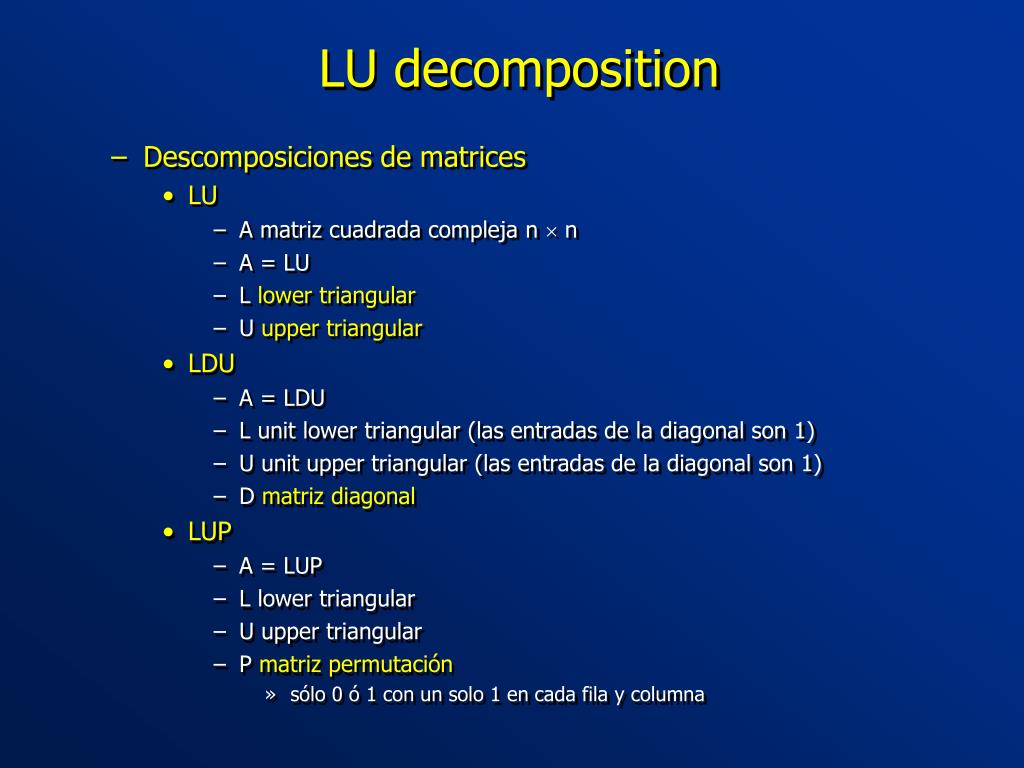

• LU

• A = LU

• L lower triangular

• U upper triangular

• LDU

• A = LDU

• L unit lower triangular (las entradas de la diagonal son 1)

• U unit upper triangular (las entradas de la diagonal son 1)

• D matriz diagonal

• LUP

• A = LUP

• L lower triangular

• U upper triangular

• P matriz permutación

• sólo 0 ó 1 con un solo 1 en cada fila y columna

• Existence

• An LUP decomposition exists for any square matrix A

• When P is an identity matrix, the LUP decomposition reduces to the LU decomposition.

• If the LU decomposition exists, the LDU decomposition does too.

• Applications

• The LUP and LU decompositions are useful in solving an n-by-n system of linear equations Ax = b

• Descomposiciones de matrices

• Cholesky

• A hermítica, definida positiva

• A = LL*

o equivalentemente A = U*U

• L lower triangular con entradas en la diagonal estrictamente positivas

• the Cholesky decomposition is a special case of the symmetric LU decomposition, with L = U* (or U=L*).

• the Cholesky decomposition is unique

• Cholesky decomposition in Matlab

• A must be positive definite; otherwise, MATLAB displays an error message.

• Both full and sparse matrices are allowed

• syntax

• R = chol(A)

• L = chol(A,'lower')

• [R,p] = chol(A)

• [L,p] = chol(A,'lower')

• [R,p,S] = chol(A)

• [R,p,s] = chol(A,'vector')

• [L,p,s] = chol(A,'lower','vector')

• Example

• The binomial coefficients arranged in a symmetric array create an interesting positive definite matrix.

• n = 5

• X = pascal(n)

• X =

• 1 1 1 1 1

• 1 2 3 4 5

• 1 3 6 10 15

• 1 4 10 20 35

• 1 5 15 35 70

• Example

• It is interesting because its Cholesky factor consists of the same coefficients, arranged in an upper triangular matrix.

• R = chol(X)

• R =

• 1 1 1 1 1

• 0 1 2 3 4

• 0 0 1 3 6

• 0 0 0 1 4

• 0 0 0 0 1

• Example

• Destroy the positive definiteness by subtracting 1 from the last element.

• X(n,n) = X(n,n)-1

• X =

• 1 1 1 1 1

• 1 2 3 4 5

• 1 3 6 10 15

• 1 4 10 20 35

• 1 5 15 35 69

• Now an attempt to find the Cholesky factorization fails.

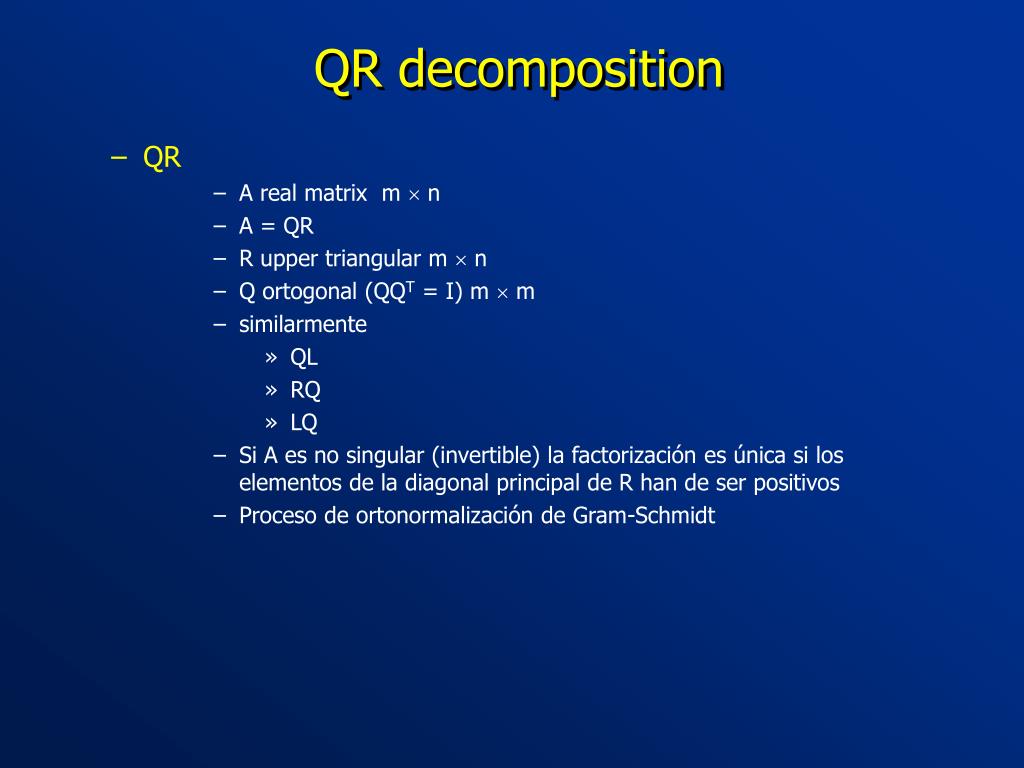

• QR

• A real matrix m  n

• A = QR

• R upper triangular m  n

• Q ortogonal (QQT = I) m  m

• similarmente

• QL

• RQ

• LQ

• Si A es no singular (invertible) la factorización es única si los elementos de la diagonal principal de R han de ser positivos

• Proceso de ortonormalización de Gram-Schmidt

• QR in matlab:

• Syntax

• [Q,R] = qr(A) (full and sparse matrices)

• [Q,R] = qr(A,0) (full and sparse matrices)

• [Q,R,E] = qr(A) (full matrices)

• [Q,R,E] = qr(A,0) (full matrices)

• X = qr(A) (full matrices)

• R = qr(A) (sparse matrices)

• [C,R] = qr(A,B) (sparse matrices)

• R = qr(A,0) (sparse matrices)

• [C,R] = qr(A,B,0) (sparse matrices)

• example:

• A = [1 2 3

• 4 5 6

• 7 8 9

• 10 11 12 ]

• This is a rank-deficient matrix; the middle column is the average of the other two columns. The rank deficiency is revealed by the factorization:

• [Q,R] = qr(A)

• Q =

• -0.0776 -0.8331 0.5444 0.0605

• -0.3105 -0.4512 -0.7709 0.3251

• -0.5433 -0.0694 -0.0913 -0.8317

• -0.7762 0.3124 0.3178 0.4461

• R =

• -12.8841 -14.5916 -16.2992

• 0 -1.0413 -2.0826

• 0 0 0.0000

• 0 0 0

• The triangular structure of R gives it zeros below the diagonal; the zero on the diagonal in R(3,3) implies that R, and consequently A, does not have full rank.

• Proyección

• P tal que P2 = P (idempotente)

• Una proyección proyecta el espacio W sobre un subespacio U y deja los puntos del subespacio inalterados

• x  U, rango de la proyección: Px = x

• x  V, espacio nulo de la proyección: Px = 0

• W = U  V, U y V son complementarios

• Los únicos valores propios son 0 y 1, W0 = V, W1 = U

• Proyecciones ortogonales: U y V son ortogonales

• matriz simétrica e idempotente que multiplicada por un vector tiene el mismo efecto que restar a cada componente del vector la media de sus componentes

• In matriz identidad de tamaño n

• 1 vector columna de n unos

• Cn = In -1/n 11T

• especial case of linear map areendomorphisms

• i.e. maps f: V → V.

• In this case, vectors v can be compared to their image under f, f(v). Any vector v satisfying λ · v = f(v), where λ is a scalar, is called an eigenvector of f with eigenvalue λ

• v is an element of kernel of the difference f − λ · I

• In the finite-dimensional case, this can be rephrased using determinants

• f having eigenvalue λ is the same as det (f − λ · I) = 0

• characteristic polynomial of f

• The vector space V may or may not possess an eigenbasis, i.e. a basis consisting of eigenvectors. This phenomenon is governed by the Jordan canonical form of the map.

• The spectral theorem describes the infinite-dimensional case

• Decomposition of a matrix A into eigenvalues and eigenvectors

• Each eigenvalue is paired with its corresponding eigenvector

• This decomposition is often named matrix diagonalization

• nondegenerate eigenvalues 1 ...n

• D is the diagonal matrix formed with the set of eigenvalues

• linearly independent eigenvectors X1 ... Xn

• P is the matrix formed with the columns corresponding to the set of eigenvectors

• AX = X

• if the n eigenvalues are distinct, P is invertible

• A = PDP-1

• Teorema espectral

• condiciones para que una matriz sea diagonalizable

• A matriz hermítica en un espacio V (complejo o real) dotado de un producto interior

• <Ax|y> = <x|Ay>

• Existe una base ortonormal de V consistente en vectores propios de A. Los valores propios son reales

• Descomposición espectral de A

• para cada valor propio diferente  V={vV: Av=v}

• V es la suma directa de los V

• Diagonalización

• si A es normal (y por tanto si es hermítica y por tanto si es real simétrica) entonces existe una descomposición

• A = U  U*

•  es diagonal, sus entradas son los valores propios de A

• U es unitaria, sus columnas son los vectores propios de A

• Caso de matrices no simétricas

• rk right eigenvectors Ark = rk

• lk left eigenvectors lkA = lk

• Si A es real

• ATlk= lk

• Si A es simétrica

• rk = lk

• Eigendecomposition in Matlab

• Syntax

• d = eig(A)

• d = eig(A,B)

• [V,D] = eig(A)

• [V,D] = eig(A,'nobalance')

• [V,D] = eig(A,B)

• [V,D] = eig(A,B,flag)

• Jordan normal form

• una matriz cuadrada A n  n es diagonalizable ssi la suma de las dimensiones de sus espacios propios es n  tiene n vectores propios linealmente independientes

• No todas las matrices son diagonalizables

• dada A existe siempre una matriz P invertible tal que

• A = PJP-1

• J tiene entradas no nulas sólo en la diagonal principal y la diagonal superior

• J está en forma normal de Jordan

• Example

• Consider the following matrix:

• The characteristic polynomial of A is:

• eigenvalues are 1, 2, 4 and 4

• The eigenspace corresponding to the eigenvalue 1 can be found by solving the equation Av = v. So, the geometric multiplicity (i.e. dimension of the eigenspace of the given eigenvalue) of each of the three eigenvalues is one. Therefore, the two eigenvalues equal to 4 correspond to a single Jordan block,

• Example

• The Jordan normal form of the matrix A is the direct sum of the three Jordan blocs

• The matrix J is almost diagonal. This is the Jordan normal form of A.

Schur Normal Form

• Descomposiciones de matrices

• Schur

• A = QUQ*

• Q unitaria

• Q* traspuesta conjugada de Q

• U upper triangular

• Las entradas de la diagonal de U son los valores propios de A

• Descomposiciones de matrices

• SVD

• Generalización del teorema espectral

• M matriz m  n

• M = U  V*

• U m  m unitary ortonormal input

• V n  n unitary ortonormal output

• V* transpuesta conjugada de V

•  matriz diagonal con entradas no negativas valores propios

• Mv = u, M*u = v,  valor propio, u left singular vector, v right singular vector

• Las columnas de U son los vectores propios u

• Las columnas de V son los vectores propios v

• Aplicación a la reducción de la dimensionalidad

• Principal Components Analysis
