Wireless Attacks on your Network

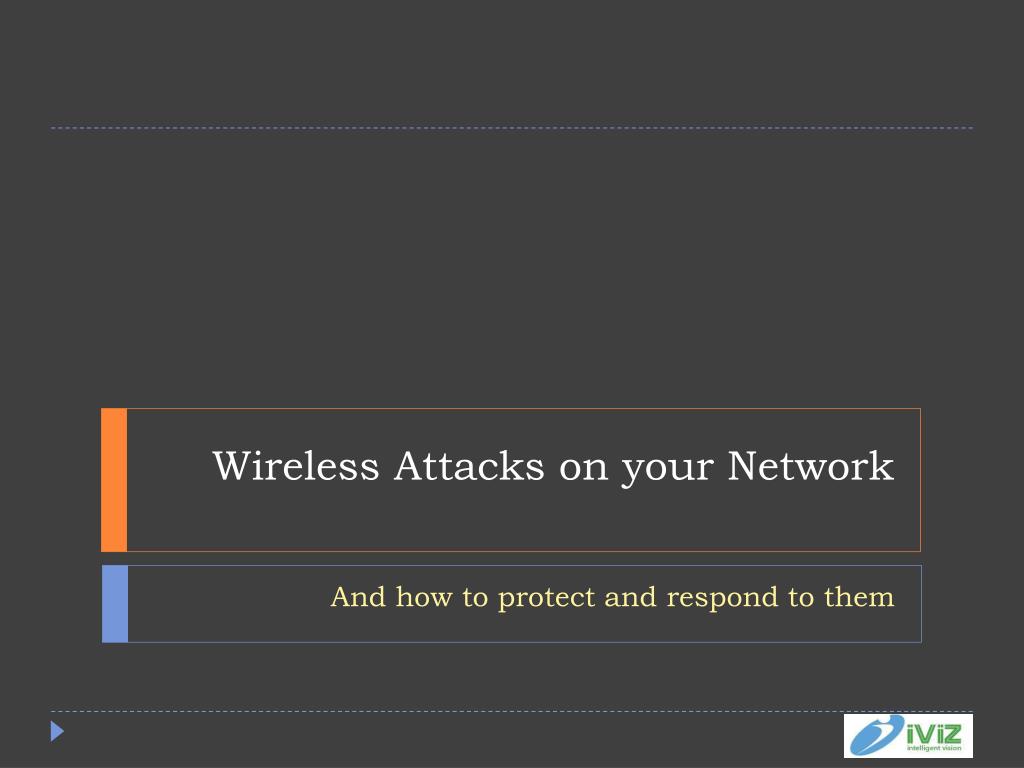

1. Wireless Attacks on your Network And how to protect and respond to them

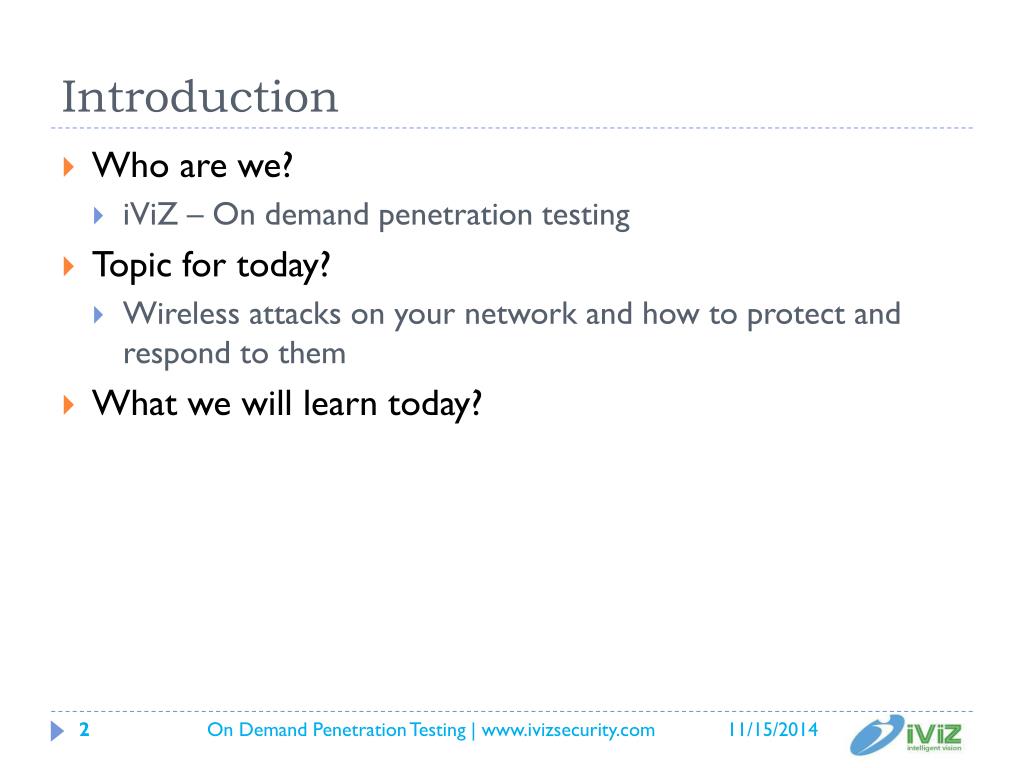

2. Introduction • Who are we? • iViZ – On demand penetration testing • Topic for today? • Wireless attacks on your network and how to protect and respond to them • What we will learn today? On Demand Penetration Testing | www.ivizsecurity.com

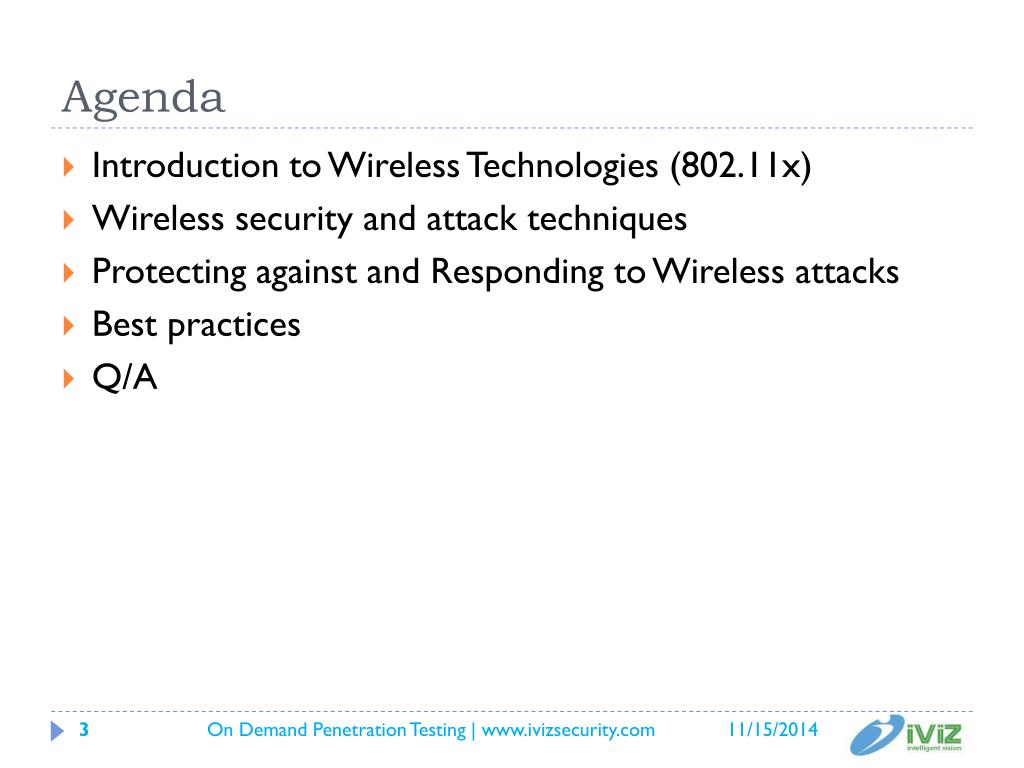

3. Agenda • Introduction to Wireless Technologies (802.11x) • Wireless security and attack techniques • Protecting against and Responding to Wireless attacks • Best practices • Q/A On Demand Penetration Testing | www.ivizsecurity.com

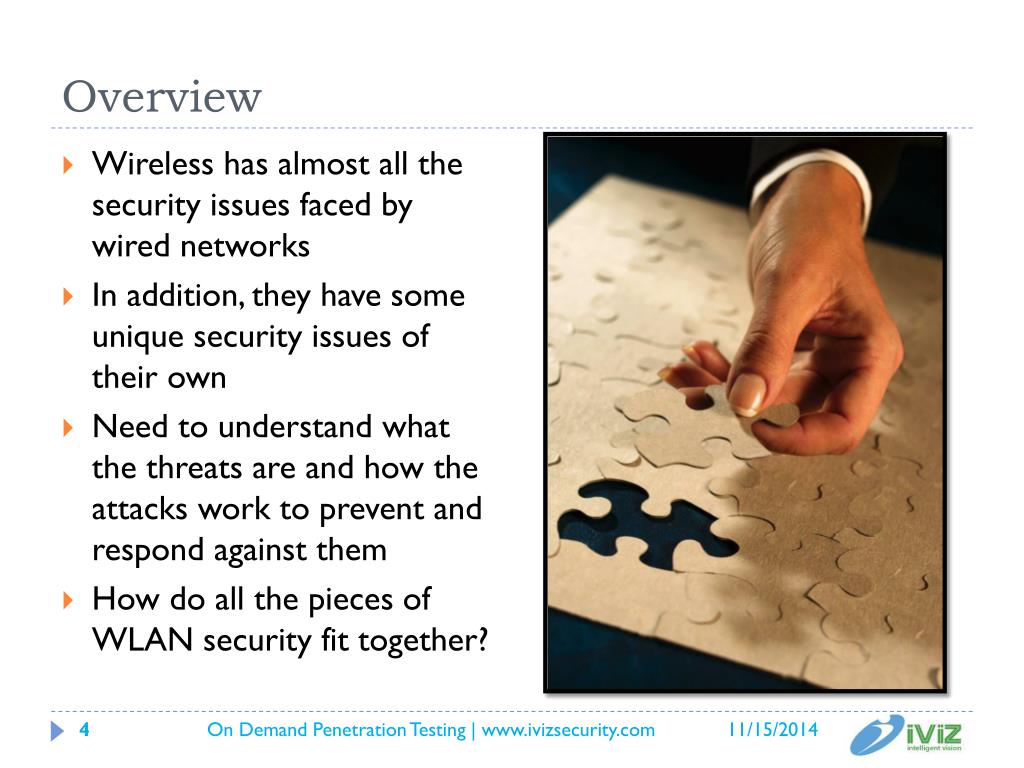

4. Overview • Wireless has almost all the security issues faced by wired networks • In addition, they have some unique security issues of their own • Need to understand what the threats are and how the attacks work to prevent and respond against them • How do all the pieces of WLAN security fit together? On Demand Penetration Testing | www.ivizsecurity.com

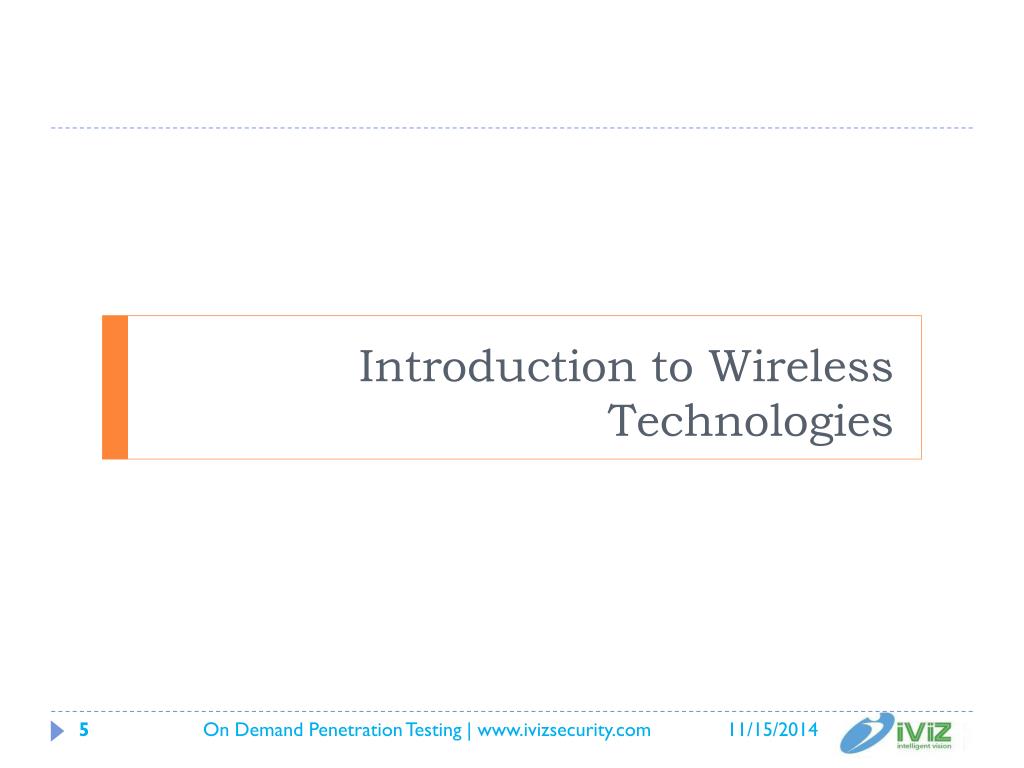

5. Introduction to Wireless Technologies On Demand Penetration Testing | www.ivizsecurity.com

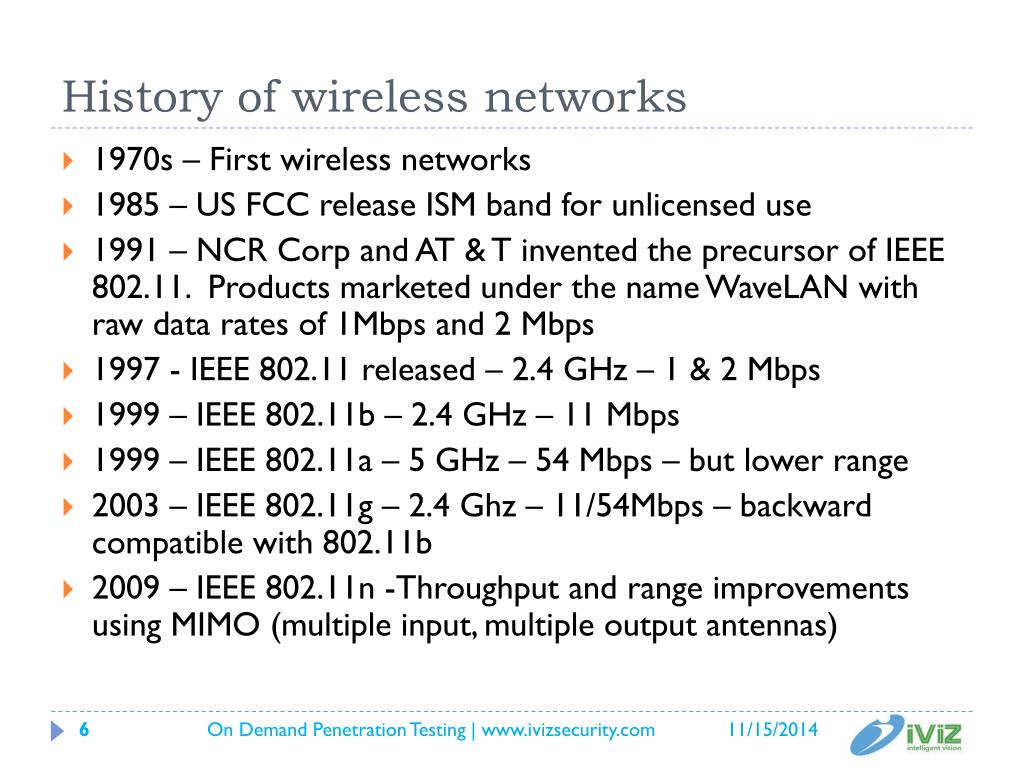

6. History of wireless networks • 1970s – First wireless networks • 1985 – US FCC release ISM band for unlicensed use • 1991 – NCR Corp and AT & T invented the precursor of IEEE 802.11. Products marketed under the name WaveLAN with raw data rates of 1Mbps and 2 Mbps • 1997 - IEEE 802.11 released – 2.4 GHz – 1 & 2 Mbps • 1999 – IEEE 802.11b – 2.4 GHz – 11 Mbps • 1999 – IEEE 802.11a – 5 GHz – 54 Mbps – but lower range • 2003 – IEEE 802.11g – 2.4 Ghz – 11/54Mbps – backward compatible with 802.11b • 2009 – IEEE 802.11n -Throughput and range improvements using MIMO (multiple input, multiple output antennas)  On Demand Penetration Testing | www.ivizsecurity.com

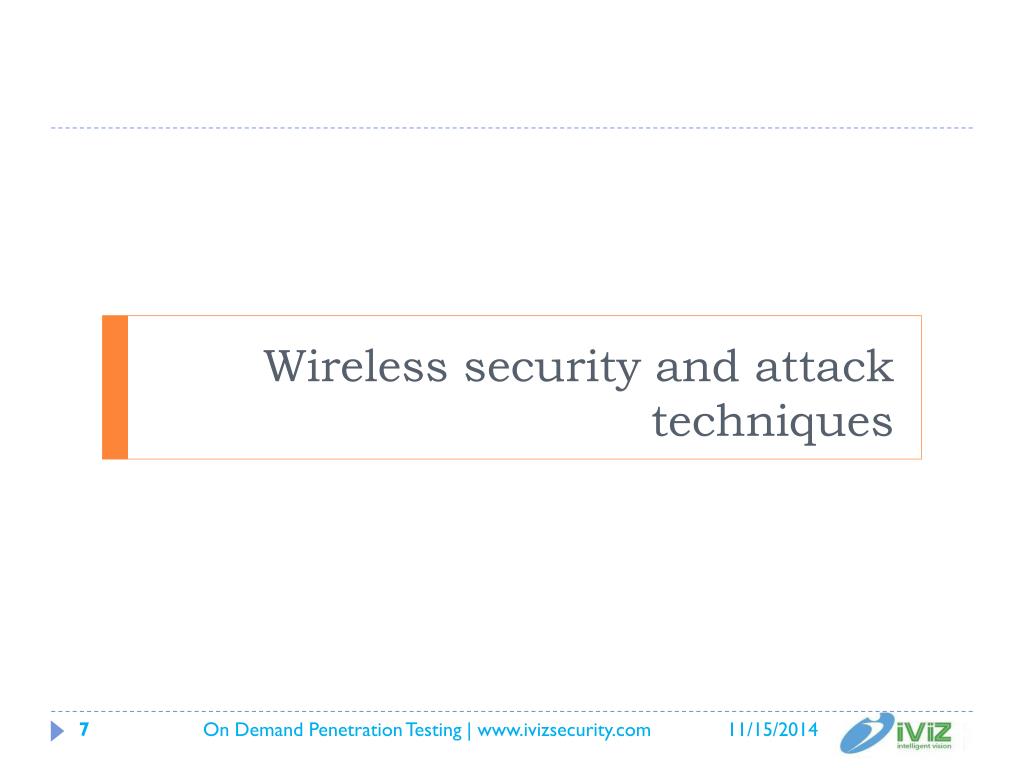

7. Wireless security and attack techniques On Demand Penetration Testing | www.ivizsecurity.com

8. Wired Equivalent Privacy (WEP) • WEP - Wired Equivalent Privacy - 1997 • original encryption standard for wireless • intended to make wireless networks as secure as wired networks. • Support for different key sizes, common ones being 128 bit and 256 bit • However…. • WEP has serious security issues • Does not deal with key management. • 2001 - Weaknesses in the Key Scheduling Algorithm of RC4” by Fluhrer, Mantin and Shamir – if a cracker can receive packets on a network, it is only a matter of time until the WEP encryption is cracked. • 2004 – Dachboden labs released more effective methods to crack WEP (Chopping attack) • 2007 – Caffé-latte attack - AirTight Networks- Md. Sohail Ahmad and VivekRamachandaran On Demand Penetration Testing | www.ivizsecurity.com

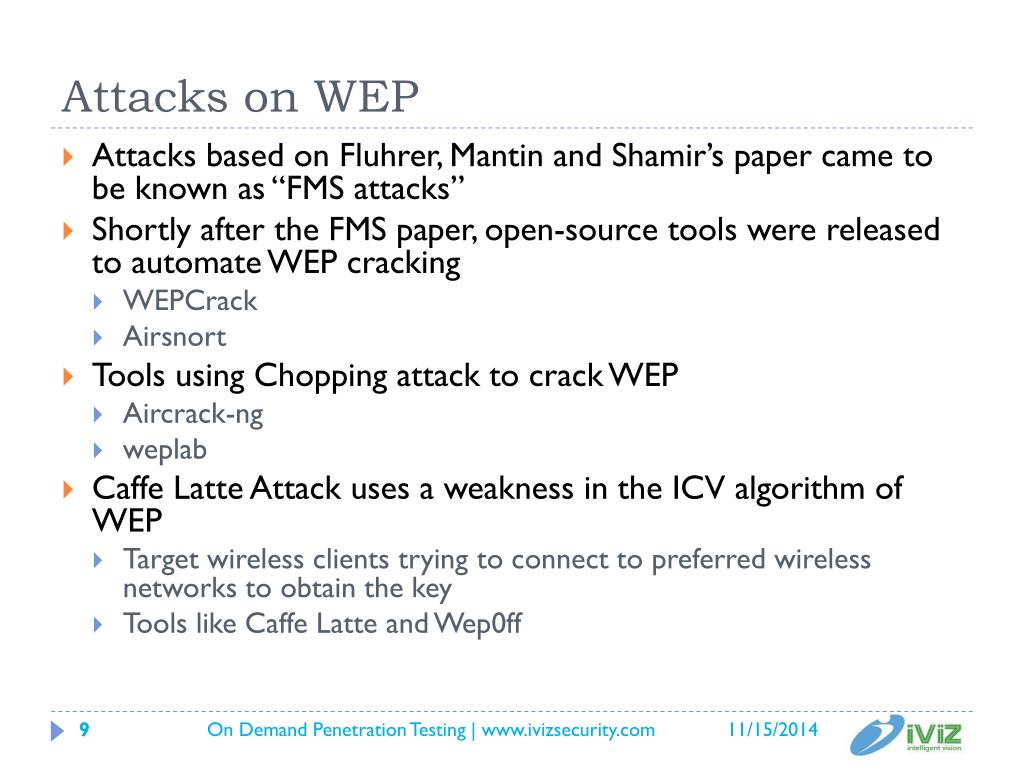

9. Attacks on WEP • Attacks based on Fluhrer, Mantin and Shamir’s paper came to be known as “FMS attacks” • Shortly after the FMS paper, open-source tools were released to automate WEP cracking • WEPCrack • Airsnort • Tools using Chopping attack to crack WEP • Aircrack-ng • weplab • Caffe Latte Attack uses a weakness in the ICV algorithm of WEP • Target wireless clients trying to connect to preferred wireless networks to obtain the key • Tools like Caffe Latte and Wep0ff  On Demand Penetration Testing | www.ivizsecurity.com

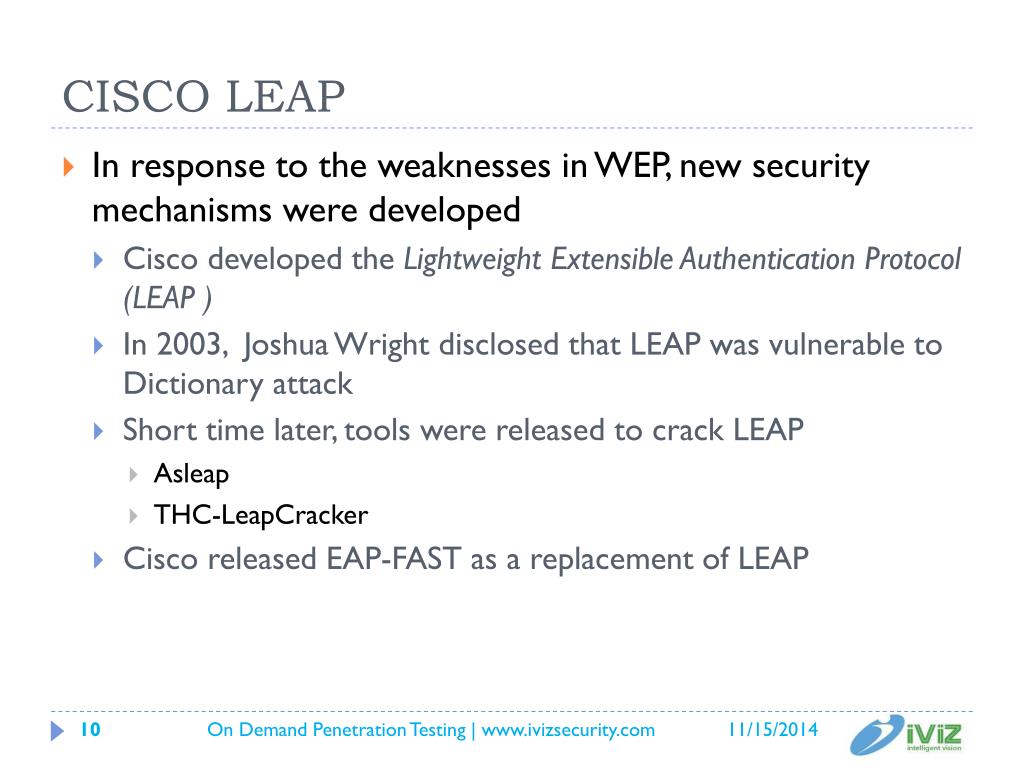

10. CISCO LEAP • In response to the weaknesses in WEP, new security mechanisms were developed • Cisco developed the Lightweight Extensible Authentication Protocol (LEAP ) • In 2003, Joshua Wright disclosed that LEAP was vulnerable to Dictionary attack • Short time later, tools were released to crack LEAP • Asleap • THC-LeapCracker • Cisco released EAP-FAST as a replacement of LEAP On Demand Penetration Testing | www.ivizsecurity.com

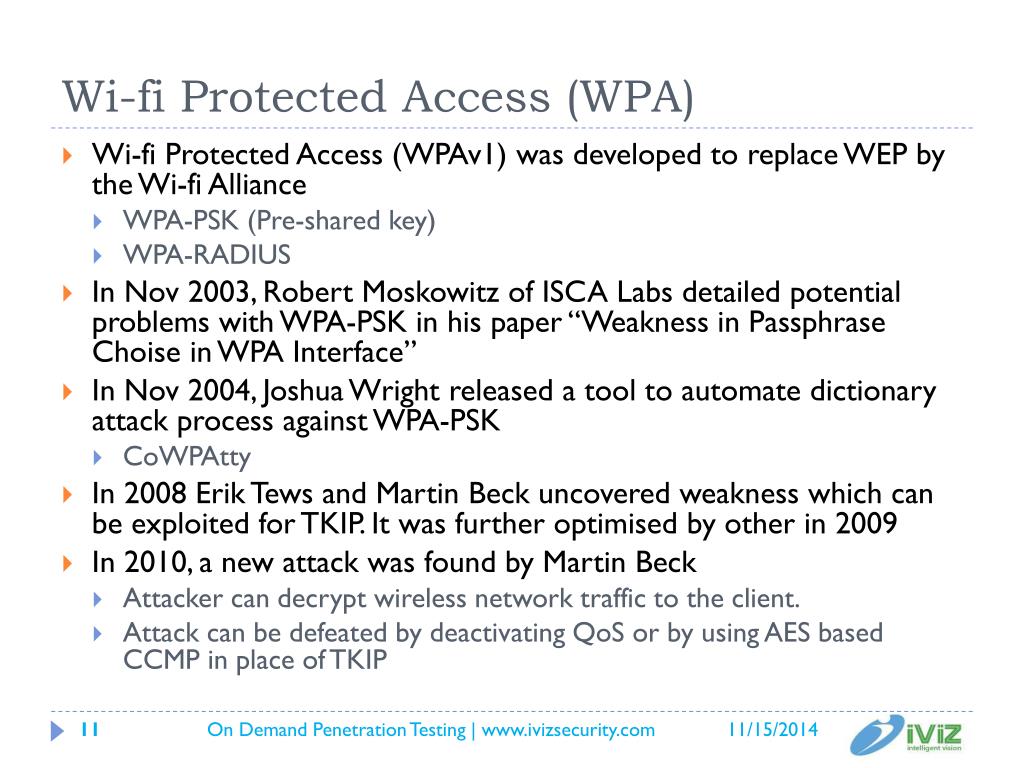

11. Wi-fi Protected Access (WPA) • Wi-fi Protected Access (WPAv1) was developed to replace WEP by the Wi-fi Alliance • WPA-PSK (Pre-shared key) • WPA-RADIUS • In Nov 2003, Robert Moskowitz of ISCA Labs detailed potential problems with WPA-PSK in his paper “Weakness in Passphrase Choise in WPA Interface” • In Nov 2004, Joshua Wright released a tool to automate dictionary attack process against WPA-PSK • CoWPAtty • In 2008 Erik Tews and Martin Beck uncovered weakness which can be exploited for TKIP. It was further optimised by other in 2009 • In 2010, a new attack was found by Martin Beck • Attacker can decrypt wireless network traffic to the client. • Attack can be defeated by deactivating QoS or by using AES based CCMP in place of TKIP On Demand Penetration Testing | www.ivizsecurity.com

12. Other wireless security solutions • WPAv2 • Inclusion of the more secure AES-CCMP algorithm as a mandatory feature • Supports both Radius servers and PSK • PEAP – Protected EAP • Smart Cards • USB Tokens • Software Tokens On Demand Penetration Testing | www.ivizsecurity.com

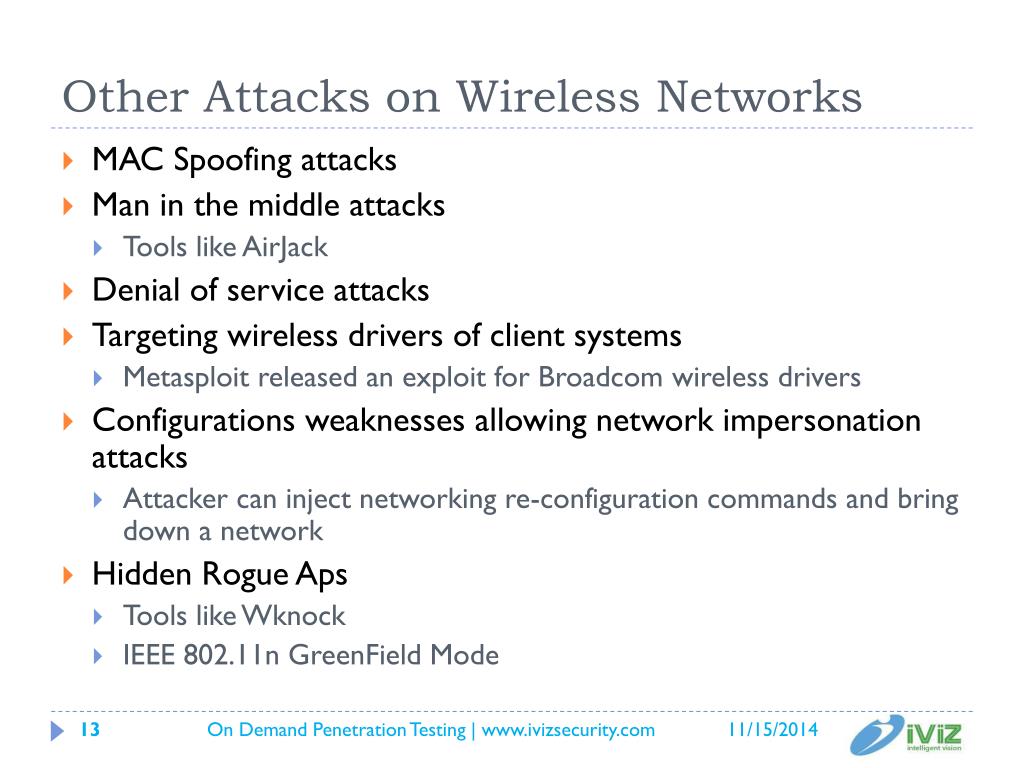

13. Other Attacks on Wireless Networks • MAC Spoofing attacks • Man in the middle attacks • Tools like AirJack • Denial of service attacks • Targeting wireless drivers of client systems • Metasploit released an exploit for Broadcom wireless drivers • Configurations weaknesses allowing network impersonation attacks • Attacker can inject networking re-configuration commands and bring down a network • Hidden Rogue Aps • Tools like Wknock • IEEE 802.11n GreenField Mode On Demand Penetration Testing | www.ivizsecurity.com

14. Protecting against and Responding to Wireless attacks On Demand Penetration Testing | www.ivizsecurity.com

15. Responding to attacks against WEP • WEP is a broken and obsolete solution • Use higher layer encryption (SSL/TLS) if possible • Use firewall and proxy servers to enforce • Use tools like Kismet, Wireshark, tcpdump to regularly monitor wireless traffic • Look out for abnormal de-authentication blocks as it is used for cracking WEP • Look out for excessive ARP Injection blocks as these are used for MITM attacks against WEP • Easy to identify • Understand the normal volume of ARP traffic on your network • Rotate WEP keys • LAST RESORT – Shut down the WLAN On Demand Penetration Testing | www.ivizsecurity.com

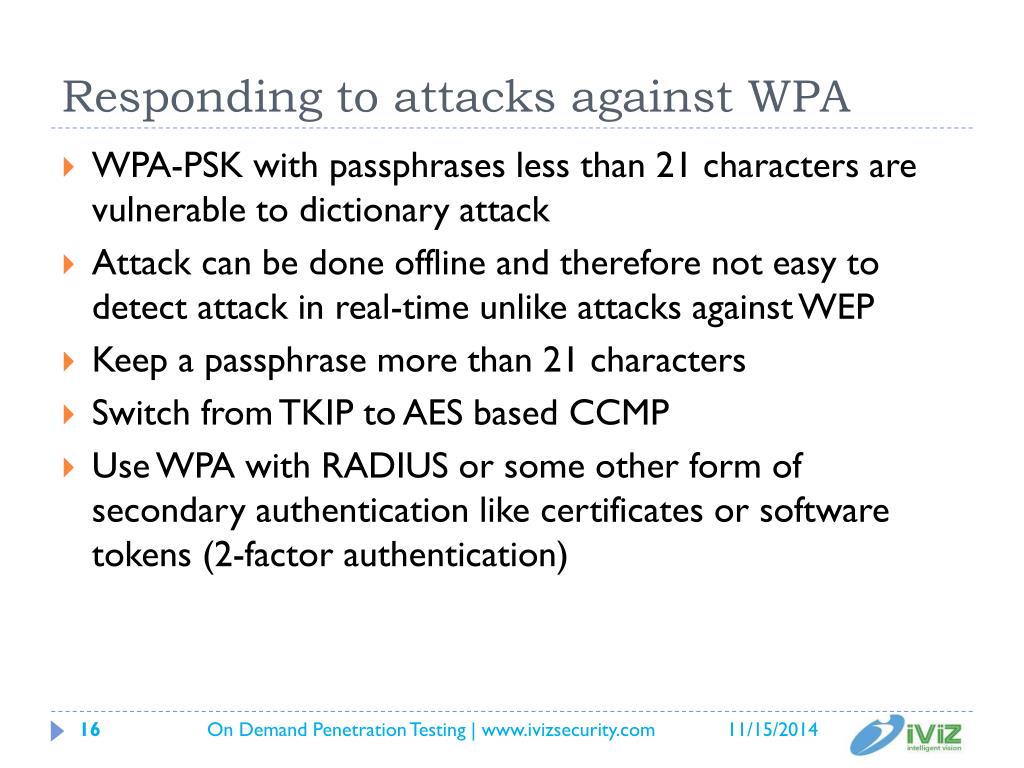

16. Responding to attacks against WPA • WPA-PSK with passphrases less than 21 characters are vulnerable to dictionary attack • Attack can be done offline and therefore not easy to detect attack in real-time unlike attacks against WEP • Keep a passphrase more than 21 characters • Switch from TKIP to AES based CCMP • Use WPA with RADIUS or some other form of secondary authentication like certificates or software tokens (2-factor authentication) On Demand Penetration Testing | www.ivizsecurity.com

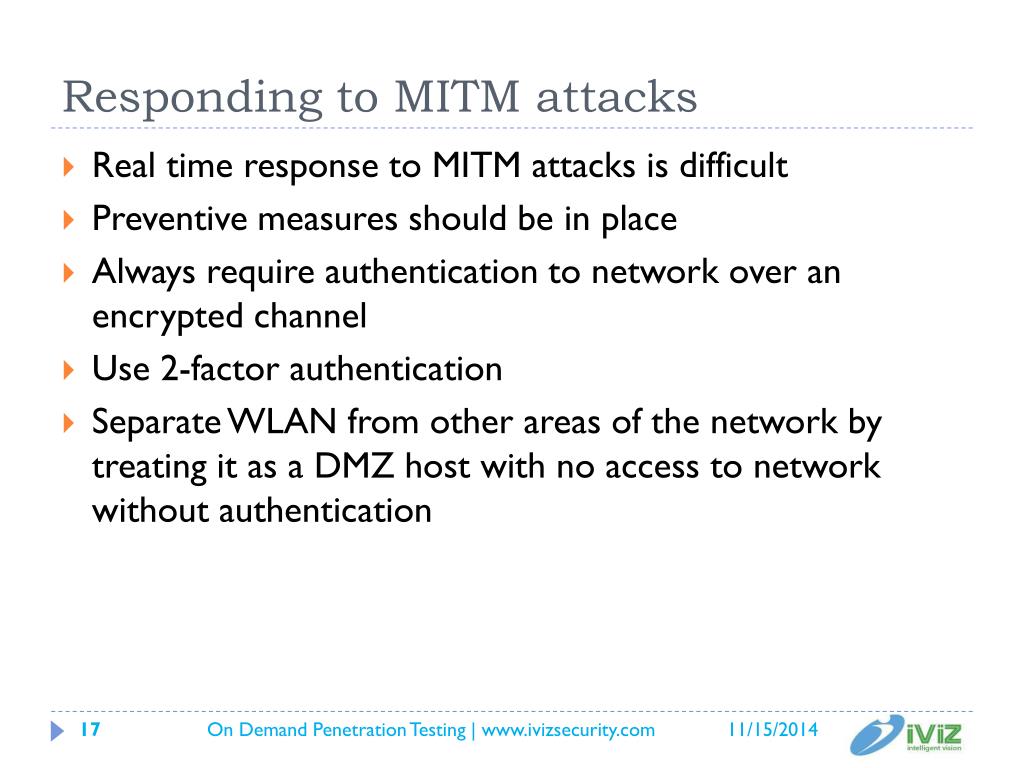

17. Responding to MITM attacks • Real time response to MITM attacks is difficult • Preventive measures should be in place • Always require authentication to network over an encrypted channel • Use 2-factor authentication • Separate WLAN from other areas of the network by treating it as a DMZ host with no access to network without authentication On Demand Penetration Testing | www.ivizsecurity.com

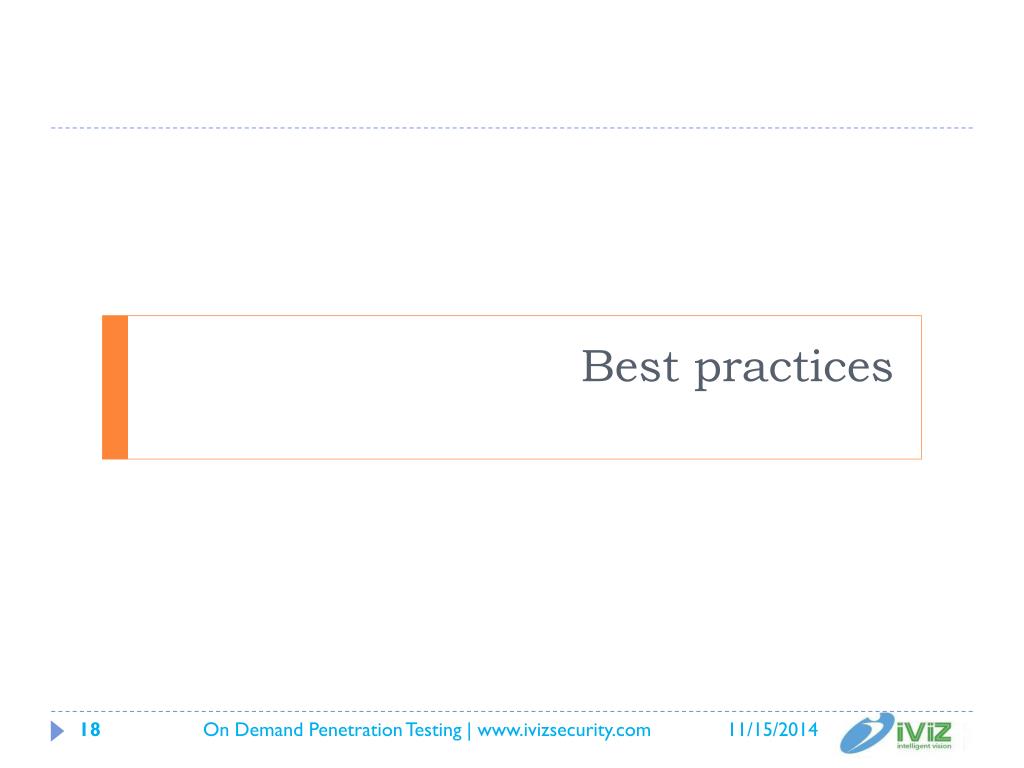

18. Best practices On Demand Penetration Testing | www.ivizsecurity.com

19. Best Practices • Use 2-factor authentication, eg, Smart cards, USB tokens, and software tokens • However these are expensive • Next safest methods are WPA2 or WPA with RADIUS server. • Utilize IPSec-based Virtual Private Network (VPN) technology for end-to-end security • Use strong encryption (eg, AES based CCMP) • Separate the WLAN from the rest of the Network by treating it as a DMZ if possible • Have a separate VLAN • Use static IP addressing and MAC filtering • Not 100% fool-proof • MAC can be spoofed and MITM can still be possible • Regularly look at Access Point, Firewall/IPS/IDS, Important Server logs On Demand Penetration Testing | www.ivizsecurity.com

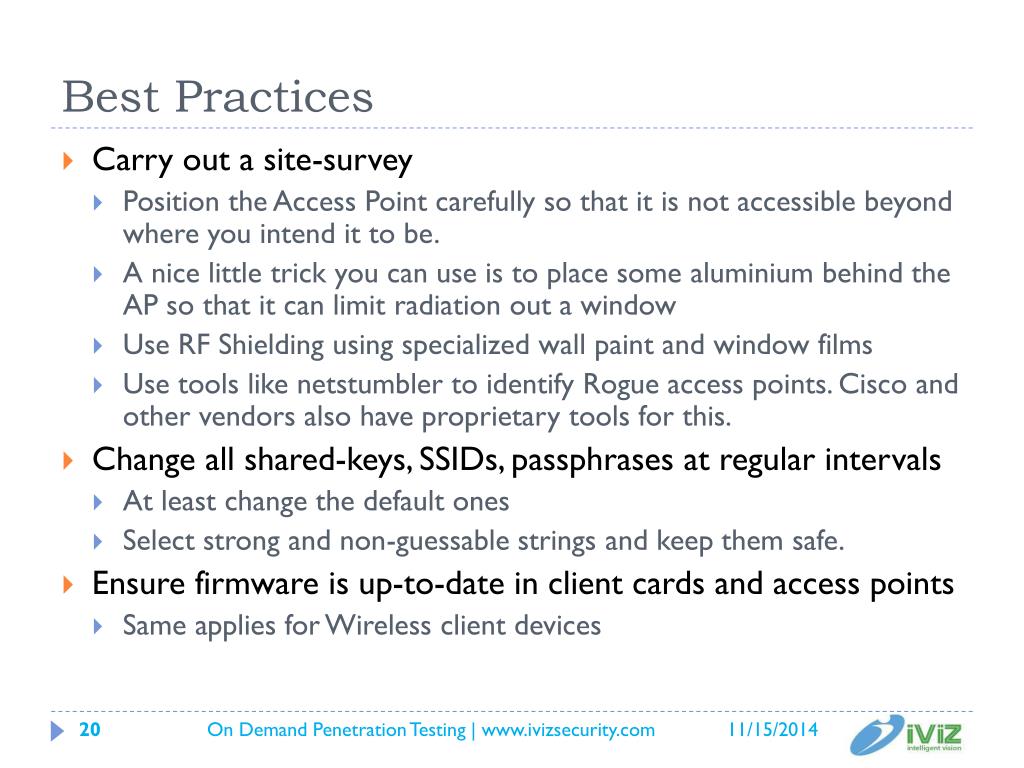

20. Best Practices • Carry out a site-survey • Position the Access Point carefully so that it is not accessible beyond where you intend it to be. • A nice little trick you can use is to place some aluminium behind the AP so that it can limit radiation out a window • Use RF Shielding using specialized wall paint and window films • Use tools like netstumbler to identify Rogue access points. Cisco and other vendors also have proprietary tools for this. • Change all shared-keys, SSIDs, passphrases at regular intervals • At least change the default ones • Select strong and non-guessable strings and keep them safe. • Ensure firmware is up-to-date in client cards and access points • Same applies for Wireless client devices On Demand Penetration Testing | www.ivizsecurity.com

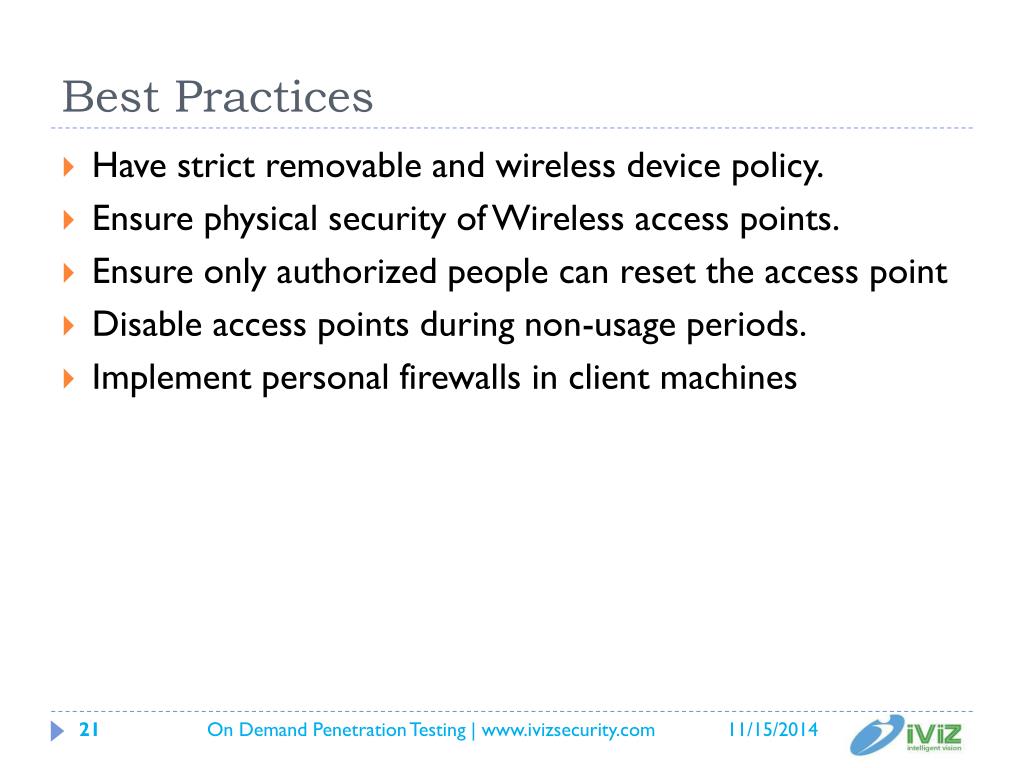

21. Best Practices • Have strict removable and wireless device policy. • Ensure physical security of Wireless access points. • Ensure only authorized people can reset the access point • Disable access points during non-usage periods. • Implement personal firewalls in client machines On Demand Penetration Testing | www.ivizsecurity.com

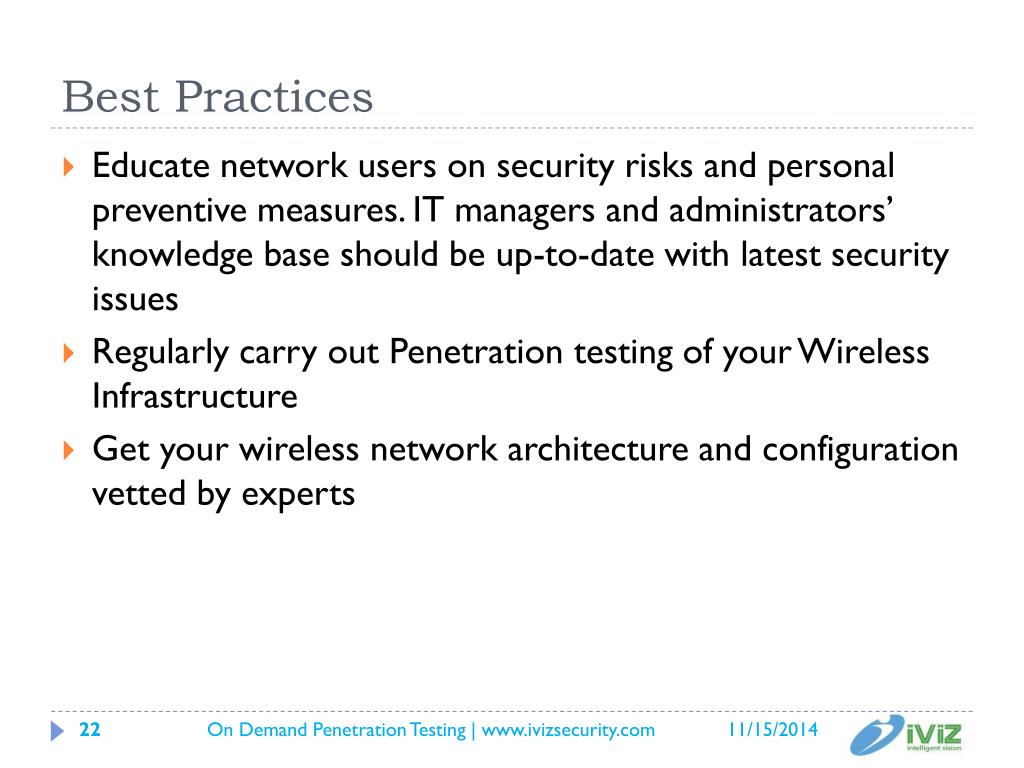

22. Best Practices • Educate network users on security risks and personal preventive measures. IT managers and administrators’ knowledge base should be up-to-date with latest security issues • Regularly carry out Penetration testing of your Wireless Infrastructure • Get your wireless network architecture and configuration vetted by experts On Demand Penetration Testing | www.ivizsecurity.com

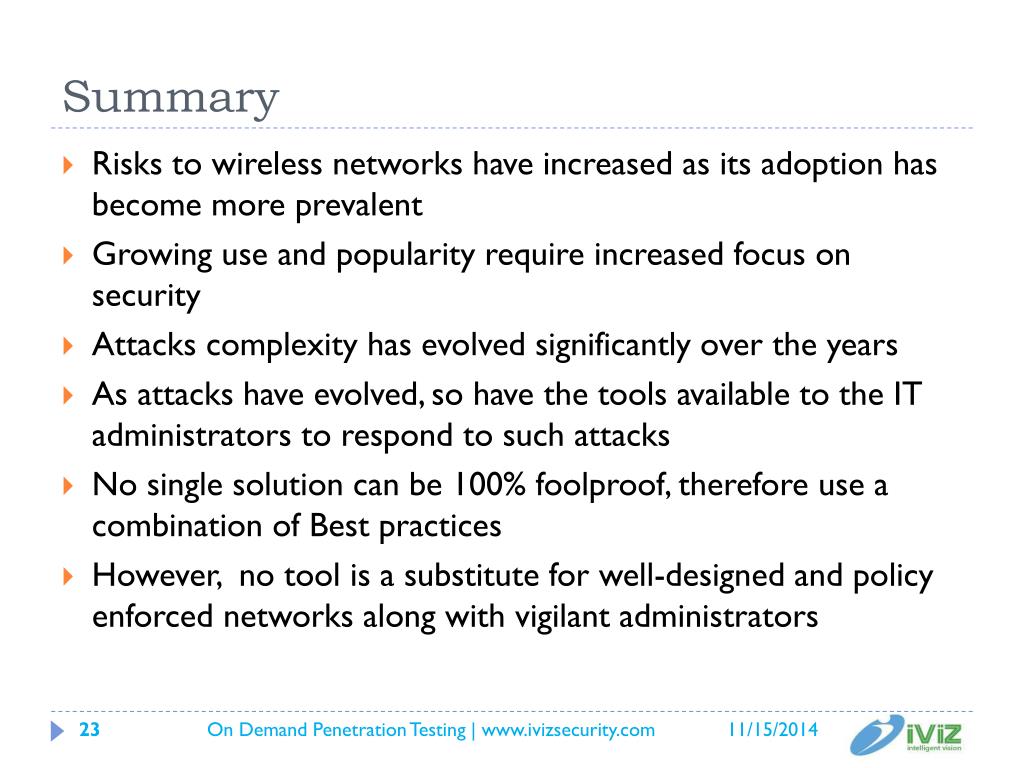

23. Summary • Risks to wireless networks have increased as its adoption has become more prevalent • Growing use and popularity require increased focus on security • Attacks complexity has evolved significantly over the years • As attacks have evolved, so have the tools available to the IT administrators to respond to such attacks • No single solution can be 100% foolproof, therefore use a combination of Best practices • However, no tool is a substitute for well-designed and policy enforced networks along with vigilant administrators On Demand Penetration Testing | www.ivizsecurity.com

24. Feedback / Questions? • nilanjan.de@ivizsecurity.com • info@ivizsecurity.com On Demand Penetration Testing | www.ivizsecurity.com

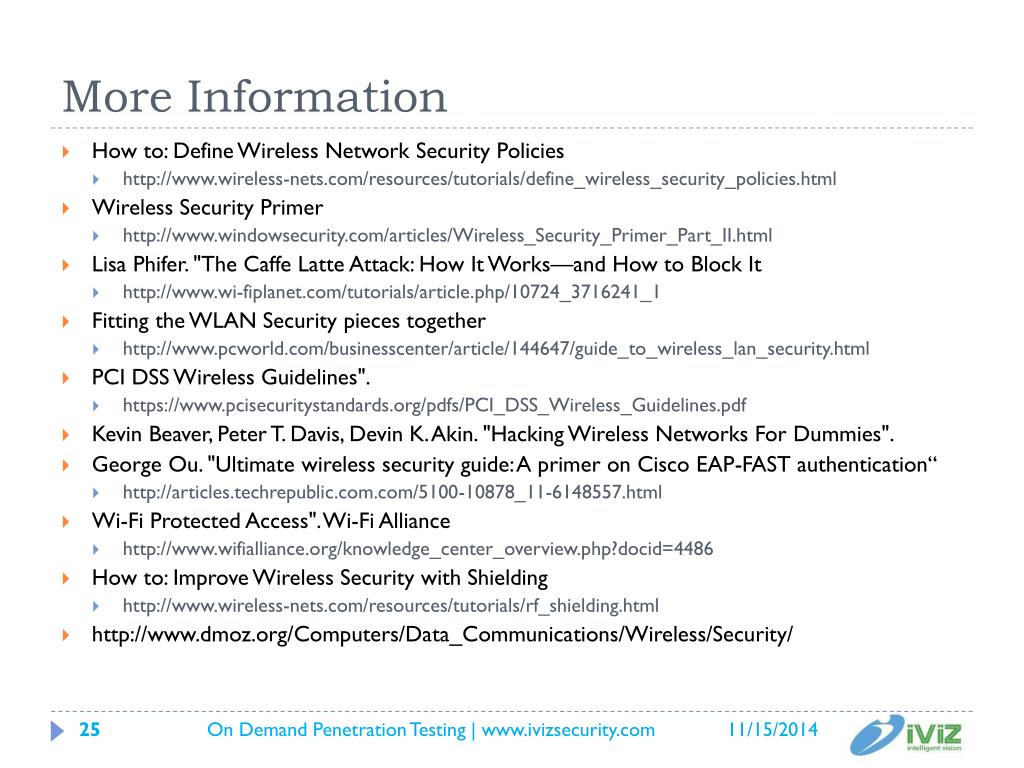

25. More Information • How to: Define Wireless Network Security Policies • http://www.wireless-nets.com/resources/tutorials/define_wireless_security_policies.html • Wireless Security Primer • http://www.windowsecurity.com/articles/Wireless_Security_Primer_Part_II.html • Lisa Phifer. "The Caffe Latte Attack: How It Works—and How to Block It • http://www.wi-fiplanet.com/tutorials/article.php/10724_3716241_1 • Fitting the WLAN Security pieces together • http://www.pcworld.com/businesscenter/article/144647/guide_to_wireless_lan_security.html • PCI DSS Wireless Guidelines". • https://www.pcisecuritystandards.org/pdfs/PCI_DSS_Wireless_Guidelines.pdf • Kevin Beaver, Peter T. Davis, Devin K. Akin. "Hacking Wireless Networks For Dummies". • George Ou. "Ultimate wireless security guide: A primer on Cisco EAP-FAST authentication“ • http://articles.techrepublic.com.com/5100-10878_11-6148557.html • Wi-Fi Protected Access". Wi-Fi Alliance • http://www.wifialliance.org/knowledge_center_overview.php?docid=4486 • How to: Improve Wireless Security with Shielding • http://www.wireless-nets.com/resources/tutorials/rf_shielding.html • http://www.dmoz.org/Computers/Data_Communications/Wireless/Security/ On Demand Penetration Testing | www.ivizsecurity.com
