Simulation and Analysis of Entrance to Dahlgren Naval Base

Simulation and Analysis of Entrance to Dahlgren Naval Base. Jennifer Burke. MSIM 752 Final Project December 3, 2007. Background. Model the workforce entering the base Force Protection Status Security Needs Possibility of Re-Opening Alternate Gate 6am – 9am ~5000 employees 80% Virginia

duer
Download Presentation

Simulation and Analysis of Entrance to Dahlgren Naval Base

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Simulation and Analysisof Entrance to DahlgrenNaval Base Jennifer Burke MSIM 752 Final Project December 3, 2007

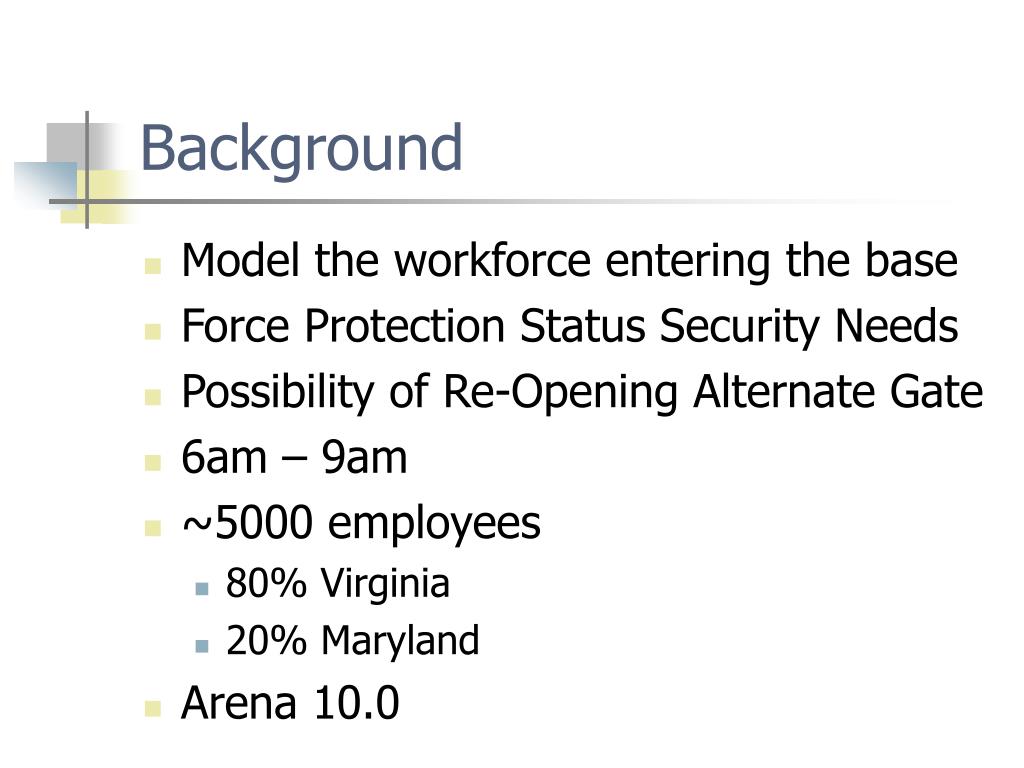

  2. Background • Model the workforce entering the base • Force Protection Status Security Needs • Possibility of Re-Opening Alternate Gate • 6am – 9am • ~5000 employees • 80% Virginia • 20% Maryland • Arena 10.0

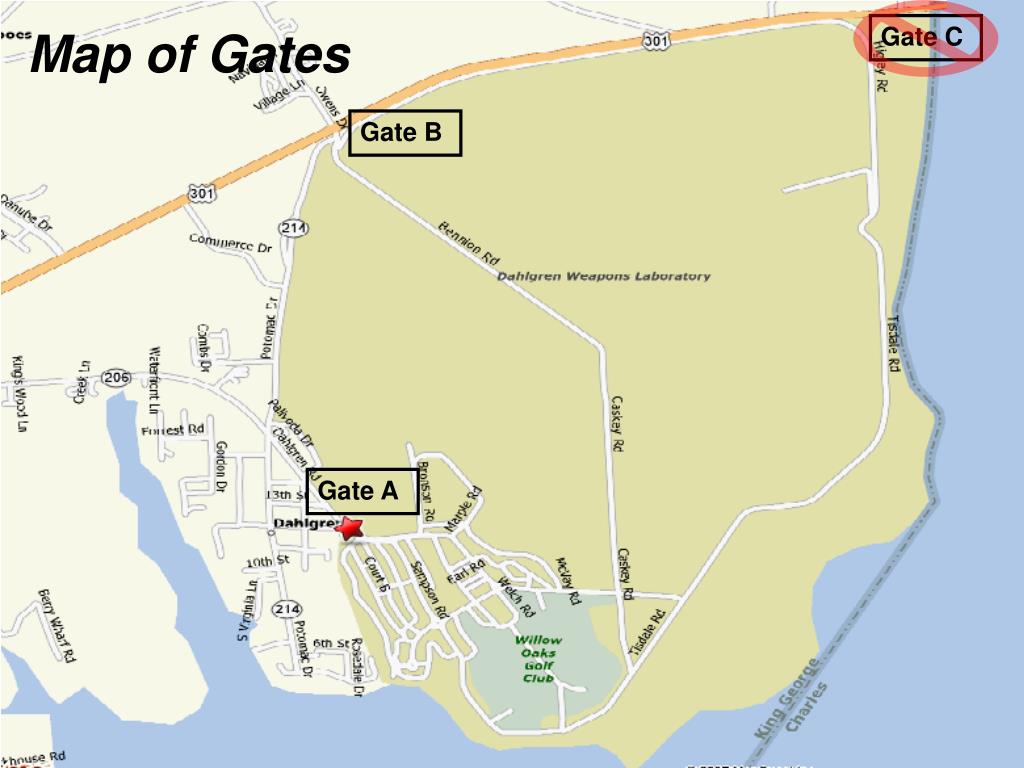

  3. Gate C Map of Gates Gate B Gate A

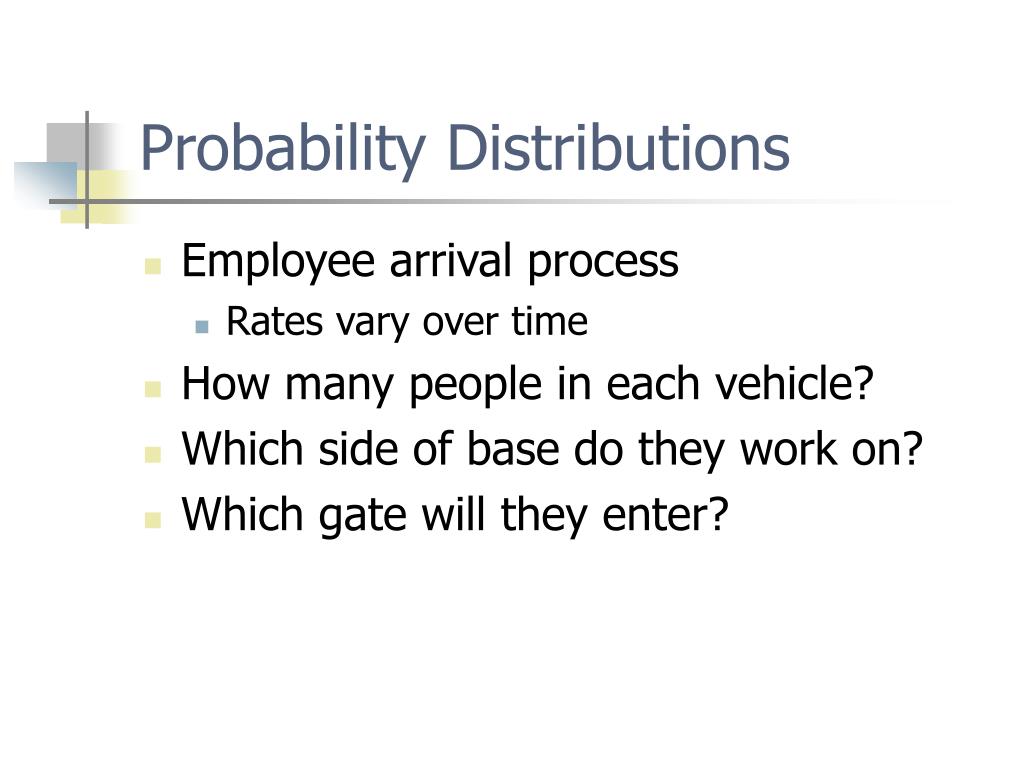

  4. Probability Distributions • Employee arrival process • Rates vary over time • How many people in each vehicle? • Which side of base do they work on? • Which gate will they enter?

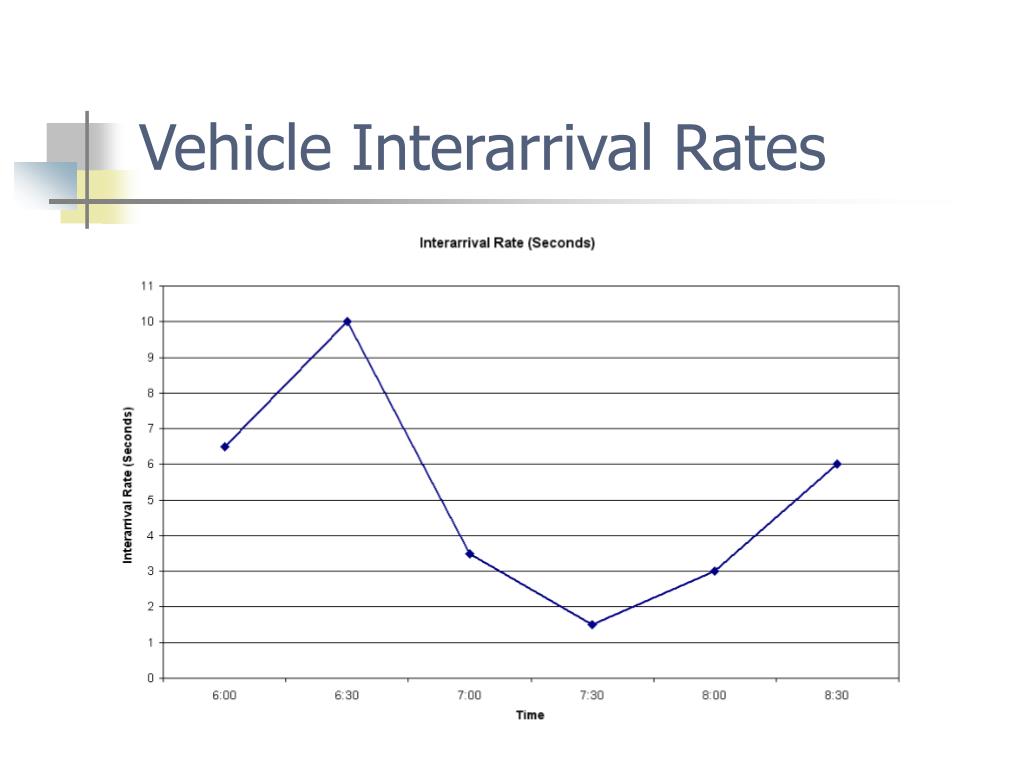

  5. Vehicle Interarrival Rates

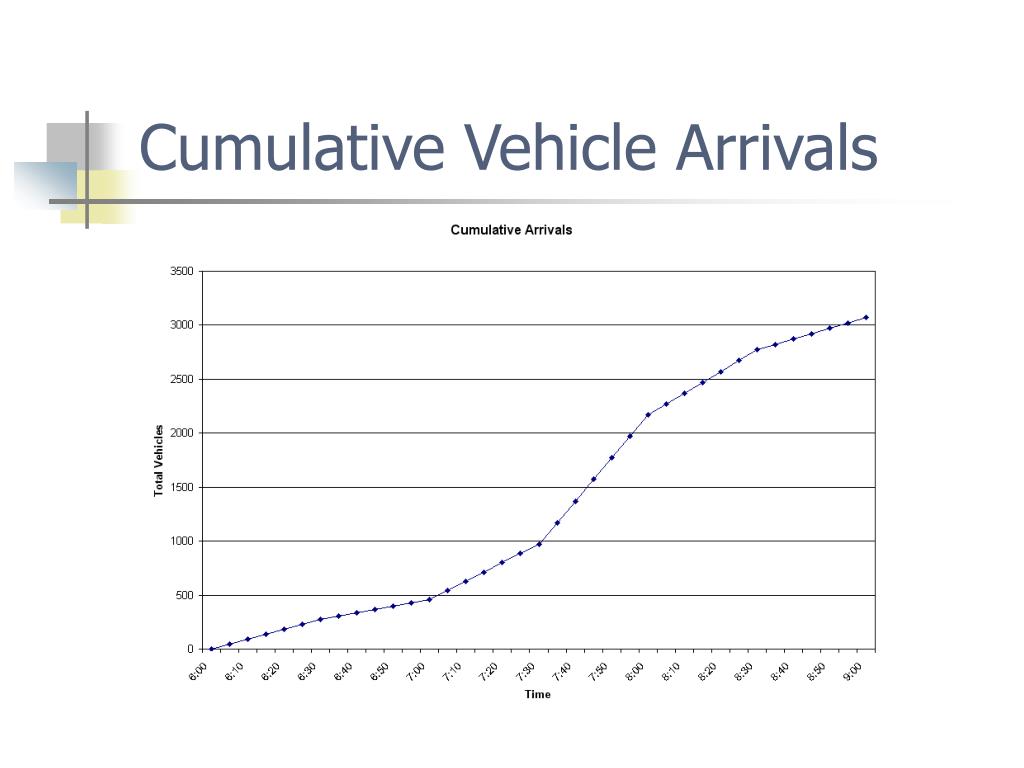

  6. Cumulative Vehicle Arrivals

  7. Modeling Employee Arrival Rates • First choice • Exponential distribution with user-defined mean • Change it every 30 minutes • Wrong! • Good if rate change between periods is small • Bad if rate change between periods is large

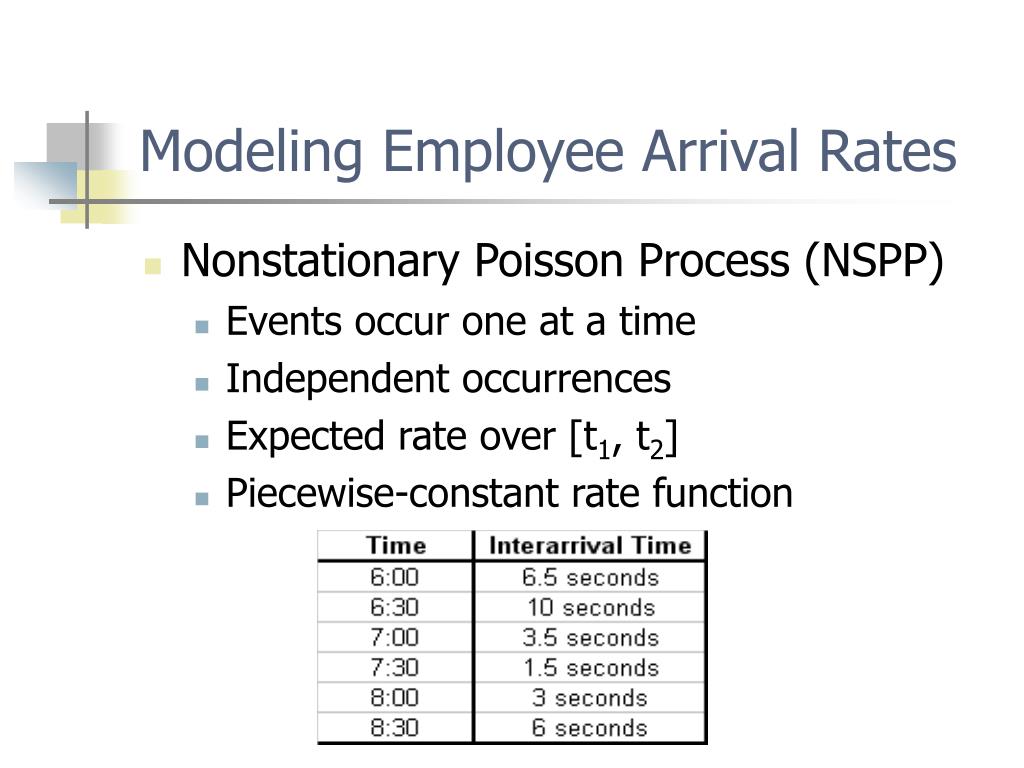

  8. Modeling Employee Arrival Rates • Nonstationary Poisson Process (NSPP) • Events occur one at a time • Independent occurrences • Expected rate over [t1, t2] • Piecewise-constant rate function

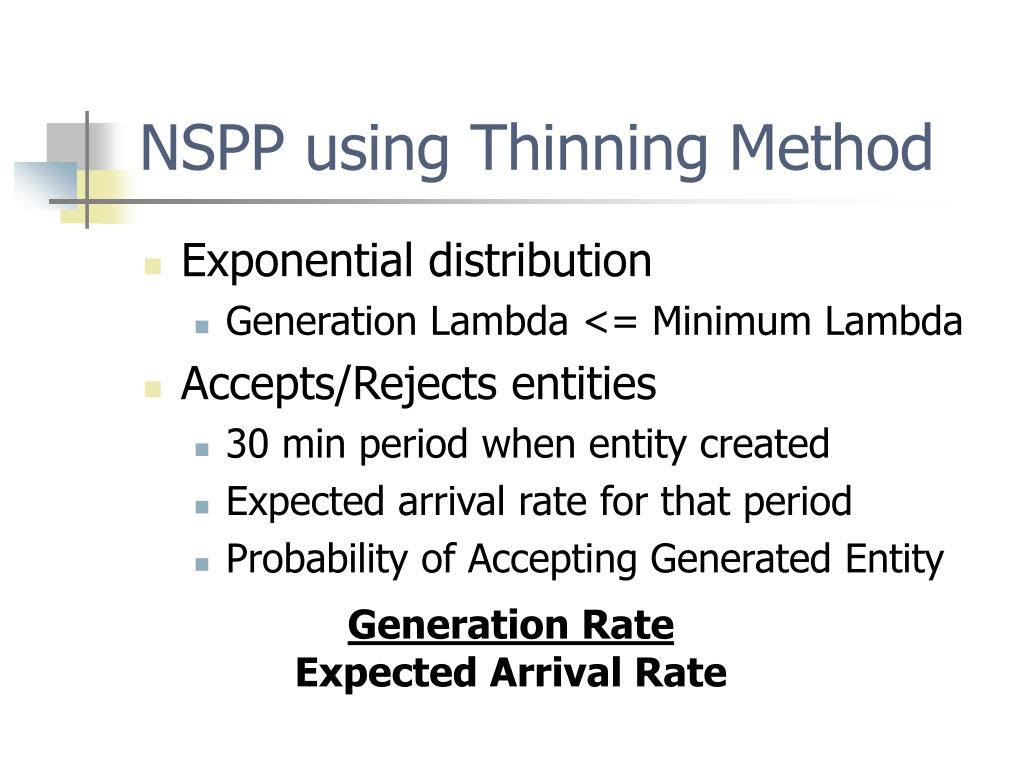

  9. NSPP using Thinning Method • Exponential distribution • Generation Lambda <= Minimum Lambda • Accepts/Rejects entities • 30 min period when entity created • Expected arrival rate for that period • Probability of Accepting Generated Entity Generation Rate Expected Arrival Rate

  10. Carpooling • Discrete function • Virginia • 60% - 1 person • 25% - 2 people • 10% - 4 people • 5% - 6 people • Maryland • 75% - 1 person • 15% - 2 people • 5% - 4 people • 5% - 6 people ~3000 vehicles

  11. Gate C Side of Base Far Side = 30% Gate B Near Side = 70% Gate A

  12. Gate C Gate Choice Far Side = 30% Gate B Near Side = 70% Gate A

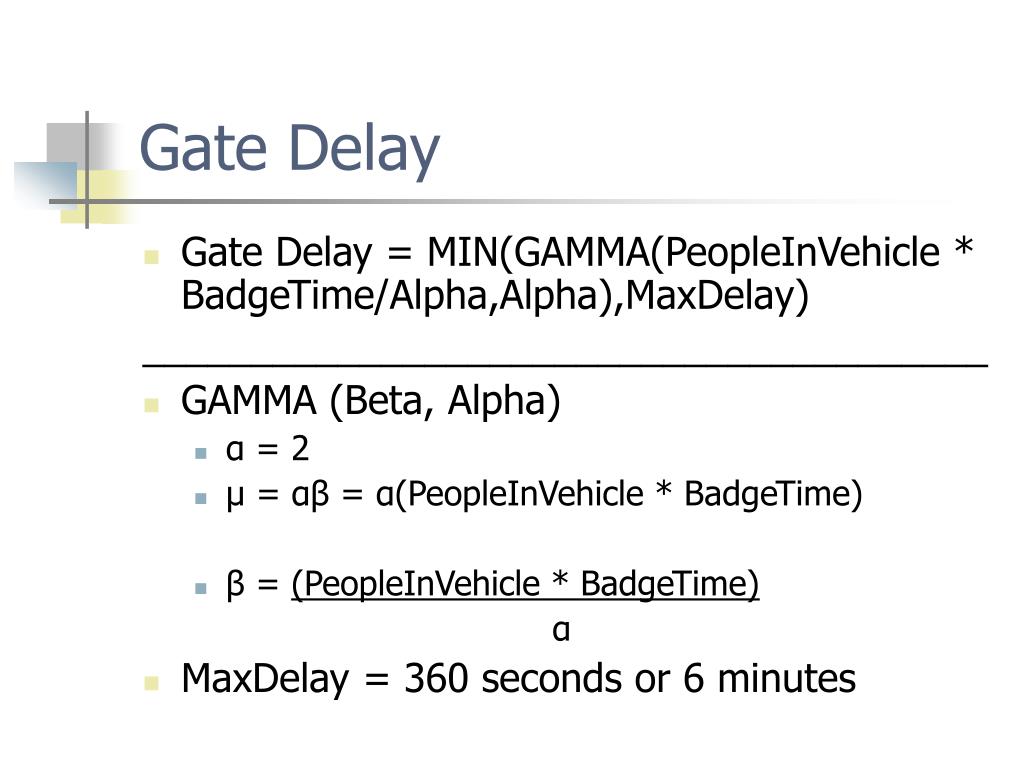

  13. Gate Delay • Gate Delay = MIN(GAMMA(PeopleInVehicle * BadgeTime/Alpha,Alpha),MaxDelay) _______________________________________ • GAMMA (Beta, Alpha) • α = 2 • μ = αβ = α(PeopleInVehicle * BadgeTime) • β = (PeopleInVehicle * BadgeTime) α • MaxDelay = 360 seconds or 6 minutes

  14. Baseline Model

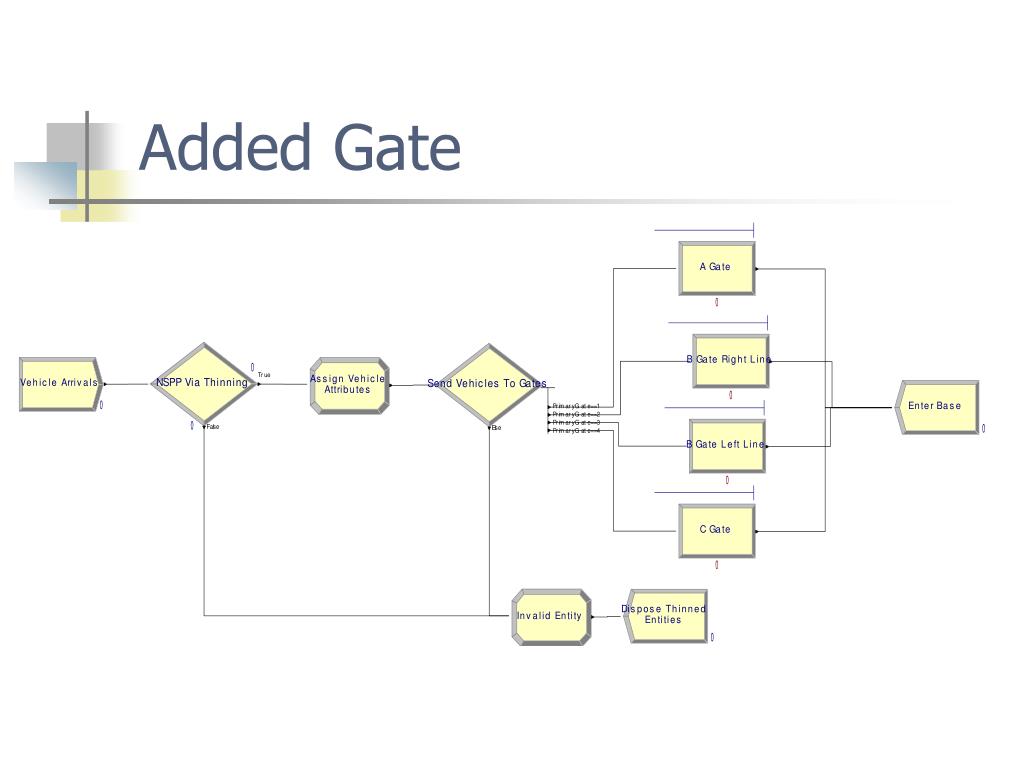

  15. Added Gate

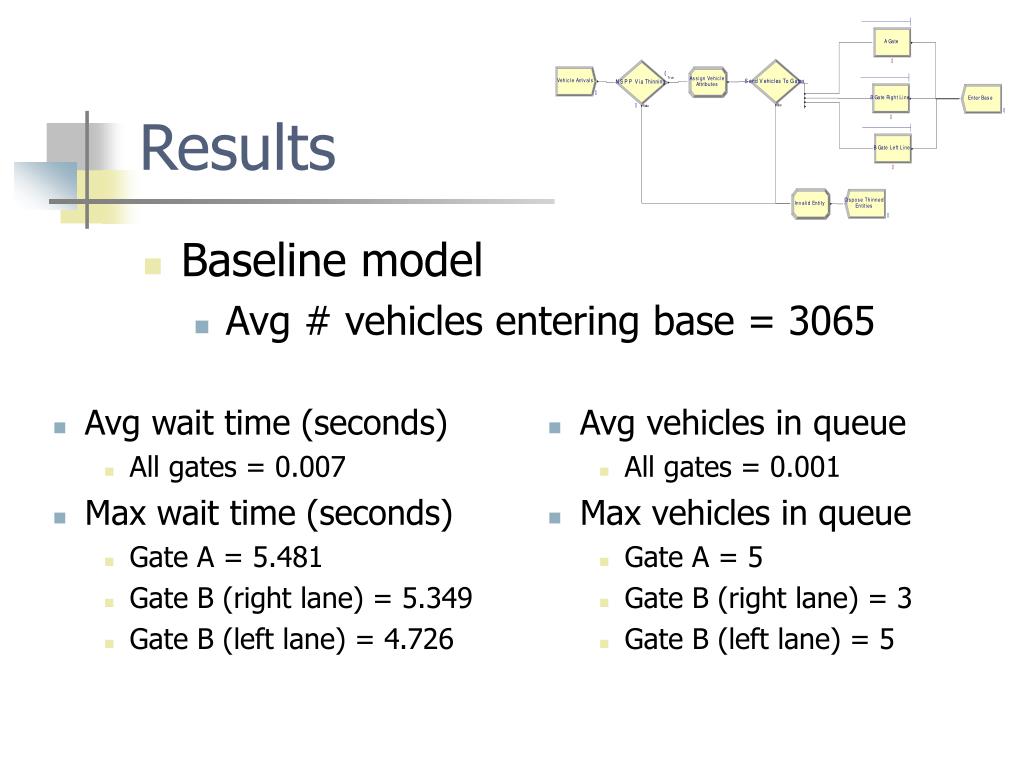

  16. Results • Baseline model • Avg # vehicles entering base = 3065 • Avg wait time (seconds) • All gates = 0.007 • Max wait time (seconds) • Gate A = 5.481 • Gate B (right lane) = 5.349 • Gate B (left lane) = 4.726 • Avg vehicles in queue • All gates = 0.001 • Max vehicles in queue • Gate A = 5 • Gate B (right lane) = 3 • Gate B (left lane) = 5

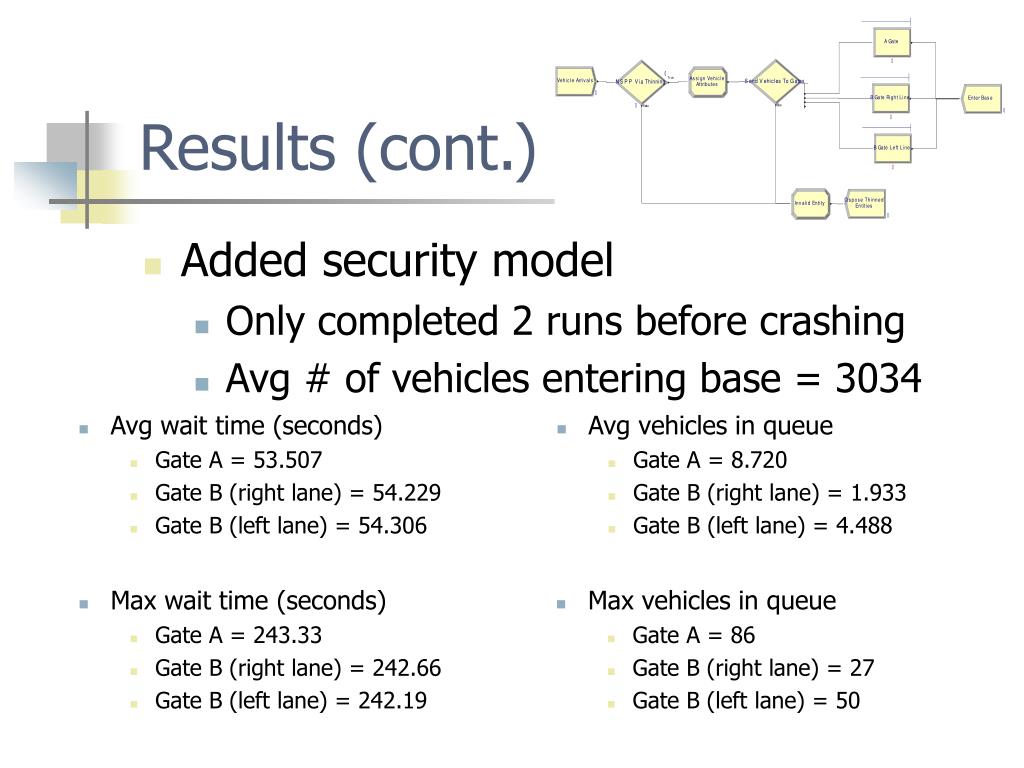

  17. Results (cont.) • Added security model • Only completed 2 runs before crashing • Avg # of vehicles entering base = 3034 • Avg wait time (seconds) • Gate A = 53.507 • Gate B (right lane) = 54.229 • Gate B (left lane) = 54.306 • Avg vehicles in queue • Gate A = 8.720 • Gate B (right lane) = 1.933 • Gate B (left lane) = 4.488 • Max wait time (seconds) • Gate A = 243.33 • Gate B (right lane) = 242.66 • Gate B (left lane) = 242.19 • Max vehicles in queue • Gate A = 86 • Gate B (right lane) = 27 • Gate B (left lane) = 50

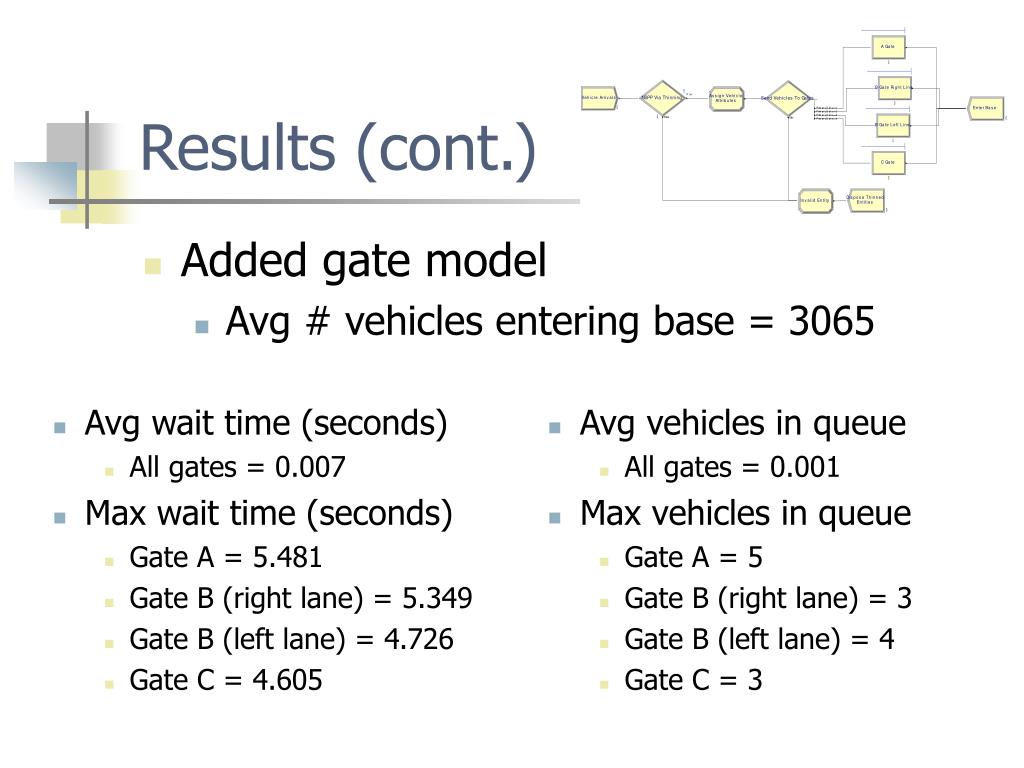

  18. Results (cont.) • Added gate model • Avg # vehicles entering base = 3065 • Avg wait time (seconds) • All gates = 0.007 • Max wait time (seconds) • Gate A = 5.481 • Gate B (right lane) = 5.349 • Gate B (left lane) = 4.726 • Gate C = 4.605 • Avg vehicles in queue • All gates = 0.001 • Max vehicles in queue • Gate A = 5 • Gate B (right lane) = 3 • Gate B (left lane) = 4 • Gate C = 3

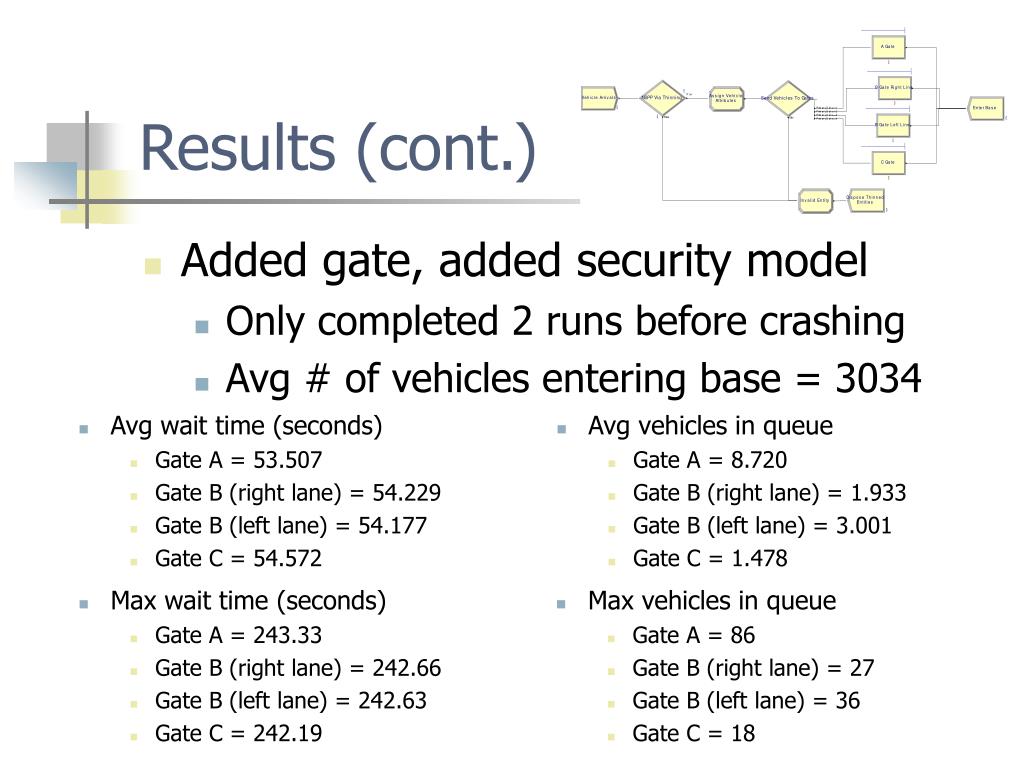

  19. Results (cont.) • Added gate, added security model • Only completed 2 runs before crashing • Avg # of vehicles entering base = 3034 • Avg wait time (seconds) • Gate A = 53.507 • Gate B (right lane) = 54.229 • Gate B (left lane) = 54.177 • Gate C = 54.572 • Avg vehicles in queue • Gate A = 8.720 • Gate B (right lane) = 1.933 • Gate B (left lane) = 3.001 • Gate C = 1.478 • Max wait time (seconds) • Gate A = 243.33 • Gate B (right lane) = 242.66 • Gate B (left lane) = 242.63 • Gate C = 242.19 • Max vehicles in queue • Gate A = 86 • Gate B (right lane) = 27 • Gate B (left lane) = 36 • Gate C = 18

  20. Hypothesis of Wait Time • H0: μbaseline = 3 seconds • Ha: μbaseline < 3 seconds • H0: μadded security = 60 seconds • Ha: μadded security < 60 seconds • H0: (μadded security – μbaseline) = 0 seconds • Ha: (μadded security – μbaseline) > 0 seconds • H0: (μadded security w/gate – μbaseline) = 0 seconds • Ha: (μadded security w/gate – μbaseline) < 0 seconds

  21. X – Z = X – μ σ / n ^ σ ^ Example CalculationAnalysis of Wait Time • Added security model – Gate A • = 53.5 seconds • = 58.43 seconds Fail to Reject H0 Z = 53.5 – 60 58.43/1.4142 -zα> Z to Reject H0 -zα = -6.314 -6.314< -0.157 Z = -0.157

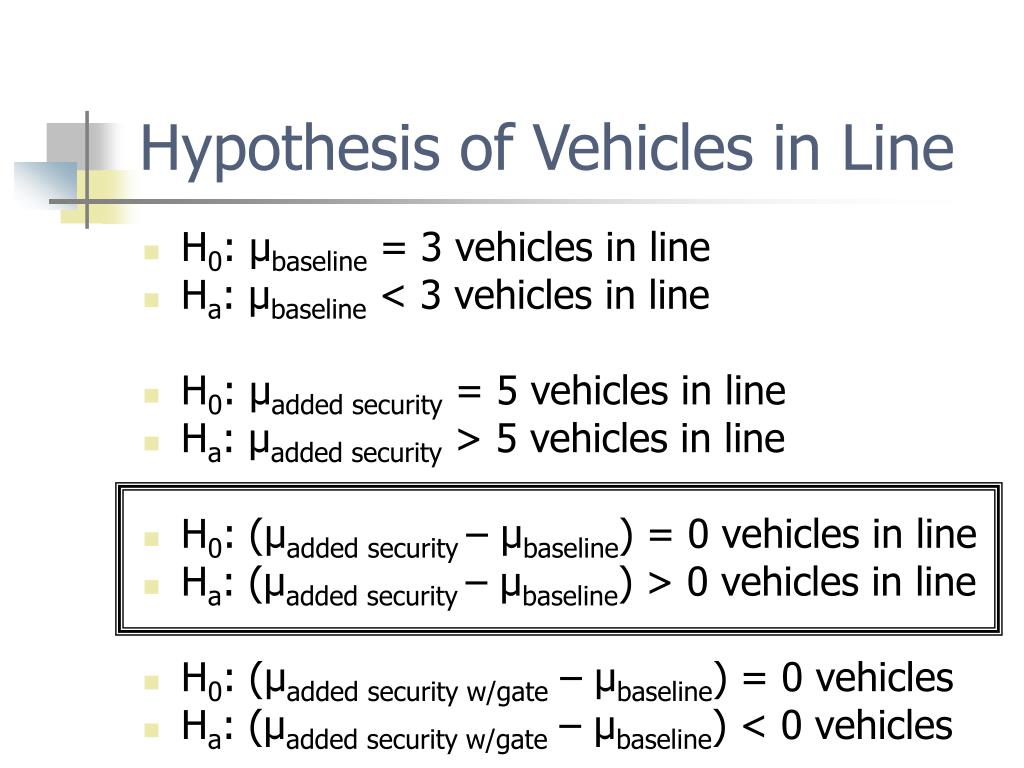

  22. Hypothesis of Vehicles in Line • H0: μbaseline = 3 vehicles in line • Ha: μbaseline < 3 vehicles in line • H0: μadded security = 5 vehicles in line • Ha: μadded security > 5 vehicles in line • H0: (μadded security – μbaseline) = 0 vehicles in line • Ha: (μadded security – μbaseline) > 0 vehicles in line • H0: (μadded security w/gate – μbaseline) = 0 vehicles • Ha: (μadded security w/gate – μbaseline) < 0 vehicles

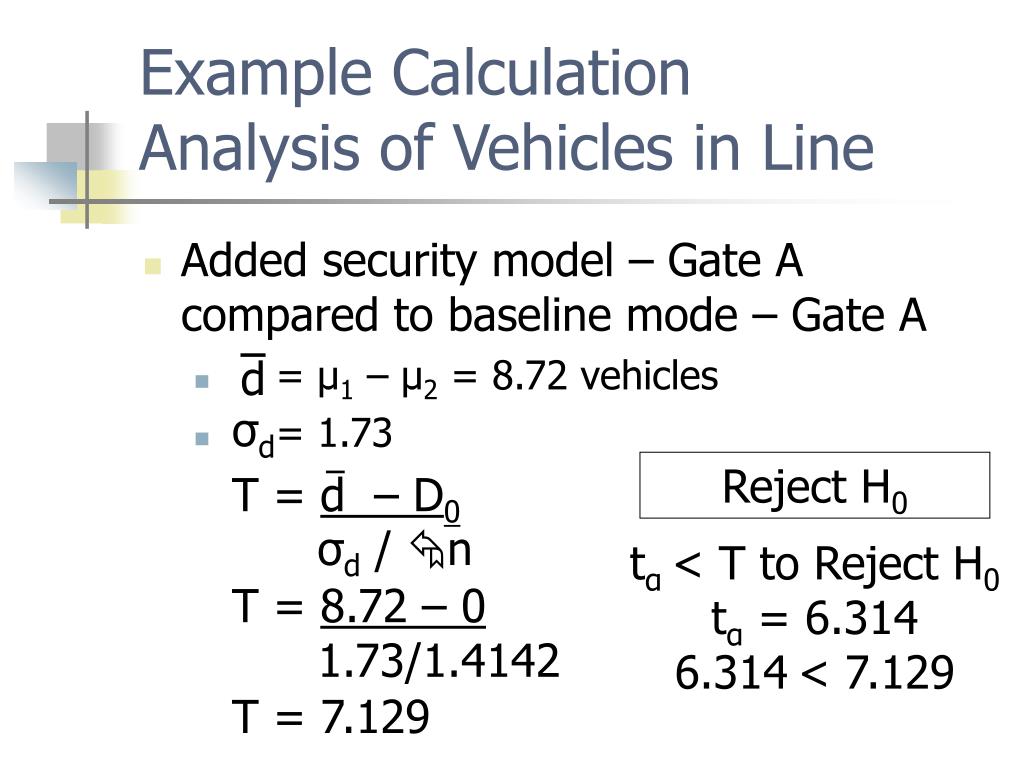

  23. d – T = d – D0 σd / n Example CalculationAnalysis of Vehicles in Line • Added security model – Gate A compared to baseline mode – Gate A • = μ1 – μ2 = 8.72 vehicles • = 1.73 σd Reject H0 tα< T to Reject H0 tα = 6.314 6.314< 7.129 T = 8.72 – 0 1.73/1.4142 T = 7.129

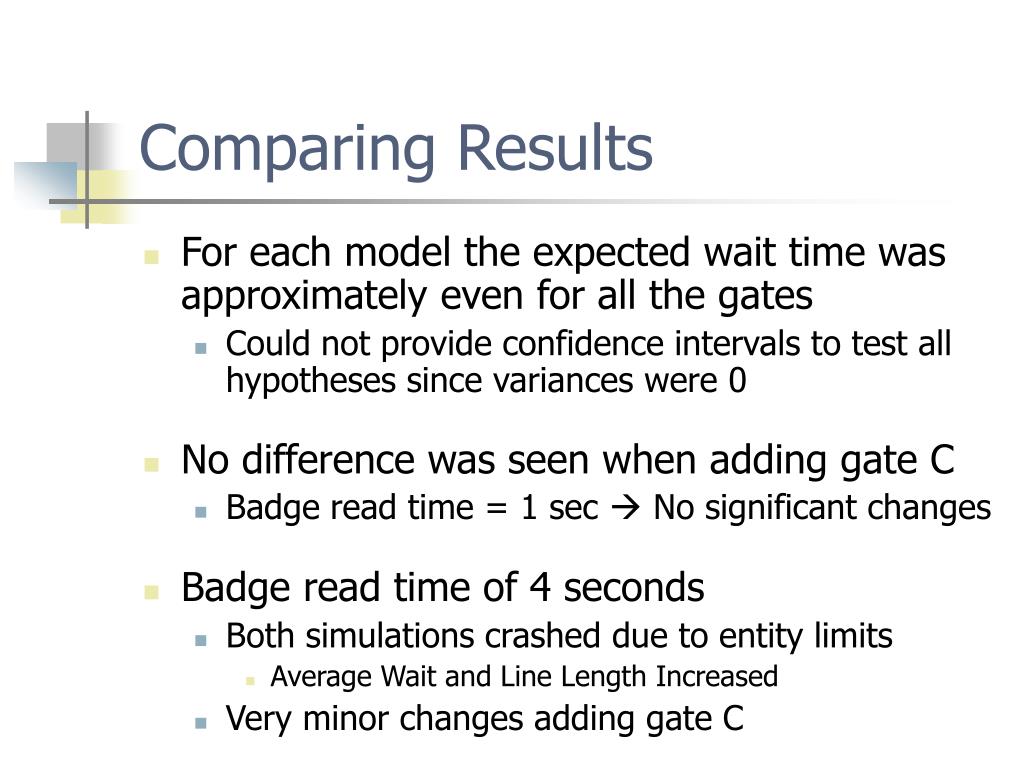

  24. Comparing Results • For each model the expected wait time was approximately even for all the gates • Could not provide confidence intervals to test all hypotheses since variances were 0 • No difference was seen when adding gate C • Badge read time = 1 sec  No significant changes • Badge read time of 4 seconds • Both simulations crashed due to entity limits • Average Wait and Line Length Increased • Very minor changes adding gate C

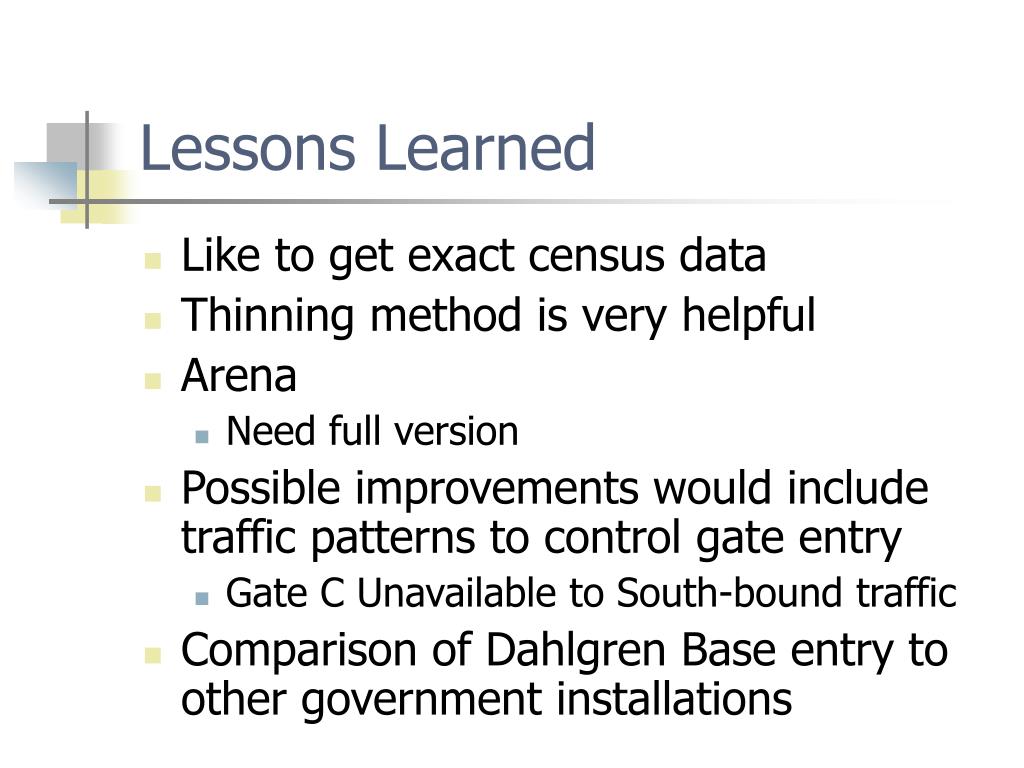

  25. Lessons Learned • Like to get exact census data • Thinning method is very helpful • Arena • Need full version • Possible improvements would include traffic patterns to control gate entry • Gate C Unavailable to South-bound traffic • Comparison of Dahlgren Base entry to other government installations
