Chemical Engineering Thermodynamics Zhengzhou University. 专用术语中英文对照. Chapter 9 Refrigeration and Liquefaction 冷冻和液化 Refrigeration 制冷,冷冻 Freezing water 冷冻水,(低于环境温度)

Download Presentation

专用术语中英文对照

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


4993276

Chemical Engineering Thermodynamics Zhengzhou University

专用术语中英文对照

Chapter 9

Refrigeration and Liquefaction 冷冻和液化

Refrigeration 制冷,冷冻

Freezing water 冷冻水,(低于环境温度)

(-30 ~ 20℃)用于使温度下降至低于环境温度

Cooling water 冷却水,(高于环境温度)

用于冷却热介质


4993276

Chemical Engineering Thermodynamics Zhengzhou University

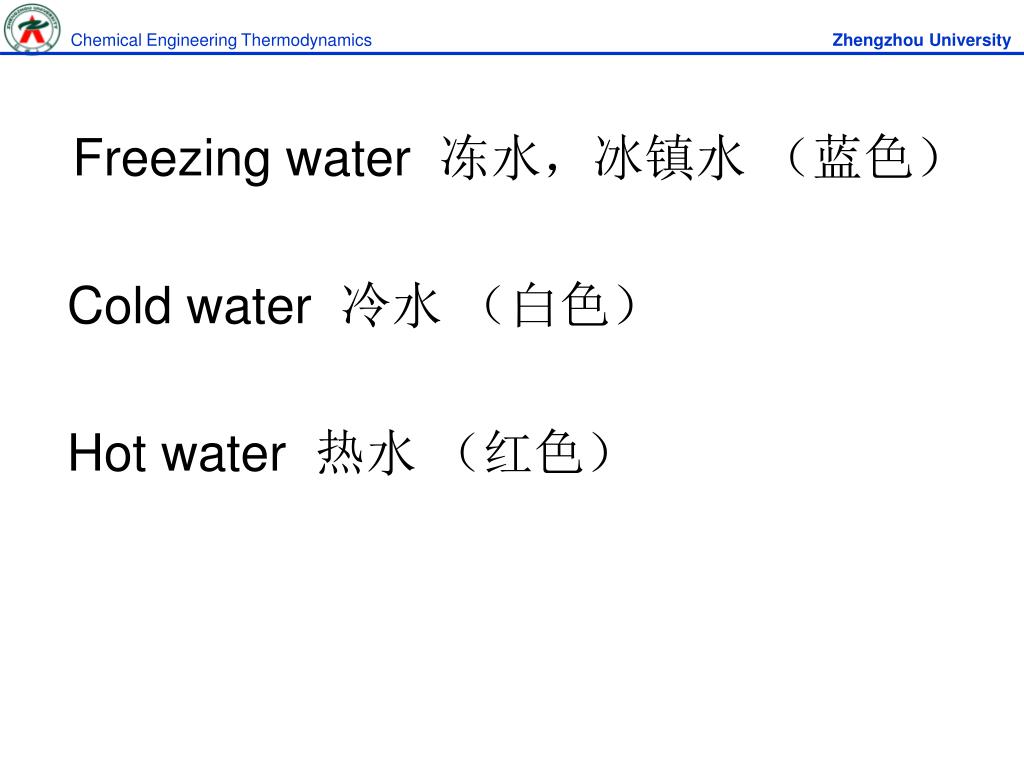

Freezing water 冻水,冰镇水 (蓝色)

Cold water 冷水 (白色)

Hot water 热水 (红色)


4993276

Chemical Engineering Thermodynamics Zhengzhou University

Freezing

冰点,结冰,摄氏零度

The temperature remained below freezing all day.

严寒的(非常冷, 比Chilly更冷)

I am freezing

冷冻(水)(温度低于环境温度)

Freezing water is used to decrease temperature which is below the surrounding temperature.


4993276

Chemical Engineering Thermodynamics Zhengzhou University

Dehydration 脱水,干燥

Treatment 医疗处理,治疗

A standard of comparison

一个比较的标准

Throttle Valve 节流阀


4993276

Chemical Engineering Thermodynamics Zhengzhou University

Liquefaction Processes 液化过程

Linde liquefaction process 林德液化过程

Claude liquefaction process

克劳德液化过程


4993276

Chemical Engineering Thermodynamics Zhengzhou University

Chapter 9

Refrigeration and Liquefaction

By Dr. Zhenxi Jiang

School of Chemical Engineering


Chapter 9 refrigeration and liquefaction

Chemical Engineering Thermodynamics Zhengzhou University

Chapter 9 Refrigeration and Liquefaction

Refrigeration is best known for its use in the air conditioning of buildings and in the treatment, transportation, and preservation of food and beverages. It also finds large-scale industrial application, for example, in the manufacture of ice and the dehydration of gases. Application in the petroleum industry include lubricating-oil purification, low temperature reactions, and separation of volatile hydrocarbons. A closely related process is gas liquefaction, which has important commercial applications.


4993276

Chemical Engineering Thermodynamics Zhengzhou University

Thepurpose of this chapter is topresent a thermodynamic analysis of refrigeration and liquefaction processes.

The word refrigeration implies the maintenance of a temperature below that of the surroundings.


4993276

Chemical Engineering Thermodynamics Zhengzhou University

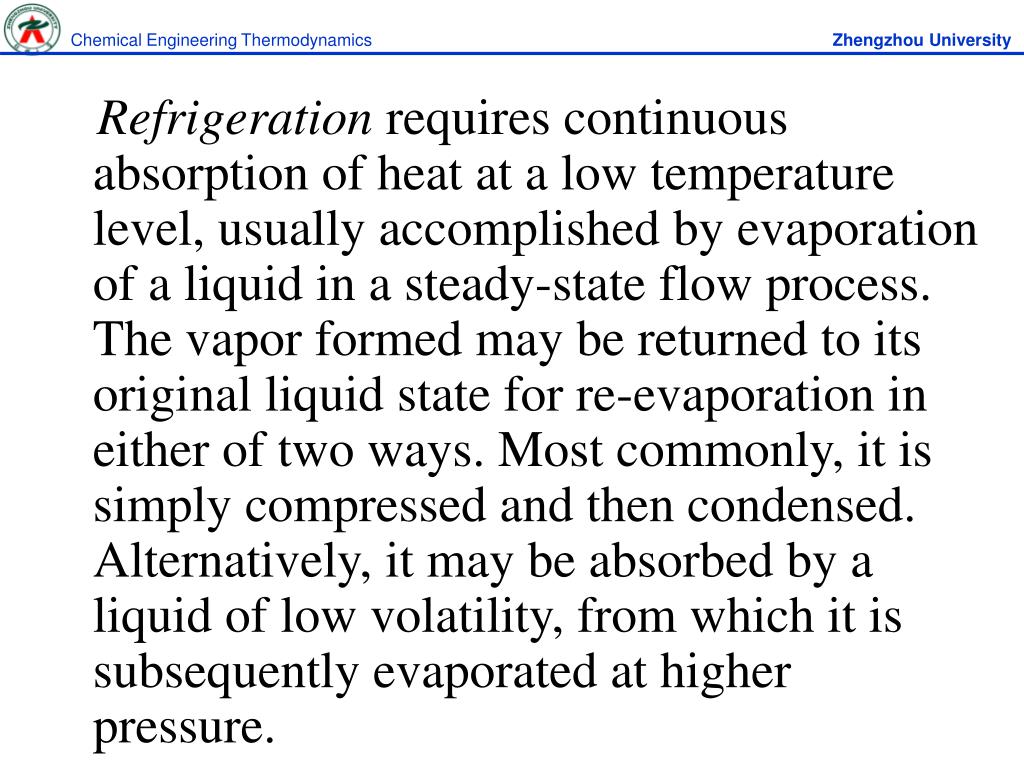

Refrigeration requires continuous absorption of heat at a low temperature level, usually accomplished by evaporation of a liquid in a steady-state flow process. The vapor formed may be returned to its original liquid state for re-evaporation in either of two ways. Most commonly, it is simply compressed and then condensed. Alternatively, it may be absorbed by a liquid of low volatility, from which it is subsequently evaporated at higher pressure.


4993276

Chemical Engineering Thermodynamics Zhengzhou University

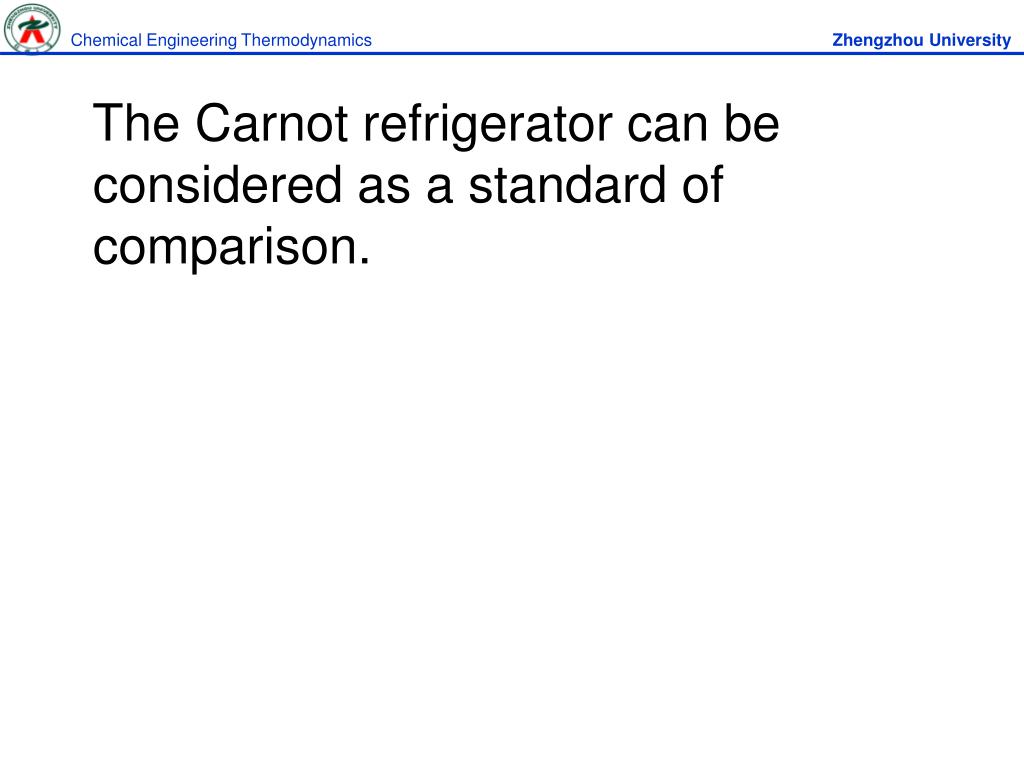

The Carnot refrigerator can be considered as a standard of comparison.


9 1 the carnot refrigerator

Chemical Engineering Thermodynamics Zhengzhou University

9.1 The Carnot Refrigerator

In a continuous refrigeration process, the heat absorbed at a low temperature is continuously rejected to the surroundings at a higher temperature. Basically, a refrigeration cycle is a reversed heat-engine cycle.


9 1 the carnot refrigerator1

Chemical Engineering Thermodynamics Zhengzhou University

9.1 The Carnot Refrigerator

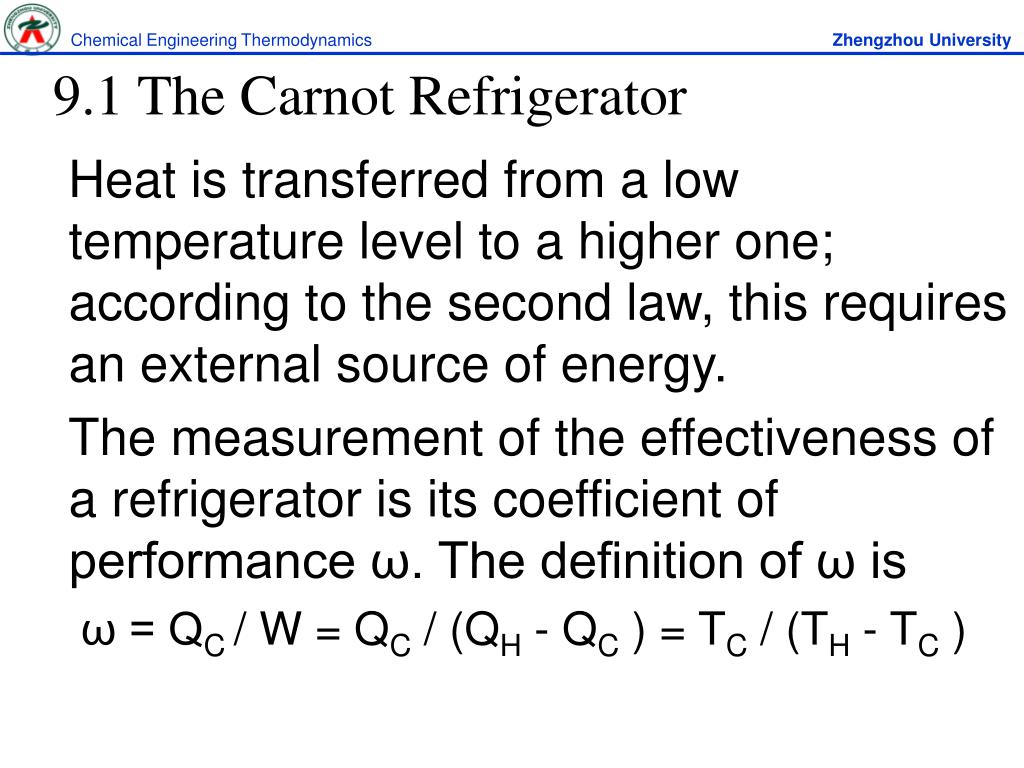

Heat is transferred from a low temperature level to a higher one; according to the second law, this requires an external source of energy.

The measurement of the effectiveness of a refrigerator is its coefficient of performance ω. The definition of ω is

ω = QC / W = QC / (QH - QC ) = TC / (TH - TC )


Refrigeration cycle

Chemical Engineering Thermodynamics Zhengzhou University

Refrigeration cycle

Heat Engine cycle


9 2 the vapor compression cycle

Chemical Engineering Thermodynamics Zhengzhou University

9.2 THE VAPOR-COMPRESSION CYCLE

Figure 9.1


9 2 the vapor compression cycle1

Chemical Engineering Thermodynamics Zhengzhou University

9.2 THE VAPOR-COMPRESSION CYCLE

Figure 9.1


4993276

Chemical Engineering Thermodynamics Zhengzhou University

9.2 THE VAPOR-COMPRESSION CYCLE

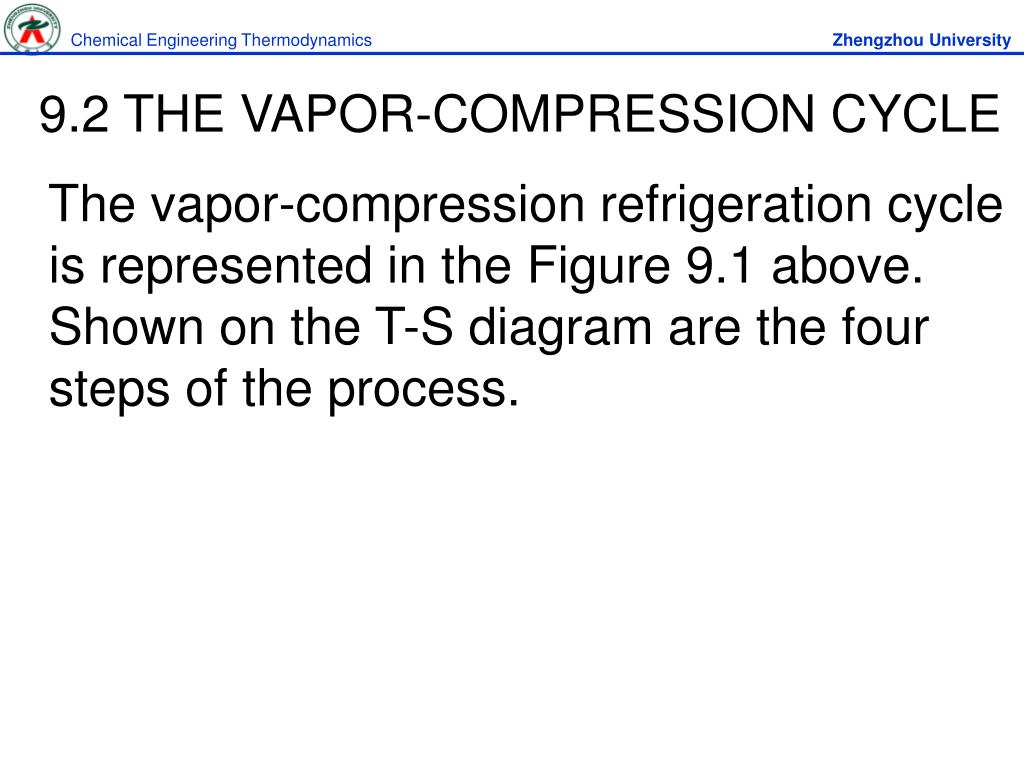

The vapor-compression refrigeration cycle is represented in the Figure 9.1 above. Shown on the T-S diagram are the four steps of the process.


4993276

Chemical Engineering Thermodynamics Zhengzhou University

9.2 THE VAPOR-COMPRESSION CYCLE

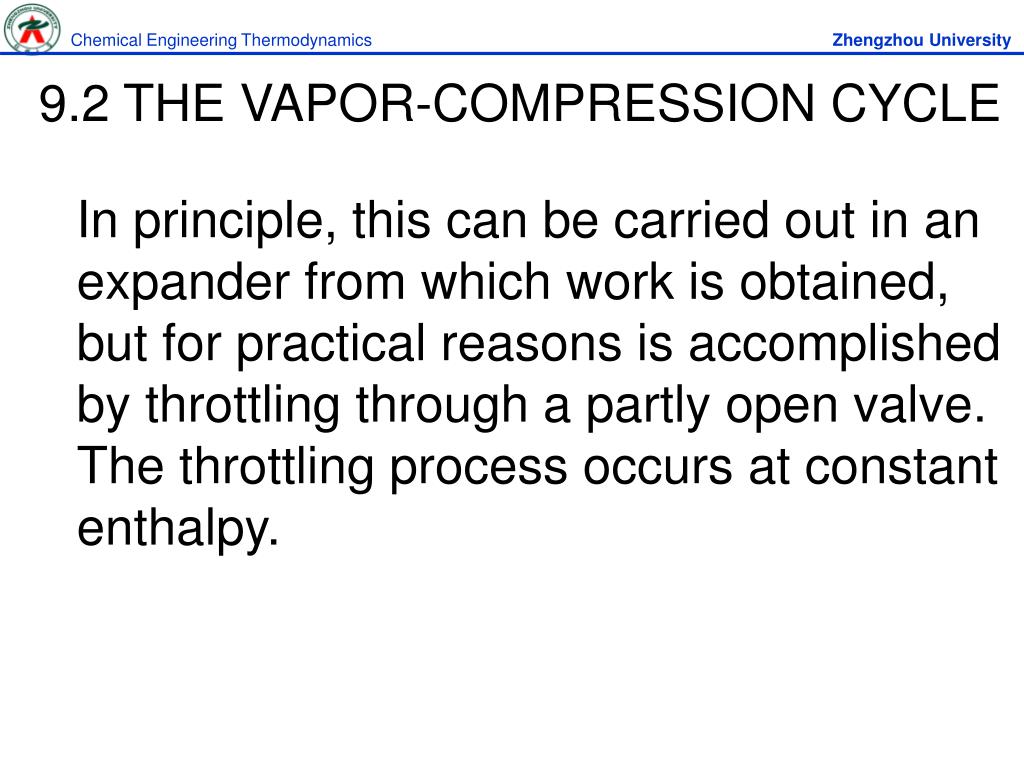

In principle, this can be carried out in an expander from which work is obtained, but for practical reasons is accomplished by throttling through a partly open valve. The throttling process occurs at constant enthalpy.


4993276

Chemical Engineering Thermodynamics Zhengzhou University

9.2 THE VAPOR-COMPRESSION CYCLE

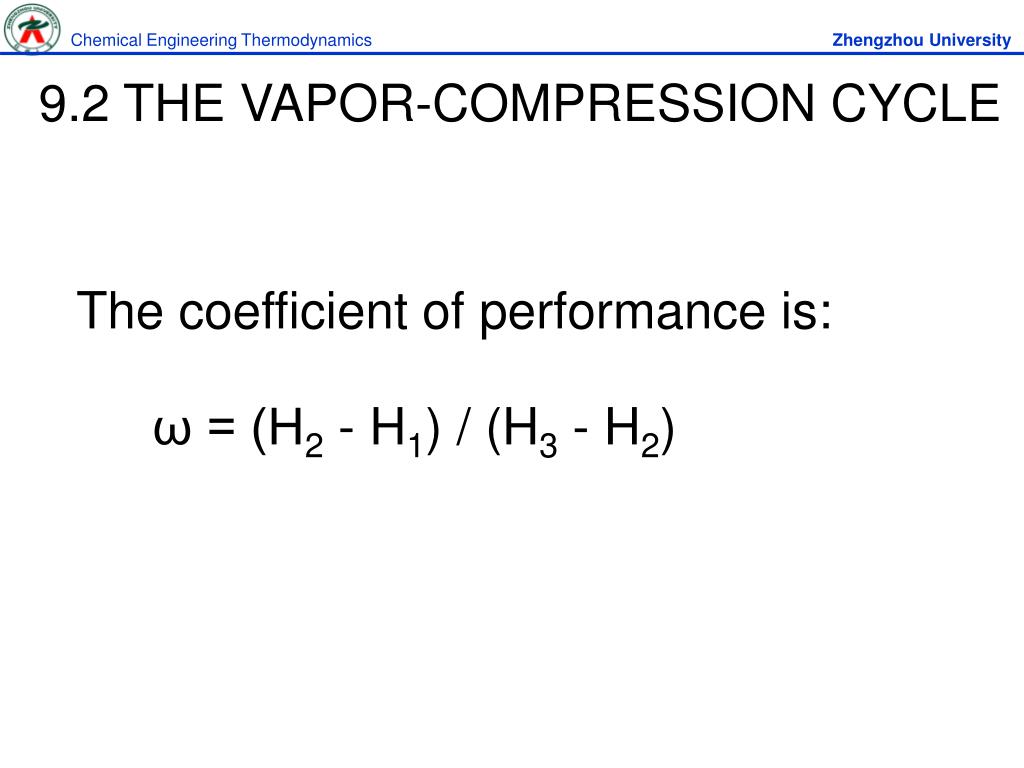

The coefficient of performance is:ω = (H2 - H1) / (H3 - H2)


4993276

Chemical Engineering Thermodynamics Zhengzhou University

9.2 THE VAPOR-COMPRESSION CYCLE

For given values of TC and TH, the highest possible value of ω is attained for Carnot-cycle refrigeration. The lower values for the vapor-compression cycle result from irreversible expansion in a throttle valve and irreversible compression.


9 3 the choice of refrigerant

Chemical Engineering Thermodynamics Zhengzhou University

9.3 THE CHOICE OF REFRIGERANT

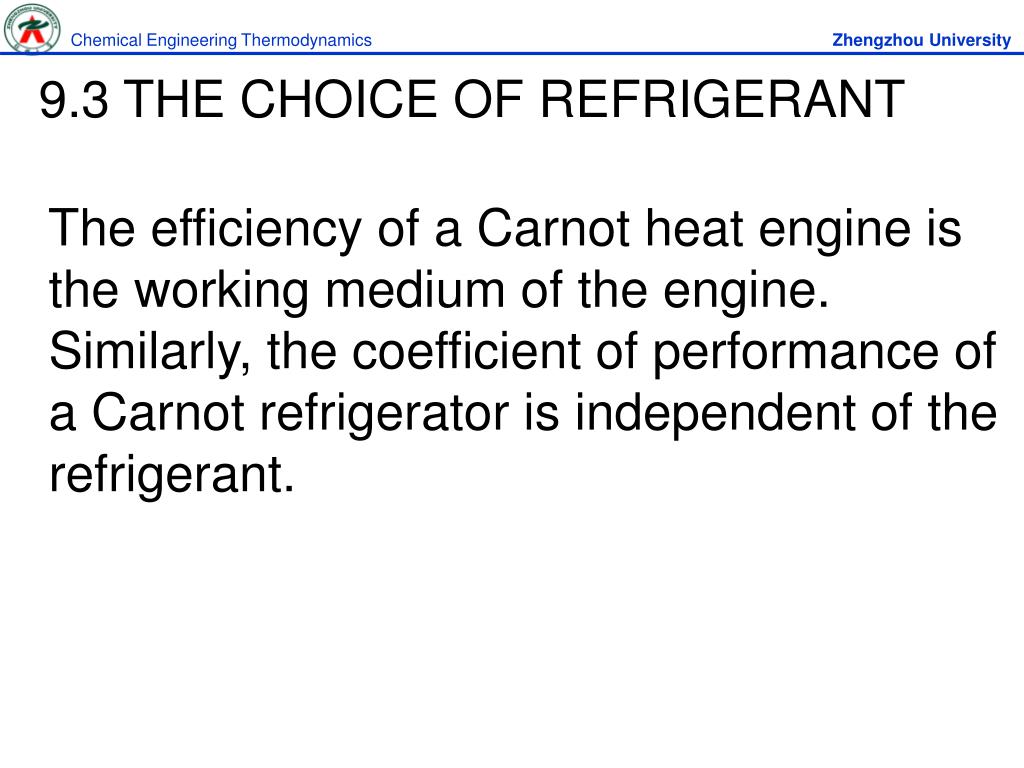

The efficiency of a Carnot heat engine is the working medium of the engine. Similarly, the coefficient of performance of a Carnot refrigerator is independent of the refrigerant.


9 3 the choice of refrigerant1

Chemical Engineering Thermodynamics Zhengzhou University

9.3 THE CHOICE OF REFRIGERANT

Nevertheless, such characteristics as its toxicity, flammability, cost, corrosion properties, and vapor pressure in relation to temperature are of greater importance in the choice of refrigerant.


9 3 the choice of refrigerant2

Chemical Engineering Thermodynamics Zhengzhou University

9.3 THE CHOICE OF REFRIGERANT

So that air cannot leak into the refrigeration system, the vapor pressure of the refrigerant at the evaporator temperature should be greater than atmospheric pressure.


9 3 the choice of refrigerant3

Chemical Engineering Thermodynamics Zhengzhou University

9.3 THE CHOICE OF REFRIGERANT

On the other hand, the vapor pressure at the condenser temperature should not be unduly high, because of the initial cost and operating expense of high-pressure equipment.


9 3 the choice of refrigerant4

Chemical Engineering Thermodynamics Zhengzhou University

9.3 THE CHOICE OF REFRIGERANT

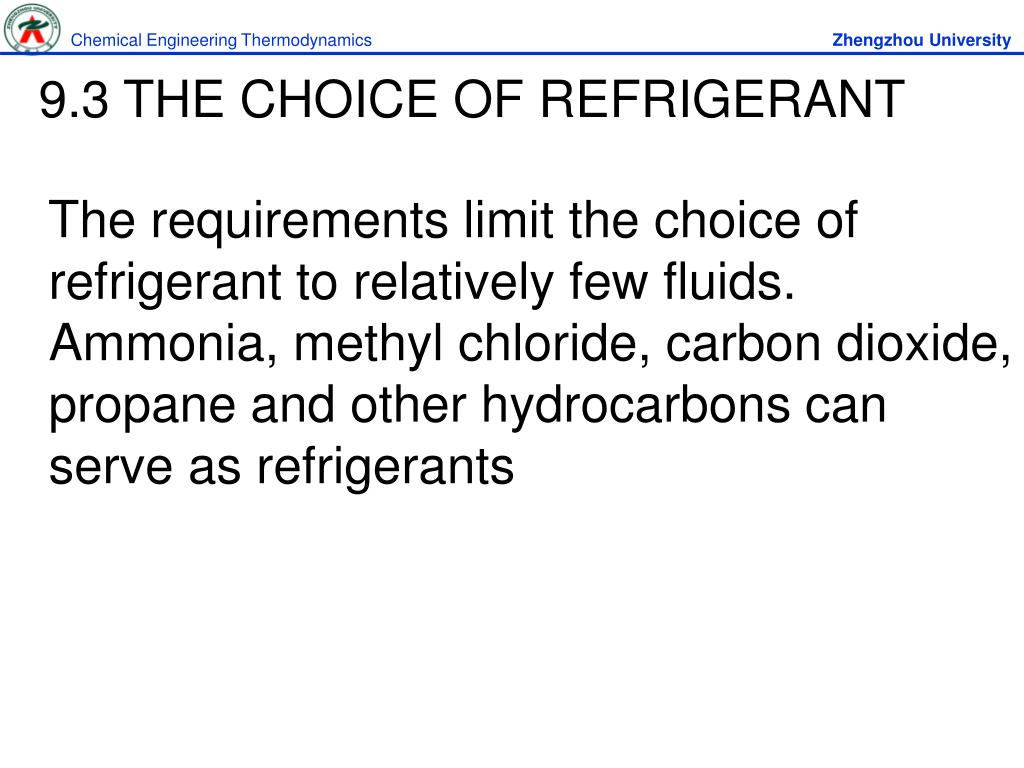

The requirements limit the choice of refrigerant to relatively few fluids. Ammonia, methyl chloride, carbon dioxide, propane and other hydrocarbons can serve as refrigerants


9 4 absorption refrigeration

Chemical Engineering Thermodynamics Zhengzhou University

9.4 ABSORPTION REFRIGERATION

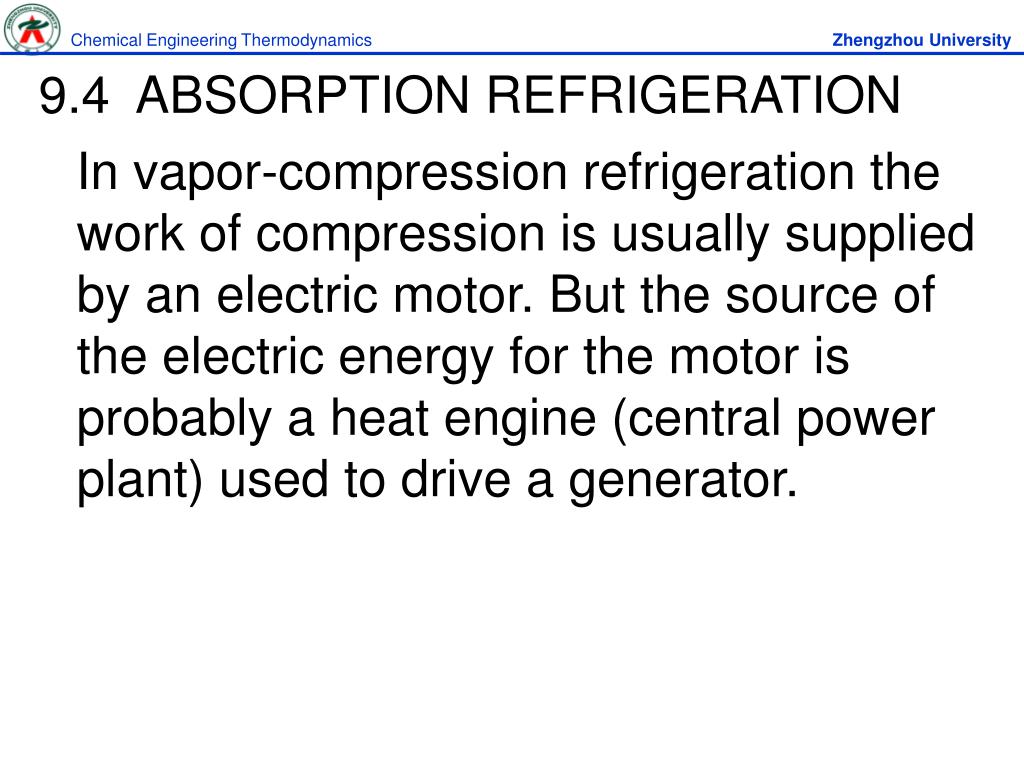

In vapor-compression refrigeration the work of compression is usually supplied by an electric motor. But the source of the electric energy for the motor is probably a heat engine (central power plant) used to drive a generator.


9 4 absorption refrigeration1

Chemical Engineering Thermodynamics Zhengzhou University

9.4 ABSORPTION REFRIGERATION

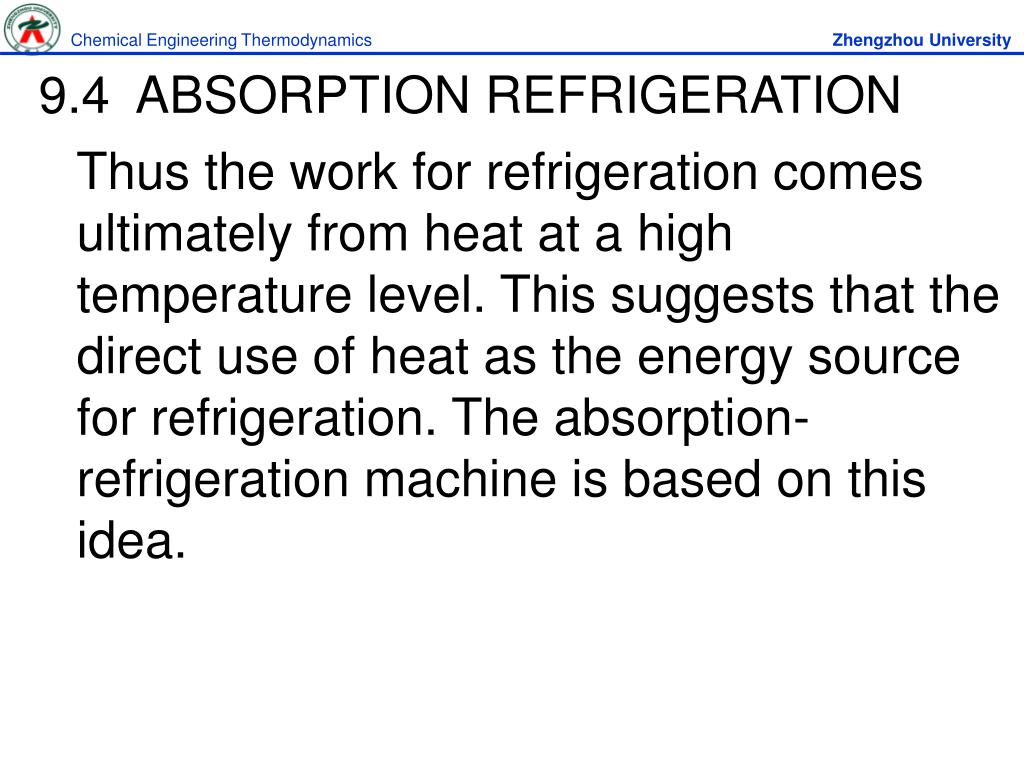

Thus the work for refrigeration comes ultimately from heat at a high temperature level. This suggests that the direct use of heat as the energy source for refrigeration. The absorption-refrigeration machine is based on this idea.


9 4 absorption refrigeration2

Chemical Engineering Thermodynamics Zhengzhou University

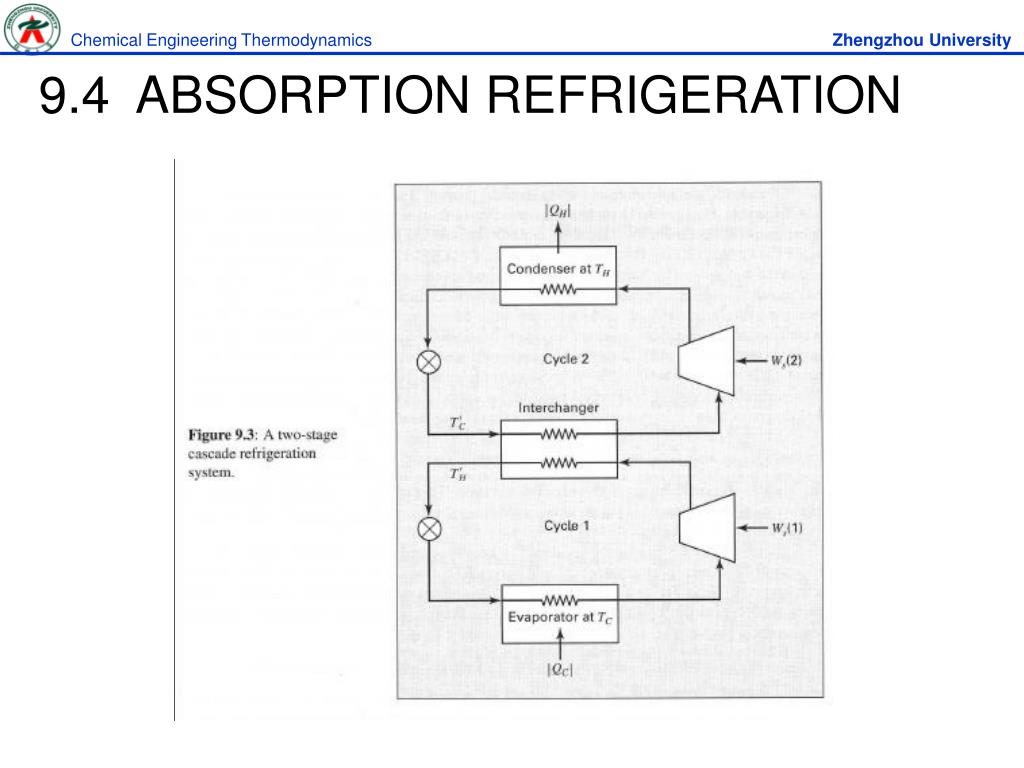

9.4 ABSORPTION REFRIGERATION


9 4 absorption refrigeration3

Chemical Engineering Thermodynamics Zhengzhou University

9.4 ABSORPTION REFRIGERATION


9 5 the heat pump

Chemical Engineering Thermodynamics Zhengzhou University

9.5 THE HEAT PUMP


9 5 the heat pump1

Chemical Engineering Thermodynamics Zhengzhou University

9.5 THE HEAT PUMP

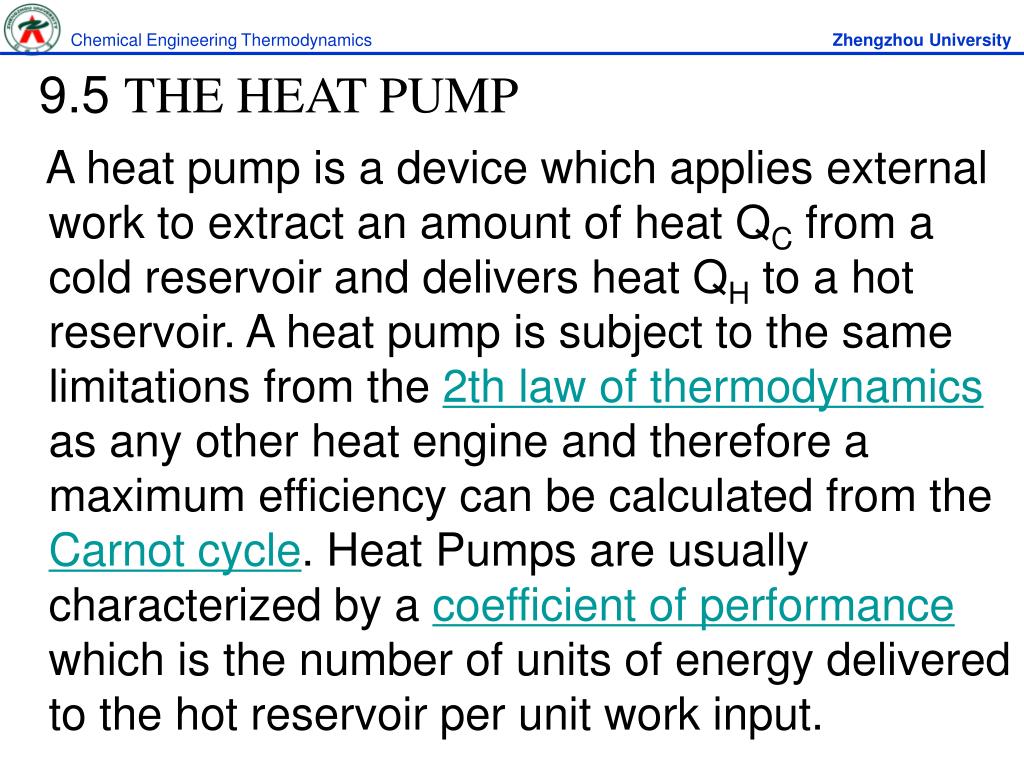

A heat pump is a device which applies external work to extract an amount of heat QC from a cold reservoir and delivers heat QH to a hot reservoir. A heat pump is subject to the same limitations from the 2th law of thermodynamics as any other heat engine and therefore a maximum efficiency can be calculated from the Carnot cycle. Heat Pumps are usually characterized by a coefficient of performance which is the number of units of energy delivered to the hot reservoir per unit work input.


One equation for three cycles

Chemical Engineering Thermodynamics Zhengzhou University

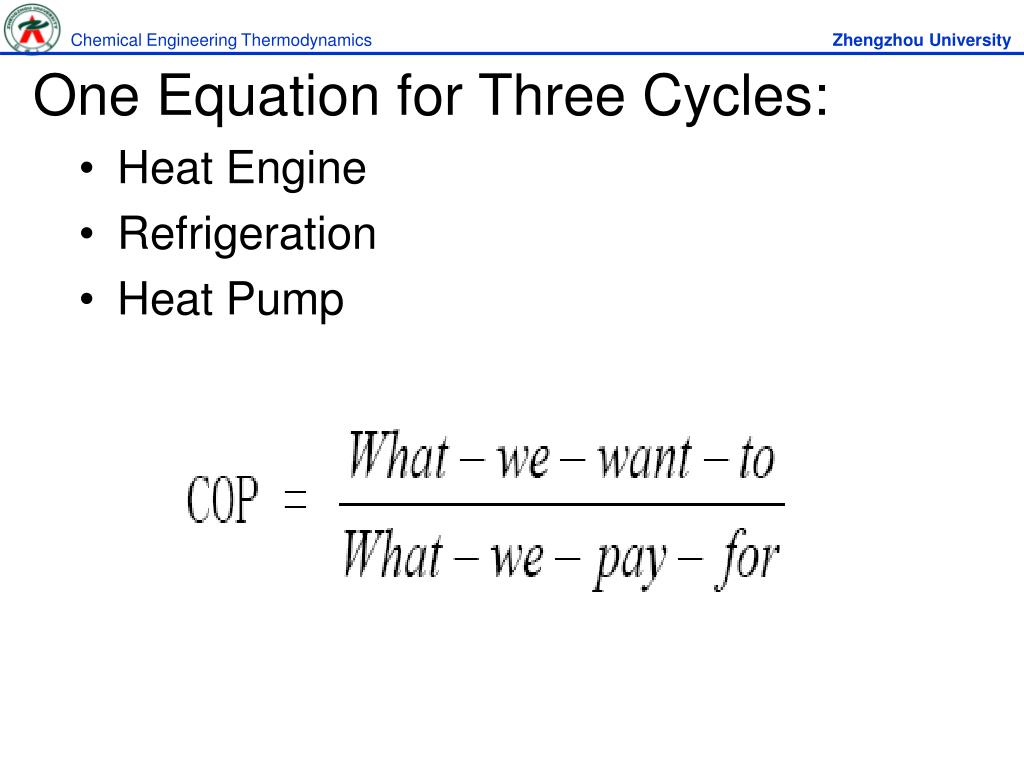

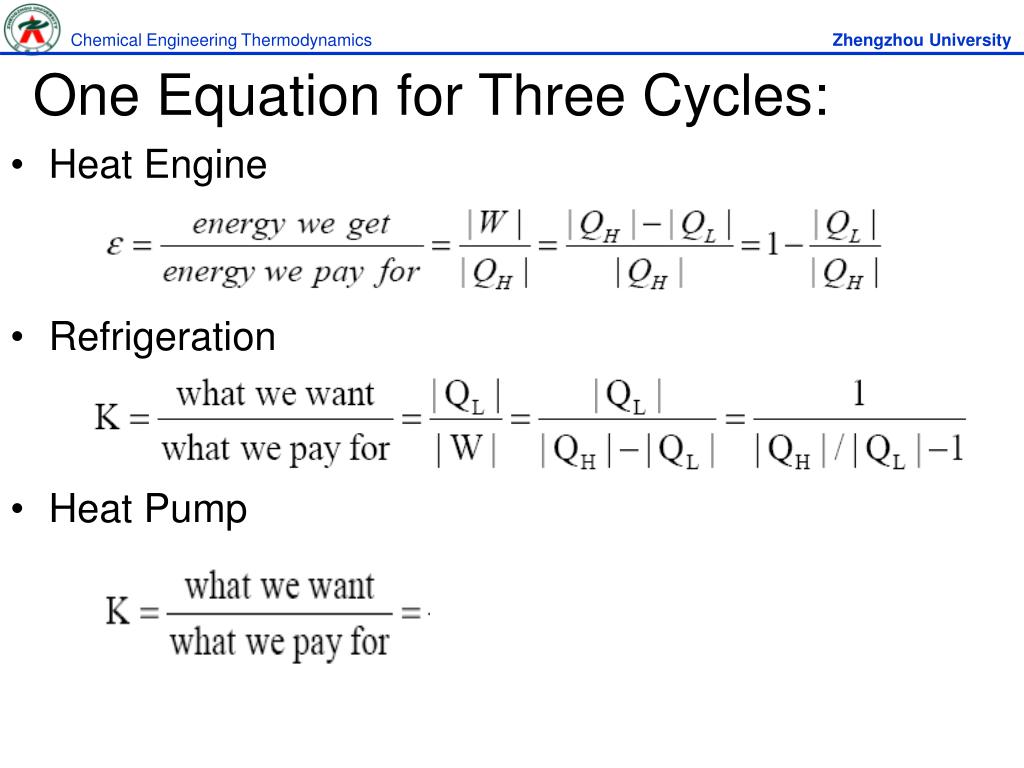

One Equation for Three Cycles:

  • Heat Engine

  • Refrigeration

  • Heat Pump


One equation for three cycles1

Chemical Engineering Thermodynamics Zhengzhou University

One Equation for Three Cycles:

  • Heat Engine

  • Refrigeration

  • Heat Pump


9 6 liquefaction processes

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES

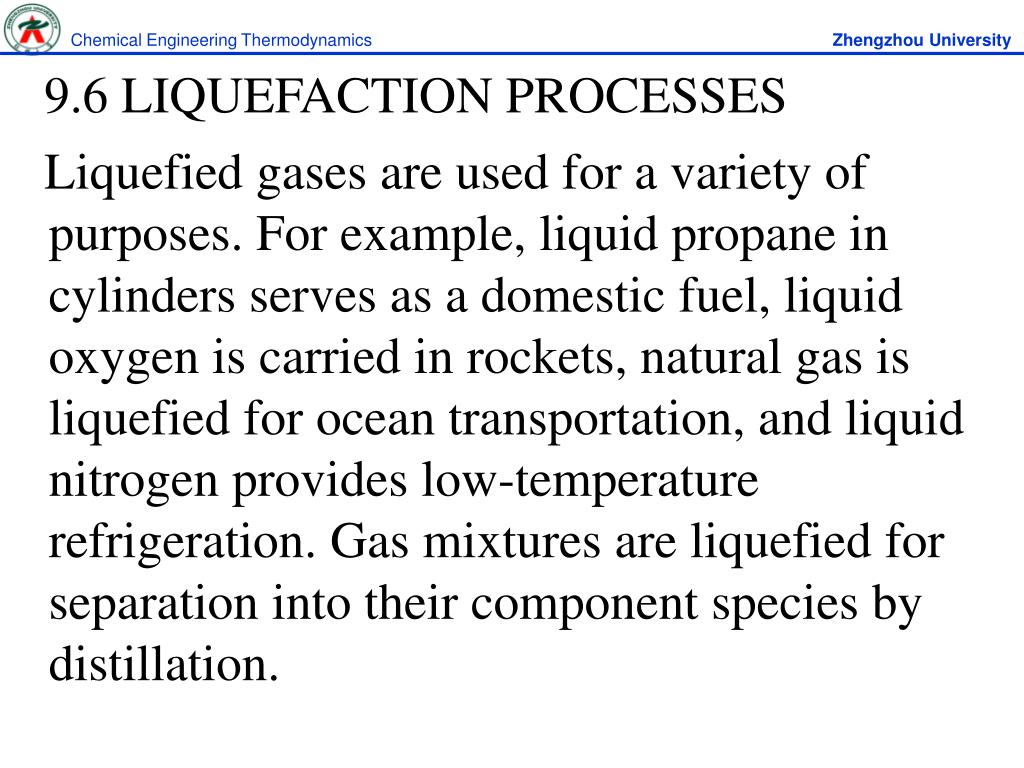

Liquefied gases are used for a variety of purposes. For example, liquid propane in cylinders serves as a domestic fuel, liquid oxygen is carried in rockets, natural gas is liquefied for ocean transportation, and liquid nitrogen provides low-temperature refrigeration. Gas mixtures are liquefied for separation into their component species by distillation.


9 6 liquefaction processes1

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES

liquefaction results when a gas is cooled to a temperature in the two-phase region. This may be accomplished in several ways:

1. by heat exchange at constant pressure.

2. by an expansion process from which work is obtained.

3. by a throttling process.


9 6 liquefaction processes2

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES

The first method requires a heat sink at a temperature lower than that to which the gas is cooled, and is most commonly used to pre-cool a gas prior to its liquefaction by the other two methods. An external refrigerator is required for a gas temperature below that of the surroundings.


9 6 liquefaction processes3

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES


9 6 liquefaction processes4

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES

The three methods are illustrated in Figure 9.5. The constant-pressure process (1) approaches the two-phase region (and liquefaction) most closely for a given drop in temperature. The throttling process (3) does not result in liquefaction unless the initial state is at a low enough temperature and a high enough pressure for the constant-enthalpy process to cut into the two-phase region.


9 6 liquefaction processes5

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES

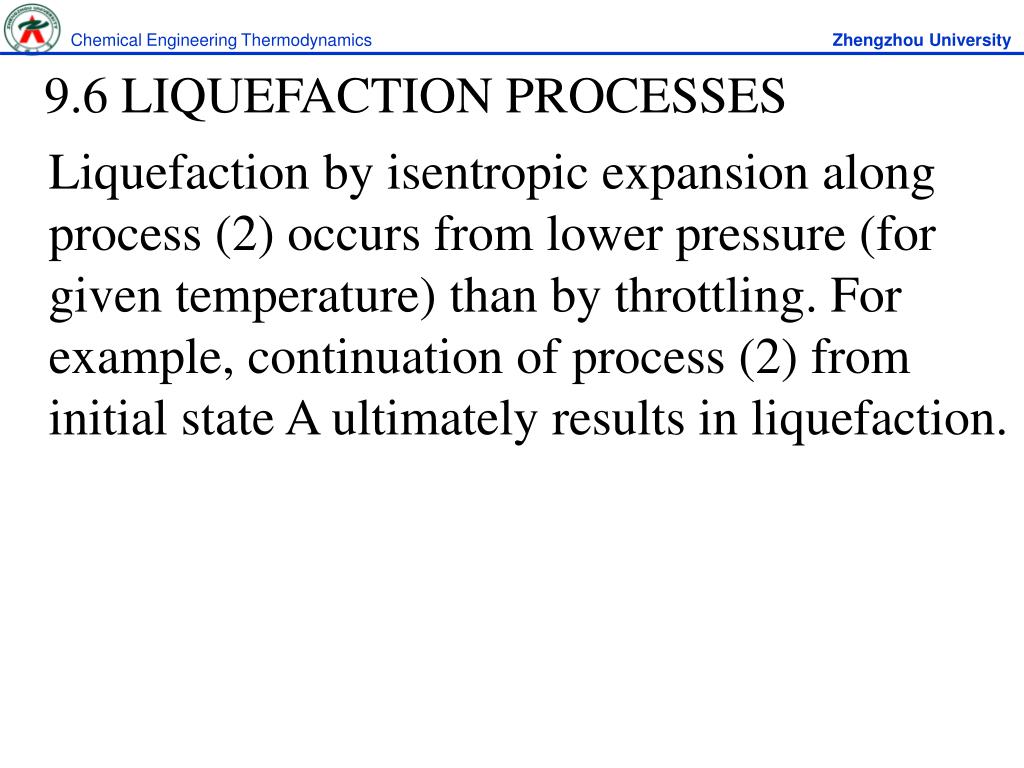

Liquefaction by isentropic expansion along process (2) occurs from lower pressure (for given temperature) than by throttling. For example, continuation of process (2) from initial state A ultimately results in liquefaction.


9 6 liquefaction processes6

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES

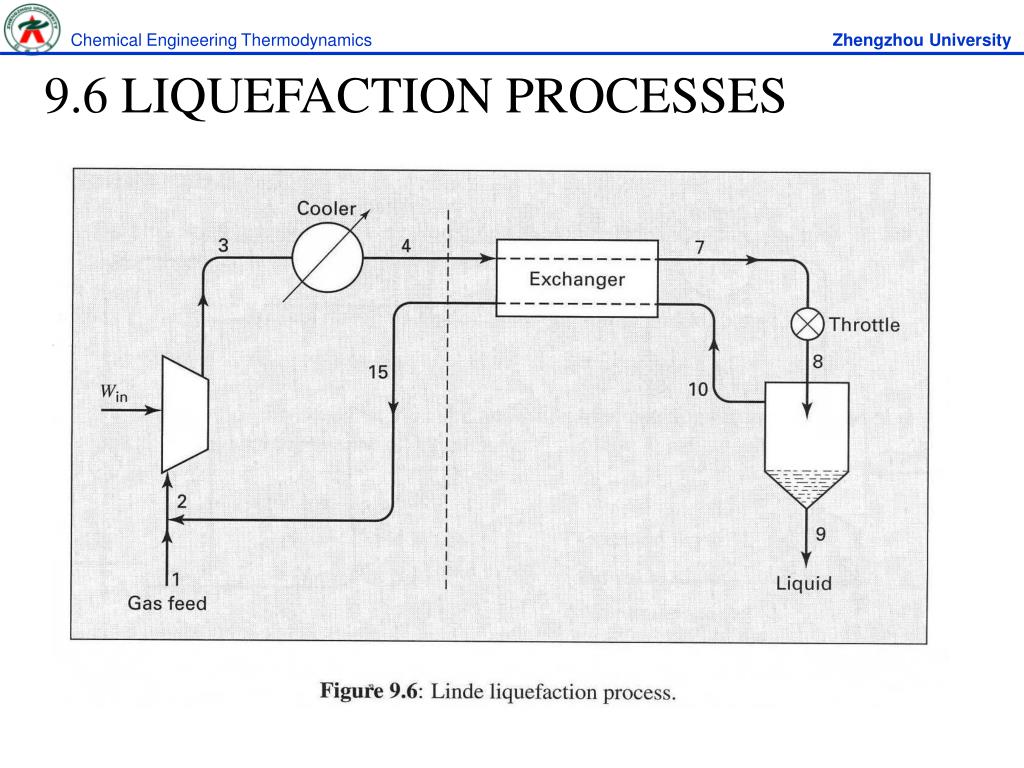

The Linde liquefaction process, which depends solely on throttling expansion, is shown in Figure 9.6. After compression, the gas is pre-cooled to ambient temperature. It may be even further cooled by refrigeration. The lower the temperature of the gas entering the throttle valve, the greater the fraction of gas that is liquefied.


9 6 liquefaction processes7

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES


9 6 liquefaction processes8

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES

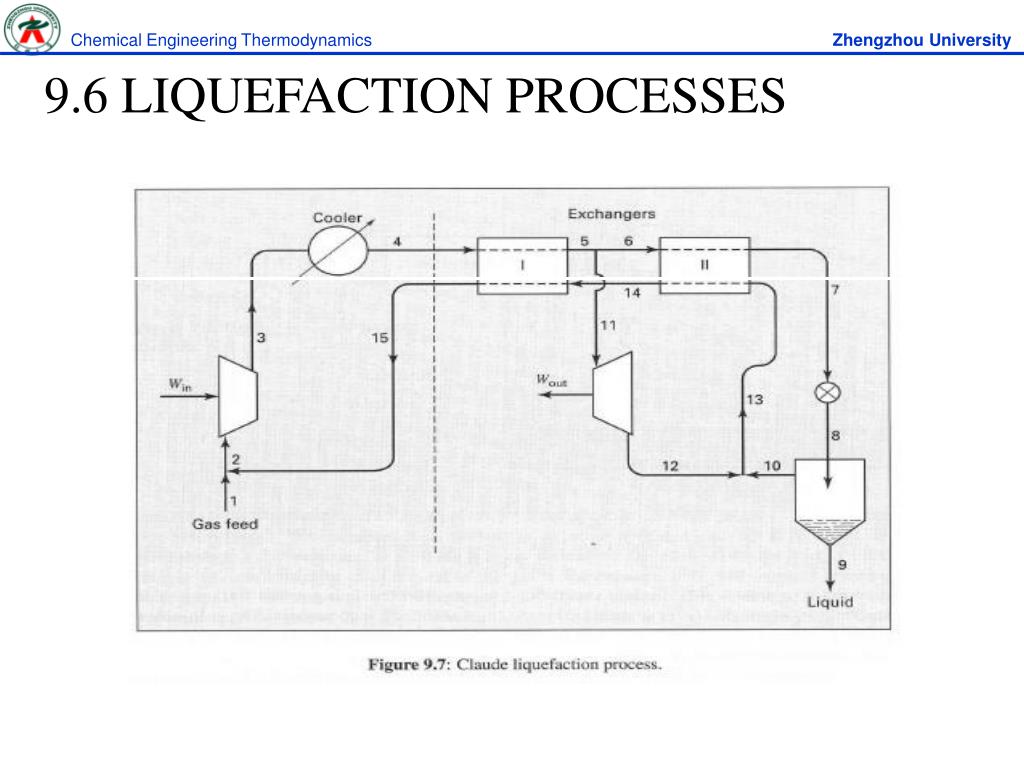

A more efficient liquefaction process would replace the throttle valve by an expander, but operating such a device into the two-phase region is impractical. However, the Claude process, shown in Figure 9.7, is based in part on this idea.


9 6 liquefaction processes9

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES


9 6 liquefaction processes10

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES

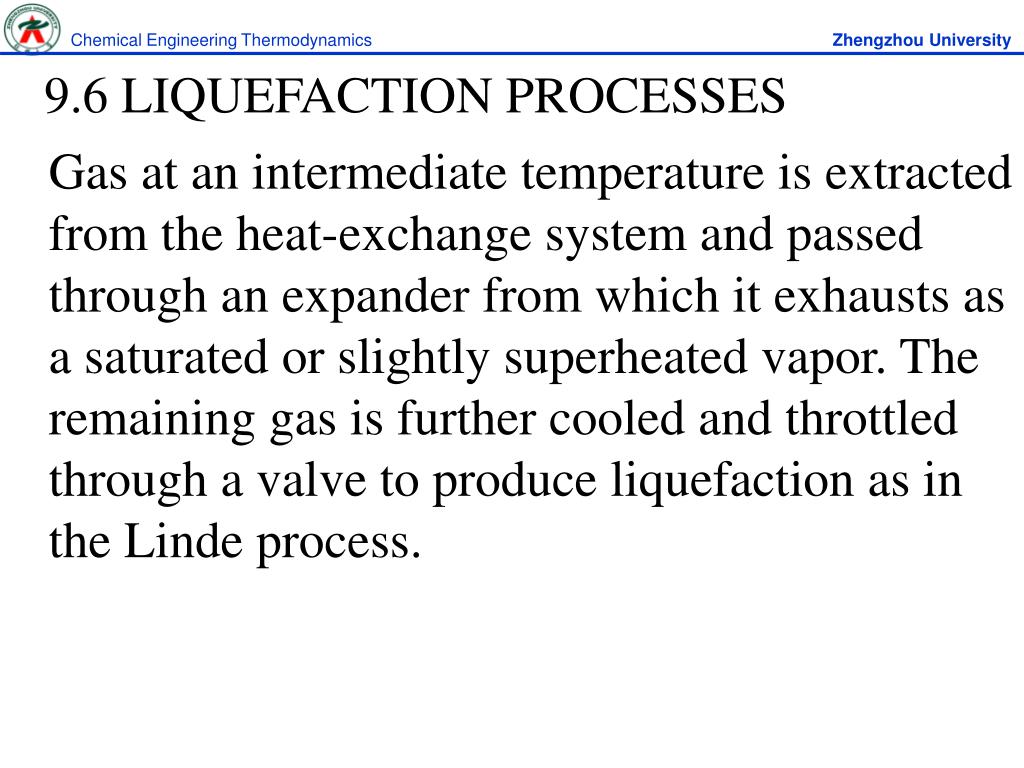

Gas at an intermediate temperature is extracted from the heat-exchange system and passed through an expander from which it exhausts as a saturated or slightly superheated vapor. The remaining gas is further cooled and throttled through a valve to produce liquefaction as in the Linde process.


9 6 liquefaction processes11

Chemical Engineering Thermodynamics Zhengzhou University

9.6 LIQUEFACTION PROCESSES

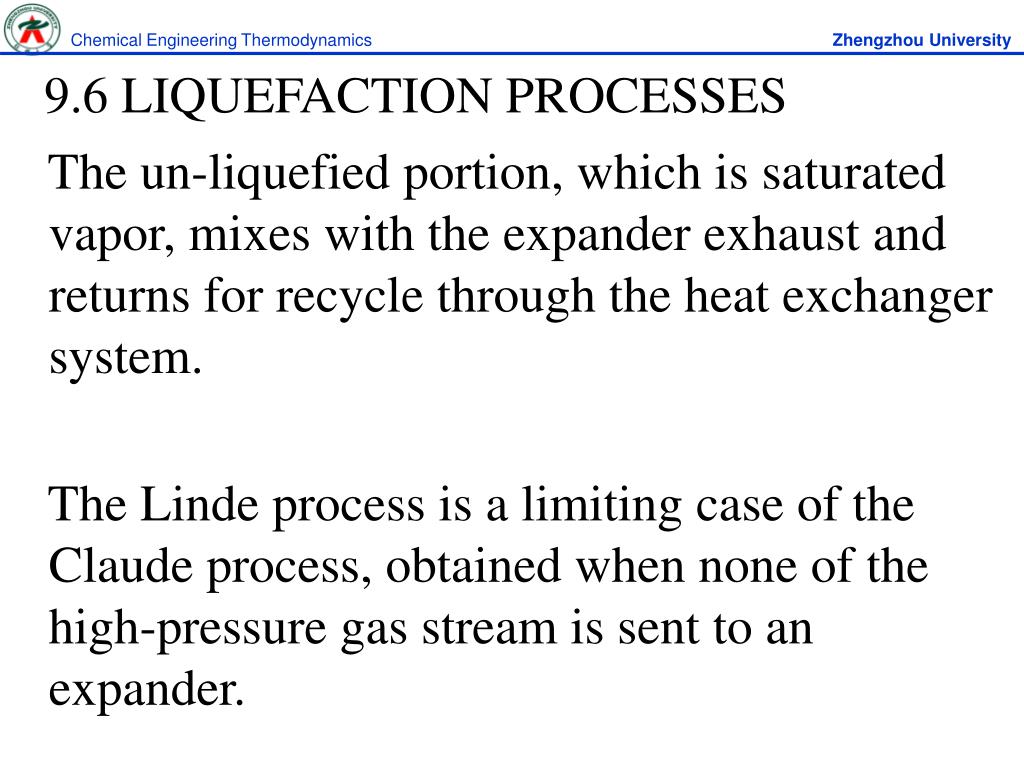

The un-liquefied portion, which is saturated vapor, mixes with the expander exhaust and returns for recycle through the heat exchanger system.

The Linde process is a limiting case of the Claude process, obtained when none of the high-pressure gas stream is sent to an expander.


Example problems

Chemical Engineering Thermodynamics Zhengzhou University

Example Problems

Example 9.3


4993276

Chemical Engineering Thermodynamics Zhengzhou University

This the end of the lecture

Thanks !
