Validation review muav 2

Validation ReviewMUAV 2

April 7th, 2004


The ece team
The ECE Team

  • Omer Idrees

  • Leighton Rowe

  • Swarit Rai

  • Stefan Forbes

  • Ali Albadwawi

  • Ali Alkhanbooli

  • Christopher Han

  • Fahad Alshehhi

  • Dwayne Codrington (CS)

  • Maria Fernandez

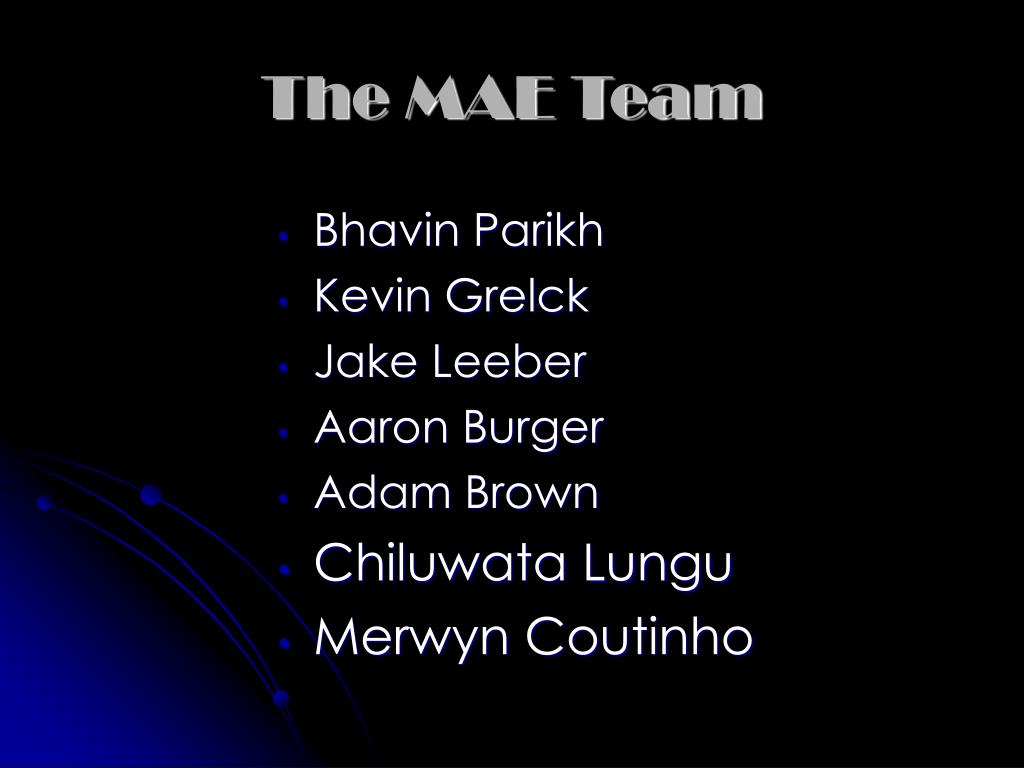

The mae team
The MAE Team

  • Bhavin Parikh

  • Kevin Grelck

  • Jake Leeber

  • Aaron Burger

  • Adam Brown

  • Chiluwata Lungu

  • Merwyn Coutinho


The muav2
The MUAV2

Aircraft with versatile control

Capabilities, relatively cheap, feasible,

and revolutionary in design.

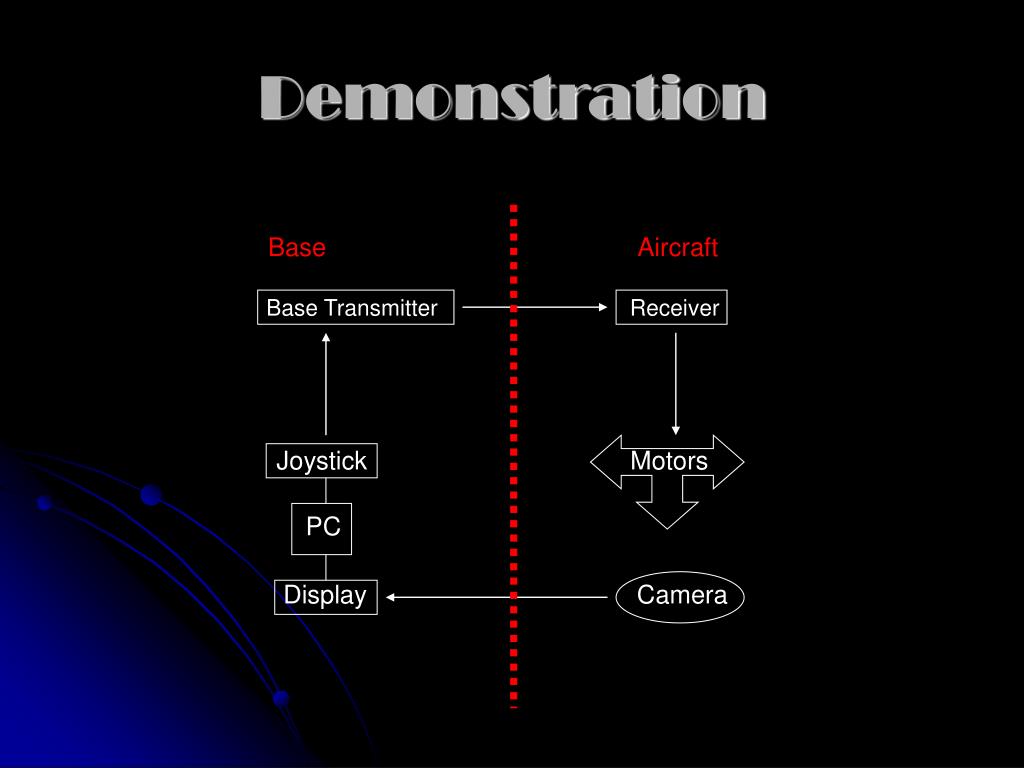

Demonstration
Demonstration

Base Aircraft

Base Transmitter Receiver

Joystick Motors

PC

Display Camera

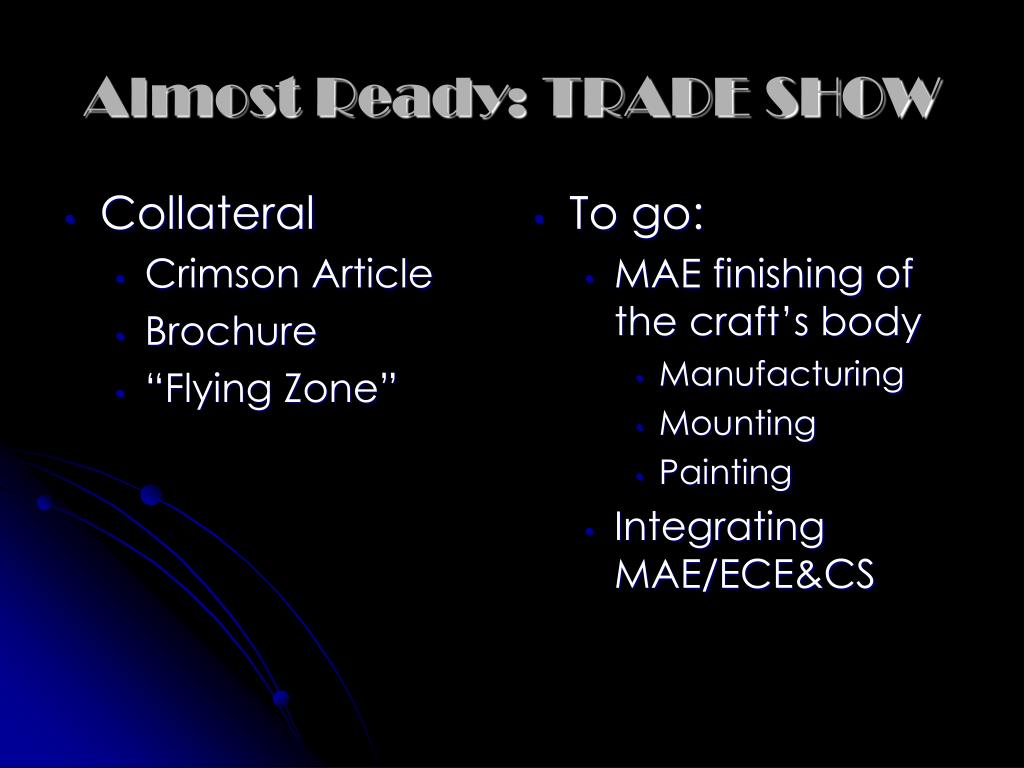

Almost ready trade show

Collateral

Crimson Article

Brochure

“Flying Zone”

To go:

MAE finishing of the craft’s body

Manufacturing

Mounting

Painting

Integrating MAE/ECE&CS

Almost Ready: TRADE SHOW


$tatu$

We under-worked our budget by 49 hours yielding an 88.8% of hours worked

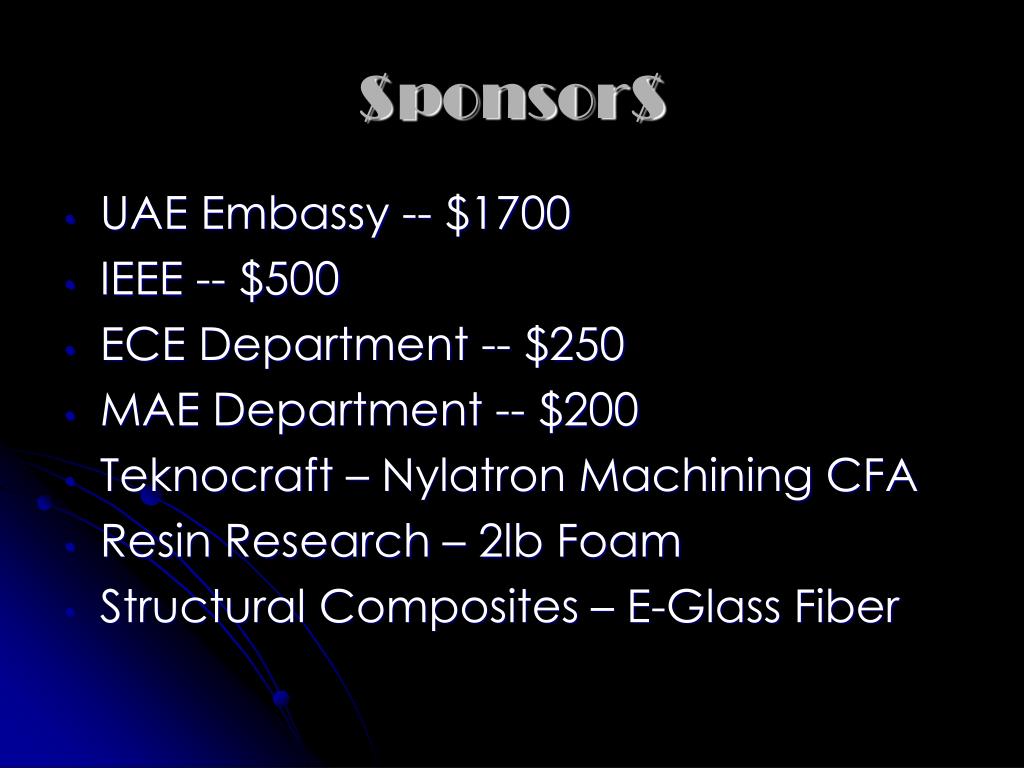

Ponsor
$ponsor$

  • UAE Embassy -- $1700

  • IEEE -- $500

  • ECE Department -- $250

  • MAE Department -- $200

  • Teknocraft – Nylatron Machining CFA

  • Resin Research – 2lb Foam

  • Structural Composites – E-Glass Fiber

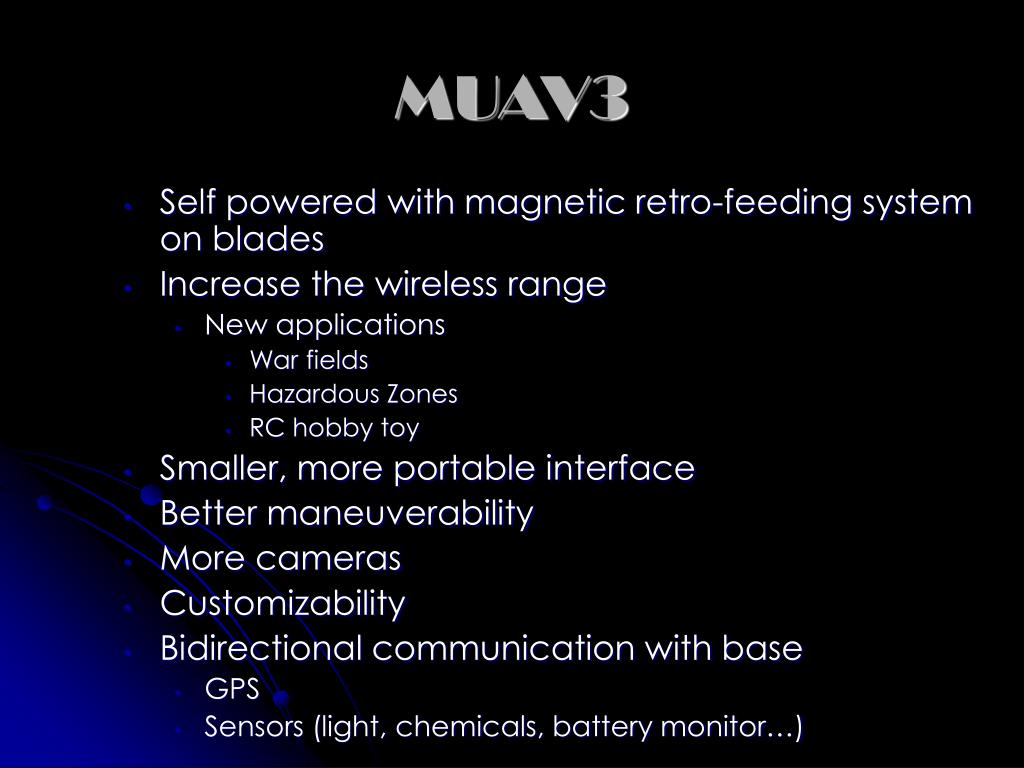

Muav3
MUAV3

  • Self powered with magnetic retro-feeding system on blades

  • Increase the wireless range

    • New applications

      • War fields

      • Hazardous Zones

      • RC hobby toy

  • Smaller, more portable interface

  • Better maneuverability

  • More cameras

  • Customizability

  • Bidirectional communication with base

    • GPS

    • Sensors (light, chemicals, battery monitor…)


Moral of the story
Moral of the Story

  • Qualification of members

  • CS are good at programming!!!!

  • Design for simpler, better, easier… but durable, reliable, and safe

  • Avoid Procrastination during Fall

  • Mechatronics is a good choice as an Elective

  • Team communication


?
