Resonance. Paul Tobin DIT. Series-tuned circuit. The Q- factor is a measure of SELECTIVITY. The - 3dB bandwidth, resonant frequency and Q- factor. The frequency response may be used to show the relationship between Q, f o and BW. Parallel tuned circuit. Parallel tuned circuit.

drea
Download Presentation

Resonance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Resonance Paul Tobin DIT Copyrigh Paul Tobin, School of Electronics and Communications Engineering

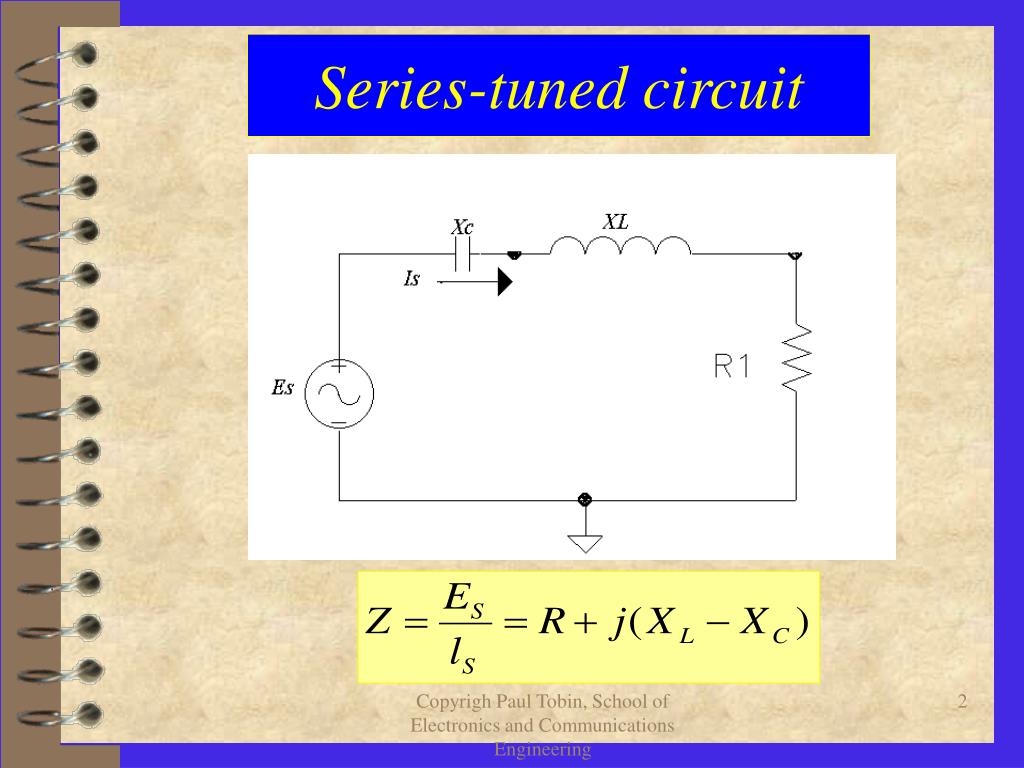

  2. Series-tuned circuit Copyrigh Paul Tobin, School of Electronics and Communications Engineering

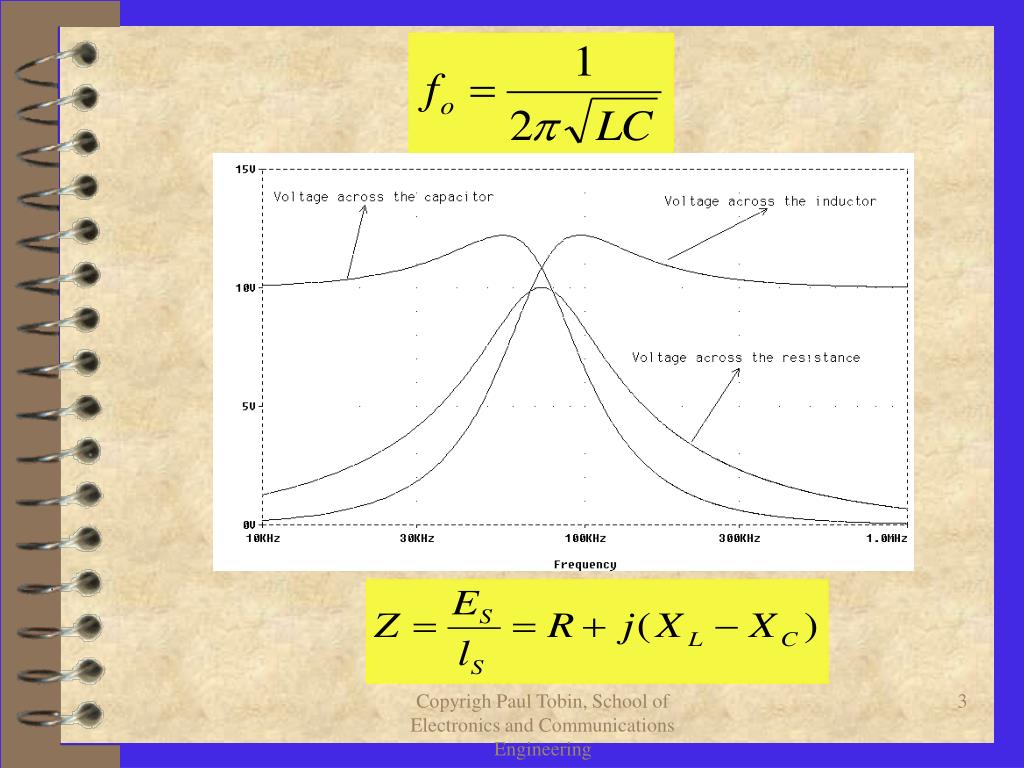

  3. Copyrigh Paul Tobin, School of Electronics and Communications Engineering

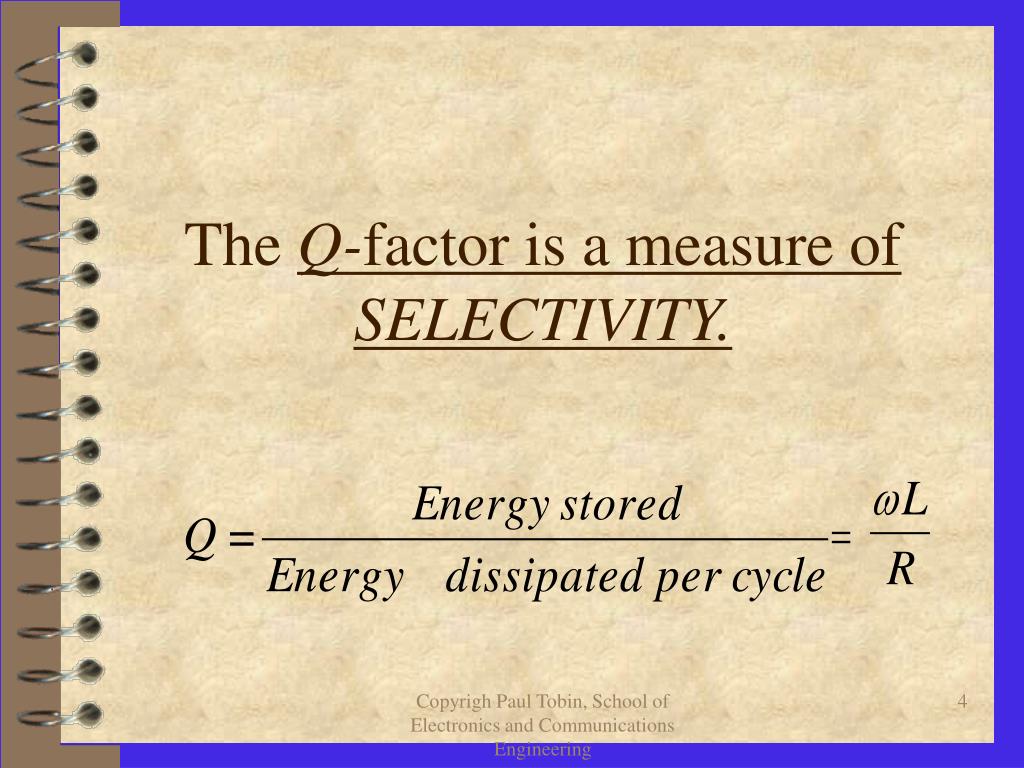

  4. The Q-factor is a measure of SELECTIVITY. Copyrigh Paul Tobin, School of Electronics and Communications Engineering

  5. Copyrigh Paul Tobin, School of Electronics and Communications Engineering

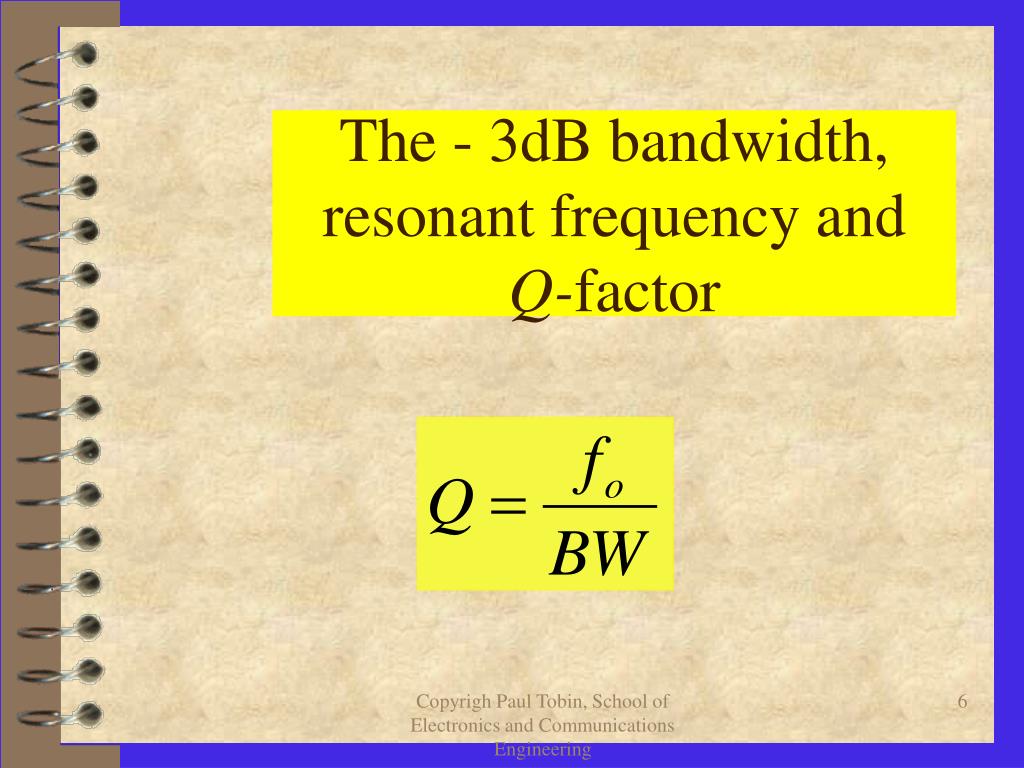

  6. The - 3dB bandwidth, resonant frequency and Q-factor Copyrigh Paul Tobin, School of Electronics and Communications Engineering

  7. The frequency response may be used to show the relationship between Q, fo and BW Copyrigh Paul Tobin, School of Electronics and Communications Engineering

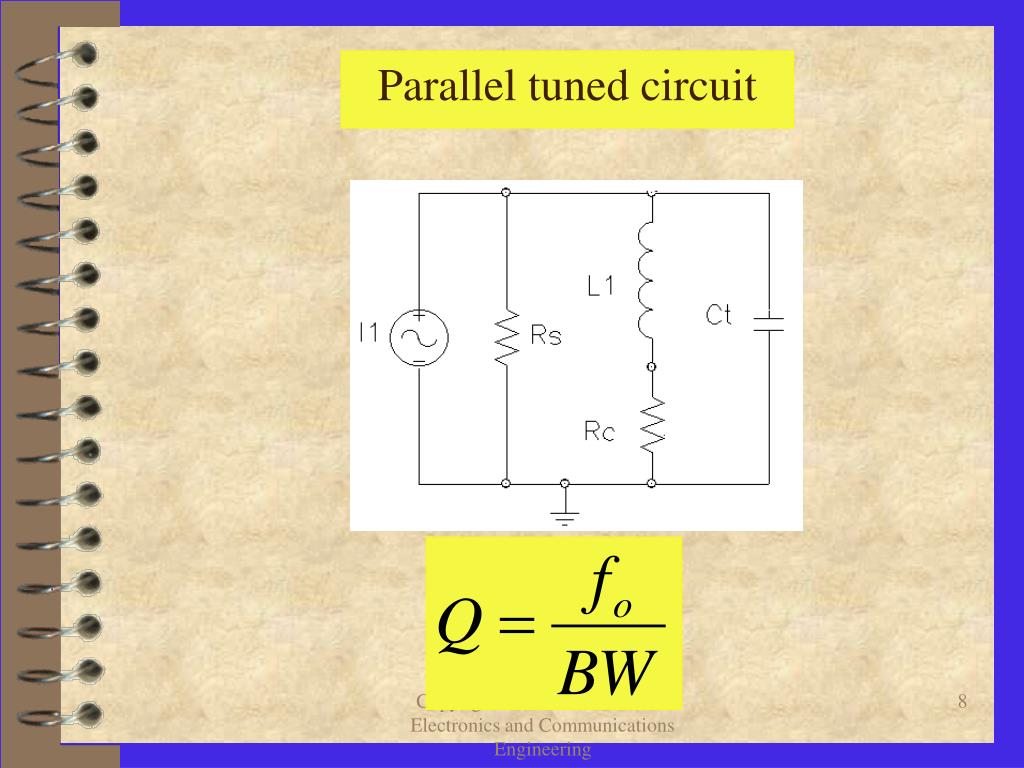

  8. Parallel tuned circuit Copyrigh Paul Tobin, School of Electronics and Communications Engineering

  9. Parallel tuned circuit Copyrigh Paul Tobin, School of Electronics and Communications Engineering

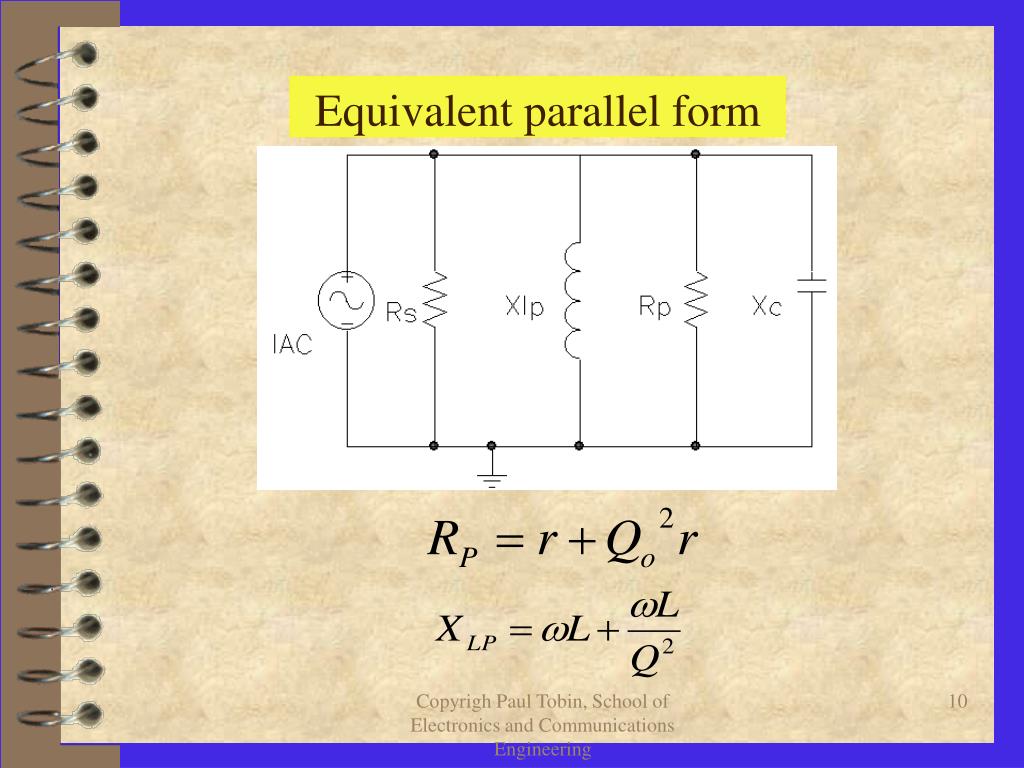

  10. Equivalent parallel form Copyrigh Paul Tobin, School of Electronics and Communications Engineering

  11. Rp is the dynamic impedance of the tuned circuit If the Q-factor is 10 or greater then Copyrigh Paul Tobin, School of Electronics and Communications Engineering

  12. Any extra resistance placed in parallel will reduce the Q-factor of the parallel tuned circuit and is hence called the loaded Q-factor. The equivalent parallel resistance of the tuned circuit Rd, is the dynamic impedance at fo. The Loaded Q-factor Any resistance, when added to a resonant circuit, will change the characteristics of that circuit Copyrigh Paul Tobin, School of Electronics and Communications Engineering

  13. R is the total loading The Loaded Q-factor Copyrigh Paul Tobin, School of Electronics and Communications Engineering

  14. The impedance of a tuned circuit Copyrigh Paul Tobin, School of Electronics and Communications Engineering
