Presentation Transcript
Plate tectonics l.jpg

Plate Tectonics

Chapter 8


What is plate tectonics l.jpg

Section 1

What Is Plate Tectonics?

  • Theory that describes the formation, movements, and interactions of Earth’s lithospheric plates.

    • Lithosphere is broken into large “plates” that move (“float”) on top of the asthenosphere.

      • 3 ways

        • Away from each other (divergent plate boundaries)

        • Toward each other (convergent plate boundaries)

        • Slide past each other (transform plate boundaries)


Early ideas about plate movements l.jpg
Early Ideas About Plate Movements

  • Have you ever noticed that the continents look like they would fit together like the pieces of a puzzle??? If you have, you’re not alone….

    • 1912 Alfred Wegener

      • hypothesis  continental drift

        • Continents have “drifted” over time

        • Observations to support hypothesis

          • Shape of continents

          • Fossils

            ~Mesosaurus

            *South America & Africa

          • Distinctive rock formations

          • Climate change evidence

            ~coal deposits

Continental Drift Video



The theory of plate tectonics l.jpg
The Theory of Plate Tectonics

  • Continents (and ocean basins) are part of lithospheric plates.

    • Plate movement = continent movement

  • Evidence/Explanations of many geologic processes

    • Location of volcanoes & earthquakes

    • Formation of new crust (ocean floor)


Locations of earthquakes volcanoes l.jpg
Locations of Earthquakes & Volcanoes

  • Occur in concentrated areas

    • Mark locations of plate boundaries

      • Where plates move apart, together, or past each other

        • Strain builds up  releases causing EQs

        • Molten rock rises  volcanic activity

      • Pacific Ocean

        • Ring of Fire

Plates & Volcanoes Video

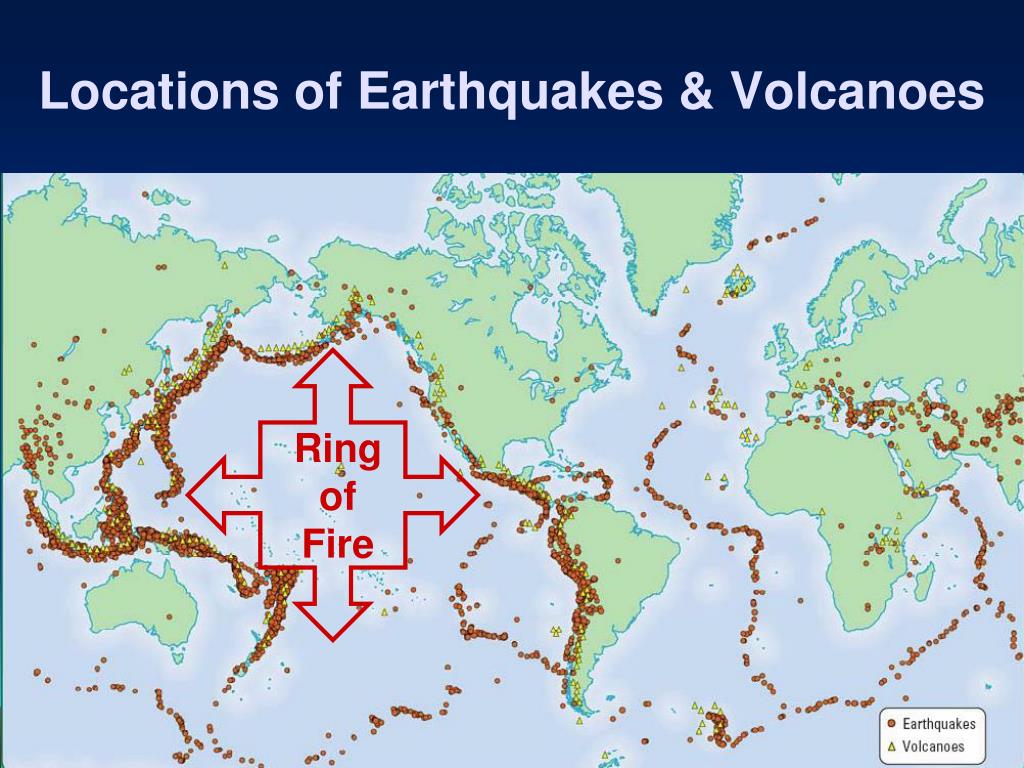

Locations of earthquakes volcanoes7 l.jpg

Ring

of

Fire

Locations of Earthquakes & Volcanoes


Magnetism the age of the ocean floor l.jpg
Magnetism & the Age of the Ocean Floor

  • Magnetic properties & ages of igneous rocks on the ocean floor provide evidence for theory of plate tectonics.

    • Some igneous rocks contain magnetic minerals.

      • Provide record of direction of Earth’s magnetic field when rock formed


Magnetism the age of the ocean floor9 l.jpg
Magnetism & the Age of the Ocean Floor

  • Records of Earth’s magnetic field

    • Some rocks recorded reversals in magnetic field

      • normal polarity

        • what we know today as N & S magnetic poles

      • reversed polarity

        • present N magnetic pole became the S magnetic pole

        • present S magnetic pole became the N magnetic pole

    • A # of magnetic reversals have taken place at different times over millions of years

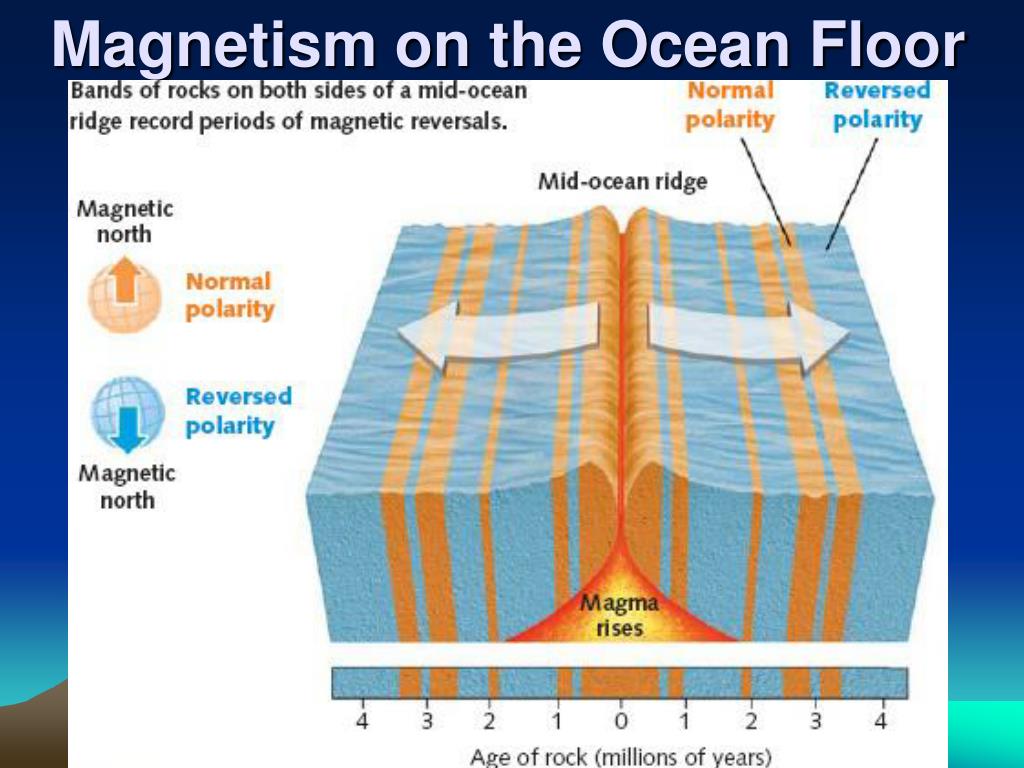

Magnetism the age of the ocean floor12 l.jpg
Magnetism & the Age of the Ocean Floor

  • Mid-ocean ridge: long chain of volcanic mountains on the ocean floor with a deep central valley

    • Magnetic reversals are recorded in bands of rock on opposite sides of the ridge

      • Mirror image

      • Center of ridge shows current orientation of Earth’s magnetic field (normal or reversed)

    • Rocks at center of ridge are youngest (most newly formed)

      • As move further from center rocks get older

Magnetic Polarity Recorded in Rocks Animation


Magnetism the age of the ocean floor13 l.jpg
Magnetism & the Age of the Ocean Floor

  • Mid-ocean ridges  boundaries between lithospheric plates

    • New rock along ridge is formed by hot, molten rock which rises up between the plates (because it is less dense)

      • As new rock forms plates spread

        • Older rocks pushed away from ridge (both sides)

      • Rock at center of ridge hottest

        • Temperature decreases as move out from center


Slide14 l.jpg

  • HW

    • Read pgs 172-175

      • Answer #s 1, 2, 3


Types of plate boundaries l.jpg

Section 2

Types of Plate Boundaries

  • Earth’s lithosphere is broken in to large plates

    • move in 3 ways

      • Divergent plate boundaries

      • Convergent plate boundaries

      • Transform plate boundaries


Divergent boundaries l.jpg

Plates move apart

Sometimes called spreading centers

Most are along ocean floor

Creates mid-ocean ridge

Divergent Boundaries


Divergent boundaries17 l.jpg
Divergent Boundaries

  • Rift valley

    • Center of mid-ocean ridge

    • Border between 2 diverging plates

      • Sea-floor spreading  molten rock forces through cracks (rifts) in valley

        • Oceanic crust forms as rock cools

          • older crust moves away from mid-ocean ridge as the new crust is formed


Divergent boundaries18 l.jpg
Divergent Boundaries

  • Rift valley (continued)

    • Broken into sections

      • offset from each other by breaks (fracture zones)

        • Perpendicular (right angle) to ridge

        • Source of earthquakes at mid-ocean ridges

Divergent Plate Boundary Animation


Mid ocean ridges l.jpg

Mid-Atlantic Ridge

East Pacific Rise

Mid-Ocean Ridges


Convergent boundaries l.jpg
Convergent Boundaries

  • 2 plates move towards each other

  • 2 broad classifications

    • Subduction boundaries

    • Collision boundaries

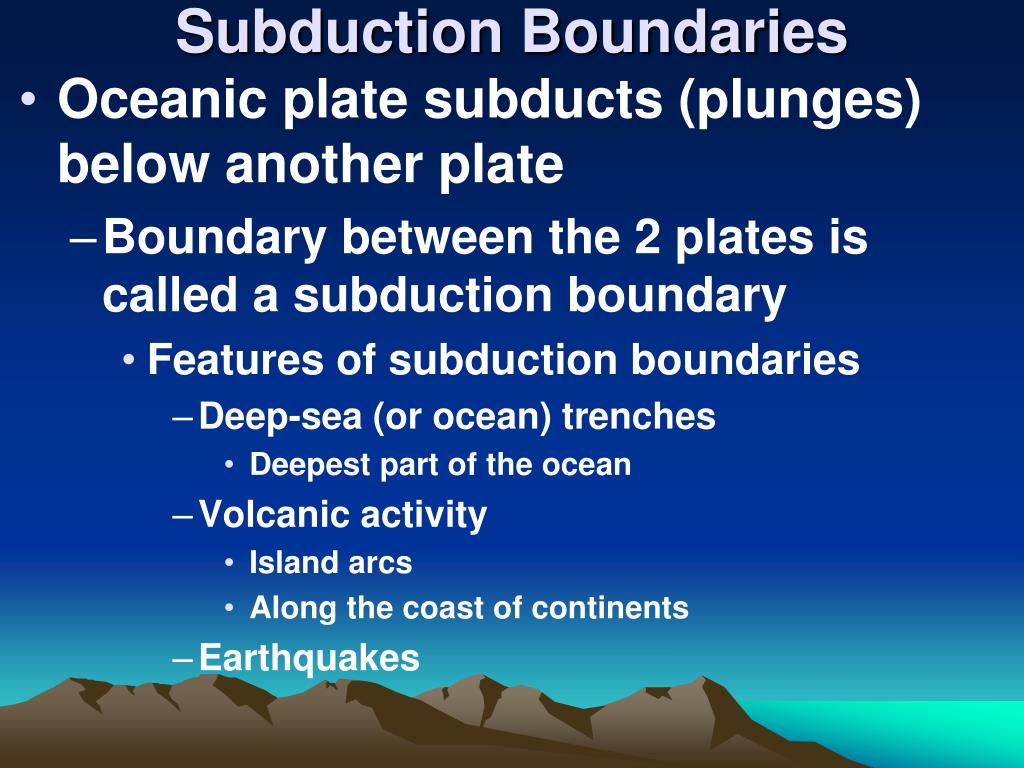

Subduction boundaries l.jpg
Subduction Boundaries

  • Oceanic plate subducts (plunges) below another plate

    • Boundary between the 2 plates is called a subduction boundary

      • Features of subduction boundaries

        • Deep-sea (or ocean) trenches

          • Deepest part of the ocean

        • Volcanic activity

          • Island arcs

          • Along the coast of continents

        • Earthquakes

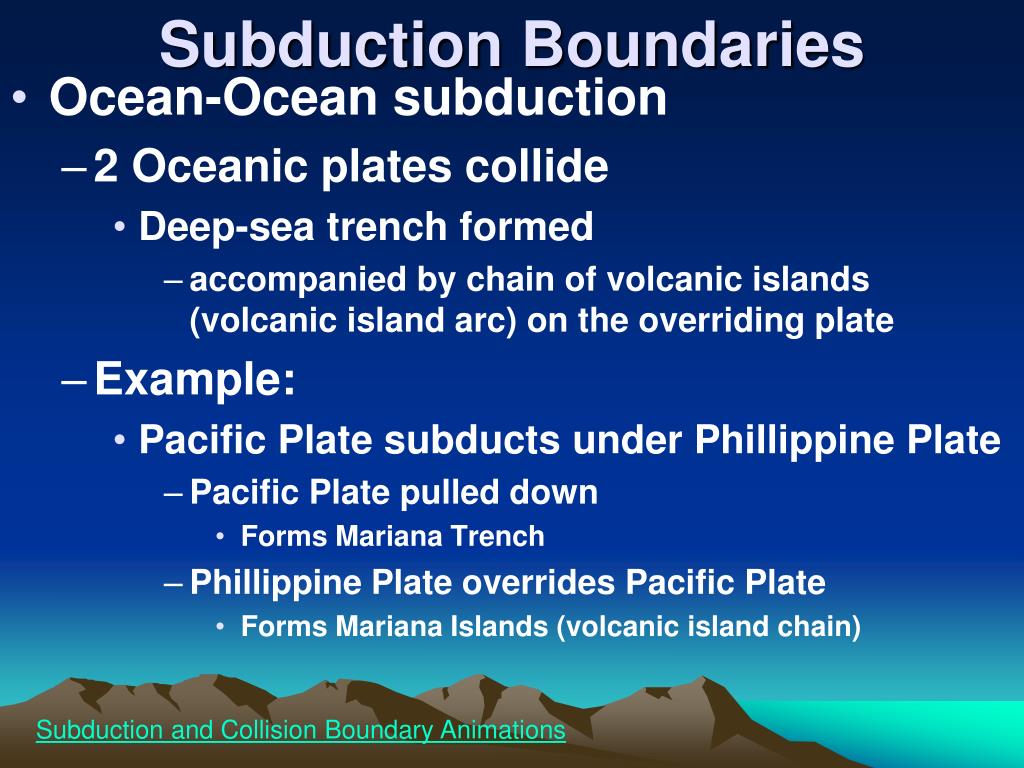

Subduction boundaries22 l.jpg
Subduction Boundaries

  • Ocean-Ocean subduction

    • 2 Oceanic plates collide

      • Deep-sea trench formed

        • accompanied by chain of volcanic islands (volcanic island arc) on the overriding plate

    • Example:

      • Pacific Plate subducts under Phillippine Plate

        • Pacific Plate pulled down

          • Forms Mariana Trench

        • Phillippine Plate overrides Pacific Plate

          • Forms Mariana Islands (volcanic island chain)

Subduction and Collision Boundary Animations



Ocean continent subduction boundary l.jpg
Ocean-Continent Subduction Boundary

  • Ocean-Continent Subduction

    • The denser oceanic plate subducts below the less-dense continental plate

      • Ocean trenches form.

      • Volcanoes & mountains are formed on the continental plate.

    • Example:

      • Nazca Plate (off west coast of S. America) subducts under the South American Plate

        • Nazca Plate pulled down

          • Forms Peru-Chile Trench

        • South American Plate overrides Nazca Plate

          • Forms Andes Mountains and volcanoes (along western edge of S. America)

Subduction and Collision Boundary Animations

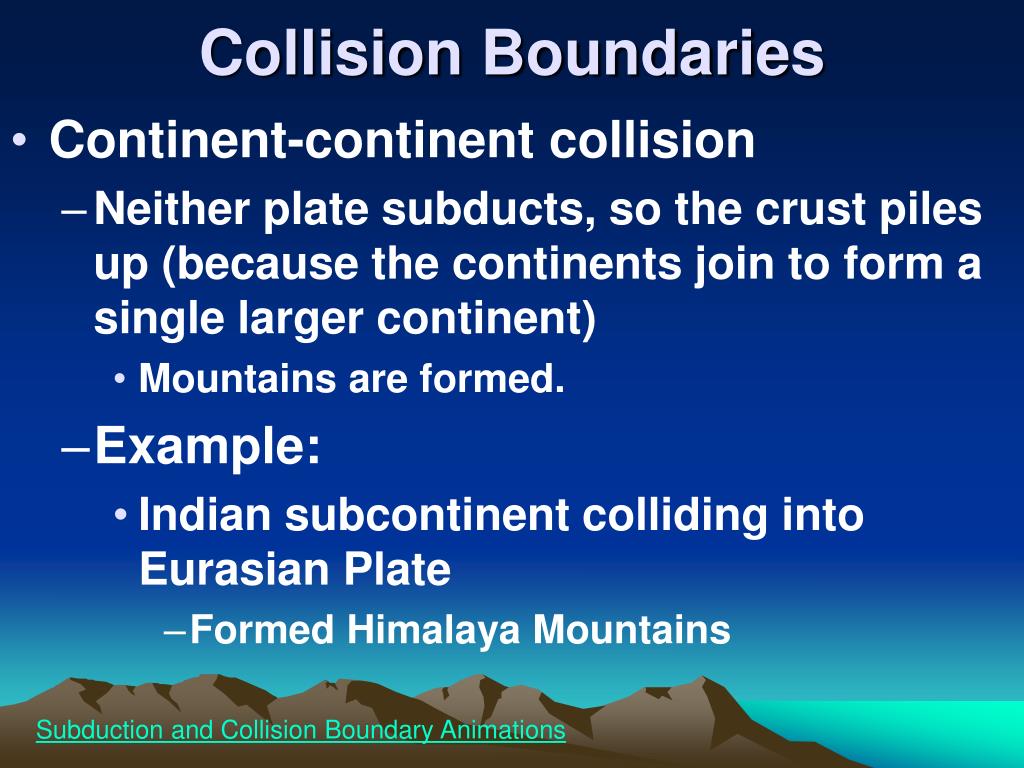

Collision boundaries l.jpg
Collision Boundaries

  • Continent-continent collision

    • Neither plate subducts, so the crust piles up (because the continents join to form a single larger continent)

      • Mountains are formed.

    • Example:

      • Indian subcontinent colliding into Eurasian Plate

        • Formed Himalaya Mountains

Subduction and Collision Boundary Animations

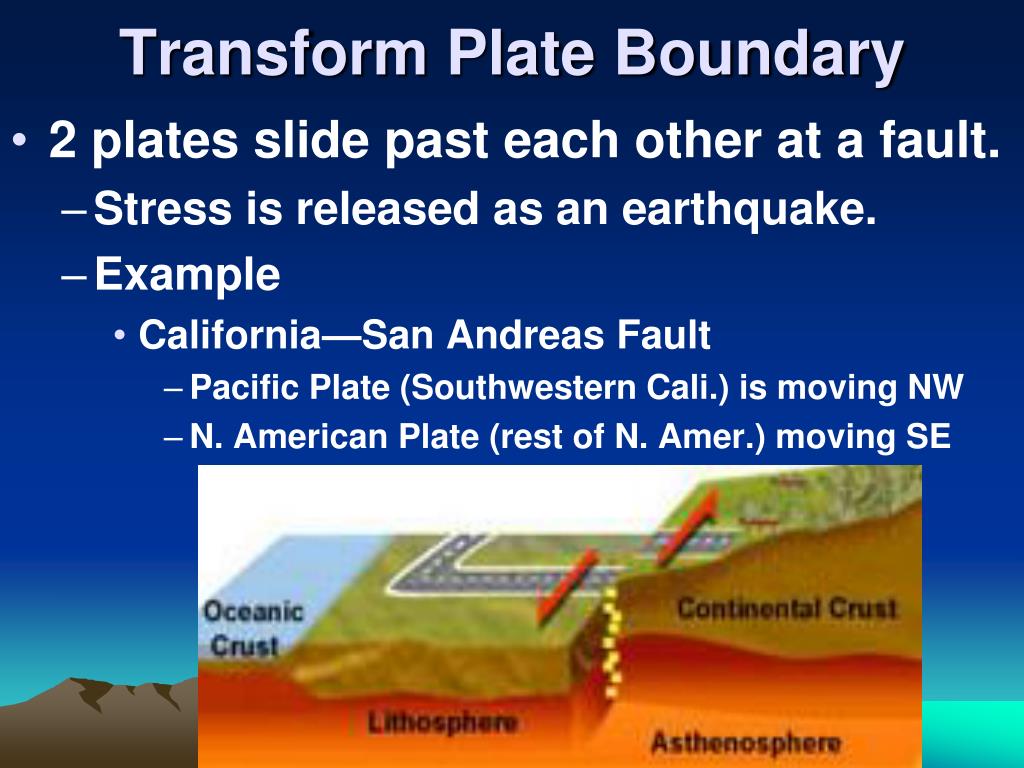

Transform plate boundary l.jpg
Transform Plate Boundary

  • 2 plates slide past each other at a fault.

    • Stress is released as an earthquake.

    • Example

      • California—San Andreas Fault

        • Pacific Plate (Southwestern Cali.) is moving NW

        • N. American Plate (rest of N. Amer.) moving SE


Transform plate boundary29 l.jpg
Transform Plate Boundary

Transform Boundary--San Andreas Fault Animation

N


Slide30 l.jpg

  • HW

    • Read pgs 176-179

      • Answer #s 1, 2, 3, 4, 6


Causes of plate movement ch 8 3 l.jpg
Causes Of Plate Movement Ch. 8.3

Convection cells (caused by density differences) in the asthenosphere (mantle) cause hot material to rise, move outward (pushing the plates/ridge push),& sink as the material cools (pulling plates down/slab pull).

Convection in the Mantle Animation



Slide33 l.jpg

  • HW

    • Read pgs 180-181

      • Answer # 1


Plate movements continental growth sec 4 l.jpg
Plate Movements & Continental GrowthSec 4

  • Reconstructing the Past

    • Many different kinds of evidence give clues as to what Earth looked like in the past

      • Rocks in Ural & Appalachian Mountain

        • evidence of past subduction  formed at convergent boundary, but neither mountain range is located near a plate boundary today

      • Ages of rocks that form in ocean basins

        • Magnetic record of igneous rocks

          • Can reveal latitude of formation

      • Fossils

        • Organisms that lived in shallow seas  fossils found on high mountaintops

      • Rocks that show evidence of having been covered by glaciers, but now are in tropical areas


Plate movements continental growth l.jpg
Plate Movements & Continental Growth

  • Plate Tectonics & Pangaea

    • Evidence suggests 250 million years ago (mya) that all the continents were welded together into one land mass  Pangaea


Plate movements continental growth36 l.jpg
Plate Movements & Continental Growth

  • Formation of Pangaea

    • Use data from continents to make models of what Earth may have looked like before Pangaea

      • A large continental mass stretched between the south pole & the equator  Gondwana

        • made of smaller landmasses (S. America, southern Europe, Africa, the Near East, India, Australia, New Zealand, & Antarctica)

      • Other small landmasses ranged across the globe

      • Gondwana moved northward and converged w/ the other landmasses to form Pangaea

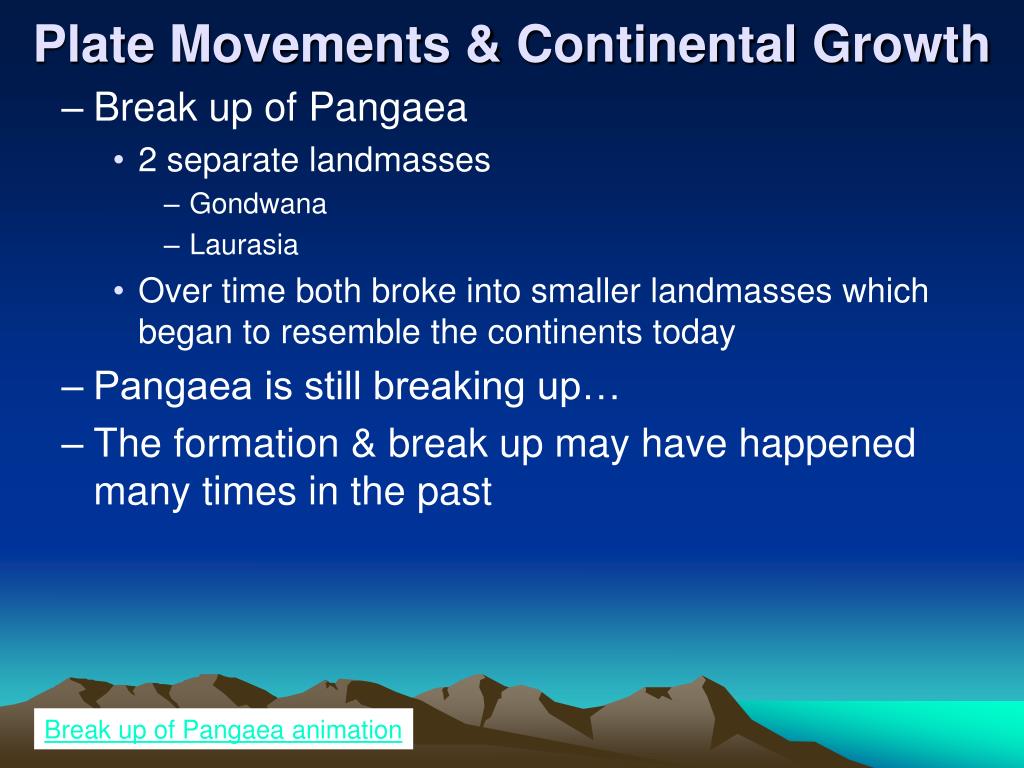

Plate movements continental growth37 l.jpg
Plate Movements & Continental Growth

  • Break up of Pangaea

    • 2 separate landmasses

      • Gondwana

      • Laurasia

    • Over time both broke into smaller landmasses which began to resemble the continents today

  • Pangaea is still breaking up…

  • The formation & break up may have happened many times in the past

Break up of Pangaea animation


Plate movements continental growth39 l.jpg
Plate Movements & Continental Growth

  • Plate Tectonics & Continental Growth

    • P.T. affects shape of continents as well as position

      • Added rock materials to the margins of ancient continent cores (cratons)

    • ~2.5 billion years ago (bya) core continental material stabilized

      • Ex. North American craton

        • at surface in most of eastern Canada  Canadian Shield

          • Some of the oldest rock material (~4 billion years old)

        • Rest of the craton is buried under a platform of sediments

        • Remainder of the continent is material added to the craton


Plate movements continental growth41 l.jpg
Plate Movements & Continental Growth

  • Sources of Growth Material

    • Deep-sea sediments

      • Added when an oceanic plate plunges under a continental plate at a subduction boundary

        • Sediments from ocean floor scraped off & left behind on edge of continent

    • Igneous Rock

      • Magma rises beneath surface & cools  pluton

      • Volcanoes at subduction boundaries add to edges

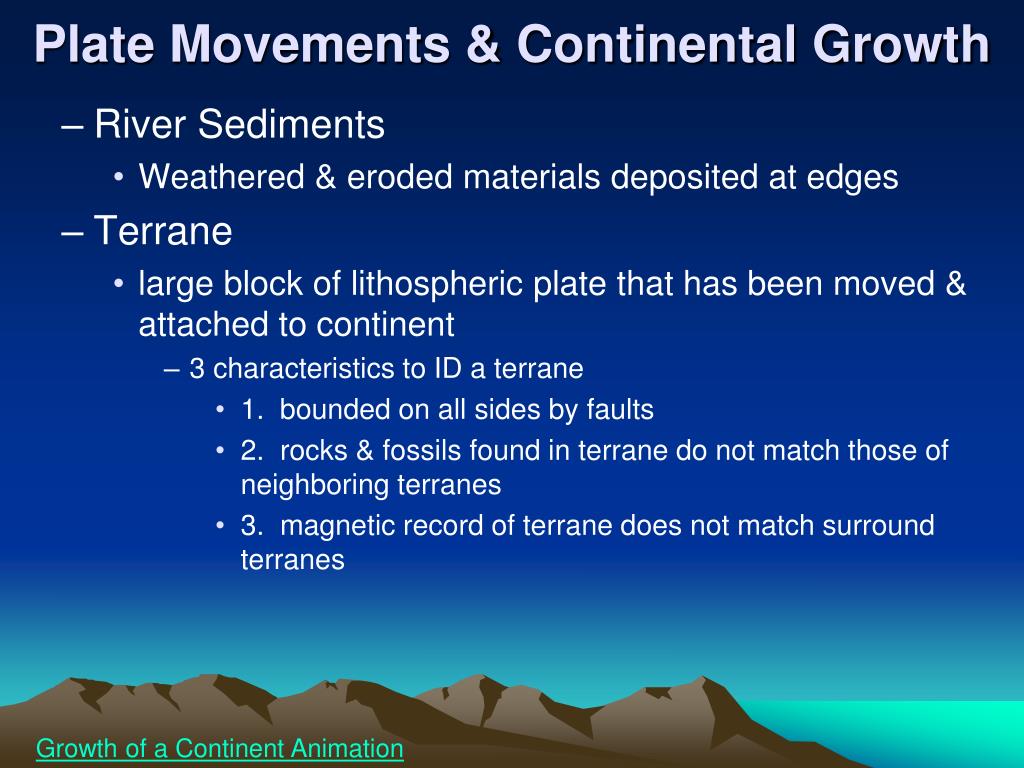

Plate movements continental growth42 l.jpg
Plate Movements & Continental Growth

  • River Sediments

    • Weathered & eroded materials deposited at edges

  • Terrane

    • large block of lithospheric plate that has been moved & attached to continent

      • 3 characteristics to ID a terrane

        • 1. bounded on all sides by faults

        • 2. rocks & fossils found in terrane do not match those of neighboring terranes

        • 3. magnetic record of terrane does not match surround terranes

Growth of a Continent Animation

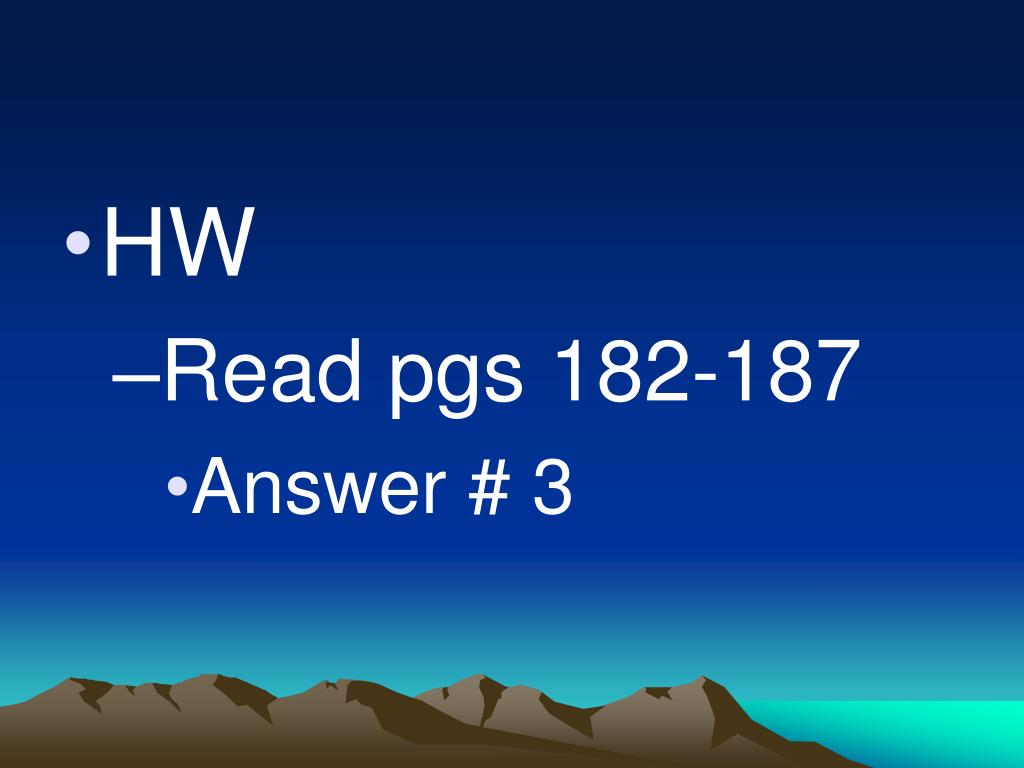

Slide43 l.jpg

  • HW

    • Read pgs 182-187

      • Answer # 3
