  1. ATM Surveillance Solution

  2. Outline & Key Point 1 Solution 1, 2, 3 2 ATM Surveillance Program – E-MAP 3 3 4 4 Conclusion LIST

  3. Outline STRENGTH OF ATM DVR for Market • Applying Increase adoption of ATM machine standard of Global Banking • – ” ATM Journal Text emulating video Technology”, “RAID”, “Network control”, “ Channel s witching”, “Alarm/Sensor” function supported. Meet the ATM standard of North America, South America, Europe, Asia such as Singapore, Indonesia etc. • Compatible with Diebold / NCR / Wincor / Omron etc ATM in the bank • Decline gradually usage of printer machine through ATM to record customer information on roll-paper for the security • Most of Bank and Financial Companies reinforce own security system gradually • - Obtain own security department to manage ATM, and are supported by local police station without private security company for ATM managing • Network Security ATM System- Using network technology, ATM needs remote control system • Vitalization of digital data market • - Transferring analogue data to digital device for recording and be able to storage data with video record from using ATM digitally because of improving technology interface between digital equipments • Support to storage, search, prove, compare, and analyze digital data with video image in both local and remote place when manage ATM • ATM security enhancement - Easy confirmation of security issue with video/data right away

  4. Key Point 1 Connect ATM and DVR = 24hr Real-time surveillance system to record personal banking information with Video & Text • Evidence Data with Video & Text • DVR records video data and ATM user’s banking information with digital text, then whenever ATM security issue is happened, ATM DVR can be used as the evidence data • Smart Searching System • Easy to find video data with keywords in case of need such as usage of stolen bank card, illegality of ATM user, occurrence of error during usage of ATM and so on. • ※ Compare with video data and user’s banking information (face of criminal) • Compatible with Diebold / NCR / Wincor / Omron etc ATM in the bank • ATM DVR have already obtained technology and skills to compatible with almost all kinds of ATM in the bank

  5. Key Point 2 Prevention of ATM Crime through DVR VideoOverlap : Cost Effective SMART Solution For ATM Crime Prevention ATM Data Smart SearchFunction Compact size & Easy Install CCTV system Interlocking security program & banking machinery control system

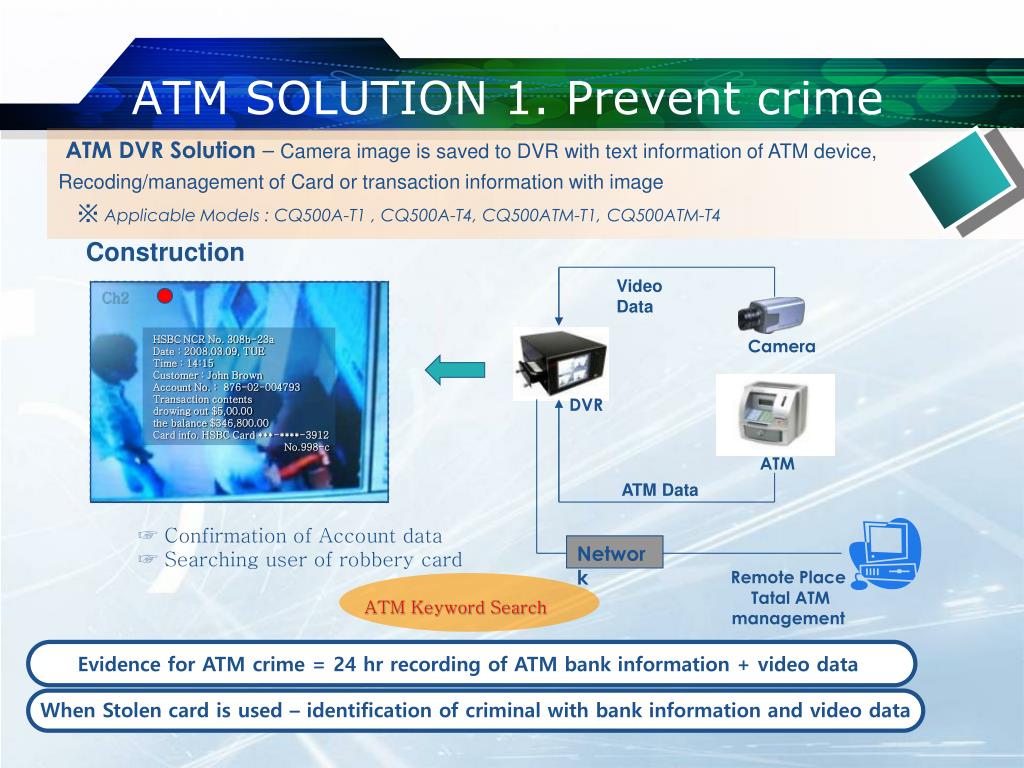

  6. ATM Keyword Search ATM SOLUTION 1. Prevent crime ATM DVR Solution–Camera image is saved to DVR with text information of ATM device, Recoding/management of Card or transaction information with image ※ Applicable Models: CQ500A-T1 , CQ500A-T4, CQ500ATM-T1, CQ500ATM-T4 Construction Video Data Ch2 HSBC NCR No. 308b-23a Date : 2008.03.09, TUE Time : 14:15 Customer : John Brown Account No. : 876-02-004793 Transaction contentsdrowing out $5,00.00 the balance$346,800.00 Card info. HSBC Card ***-****-3912 No.998-c Camera DVR ATM ATM Data ☞ Confirmation of Account data ☞ Searching user of robbery card Network Remote Place Tatal ATM management Evidence for ATM crime = 24 hr recording of ATM bank information + video data When Stolen card is used – identification of criminal with bank information and video data

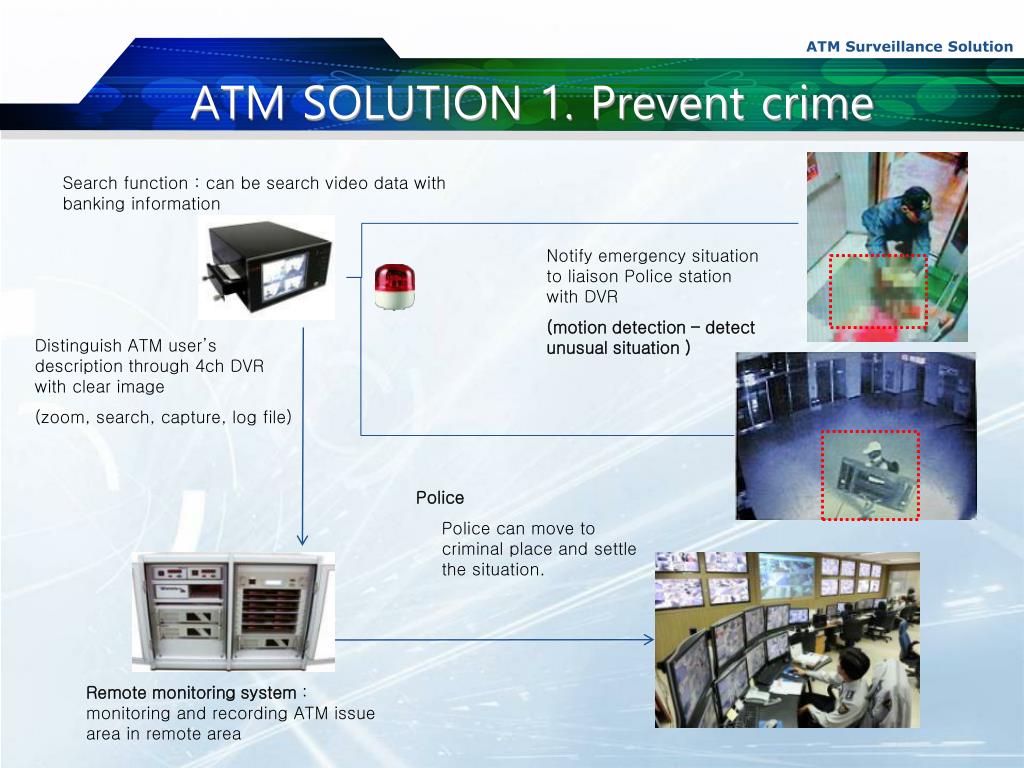

  7. ATM SOLUTION 1. Prevent crime Search function : can be search video data with banking information Notify emergency situation to liaison Police station with DVR (motion detection – detect unusual situation ) Distinguish ATM user’s description through 4ch DVR with clear image (zoom, search, capture, log file) Police Police can move to criminal place and settle the situation. Remote monitoring system : monitoring and recording ATM issue area in remote area

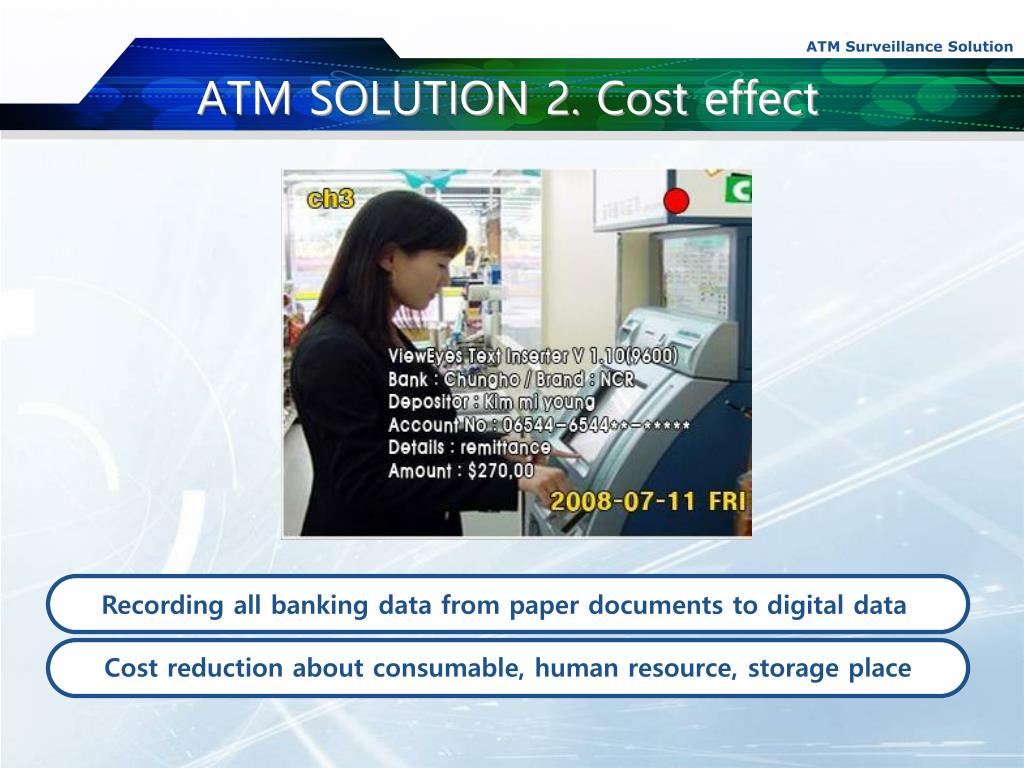

  8. ATM SOLUTION 2. Cost effect Recording all banking data from paper documents to digital data Cost reduction about consumable, human resource, storage place

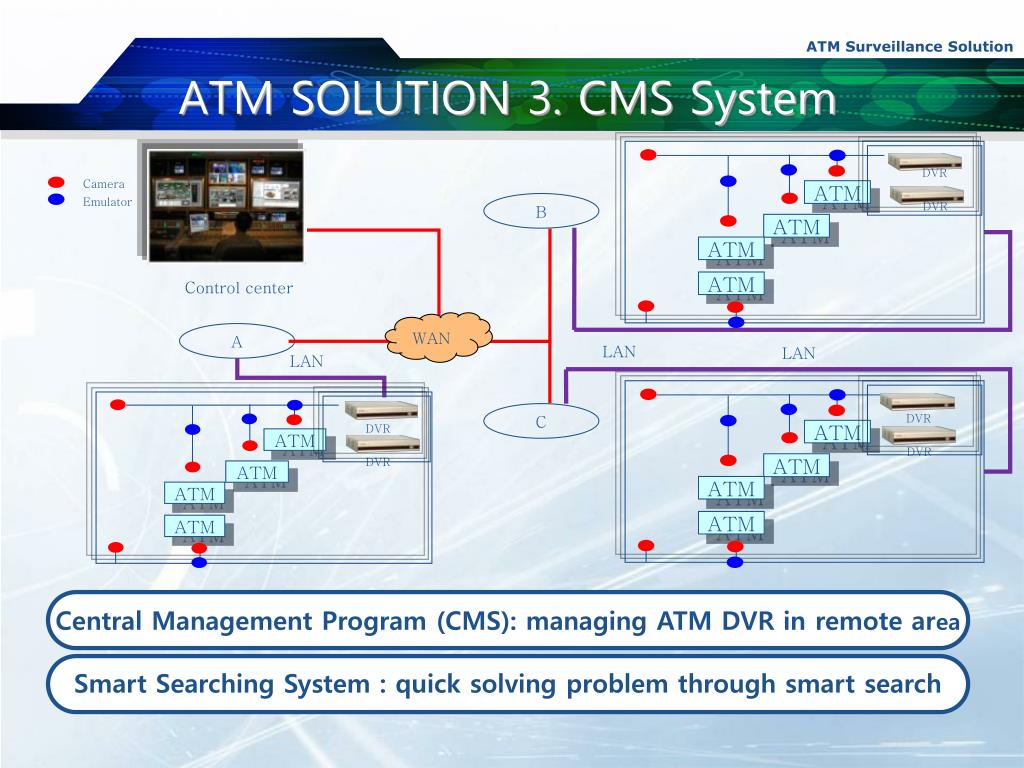

  9. DVR DVR ATM ATM ATM ATM ATM SOLUTION 3. CMS System Camera ATM Emulator B ATM ATM Control center ATM WAN A LAN LAN LAN DVR DVR DVR DVR C ATM ATM Central Management Program (CMS): managing ATM DVR in remote area ATM ATM Smart Searching System : quick solving problem through smart search

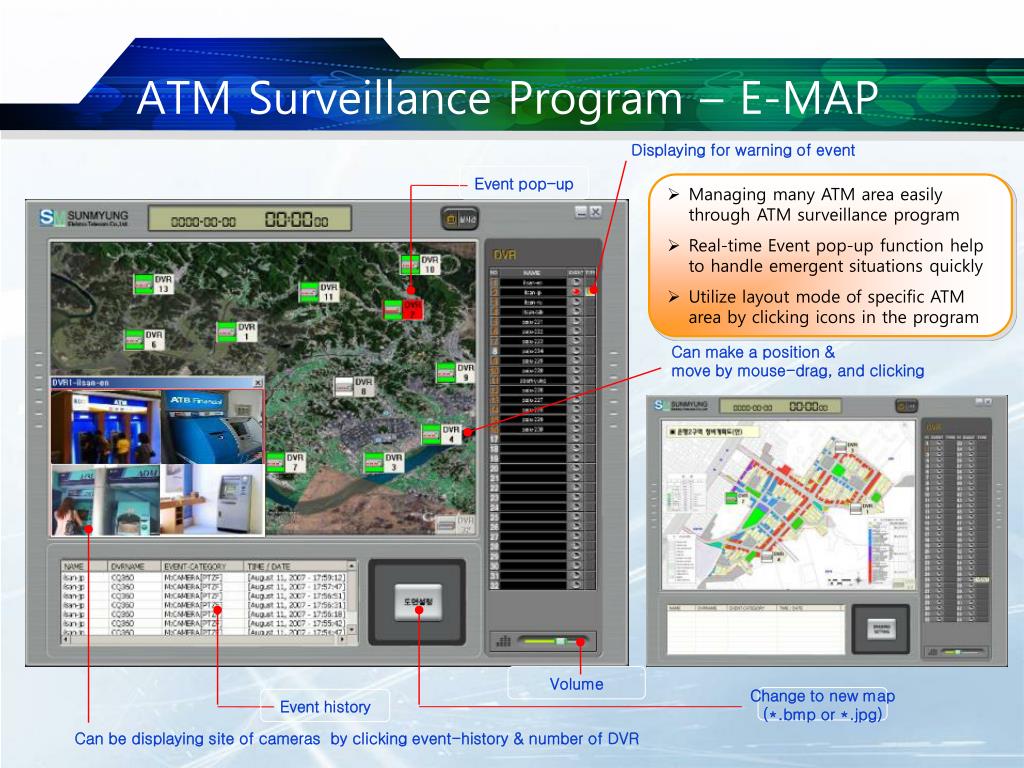

  10. ATM Surveillance Program – E-MAP Displaying for warning of event Event pop-up • Managing many ATM area easily through ATM surveillance program • Real-time Event pop-up function help to handle emergent situations quickly • Utilize layout mode of specific ATM area by clicking icons in the program Can make a position & move by mouse-drag, and clicking Volume Change to new map (*.bmp or *.jpg) Event history Can be displaying site of cameras by clicking event-history & number of DVR

  11. Concltution Ideal System of ATM Surveillance ATM Surveillance Solution Central Management System Effective Criminal Chase Verified Technical Skill Cost Effective
